The 10/3 Romex NM-B cable with ground is a critical component in residential electrical systems that require higher current capacity and multiple conductors within a single cable assembly....
The 10/3 Romex NM-B cable with ground is a critical component in residential electrical systems that require higher current capacity and multiple conductors within a single cable assembly. Most commonly used for electric ranges, cooktops, dryers, and residential subpanels, this cable is engineered to deliver safe, reliable power for demanding indoor applications.
Selecting the correct cable is not simply a matter of matching wire size—it directly affects system safety, performance, and code compliance. Using an undersized or incorrect cable can result in overheating, nuisance breaker trips, or failed inspections. When installed correctly, 10/3 Romex NM-B cable with ground provides a robust, code-compliant solution for high-load residential circuits.
This comprehensive guide explains what 10/3 Romex NM-B cable is, where it should be used, how to install it properly, and how to remain fully compliant with UL and National Electrical Code (NEC) requirements.
What Is 10/3 Romex NM-B Cable with Ground?
10/3 Romex NM-B cable with ground is a non-metallic sheathed electrical cable that contains three insulated copper conductors—typically black, red, and white—plus a bare copper grounding conductor. The “10” refers to the American Wire Gauge (AWG) size of the conductors, while the “3” indicates the number of insulated conductors inside the cable.
This configuration allows the cable to carry two hot legs and one neutral conductor, along with a dedicated equipment grounding conductor, making it suitable for 240-volt and multi-wire residential applications.
Understanding the NM-B Cable Designation
NM-B stands for Non-Metallic Building Wire. NM-B cable is specifically designed for residential indoor installations and features thermoplastic insulation rated for modern temperature requirements.
- Designed for dry, indoor locations only
- Multiple insulated conductors in a single sheath
- Commonly used in residential wood-frame construction
Technical Specifications of 10/3 Romex NM-B Cable
Understanding the technical specifications of 10/3 Romex NM-B cable with ground ensures it is applied correctly and safely in residential electrical systems.
| Specification | Details |
|---|---|
| Cable Type | NM-B (Non-Metallic Building Cable) |
| Conductor Size | 10 AWG |
| Number of Conductors | 3 Insulated + 1 Bare Ground |
| Conductor Material | Solid Copper |
| Voltage Rating | 600 Volts |
| Typical Circuit Rating | 30 Amps (per NEC residential use) |
Common Applications of 10/3 Romex NM-B Cable with Ground
The 10/3 Romex NM-B cable with ground is used in residential electrical systems that require higher amperage and multiple conductors within a single cable run.
Residential Electrical Applications
- Electric ranges and cooktops
- Electric dryers (when specified by manufacturer)
- Wall ovens and combination appliances
- Residential subpanel feeder circuits
Limited Commercial and Specialty Uses
- Residential-style equipment in mixed-use buildings
- Indoor workshop and utility circuits
- Specialty appliances requiring 240-volt service
Why 10/3 NM-B Cable Is Required for Certain Circuits
Some residential appliances require both higher amperage and multiple conductors to operate safely. The 10 AWG conductors in 10/3 NM-B cable provide the necessary current-carrying capacity, while the additional insulated conductor allows for proper neutral return where required.
Using a smaller gauge cable for these applications can lead to excessive heat buildup, voltage drop, and long-term damage to equipment. Selecting the correct cable size is essential for both safety and performance.
Installation Guidelines for 10/3 Romex NM-B Cable
Proper installation is critical to ensure safety, longevity, and code compliance. NM-B cable must be installed according to NEC guidelines and local building regulations.
Best Practices for Installation
- Install only in dry, indoor locations
- Secure cable with approved staples without damaging the jacket
- Maintain proper spacing from framing edges or install nail plates
- Follow box fill requirements for larger conductors
- Use breakers, receptacles, and terminals rated for 10 AWG wire
Safety, UL Listing, and NEC Compliance
Electrical safety standards exist to protect people and property. Ten-gauge NM-B copper cable is typically UL-listed and manufactured to meet strict quality standards when installed correctly.
The National Electrical Code governs conductor sizing, permitted uses, support spacing, and installation methods for NM-B cable. Compliance ensures safe operation, successful inspections, and long-term reliability.
For authoritative guidance on residential wiring standards and conductor sizing, consult the National Electrical Code (NEC) .
10/3 NM-B Cable vs Individual THHN Conductors
A common comparison is whether to use NM-B cable or individual THHN conductors in conduit. Each has specific use cases.
- NM-B: Faster installation in wood-framed residential structures
- THHN: Required for conduit systems and wet or exposed locations
- NM-B cannot be installed in outdoor or wet environments
Maintenance and Inspection Considerations
Once installed, NM-B cable requires minimal maintenance. However, inspections are recommended during renovations or when upgrading appliances.
- Check for damaged cable jackets
- Verify tight and secure terminations
- Ensure cable remains properly supported
Common Mistakes to Avoid
- Using 10/3 NM-B cable on circuits exceeding its rating
- Installing NM-B cable in damp or outdoor locations
- Overfilling electrical boxes with large conductors
- Failing to protect cable from nails or screws
- Ignoring appliance manufacturer wiring requirements
Why Buy Electrical Cable from IB Lighting?
IB Lighting supplies professional-grade electrical products selected for safety, performance, and long-term reliability. Contractors and informed buyers rely on IB Lighting for materials that meet modern code standards.
Browse a full selection of electrical supplies in the IB Lighting shop or learn more about the company at the IB Lighting homepage.
For technical support, bulk pricing, or project-specific guidance, visit the contact page.

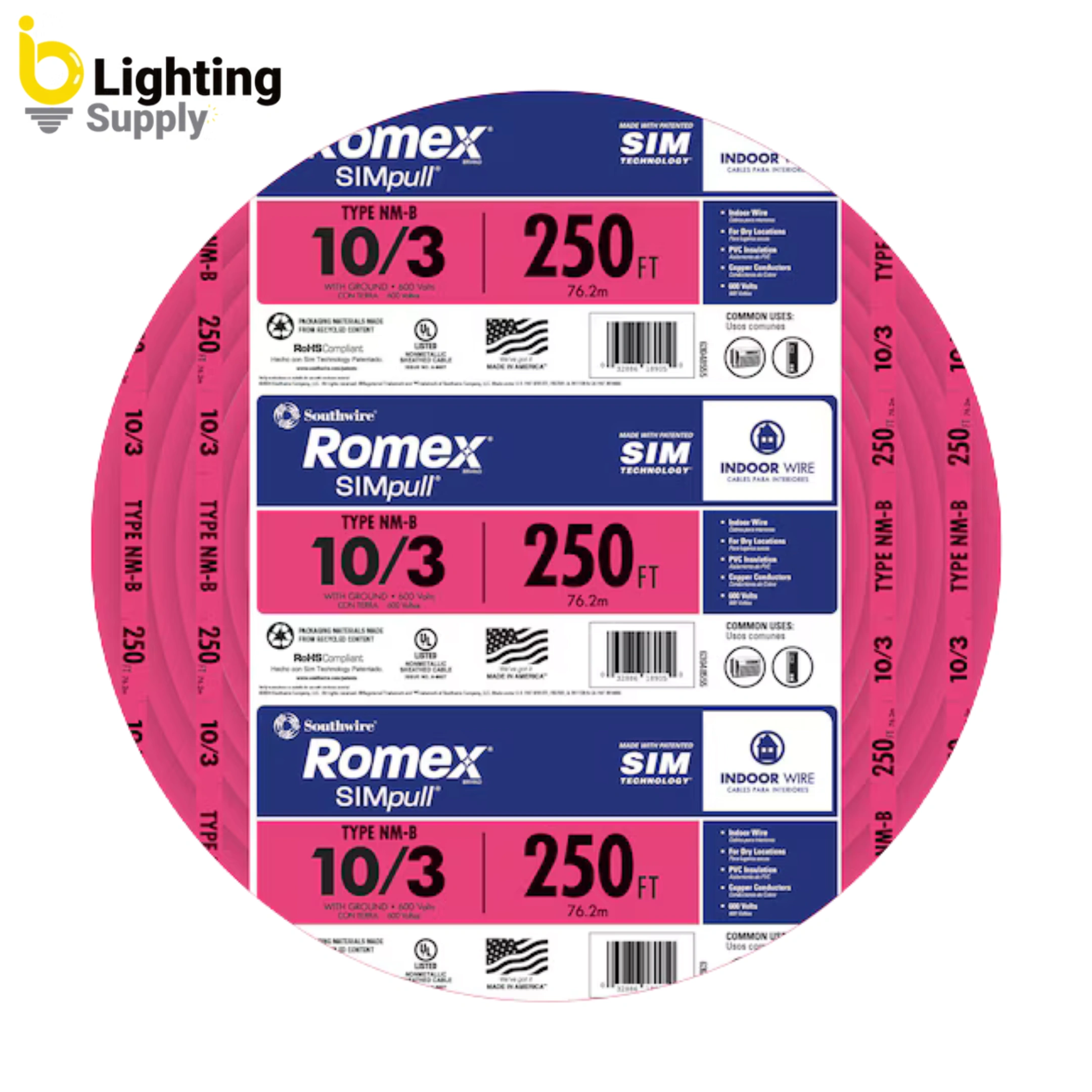

The Southwire 10/3 Romex NM-B cable with ground (250 ft roll) is a trusted choice for residential circuits that demand higher amperage and dependable performance.
Frequently Asked Questions
What is 10/3 Romex NM-B cable used for?
It is commonly used for electric ranges, dryers, wall ovens, and residential subpanel feeder circuits.
Can 10/3 Romex be used outdoors?
No. NM-B cable is designed for dry, indoor locations only.
Does 10/3 NM-B include a ground wire?
Yes. It includes three insulated conductors and one bare copper grounding conductor.
Is 10/3 NM-B rated for 30 amps?
Yes. Ten-gauge copper NM-B cable is typically used on 30-amp residential circuits when permitted by code.
Conclusion: Choosing the Right Cable for High-Load Residential Circuits
The 10/3 Romex NM-B cable with ground is a reliable, code-compliant solution for residential electrical systems that require higher amperage and multiple conductors. When installed correctly and used in appropriate applications, it delivers long-term safety, performance, and peace of mind.
Selecting the right cable is not just about meeting code—it is about protecting your property, appliances, and occupants for years to come.
