10 AWG Blue Copper THHN Wire: Applications, Installation, and Code Compliance
The 10 AWG blue copper THHN wire is widely used in residential, commercial, and industrial electrical installations where reliability, code compliance, and conductor identification are essential. Known for...
The 10 AWG blue copper THHN wire is widely used in residential, commercial, and industrial electrical installations where reliability, code compliance, and conductor identification are essential. Known for its durability, flexibility, and high heat resistance, this conductor is a staple for electricians and contractors working with branch circuits, panels, and conduit-based systems.
This guide explains what 10 AWG blue THHN wire is, where it is commonly used, how to install it correctly, and what safety and National Electrical Code (NEC) requirements you need to follow to ensure a professional, long-lasting installation.
What Is 10 AWG Blue Copper THHN Wire?
10 AWG blue copper THHN wire is a single-conductor electrical wire featuring a stranded copper core and thermoplastic insulation with a nylon outer jacket. The blue insulation color is typically used to identify specific phases, travelers, or circuit conductors, depending on local code practices and project requirements.
The copper construction allows for greater flexibility compared to solid wire, making it easier to pull through conduit and reducing stress on terminations.
Understanding the 10 AWG blue copper THHN wire Rating
THHN stands for Thermoplastic High Heat-resistant Nylon-coated. This designation indicates that the wire is engineered to withstand elevated temperatures, mechanical abrasion, and exposure to oils and chemicals when installed in approved environments.
- Thermoplastic insulation for heat resistance
- Nylon jacket for added durability
- Designed for use in conduit systems
Technical Specifications of 10 AWG Blue THHN Wire
Before selecting any conductor, it’s important to understand its electrical and physical characteristics. The 10 AWG blue copper THHN wire is designed to meet common requirements for medium-duty branch circuits.
| Specification | Details |
|---|---|
| Wire Gauge | 10 AWG |
| Conductor Material | Copper |
| Insulation Type | THHN (Thermoplastic Nylon) |
| Insulation Color | Blue |
| Voltage Rating | 600 Volts |
| Temperature Rating | 90°C Dry, 75°C Wet |
Common Applications of 10 AWG Blue Copper THHN Wire
The 10 AWG blue copper THHN wire is versatile and used in a variety of electrical systems where conductor identification and durability matter.
Residential Use Cases of blue copper THHN wire
- Branch circuits serving high-load appliances
- Subpanel feeder conductors
- Dedicated circuits for HVAC or workshop equipment
- Traveler or phase identification in conduit runs
Commercial and Industrial Applications
- Commercial lighting circuits
- Electrical panels and switchgear
- Conduit-based wiring in offices and warehouses
- Equipment wiring where color identification is required
Why Color Coding Matters in Electrical Systems
Color-coded insulation plays a crucial role in safety, troubleshooting, and code compliance. Blue insulation is often used to distinguish conductors in multi-wire systems, making it easier for electricians and inspectors to identify circuits quickly.
While color usage can vary by jurisdiction, consistent conductor identification reduces wiring errors and simplifies future maintenance or upgrades.
Installation Guidelines for 10 AWG Blue THHN Wire
Proper installation ensures the wire performs safely and reliably throughout its service life. THHN wire is designed for use in conduit systems and should never be installed as free-air wiring unless specifically permitted by code.
Best Practices for Installation
- Use approved conduit types (EMT, PVC, or rigid metal)
- Follow conduit fill limits per NEC tables
- Avoid sharp bends that may damage insulation
- Secure terminations using rated connectors
- Verify torque specifications on terminals
Safety, UL Listing, and NEC Compliance
Safety and compliance are non-negotiable in electrical work. The 10 AWG blue copper THHN wire is typically UL-listed and manufactured to meet NEC requirements when installed correctly.
According to the NEC, conductor size, insulation type, and installation method must all align with the circuit’s load and environment. Improper sizing or installation can lead to overheating, voltage drop, or electrical failure.
For authoritative guidance on conductor sizing and installation rules, consult the National Electrical Code (NEC).
Stranded Copper vs Solid Copper Conductors
Stranded copper conductors are preferred in many applications due to their flexibility and resistance to mechanical stress.
- Easier to pull through long conduit runs
- Less prone to breakage from vibration
- Better suited for commercial installations
Maintenance and Inspection Considerations
Electrical conductors generally require minimal maintenance, but periodic inspections can help prevent issues in high-use or commercial environments.
- Check for loose or overheated connections
- Inspect insulation for cuts or abrasions
- Verify conductor labeling during upgrades
Common Mistakes to Avoid
- Using incorrect wire gauge for the circuit load
- Ignoring conduit fill limitations
- Improper color usage leading to confusion
- Failing to torque terminals correctly
- Mixing copper and aluminum without rated connectors
Why Buy Electrical Wire from IB Lighting?
IB Lighting supplies professional-grade electrical products trusted by contractors and serious buyers. Each product is selected to meet performance, safety, and durability standards required in modern installations.
Browse the full range of electrical supplies in the IB Lighting shop or learn more about the company at the IB Lighting homepage.
For bulk orders, project questions, or technical support, visit the contact page.

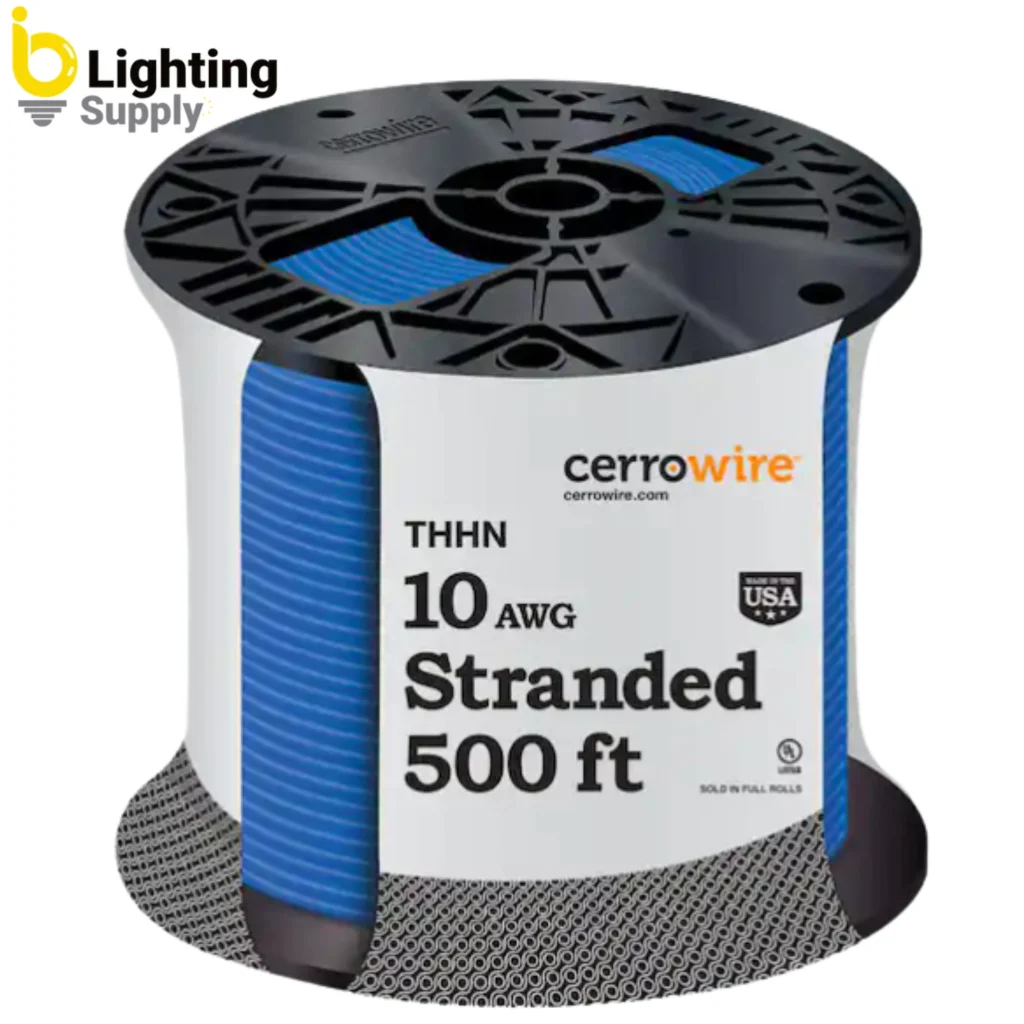

The 10 AWG blue stranded copper THHN wire (500 ft roll) is ideal for projects requiring reliable, clearly identified conductors in conduit-based systems.
Frequently Asked Questions
What is 10 AWG blue THHN wire typically used for?
It is commonly used for branch circuits, subpanels, and conduit runs where color identification is important.
Can THHN wire be used outdoors?
THHN wire can be used in damp locations when installed in conduit, but wet-location requirements must be followed.
Is stranded copper better than solid for conduit wiring?
Yes. Stranded copper is easier to pull through conduit and handles vibration better than solid wire.
Does insulation color affect electrical performance?
No. Color is for identification only and does not change electrical characteristics.
Conclusion: Choosing the Right THHN Conductor
The 10 AWG blue Stranded copper THHN wire offers a dependable solution for a wide range of electrical applications. With proper installation, adherence to NEC standards, and quality materials, it ensures safe and efficient electrical performance.
Selecting high-quality conductors from a trusted supplier helps protect equipment, simplify future maintenance, and ensure long-term reliability.
