The 10 AWG green copper THHN wire is a critical component in modern electrical systems, especially where proper grounding, safety compliance, and durability are required. Whether you are a licensed electrician, contractor, or a serious DIY buyer, understanding how this wire functions, where it should be used, and how to install it correctly is essential for both performance and code compliance.
This guide breaks down everything you need to know—from technical specifications and real-world use cases to installation best practices, NEC considerations, and common mistakes to avoid.
What Is 10 AWG Green Copper THHN Wire?
It is a single-conductor electrical wire designed primarily for grounding applications. The green insulation universally identifies it as an equipment grounding conductor, while the stranded copper core provides flexibility, durability, and excellent electrical conductivity.
THHN stands for Thermoplastic High Heat-resistant Nylon-coated, which means the wire is built to withstand high temperatures and mechanical stress when installed in conduit systems.
Key Characteristics of THHN Wire
- Thermoplastic insulation with nylon jacket
- Rated for dry and damp locations
- Oil, gasoline, and abrasion resistant
- Designed for use in conduit and raceways
Technical Specifications of 10 AWG Green THHN Wire
Understanding the specifications of 10 AWG green copper THHN wire helps ensure you choose the right conductor for your electrical system.
| Specification | Details |
|---|---|
| Wire Gauge | 10 AWG |
| Conductor Material | Stranded Copper |
| Insulation Type | THHN (Thermoplastic Nylon) |
| Color | Green (Grounding) |
| Voltage Rating | 600 Volts |
| Temperature Rating | 90°C Dry, 75°C Wet |
Primary Uses
The 10 AWG green copper THHN wire is primarily used as a grounding conductor, ensuring electrical systems operate safely by providing a low-resistance path for fault current.
Residential Applications
- Grounding service panels and subpanels
- Bonding metal enclosures and junction boxes
- Grounding HVAC units and water heaters
- Supplemental grounding for larger branch circuits
Commercial and Industrial Applications
- Grounding commercial lighting systems
- Bonding conduit runs and electrical rooms
- Grounding generators and transfer switches
- Electrical infrastructure in warehouses and facilities
Why Green Insulation Matters for Grounding
Electrical color coding is not optional—it is mandated by electrical codes. Green insulation is reserved exclusively for grounding conductors, making the 10 AWG copper THHN wire instantly identifiable to electricians and inspectors.
Using the correct color reduces the risk of wiring errors, simplifies troubleshooting, and ensures compliance with the National Electrical Code (NEC).
Installation Guidelines for 10 AWG Green Copper THHN Wire
Correct installation is critical for both safety and performance. THHN wire is designed for conduit-based systems and must be installed accordingly.
Installation Best Practices by 10 AWG Green Copper THHN Wire
- Install only inside approved conduit systems
- Do not exceed conduit fill limits
- Avoid sharp bends that can damage insulation
- Use proper grounding lugs and terminals
- Torque connections to manufacturer specifications
Safety and NEC Compliance
The NEC sets strict requirements for grounding conductors. The 10 AWG THHN wire meets common grounding requirements for many circuits but must always be sized appropriately for the application.
Grounding conductors are designed to protect people and equipment by directing fault current safely to ground. Improper sizing or installation can result in overheating, equipment damage, or shock hazards.
For official grounding requirements, refer to the National Electrical Code (NEC).
Stranded vs Solid Copper: Why Stranded Is Preferred
Stranded copper wire is often preferred over solid copper for grounding applications due to its flexibility and resistance to fatigue.
- Easier to pull through conduit
- Less prone to breaking from vibration
- Better suited for commercial installations
Common Mistakes to Avoid
- Using green wire for non-grounding purposes
- Installing THHN wire outside of conduit
- Undersizing grounding conductors
- Ignoring torque requirements on lugs
- Mixing copper and aluminum without rated connectors
Maintenance and Inspection Tips
While grounding conductors typically require minimal maintenance, periodic inspections are recommended in commercial and industrial environments.
- Check for loose or corroded connections
- Inspect insulation for damage
- Verify continuity during system upgrades
Why Buy Electrical Wire from IB Lighting?
IB Lighting supplies professional-grade electrical products designed to meet the needs of electricians, contractors, and commercial buyers.
Explore high-quality electrical wire options in the IB Lighting shop, or learn more about the company at the IB Lighting homepage.
For project-specific questions or bulk pricing inquiries, visit the contact page.

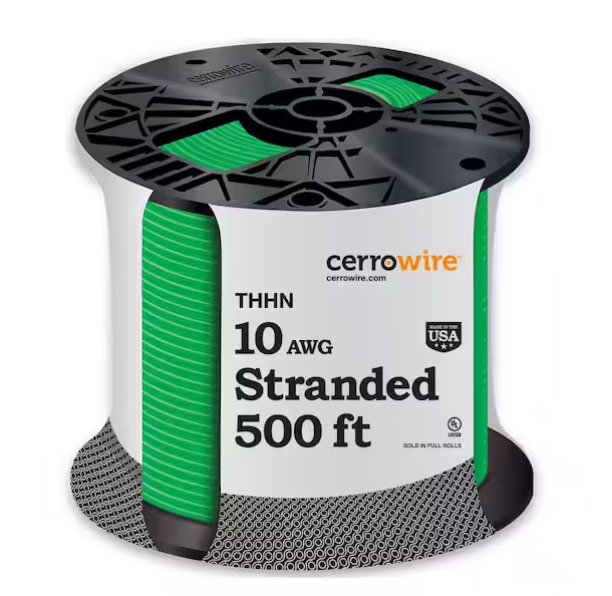

The 10 AWG green stranded copper THHN wire (500 ft roll) is ideal for contractors who need reliable grounding conductors in larger installations.
Frequently Asked Questions
Is 10 AWG green THHN wire only for grounding?
Yes. Green insulation is reserved exclusively for grounding conductors under electrical code standards.
Can THHN wire be used outdoors?
THHN is rated for dry and damp locations when installed in conduit. For wet locations, ensure compliance with local code requirements.
Is stranded copper better than solid for grounding?
Stranded copper is generally preferred due to flexibility, especially in conduit installations.
What size conduit is needed for 10 AWG THHN wire?
Conduit size depends on the number of conductors and total fill. Always follow NEC conduit fill tables.
Conclusion: Choosing the Right Grounding Wire
The 10 AWG green stranded copper THHN wire is a dependable, code-compliant solution for grounding residential, commercial, and industrial electrical systems. With proper installation and adherence to NEC guidelines, it provides long-term safety and performance.
If you’re upgrading electrical infrastructure or planning a new installation, investing in high-quality grounding conductors from a trusted supplier makes all the difference.
