A 100 amp automatic transfer switch is a compact yet critical component in standby generator systems designed for small homes, essential-load applications, and service-rated installations. It enables safe, automatic power transfer from utility service to generator power during outages, ensuring continuity without manual intervention.

For homeowners who want dependable backup power without the complexity of large, whole-home systems, switch offers an efficient and cost-effective solution. It is especially well suited for properties with lower electrical demand or selective backup requirements.

This guide explains how it works, where it is best applied, how it is installed, and why it plays a vital role in safe and reliable backup power systems.

What Is a 100 Amp Automatic Transfer Switch?

It is an electrical switching device that connects a standby generator to a building’s electrical system. It continuously monitors incoming utility power and automatically transfers electrical load to the generator when an outage or voltage irregularity is detected.

Rated for 100 amps and often service-rated, this type of transfer switch is commonly used in smaller residential installations or essential-load generator configurations where full-home backup is not required.

How a 100 Amp Automatic Transfer Switch Operates

The transfer switch monitors voltage and frequency from the utility grid and performs a controlled sequence when power is interrupted.

• Detects loss of utility power
• Signals the standby generator to start
• Transfers selected electrical loads to generator power
• Prevents backfeeding into the utility grid
• Returns loads to utility service when power is restored

Why Choose a 100 Amp Automatic Transfer Switch?

It is ideal for homeowners who want reliable backup power for essential systems without oversizing their generator setup.

Efficient Backup for Essential Loads of 100 amp automatic transfer switch

Many homes do not require whole-property backup power. It allows homeowners to protect critical circuits such as heating, refrigeration, lighting, and communication systems.

Automatic and Safe Power Transfer of 100 amp automatic transfer switch

Automatic operation ensures power is restored quickly and safely during outages, reducing inconvenience and eliminating the risks associated with manual switching.

Residential Applications of 100 amp automatic transfer switch

It is commonly used in residential settings where electrical demand is moderate.

• Small to mid-size homes
• Essential-load generator systems
• Homes with gas heating and limited electric appliances
• Properties requiring backup for refrigeration and lighting

For many homeowners, this configuration offers the right balance of reliability and efficiency.

Light Commercial and Specialty Use Cases in 100 amp automatic transfer switch

In addition to residential use, a 100 amp automatic transfer switch can support select commercial and specialty applications.

• Small offices and studios
• Workshops and auxiliary buildings
• Remote facilities with limited electrical demand
• Backup systems for communication or security equipment

It ensures continuity for critical operations during power disruptions.

System Integration and Generator Compatibility

It must be properly matched with the generator and electrical system design.

Integration Considerations for a 100 Amp Automatic Transfer Switch

• Compatibility with single-phase standby generators
• Proper coordination with electrical panel capacity
• Correct selection of essential circuits
• Service-rated installation requirements

Professional system planning ensures safe operation and optimal performance.

Installation Requirements and Best Practices

Although smaller in capacity, the switch is still a safety-critical device and must be installed by licensed professionals.

Best Practices

• Correct placement near the service entrance or load center
• Proper grounding and bonding
• Maintaining required working clearances
• Compliance with local electrical codes
• Inspection and approval by local authorities

Proper installation ensures long-term reliability and code compliance.

Safety, Certification, and Compliance

Automatic transfer switches must meet rigorous safety standards to protect people, property, and utility workers.

To understand how stationary generator components and transfer switches are evaluated for safety and life-safety performance, review UL certification for stationary generators .

Maintenance and Long-Term Reliability

It requires minimal maintenance, but periodic inspection helps ensure dependable operation.

• Visual inspection of enclosure and wiring
• Operational testing during generator exercises
• Professional inspection during routine generator service

Regular checks help ensure the system performs when power is needed most.

Common Mistakes to Avoid

• Installing an undersized generator
• Improper circuit selection
• Incorrect grounding or bonding
• Blocking access to the transfer switch
• Skipping inspections and testing

Ordering & Delivery Confidence

Final pricing is shown securely in the cart. Our team is available to assist with compatibility and system planning before purchase.

📞 Contact us to discuss pricing options

🚚 Nationwide Delivery
🛡️ Free Freight Insurance Included
🏠 Family-Owned & Operated
🔒 Secure Checkout

Value Details

🧾 No Sales Tax in Select States (calculated at checkout)
🛠️ Manufacturer Warranty Included
💬 Expert Support Before & After Purchase

Confidence & Support

🔁 Hassle-Free Order Support
Our team is here to help every step of the way.

Why Buy From IB Lighting Supply?

• Trusted U.S. supplier
• Insured nationwide freight delivery
• Transparent checkout pricing
• Family-owned business
• Generator specialists available

Browse backup power equipment in the IB Lighting shop or learn more about our company on the IB Lighting homepage.

For expert assistance, visit our contact page.

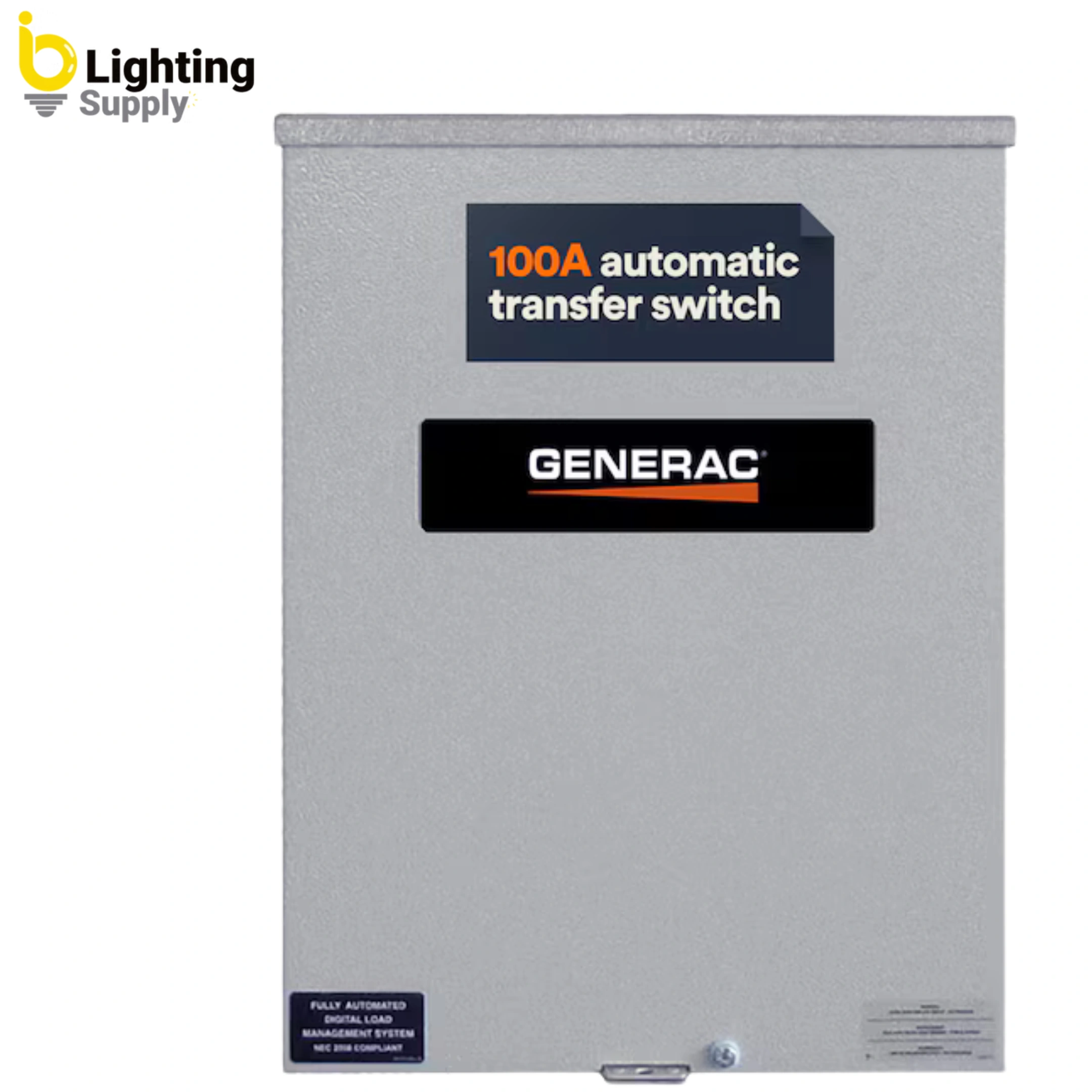

The Generac 100-Amp Service-Rated Automatic Transfer Switch (Model RXSW100A3) is engineered for safe, automatic power transfer in essential-load standby systems.

Frequently Asked Questions

What is a 100 amp automatic transfer switch used for?

It is used to manage automatic power transfer for small homes or essential-load generator systems.

Is a switch enough for a house?

It is sufficient for essential circuits but not for full whole-home backup in larger residences.

Does it operate automatically?

Yes, all power transfer functions are fully automatic.

Does installation require a licensed electrician?

Yes, professional installation is required for safety and code compliance.

Conclusion

A switch is a reliable and efficient solution for essential-load standby power systems. By providing safe, automatic power transfer, it helps protect comfort, safety, and daily operations during power outages.

Choosing a properly engineered transfer switch and a trusted supplier ensures dependable performance and long-term peace of mind.
