The 12/2 NM-B copper wire is one of the most important and widely used electrical cables in modern residential construction. Known for its balance of power capacity, safety, and versatility, this non-metallic sheathed cable is the standard choice for 20-amp branch circuits that supply outlets, lighting, and household appliances.

For electricians, contractors, builders, and serious homeowners, selecting the correct wire gauge is critical. Choosing an undersized cable can result in overheating, tripped breakers, and code violations, while oversized wiring can add unnecessary cost and installation difficulty. The 12/2 NM-B copper wire sits at the ideal midpoint for many residential circuits, offering dependable performance while remaining easy to install.

This in-depth guide explains exactly what 12/2 NM-B copper wire is, where it should be used, how to install it correctly, and how to stay compliant with UL and National Electrical Code (NEC) requirements.

What Is 12/2 NM-B Copper Wire?

12/2 NM-B copper wire is a non-metallic sheathed cable containing two insulated copper conductors—typically one black (hot) and one white (neutral)—along with a bare copper grounding conductor. The “12” refers to the American Wire Gauge (AWG) size, and the “2” indicates the number of insulated conductors inside the cable.

The yellow outer jacket, commonly associated with 12-gauge NM-B cable, provides protection for the internal conductors while allowing flexibility during installation in walls, ceilings, and framing cavities.

Understanding the NM-B Cable Rating

NM-B stands for Non-Metallic Building Wire. This cable type is specifically designed for residential construction and is rated with modern thermoplastic insulation capable of handling higher temperatures than older NM cable types.

• Designed for dry, indoor locations only
• Multiple conductors housed in a single protective sheath
• Optimized for residential wood-frame construction

Technical Specifications of 12/2 NM-B Copper Wire

Understanding it’s specifications which helps and ensure it is used correctly and safely in residential electrical systems.

Common Applications of 12/2 NM-B Copper Wire

The 12/2 NM-B copper wire is primarily used for residential circuits that require a 20-amp rating, offering higher capacity than 14-gauge wiring.

Residential Electrical Use Cases

• General-purpose receptacle circuits
• Kitchen countertop outlets
• Bathroom receptacle circuits
• Garage and workshop outlets
• Dedicated circuits for small appliances

Limited Commercial and Specialty Uses

• Residential-style offices or studios
• Light commercial remodels where permitted
• Indoor utility rooms and service areas

Why 12 AWG Wire Is Required for 20-Amp Circuits

Wire gauge directly determines how much current a conductor can safely carry. Twelve-gauge copper wire is rated for 20-amp circuits under NEC rules, making it the minimum acceptable size for many modern residential applications.

Using smaller wire, such as 14 AWG, on a 20-amp breaker is a code violation and a serious safety risk. The 12/2 NM-B copper wire provides the correct balance of current capacity, heat dissipation, and durability for these circuits.

Installation Guidelines for 12/2 NM-B Copper Wire

Proper installation is essential to ensure safety, longevity, and compliance with electrical codes. NM-B cable must be installed according to NEC requirements and local building regulations.

Best Practices for Installation

• Install only in dry, indoor locations
• Secure cable with approved staples without damaging the jacket
• Maintain proper clearance from framing edges or install nail plates
• Follow electrical box fill requirements
• Use devices and breakers rated for 12 AWG conductors

Safety, UL Listing, and NEC Compliance

Electrical safety standards exist to protect people and property. Twelve-gauge NM-B copper wire is typically UL-listed and manufactured to meet strict quality and performance standards.

The National Electrical Code governs conductor sizing, installation methods, support spacing, and permitted locations for NM-B cable. Compliance ensures safe operation, successful inspections, and long-term reliability.

For authoritative information on residential wiring standards and conductor sizing, consult the National Electrical Code (NEC).

12/2 NM-B vs 14/2 NM-B Cable

A common comparison in residential wiring is between 12/2 and 14/2 NM-B cable. While both are widely used, their applications differ significantly.

• 12/2 NM-B: Required for 20-amp circuits
• 14/2 NM-B: Limited to 15-amp circuits
• 12-gauge wire offers greater load capacity and future-proofing

Maintenance and Inspection Considerations

Once installed, NM-B cable requires minimal ongoing maintenance. However, inspections during renovations or system upgrades are recommended.

• Check for damaged or exposed cable jackets
• Ensure staples and supports remain secure
• Verify tight and corrosion-free terminations

Common Mistakes to Avoid

• Using 12 AWG wire on breakers larger than 20 amps
• Installing NM-B cable in damp or outdoor locations
• Overfilling electrical boxes with large conductors
• Failing to protect cable from nails or screws
• Improper grounding or neutral connections

Why Buy Electrical Wire from IB Lighting?

IB Lighting supplies professional-grade electrical products chosen for reliability, safety, and performance. Contractors and knowledgeable buyers trust IB Lighting for dependable materials that meet modern electrical standards.

Browse a wide selection of electrical supplies in the IB Lighting shop or learn more about the company at the IB Lighting homepage.

For technical guidance, bulk pricing, or project support, visit the contact page.

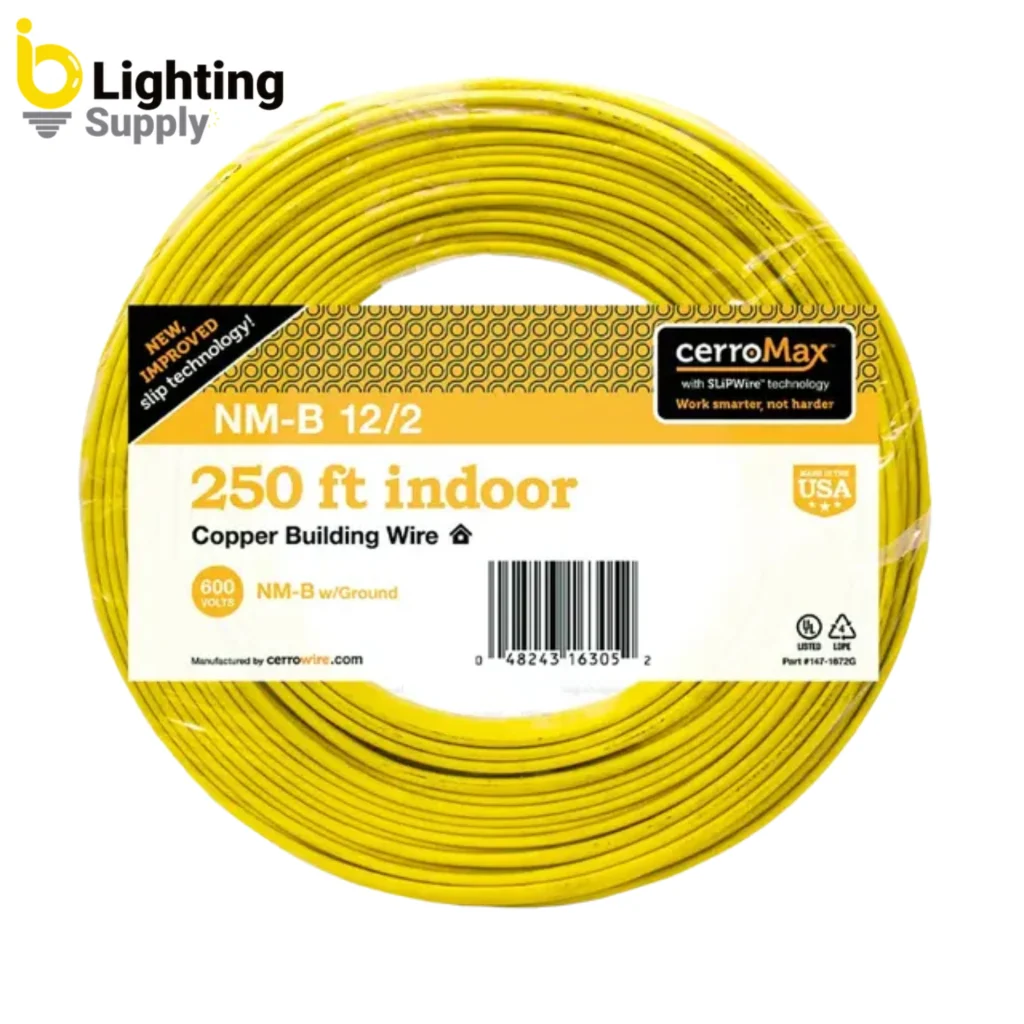

The Cerrowire 12/2 NM-B copper wire (250 ft roll) is a trusted choice for residential wiring projects requiring safe, code-compliant 20-amp circuits.

Frequently Asked Questions

What is 12/2 NM-B copper wire used for?

It is commonly used for kitchen, bathroom, garage, and general-purpose 20-amp residential circuits.

Can 12/2 NM-B wire be used on a 15-amp breaker?

Yes. Using larger wire on a smaller breaker is allowed, though it may be more difficult to install.

Is 12/2 NM-B suitable for outdoor use?

No. NM-B cable is designed for dry, indoor locations only.

Does 12/2 NM-B include a ground wire?

Yes. It includes two insulated conductors and one bare copper grounding conductor.

Conclusion: Choosing the Right Wire for 20-Amp Circuits

The 12/2 NM-B copper wire is a cornerstone of safe, modern residential electrical wiring. When installed correctly and used in appropriate applications, it delivers dependable power, code compliance, and long-term reliability.

Selecting the right wire gauge is not just about meeting code—it is about protecting your home, occupants, and electrical system for years to come.
