300-Amp Automatic Transfer Switch: Complete Expert Guide
300-Amp Automatic Transfer Switch: Complete Expert Guide
🕑 13 min read Updated: May 2026 Table of Contents What a 300-Amp Generator Automatic Transfer Switch Does Who Actually Needs a 300-Amp ATS (and Who Does Not)...
- A 300-amp generator automatic transfer switch is service-entrance rated and built for residential or light commercial services above the standard 200-amp panel.
- The Generac RTSW300A3 is the dominant residential 300-amp ATS, paired only with single-phase Generac generators using Evolution or Nexus controllers.
- NEC Article 702 governs all optional standby transfer equipment, and a 300-amp ATS must be matched to a 300-amp service panel, not chosen by generator size.
- Open-transition switching is mandatory in residential ATS use, fully disconnecting the utility before connecting the generator to prevent backfeed.
- Most 300-amp ATS inspection failures trace to one cause: undersized service conductors fed into the switch from the meter base.
A 300-amp generator automatic transfer switch is a service-entrance rated power-switching device that pairs with a standby generator to automatically transfer a 300-amp residential or light commercial electrical service from utility power to generator power during an outage. Most residential 300-amp ATS installations use the Generac RTSW300A3, a UL-listed open-transition unit with built-in load management.
Across hundreds of generator and transfer switch orders processed by the IB Lighting electrician-led team, one pattern shows up again and again on 300-amp ATS jobs: the buyer was sold the wrong unit because the seller never asked what amperage the main service panel was actually rated at. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting treats every transfer switch sale as a sizing decision before it is a pricing decision. This guide walks through exactly how that decision works.
What a 300-Amp Generator Automatic Transfer Switch Does
A 300-amp generator automatic transfer switch sits between the utility meter and the main electrical panel of a property with a 300-amp service. It continuously monitors utility voltage. When it detects an outage, it sends a start signal to a paired standby generator, waits for stable voltage and frequency output, then transfers the full electrical load from the utility side to the generator side without manual intervention.
Once utility power is restored and remains stable for a programmed delay, typically 15 seconds, the switch reverses the process. It transfers the load back to the utility, then signals the generator to run through a cooldown cycle and shut off. The entire sequence is automatic. Nobody needs to be home for it to work.
The 300-amp rating refers to the maximum continuous current the switch can carry through its contactor. Service-entrance rated models like the Generac RTSW300A3 also include a main service disconnect that satisfies NEC requirements for an emergency means of disconnection at the service location.
Pro tip: Buyers often ask whether a 300-amp ATS will work on a 200-amp panel. It will pass current safely, but the installation is a code violation under NEC 110.3(B) because the transfer equipment must be applied within its listing. The ATS amperage must match the service it is installed on.
Who Actually Needs a 300-Amp ATS (and Who Does Not)
The 300-amp ATS sits in a narrow segment of the residential and light commercial market. Most homes in the United States have a 200-amp service, so the standard residential transfer switch sizes are 100 amp, 150 amp, and 200 amp. This larger ATS is purpose-built for properties that have intentionally upgraded beyond 200 amps because their combined electrical demand requires it.
Properties that genuinely need 300 amps of transfer capacity
Large estate homes above 5,000 square feet with full electric HVAC, multiple Level 2 EV chargers, a heated pool or spa, and modern all-electric appliances often justify a 300-amp service. Light commercial properties such as small medical offices, dental practices, veterinary clinics, and small retail spaces under 4,000 square feet also frequently land in this range.
The clearest signal that you need this size of ATS is simple: your main breaker is rated at 300 amps. Open the main panel door and read the breaker stamp. If it reads 200 amps, you need a 200-amp ATS. If it reads 400 amps, you need a 400-amp ATS. Only if it reads 300 amps does this article apply directly to your installation.
Properties that do not need this size
Standard single-family homes built in the last 30 years almost universally have 200-amp service. Even with a heat pump, electric water heater, and a single EV charger added, the calculated demand rarely exceeds 200 amps under NEC Article 220 load calculation rules. Oversizing the switch to “future-proof” a 200-amp home is unnecessary cost and creates a code mismatch with the existing service.

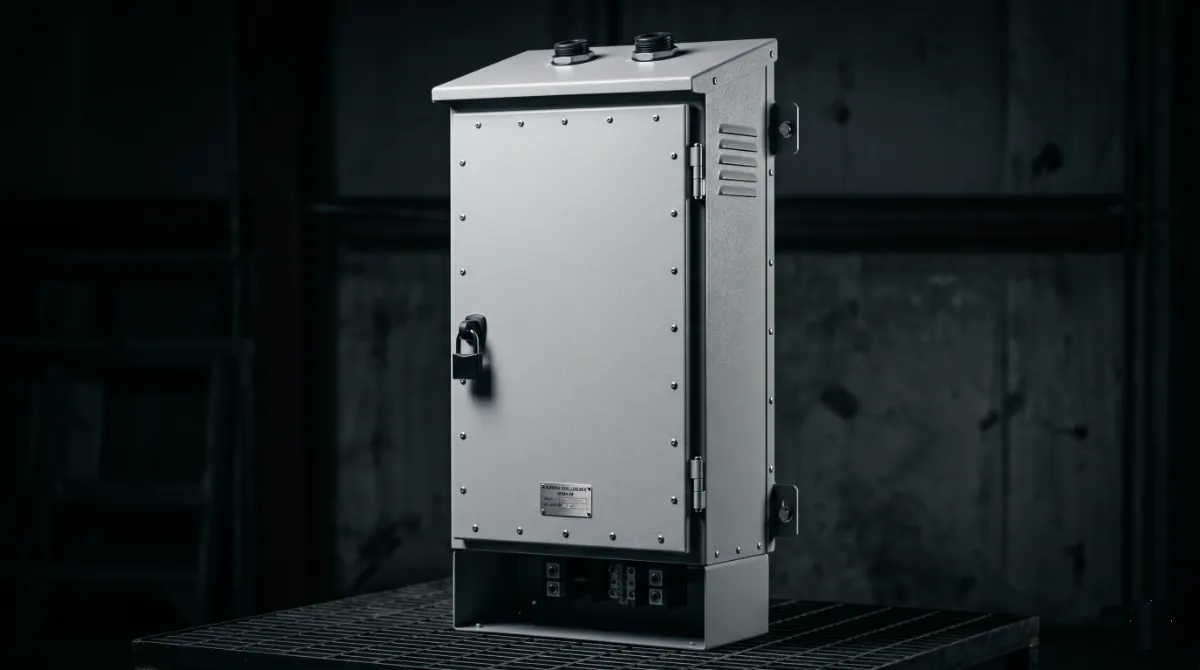

Generac RTSW300A3 Technical Specifications (Service-Entrance Rated)
The Generac RTSW300A3 is the most widely installed 300-amp generator automatic transfer switch in the United States residential and light commercial market. These specifications come directly from the Generac RTSW300A3/RTCW400A3/RTSW400A3 specification sheet and are the values inspectors and electricians work from.
| Specification | Value |
|---|---|
| Model | RTSW300A3 |
| Amperage | 300 A |
| Voltage | 120/240 V single phase |
| Frequency | 60 Hz |
| Poles | 2 |
| Transition type | Open transition (break-before-make) |
| Service rating | Service-entrance rated with integrated service disconnect |
| Enclosure | NEMA 3R aluminum, powder-coated |
| Installation | Indoor or outdoor |
| Generator compatibility | Single-phase Generac generators with Evolution or Nexus controllers |
| Load management | Smart A/C Module (SACM) manages up to 4 HVAC loads via 24 VAC |
| Expandable load control | Up to 8 additional 240 V loads with Smart Management Modules |
| Withstand rating | 22,000 A |
| Lug range | #4 AWG to 250 MCM (also accepts dual 2 AWG to 250 MCM) |
| Contactor | Heavy-duty Generac contactor, ETL recognized |
| Certifications | UL Listed, ETL recognized |
| Dimensions | 48 in (H) x 22 in (W) x 10 in (D) |
| Weight | 140 lb |
| Warranty | 5-year limited |
Open-transition switching explained
The RTSW300A3 uses open-transition switching, also called break-before-make. During a transfer event, the switch fully disconnects from the utility before connecting to the generator. At no point are both power sources connected to the load simultaneously. This mechanical separation prevents backfeeding, the dangerous condition where generator power flows backward through the utility conductors and can electrocute a line worker. Open-transition switching is the standard approved method for residential standby systems under NEC Article 702.
Built-in load management
The integrated Smart A/C Module is the practical differentiator on this unit. It manages up to 4 air-conditioning loads using 24 VAC signaling, which means a smaller generator can effectively support a larger home by cycling HVAC compressors based on real-time generator capacity. With optional Smart Management Modules, the system handles up to 8 additional 240 V loads such as electric ranges, dryers, or EV chargers. All Generac transfer switches are tested and listed by UL Solutions to UL Standard 1008 for transfer switch equipment.
Ready to spec the right 300-amp ATS for your project?
IB Lighting’s electrician-led team confirms panel amperage, generator compatibility, and conductor sizing before any order ships. Browse the generator transfer switch kit catalog or call (800) 674-9019.

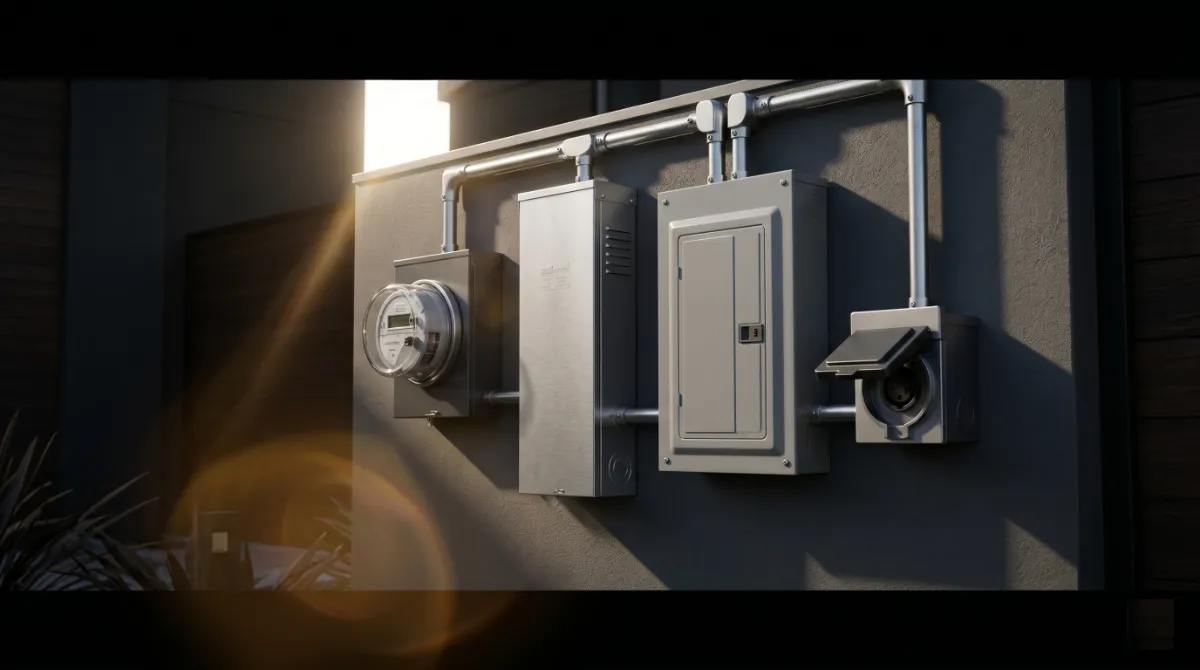

Installation, Wire Sizing, and NEC Article 702 Compliance
A 300-amp generator automatic transfer switch is service-entrance equipment. Installation is a licensed-electrician job everywhere in the United States, requires a permit in nearly every jurisdiction, and must be inspected by the local Authority Having Jurisdiction before being placed into service. The work is not optional and the steps are not negotiable.
Wire sizing for 300-amp service
The conductors feeding a 300-amp service must be sized to NEC Table 310.16 ampacity at the applicable terminal temperature rating. For single-phase residential applications at this amperage, the standard conductors are 350 MCM copper or 500 MCM aluminum at 75°C terminal ratings. For dwelling-unit service applications, NEC 310.12 allows a slightly reduced conductor, often 250 MCM copper or 350 MCM aluminum.
Get this wrong and the inspector fails the job before they even check the switch. For the underlying ampacity logic across all wire sizes used in standby generator installations, see our electrical wire size chart.
NEC Article 702 compliance
Optional standby systems, which is what nearly all residential and light commercial generator installations are classified as, are governed by NEC Article 702. Article 702 requires that transfer equipment be designed and installed to prevent the simultaneous connection of normal and alternate sources. The RTSW300A3 satisfies this through its open-transition switching and mechanical interlocks. The installation must include a means to disconnect the alternate source at the building, which the integrated service disconnect satisfies.
Permit and inspection workflow
A typical 300-amp ATS installation follows this sequence. The licensed electrician pulls an electrical permit. The utility schedules a meter pull for the day of the install. The electrician disconnects the existing service, installs the ATS between the meter and the main panel, terminates the generator feeder, and re-energizes. The local inspector visits within a few business days for the final inspection. The utility re-seals the meter once the inspection passes. Total elapsed time is usually two to four weeks from order to commissioned system.
The 3-Step 300-Amp ATS Sizing Framework
Across hundreds of standby generator orders, IB Lighting’s electrician-led team uses the same 3-step framework to size every transfer switch. It eliminates the most common errors and confirms compatibility before any equipment ships. Use it before placing any 300-amp ATS order.
Step 1: Confirm main panel amperage
Open the main electrical panel and read the amperage stamped on the main breaker at the top. This number is the only number that determines the switch amperage. Do not estimate from square footage. Do not assume from the meter base. The breaker stamp is the controlling value under NEC 408.36.
Step 2: Confirm generator brand and controller
The transfer switch must match the generator brand and controller protocol. Generac Evolution and Nexus controllers pair with the Generac RTSW300A3. KOHLER RDC2 and DC2 controllers pair with KOHLER RDT or RXT units at this rating. Cross-brand pairings do not transfer because the controller protocol is proprietary. Confirm the generator order before the switch order.
Step 3: Confirm service-entrance configuration
A service-entrance rated transfer switch replaces or supplements the main service disconnect. Verify whether your installation needs service-entrance rating (when the switch becomes the service disconnect) or non-service-entrance rating (when the existing main panel remains the disconnect). The RTSW300A3 is service-entrance rated. Non-service-entrance configurations at this size are uncommon in residential applications.
Pro tip: Snap a photo of the main breaker stamp before placing any generator or ATS order. Send the photo to your supplier as part of the sizing confirmation. This single habit prevents the most common sizing mistake in the entire generator category.

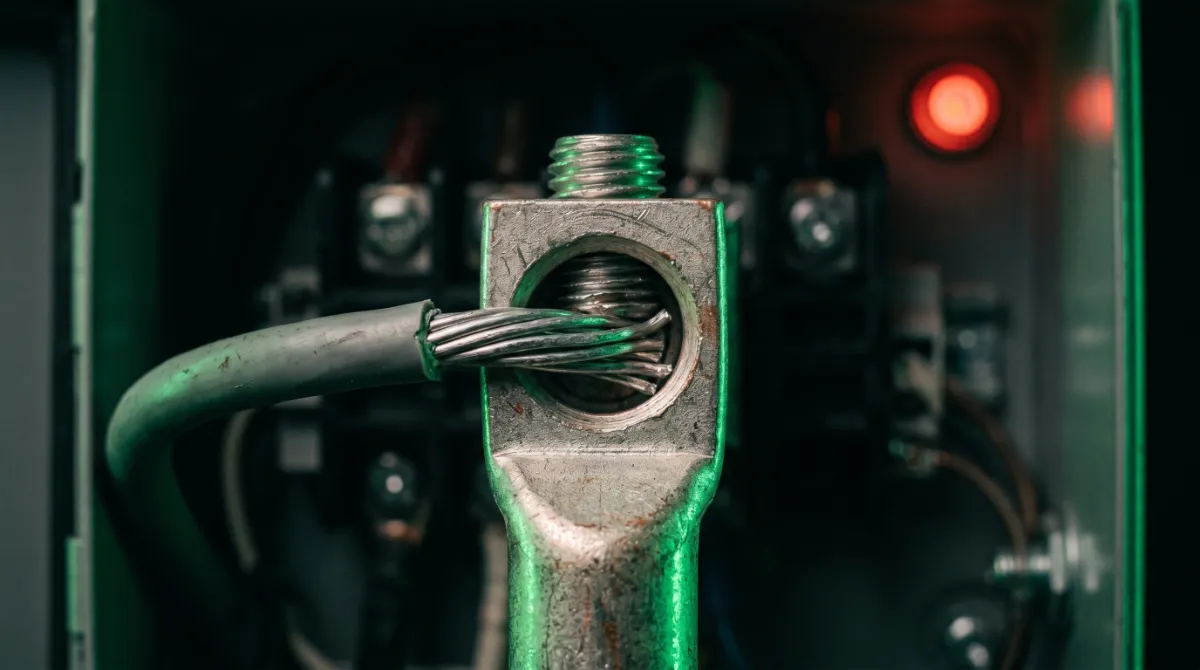

5 Mistakes That Fail a 300-Amp ATS Inspection
The mistakes below come up repeatedly on transfer switch installations submitted for final inspection. Each one is genuinely common and each one fails. Avoid them and the inspection passes on the first visit.
Mistake 1: Undersized service conductors
The conductors from the meter base into the switch must be sized for the full 300-amp service rating. Using 4/0 aluminum (rated for 200-amp service) on an installation at this size fails immediately. The conductors must match the new service amperage, not the previous service.
Mistake 2: Mismatched generator and ATS brand
A transfer switch at this rating pairs only with generators from the same brand and matching controller protocol. Installing a Generac RTSW300A3 alongside a KOHLER generator is non-functional. The two units will not communicate, the transfer will not occur, and the inspection will catch the mismatch on the start-test.
Mistake 3: Skipping the load calculation
The standby generator must be sized to carry the actual peak simultaneous load through the switch. Pairing a 24kW generator with a service-rated 300-amp ATS on a 300-amp service typically forces extensive load management because 24kW cannot carry 300 amps continuously. Either the generator size needs to increase to 36kW or 48kW liquid-cooled, or the SACM and SMM load management need to be fully configured.
Mistake 4: Improper grounding and bonding
NEC 250.30 governs grounding of separately derived systems. The neutral-to-ground bonding decision (at the generator or at the ATS, never both) is the single most-cited issue on failed standby installations. Bonding in two locations creates objectionable current flow on the grounding conductor and is an immediate inspection failure.
Mistake 5: No permit, no inspection
A transfer switch installation without a permit is a code violation regardless of how well the work was done. Insurance carriers also routinely refuse claims on standby systems that were never inspected. The permit and inspection step is non-negotiable.
Not sure if your install meets all 5 of these checks?
IB Lighting’s electrician-led team reviews every transfer switch order against this checklist before shipping. Call (800) 674-9019 or send your project details here and we will confirm the spec.
Maintenance, Exercise, and Long-Term Operation
A correctly installed 300-amp generator automatic transfer switch is largely maintenance-free, but a few annual checks keep it functioning indefinitely. The maintenance schedule for the switch pairs naturally with the standby generator’s own service schedule.
Weekly exercise cycle
The RTSW300A3 inherits its exercise schedule from the paired generator’s controller. Generac Nexus runs a 12-minute weekly exercise. Evolution allows adjustable exercise from 5 to 12 minutes, scheduled weekly, biweekly, or monthly. The exercise cycle confirms the entire system, generator and ATS, is operational. The official Generac owner’s manuals document the exact exercise settings and timer adjustments for each controller. Skipping exercises is the leading cause of unexpected failure during a real outage.
Annual visual inspection
Once a year, a qualified electrician should open the enclosure, inspect the lugs for corrosion or loose connections, verify the contactor surfaces show no pitting, and confirm the SACM and SMM load management connections remain tight. The check takes 20 to 30 minutes and is normally bundled with the generator’s annual oil and filter service.
Post-event inspection
After any significant outage where the switch transferred and ran the generator for more than four hours, the system should be checked. Real-world outages stress contactors more than weekly exercises do, and a post-event check catches any wear before the next event.
Frequently Asked Questions
What is a 300-amp automatic transfer switch?
A 300-amp automatic transfer switch is a service-entrance rated power-switching device that pairs with a standby generator to transfer a 300-amp electrical service from utility power to generator power automatically during an outage. It is UL-listed, NEC Article 702 compliant, and designed for properties with that service rating.
Who needs this size instead of a 200-amp ATS?
Properties with a 300-amp main breaker need a switch at this rating. This includes large estate homes above 5,000 square feet, multi-unit residential buildings, and light commercial properties. Standard single-family homes built in the last 30 years almost always have 200-amp service and need a 200-amp ATS instead.
Can I use this size of ATS with a smaller generator?
Yes, the ATS amperage matches the service panel, not the generator. A 22kW generator paired with a service-rated 300-amp ATS on a 300-amp service is common, but it requires the SACM and Smart Management Modules to be fully configured for load management. Without load management the generator will trip under full house load.
How much does it cost?
The Generac RTSW300A3 retails between roughly $2,800 and $3,200 from authorized distributors. Installation labor on a service-entrance install at this amperage typically runs $1,500 to $3,500 depending on regional rates, conductor distances, and whether the meter base needs replacement. Pricing on IB Lighting is shown in the cart due to manufacturer policies.
Does this installation require a permit?
Yes. Every jurisdiction in the United States requires an electrical permit for service-entrance rated transfer switch installation. The work must be performed by a licensed electrician, inspected by the local Authority Having Jurisdiction, and approved before the system can be placed into permanent service.
Is the Generac RTSW300A3 compatible with KOHLER generators?
No. The RTSW300A3 communicates only with Generac generators using Evolution or Nexus controllers. KOHLER generators use RDC2 or DC2 controllers with a different protocol and require a matched KOHLER transfer switch. Cross-brand pairing prevents the transfer signal from ever firing.
What wire size feeds this transfer switch?
A 300-amp service uses 350 MCM copper or 500 MCM aluminum conductors at 75°C terminal ratings under NEC Table 310.16. For dwelling-unit applications, NEC 310.12 allows 250 MCM copper or 350 MCM aluminum. Always confirm with your inspector and electrician before ordering conductors.
When should I hire a professional to size this switch?
Always. Service-entrance rated transfer switch sizing requires a licensed electrician’s load calculation and a confirmed generator brand match. IB Lighting’s electrician-led team provides free sizing review on every transfer switch order. Call our team with your panel photo and generator selection.
Conclusion
A 300-amp generator automatic transfer switch is the right answer for one specific use case: a property with a verified 300-amp main service panel that is being paired with a brand-matched standby generator. The Generac RTSW300A3 is the dominant residential option in this category. The sizing decision starts with the main breaker stamp, never with the generator. The installation requires a licensed electrician and a permit in every jurisdiction. Get those fundamentals right and the system delivers code-compliant whole-property backup power for the life of the equipment.
