6/2 Romex NM-B Cable with Ground: Uses, Installation & NEC Safety Guide
The 6/2 Romex NM-B cable with ground is a heavy-duty residential wiring solution designed for high-amperage circuits that do not require a neutral conductor. Commonly specified for electric...
The 6/2 Romex NM-B cable with ground is a heavy-duty residential wiring solution designed for high-amperage circuits that do not require a neutral conductor. Commonly specified for electric water heaters, baseboard heaters, heat pumps, and other straight 240-volt loads, this cable provides the current-carrying capacity needed for demanding indoor applications while remaining fully code-compliant when installed correctly.
As residential electrical loads increase, especially with the adoption of electric heating and high-capacity appliances, selecting the correct cable size is critical. Using an undersized cable can result in overheating, nuisance breaker trips, premature equipment failure, or serious fire hazards. When properly selected and installed, 6/2 Romex NM-B cable with ground delivers safe, reliable performance for years.
This in-depth guide explains what 6/2 Romex NM-B cable is, where it should be used, how to install it correctly, and how to meet UL and National Electrical Code (NEC) requirements with confidence.
What Is 6/2 Romex NM-B Cable with Ground?
6/2 Romex NM-B cable with ground is a non-metallic sheathed electrical cable containing two insulated copper conductors—typically black and white—along with a bare copper grounding conductor. The “6” refers to the American Wire Gauge (AWG) size of the conductors, while the “2” indicates the number of insulated conductors inside the cable.
In most 240-volt applications, the white conductor is re-identified as a hot conductor, meaning the cable supplies two hot legs and a grounding conductor, without a neutral. This configuration is ideal for appliances and equipment that operate exclusively on 240 volts and do not require 120-volt control circuits.
Understanding the NM-B Cable Designation
NM-B stands for Non-Metallic Building Wire. NM-B cable is designed specifically for residential indoor wiring and features modern thermoplastic insulation rated for higher temperatures than older NM cable types.
- Approved for dry, indoor locations only
- Multiple conductors contained within a single protective jacket
- Commonly used in wood-frame residential construction
Technical Specifications of 6/2 Romex NM-B Cable
Understanding the technical characteristics of 6/2 Romex NM-B cable with ground ensures it is selected and installed correctly for high-load residential circuits.
| Specification | Details |
|---|---|
| Cable Type | NM-B (Non-Metallic Building Cable) |
| Conductor Size | 6 AWG |
| Number of Conductors | 2 Insulated + 1 Bare Ground |
| Conductor Material | Stranded Copper |
| Voltage Rating | 600 Volts |
| Typical Circuit Rating | 50–60 Amps (per NEC residential use) |
Common Applications of 6/2 Romex NM-B Cable with Ground
The 6/2 Romex NM-B cable with ground is used in residential electrical systems where high amperage is required but a neutral conductor is not needed.
Residential Electrical Applications
- Electric water heaters
- Baseboard and radiant electric heaters
- Heat pumps and air handlers
- Electric furnaces and supplemental heating equipment
Limited Commercial and Specialty Uses
- Residential-style heating equipment in mixed-use buildings
- Indoor workshops with heavy-duty 240-volt tools
- Mechanical rooms requiring high-load circuits
Why 6/2 NM-B Cable Is Used Instead of 6/3
The key difference between 6/2 and 6/3 NM-B cable is the presence of a neutral conductor. Many high-amperage appliances operate exclusively on 240 volts and do not require a neutral connection.
Using 6/2 Romex NM-B cable eliminates unnecessary conductors, simplifies installation, and reduces material cost—provided the appliance manufacturer and electrical design do not require a neutral. Always verify equipment requirements before selecting cable type.
Installation Guidelines for 6/2 Romex NM-B Cable
Due to its size and stiffness, installing 6/2 Romex NM-B cable requires careful planning and adherence to code requirements.
Best Practices for Installation
- Install only in dry, indoor locations
- Use properly sized staples designed for large-gauge cable
- Maintain required clearance from framing edges or install nail plates
- Re-identify the white conductor when used as a hot leg
- Use breakers, lugs, and terminals rated for 6 AWG copper
Safety, UL Listing, and NEC Compliance
Electrical safety standards exist to protect people, property, and equipment. Six-gauge NM-B copper cable is typically UL-listed and manufactured to meet strict quality and performance standards.
The National Electrical Code governs conductor sizing, permitted uses, support spacing, and installation methods for NM-B cable. Adhering to these rules ensures safe operation, successful inspections, and long-term system reliability.
For authoritative guidance on residential wiring standards and conductor sizing, consult the National Electrical Code (NEC) .
6/2 NM-B Cable vs THHN Conductors in Conduit
A common question is whether to use NM-B cable or individual THHN conductors in conduit. Each option serves a specific purpose.
- NM-B: Faster installation in wood-frame residential structures
- THHN: Required for conduit systems and wet or exposed locations
- NM-B cannot be installed in outdoor or damp environments
Maintenance and Inspection Considerations
Once installed, NM-B cable requires minimal maintenance. However, inspections are recommended during renovations or when replacing high-load equipment.
- Inspect cable jackets for damage or abrasion
- Verify tight and secure terminations
- Ensure cable remains properly supported and protected
Common Mistakes to Avoid
- Using 6/2 cable where a neutral conductor is required
- Installing NM-B cable in damp or outdoor locations
- Failing to re-identify the white conductor as a hot
- Overfilling electrical boxes with large conductors
- Ignoring appliance manufacturer wiring instructions
Why Buy Electrical Cable from IB Lighting?
IB Lighting supplies professional-grade electrical products selected for safety, durability, and long-term performance. Contractors and informed buyers trust IB Lighting for materials that meet modern electrical standards.
Browse a full selection of electrical supplies in the IB Lighting shop or learn more about the company at the IB Lighting homepage.
For technical assistance, bulk pricing, or project guidance, visit the contact page.

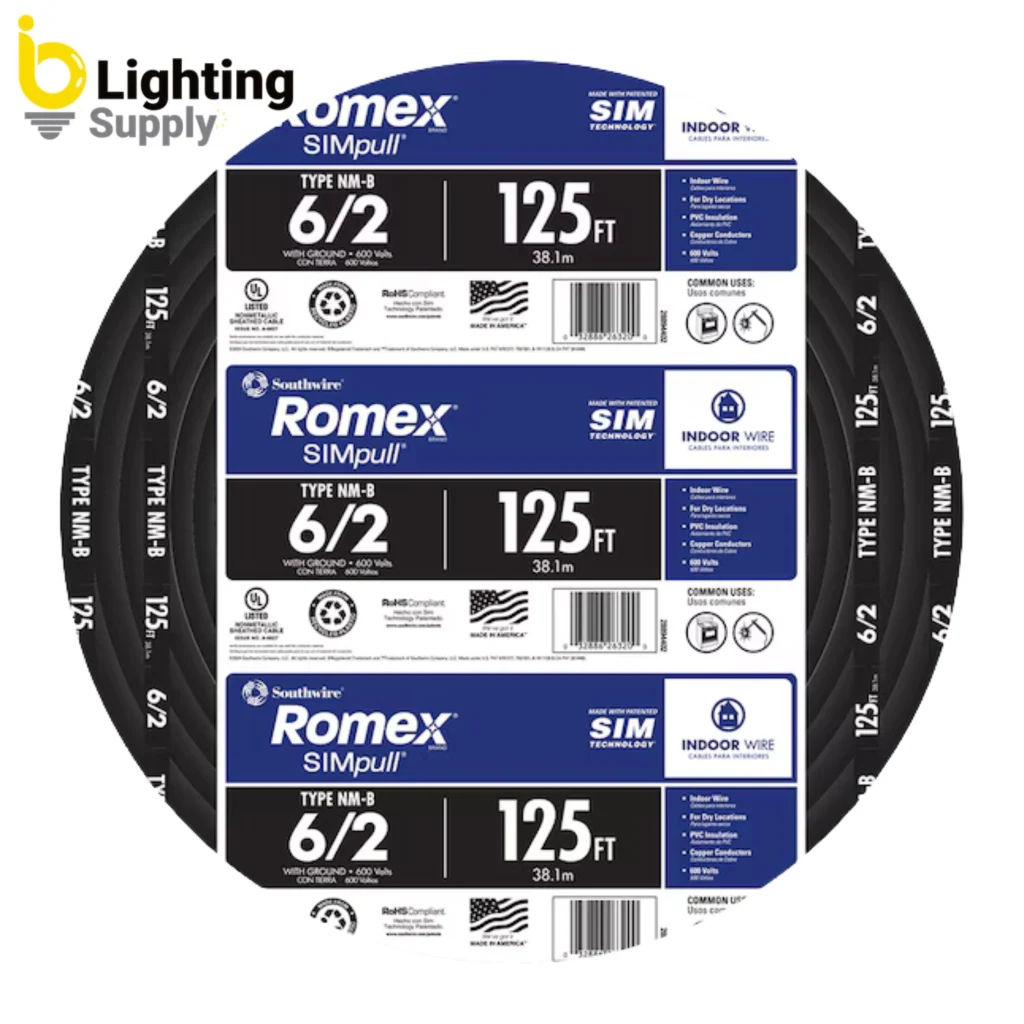

The Southwire 6/2 Romex NM-B cable with ground (125 ft roll) is a reliable choice for residential heating and other high-load indoor circuits.
Frequently Asked Questions
What is 6/2 Romex NM-B cable used for?
It is commonly used for electric water heaters, baseboard heaters, and other 240-volt appliances that do not require a neutral.
Can 6/2 Romex be used on a 60-amp breaker?
Yes, when permitted by code and appliance specifications, 6 AWG copper NM-B cable is commonly used on 50–60 amp residential circuits.
Does 6/2 NM-B include a ground wire?
Yes. It includes two insulated conductors and one bare copper grounding conductor.
Is 6/2 NM-B suitable for outdoor use?
No. NM-B cable is approved for dry, indoor locations only.
Conclusion: Choosing the Right Cable for High-Amperage 240-Volt Circuits
The 6/2 Romex NM-B cable with ground is a dependable, code-compliant solution for residential electrical systems that require high amperage without a neutral conductor. When installed correctly and used in appropriate applications, it delivers long-term safety, performance, and peace of mind.
Selecting the correct cable is not just about meeting code—it is about protecting your equipment, your property, and everyone who relies on your electrical system.
