8/2 Romex NM-B Cable with Ground: The Complete Guide for High-Amperage Residential Wiring
The 8/2 Romex NM-B cable with ground is a heavy-duty residential wiring solution engineered for high-amperage, straight 240-volt circuits that do not require a neutral conductor. Commonly used for electric ranges, large baseboard heaters, EV chargers, and high-capacity HVAC equipment, this cable delivers the current-carrying capability needed for demanding indoor electrical applications.
As homes adopt more powerful appliances and electrical loads continue to rise, proper conductor sizing becomes critical. Using an undersized cable can lead to overheating, voltage drop, nuisance breaker trips, and serious fire hazards. When selected and installed correctly, 8/2 Romex NM-B cable with ground provides a safe, reliable, and code-compliant solution for high-load residential circuits.
This comprehensive guide explains what 8/2 Romex NM-B cable is, where it should be used, how to install it correctly, and how to comply with UL and National Electrical Code (NEC) requirements.
What Is 8/2 Romex NM-B Cable with Ground?
8/2 Romex NM-B cable with ground is a non-metallic sheathed electrical cable containing two insulated copper conductors—typically black and white—along with a bare copper grounding conductor. The “8” refers to the American Wire Gauge (AWG) size of the conductors, while the “2” indicates the number of insulated conductors inside the cable.
In most applications, the white conductor is re-identified as a hot conductor, allowing the cable to supply two hot legs and a grounding conductor without a neutral. This configuration is ideal for appliances and equipment that operate exclusively on 240 volts.
Understanding the NM-B Cable Designation
NM-B stands for Non-Metallic Building Wire. NM-B cable is designed specifically for residential indoor wiring and features thermoplastic insulation rated for higher operating temperatures than older NM cable types.
- Approved for dry, indoor locations only
- Multiple conductors enclosed within a single protective jacket
- Commonly used in wood-frame residential construction
Technical Specifications of 8/2 Romex NM-B Cable
Understanding the technical characteristics of 8/2 Romex NM-B cable with ground ensures proper selection and safe installation for high-amperage circuits.
| Specification | Details |
|---|---|
| Cable Type | NM-B (Non-Metallic Building Cable) |
| Conductor Size | 8 AWG |
| Number of Conductors | 2 Insulated + 1 Bare Ground |
| Conductor Material | Stranded Copper |
| Voltage Rating | 600 Volts |
| Typical Circuit Rating | 40–50 Amps (per NEC residential use) |
Common Applications of 8/2 Romex NM-B Cable with Ground
The 8/2 Romex NM-B cable with ground is used in residential electrical systems where high amperage is required but a neutral conductor is not needed.
Residential Electrical Applications
- Electric ranges and cooktops (when neutral is not required)
- Electric vehicle (EV) charging circuits
- Large electric baseboard or radiant heaters
- High-capacity air conditioning and HVAC equipment
Light Commercial and Specialty Uses
- Residential-style equipment in mixed-use buildings
- Indoor workshops with heavy-duty 240-volt tools
- Mechanical rooms requiring high-load circuits
Why 8/2 NM-B Cable Is Used for Straight 240-Volt Loads
Many high-amperage appliances operate solely on 240 volts and do not require a neutral conductor. In these cases, using 8/2 Romex NM-B cable with ground provides the necessary current capacity while eliminating unnecessary conductors.
This simplifies installation, reduces material cost, and improves cable handling—provided the appliance manufacturer and electrical design confirm that a neutral is not required.
Installation Guidelines for 8/2 Romex NM-B Cable
Due to its larger conductor size and stiffness, installing 8/2 Romex NM-B cable requires careful planning and strict adherence to code requirements.
Best Practices for Installation
- Install only in dry, indoor locations
- Use heavy-duty staples rated for large-gauge cable
- Maintain proper clearance from framing edges or install nail plates
- Re-identify the white conductor when used as a hot leg
- Use breakers, lugs, and terminals rated for 8 AWG copper
Safety, UL Listing, and NEC Compliance
Electrical safety standards exist to protect people, property, and equipment. Eight-gauge NM-B copper cable is typically UL-listed and manufactured to meet strict quality and performance standards.
The National Electrical Code governs conductor sizing, permitted uses, support spacing, and installation methods for NM-B cable. Following these requirements ensures safe operation, successful inspections, and long-term system reliability.
For authoritative guidance on residential wiring standards and conductor sizing, consult the National Electrical Code (NEC) .
8/2 NM-B Cable vs 8/3 NM-B Cable
The primary difference between 8/2 and 8/3 NM-B cable is the presence of a neutral conductor.
- 8/2 NM-B: Used for straight 240-volt loads without a neutral
- 8/3 NM-B: Required when appliances need 120/240 volts
- Always follow appliance manufacturer wiring specifications
Maintenance and Inspection Considerations
Once installed, NM-B cable requires minimal maintenance. However, inspections are recommended when upgrading equipment or during renovations.
- Inspect cable jackets for damage or abrasion
- Verify tight and secure terminations
- Ensure proper support and strain relief
Common Mistakes to Avoid
- Using 8/2 cable where a neutral conductor is required
- Installing NM-B cable in damp or outdoor locations
- Failing to re-identify the white conductor as a hot
- Overfilling electrical boxes with large conductors
- Ignoring appliance manufacturer wiring requirements
Why Buy Electrical Cable from IB Lighting?
IB Lighting supplies professional-grade electrical products selected for safety, durability, and long-term performance. Contractors and informed buyers trust IB Lighting for materials that meet modern electrical standards.
Browse a full selection of electrical supplies in the IB Lighting shop or learn more about the company at the IB Lighting homepage.
For technical assistance, bulk pricing, or project guidance, visit the contact page.

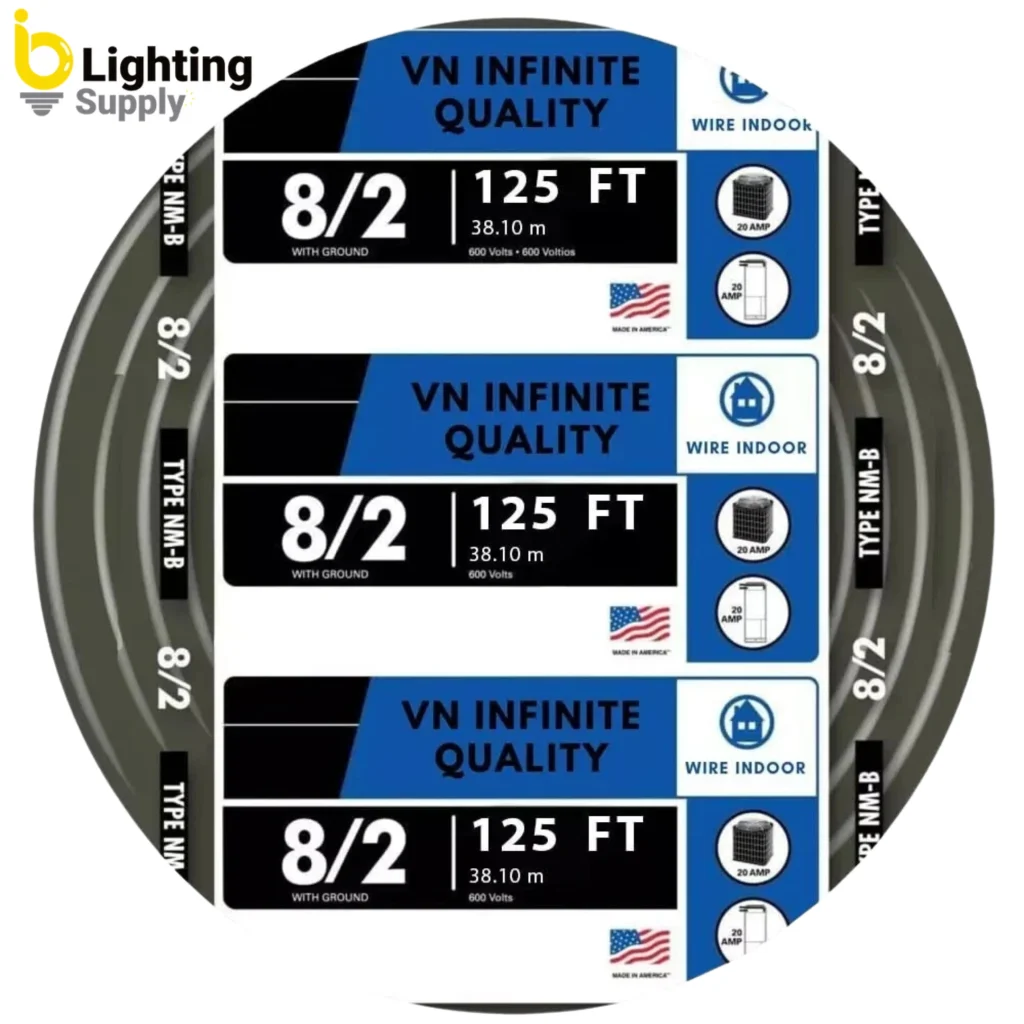

The 8/2 Romex stranded copper NM-B cable (125 ft roll) is a dependable choice for residential high-amperage circuits requiring safe and reliable power delivery.
Frequently Asked Questions
What is 8/2 Romex NM-B cable used for?
It is commonly used for electric ranges, EV chargers, large heaters, and other 240-volt appliances that do not require a neutral.
Can 8/2 Romex be used on a 50-amp breaker?
Yes. Eight-gauge copper NM-B cable is commonly used on 40–50 amp residential circuits when permitted by code and equipment specifications.
Does 8/2 NM-B include a ground wire?
Yes. It includes two insulated conductors and one bare copper grounding conductor.
Is 8/2 Romex suitable for outdoor use?
No. NM-B cable is approved for dry, indoor locations only.
Conclusion: Choosing the Right Cable for High-Amperage Residential Circuits
The 8/2 Romex NM-B cable with ground is a reliable, code-compliant solution for residential electrical systems that require high amperage without a neutral conductor. When installed correctly and used in appropriate applications, it delivers long-term safety, performance, and peace of mind.
Selecting the correct cable is not just about meeting code—it is about protecting your equipment, your property, and everyone who relies on your electrical system.
