The conduit fill 40 percent rule from NEC Chapter 9 Table 1 governs the maximum permitted conductor fill for conduits containing more than 2 conductors. The rule requires that total conductor cross-sectional area not exceed 40 percent of conduit internal area to allow heat dissipation and safe conductor pulling. This article explains the rule and its variants (53 percent for single conductor, 31 percent for 2 conductors, 60 percent for nipples), provides interactive conduit fill calculator, includes reference tables for conduit and conductor areas, walks through calculation methodology step by step, addresses grounding conductor considerations, and covers practical product selection for common residential and commercial installations.

Across thousands of Southwire and Cerrowire orders shipped from IB Lighting nationwide, our electrician-led team helps buyers determine the correct conduit size for their wire installations based on the NEC conduit fill requirements. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the full Southwire and Cerrowire electrical wire and cable lineup.

This article explains the conduit fill 40 percent rule that we regularly reference when helping buyers plan installations, using citations from the current National Electrical Code (NFPA 70) and industry practice from the International Association of Electrical Inspectors.

The Fast Answer: Conduit Fill 40 Percent Rule

The conduit fill 40 percent rule from NEC Chapter 9 Table 1 requires that when a conduit contains more than 2 conductors, the total cross-sectional area of all conductors (including insulation) must not exceed 40 percent of the conduit internal cross-sectional area. For 1 conductor, the maximum fill is 53 percent. For exactly 2 conductors, the maximum fill is 31 percent. For nipples 24 inches or less, the maximum fill increases to 60 percent regardless of conductor count.

Applying the rule to common installations

The conduit fill 40 percent rule applies to most residential and commercial conduit installations because most circuits use 3 or more conductors (two hots plus ground for 240V circuits, hot plus neutral plus ground for 120V circuits, or three conductors for 240V circuits with switching). Three-conductor circuits are the most common conduit installation in both residential and commercial work.

Calculation methodology

The calculation multiplies the number of conductors by the individual conductor area (from NEC Chapter 9 Table 5) and compares the total to 40 percent of the conduit area (from NEC Chapter 9 Table 4). If the conductor total is less than or equal to 40 percent of the conduit area, the fill is compliant. If the conductor total exceeds 40 percent, a larger conduit is required.

Practical impact on installations

The conduit fill 40 percent rule prevents installers from overloading conduits with too many conductors, which would compromise heat dissipation and make conductor pulling difficult or impossible. Following the rule ensures safe installations that pass inspection and provide reliable long-term performance. Most residential installations easily meet the requirement with standard conduit sizes.

Why the Conduit Fill 40 Percent Rule Exists

The 40 percent fill limit for 3 or more conductors serves multiple important purposes in electrical installations.

Heat dissipation per NEC 300.17

NEC 300.17 requires that the number and size of conductors in a raceway not be more than will permit dissipation of heat and ready installation or withdrawal of the conductors without damage. Multiple current-carrying conductors bundled in a conduit generate heat that must dissipate through the conduit walls and surrounding materials. The 40 percent fill limit provides adequate air space for heat transfer.

Conductor pulling space

During installation, conductors are pulled through conduits using pull strings and lubricants. Adequate free space in the conduit allows the conductors to move freely during pulling without excessive friction that could damage insulation. The 40 percent fill limit provides sufficient space for practical pulling of the conductor bundle.

Mutual heating considerations

Multiple conductors carrying current in close proximity generate mutual heating effects where each conductor contributes heat to the others. This effect is more significant with more conductors, which is why the 40 percent limit for 3 or more conductors is more restrictive than the 53 percent limit for a single conductor. The fill limits account for the number-of-conductors effect on heat generation and dissipation.

Insulation temperature protection

Excessive conduit fill can cause conductor insulation temperatures to exceed the insulation rating during normal operation. Insulation damage from overheating is progressive and can lead to short circuits, ground faults, or fires. The 40 percent fill limit ensures insulation temperatures remain within safe limits during full-load operation.

The Three Fill Percentages: 53, 31, and 40

NEC Chapter 9 Table 1 specifies three different fill percentages based on the number of conductors in the conduit, each validated for the specific installation scenario.

53 percent fill for 1 conductor

For a single conductor in a conduit, the maximum fill is 53 percent of the conduit internal area. Single conductor installations are common for service entrance conductors, ground wire runs, and dedicated equipment grounding conductors. The higher fill percentage reflects the reduced heating concerns with only one conductor.

31 percent fill for 2 conductors

For exactly 2 conductors in a conduit, the maximum fill is 31 percent of the conduit internal area. This more restrictive percentage reflects that 2 conductors create pulling friction issues that single conductors do not, but do not have the mutual heating characteristics of 3 or more conductors. Two-conductor installations are relatively uncommon in residential work but appear in some specialized applications.

40 percent fill for 3 or more conductors

For 3 or more conductors in a conduit, the maximum fill is 40 percent of the conduit internal area. This is the most commonly applied fill percentage because most residential and commercial circuits use 3 or more conductors. The 40 percent limit balances heat dissipation requirements with practical installation considerations for typical multi-conductor bundles.

Choosing which percentage applies

Simply count the total number of insulated conductors in the conduit. Include all current-carrying conductors, neutral conductors, and insulated equipment grounding conductors. Do not include bare grounding conductors (they occupy space but are counted separately in some calculations). The count determines which fill percentage applies.

NEC Chapter 9 Table 1: Fill Percent Requirements

NEC Chapter 9 Table 1 is the primary reference for conduit fill percentages and applies to all conduit and tubing types.

What Table 1 covers

NEC Chapter 9 Table 1 specifies the percent of cross section of conduit and tubing for conductors and cables. The table provides the three fill percentages (53, 31, and 40) and applies universally to all conduit types listed in NEC Chapter 9 Table 4 including EMT, PVC, RMC, IMC, and flexible conduit variants.

Notes accompanying Table 1

Several important notes accompany NEC Chapter 9 Table 1. Note 1 specifies that all calculations should be based on actual conductor and conduit dimensions. Note 4 provides the nipple exception allowing 60 percent fill for conduits 24 inches or less. Additional notes address specific installation scenarios and calculation refinements.

Universal application across conduit types

The Chapter 9 Table 1 fill percentages apply to all conduit types with no variation based on conduit material. EMT, PVC, RMC, and other conduit types all use the same 53 percent, 31 percent, and 40 percent limits based on conductor count. The specific Chapter 9 Table 4 conduit area values differ between conduit types, but the fill percentage limits are constant.

Why the limits are conservative

The fill percentages in NEC Chapter 9 Table 1 are conservative to ensure safe operation across a wide range of installation conditions. Ambient temperature variations, conduit routing through insulated spaces, and specific conductor insulation types all affect the actual thermal performance. The conservative limits provide margin for these installation variables.

NEC Chapter 9 Table 4: Conduit Area Reference

NEC Chapter 9 Table 4 provides the exact cross-sectional areas and calculated fill areas for each conduit trade size and type.

EMT conduit areas (40 percent fill values)

Common EMT trade sizes and their 40 percent fill areas: 1/2 inch EMT has 40 percent area of 0.122 square inches, 3/4 inch EMT has 0.213 square inches, 1 inch EMT has 0.346 square inches, 1-1/4 inch EMT has 0.598 square inches, 1-1/2 inch EMT has 0.814 square inches, and 2 inch EMT has 1.342 square inches. Larger trade sizes provide progressively more fill area.

PVC Schedule 40 conduit areas (40 percent fill values)

Common PVC Schedule 40 trade sizes and their 40 percent fill areas: 1/2 inch PVC has 40 percent area of 0.114 square inches, 3/4 inch PVC has 0.203 square inches, 1 inch PVC has 0.333 square inches, 1-1/4 inch PVC has 0.581 square inches, 1-1/2 inch PVC has 0.794 square inches, and 2 inch PVC has 1.316 square inches. PVC Schedule 80 has smaller internal areas due to thicker walls.

Rigid metal conduit areas

Rigid metal conduit (RMC) trade sizes have slightly different internal areas than EMT for the same nominal trade size due to different wall thickness specifications. The Chapter 9 Table 4 values for RMC should be used specifically for RMC installations rather than substituting EMT values.

Flexible conduit variations

Flexible metal conduit (FMC), liquidtight flexible metal conduit (LFMC), and liquidtight flexible nonmetallic conduit (LFNC) all have Chapter 9 Table 4 entries with their specific area values. These typically have smaller internal areas than rigid conduit of the same trade size due to the flexible construction. Verify specific values in Table 4 for flexible conduit installations.

NEC Chapter 9 Table 5: Conductor Area Reference

NEC Chapter 9 Table 5 provides the exact cross-sectional areas of insulated conductors used in conduit fill calculations.

Common THWN-2 and THHN conductor areas

Cross-sectional areas for common THWN-2 and THHN conductors (in square inches): 14 AWG has area of 0.0097, 12 AWG has 0.0133, 10 AWG has 0.0211, 8 AWG has 0.0366, 6 AWG has 0.0507, 4 AWG has 0.0824, 3 AWG has 0.0973, 2 AWG has 0.1158, 1 AWG has 0.1562, 1/0 AWG has 0.1855, 2/0 AWG has 0.2223, 3/0 AWG has 0.2679, and 4/0 AWG has 0.3237.

Insulation type variations

Different insulation types produce different total conductor areas even for the same conductor size. RHH, RHW, and XHHW have different areas than THWN-2 and THHN due to different insulation thicknesses. Always verify the specific insulation type in NEC Chapter 9 Table 5 rather than assuming values for one insulation type apply to another.

Compact stranded conductor areas

Compact stranded conductors have smaller cross-sectional areas than standard stranded conductors of the same AWG size due to the compact stranding reducing overall diameter. Chapter 9 Table 5 includes compact stranded conductor variations for common insulation types. Compact stranded can provide fill compliance in tighter conduit installations.

Reading Table 5 values

Chapter 9 Table 5 is organized by insulation type and lists conductor sizes from smallest to largest. Locate the appropriate insulation type section, then find the conductor size row. The cross-sectional area is provided in square inches. For conduit fill calculations, multiply this area by the number of conductors of that size in the conduit.

How to Calculate Conduit Fill Step by Step

Manual conduit fill calculation follows a straightforward process using values from NEC Chapter 9 Tables 4 and 5.

Step 1: Count all conductors in the conduit

Count all insulated conductors that will be in the conduit including hot conductors, neutral conductors, and equipment grounding conductors. Include current-carrying conductors and non-current-carrying conductors. Do not include bare grounding conductors in the count for determining fill percentage, though bare grounding conductors are included in the total area calculation.

Step 2: Determine applicable fill percentage

Based on the conductor count from Step 1, determine the applicable fill percentage from NEC Chapter 9 Table 1: 53 percent for 1 conductor, 31 percent for 2 conductors, or 40 percent for 3 or more conductors. Most installations use the 40 percent value because most circuits have 3 or more conductors.

Step 3: Look up individual conductor areas

For each conductor size in the conduit, look up the individual conductor area from NEC Chapter 9 Table 5 for the specific insulation type (typically THWN-2 or THHN for residential and commercial work). The area is provided in square inches per conductor.

Step 4: Calculate total conductor area

Multiply each conductor area by the number of conductors of that size. Sum the results across all conductor sizes to get the total conductor area in the conduit. For example, three 12 AWG THWN-2 conductors: 3 × 0.0133 = 0.0399 square inches total.

Step 5: Compare to conduit fill capacity

Look up the 40 percent fill area (or 53 percent or 31 percent as applicable) for candidate conduit trade sizes from NEC Chapter 9 Table 4. Select the smallest conduit trade size where the fill area equals or exceeds the total conductor area from Step 4. This is the minimum required conduit size.

The Nipple Exception: 60 Percent Fill for Short Runs

NEC Chapter 9 Note 4 provides an important exception to the standard fill percentages for very short conduit runs.

What qualifies as a nipple

NEC Chapter 9 Note 4 defines a nipple as a conduit or tubing 24 inches (600 mm) or less in length between boxes, cabinets, or similar enclosures. This length limit is measured between the boxes at each end of the conduit, not the total conduit length in a longer installation.

60 percent fill allowance

For nipples meeting the 24 inch length limit, NEC Chapter 9 Note 4 permits fill up to 60 percent of the conduit internal area regardless of the number of conductors. This is significantly higher than the 40 percent limit for standard conduit runs and reflects that short conduit runs do not accumulate significant heat.

Ampacity considerations at 60 percent fill

NEC Chapter 9 Note 4 also specifies that the ampacity adjustment factors of NEC 310.15(C)(1) do not apply for nipples. This means the higher fill percentage does not require conductor ampacity derating, providing meaningful capacity for short conduit runs between adjacent enclosures.

Practical applications of the nipple exception

The nipple exception is commonly used for short conduit runs between meter sockets and service panels, between adjacent subpanels, or between junction boxes in close proximity. The higher fill capacity allows practical routing in tight installations without upsizing to larger conduits that would be difficult to install in confined spaces.

Conduit Types and Their Fill Applications

Different conduit types have different physical characteristics that affect fill applications, though the fill percentage limits from NEC Chapter 9 Table 1 apply uniformly.

EMT (Electrical Metallic Tubing)

EMT is the most common conduit type for indoor commercial installations and some residential applications. NEC Article 358 governs EMT installation. EMT has larger internal area than equivalent trade size rigid metal conduit, providing slightly more fill capacity per trade size. EMT is not suitable for direct burial or severely corrosive environments.

PVC (Rigid Polyvinyl Chloride Conduit)

PVC conduit is the most common conduit type for outdoor residential installations including HVAC condenser circuits, EV charger installations, and outdoor lighting. NEC Article 352 governs PVC installation. PVC Schedule 40 has slightly smaller internal areas than Schedule 80 due to different wall thicknesses. PVC is UV resistant and suitable for direct burial.

Rigid Metal Conduit (RMC)

RMC provides the strongest physical protection and is used in commercial and industrial installations, hazardous locations, and outdoor exposed installations where physical protection is critical. NEC Article 344 governs RMC installation. RMC has slightly larger internal area than EMT of the same trade size due to different wall thickness specifications.

Flexible conduit types

FMC (NEC 348), LFMC (NEC 350), and LFNC (NEC 356) are flexible conduit types used for equipment connections and installations requiring flexibility. These conduit types typically have smaller internal areas than rigid conduit of the same trade size due to the flexible construction. Use specific NEC Chapter 9 Table 4 values for the specific flexible conduit type.

Common Residential Conduit Fill Scenarios

The conduit fill 40 percent rule applies to many common residential installation scenarios where NEC compliance affects conduit trade size selection.

Central AC condenser wiring

A typical 4 ton central AC condenser installation uses three 8 AWG THWN-2 conductors in outdoor PVC conduit. Conductor area: 3 × 0.0366 = 0.110 square inches. 3/4 inch PVC 40 percent area is 0.203 square inches (sufficient). 1 inch PVC 40 percent area is 0.333 square inches (provides more pulling margin). Both sizes satisfy NEC. See our 4 ton central AC wire sizing article for complete installation guidance.

Level 2 EV charger installation

A 48 amp Level 2 EV charger installation uses three 6 AWG THWN-2 conductors (two hots plus grounding conductor) in outdoor PVC conduit. Conductor area: 3 × 0.0507 = 0.152 square inches. 3/4 inch PVC 40 percent area is 0.203 square inches (sufficient with some margin). 1 inch PVC provides more comfortable installation. See our Level 2 EV charger wire sizing article.

Subpanel feeder installation

A 100A subpanel feeder using individual THWN-2 conductors requires four conductors (two hots, neutral, and grounding). For 2 AWG copper: 4 × 0.1158 = 0.463 square inches. 1-1/4 inch PVC 40 percent area is 0.581 square inches (sufficient). 1-1/2 inch PVC provides additional margin. This is why 100A feeder installations typically use 1-1/4 inch or 1-1/2 inch conduit.

Multi-circuit conduit runs

Some installations run multiple branch circuits through a single conduit for organized routing. Six 12 AWG THWN-2 conductors (three circuits with hot plus neutral): 6 × 0.0133 = 0.0798 square inches. 1/2 inch EMT 40 percent area is 0.122 square inches (sufficient). This allows compact multi-circuit routing in commercial installations.

Grounding Conductor Considerations in Fill Calculations

Grounding conductors have specific rules for how they are counted in conduit fill calculations that affect the calculation methodology.

Insulated equipment grounding conductors

Insulated equipment grounding conductors (green insulated wire) are counted the same as current-carrying conductors for conduit fill calculations. Both the conductor count for determining fill percentage and the area total include insulated grounding conductors. THWN-2 or THHN insulated grounding conductors use the same NEC Chapter 9 Table 5 area values as ungrounded conductors of the same size.

Bare grounding conductors

Bare grounding conductors are counted in the area total for conduit fill calculations but are not counted in determining the applicable fill percentage. The bare conductor area is calculated using the actual conductor dimensions (not the insulated conductor dimensions). This calculation approach recognizes that bare conductors occupy space but do not contribute to the heating and pulling considerations that drive the fill percentage requirements.

Common grounding conductor sizes

Common grounding conductor sizes per NEC 250.122: for 15A circuits, use 14 AWG; for 20A circuits, use 12 AWG; for 30-60A circuits, use 10 AWG; for 100A circuits, use 8 AWG; for 200A circuits, use 6 AWG copper. Larger circuits require progressively larger grounding conductors. Include the grounding conductor in fill calculations at its specific size.

Isolated grounding scenarios

Some installations use separate isolated grounding conductors in addition to the equipment grounding conductor. All grounding conductors in the conduit contribute to fill calculations. Isolated grounding conductors are typically insulated (green with yellow stripe) and count as insulated conductors for both count and area purposes.

Product Selection for Conduit Fill Compliance

Understanding conduit fill requirements helps buyers select appropriate conduit and wire products for compliant installations.

Southwire and Cerrowire conductor selection

Southwire and Cerrowire manufacture THWN-2 and THHN individual conductors in all standard sizes for conduit installations. These conductors have the standardized cross-sectional areas listed in NEC Chapter 9 Table 5, ensuring predictable conduit fill calculations. Southwire and Cerrowire products are equivalent for fill calculation purposes.

Conduit trade size selection

Select conduit trade sizes based on the NEC Chapter 9 Table 1 fill calculations for the specific conductor combination. Consider selecting one trade size larger than the minimum for easier conductor pulling, especially on long runs or installations with multiple bends. The additional conduit cost is typically modest compared to installation labor savings.

PVC conduit sizing for outdoor installations

PVC conduit is standard for outdoor residential installations. For typical HVAC and EV charger installations with 8 AWG or 6 AWG conductors, 3/4 inch or 1 inch PVC is typically adequate. Verify specific fill calculation for the exact conductor combination and consider the pulling difficulty for longer runs when selecting between minimum size and one size larger.

EMT sizing for commercial installations

EMT is common for commercial branch circuit installations. For typical multi-conductor commercial runs with 12 AWG or 10 AWG conductors, 1/2 inch or 3/4 inch EMT is typically adequate for the number of conductors in most circuits. Larger conductor combinations may require 1 inch or larger EMT.

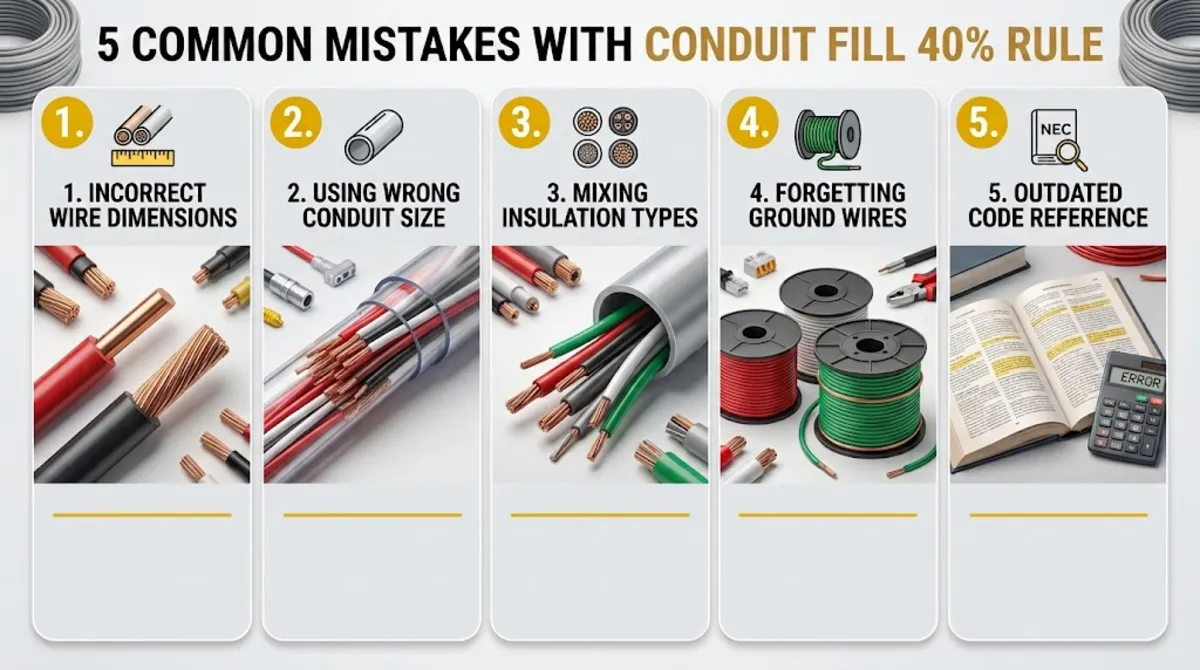

5 Common Mistakes with Conduit Fill 40 Percent Rule

The mistakes below cause the most frequent conduit fill compliance failures and inspection issues.

Mistake 1: Using 40 percent fill for 1 or 2 conductor installations

NEC Chapter 9 Table 1 provides three different fill percentages based on conductor count: 53 percent for 1 conductor, 31 percent for 2 conductors, and 40 percent for 3 or more. Using the 40 percent value for a 1 or 2 conductor installation is incorrect. Applying 40 percent to a 2 conductor installation would over-fill the conduit beyond the 31 percent limit.

Mistake 2: Using wrong conductor area values for insulation type

NEC Chapter 9 Table 5 lists conductor areas by insulation type because different insulation types have different overall diameters even for the same conductor size. Using THWN-2 area values for RHW conductors or vice versa produces incorrect fill calculations. Verify the specific insulation type and use the corresponding Table 5 values.

Mistake 3: Ignoring grounding conductors in calculations

Grounding conductors occupy space in the conduit and must be included in fill calculations. Some installers calculate fill using only current-carrying conductors and forget to add the grounding conductor. This produces optimistic fill calculations that may exceed actual capacity when the grounding conductor is added.

Mistake 4: Applying 60 percent nipple exception to long conduit runs

The 60 percent fill nipple exception per NEC Chapter 9 Note 4 applies only to conduits 24 inches or less in length. Some installers incorrectly apply the 60 percent fill to longer conduit runs. For conduits longer than 24 inches, use the standard 40 percent fill limit for 3 or more conductors.

Mistake 5: Assuming EMT and RMC areas are the same

EMT and rigid metal conduit have different internal areas even for the same nominal trade size due to different wall thickness specifications. Using EMT area values for RMC installations or vice versa produces small but potentially significant calculation errors. Use the specific NEC Chapter 9 Table 4 values for the exact conduit type being installed.

Conclusion

The conduit fill 40 percent rule from NEC Chapter 9 Table 1 requires that when a conduit contains more than 2 conductors, the total cross-sectional area of all conductors must not exceed 40 percent of the conduit internal cross-sectional area. This is one of three fill percentages: 53 percent applies to 1 conductor, 31 percent applies to 2 conductors, and 40 percent applies to 3 or more conductors. The nipple exception in NEC Chapter 9 Note 4 permits 60 percent fill for conduits 24 inches or less in length.

Conduit fill compliance is determined by calculating total conductor area from NEC Chapter 9 Table 5 values, then comparing to conduit fill area capacity from NEC Chapter 9 Table 4 values for candidate conduit sizes. Most residential installations easily meet compliance with standard conduit trade sizes. Use the interactive conduit fill calculator above for quick verification of specific conductor combinations, or perform manual calculation using the step-by-step methodology for unusual configurations.
