Electrical wire size chart accuracy is the difference between a circuit that passes inspection and one that overheats, trips breakers, or starts a fire. Use 14 AWG for 15-amp circuits, 12 AWG for 20-amp, 10 AWG for 30-amp, 8 AWG for 40-amp, and 6 AWG for 50-amp under standard residential NEC conditions.

Across 50+ wire and cable buying guides published by the IB Lighting electrician-led team, one mistake comes up more than any other: matching wire size to amperage from memory instead of from the code-correct ampacity column. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting treats wire selection as a technical decision, not a guess. This guide gives you the chart and the rules behind it.

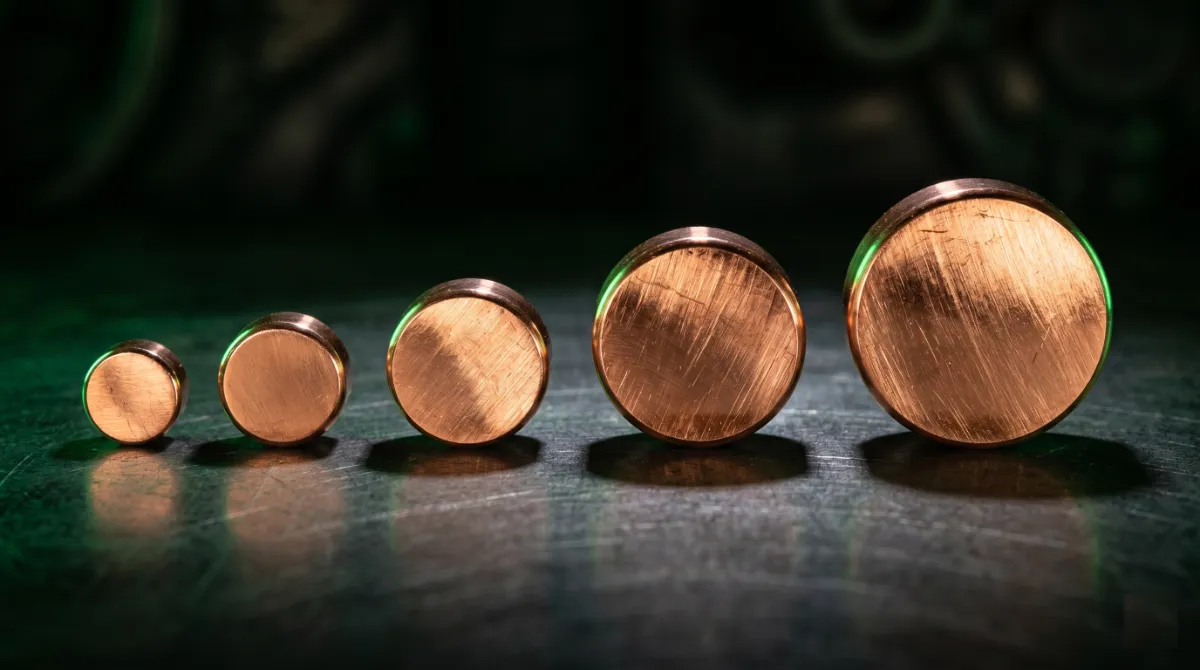

What AWG Wire Sizing Actually Means

AWG stands for American Wire Gauge, the North American standard for conductor diameter. The smaller the number, the larger the wire. A 14 AWG conductor is thinner than a 10 AWG one, and 4/0 AWG is one of the largest sizes you will encounter in residential service entrance work. Wire size determines ampacity, which is the maximum continuous current the conductor can carry without overheating.

Resistance rises as wire gets thinner. Therefore a smaller conductor dissipates more heat at the same current, which is why undersized wire is a fire hazard. The National Electrical Code (NEC) sets ampacity tables in NFPA 70 Article 310, and every size in the chart below comes directly from those tables.

Ampacity is not the only factor, however. Voltage drop, ambient temperature, and the number of current-carrying conductors in a bundle all push the calculation in real installations. The chart in the next section is your starting point, not your final answer.

Electrical Wire Size Chart: AWG to Amps (2026 NEC)

This electrical wire size chart matches every common residential and light commercial wire size to its NEC-allowed circuit amperage. The values reflect copper conductors in dry locations at 75°F (24°C) ambient, the standard reference condition. For aluminum, drop one full size step or use the dedicated aluminum column in NEC Table 310.16.

The 75°C column applies only when every terminal in the circuit (breaker, receptacle, panel lug) is also rated for 75°C. Most modern UL-listed devices are, but residential 15-amp and 20-amp duplex receptacles often are not. Verify the terminal rating before you reach for the higher column.

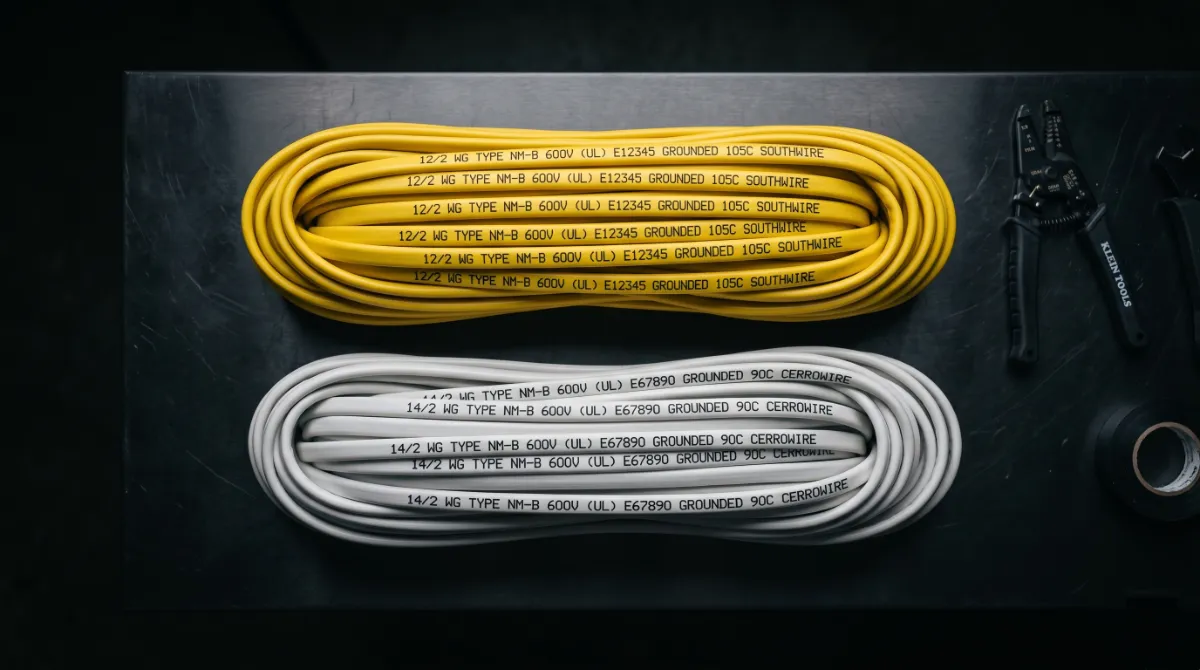

14 AWG vs 12 AWG: 15-Amp and 20-Amp Circuits

14 AWG copper carries up to 15 amps and 12 AWG carries up to 20 amps. These two wire size options cover the majority of residential branch circuits, from bedroom lighting to kitchen receptacles. Choosing between them is rarely about cost. It is about matching the wire size to the breaker that protects it.

When to use 14 AWG

Use 14 AWG on dedicated 15-amp circuits. This covers most lighting loops, single-room bedroom and living room receptacles in older homes, and low-draw fixed appliances under 12 amps continuous. The white-jacketed NM-B version is the standard residential cable for this work. For the complete spec sheet, see our 14/2 Romex wire guide.

When to use 12 AWG

Use 12 AWG for 20-amp circuits. This is the default for kitchen small-appliance branches, laundry circuits, bathroom receptacles, garage outlets, and any general-purpose circuit where you want headroom. Yellow-jacketed NM-B is the residential version. See our 12/2 Romex wire guide for sizing and pricing detail.

Pro tip: When in doubt between 14 and 12 AWG on a circuit you might later expand, run 12 AWG and protect it with a 15-amp breaker. The wire is rated above the breaker, which is always legal. You then have the option to upgrade to a 20-amp breaker later without rewiring.

10, 8, and 6 AWG: Heavy-Load Wire Sizes

Wire sizes from 10 AWG through 6 AWG handle the medium-to-heavy loads in a typical home: dryers, ranges, water heaters, sub-panels, and EV chargers. These are the wire size ranges where ampacity math starts to matter, because the appliances pulling on them often run for hours and the conductor heats up steadily.

10 AWG: 30-amp circuits

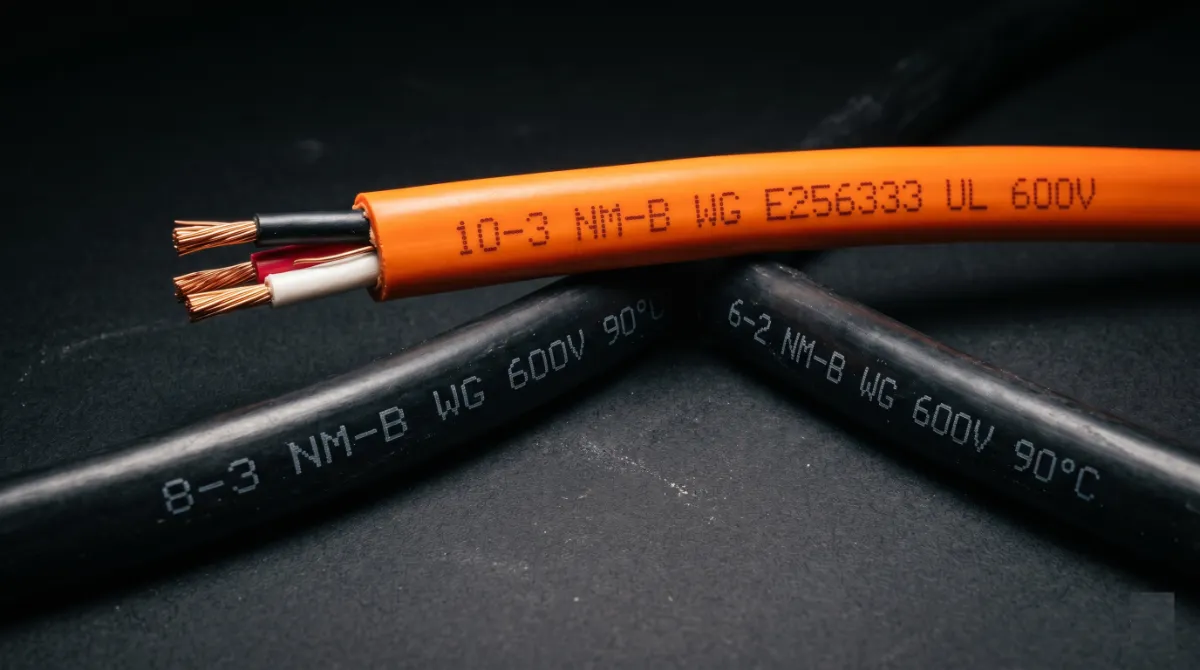

10 AWG is the standard wire size for electric dryers, electric water heaters, and small Level 2 EV chargers up to 24 amps continuous, per UL-listed product ratings. The orange jacket of 10/3 NM-B is the residential go-to for dryers because it carries both 120-volt and 240-volt legs plus a neutral. For conduit installations, our 10 AWG THHN guide covers the single-conductor alternative.

8 AWG: 40-amp circuits

8 AWG copper supports electric ranges, larger water heaters, and 40-amp sub-feeds. Black-jacketed NM-B versions like 8/3 cover most residential range installations. Stranded THHN in conduit becomes the better choice in long runs where pulling solid 8 AWG through tight bends gets painful.

6 AWG: 50 to 65 amps

6 AWG handles 50-amp ranges, 48-amp EV chargers (60-amp circuit), and 60-amp sub-panel feeds. Our 6 AWG THHN guide details conduit applications. The NM-B versions in 6/2 and 6/3 cover residential sheathed runs.

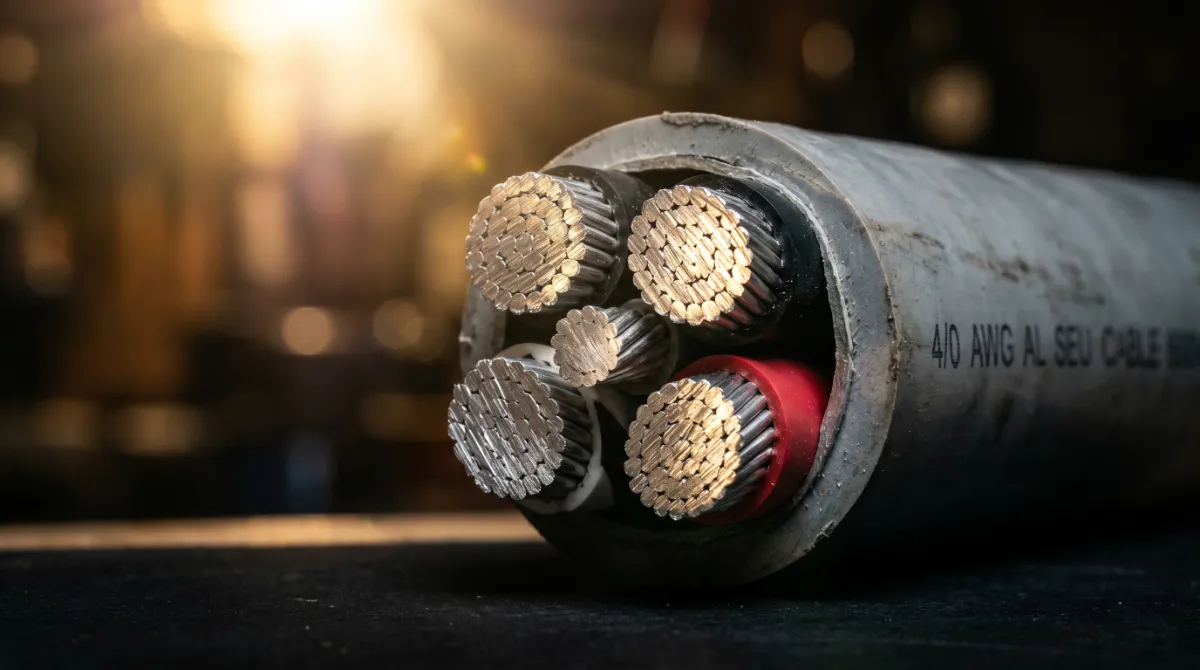

4 AWG to 2/0 AWG: Service and Sub-Panel Sizes

Above 6 AWG, you are typically picking the wire size for sub-panels and service entrances. These conductors carry the entire load of a portion of the home, so wire size accuracy is not optional. Copper and aluminum diverge here. Aluminum is common in service entrance cable like SER and SEU, where the cost savings outweigh the larger physical size.

100-amp service

A 100-amp residential service typically uses 3 AWG copper THHN in conduit or 1/0 AWG aluminum SER cable. The copper version is more compact; the aluminum version is more affordable in long runs. Our 4 AWG THHN guide covers the closely related 70-amp to 85-amp sub-feeds that bridge between heavy branch circuits and service-level wire.

150-amp service

150-amp services pull 1/0 AWG copper or 2/0 AWG aluminum. Most residential remodels in older homes that originally had 100-amp service upgrade to either 150 or 200 amps, and the wire size jump matters because the existing conduit may need to be replaced to fit the larger conductor.

200-amp service

The standard new-construction residential service is 200 amps. This calls for 2/0 AWG copper or 4/0 AWG aluminum. Service entrance cable like 2-2-2-4 SER and 4-0-4-0 SEU covers the common pre-bundled assemblies. NEC 310.12 includes a specific dwelling-services adjustment that allows slightly smaller conductors in some 120/240V single-phase residential services, which is why you sometimes see 4/0 AWG aluminum on a 200-amp service rather than the strict Table 310.16 number.

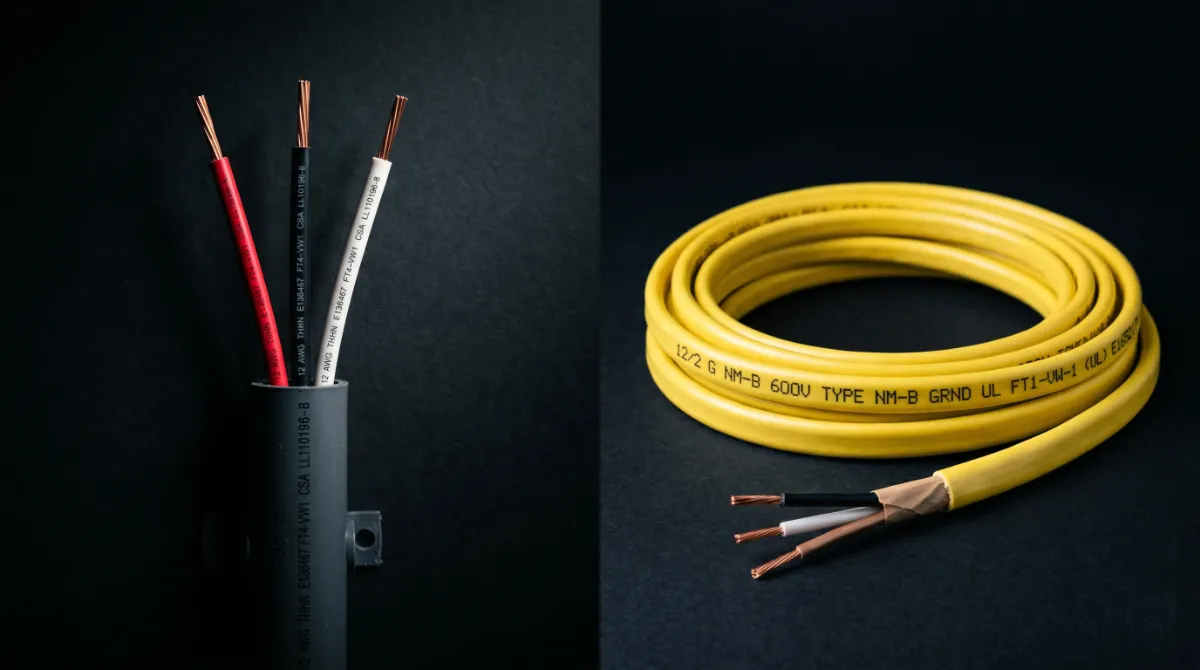

THHN vs NM-B: Which Wire Type at Each Size

Wire size answers the ampacity question. Wire type answers the location question. NM-B (Romex) is the sheathed residential cable used inside walls. THHN is the single-conductor wire pulled through conduit. Both come in the same AWG wire size range, but their installation rules and effective ampacity differ enough that picking the wrong type can fail inspection even when the wire size is correct.

NM-B is permitted only in one and two-family dwellings, multi-family dwellings up to three stories of Type III, IV, or V construction, and certain accessory structures per NEC 334.10. It is not allowed in commercial buildings or in wet locations, and Chicago bans it entirely. THHN is permitted wherever conduit is permitted, which is effectively everywhere.

Ampacity is where the practical difference shows. NM-B is capped at the 60°C ampacity column regardless of its 90°C jacket rating. THHN in conduit at 75°C terminals gets the 75°C column. For longer runs and higher loads, this can be the difference between needing 8 AWG and getting away with 10 AWG.

For a deeper side-by-side on the specific code-compliance differences, see our complete THHN vs Romex NM-B comparison.

5 Factors That Change Wire Size (Field Framework)

The wire size chart gives you the starting size. Real installations almost always shift it. After publishing 50+ wire product guides and answering thousands of contractor questions, IB Lighting has distilled the wire size adjustment process into a 5-factor framework. Run through it before every job.

Factor 1: Terminal temperature rating

If any device in the circuit is rated 60°C only, the entire circuit uses the 60°C ampacity column. Most residential 15-amp and 20-amp receptacles fall here. NEC 110.14(C) is the controlling rule.

Factor 2: Ambient temperature

Wire run through an attic in Phoenix is not in a 75°F environment. NEC Table 310.15(B)(1) derates ampacity in higher ambient temperatures. An attic at 120°F derates 12 AWG NM-B from 20 amps to roughly 16 amps, which means a 20-amp circuit through that attic no longer passes.

Factor 3: Current-carrying conductor bundling

When more than three current-carrying conductors share a raceway or cable bundle, NEC 310.15(C)(1) derates each conductor. Four to six conductors get 80% of full ampacity. Seven to nine get 70%. This is why crowded conduit runs need bigger wire than the chart suggests.

Factor 4: Voltage drop

Voltage drop is a code recommendation, not a hard mandate, but it ruins motors and electronics. The accepted rule is 3% maximum drop on a branch circuit, 5% combined feeder plus branch. For long runs over 75 feet, drop forces you up one wire size more often than not.

Factor 5: Continuous load multiplier

A continuous load runs for 3 hours or more. EV chargers, large lighting installations, and commercial signage are continuous. NEC 210.19(A) requires the circuit conductor to be sized at 125% of the continuous load. A 40-amp continuous load needs 50-amp wire, not 40-amp wire.

Pro tip: When all 5 factors stack on a single circuit, the corrected wire size lands one to two full AWG steps larger than the chart starting point. This is why experienced electricians keep both 12 AWG and 10 AWG on the truck for every 20-amp branch job: they decide on site, not in advance.

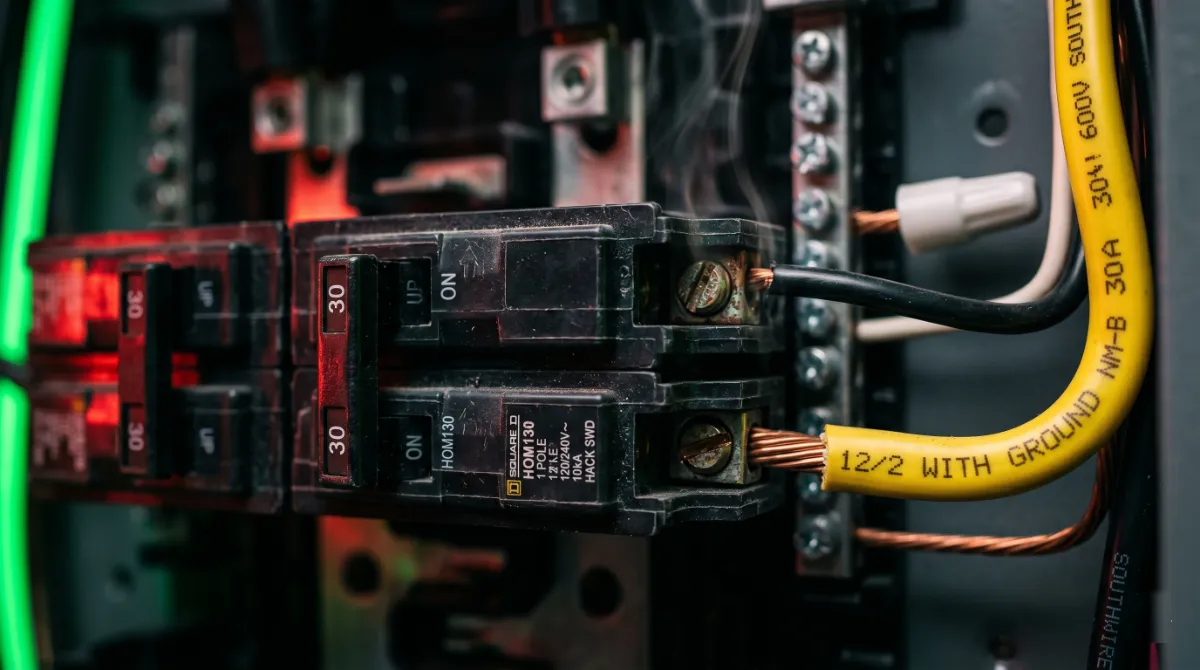

Common Wire Sizing Mistakes (NEC Violations)

The wire size mistakes below come up repeatedly in IB Lighting’s customer support calls and in failed inspection photos contractors send in. Each one is genuinely common and each one fails inspection. Avoid them and you will save a callback every time.

Mistake 1: Treating NM-B as 90°C ampacity

Many DIY guides cite the 90°C jacket rating and apply the 90°C ampacity column. NEC 334.80 explicitly forbids this. NM-B ampacity stays at 60°C regardless of jacket rating.

Mistake 2: Skipping voltage drop math

Voltage drop becomes severe over 75 feet on 20-amp circuits and over 50 feet on 15-amp circuits. The chart does not include voltage drop. Use the formula or a calculator before pulling cable.

Mistake 3: Wrong wire type for the location

NM-B in conduit outdoors is a code violation. UF-B in dry indoor framing is legal but expensive and stiff. THHN run outside conduit is illegal. The type rules are absolute.

Mistake 4: Aluminum wire in residential branch circuits

Aluminum is permitted in service entrance and feeder applications but is generally avoided in 15-amp and 20-amp branch circuits in homes due to historical overheating issues with the connection terminals. Some jurisdictions prohibit it outright in branches.

Mistake 5: Mixing wire sizes mid-run

A 14 AWG pigtail spliced into a 12 AWG branch in a junction box drops the entire circuit’s effective rating to 14 AWG. The breaker on that circuit must then drop to 15 amps. This is a frequent finding when a homeowner extends a circuit themselves.

Conclusion

Picking the right wire size starts with the chart, but never ends there. The electrical wire size chart in this guide pairs 14 AWG with 15 amps, 12 AWG with 20 amps, 10 AWG with 30 amps, and scales up from there. The 5-factor framework, the 75°C versus 60°C column rule, and the breaker-protects-wire principle are what separate code-compliant work from inspection failures. Bookmark this wire size guide, run the math on every circuit, and when the answer is not obvious, get a second opinion before pulling cable.

This article was last reviewed and updated in May 2026 to reflect the latest NEC interpretations and ampacity table guidance applied as the 2026 residential baseline.
