Gas Line Cost for Generac Install: Complete 2026 Breakdown
Gas Line Cost for Generac Install: Complete 2026 Breakdown
🕑 13 min read Updated: June 2026 Table of Contents The Fast Answer: Gas Line Cost for Generac Install Gas Line Cost by Scenario Gas Line Sizing for...
- Gas line cost for Generac install typically ranges from $500 to $2,500 for standard natural gas connections and $1,200 to $5,500 for new propane tank installations, depending on distance, pipe material, and site complexity.
- The largest cost variables are distance from gas meter or propane tank to the generator location, whether trenching is required for underground runs, and whether the existing gas meter can support the added Generac load.
- Each Generac model has a specific fuel flow requirement that determines gas line sizing: 14kW needs 178 CFH, 22kW needs 289 CFH, and 24kW needs 315 CFH at full load.
- Existing natural gas connections within 25 feet of the generator location typically cost $500 to $1,000 for the gas line portion, which is the lowest-cost fuel scenario for any Generac install.
- Gas meter upgrades required when existing residential meters cannot support the added Generac load typically cost $500 to $1,500, and coordination with the utility can add 2-4 weeks to the install timeline.
- Regional variance affects gas line cost significantly, with Northeast and West Coast metros running 20-40 percent higher than Midwest and Southern markets.
Gas line cost for Generac install typically ranges from $500 to $2,500 for standard natural gas connections within 25 to 50 feet of the meter, and from $1,200 to $5,500 for new propane tank installations depending on tank size and burial requirements. The gas line portion of a Generac installation is one of the largest cost variables after labor and the automatic transfer switch, and it varies more widely by site than any other install component. This article breaks down every gas line cost scenario honestly so Generac buyers can plan their total budget accurately before contacting installers for firm quotes.
Across hundreds of Generac home standby generator orders shipped nationwide, IB Lighting’s electrician-led team walks buyers through the gas line cost component of the total install picture before finalizing the order. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the unit but does not perform installation directly. We help buyers understand what to expect from installer quotes on the gas line portion so the total budget is realistic. This article is that walkthrough, using guidelines aligned with NFPA 54 National Fuel Gas Code requirements and installation practices verified against official Generac installation documentation.
The Fast Answer: Gas Line Cost for Generac Install
The right budget for the gas line portion of your Generac install depends on four honest factors: your fuel source (existing natural gas connection, existing propane tank, or new propane tank required), the distance from the fuel source to the generator install location, whether underground trenching is required, and your regional labor market. The table below shows the five most common gas line cost scenarios and the profile each one fits.
| Scenario | Typical Cost Range | Profile Match |
|---|---|---|
| Existing NG within 25 feet | $500-$1,000 | Meter close to install site, no trenching, no meter upgrade needed |
| Existing NG with moderate run | $1,000-$2,000 | 25-50 foot run, above-ground routing possible, standard fittings |
| Long NG run with trenching | $2,000-$4,000 | Over 50 feet, underground routing required, code-compliant burial |
| Existing propane tank connection | $600-$1,500 | 250-gal or larger tank already on site, distribution line reconfiguration |
| New propane tank installation | $1,200-$5,500 | No existing propane infrastructure, includes tank plus distribution line |
The honest reading: most Generac installs across the country land in the $800 to $2,500 range for the gas line component because existing natural gas connections at moderate distances fit the most common scenario. New propane tank installations push the cost higher but deliver on-site fuel storage that natural gas cannot match. Regional variance layers on top of these ranges and can shift totals by 20-40 percent in either direction.
Pro tip: The gas line cost portion of your Generac install quote should always be itemized separately from labor and materials. If your installer bundles gas line work into a single lump-sum labor line, request an itemized breakdown that shows pipe material, fittings, trenching (if any), gas meter upgrade (if required), and utility coordination fees. This lets you compare quotes accurately and identify inflated line items during the quoting phase.

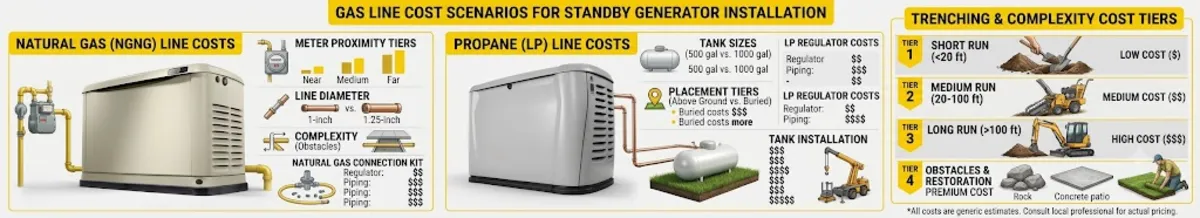

Gas Line Cost by Scenario
Understanding each gas line cost scenario in detail helps you match your specific home to the right budget range. The five scenarios below cover the vast majority of Generac install situations.
Existing natural gas within 25 feet of install location
This is the lowest-cost gas line scenario for Generac install and typically totals $500 to $1,000. Cost includes tap into the existing gas line near the meter or an existing accessible junction, sediment trap, dedicated shutoff valve, flexible fuel line (typically CSST) to the generator, code-compliant fittings, and any minor utility coordination. Labor is typically 2-4 hours for this scope. This scenario fits most homes where the gas meter is on the same side of the home as the planned generator install location.
Existing natural gas with 25 to 50 foot run
Moderate distance gas runs typically total $1,000 to $2,000 for the gas line portion. Cost adds additional CSST or black iron pipe, more fittings, and additional labor for routing along the exterior of the home or through an attic or crawl space. This scenario is common when the gas meter is on one side of the home and the generator install location is on another side. Some jurisdictions require exterior pipe to be painted or protected with rigid conduit, which adds material cost.
Long natural gas runs with underground trenching
Long runs beyond 50 feet or runs that require crossing driveways, landscaping, or other obstacles typically require underground trenching. Total cost runs $2,000 to $4,000 for the gas line portion. Cost includes yellow-jacketed polyethylene pipe rated for underground gas service, excavation and trenching, sand bedding, warning tape backfill, transitions to above-ground copper or steel, and inspection scheduling. Trenching distance and any landscape restoration drive the upper end of the range.
Existing propane tank connection
Homes with existing propane tanks (250-gallon or larger installations for heating, cooking, or other appliances) typically pay $600 to $1,500 for the gas line portion. Cost includes tap into the existing propane distribution line, second-stage regulator sizing for the generator load, flexible fuel line, code-compliant fittings, and any repositioning of existing supply lines. Tanks smaller than 250-gallon may need to be upgraded to 500-gallon for Generac 22kW or larger installations for adequate runtime.
New propane tank installation with distribution line
This is the most expensive gas line scenario for Generac install and typically totals $1,200 to $5,500 depending on tank size and burial requirements. A new 250-gallon aboveground tank runs $1,200 to $2,500 including tank, regulator, and initial installation. A 500-gallon aboveground tank adds $500 to $1,500 to those numbers. Underground 500-gallon tanks add $1,000 to $2,500 to aboveground totals for excavation and burial. Distribution line from tank to generator adds $500 to $1,200 depending on distance.

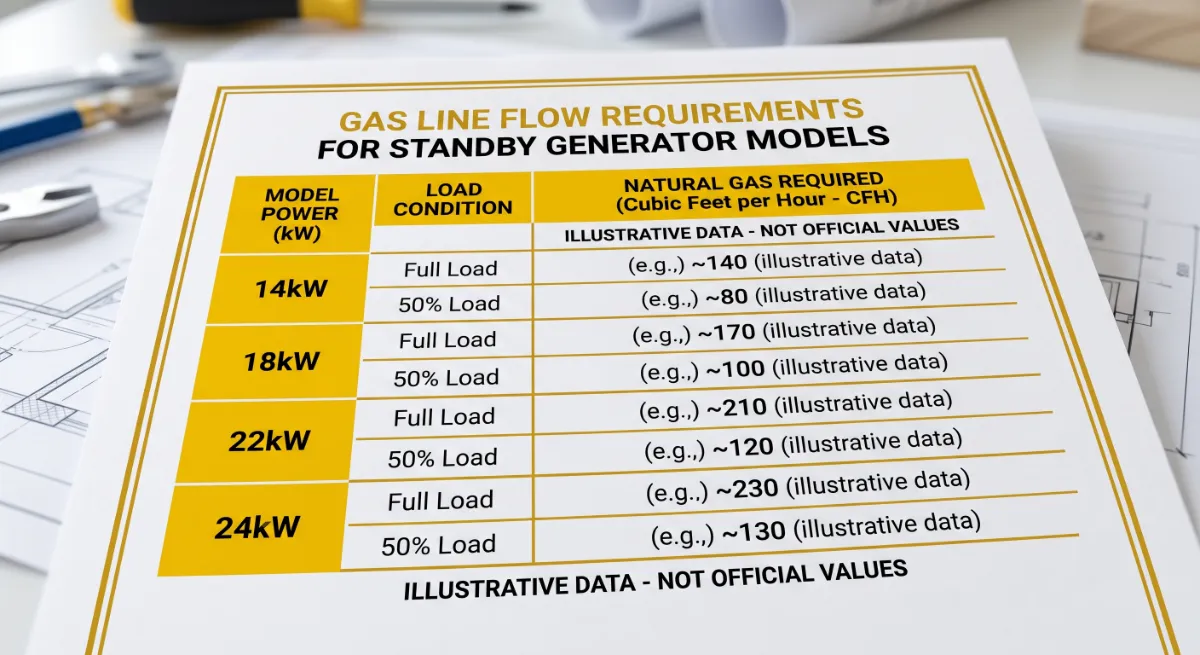

Gas Line Sizing for Different Generac Models
Each Generac model has a specific fuel flow requirement that determines the gas line size required for reliable full-load operation. Undersized gas lines cause pressure drops that trigger generator error codes or reduce output during peak demand. The table below shows fuel flow requirements for each common Generac Guardian Series model.
Natural gas flow requirements by model
| Generac Model | Natural Gas Flow at Full Load | Typical Gas Line Size |
|---|---|---|
| 14kW 7258 | 178 CFH | 3/4 inch to 1 inch pipe |
| 18kW 7259 | 220 CFH | 1 inch pipe |
| 22kW 7260 | 289 CFH | 1 inch to 1-1/4 inch pipe |
| 24kW 7261 | 315 CFH | 1-1/4 inch pipe |
| 26kW | 340 CFH | 1-1/4 inch pipe |
Why gas line sizing matters for install cost
Larger gas line diameter costs more per foot in material and requires more labor for cutting, threading, and fitting. A 1-1/4 inch black iron pipe run for a 24kW installation costs approximately 30-40 percent more per foot than a 3/4 inch run for a 14kW. Long runs amplify this difference significantly. This is one reason the 14kW has meaningfully lower gas line install cost than larger Generac models for identical run distances.
Propane flow considerations
Propane flow requirements are lower than natural gas because propane delivers approximately 2.5 times the BTU content per cubic foot. Gas line sizing for propane is typically smaller than for natural gas at the same generator kW rating. Second-stage propane regulators must be sized correctly for the specific Generac model, and undersized regulators are one of the most common propane connection issues that cause post-install performance problems.
Gas Meter Upgrade Scenarios and Cost
Gas meter upgrades are one of the most common unexpected cost additions in Generac gas line install quotes. Understanding when your existing meter can support the added Generac load helps you avoid mid-install surprise charges.
When your gas meter can typically support Generac
Standard residential gas meters can typically support a Generac 14kW or 18kW installation without upgrade if the home does not have multiple high-draw gas appliances running simultaneously. Common residential meters are rated for 250 to 425 cubic feet per hour, which covers the 14kW at 178 CFH and 18kW at 220 CFH with reasonable margin when other gas appliances are not at peak simultaneous demand.
When gas meter upgrade is typically required
Gas meter upgrades are typically required for Generac 22kW or larger installations when the home also has high-draw gas appliances like tankless water heaters, large furnaces, gas ranges, or gas dryers running simultaneously. Some utilities require automatic meter upgrades for any generator install above 200 CFH regardless of existing appliances. Meter upgrades cost $500 to $1,500 for the meter itself plus utility coordination fees, which vary by utility from $150 to $500.
Utility coordination timeline impact
Gas meter upgrades add 2 to 4 weeks to the total install timeline because the utility must schedule the meter swap around gas service disconnection and reconnection. This is separate from your electrician’s install scope and cannot be compressed by hiring a faster contractor. Buyers who plan generator installs around hurricane season or winter storm exposure should factor meter upgrade timelines into their overall project schedule.
Pipe Material Options: Black Iron vs CSST vs Flex Line
Gas line material selection affects both install cost and long-term reliability. Three material options are common in Generac gas line installs, each with distinct cost profiles and use cases.
Black iron pipe (traditional, most durable)
Threaded black iron pipe is the traditional material for residential gas line runs and remains the most durable option. Cost ranges $8-$15 per linear foot for pipe plus $3-$6 per fitting. Labor is higher than for flexible alternatives because each threaded connection must be sealed carefully. Best suited for long straight runs and exterior installations where physical protection matters. Some jurisdictions still require black iron for all indoor gas runs.
CSST (Corrugated Stainless Steel Tubing)
CSST is the modern standard for flexible interior gas line runs. Cost ranges $6-$12 per linear foot for tubing plus $8-$18 per fitting. Labor is lower than black iron because CSST bends around obstacles without additional fittings. Best suited for runs through walls, attics, and crawl spaces where routing complexity matters. CSST requires proper bonding to prevent lightning-related failures and specific installer certification in most jurisdictions.
Flexible fuel line (final connection to generator)
Flexible braided fuel lines are used for the final connection from the fixed gas line to the generator itself. Cost is typically $50-$150 for the pre-fabricated flex line. This connection allows minor generator vibration and expansion without stressing the fixed pipe. Every Generac install includes at least this flex line connection at the generator itself regardless of the main run material.
Underground Trenching Cost for Long Gas Runs
Underground trenching for long gas runs is one of the largest variable costs in Generac gas line install budgets. Understanding trenching cost drivers helps buyers plan accurately when the gas meter is far from the ideal generator install location.
Trenching cost drivers
Trenching cost varies based on trench length, soil conditions (sandy soil is cheapest, rocky or clay soil is most expensive), depth requirements (typically 18-24 inches for gas lines per code), and any landscape restoration required. Standard trenching costs $8-$15 per linear foot in typical soil, or $15-$30 per linear foot in rocky or hard soil. Trenches crossing paved driveways add saw-cutting and patching cost of $200-$800 per crossing.
Yellow polyethylene pipe for underground gas
Underground gas runs use yellow-jacketed polyethylene pipe rated for gas service, which costs approximately $2-$5 per linear foot. The material is easier to work with underground than steel or copper but requires transitions to steel or copper at any above-ground termination point. Anodeless risers at each end of the run add $100-$300 per riser.
Alternative: relocate the install site
When trenching cost becomes prohibitive (long runs, difficult soil, or extensive landscape restoration), some buyers relocate the generator install site closer to the gas meter to avoid the trenching entirely. This is worth discussing with your installer during the site survey phase because relocating the install can sometimes save $2,000 to $4,000 in total gas line cost without meaningfully affecting generator function.
New Propane Tank Cost as a Fuel Alternative
Homes without existing natural gas or propane infrastructure face a fuel choice: run a new natural gas line from the utility connection (which requires utility coordination and often has high one-time hookup fees) or install a new residential propane tank. Understanding the propane tank cost structure helps evaluate this decision.
Aboveground 250-gallon propane tank
A new 250-gallon aboveground propane tank installation typically costs $1,200 to $2,500 including tank, regulator, and initial installation. The 250-gallon size works well for Generac 14kW and 18kW installations because their lower fuel consumption delivers 5-7 days of runtime at half load. Initial propane fill of 200 usable gallons costs approximately $400 to $800 depending on regional propane prices.
Aboveground 500-gallon propane tank
A new 500-gallon aboveground propane tank installation typically costs $1,500 to $3,000 for the tank plus $500 to $1,200 for the distribution line to the generator. The 500-gallon size is the recommended default for Generac 22kW and larger installations because it delivers 3-4 days of runtime at half load and covers most Category 1-2 hurricane outage scenarios. Initial fill of 400 usable gallons costs approximately $800 to $1,600.
Underground 500-gallon propane tank
Underground 500-gallon tank installations add $1,000 to $2,500 to aboveground totals for excavation, tank burial, and anode protection. Total cost typically runs $3,000 to $5,500. Underground installation is preferred where aesthetic or landscape considerations matter, and required by some homeowner association covenants. Load calculation methodology aligns with NEMA electrical standards for standby generator fuel system requirements.
Regional Cost Variance for Gas Line Work
Regional labor markets and permit fees create significant variance in gas line cost for Generac install across the United States. Understanding your regional context helps you evaluate whether local quotes are reasonable.
Higher-cost regions (Northeast, West Coast metros)
Northeast metros (Boston, New York, Philadelphia, Washington DC), West Coast metros (San Francisco, Los Angeles, Seattle), and Hawaii typically run 20-40 percent higher than national averages for gas line work. Standard installs in these regions typically start at $800 to $1,200 rather than the $500 baseline for existing natural gas connections. Labor rates and material costs are the primary drivers of higher regional totals.
Mid-cost regions (Midwest metros, Mid-Atlantic)
Midwest metros (Chicago, Detroit, Cleveland, Cincinnati, Minneapolis), Mid-Atlantic regions (Baltimore, Richmond), and Colorado Front Range typically align with national averages. Standard installs in these regions run $500 to $900 for existing natural gas connections. Labor rates are moderate and material costs are typical.
Lower-cost regions (Southeast, Texas, Mountain West)
Southeast metros (Atlanta, Charlotte, Nashville, Jacksonville), Texas metros (Houston, Dallas, San Antonio), and Mountain West markets (Phoenix, Salt Lake City, Boise) typically run 10-20 percent below national averages. Standard installs in these regions run $450 to $800 for existing natural gas connections. Combined with generally larger lot sizes and easier soil conditions, these markets tend to have the most favorable gas line install economics.
5 Legitimate Ways to Reduce Gas Line Cost for Generac Install
The strategies below reduce gas line cost for Generac install without cutting corners on code compliance or install quality. Each one is legitimate and worth discussing with your installer during the quoting phase.
Strategy 1: Position the generator closer to the gas meter
The single biggest cost reduction strategy for the gas line portion is positioning the generator install location closer to the existing gas meter. Every 10 feet of reduced run distance saves $150 to $400 in materials and labor. When multiple install locations are viable on your property, discuss the distance from each option to the gas meter with your installer during the site survey.
Strategy 2: Avoid trenching when possible
Trenching for underground gas runs is one of the largest variable costs. When possible, route gas lines along above-ground exterior walls or through attic spaces to avoid trenching entirely. Some installers automatically default to trenching for aesthetic reasons when above-ground routing is possible and would cost meaningfully less. Ask about both options during the quote phase.
Strategy 3: Choose 250-gallon propane over 500-gallon when appropriate
For Generac 14kW or 18kW installations without hurricane exposure, 250-gallon propane tanks deliver adequate runtime (5-7 days at half load) at significantly lower cost than 500-gallon tanks. Choosing 250-gallon saves $500 to $1,500 on the tank plus reduced excavation cost if going underground.
Strategy 4: Use existing propane infrastructure when available
Homes with existing propane tanks for heating or other appliances can typically tap into the existing distribution line rather than adding a dedicated line for the generator. This can save $300 to $800 on the gas line portion versus running a separate line from the tank. Confirm your existing tank is adequately sized for the added generator load before committing.
Strategy 5: Confirm gas meter capacity before install
Requesting confirmation from your gas utility that your existing meter can handle the added Generac load before install day prevents mid-install surprise upgrade costs. Contact your gas utility during the quote phase with your specific Generac model’s CFH rating and ask whether meter upgrade is required. If yes, plan the upgrade cost into your budget upfront rather than encountering it mid-install.
5 Mistakes That Increase Gas Line Cost for Generac Install
The mistakes below reliably drive gas line cost higher than necessary. Each one is preventable with proper planning.
Mistake 1: Accepting a lump-sum gas line quote without itemization
Installer quotes that bundle gas line work into a single labor line without itemization make it impossible to compare quotes accurately or identify inflated line items. Request itemized breakdown showing pipe material, fittings, trenching (if any), gas meter coordination fees, and utility hookup charges. Quotes for identical scope frequently vary by 20-30 percent when itemization exposes true cost differences.
Mistake 2: Not confirming gas meter capacity before install day
Discovering mid-install that your gas meter cannot support the Generac load triggers utility coordination delays of 2-4 weeks and adds $500 to $1,500 in unplanned meter upgrade costs. Contact your utility during the quote phase to confirm meter capacity is adequate for your specific Generac model.
Mistake 3: Defaulting to underground trenching when above-ground routing is possible
Some installers default to underground trenching for aesthetic reasons even when above-ground routing along exterior walls is code-compliant and would cost meaningfully less. Discuss both routing options during the quote phase and select the lower-cost option when it meets your aesthetic requirements.
Mistake 4: Oversizing the propane tank for typical outage scenarios
Buyers who default to 500-gallon or 1000-gallon propane tanks without evaluating actual outage runtime needs pay significantly more than necessary. For Generac 14kW or 18kW installations without hurricane exposure, 250-gallon tanks deliver adequate runtime at significantly lower cost. For hurricane-prone regions or larger generators, larger tanks are the right investment. Match the tank size to the actual scenario rather than defaulting to the largest option.
Mistake 5: Skipping the site survey and accepting a phone quote
Remote quotes miss critical scope details for the gas line portion (distance, obstacles, meter location, soil conditions, existing gas appliance loads) that can double or triple the actual cost. Never accept a firm gas line quote without a documented site survey. Site surveys typically take 30-60 minutes and are usually included in the quoting process at no charge.
Ready to plan your Generac install with accurate gas line budget?
IB Lighting resells the full Generac Guardian Series lineup nationwide with free freight and freight insurance included. Final pricing shown securely in cart due to manufacturer advertising policies. Call (800) 674-9019 or browse the Generac home standby collection.
Frequently Asked Questions
How much does gas line cost for Generac install?
Gas line cost for Generac install typically ranges from $500 to $2,500 for standard natural gas connections within 25 to 50 feet of the meter, and from $1,200 to $5,500 for new propane tank installations depending on tank size and burial requirements. The gas line portion is one of the largest cost variables in the total install budget. Regional variance affects total by 20-40 percent.
Can I use my existing natural gas connection for a Generac install?
Yes, in the vast majority of residential installs. Existing residential natural gas meters typically support Generac 14kW and 18kW without upgrade. Larger models (22kW, 24kW) may require meter upgrades depending on other gas appliance loads. Confirm meter capacity with your gas utility during the quote phase to avoid mid-install surprise charges.
What size gas line do I need for a Generac generator?
Gas line size depends on the generator kW rating. Generac 14kW needs 3/4 to 1 inch pipe (178 CFH). 18kW needs 1 inch pipe (220 CFH). 22kW needs 1 to 1-1/4 inch pipe (289 CFH). 24kW needs 1-1/4 inch pipe (315 CFH). Undersized gas lines cause pressure drops that trigger error codes or reduce output during full load operation.
Do I need a permit for the gas line portion of my Generac install?
Yes. Mechanical permits are required for all gas line work in every jurisdiction. Permit fees for the gas line portion typically range $75 to $250 and are usually included in your installer’s overall permit costs. Never accept an installer who suggests skipping gas line permits because un-permitted work voids your Generac warranty and creates future resale complications.
Should I choose natural gas or propane for my Generac install?
Natural gas is the strongest fuel strategy where available because runtime is unlimited during outages and installation cost is typically lower. Propane is the correct choice when natural gas is not available or when on-site fuel storage matters for extended outage scenarios like hurricane preparedness. Both fuel options work reliably with all Generac Guardian Series models when properly sized and installed.
How much does propane tank installation add to Generac install cost?
New 250-gallon aboveground propane tank installation costs $1,200 to $2,500 including tank, regulator, and installation. 500-gallon aboveground tanks add $500 to $1,500 to those numbers. Underground 500-gallon tanks add $1,000 to $2,500 for excavation. Distribution line from tank to generator adds $500 to $1,200 depending on distance. Initial propane fill adds $400 to $1,600 depending on tank size and regional prices.
What causes the largest cost variance in gas line installation for a Generac?
The three largest cost drivers are distance from gas meter or propane tank to the generator location (each 10 feet adds $150-$400), whether underground trenching is required (adds $8-$30 per linear foot), and whether the existing gas meter can support the added load (upgrade adds $500-$1,500 plus utility coordination fees).
Where can I buy a Generac generator?
Generac home standby generators are available through resellers nationwide including IB Lighting. IB Lighting resells the full Generac Guardian Series lineup with free freight and freight insurance included, and final pricing shown securely in cart due to manufacturer advertising policies. Contact IB Lighting at (800) 674-9019 or through the Generac home standby collection.
Conclusion
Gas line cost for Generac install typically ranges from $500 to $2,500 for standard natural gas connections and $1,200 to $5,500 for new propane tank installations. The largest cost variables are distance from the fuel source, whether trenching is required, and whether gas meter upgrades are needed. Match gas line sizing to your specific Generac model CFH rating. Position the generator closer to the meter when possible to reduce distance cost. Confirm meter capacity with your utility before install day. Collect 2-3 itemized quotes from licensed installers before finalizing your budget. The Generac unit itself is available at IB Lighting with pricing shown securely in cart due to manufacturer advertising policies.
Ready to order your Generac generator?
IB Lighting resells the full Generac Guardian Series lineup nationwide with free freight and freight insurance included. Call (800) 674-9019 or browse the Generac home standby collection.
This article was last reviewed and updated in June 2026 to reflect current NFPA 54 National Fuel Gas Code requirements, national labor rate ranges, and current Generac Guardian Series fuel flow specifications. Gas line cost ranges are estimates based on IB Lighting shipping data and are not firm quotes. Always collect 2-3 firm written quotes from licensed installers in your service area before finalizing your installation budget.
