Generac 14kW installation cost typically ranges from $5,500 to $10,500 for standard professional installation across most of the United States, with the unit price shown securely in cart at IB Lighting due to manufacturer advertising policies. Complex installations requiring panel upgrades, long fuel runs, or new 500-gallon propane tank installations can push the total installation cost to $12,500 to $15,000. The Generac 14kW is the entry-level Guardian Series model and offers meaningfully lower total install cost than the 22kW because it pairs with smaller transfer switches and less frequently requires panel upgrades. This article breaks down every cost component honestly so buyers can plan their total budget accurately before contacting installers for firm quotes.

Across hundreds of Generac 14kW orders shipped nationwide, IB Lighting’s electrician-led team walks buyers through the complete installation cost picture before finalizing the order. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the unit but does not perform installation directly. Instead, we help buyers understand what to expect from installer quotes so the total budget is realistic from the start. This article is that walkthrough for the 14kW model, using guidelines aligned with NFPA 70 National Electrical Code requirements and installation practices verified against official Generac installation documentation.

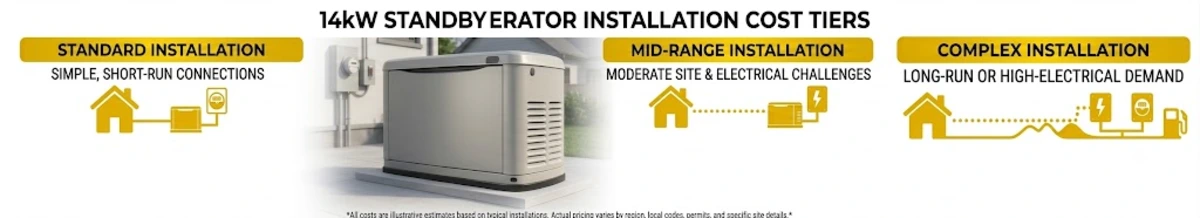

The Fast Answer: Generac 14kW Installation Cost Range

The right budget for Generac 14kW installation depends on four honest factors: your existing electrical panel capacity, your fuel supply situation (existing natural gas connection, existing propane tank, or new propane tank required), the size of transfer switch you select (essential circuits vs whole-home), and your regional labor market. The table below shows the three most common installation cost tiers and the profile each one fits.

The honest reading: most Generac 14kW installations across the country land in the $6,500 to $9,000 range because that fits the most common scenario (150A or 200A service, essential circuits or load-managed whole-home configuration, natural gas or existing propane, moderate distance from panel). Regional variance layers on top of these ranges and can shift totals by 20-40 percent in either direction. The unit price itself is shown securely in your cart at IB Lighting due to Generac manufacturer advertising policies and is separate from the installation cost above.

Pro tip: The Generac 14kW offers a genuinely lower total install cost than the 22kW for two reasons. First, it pairs well with smaller 100A or 150A transfer switches when configured for essential circuits backup, which reduces the ATS line item by $200 to $500. Second, it is less likely to require a panel upgrade because load management modules can keep peak demand under existing service capacity. Buyers who want whole-home coverage on the 14kW should discuss load management configuration with their installer during the quote phase.

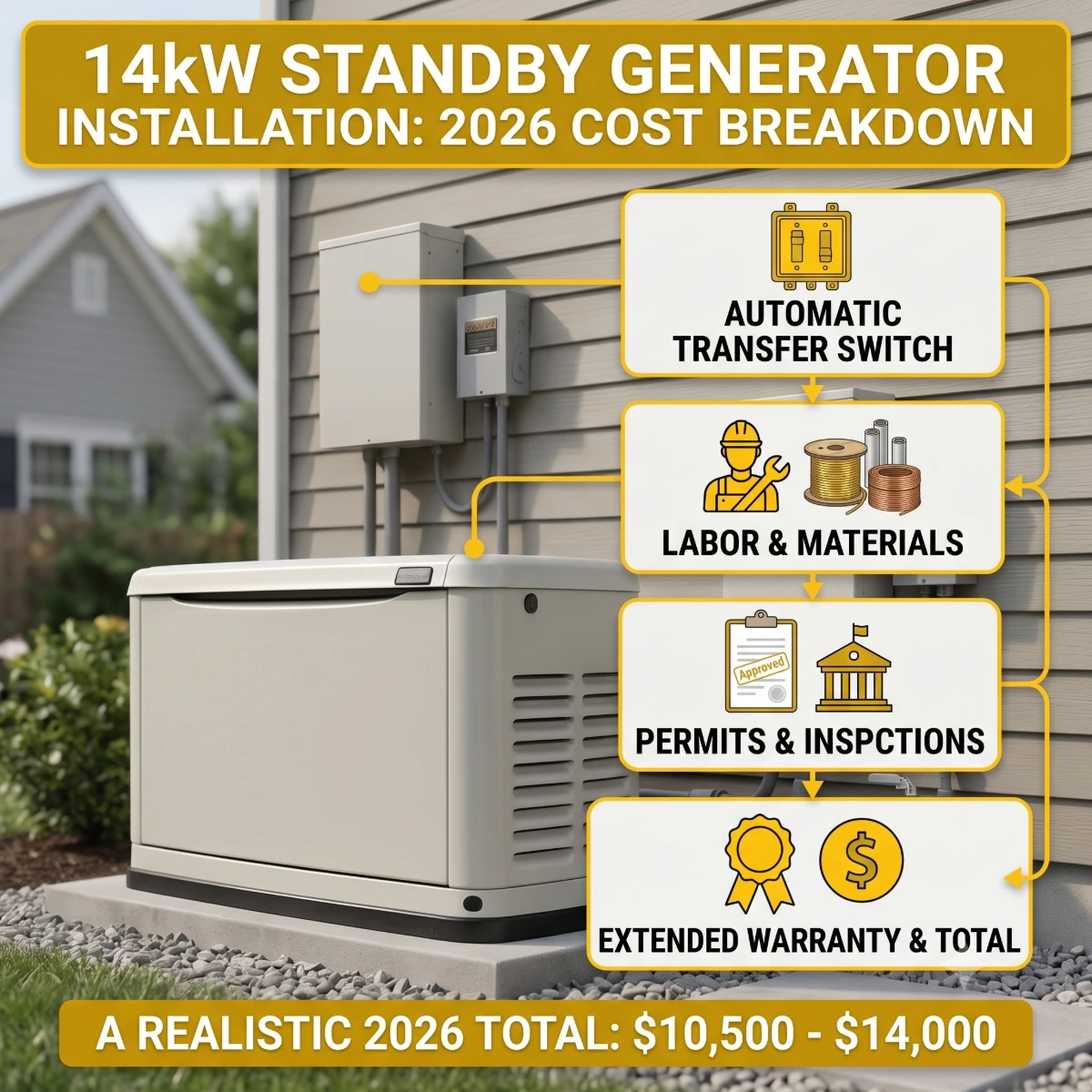

Generac 14kW Installation Cost Breakdown by Component

Understanding what goes into the total Generac 14kW installation cost helps you evaluate installer quotes and identify legitimate line items versus inflated charges. A complete installation quote should break down into the six components below.

Labor: $1,300 to $3,000

Installation labor covers the electrician’s time for site preparation, generator positioning, electrical wiring, transfer switch installation, fuel line connection, and initial commissioning. Standard 14kW installs run 6-10 hours of labor across 1-2 days. The 14kW is physically smaller and lighter than the 22kW, which saves some positioning time. Complex installs with panel upgrades or long fuel runs can extend to 14-20 hours. Labor rates vary by region from $65-$95 per hour in Midwest markets to $110-$180 per hour in Northeast and West Coast metros.

Automatic transfer switch: $600 to $1,300

The 14kW pairs with several transfer switch options depending on desired coverage. Essential circuits switches (Generac RXSW100A3 100-amp or RXSW150A3 150-amp) run $600 to $900 and cover 8-16 critical circuits. Whole-home 200-amp service disconnect switches (RXSW200A3) run $800 to $1,200 for full home coverage. Load management switches with Smart Management Modules run $1,000 to $1,300 and provide whole-home coverage without requiring panel upgrades. Verify which configuration your quote includes.

Electrical materials: $350 to $800

Electrical materials include the wire (typically 2/0 to 4/0 copper depending on service size), conduit, breakers, grounding rods, weatherproof outdoor enclosure, and junction boxes. Standard 14kW installs total $350 to $600 in materials. Long wire runs (over 50 feet from panel to generator) can push materials cost to $800 due to additional wire and conduit.

Fuel connection labor and materials: $500 to $2,500

Fuel connection cost varies dramatically based on your fuel supply situation. Existing natural gas connections within 25 feet of the install location typically run $500 to $900 for tap, valve, and flex line. The 14kW draws approximately 178 cubic feet per hour at full load (versus 289 for the 22kW), which means existing residential gas meters and lines handle it comfortably. Longer natural gas runs or trenching push costs to $1,000 to $1,800. New propane tank installations add substantially more.

Concrete pad: $200 to $600

The Generac 14kW requires a concrete pad or Generac-approved composite pad for installation. Poured concrete pads cost $300 to $600 depending on soil conditions. Composite pads from Generac run approximately $200 to $300 and install faster with less mess. The 14kW is smaller than the 22kW, so pad footprint is slightly smaller and material cost may be marginally lower on custom-poured pads. Some installs use existing concrete surfaces which eliminates this line item entirely.

Permits and inspection: $150 to $500

Electrical and mechanical permits are required for Generac 14kW installation in every jurisdiction. Permit fees vary widely by location, from $150 in small suburban and rural jurisdictions to $500 in major metro areas. Inspection scheduling is typically included in the installer’s labor scope. Never accept an installer who suggests skipping permits.

What Is Included in a Standard Generac 14kW Installation

A complete Generac 14kW installation scope covers everything from initial site survey through final commissioning. Understanding what is included in a standard install versus what is extra helps you evaluate quotes and avoid mid-install surprise charges.

Standard install scope of work

A standard Generac 14kW installation includes: initial site survey and load calculation, electrical permit application and inspection scheduling, concrete pad or composite pad installation, generator positioning and anchoring, automatic transfer switch installation (essential circuits or whole-home depending on selection), electrical wire run from panel to generator (typically up to 25 feet), fuel connection to existing natural gas line (within 25 feet) or existing propane tank, initial startup and commissioning, WiFi and Mobile Link cellular monitoring setup, warranty registration with Generac, and homeowner training on basic operation.

Common exclusions that add cost

Standard installs typically exclude: panel upgrades from 100A to 150A or 200A service, new propane tank installation or relocation, gas meter upgrades required by the utility, trenching for underground gas or electrical runs beyond 25 feet, existing electrical code corrections identified during install, and any landscaping restoration required after install. Confirm which items are included and which are extras in your specific quote before signing.

Extended installation scope for larger jobs

Extended installs bundle additional scope such as: transfer switch upgrades from essential circuits to whole-home load management, subpanel installation for specific critical loads, generator connection to Generac Mobile Link cellular monitoring with 2-year subscription prepaid, extended warranty enrollment (7-year or 10-year coverage), and maintenance plan enrollment for annual service visits. These items add $500 to $2,000 to the base install cost but deliver meaningful long-term value.

Transfer Switch Options for the Generac 14kW

The Generac 14kW is the smallest Guardian Series model and offers the widest range of transfer switch options. Selecting the right transfer switch configuration is one of the biggest cost decisions in the 14kW install.

Essential circuits transfer switch (lowest cost)

Essential circuits switches (typically 100-amp or 150-amp) cover 8 to 16 pre-selected circuits during outages rather than the entire home. This configuration works well for buyers who want to protect refrigeration, medical equipment, sump pumps, well pumps, HVAC blower, and critical lighting without the cost of whole-home coverage. Essential circuits switches run $600 to $900 for the unit and typically install faster because they do not require service entrance modifications. Total install cost typically runs $5,500 to $7,500 with this configuration.

Whole-home service disconnect (mid-range)

Whole-home 200-amp service disconnect switches cover the entire main panel and pair well with the 14kW when the home has moderate simultaneous loads. This is the correct choice for 2000 sq ft or smaller homes with gas heat, 3-ton or smaller central AC, and standard 120V appliances. Whole-home service disconnect switches run $800 to $1,200 for the unit. Total install cost typically runs $7,000 to $9,500 with this configuration.

Whole-home load management (upgraded option)

Load management switches with Generac Smart Management Modules provide whole-home coverage while automatically shedding non-critical loads during peak demand to prevent generator overload trips. This configuration is the correct choice when the 14kW covers a home with a 5-ton central AC, electric water heater, or other heavy loads that could exceed 14 kW simultaneously. Load management switches run $1,000 to $1,300 for the unit plus SMM installation at critical circuits. Total install cost typically runs $8,000 to $10,500 with this configuration.

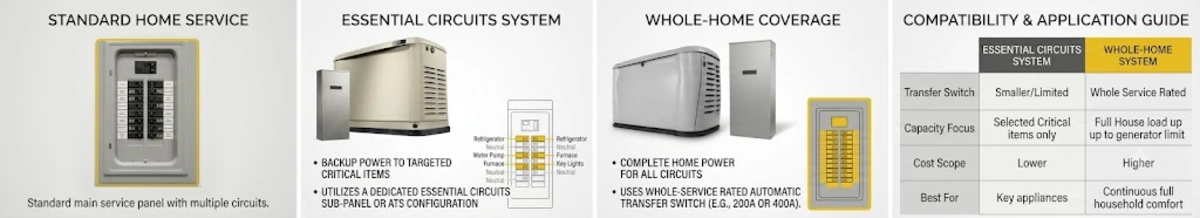

Panel Upgrade Scenarios for the 14kW

Panel upgrade requirements for the 14kW differ meaningfully from the 22kW because the smaller generator pairs with smaller transfer switches and lower total load. Understanding when your home likely needs a panel upgrade helps you budget accurately.

100A service homes

Homes with 100A main service can often accept a Generac 14kW installation without a full service upgrade if the transfer switch is configured for essential circuits only or if load management is added. This is a meaningful advantage over the 22kW, which almost always requires a 200A upgrade on 100A service homes. For 14kW installs on 100A service, budget $5,500 to $8,000 for a standard essential circuits configuration, or plan for a $1,500 to $3,500 service upgrade if whole-home coverage is required.

150A service homes

Homes with 150A service typically accept Generac 14kW installation in any transfer switch configuration without a panel upgrade. The 14kW draws under 60 amps at full load, which fits within 150A service capacity alongside baseline home loads. This is one of the strongest use cases for the 14kW because it delivers reliable whole-home backup without triggering the panel upgrade costs typical of larger generator installations.

200A service homes

Homes with modern 200A service accept any Generac 14kW configuration and provide capacity margin for future load additions (Level 2 EV charger, heat pump upgrade, or subpanel expansion). The install proceeds as a straightforward transfer switch installation. Some 200A homes may still need panel updates if the existing panel is full (all breaker positions used), but the service capacity itself is more than adequate for the 14kW.

Fuel Connection Costs: Natural Gas vs Propane Tank

Fuel connection cost varies significantly based on your fuel supply situation. The 14kW has meaningfully lower fuel consumption than the 22kW, which can affect propane tank sizing decisions and reduce ongoing fuel costs.

Existing natural gas connection (lowest cost)

Homes with existing natural gas utility service typically pay $500 to $1,000 for the fuel connection portion of a Generac 14kW install. Cost includes tap into the existing gas line, sediment trap, dedicated shutoff valve, flexible fuel line to the generator, and any utility coordination. The 14kW draws approximately 178 cubic feet per hour at full load, which is comfortably within existing residential gas meter capacity in nearly all cases. Verify with your gas utility if the home has multiple high-draw gas appliances (large furnace, tankless water heater, gas range, gas dryer running simultaneously).

Existing propane tank (moderate cost)

Homes with existing propane tanks (250-gallon or larger) typically pay $600 to $1,300 for the fuel connection portion. Cost includes tap into the existing propane distribution line, second-stage regulator sizing for the generator load, flexible fuel line, and any repositioning of existing supply lines. The 14kW works well with 250-gallon tanks for typical outage scenarios, which is a meaningful advantage over the 22kW that generally requires 500-gallon minimum for extended runtime.

New propane tank installation (highest cost)

Homes without existing propane infrastructure that choose propane fuel supply pay significantly more for the fuel connection scope. A new 250-gallon aboveground propane tank installation typically costs $1,200 to $2,500 for the tank plus $500 to $1,200 for the propane distribution line to the generator. A 500-gallon tank adds $1,500 to $3,000 for the tank instead. Initial propane fill adds another $400 to $1,000 depending on tank size and regional propane prices.

Regional Cost Variance for Generac 14kW Installation

Regional labor markets and permit fees create significant variance in Generac 14kW installation cost across the United States. Understanding your regional context helps you evaluate whether local quotes are reasonable.

Higher-cost regions (Northeast, West Coast metros)

Northeast metros (Boston, New York, Philadelphia, Washington DC), West Coast metros (San Francisco, Los Angeles, Seattle), and Hawaii typically run 20-40 percent higher than national averages for Generac 14kW installation. Standard installs in these regions typically start at $7,500 to $9,500 rather than the $5,500 baseline. Labor rates and permit fees are the primary drivers of the higher cost.

Mid-cost regions (Midwest metros, Mid-Atlantic)

Midwest metros (Chicago, Detroit, Cleveland, Cincinnati, Minneapolis), Mid-Atlantic regions (Baltimore, Richmond), and Colorado Front Range typically align with national averages. Standard installs in these regions run $6,000 to $8,000. Labor rates are moderate and permit fees are typically reasonable.

Lower-cost regions (Southeast, Texas, Mountain West)

Southeast metros (Atlanta, Charlotte, Nashville, Jacksonville), Texas metros (Houston, Dallas, San Antonio), and Mountain West markets (Phoenix, Salt Lake City, Boise) typically run 10-20 percent below national averages. Standard installs in these regions run $5,000 to $7,000. Combined with generally lower housing costs and larger lot sizes, these markets tend to have the most favorable Generac 14kW install economics.

Installation Timeline and Permit Requirements

Realistic Generac 14kW installation timelines run 3 to 7 weeks from initial order through commissioning. The 14kW timeline is slightly shorter than the 22kW because the physical install is simpler and permit approval processes are the same regardless of generator size.

Order to delivery: 5-14 days

Generac 14kW unit delivery from IB Lighting to the install location typically runs 5-14 days depending on shipping distance. Free freight and freight insurance are included on all IB Lighting Generac orders shipped nationwide. Coastal deliveries and remote rural addresses may extend to 14-21 days during peak seasons.

Permit approval: 3-21 days

Electrical and mechanical permits are required in every jurisdiction. Permit approval timelines vary from same-day (small jurisdictions) to 2-3 weeks (major cities with backlogged inspection queues). Homeowners can request their installer to submit permits ahead of unit delivery to compress the timeline.

Installation scheduling: 7-21 days

Installer scheduling depends on their current calendar backlog. Peak demand periods (spring homeowner projects, pre-hurricane season in May-June, pre-winter in September-October) can push scheduling to 4-6 weeks. Off-peak periods often allow scheduling within 1-2 weeks.

Installation day: 1 day

Standard Generac 14kW installation typically completes in 1 day for the physical install and initial commissioning. Complex installs with panel upgrades extend to 1.5-2 days. The 14kW is smaller and lighter than larger Guardian Series units, which saves some positioning and anchoring time. Load calculation methodology aligns with NEMA electrical panel standards to ensure code compliance.

5 Legitimate Ways to Reduce Generac 14kW Installation Cost

The strategies below reduce Generac 14kW installation cost without cutting corners on code compliance, warranty coverage, or install quality. Each one is legitimate and worth discussing with your installer during the quoting phase.

Strategy 1: Choose essential circuits configuration instead of whole-home

The single biggest cost reduction strategy specific to the 14kW is selecting essential circuits transfer switch configuration instead of whole-home coverage. This saves $200 to $500 on the ATS line item plus $500 to $1,500 in labor and materials for the simpler install. For buyers whose primary concern is protecting critical circuits (medical equipment, refrigeration, sump pumps, well pumps, HVAC), essential circuits configuration delivers the exact protection needed at meaningfully lower cost.

Strategy 2: Get 2-3 competing quotes from licensed electricians

Comparing multiple quotes from licensed electricians in your area is highly effective. Quotes for identical scope frequently vary by 20-30 percent, which can save $1,000 to $2,500 on a Generac 14kW install. Verify each electrician is properly licensed and insured, and confirm quotes are based on in-person site surveys rather than phone estimates.

Strategy 3: Install closer to your electrical panel

Wire run distance from the electrical panel to the generator location is a meaningful cost variable. Installations within 25 feet of the panel typically hit standard cost ranges. Installations beyond 50 feet can add $500 to $1,500. When flexibility exists on install location, positioning the 14kW closer to the panel reduces total cost meaningfully.

Strategy 4: Use composite pad instead of poured concrete

The Generac composite pad costs approximately $200 to $300 versus $300 to $600 for poured concrete. The composite pad installs faster with no cure time and eliminates concrete mess. This is a legitimate substitute that meets Generac install requirements and can save $100 to $400 on the pad line item.

Strategy 5: Consider a 250-gallon propane tank instead of 500-gallon

The 14kW’s lower fuel consumption (roughly 1.4 gallons per hour at half load versus 1.8 for the 22kW) makes 250-gallon propane tanks viable for typical outage scenarios. A 250-gallon tank delivers approximately 5-7 days of runtime at half load, which covers most outage windows outside hurricane and ice storm regions. Choosing a 250-gallon tank instead of 500-gallon saves $500 to $1,000 on the tank cost.

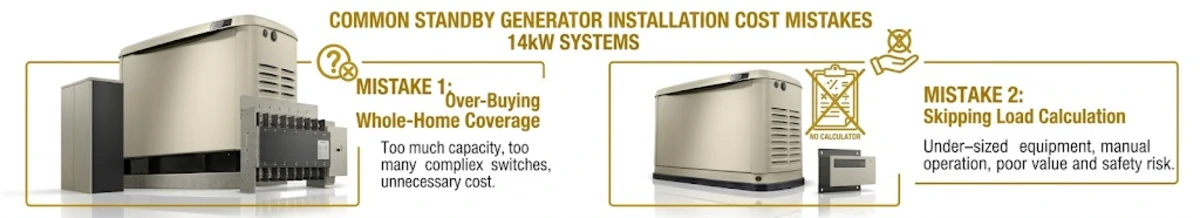

5 Mistakes That Increase Generac 14kW Installation Cost

The mistakes below reliably drive Generac 14kW installation cost higher than necessary. Each one is preventable with proper planning.

Mistake 1: Over-buying whole-home coverage when essential circuits would suffice

The most common cost-increasing mistake specific to the 14kW is defaulting to whole-home transfer switch coverage without evaluating whether essential circuits would meet the actual backup need. Whole-home coverage costs $1,500 to $2,500 more than essential circuits and is unnecessary for buyers whose primary concern is protecting critical loads. Discuss essential circuits configuration with your installer during the quote phase to see if it meets your specific needs.

Mistake 2: Accepting a phone quote without a site survey

Remote or phone quotes miss critical scope details (wire run distance, panel condition, fuel line accessibility, code deficiencies in existing electrical work) that can double the actual install cost. Never accept a firm quote without a documented site survey and residential load calculation. Site surveys typically take 30-60 minutes and are usually included in the quoting process at no charge.

Mistake 3: Selecting the cheapest quote without verifying credentials

The cheapest quote is frequently the least qualified installer, and the initial savings evaporate quickly when the install goes wrong, fails inspection, or voids the Generac warranty. Verify state electrical licensing, general liability insurance ($1M minimum), and any Generac dealer or installer certifications before selecting an installer.

Mistake 4: Skipping the load calculation and hoping the panel is adequate

Installers who skip the residential load calculation and quote assuming no panel upgrade is needed create the highest risk of surprise change orders mid-install. When the panel cannot support the added load, the install must pause for a panel upgrade or reconfiguration to load management. Always require a load calculation before accepting a firm quote.

Mistake 5: Accepting an offer to skip permits

Installers who suggest skipping electrical or mechanical permits to save time or fees are signaling that they lack proper credentials or are trying to avoid inspection scrutiny. Un-permitted work voids your Generac warranty, voids homeowner insurance for any related loss, and creates resale complications when the buyer’s inspector identifies unrecorded modifications.

Conclusion

Generac 14kW installation cost typically ranges from $5,500 to $10,500 for standard professional installation, with complex scenarios reaching $15,000. The 14kW offers meaningfully lower install cost than larger Guardian Series units because it pairs with smaller transfer switches and less frequently requires panel upgrades. Essential circuits configuration delivers the lowest total cost for buyers focused on protecting critical loads. Whole-home configurations add $1,500 to $2,500 but deliver full home coverage. Regional variance affects total by 20-40 percent. Collect 2-3 quotes from licensed electricians before selecting an installer. The unit itself is available at IB Lighting with pricing shown securely in cart due to manufacturer advertising policies.

This article was last reviewed and updated in June 2026 to reflect current Generac 14kW Guardian Series product installation specifications, national labor rate ranges, and current NEC Article 220 residential load calculation requirements. Installation cost ranges are estimates based on IB Lighting shipping data and are not firm quotes. Always collect 2-3 firm written quotes from licensed electricians in your service area before finalizing your installation budget.
