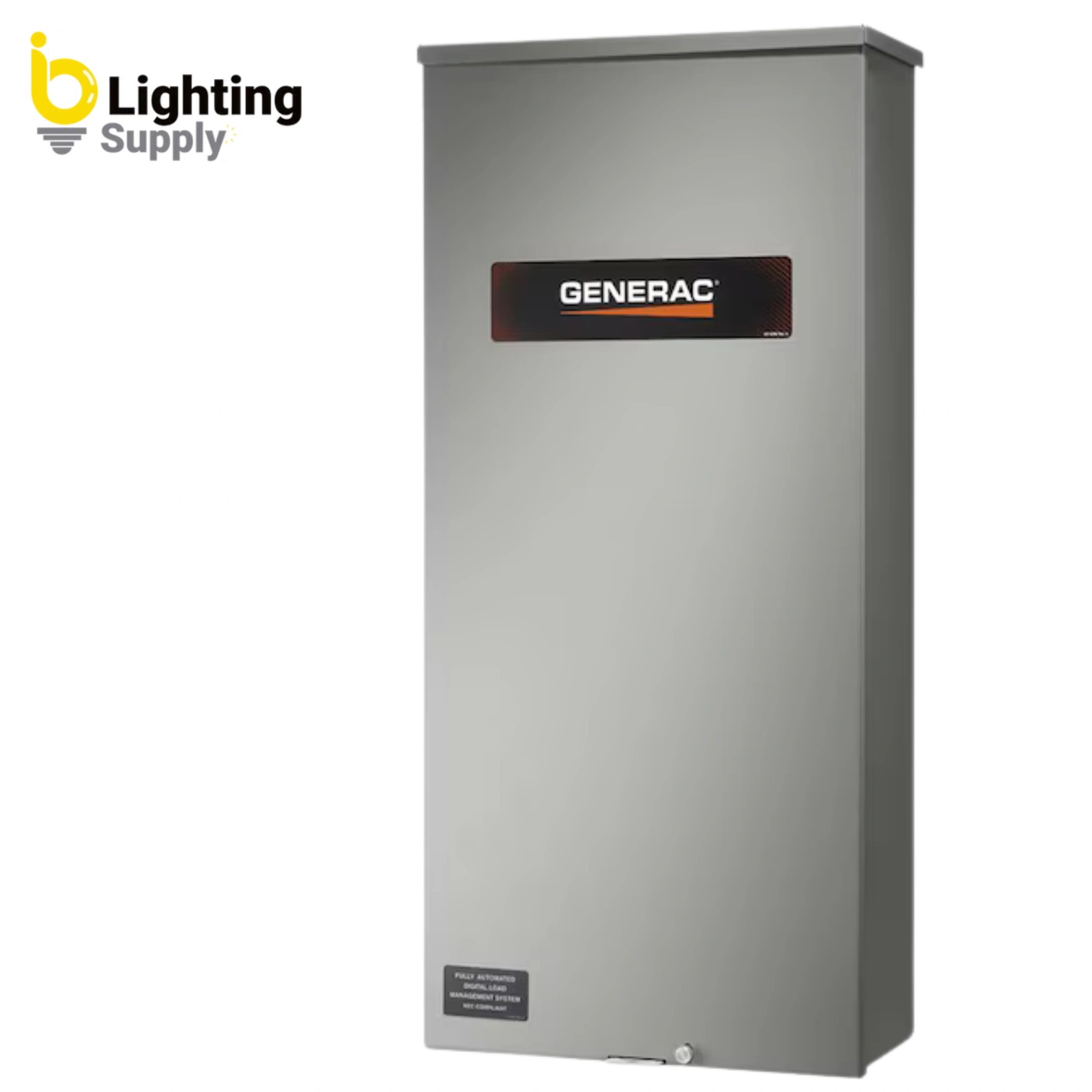

The Generac 200-Amp Smart Transfer Switch (Model RXGW20SHA3) is not just a transfer switch. It is a fully integrated power management solution that combines an automatic transfer switch, a 20-space load center expandable to 40 circuits, built-in air conditioning load management, and pass-through lugs for feeding both your main distribution panel and outbuildings, all in a single NEMA 3R enclosure. For homeowners and contractors seeking a streamlined, code-compliant installation with maximum flexibility, this unit delivers everything needed to protect a 200-amp service while reducing installation complexity, cost, and exterior clutter.

At IB Lighting, we supply premium electrical equipment to homeowners, electricians, and facility managers across the United States. This guide covers every aspect of the Generac RXGW20SHA3, from its technical specifications and residential applications to installation requirements, NEC compliance, maintenance schedules, and the critical mistakes that can derail a project. Whether you are planning a new standby generator installation or upgrading an existing transfer switch, the information here will help you make an informed decision.

What Makes the Generac 200-Amp Smart Transfer Switch Different?

Standard automatic transfer switches perform one primary function: they monitor utility power and automatically switch your electrical load to the generator when the utility fails. The RXGW20SHA3 does far more. Its integrated design consolidates multiple components into a single enclosure, creating a more efficient installation footprint with fewer points of failure.

Integrated 20-Space Load Center: Generac 200-Amp Smart Transfer Switch

The most distinctive feature of this unit is its built-in 20-space load center. This load center accepts standard 1-inch circuit breakers from Siemens, Murray, Eaton, and Square D, including standard, GFCI, AFCI, and tandem breakers. Using tandem breakers, the capacity expands to support up to 40 individual branch circuits. This integration eliminates the need for a separate subpanel in many installations, reducing material costs, labor time, and the number of enclosures mounted on the building exterior.

Pass-Through Lugs for Outbuildings: Generac 200-Amp Smart Transfer Switch

The pass-through lugs allow the transfer switch to feed both a main distribution panel and supplementary circuits for outbuildings such as detached garages, workshops, barns, or guest houses. Power flows from the utility or generator through the transfer switch, with branch circuit protection handled directly in the integrated load center, while the pass-through lugs route power onward to other panels as needed. This design is particularly valuable for rural properties, agricultural operations, and estates with multiple structures that require backup power.

Smart Air Conditioning Module (SACM): Generac 200-Amp Smart Transfer Switch

Built into the transfer switch is a Smart Air Conditioning Module capable of managing up to four independent HVAC loads controlled by 24-volt AC thermostats. During generator operation, the SACM monitors generator frequency and automatically sheds air conditioning compressor loads in a prioritized sequence if the generator approaches overload. This prevents nuisance shutdowns and allows homeowners to install smaller, more cost-effective generators while still maintaining climate control throughout the property.

Expandable Load Management with Smart Management Modules in Generac 200-Amp Smart Transfer Switch

For homes with additional high-draw appliances beyond HVAC systems, optional Smart Management Modules (SMMs) can be added to the system. Each SMM controls one 240-volt load, such as an electric water heater, pool pump, well pump, electric dryer, or electric range. Up to eight SMMs can be installed, giving the transfer switch the ability to manage a total of 12 prioritized loads (4 HVAC via the SACM plus 8 via SMMs). This modular approach enables precise load control tailored to each property’s specific electrical profile.

Full Technical Specifications for the Generac 200-Amp Smart Transfer Switch

Accurate specification data is essential for proper system design, permitting, and installation. Below is the complete technical profile for the RXGW20SHA3.

• Model Number: RXGW20SHA3
• Amperage: 200 Amps
• Voltage: 120/240V, Single Phase
• Frequency: 60 Hz
• Transition Type: Open Transition (break-before-make)
• Service Rating: Service Entrance Rated with built-in service disconnect breaker
• Integrated Load Center: 20 spaces, expandable to 40 circuits with tandem breakers
• Breaker Compatibility: 1-inch standard, GFCI, AFCI, or tandem breakers from Siemens, Murray, Eaton, Square D
• Enclosure: NEMA 3R Aluminum with electrostatically applied baked powder paint
• Installation: Indoor or Outdoor Approved
• Generator Compatibility: Single-phase Generac generators with Evolution or Nexus controllers
• HVAC Load Management: Built-in Smart Air Conditioning Module manages up to 4 loads (24 VAC controlled)
• Expandable Load Control: Up to 8 additional 240V loads with Smart Management Modules (sold separately)
• Withstand Rating: 10,000 Amps standard; 22,000 Amps when used with Siemens or Murray breakers
• Wire Range: #1 to 300 MCM Aluminum or Copper (75°C rated)
• Contactor: Heavy Duty Generac Contactor, ETL recognized
• Certifications: ETL Listed
• Dimensions: 38.5 in. (H) x 17.6 in. (W) x 8.0 in. (D)
• Weight: 45 lbs
• Maximum Wattage: 48,000 Watts
• Origin: Made in USA (Waukesha, Wisconsin)
• Warranty: 5-Year Limited Warranty

The Generac 200-Amp Smart Transfer Switch and Open Transition Switching

This unit uses open transition switching, also known as break-before-make transfer. During a transfer event, the switch fully disconnects from the utility source before connecting to the generator source, and vice versa during retransfer. At no point are both sources connected to the load simultaneously. This mechanical separation prevents backfeeding, the dangerous condition where generator power flows backward into utility lines, creating lethal hazards for utility workers and damaging equipment on neighboring properties. Open transition switching is the standard method approved for residential and light commercial standby systems under the National Electrical Code.

Residential Applications for Generac 200-Amp Smart Transfer Switch

The Generac RXGW20SHA3 is engineered for properties with 200-amp, single-phase electrical service. Its integrated load center and pass-through lug design make it especially well suited for specific residential scenarios.

Whole-House Backup with Consolidated Equipment by Generac 200-Amp Smart Transfer Switch

For new construction or major electrical upgrades, this transfer switch simplifies the installation by combining the ATS and a portion of the branch circuit distribution into a single enclosure. Instead of mounting a separate transfer switch and subpanel, the electrician installs one unit. The 20 to 40 circuit capacity handles the essential branch circuits directly, while the pass-through lugs feed the main distribution panel for remaining circuits. This reduces the total number of enclosures, conduit runs, and termination points.

Generac 200-Amp Smart Transfer Switch use for Properties with Multiple Structures

Homes with detached garages, pool houses, workshops, barns, or accessory dwelling units benefit from the pass-through lug design. The integrated load center can supply breaker-protected circuits to an outbuilding while simultaneously feeding the main panel inside the primary residence. During a utility outage, both the main home and the outbuilding receive generator power through a single transfer switch.

Multi-Zone HVAC Homes by Generac 200-Amp Smart Transfer Switch

Properties with two, three, or four independent HVAC systems can take full advantage of the built-in SACM. Without load management, the simultaneous startup of multiple compressors can easily overload a mid-sized generator. The SACM staggers compressor startups automatically, preventing overload and allowing the homeowner to install a smaller generator than would otherwise be required.

Storm-Prone and Rural Locations: Generac 200-Amp Smart Transfer Switch

The NEMA 3R enclosure with powder-coated aluminum construction is built for outdoor installation in all U.S. climate zones. Properties in hurricane, tornado, and ice storm regions rely on this level of durability. Rural properties with overhead utility lines and long distances to substations face extended outages more frequently, making robust whole-house backup power essential.

Commercial and Light Industrial Applications by Generac 200-Amp Smart Transfer Switch

While designed primarily for residential use, the RXGW20SHA3 also serves a range of light commercial applications where 200-amp, single-phase service is present.

Small Retail and Professional Offices: Generac 200-Amp Smart Transfer Switch

Small retail stores, professional office suites, salons, and similar businesses with 200-amp single-phase service can use this transfer switch for whole-building backup. The integrated load center allows critical circuits such as lighting, point-of-sale systems, and refrigeration to be protected directly, while pass-through lugs can feed supplementary panels for additional circuits.

Agricultural Operations

Farms and ranches with milking parlors, cold storage, irrigation pumps, or livestock ventilation systems require reliable backup power. The outdoor-rated enclosure and the ability to feed multiple outbuildings from a single transfer switch make the RXGW20SHA3 well suited for agricultural installations where the ATS may be mounted on an exterior wall or a dedicated equipment pad.

Houses of Worship and Community Facilities

Churches, community centers, and similar facilities with single-phase service can protect lighting, HVAC, audio-visual systems, and commercial kitchen equipment during outages. The SACM’s ability to manage four HVAC loads is particularly valuable in buildings with multiple rooftop units or split systems.

Installation Requirements and Best Practices

Transfer switch installation is regulated electrical work that must be performed by a licensed electrician in accordance with the National Electrical Code and local amendments. Below are the critical installation considerations specific to this unit.

Mounting Location and Working Clearances

The NEMA 3R enclosure permits indoor or outdoor mounting. Per NEC Article 110.26, the installation must provide minimum working clearances of 36 inches in front of the equipment for 240-volt systems, 30 inches of width, and adequate headroom (typically 6.5 feet). Outdoor installations should position the enclosure at a height that prevents standing water or snow accumulation from contacting the unit. Vegetation must be maintained at least 36 inches from all sides.

Conductor Termination and Torque

The wire range for this unit accepts conductors from #1 to 300 MCM in aluminum or copper at 75°C rating. All terminations must be torqued to the factory-specified values documented in the installation manual. Improper torque is a leading cause of connection failure, arc flash, and fire. The utility supply lugs include 2017/2020 NEC-compliant finger-safe barriers that must remain in place after installation.

For projects requiring quality copper wire and grounding conductors, IB Lighting carries products such as Generac Smart ATS 200A and a full range of THHN wire in our Shop.

Generator Controller Compatibility

This transfer switch is designed exclusively for Generac generators equipped with Evolution or Nexus controllers. The generator controller handles all timing, sensing, exercising, and transfer commands. This unit will not function with generators from other manufacturers or with Generac generators using incompatible control systems. Verify your generator’s controller type before purchasing.

Load Center Breaker Installation

The integrated 20-space load center ships without breakers installed. The electrician must supply and install the appropriate breakers based on the branch circuit requirements. The load center accepts 1-inch breakers from Siemens, Murray, Eaton, and Square D. Using tandem breakers, the capacity can be expanded to 40 circuits. All breaker installations must comply with NEC Article 408 and the manufacturer’s specifications for the specific breaker type.

Grounding and Bonding

Because this is a service-entrance-rated device, the neutral and grounding conductor terminal bars are factory-bonded together and to the enclosure through a green main bonding jumper screw. This configuration is correct for installations where the transfer switch serves as the main service disconnect. If local codes or site conditions require a different bonding configuration, the electrician must consult the installation manual and the Authority Having Jurisdiction (AHJ).

Safety Standards and NEC Compliance for the Generac 200-Amp Smart Transfer Switch

The Generac RXGW20SHA3 meets or exceeds the applicable safety and performance standards for residential and light commercial transfer switching equipment in the United States.

ETL Certification and UL 1008 Compliance

This unit is ETL Listed, meaning it has been tested and certified by Intertek to meet the safety requirements of UL 1008, the standard governing transfer switch equipment. The Heavy Duty Generac Contactor within the unit is independently ETL recognized. The withstand rating of 22,000 amps (when used with Siemens or Murray breakers) provides substantial fault current capacity for residential service panels.

NEC Article 702: Optional Standby Systems

Most residential standby generator installations fall under NEC Article 702, which governs optional standby systems. Article 702 requires transfer equipment that prevents the inadvertent interconnection of utility and generator power sources. The open-transition, mechanically interlocked design of this Generac transfer switch satisfies that requirement. Article 702 also requires a placard at the service entrance indicating the presence of a standby power source, which the installing electrician must provide.

For a detailed reference on NEC requirements for transfer switches, the NFPA 70 National Electrical Code resource page provides access to the official code documentation.

2017/2020 NEC Finger-Safe Barriers

The utility supply lugs on this unit are equipped with finger-safe barriers as required by the 2017 and 2020 editions of the NEC. These barriers prevent accidental contact with live terminals during installation and maintenance. The barriers must remain in place after installation to maintain code compliance.

Maintenance Schedule for the Generac 200-Amp Smart Transfer Switch

A well-maintained transfer switch will provide decades of reliable service. The following maintenance practices are essential for ensuring the system performs when you need it most.

Automated Weekly Exercise

Generac generators with Evolution or Nexus controllers include programmable weekly exercise cycles. During each exercise, the generator starts automatically and the transfer switch performs a full transfer and retransfer sequence. This tests the entire system under real operating conditions. Review the generator’s exercise log regularly. If the system fails to complete an exercise cycle or logs an error code, contact a certified Generac service dealer immediately.

Annual Professional Inspection

Once per year, a licensed electrician or authorized Generac dealer should perform a comprehensive inspection. This inspection should include visual examination of all electrical connections for discoloration, pitting, or signs of overheating. The technician should verify proper termination torque on all lugs and bus connections. The contactor should be inspected for wear, pitting, or carbon buildup. The SACM and any installed SMMs should be tested to confirm proper load shedding function. All circuit breakers in the integrated load center should be verified for proper operation and trip function. The enclosure should be inspected for moisture intrusion, corrosion, insect or rodent intrusion, and physical damage.

Enclosure Maintenance for Outdoor Installations

For outdoor-mounted units, inspect the powder-coated aluminum enclosure at least twice per year. Verify that door gaskets and seals are intact. Clear any debris, leaves, or nesting material from the interior. Check that drainage weep holes are unobstructed. If the enclosure shows signs of paint chipping or surface corrosion, treat the affected area promptly to prevent further degradation.

Common Mistakes to Avoid

Even experienced electricians and property owners can make costly errors with integrated transfer switch installations. Here are the most common mistakes and how to prevent them.

Mistake 1: Selecting an Incompatible Generator

The RXGW20SHA3 requires a Generac generator with an Evolution or Nexus controller. It will not function with generators from other manufacturers or with Generac generators using different control systems. Always verify generator compatibility before purchasing.

Mistake 2: Mismatching Amperage to Service Panel

A 200-amp transfer switch must be paired with 200-amp service. Installing this unit on a 100-amp or 150-amp service creates a code violation and potential safety hazard. Conversely, properties with 400-amp service require a different transfer switch configuration.

Mistake 3: Failing to Plan Breaker Layout

The integrated load center ships without breakers. Before installation day, the electrician must determine which circuits will be routed through the integrated load center, which will be fed via the pass-through lugs to the main panel, and what breaker types (standard, tandem, GFCI, AFCI) are required. Poor planning leads to delays, rework, and additional expense.

Mistake 4: Ignoring Withstand Rating Requirements

The base withstand rating of this unit is 10,000 amps. When equipped with Siemens or Murray breakers, the rating increases to 22,000 amps. If your service has available fault current exceeding 10,000 amps and you are not using compatible breakers, the installation does not meet code. Verify the available fault current at the service point and select breakers accordingly.

Mistake 5: DIY Installation

This is a service-entrance-rated device that connects directly to 200-amp utility conductors. Installation requires a licensed electrician, an electrical permit, and a final inspection by the local Authority Having Jurisdiction. DIY installation creates life safety risks, code violations, insurance complications, and potential liability for property damage or injury.

Why Buy From IB Lighting Supply?

Choosing the right supplier is as important as choosing the right equipment. IB Lighting is a family-owned U.S. supplier specializing in generators, transfer switches, and premium electrical products. When you order from IB Lighting, you receive:

• ✅ Trusted U.S. supplier with generator specialists available
• ✅ Insured nationwide freight delivery on every order
• ✅ Transparent checkout pricing with no hidden fees
• ✅ Family-owned business with expert support before and after purchase
• ✅ Manufacturer warranty included on all products

Frequently Asked Questions

What generators work with the Generac RXGW20SHA3?

This transfer switch is compatible exclusively with single-phase Generac generators equipped with Evolution or Nexus controllers. It will not function with generators from other manufacturers or with Generac generators using incompatible control systems.

How many circuits does the integrated load center support?

The load center has 20 spaces. Using tandem breakers, you can expand capacity to support up to 40 individual branch circuits. The load center accepts 1-inch breakers from Siemens, Murray, Eaton, and Square D.

Can this transfer switch power outbuildings?

Yes. The pass-through lugs allow the unit to feed both a main distribution panel and supplementary circuits for outbuildings such as detached garages, workshops, barns, or guest houses.

How many HVAC loads can the built-in module manage?

The Smart Air Conditioning Module (SACM) manages up to four independent HVAC loads controlled by 24-volt AC thermostats. For additional load management, optional Smart Management Modules (SMMs) can control up to eight additional 240-volt loads.

Is this transfer switch service-entrance rated?

Yes. The RXGW20SHA3 includes a built-in service disconnect breaker and is rated as service entrance equipment. It can serve as the main utility disconnect for the building, subject to local code requirements.

What is the withstand rating?

The base withstand rating is 10,000 amps. When the integrated load center is equipped with Siemens or Murray breakers, the withstand rating increases to 22,000 amps.

Does a licensed electrician need to install this unit?

Yes. Generac requires installation by a certified and licensed electrician. The work involves 200-amp service entrance conductors, and most jurisdictions require an electrical permit and post-installation inspection.

What warranty coverage does this transfer switch include?

Generac provides a 5-year limited warranty covering manufacturing defects in materials and workmanship under normal use and proper installation. Warranty service must be performed through Generac’s authorized service network.

Ready to Simplify Your Standby Power Installation?

The Generac 200-Amp Smart Automatic Transfer Switch with 20-Circuit Load Center (Model RXGW20SHA3) is an all-in-one solution that combines automatic power transfer, branch circuit distribution, HVAC load management, and pass-through capability for outbuildings in a single, outdoor-rated enclosure. For homeowners and contractors seeking a streamlined, code-compliant installation with maximum flexibility, the Generac 200-Amp Smart Transfer Switch delivers professional-grade performance backed by Generac’s 5-year warranty and U.S.-based manufacturing.

Contact IB Lighting today to verify generator compatibility, discuss your installation requirements, or place your order with the confidence that comes from working with a trusted, family-owned supplier.
