Generac 22kW Installation Cost: Complete 2026 Breakdown
Generac 22kW Installation Cost: Complete 2026 Breakdown
🕑 13 min read Updated: June 2026 Table of Contents The Fast Answer: Generac 22kW Installation Cost Range Generac 22kW Installation Cost Breakdown by Component What Is Included...
- Generac 22kW installation cost typically ranges from $6,500 to $12,500 for a standard professional install, excluding the price of the generator unit itself which is shown securely in cart at IB Lighting.
- Complex installations requiring panel upgrades, long fuel runs, or new propane tank installations can push total installation cost to $15,000 to $18,000.
- The largest cost variables are the automatic transfer switch, panel upgrade requirements, and fuel connection scope (existing natural gas is cheapest, new propane tank install adds the most).
- Regional variance affects Generac 22kW installation cost significantly, with Northeast and West Coast metros running 20-40 percent higher than Midwest and Southern markets.
- Permit fees range from $150 to $500 depending on jurisdiction and are typically included in the installer quote rather than paid separately.
- Homeowners should collect 2-3 quotes from licensed electricians before selecting an installer, and the cheapest quote is rarely the best value once credentials and warranty coverage are factored in.
Generac 22kW installation cost typically ranges from $6,500 to $12,500 for standard professional installation across most of the United States, with the unit price shown securely in cart at IB Lighting due to manufacturer advertising policies. Complex installations requiring 100A to 200A panel upgrades, long fuel runs from the meter to the install location, or new 500-gallon propane tank installations can push the total installation cost into the $15,000 to $18,000 range. This article breaks down every cost component honestly so buyers can plan their total budget accurately before contacting installers for firm quotes.
Across hundreds of Generac 22kW orders shipped nationwide, IB Lighting’s electrician-led team walks buyers through the complete installation cost picture before finalizing the order. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the unit but does not perform installation directly. Instead, we help buyers understand what to expect from installer quotes so the total budget is realistic from the start. This article is that walkthrough, using guidelines aligned with NFPA 70 National Electrical Code requirements and installation practices verified against official Generac installation documentation.

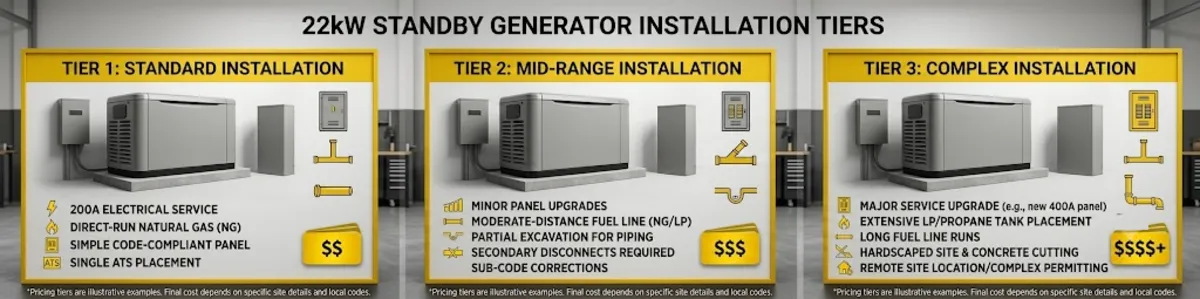

The Fast Answer: Generac 22kW Installation Cost Range
The right budget for Generac 22kW installation depends on four honest factors: your existing electrical panel capacity, your fuel supply situation (existing natural gas connection, existing propane tank, or new propane tank required), your distance from the electrical panel to the generator install location, and your regional labor market. The table below shows the three most common installation cost tiers and the profile each one fits.
| Install Tier | Typical Cost Range | Profile Match |
|---|---|---|
| Standard install | $6,500-$9,000 | 200A service, existing natural gas connection, panel within 25 feet of install location |
| Mid-range install | $9,000-$12,500 | 200A service, existing propane tank or moderate fuel run, moderate wire distance |
| Complex install | $12,500-$18,000 | 100-150A service requiring upgrade, new propane tank install, long fuel or wire runs |
The honest reading: most Generac 22kW installations across the country land in the $7,500 to $10,500 range because that fits the most common scenario (200A service, natural gas or existing propane, moderate distance from panel). Complex scenarios push higher but are less common. Regional variance layers on top of these ranges and can shift totals by 20-40 percent in either direction. The unit price itself is shown securely in your cart at IB Lighting due to Generac manufacturer advertising policies and is separate from the installation cost above.
Pro tip: Always collect 2-3 firm written quotes from licensed electricians before selecting an installer. Verify each quote is based on an in-person site survey rather than a phone estimate. The cheapest quote is rarely the best value once credentials, warranty coverage, and permit-pulling capability are factored in. A quote that is $500 to $1,500 higher but includes a licensed contractor, proper permits, warranty registration, and post-install commissioning is typically the better value.
Generac 22kW Installation Cost Breakdown by Component
Understanding what goes into the total Generac 22kW installation cost helps you evaluate installer quotes and identify legitimate line items versus inflated charges. A complete installation quote should break down into the six components below.
Labor: $1,500 to $3,500
Installation labor covers the electrician’s time for site preparation, generator positioning, electrical wiring, transfer switch installation, fuel line connection, and initial commissioning. Standard installs run 8-12 hours of labor across 1-2 days. Complex installs with panel upgrades or long fuel runs can extend to 16-24 hours. Labor rates vary by region from $65-$95 per hour in Midwest markets to $110-$180 per hour in Northeast and West Coast metros.
Automatic transfer switch: $800 to $1,500
The automatic transfer switch (ATS) is the second most expensive component after labor. Standard 200-amp service disconnect ATS units run $800 to $1,200. Whole-home ATS with integrated load management (Generac RXSW200A3) runs $1,000 to $1,500. Some installers bundle the ATS into the labor line while others itemize it separately. Verify which approach your quote uses to make apples-to-apples comparisons.
Electrical materials: $400 to $900
Electrical materials include the wire (typically 4/0 copper for the service run), conduit, breakers, grounding rods, weatherproof outdoor enclosure, and any junction boxes required. Standard installs total $400 to $700 in materials. Long wire runs (over 50 feet from panel to generator) can push materials cost to $900 or higher due to additional wire and conduit.
Fuel connection labor and materials: $500 to $2,500
Fuel connection cost varies dramatically based on your fuel supply situation. Existing natural gas connections within 25 feet of the install location typically run $500 to $900 for tap, valve, and flex line. Longer natural gas runs or trenching to reach the meter push costs to $1,000 to $2,000. New propane tank installations add substantially more (covered in the fuel section below).
Concrete pad: $200 to $600
The Generac 22kW requires a concrete pad or Generac-approved composite pad for installation. Poured concrete pads cost $300 to $600 depending on soil conditions and pad size. Composite pads from Generac (part number 6119) run approximately $200 to $300 and install faster with less mess. Some installs use existing concrete surfaces (patios or existing pads) which eliminates this line item entirely.
Permits and inspection: $150 to $500
Electrical and mechanical permits are required for Generac 22kW installation in every jurisdiction. Permit fees vary widely by location, from $150 in small suburban and rural jurisdictions to $500 in major metro areas. Inspection scheduling is typically included in the installer’s labor scope. Never accept an installer who suggests skipping permits.
What Is Included in a Standard Generac 22kW Installation
A complete Generac 22kW installation scope covers everything from initial site survey through final commissioning. Understanding what is included in a standard install versus what is extra helps you evaluate quotes and avoid mid-install surprise charges.
Standard install scope of work
A standard Generac 22kW installation includes: initial site survey and load calculation, electrical permit application and inspection scheduling, concrete pad or composite pad installation, generator positioning and anchoring, automatic transfer switch installation at the main electrical panel, electrical wire run from panel to generator (typically up to 25 feet), fuel connection to existing natural gas line (within 25 feet) or existing propane tank, initial startup and commissioning, WiFi and Mobile Link cellular monitoring setup, warranty registration with Generac, and homeowner training on basic operation.
Common exclusions that add cost
Standard installs typically exclude: panel upgrades from 100A or 150A to 200A service, new propane tank installation or relocation, gas meter upgrades required by the utility, trenching for underground gas or electrical runs beyond 25 feet, existing electrical code corrections identified during install, and any landscaping restoration required after install. Confirm which items are included and which are extras in your specific quote before signing.
Extended installation scope for larger jobs
Extended installs bundle additional scope such as: transfer switch upgrades to whole-home models with load management, subpanel installation for EV charger circuits or medical equipment dedicated circuits, generator connection to Generac Mobile Link cellular monitoring with 2-year subscription prepaid, extended warranty enrollment (7-year or 10-year coverage), and maintenance plan enrollment for annual service visits. These items add $500 to $2,000 to the base install cost but deliver meaningful long-term value.
Transfer Switch Costs and Configuration Options
The automatic transfer switch is one of the largest single-item costs in a Generac 22kW installation and one of the most confusing for buyers. Understanding transfer switch options clarifies the quote line items you will see.
Service disconnect transfer switch (basic option)
The service disconnect ATS installs at the service entrance and covers the entire main panel. This is the most common configuration for Generac 22kW installs because the 22kW unit is officially rated for whole-home backup. The Generac RXSW200A3 200-amp service disconnect ATS runs $800 to $1,200 for the unit itself, plus installation labor. This configuration provides the simplest transfer scheme and works well for standard 2500-3500 sq ft homes.
Load management transfer switch (upgraded option)
Load management transfer switches include Generac Smart Management Modules that automatically shed non-critical loads during peak demand to protect the generator from overload trips. This configuration is recommended for homes with a Level 2 EV charger, homes with 5-ton central AC plus heat pump, or homes with medical equipment on backup. Load management ATS units run $1,000 to $1,500 for the unit plus additional labor for module wiring.
Meter mount transfer switch (specialty option)
Meter mount ATS installs directly at the electric meter, eliminating the separate service disconnect and consolidating the install. This configuration is less common but can be advantageous when the existing service panel is full or when the install location is close to the meter. Meter mount ATS units run $1,200 to $1,800 for the unit and require utility coordination for meter removal and reinstall during the swap.

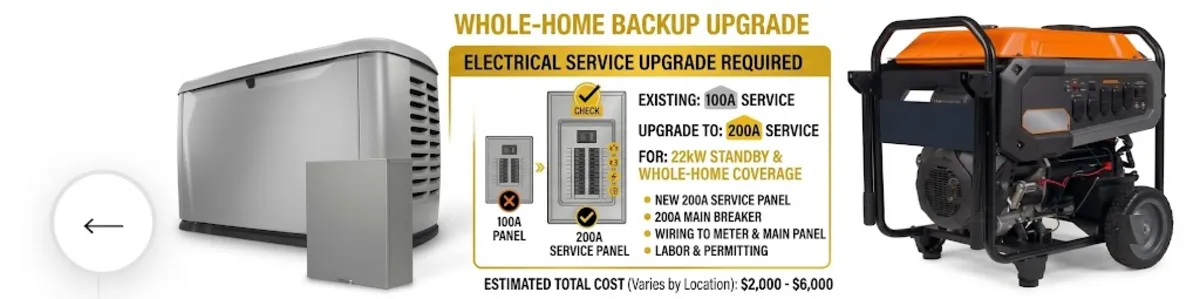

When Your Home Needs a Panel Upgrade
Panel upgrades are one of the largest cost variables in Generac 22kW installation and often the biggest surprise for buyers who did not plan for them. Understanding when your home likely needs a panel upgrade helps you budget accurately.
100A service homes
Homes with 100A main service almost always require a panel upgrade to 200A before Generac 22kW installation. The 22kW unit is officially rated for whole-home backup and pairs with a 200A automatic transfer switch, which requires 200A service capacity as the baseline. Panel upgrades from 100A to 200A typically cost $1,500 to $4,000 depending on utility coordination requirements and any service entrance conductor upgrades. Older homes may also require grounding upgrades and smoke detector installations to meet current code during the upgrade.
150A service homes
Homes with 150A service typically require a panel upgrade to 200A for Generac 22kW installation, though some load management configurations can avoid the upgrade. The safer default is to plan for the panel upgrade and budget accordingly. Panel upgrades from 150A to 200A cost slightly less than 100A upgrades because some service entrance components may be reusable, typically $1,200 to $3,500.
200A service homes
Homes with modern 200A service can typically accept Generac 22kW installation without a panel upgrade in the vast majority of cases. The install proceeds as a straightforward automatic transfer switch installation with a new 200A service disconnect. Some 200A homes may still need panel updates if the existing panel is full (all breaker positions used) or if the panel is significantly aged, but the service capacity itself is adequate for the 22kW.
Fuel Connection Costs: Natural Gas vs Propane Tank
Fuel connection cost is the second largest cost variable in Generac 22kW installation after panel upgrades. Understanding the fuel scenarios helps you plan accurately.
Existing natural gas connection (lowest cost)
Homes with existing natural gas utility service typically pay $500 to $1,200 for the fuel connection portion of a Generac 22kW install. Cost includes tap into the existing gas line, sediment trap, dedicated shutoff valve, flexible fuel line to the generator, and any utility coordination for meter upgrades. The 22kW draws approximately 289 cubic feet per hour at full load, which most existing residential gas meters and service lines can handle without upgrade. Verify with your gas utility before finalizing the install.
Existing propane tank (moderate cost)
Homes with existing propane tanks (500-gallon or 1000-gallon installations for heating or other appliances) typically pay $600 to $1,500 for the fuel connection portion. Cost includes tap into the existing propane distribution line, second-stage regulator sizing for the generator load, flexible fuel line, and any repositioning of existing supply lines. Existing tanks sized 250-gallon and smaller may need to be upgraded to 500-gallon for Generac 22kW extended runtime.
New propane tank installation (highest cost)
Homes without existing propane infrastructure that choose propane fuel supply pay significantly more for the fuel connection scope. A new 500-gallon aboveground propane tank installation typically costs $1,500 to $3,000 for the tank plus $500 to $1,500 for the propane distribution line to the generator. Underground 500-gallon tanks add $1,000 to $2,500 to those totals for excavation and burial. Initial propane fill of 400 usable gallons adds another $800 to $1,600 depending on regional propane prices.
Regional Cost Variance for Generac 22kW Installation
Regional labor markets and permit fees create significant variance in Generac 22kW installation cost across the United States. Understanding your regional context helps you evaluate whether local quotes are reasonable.
Higher-cost regions (Northeast, West Coast metros)
Northeast metros (Boston, New York, Philadelphia, Washington DC), West Coast metros (San Francisco, Los Angeles, Seattle), and Hawaii typically run 20-40 percent higher than national averages for Generac 22kW installation. Standard installs in these regions typically start at $9,000 to $11,000 rather than the $6,500 baseline. Labor rates and permit fees are the primary drivers of the higher cost.
Mid-cost regions (Midwest metros, Mid-Atlantic)
Midwest metros (Chicago, Detroit, Cleveland, Cincinnati, Minneapolis), Mid-Atlantic regions (Baltimore, Richmond), and Colorado Front Range typically align with national averages. Standard installs in these regions run $7,000 to $9,500. Labor rates are moderate and permit fees are typically reasonable.
Lower-cost regions (Southeast, Texas, Mountain West)
Southeast metros (Atlanta, Charlotte, Nashville, Jacksonville), Texas metros (Houston, Dallas, San Antonio), and Mountain West markets (Phoenix, Salt Lake City, Boise) typically run 10-20 percent below national averages. Standard installs in these regions run $6,000 to $8,000. Combined with generally lower housing costs and larger lot sizes, these markets tend to have the most favorable Generac 22kW install economics.
Installation Timeline and Permit Requirements
Realistic Generac 22kW installation timelines run 3 to 8 weeks from initial order through commissioning. Understanding the timeline components helps you plan around storm seasons or specific delivery deadlines.
Order to delivery: 5-14 days
Generac 22kW unit delivery from IB Lighting to the install location typically runs 5-14 days depending on shipping distance and current freight scheduling. Free freight and freight insurance are included on all IB Lighting Generac orders shipped nationwide. Coastal deliveries and remote rural addresses may extend to 14-21 days during peak seasons.
Permit approval: 3-21 days
Electrical and mechanical permits are required in every jurisdiction. Permit approval timelines vary from same-day (small jurisdictions) to 2-3 weeks (major cities with backlogged inspection queues). Homeowners can request their installer to submit permits ahead of unit delivery to compress the timeline.
Installation scheduling: 7-21 days
Installer scheduling depends on their current calendar backlog. Peak demand periods (spring homeowner project season, pre-hurricane season in May-June, pre-winter in September-October) can push scheduling to 4-6 weeks. Off-peak periods often allow scheduling within 1-2 weeks.
Installation day: 1-2 days
Standard Generac 22kW installation takes 1 day for the physical install and initial commissioning. Complex installs with panel upgrades extend to 2 days. Load calculation methodology aligns with NEMA electrical panel standards to ensure code compliance.
5 Legitimate Ways to Reduce Generac 22kW Installation Cost
The strategies below reduce Generac 22kW installation cost without cutting corners on code compliance, warranty coverage, or install quality. Each one is legitimate and worth discussing with your installer during the quoting phase.
Strategy 1: Get 2-3 competing quotes from licensed electricians
The single most effective cost reduction strategy is comparing multiple quotes from licensed electricians in your area. Quotes for identical scope frequently vary by 20-30 percent, which can save $1,500 to $3,000 on a Generac 22kW install. Verify each electrician is properly licensed and insured, and confirm quotes are based on in-person site surveys rather than phone estimates.
Strategy 2: Install closer to your electrical panel
Wire run distance from the electrical panel to the generator location is a meaningful cost variable. Installations within 25 feet of the panel typically hit standard cost ranges. Installations beyond 50 feet or requiring trenching can add $500 to $2,000. When flexibility exists on install location, positioning the generator closer to the panel reduces total cost meaningfully.
Strategy 3: Use composite pad instead of poured concrete
The Generac composite pad (approved for Guardian Series installation) costs approximately $200 to $300 versus $300 to $600 for poured concrete. The composite pad installs faster with no cure time and eliminates concrete mess. This is a legitimate substitute that meets Generac install requirements and can save $100 to $400 on the pad line item.
Strategy 4: Schedule during off-peak seasons
Installer scheduling backlogs create pricing pressure during peak seasons (spring homeowner projects, pre-hurricane season in May-June, pre-winter in September-October). Off-peak scheduling (January-February or midsummer in most markets) sometimes yields quotes 5-10 percent below peak-season pricing because installers are hungrier for work.
Strategy 5: Bundle related electrical projects
If you also plan to install a Level 2 EV charger, upgrade your electrical panel, or add subpanels for medical equipment or a workshop, bundling these projects with the Generac 22kW install can reduce total labor cost by 15-25 percent. The electrician is already on site, permits can be combined, and material orders can be consolidated.

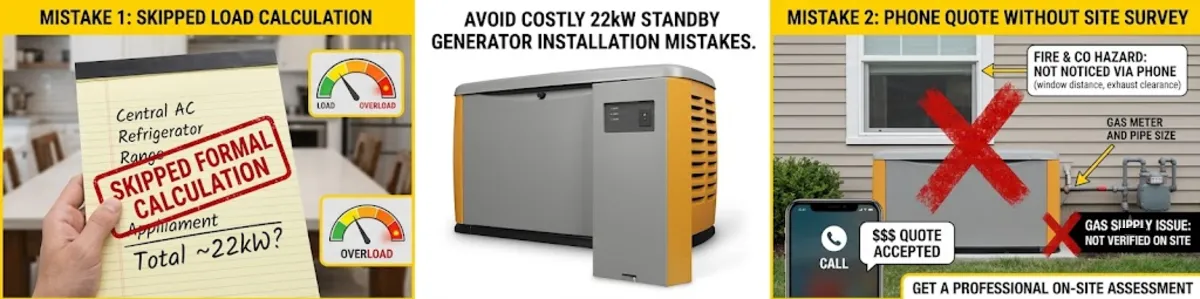

5 Mistakes That Increase Generac 22kW Installation Cost
The mistakes below reliably drive Generac 22kW installation cost higher than necessary. Each one is preventable with proper planning.
Mistake 1: Accepting a phone quote without a site survey
Remote or phone quotes miss critical scope details (wire run distance, panel condition, fuel line accessibility, code deficiencies in existing electrical work) that can double or triple the actual install cost. Never accept a firm quote without a documented site survey and residential load calculation. Site surveys typically take 30-60 minutes and are usually included in the quoting process at no charge.
Mistake 2: Selecting the cheapest quote without verifying credentials
The cheapest quote is frequently the least qualified installer, and the initial savings evaporate quickly when the install goes wrong, fails inspection, or voids the Generac warranty. Verify state electrical licensing, general liability insurance ($1M minimum), and any Generac dealer or installer certifications before selecting an installer. A quote that is $500-$1,500 higher but includes proper credentials is typically better value.
Mistake 3: Skipping the load calculation and hoping the panel is adequate
Installers who skip the residential load calculation and quote assuming no panel upgrade is needed create the highest risk of surprise change orders mid-install. When the panel cannot support the added load, the install must pause for a panel upgrade at 2-3x the original scope cost. Always require a load calculation before accepting a firm quote.
Mistake 4: Accepting an offer to skip permits
Installers who suggest skipping electrical or mechanical permits to save time or fees are signaling that they lack proper credentials or are trying to avoid inspection scrutiny. Un-permitted work voids your Generac warranty, voids homeowner insurance for any related loss, and creates resale complications when the buyer’s inspector identifies unrecorded modifications. Always require permits with all Generac installations.
Mistake 5: Not confirming warranty registration is included
Generac requires professional installation by a qualified installer for full warranty coverage. Confirm your installer will complete Generac warranty registration as part of the install scope. Some low-cost installers skip warranty registration, which leaves you with a warranty gap that becomes expensive if the unit needs service in the first 5 years.
Ready to order the Generac 22kW and plan your installation?
IB Lighting resells the Generac 22kW nationwide with free freight and freight insurance included. Final pricing shown securely in cart due to manufacturer advertising policies. Call (800) 674-9019 or view the Generac 22kW product page.
Frequently Asked Questions
How much does Generac 22kW installation cost?
Generac 22kW installation cost typically ranges from $6,500 to $12,500 for standard professional installation, excluding the unit price. Complex installations requiring panel upgrades, long fuel runs, or new propane tank installations can push total installation cost to $15,000 to $18,000. Regional variance affects total by 20-40 percent in either direction. Collect 2-3 quotes from licensed electricians before finalizing.
Does IB Lighting install the Generac 22kW?
IB Lighting resells the Generac 22kW nationwide with free freight and freight insurance included but does not perform installation directly. We help buyers coordinate with qualified licensed electricians in their service area. Contact us at (800) 674-9019 for guidance on what to expect from installer quotes in your region.
Do I need a permit for Generac 22kW installation?
Yes. Electrical and mechanical permits are required for Generac 22kW installation in every jurisdiction. Permit fees range from $150 to $500 depending on location and are typically included in your installer quote. Never accept an installer who suggests skipping permits because un-permitted work voids the Generac warranty and homeowner insurance coverage.
Do I need a panel upgrade for Generac 22kW installation?
It depends on your existing electrical service. Homes with 100A service almost always need a panel upgrade to 200A before Generac 22kW installation. Homes with 150A service usually need an upgrade unless load management is configured. Homes with modern 200A service typically accept Generac 22kW installation without upgrade. A residential load calculation provides the definitive answer.
How long does Generac 22kW installation take?
Total timeline from initial order through commissioning typically runs 3 to 8 weeks. Unit delivery from IB Lighting takes 5-14 days. Permit approval takes 3-21 days depending on jurisdiction. Installer scheduling adds 7-21 days. Installation day itself is 1-2 days depending on scope complexity. Panel upgrades add 1 day to the physical install.
Can I install the Generac 22kW myself to save money?
No. Generac requires professional installation by a licensed electrician for full warranty coverage. DIY installation voids the warranty entirely, creates permit and inspection problems, and creates significant electrical hazard risks. Even homeowners with electrical experience should hire a licensed electrician for Generac 22kW installation to protect warranty coverage and insurance.
What is included in the Generac 22kW installation cost?
Standard Generac 22kW installation includes site survey and load calculation, permits, concrete or composite pad, generator positioning, automatic transfer switch installation, electrical wire run from panel to generator, fuel connection to existing natural gas or propane, startup and commissioning, Mobile Link setup, warranty registration, and homeowner training. Common exclusions include panel upgrades and new propane tank installations.
Where can I buy the Generac 22kW?
The Generac 22kW is available through resellers nationwide including IB Lighting. IB Lighting resells the full Generac Guardian Series lineup with free freight and freight insurance included, and final pricing shown securely in cart due to manufacturer advertising policies. Contact IB Lighting at (800) 674-9019 or through the Generac 22kW product page.
Conclusion
Generac 22kW installation cost typically ranges from $6,500 to $12,500 for standard professional installation, with complex scenarios reaching $18,000. The largest cost variables are the automatic transfer switch, panel upgrades (when required), and fuel connection scope. Regional variance affects total by 20-40 percent. Collect 2-3 quotes from licensed electricians before selecting an installer. Verify licensing, insurance, and Generac certification. Always require permits and warranty registration. The unit itself is available at IB Lighting with pricing shown securely in cart due to manufacturer advertising policies.
Ready to order the Generac 22kW?
IB Lighting resells the Generac 22kW nationwide with free freight and freight insurance included. Call (800) 674-9019 or view the Generac 22kW product page.
This article was last reviewed and updated in June 2026 to reflect current Generac 22kW Next Generation product installation specifications, national labor rate ranges, and current NEC Article 220 residential load calculation requirements. Installation cost ranges are estimates based on IB Lighting shipping data and are not firm quotes. Always collect 2-3 firm written quotes from licensed electricians in your service area before finalizing your installation budget.
