Diesel standby generators with integrated fuel tanks represent a significant investment in backup power infrastructure. Protecting that investment requires attention to details that extend beyond the generator itself, including how the base tank interfaces with its mounting surface. The Generac 6506 Tank Riser provides the elevation necessary to protect your Protector Series diesel generator’s integrated fuel tank from ground contact that causes corrosion, moisture accumulation, and premature deterioration. This purpose-built accessory fits 30kW, 48kW, and 50kW Generac Protector diesel generators with C2 enclosures, providing the clearance that some jurisdictions mandate and that all installations benefit from regardless of local requirements.

What Is the Generac 6506 Tank Riser?

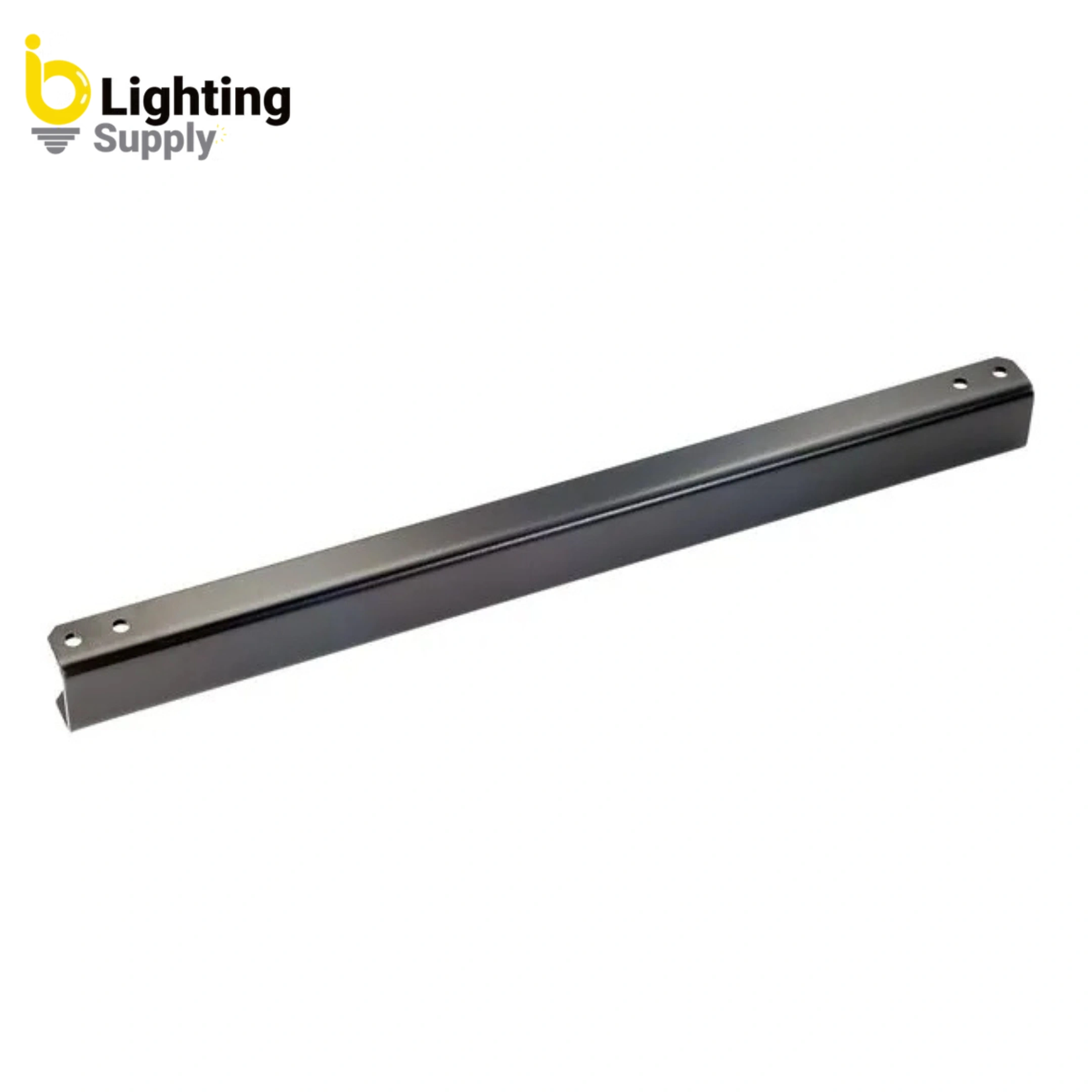

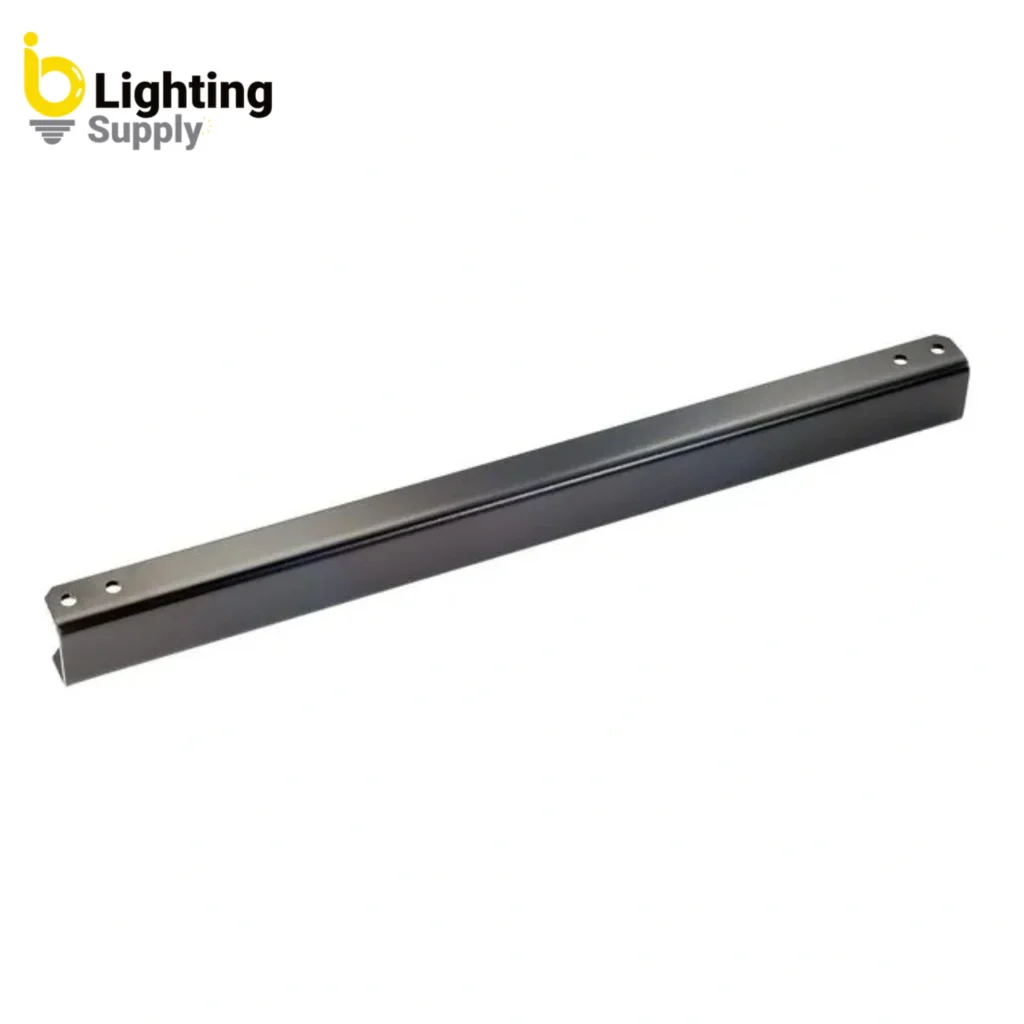

The Generac 6506 is a factory-engineered tank riser system designed specifically for Protector Series diesel generators in the 30kW to 50kW power range. Unlike improvised solutions or generic lifting accessories, this riser integrates precisely with the base tank mounting points of compatible generators, ensuring proper load distribution and secure attachment.

Tank risers serve a fundamental purpose in diesel generator installations: creating separation between the integrated fuel tank and the mounting surface below. This seemingly simple function addresses multiple concerns that affect generator longevity, code compliance, and operational reliability.

The riser system elevates the entire generator assembly, including the integrated diesel fuel tank, off the ground surface. This elevation creates an air gap that allows moisture to evaporate rather than accumulate against the tank bottom, prevents direct contact between the tank and potentially corrosive mounting surfaces, and provides clearance for inspection of the tank underside during routine maintenance.

Generac 6506 Tank Riser Specifications

Understanding the specifications helps ensure you select the correct riser for your specific generator model. The 6506 is designed exclusively for larger Protector Series units with C2 enclosures.

The riser features powder-coated steel construction that provides durability and corrosion resistance matching the quality standards of the generators themselves. Powder coating creates a tough, protective finish that withstands outdoor exposure better than conventional paint, resisting chipping, scratching, and degradation from UV exposure.

Compatible generator models include the RD03022, RD03024, RD04834, and RD05034 configurations. These designations correspond to 30kW, 48kW, and 50kW Protector diesel generators in various voltage configurations. Always verify your generator’s model number against the compatibility list before ordering to ensure proper fit.

The risers attach to the base tank through factory-provided mounting holes, eliminating the need for field modifications or drilling. This design maintains the structural integrity of the tank assembly and ensures the manufacturer’s warranty remains valid.

Why Your Generac 6506 Tank Riser Matters for Longevity

Base tank corrosion represents one of the most significant long-term threats to diesel generator installations. Understanding the mechanisms involved helps appreciate why tank risers are considered essential accessories rather than optional additions.

Generac 6506 Tank Riser for Corrosion Prevention Mechanisms

When a diesel generator’s integrated fuel tank sits directly on concrete, gravel, or other mounting surfaces, several corrosion-promoting conditions develop. Moisture becomes trapped between the tank bottom and the mounting surface, unable to evaporate. This trapped moisture creates a persistent wet environment that accelerates oxidation of steel tank components.

Concrete surfaces are particularly problematic because concrete absorbs and releases moisture continuously as ambient humidity changes. A tank sitting on concrete essentially rests on a surface that alternates between wet and damp conditions, never fully drying. Over years of exposure, this constant moisture contact causes progressive rusting that eventually compromises tank integrity.

Rough or uneven mounting surfaces compound the problem by creating localized contact points where pressure concentrates. These pressure points wear through protective coatings more quickly, exposing bare metal to corrosive conditions. The resulting pinpoint corrosion can penetrate tank walls faster than uniform surface corrosion.

Chemical interactions between dissimilar materials also contribute to corrosion. Concrete contains alkaline compounds that can react with steel in the presence of moisture, accelerating deterioration beyond what simple oxidation would cause. Gravel beds may contain minerals or salts that create electrochemical cells promoting galvanic corrosion.

Air Circulation Benefits of Generac 6506 Tank Riser

Elevating the tank creates an air gap that fundamentally changes the moisture dynamics around the tank bottom. Air can circulate beneath the tank, carrying away moisture before it accumulates. After rain events, the tank underside dries through natural air movement rather than remaining wet for extended periods.

This air circulation also moderates temperature differentials between the tank and its surroundings. When cold tanks contact warm, moist surfaces, condensation forms on the tank exterior. Elevation reduces this temperature differential effect by allowing air to moderate surface temperatures on all sides of the tank.

Generac 6506 Tank Riser for Residential and Commercial Applications

The 30kW to 50kW generator range served by the 6506 riser addresses both substantial residential applications and commercial backup power requirements. Understanding typical use cases helps contextualize the importance of proper installation accessories.

Large Residential Installations by Generac 6506 Tank Riser

Homes requiring 30kW or larger diesel generators typically have significant electrical demands that exceed the capacity of smaller air-cooled units. Properties with multiple HVAC systems, pool equipment, extensive lighting, home automation systems, well pumps, and electric vehicle charging often require this level of backup power to maintain full functionality during outages.

Diesel generators in residential applications frequently operate infrequently, starting only during utility outages and weekly exercise cycles. This intermittent operation pattern means the generator may sit idle for extended periods, during which corrosion progresses silently if the installation lacks proper protection. Tank risers ensure the investment remains protected during both operation and idle periods.

Rural properties without natural gas service often choose diesel generators because propane delivery can be problematic during extended emergencies when diesel remains available from multiple fuel suppliers. These installations benefit particularly from risers because rural settings may involve placement on unprepared surfaces or in locations where professional maintenance visits are less frequent.

Commercial Backup Power by Generac 6506 Tank Riser

Commercial facilities including retail stores, restaurants, medical offices, data centers, and professional buildings rely on diesel generators for backup power that must start instantly and run reliably for extended periods. Generator failure during an outage can mean lost revenue, spoiled inventory, interrupted services, or regulatory compliance violations.

Commercial installations face heightened scrutiny from local authorities, insurance inspectors, and code enforcement officials. Tank risers often represent a compliance requirement rather than an optional enhancement. Even in jurisdictions without explicit riser mandates, installers frequently recommend risers to demonstrate best practices and avoid potential liability issues.

Healthcare facilities, including outpatient clinics and medical office buildings, face particularly stringent requirements for emergency power reliability. Generators serving these facilities must meet NFPA 110 requirements for emergency and standby power systems, which emphasize proper installation practices including corrosion prevention measures.

Agricultural and Industrial Applications of Generac 6506 Tank Riser

Agricultural operations with substantial electrical loads for ventilation, refrigeration, processing equipment, and irrigation systems depend on large diesel generators to protect livestock, preserve products, and maintain operations during outages. The consequences of generator failure in these applications can include significant economic losses and animal welfare concerns.

Light industrial facilities including manufacturing operations, warehouses, and distribution centers use diesel generators to protect critical processes and maintain operations. Extended runtime requirements make diesel an attractive fuel choice, and the integrated tank design of Protector Series generators simplifies installation while providing substantial fuel storage capacity.

Installation Considerations by Generac 6506 Tank Riser

Proper installation of tank risers requires attention to sequence, surface preparation, and load distribution. While the risers themselves are straightforward accessories, their installation involves working with heavy equipment that demands appropriate planning and execution.

Site Preparation of Generac 6506 Tank Riser

Before installing risers, the mounting surface must be properly prepared. Concrete pads should be level, cured, and free of defects that could cause uneven loading. Gravel surfaces should be compacted and graded to prevent settling after the generator is positioned.

Clearance requirements around the generator must be maintained regardless of riser installation. Risers add height to the overall assembly, which may affect overhead clearance in covered installations. Verify that service access remains adequate after the generator is elevated.

Consider drainage patterns around the installation site. While risers elevate the tank above standing water, severe flooding could still affect a generator installation. Site grading should direct water away from the generator pad whenever possible.

Riser Installation Sequence: Generac 6506 Tank Riser

Tank risers must be installed before the generator is positioned on the mounting surface. Attempting to install risers under an already-placed generator is impractical and potentially dangerous given the weight of diesel generators with full fuel tanks.

The risers attach to the base tank through factory-provided mounting holes. Generac designs these attachment points to distribute the generator’s weight properly across the riser structure. Using the correct fasteners and torque specifications ensures secure attachment and proper load distribution.

After attaching risers to the generator assembly, the combined unit can be positioned on the mounting surface using appropriate rigging equipment. Diesel generators in this size range require crane or forklift placement, and rigging should account for the added height and changed center of gravity created by the risers.

Generac 6506 Tank Riser for Professional Installation Requirements

Generator installation involves electrical connections, fuel system components, and heavy equipment that should be handled by qualified professionals. Electrical connections must comply with the National Electrical Code (NEC), local amendments, and utility requirements for standby power systems.

Fuel system connections for diesel generators involve components that must meet fire safety requirements. NFPA 30 addresses flammable and combustible liquid storage, while NFPA 110 specifically covers emergency and standby power systems including fuel supply requirements. Installers should be familiar with both standards and any local amendments.

Permit requirements vary by jurisdiction but typically include electrical permits for generator connections and potentially mechanical or fuel storage permits depending on tank capacity and local regulations. Tank risers themselves may be specifically mentioned in local code requirements for generator installations.

Code Compliance and Municipal Requirements

Tank risers address specific code requirements that vary by jurisdiction. Understanding the regulatory landscape helps ensure your installation meets all applicable requirements.

Local Mandates

Some municipalities explicitly require tank risers for diesel generators with integrated fuel tanks. These requirements typically appear in local fire codes or building codes as amendments to model codes like the International Fire Code or International Building Code.

The rationale behind riser mandates relates to both corrosion prevention and environmental protection. Corroded tanks can leak fuel into the environment, creating contamination issues and fire hazards. By requiring elevation that prevents corrosion, authorities reduce the likelihood of tank failures and associated hazards.

Even in jurisdictions without explicit riser requirements, inspectors may expect or recommend risers as part of best practices for generator installations. Installing risers proactively avoids potential complications during inspections and demonstrates attention to proper installation procedures.

Insurance Considerations

Commercial property insurance policies often include requirements or recommendations for emergency power equipment. Insurance inspectors evaluating generator installations may note the absence of tank risers as a deficiency, potentially affecting coverage terms or premiums.

Demonstrating best practices in generator installation can support favorable insurance treatment. Risers represent a visible commitment to proper installation that inspectors recognize and appreciate.

Maintenance and Inspection

Tank risers require minimal maintenance themselves but facilitate inspection and maintenance of the tank and generator assembly. Understanding maintenance implications helps maximize the benefit of riser installation.

Visual Inspection Access

Elevated tanks allow visual inspection of the tank underside during routine maintenance visits. Technicians can observe the tank bottom for signs of corrosion, coating damage, or other issues that would be invisible on a ground-contact installation.

This inspection capability provides early warning of developing problems before they become serious. Catching corrosion early allows remediation before tank integrity is compromised, avoiding fuel leaks and the associated environmental and safety concerns.

Riser Maintenance

The powder-coated steel risers require periodic inspection for coating damage, corrosion, or structural issues. During generator maintenance visits, technicians should visually inspect risers for any signs of deterioration.

If coating damage is observed, touch-up with appropriate rust-inhibiting paint can prevent corrosion from developing. Addressing coating damage promptly maintains the protective function that makes the risers effective.

Fastener integrity should be verified periodically, particularly after seismic events or severe weather that could affect the generator assembly. Loose fasteners should be retightened to specifications, and damaged fasteners should be replaced with appropriate replacements.

Common Mistakes to Avoid

Avoiding these frequent errors ensures your tank riser installation achieves its intended purpose of protecting your generator investment.

Installing After Generator Placement

Attempting to install risers under an already-placed generator is impractical and dangerous. Diesel generators with full fuel tanks weigh thousands of pounds and require appropriate lifting equipment to handle safely. Planning riser installation before generator delivery avoids this problem.

Using Incorrect Riser Model

Generac manufactures different risers for different generator series and sizes. The 6506 fits only 30kW, 48kW, and 50kW Protector diesel generators with C2 enclosures. Using risers intended for different generators results in improper fit, potential mounting problems, and compromised protection.

Substituting Improvised Solutions

Concrete blocks, wooden timbers, or other improvised supports do not provide the same protection as purpose-built risers. These alternatives may not distribute loads properly, can deteriorate over time, and may not meet code requirements in jurisdictions that mandate risers.

Neglecting Surface Preparation

Even with risers installed, an improperly prepared mounting surface can cause problems. Unlevel surfaces create uneven loading that stresses the generator frame and risers. Settling surfaces allow the generator to shift position over time, potentially stressing fuel lines and electrical connections.

Ignoring Clearance Requirements

Risers add height to the generator assembly. Installations in covered areas or with overhead obstructions must account for this added height. Service access requirements must also be maintained after elevation.

Frequently Asked Questions

Are tank risers required for all Generac diesel generators?

Tank risers are not universally required but are strongly recommended for all diesel generator installations with integrated fuel tanks. Some jurisdictions specifically mandate risers, while others leave the decision to the installer. Even without a mandate, risers provide corrosion protection that extends tank life and protects your investment.

What generators does the 6506 fit?

The Generac 6506 tank riser fits Protector Series diesel generators rated at 30kW, 48kW, and 50kW with C2 enclosures. Compatible model numbers include RD03022, RD03024, RD04834, and RD05034. Smaller Protector diesel generators (15kW and 20kW) require the 6505 riser instead.

Can I install tank risers myself?

Tank risers must be installed before the generator is positioned, which requires crane or forklift equipment to handle the generator assembly. While the riser attachment itself is straightforward, the overall generator installation process requires qualified professionals for electrical connections, fuel system work, and compliance verification.

How much elevation do the risers provide?

The risers provide sufficient elevation to create an effective air gap between the tank bottom and mounting surface. This gap allows air circulation, moisture evaporation, and visual inspection access. Exact elevation specifications should be confirmed with the current product documentation.

Do risers affect generator warranty coverage?

The 6506 risers are genuine Generac accessories designed for use with Protector Series generators. Installing factory-approved accessories according to manufacturer instructions does not affect warranty coverage. In fact, proper installation using appropriate accessories demonstrates the care that supports warranty claims if issues arise.

What maintenance do risers require?

Tank risers require periodic visual inspection for coating damage, corrosion, or structural issues. Touch-up coating repairs address minor damage before corrosion develops. Fastener integrity should be verified during routine generator maintenance visits.

Can risers be added to an existing installation?

Adding risers to an existing installation requires lifting the generator to install the risers beneath it. This operation requires appropriate lifting equipment and should be performed by qualified personnel. The cost and complexity of retrofitting risers emphasizes the importance of including them in the original installation.

Do I need risers on a concrete pad?

Yes, risers are particularly important on concrete surfaces. Concrete absorbs and releases moisture continuously, creating persistent damp conditions against surfaces in direct contact. Tank risers prevent this moisture contact, protecting the tank even on concrete installations.
