Generac Protector Diesel Home Standby Generator Spill Box Drain Back Kit: Model 6511

Diesel generator installations must address fuel containment requirements that protect both the environment and comply with local fire codes. When fuel spills during tank filling operations, that fuel must be captured and managed properly to prevent contamination and minimize vapor emissions. The Generac 6511 Spill Box Kit provides the drain-back functionality that allows captured fuel to return safely to the main tank, eliminating the need for manual fuel removal while reducing vapor accumulation in the spill containment system. This factory-engineered accessory works with the Generac 5-gallon spill box to create a complete spill management system for Protector Series diesel generators, meeting the requirements that many municipalities mandate for diesel fuel storage installations.

What Is the Generac 6511 Spill Box Kit?

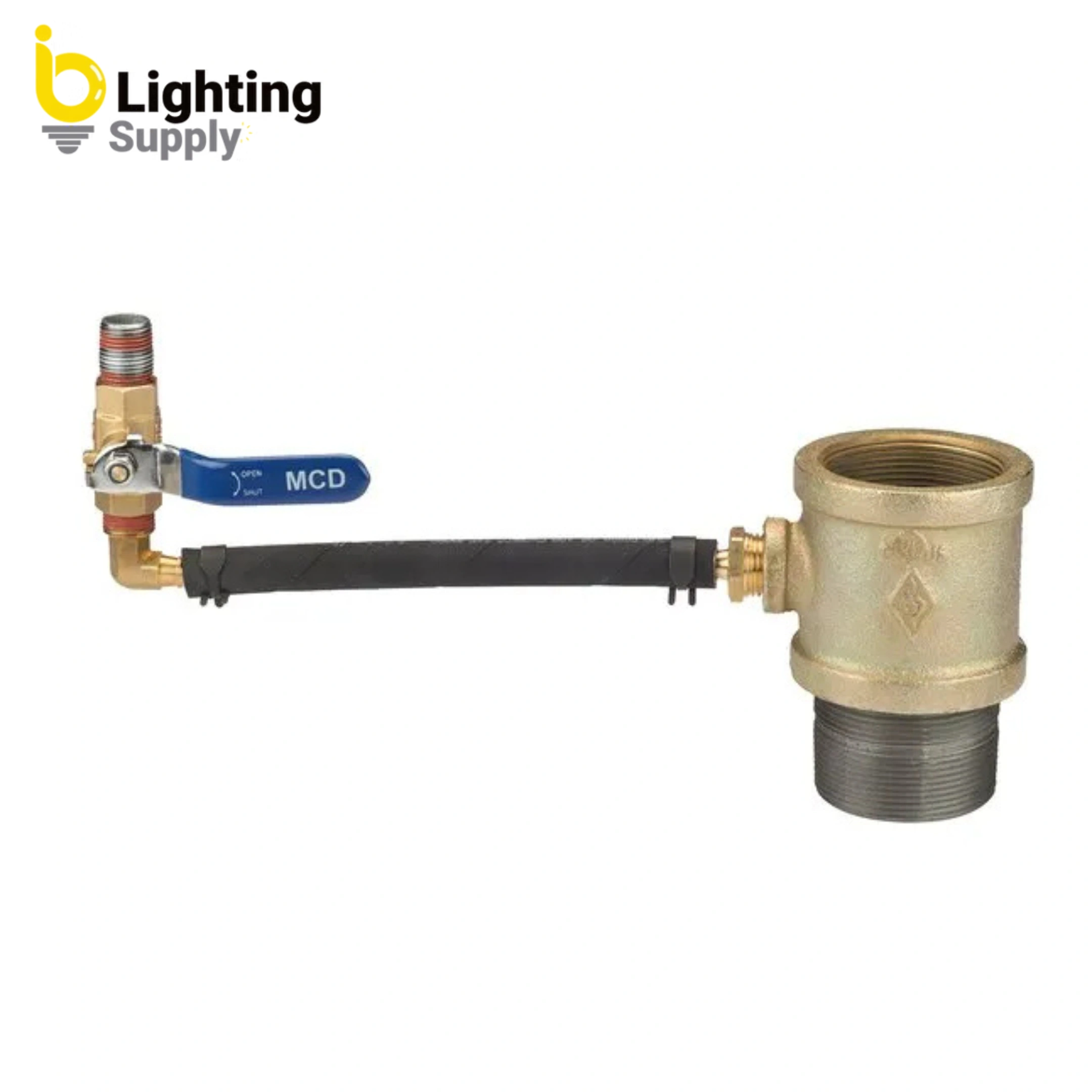

The Generac 6511 is a spill box drainback kit designed specifically for Generac Protector Series liquid-cooled diesel generators equipped with domestic or extended fuel tanks. This accessory enables automatic drainage of fuel captured in the 5-gallon spill box (Model 006502-0) back into the main fuel tank, creating a closed-loop containment system that minimizes vapor emissions and simplifies maintenance.

Unlike installations where captured fuel must be manually removed and disposed of or transferred, the drainback system returns spilled fuel to the tank through a dedicated piping connection. This arrangement keeps fuel contained within the generator’s fuel system rather than accumulating in an open containment vessel where it would evaporate and release vapors into the atmosphere.

The kit represents one component of Generac’s comprehensive code-ready accessory system for diesel generators. Many municipalities require spill containment systems for diesel fuel storage installations, and some specifically mandate drainback capabilities to minimize vapor emissions and reduce the frequency of manual containment maintenance. The 6511 kit addresses these requirements with a factory-designed solution engineered for seamless integration with Protector Series generators.

Generac 6511 Spill Box Kit Specifications

Understanding the specifications ensures proper system configuration and helps verify compatibility with your specific generator installation.

The drainback kit weighs approximately 3 pounds and includes all necessary hardware for installation. The kit is manufactured in the United States and designed specifically for Generac Protector Series diesel generator platforms.

Compatible generator models include: RD01523 (15kW), RD02023 (20kW), RD03022 (30kW single-phase), RD03024 (30kW three-phase), RD04834 (48kW), and RD05034 (50kW). This compatibility covers the full range of Generac Protector diesel generators with integrated fuel tank systems.

The kit requires the separate purchase and installation of the 5-gallon spill box (Model 006502-0). The drainback kit cannot function independently; it provides the piping and connections that enable the spill box to drain captured fuel back to the tank. Without the spill box, there is no containment vessel to drain.

Installation requires proper plumbing connections between the spill box and the fuel tank return system. The kit includes mounting hardware and connection components specified for the Protector Series tank configurations.

Why the Generac 6511 Spill Box Kit Matters for Compliance

Diesel fuel storage and handling involves regulatory requirements at federal, state, and local levels. Understanding these requirements explains why spill containment accessories represent essential equipment rather than optional enhancements for many installations.

Generac 6511 Spill Box Kit Prevention Requirements

Fuel spills during tank filling represent a primary contamination risk for diesel generator installations. When delivery trucks fill generator fuel tanks, disconnecting the fill hose can release small amounts of fuel. Over time, these repeated small spills accumulate and can contaminate soil, groundwater, or storm drainage systems if not properly contained.

Spill boxes capture fuel released during fill operations, preventing it from reaching the surrounding environment. The containment vessel collects spilled fuel in a controlled space where it can be managed appropriately. This simple mechanical system provides the first line of defense against fuel releases.

However, fuel sitting in an open containment vessel creates its own problems. Diesel fuel evaporates slowly but continuously, releasing vapors that can accumulate in enclosed spaces or contribute to air quality issues. Rain and snow can enter open containment systems, mixing with captured fuel and creating contaminated water that requires special disposal. The drainback system addresses both concerns by returning captured fuel to the main tank promptly.

Vapor Minimization Benefits of Generac 6511 Spill Box Kit

The primary function of the drainback kit is vapor minimization. By returning captured fuel to the enclosed main tank rather than leaving it in an open containment vessel, the system dramatically reduces vapor emissions from the spill containment area.

Diesel vapors, while less volatile than gasoline, still present concerns in enclosed generator installations. Vapor accumulation in generator enclosures can create fire hazards and air quality issues. Some jurisdictions specifically require vapor management measures for diesel fuel storage, making drainback systems mandatory rather than optional.

The closed-loop system created by combining the spill box with the drainback kit keeps fuel contained within the generator’s sealed fuel system. Fuel captured in the spill box drains back to the main tank, where the tank’s normal venting system manages any vapor release through properly designed vent piping that directs emissions to safe locations.

Residential and Commercial Applications by Generac 6511 Spill Box Kit

Generac Protector Series diesel generators serve both substantial residential applications and commercial backup power requirements. Understanding typical installations helps appreciate why proper spill containment matters across different settings.

Large Residential Installations of Generac 6511 Spill Box Kit

Residential properties in areas without natural gas service often choose diesel generators for backup power. These installations typically include integrated fuel tanks with capacities ranging from 50 to over 100 gallons, providing extended runtime capability during prolonged outages.

Rural and suburban properties may face less stringent code enforcement than commercial installations, but responsible homeowners recognize the importance of proper fuel containment. Fuel spills can contaminate well water supplies, damage landscaping, and create liability concerns. The drainback kit provides professional-grade spill management appropriate for any installation.

Homes in environmentally sensitive areas near wetlands, waterways, or aquifer recharge zones may face specific containment requirements regardless of property classification. Local health departments or environmental agencies may mandate spill containment systems that meet standards similar to commercial installations.

Commercial Backup Power by Generac 6511 Spill Box Kit

Commercial facilities face more rigorous regulatory oversight for fuel storage systems. Building codes, fire codes, and environmental regulations combine to create comprehensive requirements that commercial diesel generator installations must meet.

Healthcare facilities, data centers, telecommunications sites, and other critical infrastructure installations often require compliance with NFPA 30 (Flammable and Combustible Liquids Code) and NFPA 37 (Standard for the Installation and Use of Stationary Combustion Engines and Gas Turbines). These standards address fuel storage, containment, and spill management with specific requirements that the spill box and drainback kit help satisfy.

Retail, hospitality, and office buildings in urban areas may face local fire marshal requirements that exceed model code minimums. Inspectors familiar with best practices often expect or require spill containment systems even when not strictly mandated by adopted codes. Installing proper containment proactively avoids complications during inspections and demonstrates commitment to responsible facility management.

Industrial and Institutional Applications by Generac 6511 Spill Box Kit

Manufacturing facilities, warehouses, educational institutions, and government buildings all utilize diesel generators for backup power. These installations frequently fall under EPA Spill Prevention, Control, and Countermeasure (SPCC) plan requirements when aggregate fuel storage exceeds threshold quantities.

SPCC plans require facilities to identify potential spill sources, implement preventive measures, and establish response procedures. Spill containment at fuel fill points represents a basic preventive measure that any SPCC plan should address. The spill box and drainback kit provide documented containment capability that supports SPCC compliance.

Agricultural operations with substantial backup power requirements may face state environmental agency oversight depending on proximity to waterways and the scale of fuel storage. The drainback kit simplifies compliance by reducing manual maintenance requirements while providing effective spill management.

Generac 6511 Spill Box Kit Installation Considerations

Proper installation ensures the drainback system functions correctly and integrates seamlessly with the generator’s fuel system. Professional installation is recommended to ensure proper connections and code compliance.

Generac 6511 Spill Box Kit System Integration

The drainback kit connects the spill box to the generator’s fuel tank return system. Captured fuel drains by gravity from the spill box through the drainback piping to the main tank, where it rejoins the fuel supply available for generator operation.

Proper piping slope ensures complete drainage without fuel accumulating in low spots. The kit includes hardware and components designed for the specific tank configurations of compatible Protector Series generators, ensuring correct fit and function.

Installation requires coordination with the spill box installation, as both components work together as a system. The spill box provides the containment vessel, while the drainback kit provides the drainage pathway. Neither component functions effectively without the other.

Location Requirements for Generac 6511 Spill Box Kit

The spill box and drainback system should be positioned to capture fuel released during tank filling operations. Typically, this means locating the spill box at or near the tank fill connection, where the delivery hose connects during fueling.

Access for fuel delivery personnel must be maintained. The spill box location should allow convenient connection and disconnection of delivery equipment while capturing any fuel released during these operations. Delivery drivers should be able to observe the spill box to verify proper function and check for any fuel accumulation that might indicate system problems.

Generac 6511 Spill Box Kit Code Compliance Verification

Before installation, verify local requirements for diesel fuel storage and containment. Some jurisdictions have specific requirements for spill containment capacity, drainback system design, or inspection and maintenance protocols. Confirming requirements before installation avoids costly modifications later.

Permit requirements vary by jurisdiction. Some areas require permits for fuel storage system modifications, while others treat accessory installation as maintenance activities not requiring permits. Check with local building and fire departments to determine applicable requirements.

Safety and Regulatory Compliance for Generac 6511 Spill Box Kit

Diesel fuel storage involves multiple regulatory frameworks that may apply depending on installation size, location, and use. Understanding these requirements helps ensure your installation meets all applicable standards.

Fire Code Requirements

Local fire codes typically incorporate requirements from NFPA 30 for flammable and combustible liquid storage. These requirements address tank construction, secondary containment, spill control, and separation distances from buildings and property lines.

Spill boxes and drainback systems address spill control requirements by capturing and managing fuel released during filling operations. The drainback function prevents fuel accumulation that could create fire hazards while the spill box provides the containment capacity fire codes typically require.

Fire marshal inspections may verify that spill containment systems are installed, properly maintained, and functioning correctly. Documentation of system components, installation dates, and maintenance activities supports inspection compliance.

Environmental Regulations

EPA regulations require SPCC plans for facilities storing more than 1,320 gallons of oil in aboveground containers or more than 42,000 gallons in underground tanks. These plans must address spill prevention measures, containment systems, and response procedures.

State environmental agencies may have additional requirements that apply to smaller installations or specific geographic areas. Coastal zones, wetland buffers, and groundwater protection areas often have enhanced fuel storage requirements.

The spill box and drainback kit demonstrate proactive spill prevention that regulatory agencies recognize as best practice. Even for installations below SPCC thresholds, implementing proper containment reduces liability exposure and demonstrates environmental responsibility.

Maintenance Requirements

Spill containment systems require periodic inspection and maintenance to ensure continued proper function. Including containment system checks in regular generator maintenance ensures these critical components remain operational.

Visual Inspection

Monthly inspections should verify the spill box is intact, properly positioned, and free of accumulated fuel or water. Any fuel presence in the spill box should trigger investigation, as properly functioning drainback systems should keep the box empty between fill events.

Check drainback piping connections for leaks, corrosion, or damage. Verify piping remains properly supported and sloped for drainage. Any fuel weeping around connections indicates problems requiring immediate attention.

Inspect the spill box cover or grate for damage that could allow debris entry. Leaves, dirt, and other debris can accumulate in spill boxes, potentially clogging drainback systems or contaminating fuel returned to the tank.

Functional Testing

Periodically verify the drainback system functions correctly by adding a small amount of clean fuel to the spill box and confirming it drains completely to the main tank. This test identifies blockages or drainage problems before they cause fuel accumulation.

After heavy rain events, check that the spill box has drained properly. Water should not accumulate in well-designed containment systems with functioning drainback. Standing water indicates drainage problems requiring correction.

Maintenance Documentation

Maintain records of inspections, testing, and any maintenance performed on the spill containment system. These records support regulatory compliance, warranty claims, and liability protection. Include dates, observations, actions taken, and the name of the person performing maintenance.

For facilities with SPCC plans, containment system maintenance should be documented as part of plan implementation. Inspection and maintenance records demonstrate the facility actively manages spill prevention measures as required.

Common Mistakes to Avoid

Avoiding these frequent errors ensures your spill containment system provides effective protection and regulatory compliance.

Installing Drainback Without Spill Box

The 6511 drainback kit cannot function without the 5-gallon spill box (Model 006502-0). Purchasing the drainback kit alone provides no containment capability. Both components must be installed together to create a functioning spill management system.

Improper Piping Slope

Drainback piping must slope continuously from the spill box to the tank connection. Any low spots or reverse slopes can trap fuel rather than draining it to the tank. Trapped fuel defeats the vapor minimization purpose of the drainback system.

Neglecting Maintenance

Spill containment systems are often installed and forgotten until problems occur. Regular inspection catches debris accumulation, drainage blockages, and component deterioration before they cause fuel accumulation or regulatory compliance issues.

Ignoring Water Accumulation

Water in the spill box indicates drainage problems that require correction. While the drainback system is designed for fuel return, water intrusion from rain can overwhelm drainage capacity or create problems if returned to the fuel tank. Address water accumulation causes and consider adding weather protection if needed.

Using Incompatible Components

The 6511 kit is designed specifically for Generac Protector Series diesel generators with domestic or extended fuel tanks. Using this kit with other generator brands or models may result in improper fit, connection problems, or drainage failures. Always verify compatibility before installation.

Frequently Asked Questions

What generators does the 6511 work with?

The Generac 6511 Spill Box Drainback Kit is compatible with all Generac Protector Series diesel generators, including models RD01523 (15kW), RD02023 (20kW), RD03022 (30kW), RD03024 (30kW 3-phase), RD04834 (48kW), and RD05034 (50kW). The kit works with both domestic and extended fuel tank configurations.

Is the spill box included with this kit?

No, the spill box is sold separately (Model 006502-0). The 6511 kit provides only the drainback components that allow the spill box to drain captured fuel back to the tank. Both the spill box and drainback kit must be purchased and installed together for a complete system.

Why do I need a drainback system?

The drainback system minimizes vapor emissions by returning captured fuel to the enclosed main tank rather than leaving it in an open containment vessel. Some municipalities require drainback systems for diesel generator installations. Even where not required, the system simplifies maintenance and reduces vapor-related concerns.

Is this required by code?

Requirements vary by jurisdiction. Some municipalities specifically require spill containment with drainback capability for diesel fuel storage installations. Others require spill containment but allow manual fuel removal as an alternative to drainback systems. Check local requirements before finalizing your installation design.

Can I install this myself?

Professional installation is recommended. The drainback system involves connections to the generator’s fuel tank that must be properly sealed and configured. Improper installation can cause fuel leaks, drainage failures, or other problems that compromise both function and safety.

How often should I inspect the system?

Monthly visual inspections should verify the spill box is empty and drainback connections are secure. More thorough functional testing should occur quarterly or after any fuel delivery. Include containment system checks in your regular generator maintenance schedule.

What if fuel accumulates in the spill box?

Fuel remaining in the spill box after delivery indicates a drainage problem. Check for blockages in the drainback piping, improper slope, or connection issues. Do not ignore accumulated fuel, as it creates vapor emissions and fire hazards that the drainback system is designed to prevent.

Does this work with propane or natural gas generators?

No, this kit is designed specifically for diesel generators with liquid fuel tanks. Propane and natural gas generators do not have liquid fuel fill points that require spill containment. The 6511 kit has no application for gaseous fuel generators.
