Your Generac Protector Series diesel generator represents a significant investment in reliable backup power for your home or business. Unlike gasoline or propane generators, diesel powerplants have unique maintenance requirements including fuel filtration that keeps contaminants from damaging precision injection components. The Generac 6572 Maintenance Kit provides all the essential filters needed to perform complete scheduled maintenance on 15kW and 20kW Protector diesel generators equipped with 2.3L engines. By maintaining your generator according to Generac’s recommended schedule, you protect your investment and ensure your backup power system delivers reliable performance when utility power fails.

What Is the Generac 6572 Maintenance Kit?

The Generac 6572 is a factory-packaged preventative maintenance kit designed specifically for Generac Protector Series diesel generators rated at 15kW and 20kW with 2.3L turbocharged diesel engines. This kit contains genuine Generac filters and accessories engineered to meet the exact quality standards your diesel generator requires for optimal performance and longevity.

Unlike generic aftermarket components that may not match your generator’s specifications, this OEM kit contains filters specifically designed for the 2.3L diesel engine platform. Using factory-specified components ensures proper filtration capacity, correct fit, and continued warranty compliance throughout your generator’s service life.

Diesel generators require more comprehensive filtration than their gasoline counterparts. The fuel system includes precision injection components that are extremely sensitive to contamination. Even microscopic particles can damage injectors and fuel pumps, leading to expensive repairs. The fuel filter included in this kit provides the protection these sensitive components require.

Generac 6572 Maintenance Kit Contents and Components

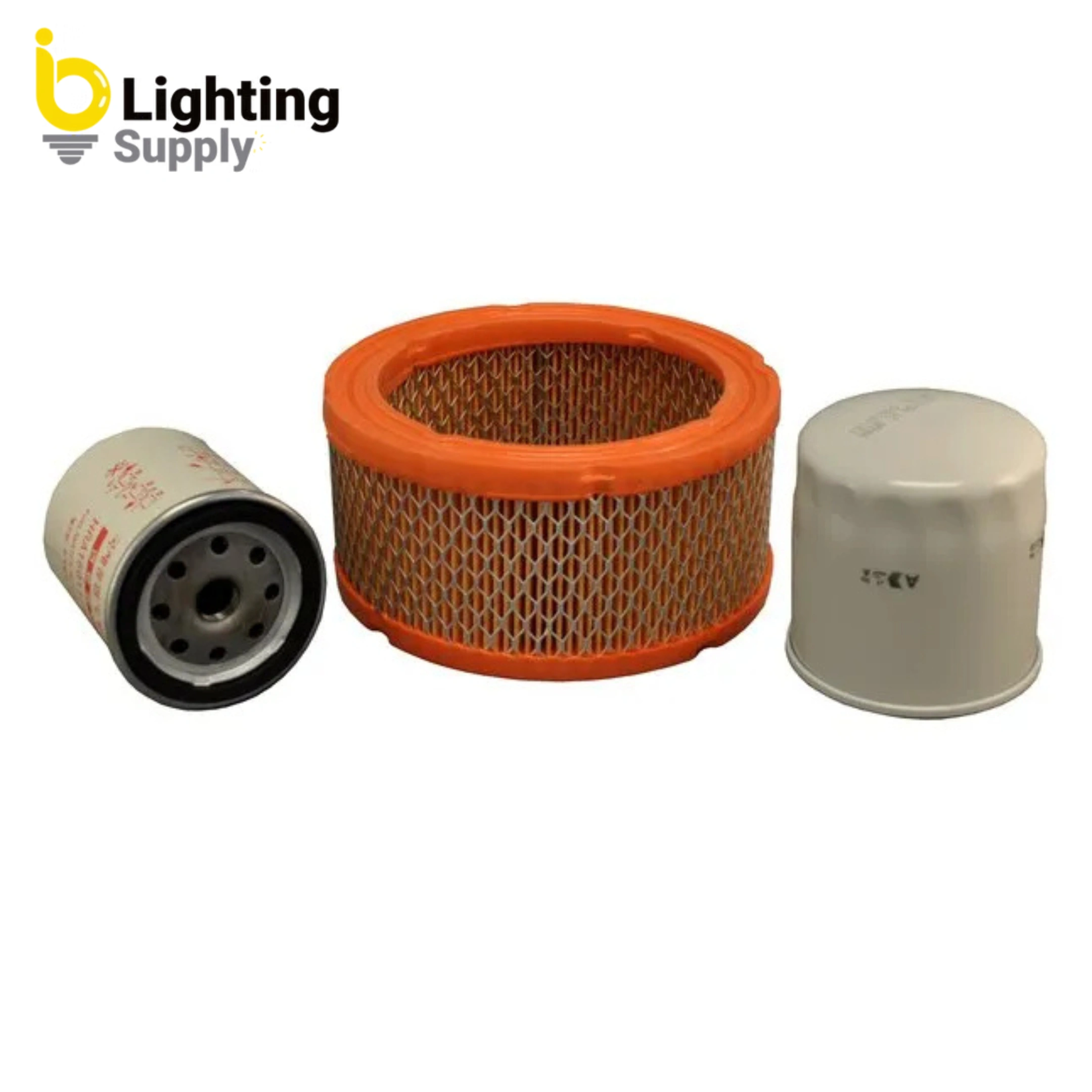

The kit includes the following genuine Generac components specifically matched to the 2.3L diesel generator platform:

One air filter provides the primary defense against airborne contaminants entering the engine’s combustion chambers. Clean intake air is essential for proper combustion, optimal power output, and protection of internal engine components from abrasive particles. Diesel engines draw significantly more air than comparable gasoline engines due to their high compression ratios and turbocharging systems.

One oil filter removes contaminants from the engine oil that accumulate during normal operation. Diesel engines produce more combustion byproducts than gasoline engines, and the oil filter must handle this increased contamination load. Metal particles from engine wear, soot from combustion, and fuel dilution all contribute to oil contamination that the filter must address.

One fuel filter protects the precision fuel injection system from particulate contamination. Diesel fuel can contain water, sediment, and microbial growth that would damage injection components without proper filtration. The fuel filter also helps remove water that accumulates in diesel fuel storage systems.

An oil funnel assists with clean oil filling during the service procedure. The included chamois provides a convenient way to handle fluid spills and keep the work area clean during maintenance.

Why the Generac 6572 Maintenance Kit Matters for Diesel Generators

Diesel standby generators present unique maintenance challenges compared to gasoline-powered units. Understanding these differences explains why proper maintenance with the correct filters is critical for diesel generator reliability and longevity.

Diesel Fuel System Protection with the 6572 Kit

Modern diesel engines use high-pressure common rail fuel injection systems with extremely tight tolerances. Injection pressures can exceed 20,000 PSI, and injector nozzle orifices are measured in microns. Contamination that would pass harmlessly through a gasoline fuel system can cause catastrophic damage to diesel injection components.

Water contamination presents particular challenges for diesel fuel systems. Diesel fuel naturally absorbs moisture from the atmosphere, and condensation accumulates in fuel storage tanks. Water in the fuel system causes corrosion, promotes microbial growth, and can damage injection components. The fuel filter in the Generac 6572 Maintenance Kit includes water separation capability to address this concern.

Diesel fuel can also harbor microbial growth, commonly called algae or diesel bug, that clogs filters and degrades fuel quality. Regular fuel filter replacement ensures these organisms do not accumulate to levels that restrict fuel flow or damage the injection system.

Engine Oil Challenges in Diesel Generators

Diesel combustion produces more soot and acidic byproducts than gasoline combustion. Engine oil in a diesel engine must neutralize these acids and suspend soot particles to prevent them from accumulating on engine surfaces. This demanding service causes diesel engine oil to degrade faster than oil in gasoline engines.

The oil filter must handle the increased contamination load typical of diesel operation. Soot particles, while individually microscopic, can accumulate to form abrasive deposits if not properly filtered. The oil filter in this kit provides the filtration capacity needed to protect the 2.3L diesel engine throughout the service interval.

Diesel engines also experience more fuel dilution of the oil than gasoline engines, particularly during frequent starting and short-duration operation typical of standby generators. This fuel dilution reduces oil viscosity and lubricating properties, making regular oil and filter changes essential.

Residential and Commercial Applications for the 6572 Kit

The 15kW and 20kW diesel generator capacity served by this maintenance kit addresses both residential needs and light commercial backup power requirements. Understanding typical applications helps appreciate why proper maintenance is critical.

Residential Diesel Generator Installations

Diesel generators in residential applications provide several advantages over gasoline or propane alternatives. Diesel fuel stores safely for extended periods without the degradation issues that affect gasoline. Diesel generators typically offer longer service life and better fuel efficiency than comparable gasoline units. These benefits make diesel attractive for properties without natural gas service where propane delivery may be problematic.

Homes with 15kW to 20kW backup power requirements typically have moderate electrical demands including HVAC systems, well pumps, refrigeration, lighting, and essential appliances. Properties in rural areas often choose diesel generators because fuel availability is more reliable than propane delivery during extended emergencies.

Residential diesel generators may sit idle for extended periods between outages, exercising only during weekly test cycles. This intermittent operation pattern creates specific maintenance challenges. Fuel can degrade during storage, and infrequent operation allows moisture to accumulate in the fuel system. Regular maintenance with the Generac 6572 Maintenance Kit addresses these concerns by ensuring fresh filters are installed before problems develop.

Commercial Backup Power Systems

Commercial facilities including retail stores, restaurants, medical offices, professional buildings, and small data rooms rely on 15kW to 20kW diesel generators for backup power. Generator failure during an outage can mean lost revenue, spoiled inventory, interrupted services, or regulatory compliance violations.

Diesel generators in commercial applications often experience more frequent operation than residential units due to power quality issues, demand response programs, or frequent utility outages. This increased runtime accelerates filter loading and makes adherence to maintenance schedules even more critical.

Healthcare facilities, including medical offices and small clinics, face regulatory requirements for emergency power reliability. Proper maintenance documentation supports compliance with NFPA 110 requirements for emergency and standby power systems, which mandate documented maintenance programs.

Agricultural and Remote Applications

Agricultural operations often prefer diesel generators because diesel fuel is readily available on farms for equipment and vehicles. The 15kW to 20kW capacity range suits smaller farming operations with ventilation, refrigeration, and lighting requirements.

Remote installations including telecommunications sites, water treatment facilities, and pipeline monitoring stations often use diesel generators because of diesel fuel’s superior storage stability and the lower fire risk compared to gasoline. These installations may be serviced infrequently, making proper maintenance kit availability essential for planned service visits.

Installation and Service Procedures Using the Generac 6572 Maintenance Kit

Generac recommends maintenance for fuel and oil filters every 250 hours of operation or every 2 years, whichever comes first. Air filter maintenance is recommended every 100 hours or 1 year. For generators operating in dusty environments, more frequent service may be required.

Pre-Maintenance Preparation for 6572 Kit Service

Before beginning maintenance, ensure the generator is in OFF mode and has been allowed to cool. Diesel generators operate at high temperatures, and hot components can cause severe burns. Allow adequate cooling time before beginning any service procedures.

Gather the additional supplies not included in the kit: appropriate diesel engine oil meeting Generac specifications (typically 15W-40 for diesel applications), and basic hand tools including wrenches, sockets, and screwdrivers appropriate for your generator model. Refer to your generator’s owner’s manual for specific oil type and capacity requirements.

Have appropriate containers ready to collect used oil and dispose of it properly. Diesel engine oil contains contaminants that require proper disposal through recycling programs available at most automotive service centers and parts stores.

Oil and Filter Change Procedure with the 6572 Kit

The 2.3L diesel engine requires oil capacity as specified in your generator’s owner’s manual. Diesel engines typically use more oil than comparable gasoline engines due to their higher compression and greater thermal loads.

Drain the old oil while the engine is warm (but not hot) to ensure contaminants suspend in the oil and drain completely. Remove and replace the oil filter included in the Generac 6572 Maintenance Kit, applying a light coating of fresh oil to the new filter gasket before installation. Refill with the specified quantity of fresh oil meeting Generac’s specifications for diesel engines.

After refilling, run the engine briefly and check for leaks around the oil filter and drain plug. Recheck the oil level after the engine has been off for several minutes to allow oil to drain back into the crankcase.

Fuel Filter Replacement

Fuel filter replacement on diesel generators requires attention to prevent air from entering the fuel system. Diesel fuel systems are self-priming through the injection pump, but air in the system can cause starting difficulties and rough running until purged.

Follow the manufacturer’s procedures for fuel filter replacement, which typically involve closing fuel supply valves if equipped, removing the old filter, installing the new filter from the Generac 6572 Maintenance Kit with proper orientation, and bleeding air from the system before starting.

Inspect the old fuel filter for signs of water contamination or excessive debris that might indicate fuel quality problems requiring attention at the fuel storage system.

Air Filter Replacement

The air filter location varies by generator model but is typically accessible without extensive disassembly. Remove the old filter element and inspect the air filter housing for debris or contamination that should be cleaned before installing the new filter.

Install the new air filter element from the Generac 6572 Maintenance Kit, ensuring proper seating and seal around all edges. Diesel engines draw large volumes of air, and any unfiltered air that enters the engine can cause accelerated wear.

Safety Considerations for Generac 6572 Maintenance Kit Service

Diesel generator maintenance involves potential hazards that require appropriate precautions to prevent injury or equipment damage.

Personal Protection During Diesel Generator Maintenance

Wear safety glasses during maintenance to protect eyes from debris, chemical splashes, and accidental contact with moving parts. Work gloves protect hands from hot surfaces, sharp edges, and chemical exposure during fluid handling.

Diesel fuel and used diesel engine oil contain compounds that can cause skin irritation with prolonged contact. Wash exposed skin thoroughly after maintenance, and change clothes that become contaminated with diesel fluids.

Ensure the generator is completely shut down and cannot start during maintenance. Disconnect the battery if necessary to prevent accidental starting while working on the engine. Diesel engines can start without warning if automatic start systems are active.

Environmental Considerations

Properly dispose of used oil, filters, and any fuel drained during maintenance according to local regulations. Most automotive service centers and parts stores accept used motor oil for recycling. Fuel filters that have been in service may contain diesel fuel residue and should be disposed of as hazardous waste.

Contain any spills during maintenance using drip pans and absorbent materials. Clean up spills immediately to prevent environmental contamination. Diesel fuel spills can contaminate soil and groundwater if not properly contained.

Common Mistakes When Using the Generac 6572 Maintenance Kit

Avoiding these frequent errors ensures your maintenance service achieves its intended purpose of protecting your diesel generator investment.

Using Incorrect Oil Type

Diesel engines require oil formulated for the unique demands of diesel combustion. Using gasoline engine oil in a diesel generator can result in inadequate protection against soot, acids, and the higher operating temperatures typical of diesel operation. Always use oil meeting the specifications listed in your generator’s owner’s manual.

Neglecting Fuel Filter Service

The fuel filter is often overlooked because it does not affect obvious operating symptoms until it becomes severely restricted. However, partially clogged fuel filters reduce fuel flow that can cause power loss under load and accelerate fuel pump wear. Replace the fuel filter at recommended intervals using the filter from the Generac 6572 Maintenance Kit.

Ignoring Water in Fuel

If the old fuel filter shows evidence of water contamination, simply installing a new filter does not address the source of the problem. Investigate the fuel storage system for water accumulation and address the source before the new filter becomes contaminated.

Skipping Air Filter Service

Air filters in diesel generators load faster than in gasoline units because diesel engines draw more air relative to their power output. A clogged air filter restricts airflow, reducing power output and increasing fuel consumption. The more frequent air filter change interval (100 hours vs 250 hours for fuel/oil filters) reflects this reality.

Using Wrong Maintenance Kit

The 6572 kit fits only 15kW and 20kW Protector diesel generators with 2.3L engines. Other engine sizes require different maintenance kits with filters matched to their specific requirements. Always verify your generator’s engine specification before ordering.

Frequently Asked Questions About the Generac 6572 Maintenance Kit

Does the Generac 6572 Maintenance Kit include engine oil?

No, engine oil must be purchased separately. The 2.3L diesel engine requires oil meeting specifications listed in your generator’s owner’s manual, typically 15W-40 diesel engine oil. Consult your owner’s manual for exact capacity and oil specifications.

What generators use the Generac 6572 Maintenance Kit?

The Generac 6572 Maintenance Kit is designed for 15kW and 20kW Generac Protector Series diesel generators equipped with 2.3L engines. Verify your generator’s engine size before ordering to ensure compatibility.

How often should I use the 6572 Maintenance Kit?

Generac recommends fuel and oil filter replacement every 250 hours of operation or every 2 years, whichever comes first. Air filter replacement is recommended every 100 hours or 1 year. Generators operating in dusty environments may require more frequent service.

Can I perform diesel generator maintenance myself?

Homeowners with mechanical aptitude and appropriate tools can perform routine maintenance using the Generac 6572 Maintenance Kit. However, diesel generators involve fuel systems that require careful attention to prevent air intrusion and ensure proper operation. Many owners prefer professional service by authorized Generac dealers who have specialized training and equipment.

Why are there different intervals for air and fuel/oil filters?

Air filters load faster than fuel and oil filters because they process large volumes of ambient air containing dust and debris. The 100-hour interval for air filters versus 250 hours for fuel and oil filters reflects the different contamination rates these filters experience.

What happens if I skip maintenance?

Neglected maintenance leads to progressive problems including reduced power output, increased fuel consumption, accelerated engine wear, and potential fuel system damage. Additionally, maintenance records may be required for warranty claims and regulatory compliance.

Does the 6572 kit include spark plugs?

No, diesel engines do not use spark plugs. Diesel combustion occurs through compression ignition rather than spark ignition. The kit includes filters appropriate for diesel engine maintenance: air filter, oil filter, and fuel filter.

How do I know if my generator has a 2.3L engine?

Check your generator’s model number and engine specification plate. The Generac 6572 Maintenance Kit is specifically for Protector Series diesel generators with 2.3L engines. Newer models may have different engine displacements requiring different maintenance kits.
