Generac error code 1100 is an overcrank alarm that appears on the Guardian Series controller after the generator has attempted to start five times without reaching normal operating RPM. The controller shuts down the start sequence to prevent starter motor overheating and engine damage from continued cranking. This article explains what error code 1100 means, how to reset it, the most common causes ranked by frequency, and the step-by-step diagnostic workflow that certified Generac technicians follow to identify and correct the underlying issue.

Across hundreds of Generac Guardian Series orders shipped from IB Lighting nationwide, our electrician-led team fields ongoing questions about error code 1100 from Generac owners troubleshooting their units. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the full Generac Guardian Series lineup and provides ongoing technical guidance. This article is the walkthrough we provide to owners troubleshooting error code 1100, using diagnostic methodology aligned with official Generac owner manual documentation and reference standards from NFPA 110 Emergency and Standby Power Systems.

The Fast Answer: What Generac Error Code 1100 Means

Generac error code 1100 is an overcrank alarm. The controller commands the starter motor to crank the engine, monitors engine RPM through the crankshaft position sensor, and expects to see the engine reach normal operating RPM within a set time window. When the engine cranks but does not start after five consecutive attempts, the controller stops the start sequence and displays error code 1100 to protect the starter motor from overheating and to prevent engine damage from prolonged unsuccessful cranking.

What the controller is actually seeing

The Generac Guardian Series controller uses a specific sequence during every start attempt: signal the starter motor to engage, monitor the crankshaft position sensor for rotation, verify the engine reaches minimum starting RPM (typically 1,000 to 1,200 RPM), and confirm normal operating RPM (approximately 3,600 RPM for 60Hz applications). When any step in this sequence fails, the controller aborts that attempt, waits briefly, and tries again. After five consecutive failed attempts, error code 1100 displays and the controller stops trying.

Why the 5-attempt limit exists

The five-attempt limit is a protection mechanism. Continued cranking without ignition overheats the starter motor, wears the starter drive gear, drains the battery, and can cause flooding in the fuel system that makes the underlying problem worse. Stopping at five attempts preserves the equipment for correct diagnosis and repair rather than allowing continued cranking to cause secondary damage.

The difference between error 1100 and other Generac codes

Error code 1100 (overcrank) is different from error code 1505 (low oil pressure), which indicates the engine started but oil pressure fell below the safety threshold. It is also different from error code 1902 (governor fault), which indicates the engine started but governor control failed. Error code 1100 specifically means the engine did not start at all despite multiple attempts. Understanding this distinction focuses the diagnostic effort on start-related issues rather than running-condition issues.

Pro tip: Note whether Generac error code 1100 occurred during the weekly self-test exercise or during an actual utility outage. Weekly exercise failures point strongly to fuel supply, ignition, or spark plug issues because the generator is starting under no electrical load. Outage-time failures can additionally involve load-related issues like undersized gas lines that supply adequate pressure at no-load but fail under load. This distinction guides the diagnostic starting point.

How to Reset Generac Error Code 1100

Resetting error code 1100 clears the alarm from the controller display but does not fix the underlying issue that caused the overcrank. Reset only after you have identified or at least investigated the probable cause because immediately re-running the start sequence without correction typically produces the same error and adds wear to the starter motor.

Reset procedure

Turn the generator control switch to the OFF position. Wait 5 minutes for the controller to fully clear the alarm state. Verify the underlying issue has been addressed (fuel supply restored, battery reconnected, spark plugs replaced, or whatever your diagnostic indicated). Turn the control switch back to AUTO for normal operation or MANUAL for a test start. Watch the controller display during the next start attempt to see if the error clears or repeats.

What happens if the reset does not hold

If error code 1100 returns immediately after reset without the generator successfully starting, the underlying issue has not been corrected. Do not repeatedly reset and re-attempt because this wears the starter motor and drains the battery. Return the control to OFF and proceed to the diagnostic workflow to identify the root cause before attempting another reset.

When resetting is not appropriate

Do not reset error code 1100 without investigation if the generator has repeatedly thrown this error recently, if there was a recent utility service visit that may have affected gas supply, if you notice fuel or oil smells around the generator, or if there is visible damage to the generator or fuel system. In these cases, the error is a symptom of a specific problem that requires diagnosis before further start attempts.

Common Causes of Generac Error Code 1100 Ranked by Frequency

Generac error code 1100 has several possible root causes. Understanding the frequency ranking helps you focus diagnostic effort on the most likely issues first rather than working through a random checklist.

Fuel supply issues (70-80 percent of cases)

Fuel supply is the single most common cause of error code 1100 across all Guardian Series generators. This category includes empty propane tanks, closed gas valves after utility service work, insufficient gas pressure at the generator inlet, undersized gas lines that cannot deliver adequate flow during starting, and gas regulator issues. Fuel-related error code 1100 cases often follow a specific trigger event such as recent gas utility work, a propane delivery that did not happen, or seasonal usage changes.

Ignition system issues (10-15 percent of cases)

Fouled or worn spark plugs are the second most common cause. Guardian Series generators use V-twin engines with two spark plugs, and even one fouled plug can cause enough combustion inconsistency to prevent starting. Ignition coil failure, though less common, also produces error code 1100. Ignition issues become more likely as scheduled maintenance intervals are missed or delayed.

Battery and starter issues (5-10 percent of cases)

Weak batteries, corroded battery terminals, and starter motor failures prevent the engine from reaching the RPM needed to start even when fuel and ignition are correct. Battery issues become more likely at the 3-5 year ownership mark when the original battery is approaching end of life. Corroded terminals can develop faster in coastal or high-humidity climates.

Engine mechanical issues (5 percent of cases)

Valve lash out of adjustment, worn valves, low compression, and other engine mechanical issues appear predominantly on higher-hour generators (past 1,000 operating hours or 10 years of ownership). These issues require professional diagnosis and repair because they involve engine internal inspection and specialized tools.

Air filter and induction restrictions (rare, less than 5 percent)

Severely restricted air filters can produce error code 1100 by preventing the engine from drawing enough air to start. This is uncommon on generators with regular scheduled maintenance but can occur when scheduled maintenance has been delayed by multiple intervals.

Fuel Supply Issues: The Most Common Cause

Because fuel supply causes the majority of error code 1100 cases, systematic investigation of fuel-related issues is the correct starting point for diagnosis.

Empty or low propane tank

Propane-fueled generators can throw error code 1100 when the tank is below 20 percent capacity because vaporization slows dramatically at low tank levels, particularly in cold weather. Check your propane tank gauge and verify at least 20 percent capacity before further diagnosis. In cold weather (below 40 degrees Fahrenheit), some tanks require 30-40 percent minimum capacity for adequate vaporization to support generator starting.

Closed gas valves after utility work

Gas utility service visits (meter replacement, gas line work, or gas service reconnection after non-payment) sometimes leave the generator-side gas valve closed. Locate the shutoff valve on your generator’s gas line supply (typically within 3 feet of the unit) and verify it is fully open. This is one of the fastest fixes for error code 1100 following any recent gas utility activity at your property.

Low gas pressure at generator inlet

Generac generators require specific inlet gas pressure to start reliably. Natural gas requires 7-14 inches water column at the generator inlet. Propane requires 11 inches water column downstream of the second-stage regulator. Pressure below these specifications causes intermittent starting failures. Measuring inlet pressure requires a manometer, which is typically only available to professional installers or technicians.

Undersized gas lines causing pressure drop under load

Gas lines sized marginally for the generator’s fuel flow requirement can deliver adequate pressure at no-load but fall below the starting pressure threshold during the initial fuel-rich start sequence. This shows up as error code 1100 that resolves temporarily after utility fuel pressure recovers but returns on subsequent starts. Review the gas line sizing against the model-specific CFH requirement and consult a licensed installer if the gas line appears undersized.

Gas regulator issues

First-stage or second-stage gas regulators can fail in modes that produce error code 1100. A regulator locked at low pressure prevents adequate flow. A regulator locked at high pressure can prevent the fuel solenoid from opening. Regulator diagnosis requires professional service and specialized measurement tools.

Ignition System Issues

When fuel supply is confirmed adequate, ignition system issues become the next most likely category to investigate.

Fouled or worn spark plugs

Spark plugs foul over time from carbon deposits, oil vapor, and normal wear. Fouled spark plugs produce weak sparks that may work at operating RPM but fail during the harder-to-ignite starting conditions. Guardian Series generators use two spark plugs on V-twin engines, and both should be inspected together. Signs of fouling include dark carbon deposits on the electrode, wet appearance from oil vapor, and physical wear that increases the gap beyond specification.

Spark plug replacement as first-line ignition fix

Because spark plugs are consumable and inexpensive, replacing both plugs is often the fastest first-line fix for ignition-related error code 1100. A Generac scheduled maintenance kit includes the correct spark plugs for your specific engine along with the other consumable maintenance parts. If your generator is due or overdue for scheduled maintenance, the maintenance kit approach handles both the immediate issue and the pending service.

Ignition coil failure

Ignition coils are less common failure points than spark plugs but can produce error code 1100 when they fail. Ignition coil diagnosis typically requires professional service because it involves specific measurement equipment and knowledge of Generac wiring diagrams. Ignition coil failures are more likely on units with higher operating hours or units subjected to sustained wet or salty coastal conditions.

Crankshaft position sensor issues

The crankshaft position sensor tells the controller when to fire the spark plugs. A failed or loose sensor prevents proper ignition timing and can produce error code 1100. Loose sensor connectors are more common than actual sensor failure. Professional service diagnosis is recommended for suspected sensor issues.

Battery and Starter Issues

Battery and starter issues become more likely on generators in the 3-5 year ownership range when original batteries approach end of life.

Weak battery symptoms

A weak battery may produce error code 1100 that appears as slow cranking followed by failure to start. Listen during the start attempts: healthy cranking sounds strong and consistent, while a weak battery produces slower or intermittent cranking. Battery voltage should measure at least 12.6 volts at rest and should not drop below 10 volts during cranking under load.

Corroded battery terminals

White or green corrosion on battery terminals reduces the current that reaches the starter motor. Clean corrosion with a battery terminal cleaner or a solution of baking soda and water, then apply battery terminal protectant to prevent recurrence. Corrosion is more common in coastal climates and in generators installed in areas with poor drainage that allow moisture to accumulate around the battery.

Battery age and replacement timing

Guardian Series batteries typically last 3-5 years depending on climate and use pattern. If your generator is 4 years old or older and throws error code 1100 for the first time, battery replacement is a reasonable first step even before deeper diagnosis. Battery replacement is not included in standard scheduled maintenance kits and must be ordered separately.

Starter motor failure

Starter motor failure is less common than battery issues but produces similar symptoms. Signs of starter failure include grinding sounds during cranking, no response when the controller signals a start, or intermittent response. Starter motor replacement requires professional service.

Engine Mechanical Issues at Higher Hours

Engine mechanical issues appear predominantly on generators past 1,000 operating hours or 10 years of ownership. These issues almost always require professional service because they involve engine internals and specialized tools.

Valve lash adjustment

Valve lash (the clearance between the valve and the rocker arm) drifts over time as valves wear. When valve lash exceeds specification, valves may not close fully or may not open sufficiently for good combustion. Loose valve lash can cause hard starting and error code 1100. Valve adjustment is included in the 1,000-hour service that Generac recommends and is one of the primary reasons that service is important even for low-hour generators approaching 10 years of age.

Compression testing

Loss of compression from worn piston rings, damaged valves, or head gasket issues can cause error code 1100 by preventing the engine from generating enough compression to ignite the fuel-air mixture. Compression testing requires specialized tools and is typically performed by a professional technician as part of extended diagnostics when simpler causes have been ruled out.

Fuel mixer issues

The fuel mixer (the venturi-based component that combines fuel and air) can develop issues from long-term exposure to fuel deposits. Mixer issues can cause too-rich or too-lean mixtures that prevent starting. Mixer inspection and cleaning is part of extended professional service.

Air Filter and Induction Restrictions

Air filter issues are rare causes of error code 1100 but should be checked because verification is quick and remedies are inexpensive.

Signs of restricted air filter

A severely restricted air filter shows visible discoloration across the entire pleated surface, dense accumulation of debris in the pleats, or physical damage to the filter media. Air filters that have exceeded the 2-year scheduled maintenance interval by more than a year are candidates for immediate replacement even if visual inspection appears acceptable because the media becomes less effective with time regardless of visible dirt accumulation.

Foam pre-cleaner condition

The foam pre-cleaner that wraps the paper air filter element captures larger particles before they reach the paper element. A saturated or torn foam pre-cleaner reduces overall filtration effectiveness and can accelerate paper element restriction. The foam pre-cleaner and paper element should always be replaced together as a set.

Air intake obstructions

Occasionally, external air intake vents can become blocked by leaves, snow accumulation, insect nests, or other debris. Verify the exterior air intake grille on your Guardian Series unit is clear before proceeding to deeper diagnostics.

Step-by-Step Diagnostic Workflow for Error Code 1100

The step-by-step diagnostic workflow proceeds from the most common causes to the least common, from the quickest checks to the most involved.

Step 1: Verify fuel supply

Check propane tank level (must be above 20 percent, or 30-40 percent in cold weather). Verify all gas valves between the fuel source and generator are fully open including the meter valve, any inline shutoffs, and the generator-side valve. Check for any recent gas utility work that could have affected pressure. If natural gas, contact your utility if you suspect pressure issues. This step alone resolves 60-70 percent of error code 1100 cases.

Step 2: Check battery voltage

Measure battery voltage at rest with a voltmeter (should be 12.6V minimum). If below 12.6V, charge the battery or replace if the battery is 3+ years old. Clean any corrosion from battery terminals with a battery terminal cleaner or baking soda solution. Verify terminal connections are tight. This step resolves an additional 10-15 percent of cases.

Step 3: Inspect and replace spark plugs

Remove both spark plugs and inspect for fouling, wear, or damage. Replace both plugs with the correct part number for your engine (available in a Generac scheduled maintenance kit). Verify spark plug gap before installation (typically 0.030 inch). This step resolves an additional 10-15 percent of cases and is a natural opportunity to complete pending scheduled maintenance.

Step 4: Check air filter and foam pre-cleaner

Open the air filter housing and inspect the paper element and foam pre-cleaner. Replace both together if either shows restriction or if scheduled maintenance is due. Verify the exterior air intake grille is clear of debris. This step resolves a small percentage of cases and completes the standard consumable maintenance items.

Step 5: Test reset with underlying issue corrected

After addressing the issue identified in steps 1-4, reset the controller (OFF for 5 minutes, then AUTO or MANUAL). Watch the next start attempt to see if the error clears or repeats. If the error clears and the generator runs normally, monitor the weekly self-test for one or two cycles to confirm the fix is permanent. If the error repeats, proceed to professional service.

Step 6: Call professional service if unresolved

When steps 1-5 do not resolve the error, professional service diagnosis is the correct next step. Continued cranking attempts without resolution can cause secondary damage to the starter motor, drain the battery, or worsen fuel system issues. Contact a certified Generac technician for extended diagnosis including valve adjustment, compression testing, and control system inspection.

When to Stop DIY and Call a Generac Professional

Recognizing when DIY troubleshooting has reached its useful limit prevents secondary damage and expensive corrective work.

Clear signals to call a professional

Call a certified Generac professional when: your generator is past 1,000 hours and standard DIY checks have not resolved the error, you have completed steps 1-5 without resolution, you notice fuel smell or fuel leaks around the generator, you notice oil leaks or unusual sounds during the failed start attempts, the generator is still under warranty and you want to preserve warranty coverage, or you are simply not comfortable proceeding with the deeper diagnostic steps.

What professional service will do

Professional service includes measurement of gas pressure with a manometer at the generator inlet, compression testing on both cylinders, valve lash inspection and adjustment, control system diagnostic scan for stored error history, and detailed inspection of ignition components including coils and sensors. Total professional service cost for extended error code 1100 diagnosis typically ranges $250 to $600 depending on region and whether repairs are needed beyond the diagnostic visit.

Preserving warranty coverage

If your generator is still under manufacturer warranty (typically 5 years from installation date for Guardian Series), preserving warranty coverage requires using a certified Generac dealer or technician for any repair work beyond consumable replacement. Consumable maintenance (spark plugs, air filter, oil filter, oil) can be performed by the homeowner using a Generac scheduled maintenance kit without affecting warranty. Deeper repairs by an unauthorized technician can void warranty coverage.

Preventing Future Error Code 1100 Occurrences

Most cases of error code 1100 are preventable through consistent scheduled maintenance and periodic operational verification.

Follow the 2-year scheduled maintenance interval

The single most effective prevention strategy is following the 2-year or 200-hour scheduled maintenance interval consistently. This includes fresh spark plugs, new air filter and foam pre-cleaner, fresh engine oil and filter, and updated service documentation. A Generac scheduled maintenance kit matched to your specific model provides all consumable parts in one package.

Monitor weekly exercise reports

The Generac Guardian Series controller runs a weekly self-test that reports success or failure. Enable Mobile Link cellular monitoring if not already active so you receive alerts when the weekly exercise fails. Catching a failed weekly exercise the same week it happens gives you time to diagnose and correct issues before they become urgent outage-time problems.

Verify fuel supply periodically

Check your propane tank level monthly (or during any planned gas utility work) to prevent low-fuel-related starting failures. Verify all gas valves remain fully open by visual inspection during monthly walkarounds. Consider installing a remote propane tank monitor if you cannot easily see the tank gauge.

Battery inspection at scheduled service

Include battery voltage measurement and terminal inspection as part of every scheduled maintenance service. Batteries at 3 years or older should be tested under load. Plan for battery replacement at approximately 5 years of ownership as a preventive measure rather than waiting for battery-related starting failures.

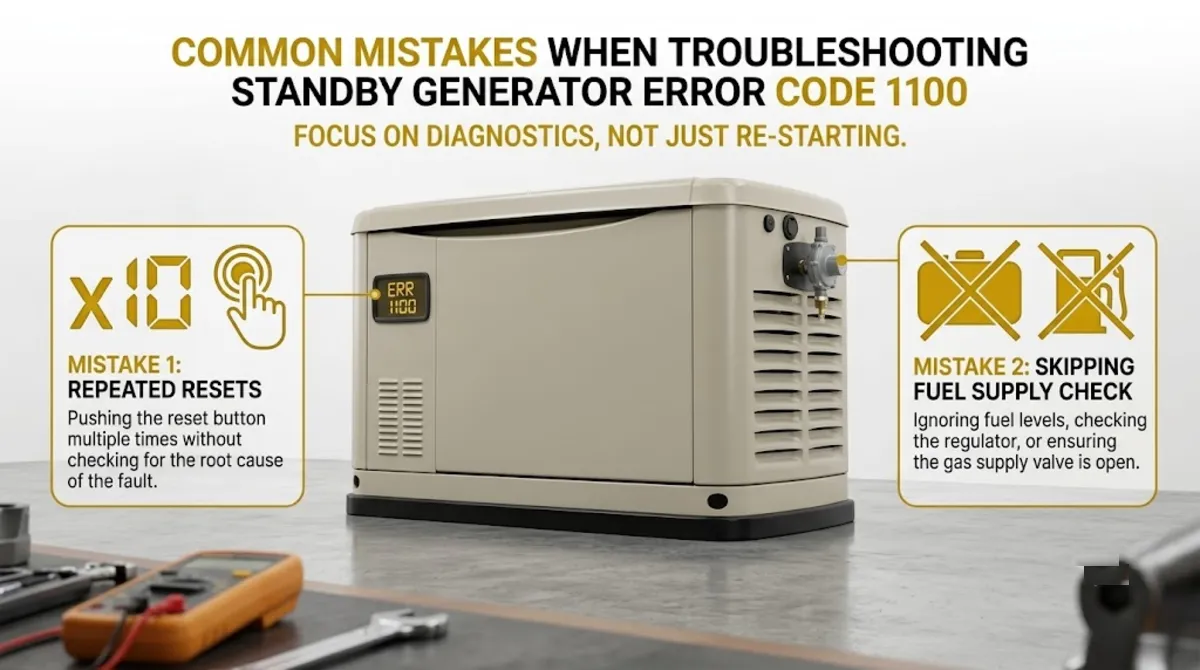

5 Mistakes That Make Error Code 1100 Worse

The mistakes below reliably worsen error code 1100 situations or make root cause diagnosis more difficult. Each one is preventable with careful troubleshooting practice.

Mistake 1: Repeatedly resetting the error without diagnosis

Resetting error code 1100 and immediately re-attempting the start sequence without identifying the underlying cause typically produces the same error while adding wear to the starter motor and draining the battery. Each failed start attempt cycle is five actual cranking attempts. Repeatedly resetting can cause secondary damage to the starter motor that requires expensive replacement.

Mistake 2: Skipping the fuel supply check

Because fuel supply issues cause 70-80 percent of error code 1100 cases, skipping the fuel supply check and jumping directly to spark plugs or battery diagnostics wastes time on less-likely causes while the actual issue remains unresolved. Always start diagnostics with the fuel supply check even when other causes seem more interesting or convenient to investigate.

Mistake 3: Ignoring the timing context of the error

Error code 1100 that appears during the weekly exercise has different likely causes than error code 1100 that appears during an actual outage. Error code 1100 that appears immediately after gas utility work has different likely causes than error code 1100 that appears randomly. Ignoring the timing context makes diagnostic paths less efficient.

Mistake 4: Attempting deep diagnostics without proper tools

Gas pressure measurement requires a manometer. Compression testing requires a compression tester. Valve lash measurement requires a feeler gauge and specific technique. Attempting these diagnostics without proper tools produces unreliable results at best and can cause damage at worst. When diagnostics require professional-level tools, use professional service.

Mistake 5: Continuing DIY past the professional-service threshold

Some Generac owners are reluctant to call a professional and continue DIY troubleshooting past the point where their diagnostic tools and expertise are exhausted. This wastes time, can worsen the underlying issue, and often costs more in the end than calling for professional service earlier in the process. Recognize when to stop and call for help.

Conclusion

Generac error code 1100 is an overcrank alarm meaning your generator attempted to start five times and failed to reach normal operating RPM. Fuel supply issues cause 70-80 percent of cases, followed by ignition, battery, and engine mechanical issues in decreasing frequency. Start diagnosis with the fuel supply check because it resolves the majority of cases quickly. Follow the systematic diagnostic workflow through spark plugs, battery, air filter, and reset testing. Call a certified Generac professional when DIY steps do not resolve the error. Prevent future occurrences through consistent 2-year scheduled maintenance using a Generac scheduled maintenance kit matched to your specific model.
