Generac error code 1505 is an RPM Sense Loss alarm displayed on Guardian Series controllers when the controller cannot detect engine rotation during the cranking cycle. Unlike some warning codes that clear automatically, error code 1505 requires manual reset after the underlying cause is corrected. This article explains what error code 1505 means, how it differs from error code 1100, the most common causes ranked by frequency, and the step-by-step diagnostic workflow that certified Generac technicians follow. Battery-related issues cause the majority of cases and often resolve with a simple terminal cleaning procedure that any Generac owner can perform.

Across hundreds of Generac Guardian Series orders shipped from IB Lighting nationwide, our electrician-led team fields ongoing questions about error code 1505 from Generac owners. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the full Generac Guardian Series lineup and provides ongoing technical guidance to owners. This article is the walkthrough we provide to owners troubleshooting error code 1505, using diagnostic methodology aligned with official Generac owner manual documentation and reference standards from NFPA 110 Emergency and Standby Power Systems.

The Fast Answer: What Generac Error Code 1505 Means

Generac error code 1505 is an RPM Sense Loss alarm. During every start attempt, the Guardian Series controller signals the starter motor to engage and expects to detect engine rotation through the Hall Effect crankshaft position sensor. When the controller cannot detect rotation (either because rotation is not occurring or because the sensor signal is not reaching the controller), the controller registers RPM sense loss and displays error code 1505. The controller shuts down the start sequence to prevent damage.

Why 1505 is called a “cranking alarm”

Error code 1505 is classified as a cranking alarm because it occurs during the crank cycle rather than during running operation. This distinction matters for diagnosis because it focuses investigation on the start-related components (battery, starter, sensor) rather than running-condition components (fuel supply under load, cooling system, governor). A generator that has completed cranking and is running normally cannot throw error code 1505 because the RPM sensing is functional.

Why the code will not self-clear

Error code 1505 is designed to not self-clear because RPM sense loss indicates a persistent problem that requires correction before the generator can operate safely. Auto-clearing would allow the controller to keep attempting starts under conditions that could damage the starter motor, drain the battery, or mask a serious sensor or wiring issue. The manual reset requirement ensures owner or technician awareness that a diagnostic step is needed.

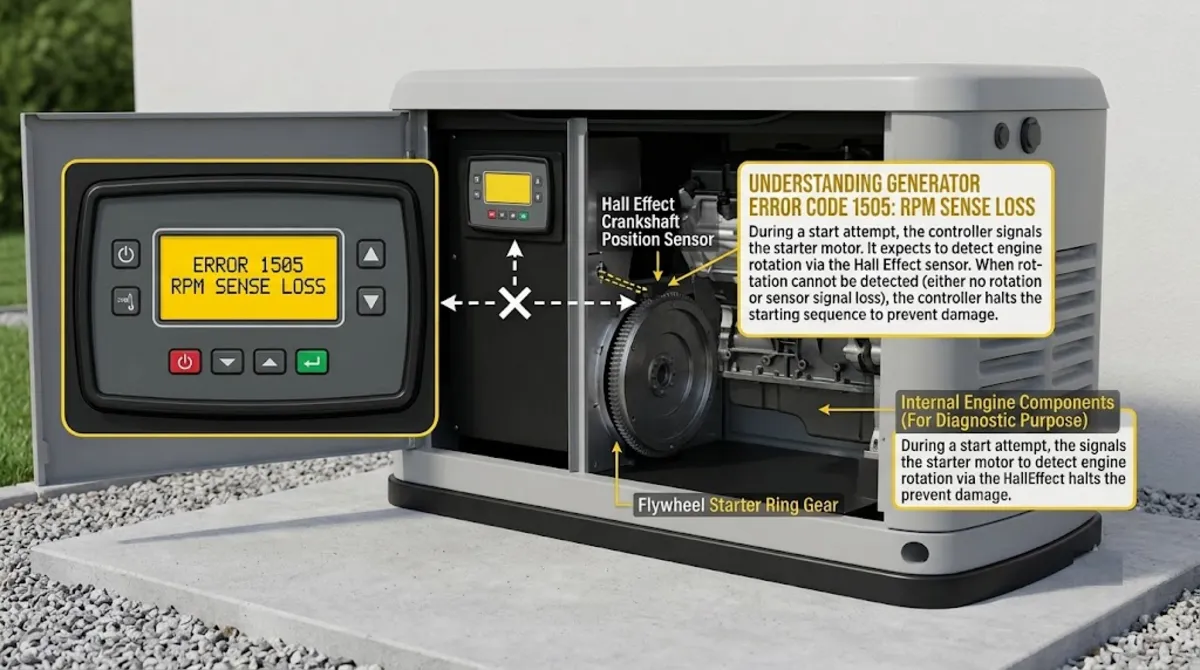

What the controller is actually monitoring

The Guardian Series controller monitors engine rotation through a Hall Effect crankshaft position sensor. This sensor generates a pulse for each rotation of a magnetic feature on the flywheel or crankshaft. The controller counts pulses per second to calculate RPM. When the pulse signal is absent or too weak for the controller to interpret, RPM cannot be determined and error code 1505 displays. The absence of the pulse signal can happen because the engine is not actually rotating, or because the sensor cannot detect rotation that is occurring.

Pro tip: Before purchasing replacement parts or scheduling professional service for Generac error code 1505, try the battery terminal cleaning fix. Remove both battery cable connectors and clean the inside surfaces of the connectors (where they contact the battery post) with a small wire brush or terminal cleaner. Also clean the battery posts themselves. This simple 15-minute procedure resolves a significant percentage of error code 1505 cases without any parts replacement because corroded or oxidized connections are the single most common root cause.

How Generac Error Code 1505 Differs From Error Code 1100

Owners frequently confuse error code 1505 with error code 1100 because both codes appear during start attempts and both indicate a failure to start. Understanding the meaningful difference between them focuses diagnostic effort correctly.

Error code 1100 = Overcrank (engine cranked but did not start)

Generac error code 1100 is an overcrank alarm indicating that the engine successfully cranked (rotated during starter engagement) but failed to reach normal operating RPM after five consecutive attempts. The starter motor worked, the engine turned over, but combustion did not sustain. Error 1100 diagnosis focuses on fuel supply, ignition, and starting fuel-air mixture issues.

Error code 1505 = RPM Sense Loss (controller could not detect rotation)

Error code 1505 is fundamentally different because it indicates the controller could not detect engine rotation at all. Either the engine did not physically rotate (starter did not engage or turn the engine), or the sensor system could not report rotation that was occurring. Error 1505 diagnosis focuses on battery, starter, sensor, and wiring issues rather than fuel or ignition.

Diagnostic implications of the difference

The diagnostic starting points are opposite. For error code 1100, checking fuel supply first is correct because fuel issues cause 70-80 percent of cases. For error code 1505, checking battery and battery connections first is correct because battery-related issues cause the majority of cases. Applying the error code 1100 diagnostic workflow to an error code 1505 case wastes time on fuel supply checks when the actual issue is battery or starter related.

When both codes appear together

Occasionally Generac owners see both error code 1505 and error code 1100 in the controller history. This typically indicates the initial problem was battery or starter related (causing 1505), but the situation progressed to include fuel supply issues from prolonged failed starting attempts (causing 1100). In these cases, address the 1505 root cause first because that is the primary problem, then verify that the 1100 conditions have not caused secondary damage.

How to Reset Generac Error Code 1505

Resetting error code 1505 clears the alarm from the controller display but does not fix the underlying issue. Reset only after you have identified or investigated the probable cause because immediately re-attempting a start without correction produces the same error.

Reset procedure

Turn the generator control switch to the OFF position. Wait 5 minutes for the controller to fully clear the alarm state. Verify the underlying issue has been addressed (battery voltage restored, terminals cleaned, starter contactor tested, or whatever your diagnostic indicated). Turn the switch back to AUTO for normal operation or MANUAL for a test start. Watch the controller display during the next start attempt to see if the error clears or repeats.

What happens if the reset does not hold

If error code 1505 returns immediately after reset without the generator successfully starting, the underlying issue has not been corrected. Do not repeatedly reset and re-attempt. Each cycle wears the starter contactor and battery. Return the control to OFF and proceed to the diagnostic workflow to identify the actual root cause.

When resetting is inappropriate

Do not reset error code 1505 without investigation if the code has recurred multiple times in recent weeks, if you notice burning smells or visible arcing at the battery or starter contactor, if there is visible damage to the wiring harness, or if the generator has failed to start during a recent utility outage. In these cases, professional service diagnosis is the correct next step because these symptoms suggest either progressive component failure or a more serious electrical fault.

Common Causes of Generac Error Code 1505 Ranked by Frequency

Understanding the frequency ranking of error code 1505 causes helps you focus diagnostic effort on the most likely issues first.

Battery and terminal issues (60-70 percent of cases)

Battery-related issues cause the majority of error code 1505 cases. This category includes weak or dead batteries, corroded battery terminals, dirty or oxidized cable connector surfaces, loose battery cable connections, and batteries approaching end of life. Battery issues become more likely as generators age past 3 years when the original battery is approaching typical service life.

Starter contactor issues (10-15 percent of cases)

The starter contactor is a small black relay with four wires located near the controller. It converts the controller’s low-current start signal into the higher current needed to activate the starter solenoid. Failed or intermittent contactors prevent starter engagement even when the battery and controller are working correctly. Contactor issues become more likely on generators with 500+ starting cycles including weekly self-tests.

Starter motor failure (5-10 percent of cases)

Starter motor failures include worn brushes, damaged commutator, seized bearings, and drive gear damage. Symptoms often include grinding sounds during attempted starting, or complete silence when the controller signals a start. Starter motor failures typically require professional replacement.

Hall Effect sensor issues (5-10 percent of cases)

The Hall Effect crankshaft position sensor generates the RPM signal that the controller monitors. Sensor failures include broken internal circuits, damaged wiring pigtails, and loose electrical connectors. Sensor problems are more likely on generators exposed to sustained moisture, mechanical vibration, or physical damage from landscaping or lawn equipment near the unit.

Wiring and connector issues (5 percent of cases)

Wiring problems between the sensor and controller include corroded connector pins, broken wires within the harness, and worn insulation causing intermittent shorts. Wiring issues are more common on generators exposed to sustained moisture or physical damage. Diagnosis typically requires professional service and continuity testing tools.

Battery Issues: The Most Common Cause of Error 1505

Because battery-related issues cause the majority of error code 1505 cases, systematic investigation of battery-related problems is the correct starting point for diagnosis.

Battery voltage measurement

Test battery voltage at rest using a digital multimeter set to DC volts. A healthy Guardian Series battery reads at least 12.6 volts at rest. Readings from 12.0 to 12.5 volts indicate a partially discharged battery that needs charging. Readings below 12.0 volts indicate a significantly discharged or failing battery. Batteries that read below 10 volts under cranking load (measured while attempting a start) indicate high internal resistance and likely require replacement.

Voltage drop during cranking

Voltage drop during cranking is often more diagnostic than voltage at rest. A healthy battery in good condition should not drop below 10.5 volts during cranking. Drops to 8 volts or lower during cranking indicate high internal resistance in either the battery itself or the cable connections. This is a common cause of error code 1505 because the controller loses its 12V supply reference during the RPM detection window.

Battery age considerations

Guardian Series batteries typically last 3-5 years depending on climate and use pattern. Original batteries approaching 5 years of age are candidates for replacement even when voltage tests appear acceptable because internal resistance increases invisibly with age. If your generator throws error code 1505 for the first time and the battery is 4+ years old, battery replacement is a reasonable first step even before deeper diagnosis.

Climate impact on battery life

Hot climates accelerate battery degradation through elevated internal chemical reaction rates. Cold climates strain batteries during winter starts and can reveal marginal batteries that seem adequate in warmer months. Coastal climates accelerate terminal corrosion. Homes in Florida, Arizona, or Texas often see battery replacement needs at the 3-year mark rather than the 5-year default. Homes in northern climates should verify battery condition heading into winter each year.

The Battery Terminal Cleaning Fix

Battery terminal cleaning resolves a significant percentage of Generac error code 1505 cases without any parts replacement. This procedure is the single highest-value DIY fix and should be attempted before purchasing replacement parts or scheduling professional service.

Why the inside surface of cable connectors matters

Battery cable connectors have an inside surface that contacts the battery post. Over time, this inside surface accumulates oxidation, corrosion, and grime that reduces electrical contact quality. External inspection of the terminals often looks fine while internal contact is severely compromised. Cleaning the outside of the connector without cleaning the inside contact surface leaves the actual electrical connection unimproved.

Terminal cleaning procedure

Turn the generator control switch to OFF and disconnect the battery. Remove both cable connectors from the battery posts. Use a small wire brush (a terminal cleaner tool with an internal brush is ideal) to scrub the inside surface of each cable connector. Also clean the battery posts themselves with the wire brush. Wipe both connectors and posts clean of debris. Reinstall the connectors ensuring firm contact and tighten securely. Reconnect the battery. Reset the controller and test start.

Preventive terminal protection

After cleaning, apply a thin coat of battery terminal protectant (dielectric grease or a specific battery terminal protectant compound) to prevent recurrence. Some technicians also install felt terminal protector pads between the connector and battery post. These preventive measures extend the time until the next terminal cleaning is needed and reduce the likelihood of future error code 1505 recurrence.

When terminal cleaning does not resolve the issue

If error code 1505 persists after thorough terminal cleaning, the root cause is elsewhere in the system. Common next steps include measuring battery voltage under cranking load, testing the starter contactor, and inspecting the wiring harness between the battery and starter. If DIY diagnostic capabilities are exhausted, professional service is the correct next step.

Starter Contactor Issues

The starter contactor is a small relay that plays a critical role in the start sequence. Contactor issues cause a meaningful percentage of error code 1505 cases and are typically diagnosed by professional service.

How the starter contactor works

The Guardian Series controller sends a low-current signal to the starter contactor when a start is commanded. The contactor engages an internal switch that connects the battery directly to the starter solenoid, providing the high current needed to engage the starter motor. Without a functioning contactor, the controller’s start signal cannot reach the starter, and the engine does not rotate.

Common contactor failure modes

Contactors can fail in several ways: pitted or burned internal contacts from long-term arcing, coil failure preventing internal switch engagement, corroded external terminals reducing signal quality, and physical damage from mounting screws working loose. Contactor failures often produce intermittent symptoms initially before progressing to complete failure.

Contactor diagnostic testing

Diagnostic testing of the starter contactor typically requires a multimeter and knowledge of the Generac wiring diagram. Voltage should be measured on both sides of the contactor during a commanded start to verify signal input and output. Contactor testing is typically within the scope of professional service rather than routine DIY diagnostics.

Contactor replacement

Contactor replacement is a moderate professional service task. The part itself is relatively inexpensive but access requires opening the controller compartment and working with wiring that may not have color-coded documentation. Warranty implications should be considered before attempting DIY contactor replacement on generators still under manufacturer warranty.

Starter Motor Failure

Starter motor failures are less common than battery or contactor issues but occur predominantly on higher-hour generators.

Starter motor failure symptoms

Failed starter motors produce distinctive symptoms including grinding sounds during attempted starting (from damaged drive gear engaging the flywheel), no sound at all when the controller signals a start (from broken internal circuits or seized bearings), and slow or weak cranking that does not achieve typical starting RPM (from worn brushes or commutator issues). These symptoms differ from battery-related symptoms which typically involve clicking sounds without engagement.

Starter motor life expectancy

Guardian Series starter motors typically last many thousands of start cycles, meaning failure is more common on high-hour commercial applications or aged residential units with 500+ weekly self-tests plus outage runtime. For typical residential generators under 10 years of ownership, starter motor failure is a low-probability cause of error code 1505.

Starter motor replacement

Starter motor replacement is a moderate professional service task involving mechanical removal of the old starter from the engine block, verification of drive gear condition on the flywheel, and installation of the replacement. Total professional cost typically runs $200 to $500 including parts and labor. Verify warranty status before authorizing repair.

Hall Effect Sensor and RPM Detection Issues

Hall Effect crankshaft position sensor issues cause a smaller percentage of error code 1505 cases but require specific attention because the symptoms can mimic other causes.

How the Hall Effect sensor works

The Hall Effect crankshaft position sensor is a small electronic device mounted near the flywheel or crankshaft. It contains a semiconductor that generates a voltage pulse whenever a magnetic feature on the rotating component passes near the sensor. The controller reads these pulses to calculate engine RPM. A functioning sensor produces consistent clean pulses. A failing sensor produces weak, intermittent, or missing pulses.

Symptoms suggesting sensor involvement

Hall Effect sensor issues are more likely when the engine appears to physically rotate normally during cranking but the controller still throws error code 1505. If you can hear the starter motor engaging and turning the engine normally but the alarm still displays, the physical rotation is happening but the controller cannot detect it through the sensor signal. This pattern strongly suggests sensor or wiring involvement.

Sensor diagnosis and replacement

Sensor diagnosis typically requires professional service because it involves measuring signal output during cranking with an oscilloscope or specialized diagnostic tool. Sensor replacement is a moderate service task with parts cost approximately $50-$150 plus labor. The sensor itself is not difficult to access on Guardian Series units but proper alignment and gap adjustment matters for reliable pulse generation.

Wiring pigtail inspection

Sometimes the Hall Effect sensor itself is functional but the pigtail wiring between the sensor and the main harness has broken or shorted. Visual inspection of the pigtail can identify obvious damage, though intermittent wiring issues often require continuity testing with a multimeter. This diagnostic step typically falls within professional service scope.

Step-by-Step Diagnostic Workflow for Error Code 1505

The step-by-step diagnostic workflow proceeds from the most common causes to the least common, from the quickest checks to the most involved.

Step 1: Perform thorough battery terminal cleaning

Because terminal corrosion causes a significant percentage of error code 1505 cases and cleaning is quick and free, start here. Disconnect the battery, remove both cable connectors, use a small wire brush to scrub the inside surface of each connector and both battery posts, reinstall and tighten firmly, and reset the controller. This step alone resolves 40-50 percent of error code 1505 cases.

Step 2: Measure battery voltage at rest and under load

Test battery voltage with a multimeter. Rest voltage should be at least 12.6V. During cranking under starter load, voltage should not drop below 10.5V. If either measurement is low, the battery needs charging or replacement. Battery load testers provide more accurate diagnosis than voltage alone but voltage measurement identifies the vast majority of battery-related cases.

Step 3: Replace the battery if age and voltage suggest it

Batteries at 4+ years old that show marginal voltage or voltage drop under load should be replaced regardless of other diagnostic findings. Guardian Series replacement batteries are available separately from scheduled maintenance kits and are one of the highest-value preventive replacements owners can make.

Step 4: Inspect wiring and connections

Visual inspection of the battery cables and starter wiring can identify obvious damage, chafing, corroded connectors, or loose terminals. Any visible issues should be corrected before proceeding to more complex diagnosis. Wiring damage from rodent activity or landscape equipment is more common than owners typically expect.

Step 5: Test reset and observe next start attempt

After addressing findings from steps 1-4, reset the controller (OFF for 5 minutes, then AUTO or MANUAL). Watch the next start attempt carefully. Note whether the engine cranks normally, cranks weakly, clicks without cranking, or produces no response. If the error persists, note the specific symptom for professional service reference.

Step 6: Call professional service for deeper diagnostics

When steps 1-5 do not resolve the error, professional service is the correct next step. Contactor testing, starter motor diagnosis, and Hall Effect sensor troubleshooting require specialized tools and knowledge of Generac wiring diagrams. Professional service diagnosis for error code 1505 typically costs $150 to $400 depending on region and complexity.

When to Stop DIY and Call a Generac Professional

Recognizing when DIY troubleshooting has reached its useful limit prevents secondary damage and expensive corrective work.

Clear signals to call a professional

Call a certified Generac professional when: you observe grinding or mechanical damage sounds during start attempts, terminal cleaning and battery replacement have not resolved the error, you see visible arcing or burning at the battery or starter contactor, wiring damage is present but continuity testing is beyond your capability, your generator is still under manufacturer warranty and you want to preserve coverage, or you are not comfortable proceeding with more complex diagnostic steps.

What professional service will do

Professional service for error code 1505 includes battery load testing with proper equipment, starter contactor voltage and continuity testing, starter motor removal for bench testing when indicated, Hall Effect sensor signal verification with an oscilloscope, and complete wiring harness inspection with continuity testing. Total professional service typically completes in 1-2 hours with clear diagnosis and repair options provided.

Preserving warranty coverage

If your generator is still under manufacturer warranty (typically 5 years from installation date for Guardian Series), preserving warranty coverage requires using a certified Generac dealer or technician for any repair work beyond consumable replacement. Battery cleaning and replacement can be performed by the homeowner without affecting warranty. Contactor, starter, and sensor repairs by unauthorized technicians can void warranty coverage.

Preventing Future Error Code 1505 Occurrences

Most cases of error code 1505 are preventable through consistent scheduled maintenance and battery care.

Annual battery inspection

Include battery voltage measurement and terminal inspection as part of every scheduled maintenance service. Test battery under load once per year. Clean terminals annually as preventive maintenance. This annual routine catches most developing battery issues before they cause error code 1505.

Plan for battery replacement at 4-5 years

Plan for battery replacement at approximately 4-5 years of ownership as a preventive measure rather than waiting for battery-related starting failures. Batteries in hot climates or coastal environments should be planned for replacement at 3-4 years. Preventive replacement costs the same as reactive replacement but avoids the risk of failed starts during actual utility outages.

Follow scheduled maintenance intervals

Consistent 2-year scheduled maintenance intervals using a Generac scheduled maintenance kit keeps all consumable components in good condition. While the kit itself does not directly address battery or starter issues, the annual service visit is a natural opportunity to inspect these components.

Monitor weekly exercise reports

Enable Mobile Link cellular monitoring if not already active. Weekly self-test failures caught early through mobile alerts give time to diagnose and correct issues before they become urgent outage-time problems. Owners without Mobile Link should visually check the generator’s status indicator light weekly to catch alarm conditions.

5 Mistakes That Make Error Code 1505 Worse

The mistakes below reliably worsen error code 1505 situations or make root cause diagnosis more difficult.

Mistake 1: Skipping the battery terminal cleaning step

Because terminal cleaning is the highest-value fix and takes only 15 minutes, skipping this step and going directly to more complex diagnostics wastes time. Even owners who have “cleaned the terminals” often did not clean the inside surface of the cable connectors, which is the actual contact surface. Always perform thorough terminal cleaning as the first diagnostic step.

Mistake 2: Repeatedly resetting without diagnosis

Resetting error code 1505 and immediately re-attempting a start without identifying and correcting the underlying cause produces the same error while adding wear to the starter contactor and draining the battery. Each cycle worsens the underlying condition. Reset only after addressing the probable cause.

Mistake 3: Replacing parts without diagnosis

Some owners replace the battery, starter, or sensor speculatively hoping to resolve error code 1505. This approach can be expensive and unnecessary. Systematic diagnosis identifies the actual root cause and allows targeted replacement of only the parts that need it. Random parts replacement often does not resolve the error while adding cost.

Mistake 4: Confusing error 1505 with error 1100

Applying the error code 1100 diagnostic workflow (starting with fuel supply) to an error code 1505 case wastes time on fuel supply checks when the actual issue is battery or starter related. Confirm which error code your generator is displaying and use the appropriate diagnostic workflow.

Mistake 5: Continuing DIY past the professional-service threshold

When DIY diagnostics have exhausted (typically after terminal cleaning and battery testing without resolution), professional service is the correct next step. Continuing DIY diagnostics without proper tools produces unreliable results and can cause secondary damage. Call for help when your diagnostic capabilities are exhausted.

Conclusion

Generac error code 1505 is an RPM Sense Loss alarm indicating the controller could not detect engine rotation during the cranking cycle. Battery-related issues cause the majority of cases, and thorough battery terminal cleaning resolves a significant percentage of error 1505 cases without parts replacement. The systematic diagnostic workflow proceeds through terminal cleaning, battery testing, wiring inspection, and then to professional service for contactor or sensor diagnosis. Prevent future occurrences through annual battery inspection, terminal cleaning, and planned battery replacement at 4-5 years. Understand that error code 1505 differs meaningfully from error code 1100 and requires a different diagnostic approach.
