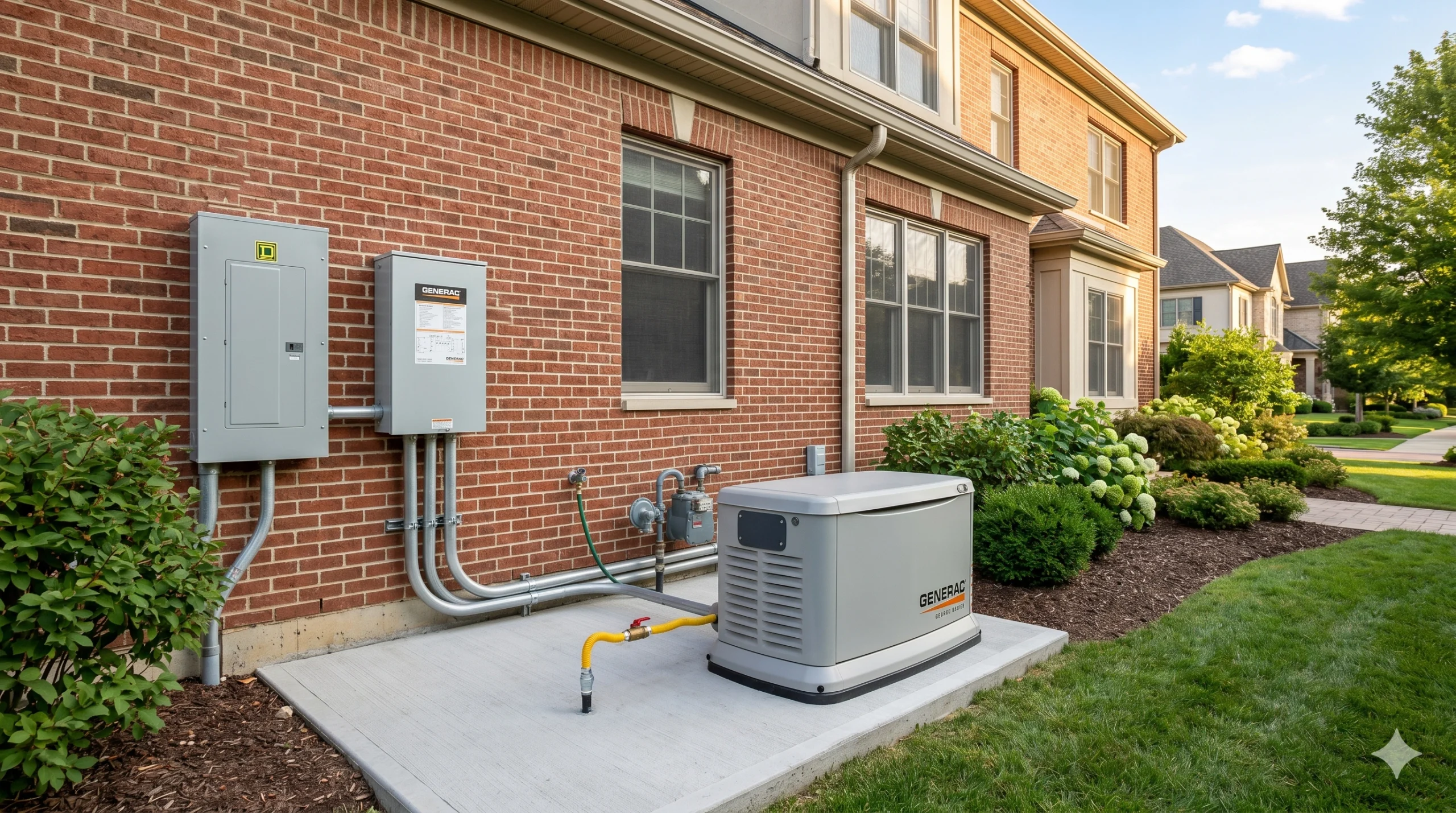

Understanding how a standby generator works is the foundation for making every other decision in the home backup power purchase process correctly. Buyers who understand the technology behind...
Understanding how a standby generator works is the foundation for making every other decision in the home backup power purchase process correctly. Buyers who understand the technology behind a standby generator make better sizing decisions, ask better questions of their electrician, maintain their system correctly, and have realistic expectations about what the system will and will not do during an actual outage. This guide explains the complete operating sequence of a home standby generator from the moment utility power fails through the moment it is restored, covering every major component involved and the role each one plays in the automatic backup power process. The explanation comes from a Master Electrician-founded team that installs, sells, and supports standby generator systems every day across all 48 contiguous United States.
⚡ IB Lighting Carries Generac and Kohler Home Standby Generators with Expert Pre-Sale and Post-Sale Support
How Does a Standby Generator Work: The System Overview
A home standby generator is not a single device. It is a system of interconnected components that each perform a specific function in the automatic backup power sequence. Understanding how a standby generator works requires understanding each of those components individually and then understanding how they communicate and operate together during an outage event.
The core components of a complete home standby generator system are the generator unit itself, the automatic transfer switch, the fuel supply system, the battery, the control board, and the exercise system. Each component is permanently installed and continuously ready. None of them require human activation during an outage. The system monitors, starts, transfers, supplies power, and shuts down entirely on its own, whether or not anyone is home, whether or not anyone is awake, and whether or not the outage occurs at two in the afternoon or two in the morning during a blizzard.
That fully automatic operation is the defining characteristic that separates a home standby generator from a portable generator. It is also the characteristic that most buyers are paying for when they invest in a standby system over a less expensive portable alternative. Browse the full home standby generator collection at IB Lighting here.
Component 1: The Automatic Transfer Switch — The Brain of the System
The automatic transfer switch (ATS) is where every standby generator event begins. The ATS is a permanently installed electrical device mounted on your home’s exterior wall adjacent to the main electrical panel. It is connected between your utility meter and your main panel and monitors the utility power coming from the grid continuously, around the clock, every day of the year.
The monitoring function of a modern Generac or Kohler ATS is continuous and precise. It measures incoming utility voltage and frequency multiple times per second. It knows what normal utility power looks like at your specific service location: approximately 240 volts at 60Hz for a standard US residential service. When those values deviate outside the normal operating range, the ATS interprets the deviation as a power outage and immediately begins the transfer sequence.
The ATS is also the component that physically performs the switch between utility and generator power. It contains two sets of contacts: a utility side contact set and a generator side contact set. These two contact sets are mechanically interlocked so that only one can be closed at any given time. When the utility contacts are closed, your home is connected to the grid. When the generator contacts are closed, your home is connected to the generator. The interlock between the two sets is the physical mechanism that prevents back-feed by making it mechanically impossible for both contact sets to be closed simultaneously.
Generac’s RTSI and RTSN series automatic transfer switches and Kohler’s RXT series are the primary ATS configurations IB Lighting carries for residential standby installations. Both include status indicator lights, weatherproof enclosures, and integrated weekly exercise mode control that communicates with the generator’s control board. Browse the full transfer switch kit range at IB Lighting here.
Component 2: The Generator Unit — Engine, Alternator, and Enclosure
The generator unit is the component most buyers think of when they picture a standby generator: the white metal enclosure sitting on a concrete pad outside the home. Inside that enclosure, three primary mechanical and electrical systems work together to produce the electrical output that powers your home during an outage.
The Engine: Converting Fuel to Mechanical Energy
The engine is an internal combustion engine that burns natural gas or liquid propane to produce rotational mechanical energy. Generac’s residential standby generators use the proprietary G-Force engine, an overhead valve design developed specifically for standby generator applications rather than adapted from automotive or portable generator platforms. Kohler uses a purpose-built engine optimized for residential standby duty cycles in their air-cooled residential lineup.
The key difference between a standby generator engine and the engine in an automobile is duty cycle. An automobile engine runs at variable RPM under variable load for relatively brief periods of normal driving. A standby generator engine runs at a fixed RPM, typically 3,600 RPM for a 60Hz output frequency, for extended periods at sustained load during outage events that may last hours or days. Generac’s G-Force engine is designed specifically for that sustained duty cycle with extended oil change intervals and internal clearances optimized for long-duration operation at constant speed.
The Alternator: Converting Mechanical Energy to Electrical Output
The alternator is the component that converts the engine’s rotational mechanical energy into electricity. It is mechanically coupled to the engine crankshaft and rotates at the same speed as the engine output shaft. As the alternator’s rotor spins within its stator windings, it induces an alternating current in the stator windings at a frequency determined by the rotation speed. At 3,600 RPM, the alternator produces a 60Hz alternating current output, which matches the frequency of US utility power.
Generac’s True Power Technology is an electrical output quality feature built into their alternator and voltage regulator system. It maintains total harmonic distortion below 5 percent across the full load range, which means the power quality the generator produces is sufficiently clean for sensitive electronics including computers, medical equipment, home automation systems, and modern appliances with digital controllers. Without this level of output quality control, generator power can damage or destroy sensitive electronics that assume clean utility-quality power as an input condition.
The Enclosure: Protecting the System for Outdoor Permanent Installation
The enclosure that surrounds the engine and alternator is not simply a cosmetic housing. It is an engineered structure that manages airflow for cooling, attenuates noise from engine operation, provides weather protection across the full range of US climate conditions, and provides secure access panels for routine maintenance. Generac and Kohler both use corrosion-resistant aluminum enclosures on their residential standby lineups, which provides superior long-term corrosion resistance compared to steel enclosures, particularly in coastal and high-humidity environments.
Component 3: The Fuel Supply System — Natural Gas or Liquid Propane
A home standby generator draws fuel from either a natural gas utility line or a liquid propane tank that is permanently connected to the generator by a licensed gas contractor. The fuel supply system is the component that makes a standby generator fundamentally different from a gasoline-powered portable generator in terms of operational reliability during extended outages.
Natural Gas Supply: Unlimited Fuel from the Utility Line
A natural gas standby generator connects to the same utility gas line that serves your home’s other gas appliances. The gas utility’s distribution infrastructure is a separate physical system from the electrical distribution infrastructure, which is why natural gas typically remains available during the power outages caused by storms, equipment failures, and other electrical grid events. A natural gas standby generator running from the utility line has no practical fuel limitation. It can run for days, weeks, or as long as the gas utility supply remains active and the engine continues to operate within its maintenance parameters.
The gas line connecting the utility meter to the generator must be sized by a licensed gas contractor to deliver the generator’s full BTU demand at operating pressure without causing pressure drop that would affect the other gas appliances in the home running simultaneously. The governing fuel gas code is the NFPA 54 National Fuel Gas Code.
Liquid Propane Supply: Tank-Based Fuel for Homes Without Natural Gas
A liquid propane standby generator connects to a propane tank permanently installed on the property. The tank must be sized appropriately for the generator’s BTU consumption rate and the expected duration of outages in the region. As a general planning guideline, a 500-gallon propane tank provides approximately 3 to 5 days of continuous whole-home generator operation depending on the generator’s output level and the home’s actual load during the outage.
Liquid propane offers slightly higher energy density per cubic foot than natural gas, which means LP-fueled generators sometimes produce slightly higher rated output on propane than on natural gas for the same engine configuration. This difference is documented in the generator’s specification sheet and is worth noting when comparing dual-fuel model output ratings.
Questions About How a Standby Generator Would Work in Your Home?
IB Lighting’s Master Electrician-founded team answers technical questions about standby generator systems and recommends the right configuration for your home before any order is placed. Free guidance, no obligation.
Component 4: The Battery — Starting the Engine Without Utility Power
A home standby generator requires a battery to start the engine during an outage. This may seem counterintuitive: if the power is out, where does the energy to start the generator come from? The answer is a dedicated battery, typically a 12-volt lead-acid battery similar to an automotive battery, that is maintained in a charged state by a trickle charger powered by utility electricity during normal non-outage periods.
When the ATS sends a start signal to the generator during an outage, the generator’s control board activates the starter motor, which is powered by the battery. The starter motor cranks the engine until it fires, at which point the engine runs under its own power and the alternator begins producing output. The entire engine-start process typically takes 5 to 15 seconds from the start signal to the generator producing stable electrical output at the correct voltage and frequency.
Battery condition is a critical maintenance item for standby generators precisely because the battery is the component that makes the automatic start sequence possible. A battery that has lost capacity due to age, temperature cycling, or neglected maintenance may fail to crank the engine fast enough or long enough for it to start during an outage. Most generator manufacturers recommend battery replacement every 2 to 3 years as a preventive maintenance item regardless of whether the battery shows obvious signs of failure. IB Lighting carries Generac maintenance kits that include the correct battery specifications for each model. Browse Generac generator accessories and maintenance kits here.
Component 5: The Control Board — The Generator’s Operational Intelligence
The control board is the electronic brain of the standby generator unit. It receives the start signal from the ATS, manages the engine starting sequence, monitors engine operating parameters during operation, communicates with the ATS throughout the outage and restoration sequence, manages the exercise cycle, and provides fault detection and shutdown protection when abnormal operating conditions are detected.
Outage Detection and Start Signal Processing
When the ATS detects a utility power failure, it sends a low-voltage control signal to the generator’s control board through a dedicated control wire that runs between the ATS and the generator unit. The control board receives this signal and immediately begins the engine start sequence: activating the fuel system, engaging the starter motor through the battery, monitoring ignition success, and confirming that the engine has reached stable operating speed and output before signaling the ATS to complete the load transfer.
Engine Parameter Monitoring and Fault Protection
Once the generator is running and supplying power to the home, the control board continuously monitors the engine’s operating parameters. Oil pressure, coolant temperature (on liquid-cooled models), battery voltage, alternator output voltage and frequency, and engine RPM are all monitored in real time. If any parameter deviates outside safe operating limits, the control board triggers a protective shutdown before component damage can occur. The shutdown is recorded as a fault code that a service technician can read to diagnose the cause and restore operation after correction.
Remote Monitoring: Mobile Link for Generac, OnCue Plus for Kohler
Modern Generac control boards are compatible with the Mobile Link cellular remote monitoring system, which allows homeowners to check their generator’s status, review exercise history, receive fault alerts, and confirm that the system is ready and exercising correctly from a smartphone app or web browser from anywhere with internet access. Kohler offers equivalent functionality through OnCue Plus. These remote monitoring capabilities are particularly valuable for vacation properties, second homes, or for homeowners who travel frequently and want confirmation that their backup power system is functioning correctly in their absence. Generac’s system also allows their dealer network to access diagnostic data remotely, enabling faster troubleshooting when service is needed.
How a Standby Generator Works: The Complete Automatic Sequence Step by Step
With the components understood, here is the complete automatic standby generator operation sequence from the moment utility power fails to the moment it is restored, described step by step as it actually occurs in a Generac or Kohler residential installation.
1️⃣ Utility Power Fails — ATS Detects the Outage
The utility grid loses power. The ATS detects the voltage drop within milliseconds through its continuous sensing circuits. It waits a brief confirmation delay, typically 2 to 5 seconds, to confirm the failure is not a momentary voltage fluctuation before beginning the transfer sequence. During this delay, your home has no power.
2️⃣ ATS Sends Start Signal to Generator Control Board
After confirming the outage, the ATS sends a low-voltage control signal to the generator’s control board through the dedicated control wire. Your home remains without power during this step. The generator is now being told to start.
3️⃣ Control Board Activates the Engine Start Sequence
The control board activates the fuel solenoid to open the gas supply, engages the choke as needed for cold-start conditions, and activates the starter motor through the battery. The starter cranks the engine until it fires. The entire cold start typically takes 5 to 15 seconds from start signal to running engine.
4️⃣ Engine Reaches Stable Operating Speed and Output
The engine reaches its rated operating speed of 3,600 RPM and the alternator begins producing 240-volt, 60Hz AC output. The control board monitors the output voltage and frequency and confirms they are within the stable operating range before signaling the ATS that the generator is ready to accept the load. This warm-up confirmation period adds approximately 5 to 15 more seconds.
5️⃣ ATS Opens Utility Contacts and Closes Generator Contacts
Receiving the ready signal from the generator’s control board, the ATS opens the utility side contacts, physically disconnecting your home from the grid. It then immediately closes the generator side contacts, connecting the generator’s output to your home’s electrical circuits. This switching action takes milliseconds. Total time from initial outage to power restoration is typically 10 to 30 seconds for most residential Generac and Kohler installations.
6️⃣ Generator Supplies Power to Your Home During the Outage
Your home is now powered by the standby generator. The HVAC system runs, the refrigerator continues operating, the lights are on, and every circuit connected through the ATS has power. The generator runs continuously until utility power is restored. The control board monitors all engine parameters throughout the outage and will shut down the generator protectively if any parameter goes out of range.
7️⃣ ATS Detects Utility Power Restoration
When utility power is restored, the ATS detects the returning voltage and frequency on the utility side. Rather than immediately transferring back, it waits a preset stability delay of 30 to 60 seconds to confirm the restoration is stable and not a momentary re-energization event that will fail again quickly. This delay prevents the system from cycling back and forth during unstable utility restoration events.
8️⃣ ATS Retransfers Load to Utility and Signals Generator Cool-Down
After the stability delay confirms the utility restoration, the ATS opens the generator contacts and closes the utility contacts, returning your home to grid power. Simultaneously, it sends a cool-down signal to the generator’s control board. The generator continues running under no load for a cool-down period, typically 3 to 5 minutes, to allow the engine temperature to stabilize before shutdown.
9️⃣ Generator Shuts Down and Returns to Standby Readiness
After the cool-down period, the control board shuts down the engine. The battery begins recharging through the trickle charger powered by the restored utility electricity. The ATS resumes continuous utility power monitoring. The entire system is back in standby readiness, prepared to repeat the automatic sequence if utility power fails again. No human action is required at any point in the sequence.
How a Standby Generator’s Exercise Cycle Works
A standby generator that never runs between outages is a generator with unknown reliability when the next outage occurs. Engines that sit unused for months accumulate fuel varnish in the carburetor or fuel system, battery condition deteriorates, oil loses its protective properties, and the overall mechanical readiness of the system degrades without operation. The exercise cycle is the built-in solution to this problem.
Automatic Weekly Exercise: What It Does and Why It Matters
The ATS control system includes a programmable weekly exercise timer that starts the generator automatically for a predetermined exercise run on a preset day and time each week. Generac’s residential systems typically exercise for 12 to 20 minutes once per week at a time programmed by the installing electrician or the homeowner through the generator’s control panel. During the exercise cycle, the generator starts, runs up to operating speed and temperature, and shuts down through the normal cool-down sequence.
Generac’s Quiet-Test exercise mode, available on many of their residential air-cooled models, runs the exercise cycle at a reduced RPM compared to normal full-speed operation, significantly reducing the sound output during the exercise run. This is a meaningful quality of life feature for installations close to living spaces, bedroom windows, or neighboring properties where a full-speed weekly exercise run would be disruptive. The exercise mode setting is configured during the initial installation and can be adjusted through the generator’s control panel.
What the Exercise Cycle Confirms
Each weekly exercise cycle confirms that the battery has sufficient charge and capacity to crank the engine reliably, that the fuel solenoid opens correctly and the engine starts on the first or second attempt, that the engine reaches stable operating temperature and RPM, and that all control system communications between the generator and the ATS are functioning. If any of these functions fail during the exercise cycle, the control board logs a fault code and the homeowner can address the issue under non-outage conditions rather than discovering the problem for the first time during a real power failure.
How Standby Generator Output Reaches Your Home’s Circuits
Understanding how the generator’s electrical output physically reaches your home’s circuits helps buyers understand the complete system rather than just the generator unit in isolation. The power flow from generator to home circuit involves the alternator, output conductors, the ATS generator contacts, the main electrical panel, and finally the individual circuit breakers and wiring that serve each room and appliance.
The alternator produces 240-volt single-phase AC output that travels through the generator’s output terminals to the ATS through the generator-to-ATS conductors. When the ATS closes the generator contacts, that 240-volt output flows through the ATS and into the main electrical panel exactly as utility power normally flows. The main panel’s circuit breakers route the power to individual circuits throughout the home based on the panel’s normal circuit distribution. Every circuit connected to the main panel receives generator power during the outage if the transfer switch is a whole-home configuration, or only the selected essential circuits receive power if the installation uses a selected-circuit ATS configuration.
The power quality of the generator output determines what that power does to the home’s connected equipment. Generac’s True Power Technology and Kohler’s equivalent power quality systems ensure that the harmonic distortion content of the generator’s output is sufficiently low to be safe for sensitive modern electronics. This output quality is measured and verified during factory testing and is one of the specifications that distinguishes professional-grade residential standby generators from lower-quality alternatives. Browse IB Lighting’s full Generac standby generator lineup here and Kohler standby generator range here.
Ready to See How a Standby Generator Would Work in Your Home?
IB Lighting’s Master Electrician-founded team walks through the complete system configuration for your home before any order is placed: generator sizing, fuel type, transfer switch, and installation requirements. Free guidance, no obligation, no generic estimates.
Frequently Asked Questions: How Does a Standby Generator Work
How does a standby generator turn on automatically when the power goes out?
The automatic transfer switch monitors utility power continuously. When it detects a power failure, it sends a start signal through a control wire to the generator’s control board. The control board activates the starter motor using the on-site battery, which cranks the engine until it starts. Once the engine reaches stable operating speed and voltage output, the ATS switches your home’s electrical load from the utility to the generator. The entire sequence from outage detection to power restoration typically takes 10 to 30 seconds and requires no human action at any step.
What fuel does a home standby generator use?
Home standby generators run on natural gas or liquid propane. Homes with a natural gas utility service connect the generator to the existing gas line for a continuous, unlimited fuel supply that does not require storage or refilling. Homes without natural gas service connect the generator to a liquid propane tank that is sized for the generator’s BTU consumption rate and expected outage duration. Some Generac models are dual-fuel capable and can run on either natural gas or propane, with the fuel type selected at installation. Neither fuel type requires refueling during normal outage events the way gasoline-powered portable generators do.
How long does it take for a standby generator to start during a power outage?
Most residential Generac and Kohler standby generators restore power to the home within 10 to 30 seconds of a utility outage being detected by the automatic transfer switch. This includes the ATS confirmation delay of 2 to 5 seconds, the engine start time of 5 to 15 seconds, and the output stability confirmation period before the ATS completes the load transfer. During this brief window, the home has no power. Digital clocks may reset and computers without battery backup may lose unsaved work, but refrigerators, HVAC systems, and most home appliances are unaffected by an outage this brief.
How long can a standby generator run continuously?
A natural gas standby generator can run for as long as the utility gas supply remains active and the engine continues to operate within its maintenance parameters. In practice, most residential Generac and Kohler standby generators can run continuously for days or weeks during extended outage events. Generac recommends periodic maintenance shutdowns during very extended runs, typically after every 200 hours of continuous operation, to check oil level and perform any needed service. A liquid propane standby generator runs as long as the LP tank supply lasts, which depends on the tank size and the generator’s load-dependent fuel consumption rate.
Does a standby generator need maintenance and how often?
Yes. A home standby generator requires periodic maintenance including oil and filter changes, spark plug inspection and replacement, air filter service, battery inspection and replacement, and cooling system checks where applicable. Generac recommends the first oil and filter change after approximately 25 to 30 hours of operation or at the first annual service interval, then annually thereafter for most residential applications. Battery replacement is recommended every 2 to 3 years as a preventive measure. Neglecting the published maintenance schedule creates grounds for warranty claim denial on failures related to the neglected service. IB Lighting carries Generac maintenance kits here.
What is True Power Technology and why does it matter?
True Power Technology is Generac’s proprietary alternator and voltage regulator system that maintains total harmonic distortion below 5 percent across the full output load range. Harmonic distortion in electrical power is essentially noise in the power waveform that can cause overheating, premature failure, and malfunction in sensitive electronics including computers, medical equipment, home automation systems, smart appliances, and any device with a digital controller. Generator output without True Power Technology class quality control can carry harmonic distortion levels high enough to damage these devices over time. Virtually every modern home has multiple devices that require clean power, which is why True Power Technology is a standard feature on all Generac residential standby generators rather than an optional upgrade.
Can I monitor my standby generator remotely?
Yes. Generac’s Mobile Link cellular monitoring system allows homeowners to check their generator’s status, confirm it exercised successfully, review operational history, and receive fault alerts by text or email from any location with internet access through a smartphone app or web browser. Kohler offers equivalent remote monitoring through OnCue Plus. Remote monitoring is particularly valuable for homeowners who travel frequently, own vacation properties, or want confirmation that their backup power system is functioning correctly without needing to physically inspect the generator on a regular basis. Both systems also allow service technicians to access diagnostic data remotely when troubleshooting is needed.
What is the difference between a standby generator and a portable generator?
A standby generator is permanently installed outside the home, connected to a natural gas or propane fuel supply, and integrated with an automatic transfer switch that detects outages and starts the generator automatically without human involvement. A portable generator is a freestanding unit that must be manually started, fueled with gasoline or propane from storage containers, and positioned outdoors at a safe distance from the home during use. A standby generator works whether or not anyone is home and provides whole-home coverage through the main electrical panel. A portable generator requires manual operation every time it is used and typically provides selected essential circuit coverage rather than whole-home power.
Does IB Lighting carry home standby generators and can they help me choose the right one?
Yes. IB Lighting carries Generac and Kohler home standby generators across the full residential output range from 7kW to 24kW, along with matching automatic transfer switch kits and generator accessories. All orders ship with free nationwide freight delivery and free freight insurance. IB Lighting’s Master Electrician-founded team provides free pre-sale guidance covering generator sizing, fuel type selection, transfer switch compatibility, and installation requirement briefing before any order is placed. Call (800) 674-9019 or visit the Expert Advice hub to start the conversation before you commit to any purchase.
How Does a Standby Generator Work: The Complete Picture
A home standby generator works through the continuous coordination of five integrated components: the automatic transfer switch that monitors utility power and manages the load switching, the generator unit containing the engine and alternator that produce electricity from fuel, the fuel supply system that provides an unlimited or extended-duration fuel source, the battery that enables automatic engine starting without utility power, and the control board that manages the entire sequence, monitors system health, and communicates between the generator and the ATS throughout every outage and exercise cycle.
Together, these components produce a system that responds to utility power failure in seconds, restores home power automatically without any human action, sustains that power for as long as the outage continues, and returns the home to utility power seamlessly when the grid is restored. That complete automatic cycle, repeated reliably every time an outage occurs over a 15 to 20 year service life, is the value proposition that justifies the investment in a home standby generator over alternative backup power approaches.
