NEC wire bend radius requirements protect wire insulation and terminations from mechanical damage during installation. The requirements appear across multiple NEC sections including NEC 312.6 (bending space at panel terminals), NEC 300.34 (conductor bending radius), and NEC 314.28 (pull and junction box sizing). This article explains each NEC section governing wire bend radius, provides interactive lookup tool for bend radius requirements, differentiates cable-specific bend radius from conductor bend radius, covers panel and enclosure selection for compliance, addresses disconnect box considerations, and provides practical installation guidance for residential and commercial applications where bend radius compliance is critical.

Across thousands of Southwire and Cerrowire orders shipped from IB Lighting nationwide, our electrician-led team helps buyers navigate the compliance considerations beyond just wire size selection, including NEC wire bend radius requirements that affect panel selection, enclosure sizing, and cable installation planning. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the full Southwire and Cerrowire electrical wire and cable lineup.

This article covers the NEC wire bend radius requirements that we regularly discuss with buyers planning larger installations where bending compliance affects product selection, using citations from the current National Electrical Code (NFPA 70) and industry practice from the International Association of Electrical Inspectors.

The Fast Answer: NEC Wire Bend Radius Requirements

The NEC wire bend radius requirements come from three primary sources: NEC 312.6 specifies minimum bending space at terminals in panel enclosures based on wire size and number of conductors per terminal, NEC 300.34 specifies minimum conductor bending radius to protect insulation from damage, and NEC 314.28 specifies minimum dimensions for pull and junction boxes based on the size of raceways entering the box. Additionally, cable manufacturers specify minimum bend radius for specific products (typically 5 times cable diameter for NM-B and 5 to 7 times for SER).

The three NEC sections that govern wire bend radius

NEC 312.6 addresses wire bending space inside cabinets, cutout boxes, and meter socket enclosures where conductors terminate at lugs and connectors. NEC 300.34 addresses the minimum radius conductors can be bent during installation to protect insulation and conductor integrity. NEC 314.28 addresses the sizing of pull and junction boxes to allow safe conductor bending and pulling through the box.

Why bend radius compliance matters

Adequate bending space and radius prevents insulation damage that could cause short circuits, prevents mechanical stress on terminations that could cause connection failures, provides safe pulling paths for conductors during installation, and ensures the installation passes electrical inspection. Undersized enclosures and boxes are among the most common inspection failures for panel and feeder installations.

When bend radius becomes a significant consideration

Bend radius becomes a significant installation consideration when conductor sizes exceed 6 AWG, when using large SER cable for subpanel feeders, when routing conductors through pull boxes with angle pulls, when installing conductors in small disconnect boxes, and when planning subpanel enclosure depth. Small residential branch circuits with 14 AWG through 10 AWG wire in NM-B cable rarely present bend radius concerns.

Why NEC Wire Bend Radius Requirements Exist

These requirements protect against multiple failure modes that can affect electrical safety and system reliability.

Insulation damage prevention

Bending a conductor too tightly can crack or damage the insulation, particularly for larger conductor sizes with thicker insulation layers. Damaged insulation reduces the wire’s dielectric strength and can lead to short circuits, ground faults, or arc faults. Insulation damage from tight bending may not be immediately visible but can cause failures months or years after installation.

Termination stress reduction

Conductors terminated at lugs and connectors experience mechanical stress from the bend needed to route the conductor to the terminal. If the enclosure does not provide adequate bending space, this stress transfers to the termination, potentially causing loose connections over time. Loose connections cause overheating, arcing, and eventual connection failure.

Safe pulling paths

During installation, conductors are pulled through raceways and enclosures. Adequate bending space and box sizing allows this pulling without damaging the conductors, insulation, or enclosure. Pull boxes specifically address this by providing intermediate points where conductors can be pulled without excessive force through long or angled raceway runs.

Long-term reliability

Even installations that appear acceptable at inspection can develop problems over time if conductors are stressed by tight bending. Thermal cycling, vibration, and normal loading amplify any initial installation stress. Meeting NEC bend radius requirements provides margin for these long-term factors and results in reliable installations that perform as designed for decades.

NEC 312.6: Wire Bending Space at Panel Terminals

NEC 312.6 is the primary NEC wire bend radius requirement that residential electricians encounter, governing the space required for conductor bending at terminals inside panel enclosures.

What NEC 312.6 covers

NEC 312.6 applies to cabinets, cutout boxes, and meter socket enclosures. The section specifies minimum wire bending space at terminals where conductors terminate at lugs, connectors, or wire binding screws. The requirements apply to service disconnects, load centers, subpanels, meter sockets, and similar enclosures where conductor termination occurs.

Table 312.6(A): bending space at terminals

Table 312.6(A) in the NEC provides minimum bending space in inches based on conductor size (from 14 AWG through 900 kcmil) and number of conductors per terminal. Larger conductors require more bending space. Multiple conductors per terminal require additional space beyond single conductor values. For typical residential 100A to 200A service equipment, the required bending space ranges from 4 to 8 inches depending on the specific service conductor size.

Table 312.6(B): conductors entering opposite terminals

Table 312.6(B) applies to conductors entering the enclosure on the wall opposite the terminals. This scenario requires more bending space than conductors entering on the same wall as the terminals because the conductor must travel across the enclosure before bending down to the terminal. Table 312.6(B) values are typically larger than Table 312.6(A) values for the same conductor size.

Practical impact on panel selection

The NEC 312.6 requirements affect residential panel selection by requiring adequately deep and wide enclosures for the service and feeder conductor sizes being terminated. A 200A service panel with 4/0 aluminum service conductors requires meaningfully more internal space than a 100A service panel with 2 AWG copper service conductors. Panel manufacturers publish internal dimensions that installers can compare against the NEC 312.6 table values.

NEC 300.34: Conductor Bending Radius Rules

NEC 300.34 specifies the minimum radius to which conductors can be bent during installation to protect insulation and conductor integrity.

What NEC 300.34 covers

NEC 300.34 addresses conductor bending radius for shielded and nonshielded conductors installed in raceways or enclosures. The section protects conductor insulation from mechanical damage during installation by specifying minimum radius values. The requirements apply to insulated conductors of various types and voltage ratings.

The general bend radius principle

The general principle behind NEC 300.34 is that bending radius must be large enough to prevent insulation damage while allowing practical installation. The minimum radius values are typically expressed as multipliers of the conductor overall diameter or the raceway internal diameter. Larger conductors and higher voltage insulation types require larger bending radii.

Relationship to cable manufacturer specifications

NEC 300.34 provides the minimum code requirement, but cable manufacturers often specify more restrictive bending radius values for their specific products. When manufacturer specifications are more restrictive than NEC, the manufacturer specifications should be followed. Always check the cable jacket or product data sheet for the specific bend radius specification.

Application to service and feeder conductors

NEC 300.34 becomes particularly relevant for large service and feeder conductors including 4/0 AWG and larger sizes commonly used in 200A service installations. These large conductors have substantial insulation thickness that is vulnerable to damage from tight bending. Adequate planning for service entrance routing prevents field bending violations.

NEC 314.28: Pull Box and Junction Box Sizing

NEC 314.28 specifies minimum dimensions for pull and junction boxes to provide adequate conductor bending and pulling space.

NEC 314.28(A)(1): straight pulls

For straight pulls (where conductors enter and exit the box on the same axis), NEC 314.28(A)(1) requires the length of the box to be at least 8 times the trade size of the largest raceway entering the box. For example, a straight pull with a 2 inch raceway requires a pull box at least 16 inches long. This ensures adequate straight-line pulling room without excessive conductor stress.

NEC 314.28(A)(2): angle and U pulls

For angle pulls (where conductors change direction) and U pulls (where conductors enter and exit on the same wall), NEC 314.28(A)(2) requires the distance from the raceway entry to the opposite wall to be at least 6 times the trade size of the largest raceway plus the sum of the trade sizes of the other raceways in the same wall. For example, a 90 degree pull with a 2 inch primary raceway and a 1 inch secondary raceway requires the distance to be at least 6×2 + 1 = 13 inches.

Distance between raceways entering and leaving

NEC 314.28(A)(2) also specifies minimum distance between the raceway containing the largest conductor and the raceway or terminals to which it connects, based on the size of the conductor. This ensures adequate bending radius for the conductor as it exits one raceway and enters the next raceway or terminates at a lug.

Practical box sizing calculation

Calculating box size per NEC 314.28 requires knowing all raceway sizes entering the box and the type of pulls (straight, angle, U). Software tools and reference tables help with this calculation, but the fundamental requirement of 6× or 8× multipliers is straightforward. Undersized junction boxes are a common inspection failure that can be avoided with proper NEC 314.28 calculation during planning.

Cable Manufacturer Bend Radius Specifications

Beyond the NEC requirements covered above, cable manufacturers specify minimum bending radius values for their specific products that installers must also follow.

NM-B (Romex) bend radius

NM-B cable manufacturer bend radius specifications typically require minimum bending radius of approximately 5 times the cable diameter for installation. This is not typically a limiting factor for small residential NM-B applications since the cable diameter is small enough that the required bending radius is easily achieved in standard installations. Very small enclosures or tight routing can occasionally challenge this specification.

SER cable bend radius

SER (Service Entrance Round) cable manufacturer bend radius specifications typically require minimum bending radius of 5 to 7 times the cable diameter. For larger SER sizes used in 100A and 200A feeder applications, this can result in bending radius requirements of several inches, which affects panel enclosure selection and cable routing planning. Aluminum SER can be slightly more forgiving than copper SER of the same size.

MC cable bend radius

MC (Metal-Clad) cable manufacturer bend radius specifications typically require minimum bending radius of 7 to 10 times the cable diameter due to the metal armor’s mechanical characteristics. The metal armor can be damaged by tight bending, potentially compromising the mechanical protection function. MC cable bending requires more careful planning than NM-B or SER.

Individual conductor bend radius

Individual insulated conductors (THHN, THWN-2, XHHW) can typically be bent to tighter radii than jacketed cables of similar copper cross-section because the individual conductor structure is more flexible. Manufacturer specifications for individual conductors often reference NEC 300.34 as the governing requirement rather than specifying tighter values.

NM-B vs SER vs Individual Conductor Bend Requirements

Different cable types have different bend radius considerations that affect installation planning and enclosure selection.

NM-B (Romex) bending characteristics

NM-B cable is relatively flexible and rarely presents bend radius challenges for standard residential branch circuit installations. Small NM-B sizes (14/2, 12/2, 10/2) can be routed through standard junction boxes and terminated at standard receptacle boxes without bend radius concerns. Larger NM-B sizes (8/3, 6/3) require some attention in tight enclosures but generally fit within standard installation practices.

SER cable bending characteristics

SER cable is stiffer than equivalent NM-B due to its round configuration and jacket construction. SER for 60A and 100A subpanel feeders can require significant bending space in the subpanel enclosure. The 5 to 7 times cable diameter manufacturer bend radius specification means a 2 inch diameter SER cable requires 10 to 14 inches of bending radius, which affects panel enclosure depth selection.

Individual conductor flexibility

Individual THHN or THWN-2 conductors pulled through conduit are more flexible than jacketed cables of equivalent copper cross-section. This makes them easier to route through tight spaces and around bends. For installations where bend radius is challenging, individual conductors in conduit often provide more installation flexibility than cable equivalents.

Choosing cable type for bend radius considerations

For installations with tight bend radius constraints, consider individual conductors in conduit rather than jacketed cable. For installations with generous space, cable installations are typically faster and less expensive. The bend radius consideration is often one of several factors in the cable vs individual conductor decision.

Bend Radius for Feeder Circuits and Large Conductors

Feeder circuits and large conductor installations present the most significant bend radius considerations in residential applications.

100A subpanel feeder bend radius

A 100A subpanel feeder using 2 AWG copper SER cable requires meaningful bending space at both the main panel and subpanel terminations. The typical bend radius requirement of 5 to 7 times cable diameter for the approximately 1 inch diameter cable results in 5 to 7 inches of bending radius, requiring subpanel enclosures with adequate depth and height for this bending. Our 100 amp garage subpanel wire sizing article covers cable selection considerations that affect bending.

60A subpanel feeder bend radius

A 60A subpanel feeder using 6 AWG copper SER cable is more manageable for bend radius than 100A feeders. The smaller cable diameter (approximately 0.7 inch) results in bending radius requirements of approximately 3.5 to 5 inches, which fits within most standard subpanel enclosures. See our 60 amp garage subpanel wire sizing article for typical installation approaches.

200A service entrance bend radius

200A service entrance installations use 4/0 aluminum or 2/0 copper conductors that require substantial bending space at the meter socket and service panel. The NEC 312.6 tables specify significant bending space for these conductor sizes, and adequate service equipment must be selected. Undersized meter sockets or service panels are inspection failures at this scale.

Aluminum vs copper feeder bending

Aluminum feeder cables are typically slightly larger diameter than equivalent-ampacity copper cables due to the larger conductor cross-section needed. This means aluminum installations may require slightly more bending space than copper installations for equivalent amperage. However, aluminum is often more flexible than copper of equivalent electrical rating, partially offsetting the size difference.

Panel and Enclosure Selection for Bend Radius Compliance

Selecting panels and enclosures that provide adequate bending space is critical for bend radius compliance.

Load center selection for residential applications

Residential load centers from major manufacturers (Square D, Eaton, Siemens, GE) provide varying internal dimensions. For 100A subpanels, verify the enclosure provides adequate depth for the feeder conductor size and bending space per NEC 312.6. Some smaller “value” line load centers may not provide adequate space for larger feeder conductors.

Meter socket selection

Meter sockets must provide adequate space for service conductor bending per NEC 312.6. For 200A service, verify the meter socket accommodates the specific service conductor size being used. Some standard meter sockets are marginal for 4/0 aluminum service conductors and require larger meter sockets for adequate bending space.

Disconnect enclosure sizing

Disconnect enclosures for AC condensers, EV chargers, and hot tubs must provide adequate space for the load conductors terminating at the switch. Smaller disconnect enclosures may be inadequate for the larger conductor sizes needed for high-amperage applications. Standard 60A disconnect enclosures are generally adequate for typical residential loads, but tight configurations may require larger 100A enclosures for adequate bending space.

Verification during installation planning

Verify bend radius compliance during installation planning rather than during final wiring. Check panel dimensions, enclosure depth, and cable manufacturer specifications before purchasing. This prevents the need to swap enclosures during installation when bending space proves inadequate, which is expensive and time-consuming.

Disconnect Box Bend Radius Considerations

Disconnect boxes for AC condensers, EV chargers, and other outdoor equipment often present bend radius challenges due to their compact standard sizes.

AC condenser disconnect boxes

Pull-out disconnect boxes for central AC condensers are typically 30A or 60A rated with compact dimensions. For typical AC installations (10 AWG or 8 AWG conductors), standard disconnect boxes provide adequate space. For larger AC installations approaching 60A with 6 AWG conductors, verify the disconnect enclosure provides adequate bending space per the manufacturer specifications.

EV charger disconnect requirements

EV charger installations often use disconnect boxes near the charger location. For a 48A EV charger using 6 AWG copper conductors, the disconnect must provide adequate space for the 6 AWG bending. Standard 60A disconnect boxes are generally adequate. Some installations use 100A disconnect boxes for better bending space and future capacity margin. See our Level 2 EV charger 48 amp wire sizing article for installation details.

Outdoor rated disconnect boxes

Outdoor rated (Type 3R) disconnect boxes may have different internal dimensions than indoor rated (Type 1) equivalents at the same amperage rating. Verify the specific box internal dimensions accommodate the planned conductor size with adequate bending space. Manufacturer specifications typically include the maximum conductor size the enclosure can safely accommodate.

Wire routing planning

Plan wire routing through disconnect boxes to minimize bending distance while maintaining adequate radius. Enter and exit points, terminal locations, and conductor path all affect the actual bending space needed. Simple straight-through configurations require less bending space than routing that includes direction changes.

Consequences of Violating NEC Wire Bend Radius Requirements

Understanding the consequences of bend radius violations helps installers prioritize compliance during installation planning.

Immediate installation problems

Inadequate bending space can prevent conductors from reaching terminals or force conductors into positions that make termination difficult or impossible. This can require rework, larger enclosures, or completely different installation approaches. These problems become apparent during installation rather than at inspection.

Inspection failure and delays

Undersized enclosures and inadequate bending space are common inspection failures. Failed inspections require rework before re-inspection, causing delays and additional cost. In many cases, the required rework involves swapping enclosures for larger equivalents, which is expensive and time-consuming compared to correct initial selection.

Insulation damage and long-term reliability

Tight bending can damage conductor insulation immediately or over time. Immediate damage may cause dielectric breakdown and short circuits when the circuit is energized. Progressive damage from stressed insulation can cause failures months or years after installation. These failures are difficult to diagnose because the original installation appeared functional.

Termination stress and connection failure

Inadequate bending space stresses conductor terminations at lugs and connectors. Over time, thermal cycling and normal loading can cause loose connections from this initial stress. Loose connections cause overheating, arcing, and eventual failure. These failures are safety hazards that can cause equipment damage or fire.

Common Installation Scenarios Requiring Bend Radius Attention

Certain installation scenarios routinely require attention to bend radius compliance for successful installation and inspection approval.

Service entrance and meter socket installations

Service entrance conductors (typically 4/0 aluminum or 2/0 copper for 200A service) require adequate meter socket space for bending per NEC 312.6. This is one of the most common scenarios where bend radius becomes a critical installation consideration. Meter socket selection must specifically account for the service conductor size.

Subpanel feeder installations

Feeder circuits to detached garage subpanels, shed subpanels, and workshop subpanels use large SER cable or individual conductors that require attention to bend radius at both the main panel and subpanel terminations. Adequate subpanel enclosure selection prevents field bending problems.

Junction box installations

Junction boxes used for splicing, changing raceway routing, or providing pull points must be sized per NEC 314.28. The 8× (straight pull) or 6× plus sum (angle pull) multipliers are common inspection focus points. Undersized junction boxes are a frequent inspection failure.

Multi-conductor terminations

Some installations terminate multiple conductors at a single terminal (per manufacturer terminal ratings). NEC 312.6 tables account for multiple conductors per terminal, and additional bending space is required. Verify the enclosure provides adequate space for the actual conductor count, not just single conductor values.

Product Selection for NEC Wire Bend Radius Compliance

Understanding these requirements helps buyers select appropriate wire and enclosure products for their installations.

Wire type selection for tight installations

For installations with limited bending space, individual THHN or THWN-2 conductors in conduit provide more flexibility than jacketed cables. This is common for service entrance installations where field bending at the meter socket is easier with individual conductors. Southwire and Cerrowire manufacture individual THHN and THWN-2 conductors in all common sizes.

Cable size selection considering bend radius

For cable installations, consider whether the specific cable size will fit the planned enclosures with adequate bending space. Larger cables have larger bend radius requirements. Sometimes upsizing to individual conductors in conduit rather than jacketed cable simplifies installation for larger feeder circuits.

Enclosure sizing

Southwire and Cerrowire products fit into standard enclosure sizes from major panel and box manufacturers. Verify the specific enclosure model provides adequate internal dimensions for the wire size being installed. Manufacturer specifications typically indicate maximum wire size the enclosure can accommodate.

Cable compared to individual conductors

For 60A subpanel feeders, both SER cable and individual THHN conductors in conduit are common approaches. SER is faster to install but less flexible for tight bending. Individual conductors require conduit installation but provide more flexibility. Both approaches meet NEC requirements when properly installed.

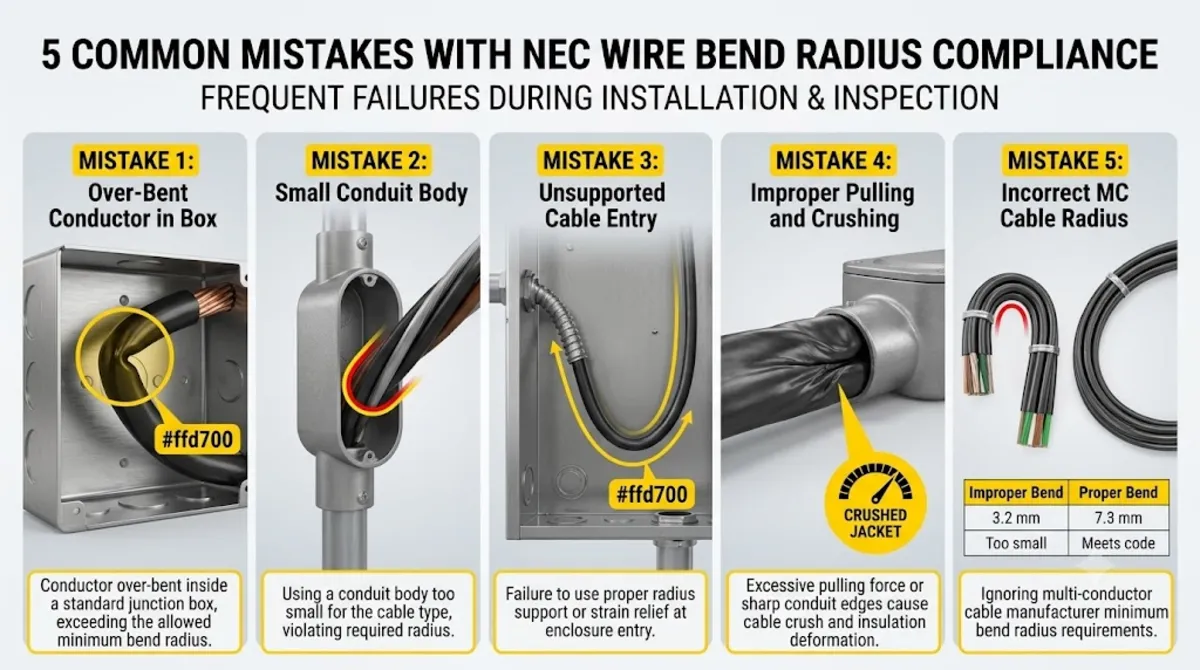

5 Common Mistakes with NEC Wire Bend Radius Compliance

The mistakes below cause the most frequent bend radius compliance failures during installation and inspection.

Mistake 1: Undersized panel enclosures for feeder terminations

Selecting minimum-cost panel enclosures without verifying NEC 312.6 bending space requirements is the most common bend radius mistake. Value-line load centers may not provide adequate space for larger feeder conductors. Verify enclosure internal dimensions against NEC 312.6 tables before purchasing for feeder installations.

Mistake 2: Junction boxes sized for raceway only, not bending

Selecting junction boxes based only on raceway trade size (like using a 4×4 inch box for a 1 inch raceway) ignores NEC 314.28 bending calculations. For angle pulls, the 6× multiplier means a 1 inch raceway angle pull requires a box at least 6 inches in the relevant dimension. Undersized junction boxes fail inspection.

Mistake 3: Ignoring cable manufacturer bend radius specifications

Focusing only on NEC bend radius requirements while ignoring cable manufacturer specifications can result in cable damage even when NEC minimums are met. Cable manufacturers often specify tighter bend radius limits than NEC minimums, and these manufacturer specs must be followed. Check cable jacket markings or product data sheets.

Mistake 4: Inadequate disconnect box for conductor size

Using standard 30A or 60A disconnect boxes for installations requiring 6 AWG or larger conductors can result in inadequate bending space. Some 6 AWG installations require 100A rated disconnect boxes even though the load only requires 60A capacity, purely for bending space. Verify disconnect enclosure internal dimensions.

Mistake 5: Field-forcing conductors to fit inadequate space

When bending space proves inadequate during installation, the wrong response is to force the conductor into position with excessive bending. This causes immediate insulation damage and creates long-term reliability problems. The correct response is to install a larger enclosure or reroute the conductor entry point.

Conclusion

NEC wire bend radius requirements protect wire insulation and terminations from installation damage through three primary NEC sections: NEC 312.6 governs bending space at panel terminals with tables specifying minimum dimensions by wire size, NEC 300.34 governs conductor bending radius protecting insulation, and NEC 314.28 governs pull and junction box sizing using multipliers of raceway trade sizes. Cable manufacturers specify additional bend radius requirements for specific products including NM-B, SER, and MC cable.

Bend radius compliance affects panel enclosure selection, junction box sizing, disconnect box selection, and cable routing planning for residential and commercial installations. Meeting the requirements requires selecting adequately sized enclosures and boxes during installation planning rather than attempting to fit conductors into inadequate space during final wiring. Small residential branch circuits with 14 AWG through 10 AWG wire rarely present bend radius concerns, but larger feeder and service installations require specific attention to NEC 312.6, NEC 300.34, and NEC 314.28 requirements.

This article was last reviewed and updated in June 2026 to reflect current National Electrical Code requirements for wire bend radius including NEC 312.6, NEC 300.34, and NEC 314.28. Specific bend radius values in the NEC tables should be verified against the current code cycle applicable in your jurisdiction. Cable manufacturer specifications should always be consulted for specific product bend radius requirements. For complex installations or when in doubt about compliance, consult a licensed electrician or your local electrical inspector.
