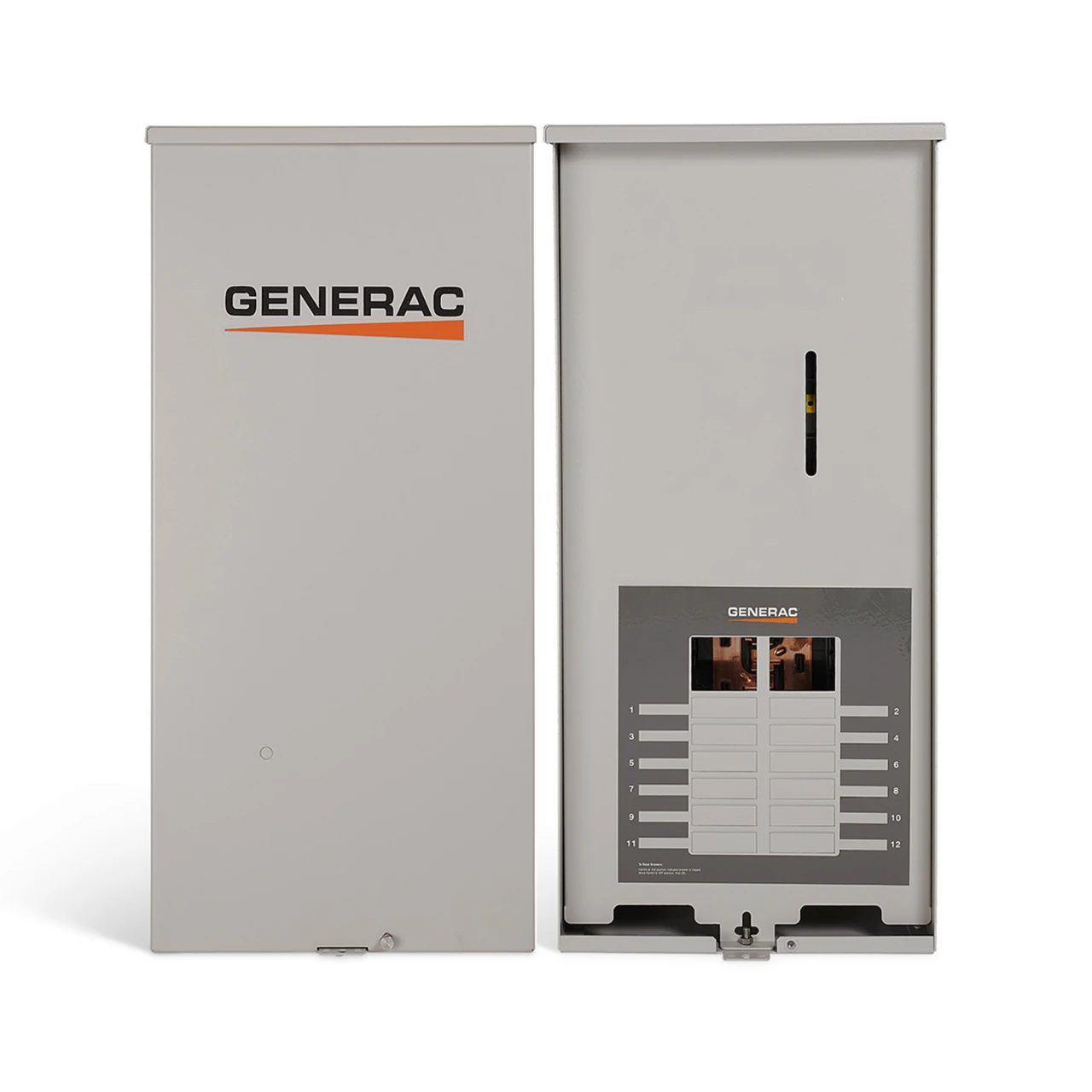

Generac 100 -Amp NON-SERVICE ENTRANCE RATED Automatic Transfer Switch

The Generac 9947 Automatic Transfer Switch is a 100-amp, single-phase transfer switch designed for 120/240-volt standby generator systems. It includes an integrated 16-circuit load center, allowing essential household circuits to be connected directly to the transfer switch for automatic backup power during an outage.

When utility power is interrupted, the standby generator system automatically starts and transfers the selected electrical circuits from utility power to generator power. Once utility service is restored and stable, the switch transfers the circuits back to utility power and allows the generator to complete its normal cooldown cycle. This automatic operation provides dependable backup power without requiring the homeowner to manually operate the system.

The integrated 16-circuit load center makes the Generac 9947 an excellent choice for essential-circuit applications. Instead of backing up the entire electrical service, the system can be configured to protect important circuits such as refrigerators, freezers, lighting, furnaces, sump pumps, security systems, internet equipment, and other essential household loads. The number and type of circuits supported will depend on the generator capacity, electrical load, and installation requirements.

Its NEMA 3R enclosure is designed to help protect the transfer switch from rain, sleet, and external ice formation, making it suitable for properly installed indoor or outdoor applications.

Product Features:

* Generac model number: 9947
* 100-amp automatic transfer switch
* Single-phase electrical configuration
* 120/240-volt operation
* Integrated 16-circuit load center
* NEMA 3R weather-resistant enclosure
* Suitable for properly installed indoor or outdoor applications
* Automatically transfers selected circuits to generator power
* Automatically returns circuits to utility power once service is restored
* Designed for essential-load standby generator applications
* Provides convenient, hands-free operation during power outages
* Non-service-entrance rated

Important: The Generac 9947 is a non-service-entrance-rated automatic transfer switch. It does not provide the main service disconnecting means and must be installed downstream from a properly rated service disconnect or main breaker. If the transfer switch will be installed as the first disconnect after the utility meter, a service-entrance-rated transfer switch may be required instead.

Professional installation by a qualified, licensed electrician is required. The installer must verify generator compatibility, circuit requirements, electrical load, voltage, amperage, installation location, and compliance with all applicable electrical codes before installation.

Please confirm compatibility with your generator and electrical system before ordering. If you need assistance selecting the correct Generac transfer switch, contact IB Lighting at (800) 674-9019.
