Generac Guardian Cold Weather Kit for 9–26kW Home Standby Generators – Oil Heater – Model 7102

The Generac 7102 cold weather kit is the manufacturer-specified engine oil heater accessory for Generac Guardian home standby generators operating in cold climates. As a Generac Guardian cold weather kit, the Generac 7102 cold weather kit is engineered specifically for the Guardian air-cooled standby platform spanning 9kW through 26kW, the largest residential generator size range Generac builds. The integrated Generac generator oil heater keeps engine oil at optimal viscosity during sub-freezing conditions, which is the single most important factor in reliable cold-weather generator starts. As a cold weather kit for Generac generator installations in northern climates, hurricane zones with winter storms, and any region with sustained sub-freezing temperatures, the Generac 7102 cold weather kit is genuinely essential rather than optional. As the Generac 9kW to 26kW cold weather accessory, the kit covers nearly the entire residential Guardian range from the smallest entry-level 10kW units up through the popular 22kW, 24kW, and 26kW class generators. Every Generac 7102 cold weather kit ships nationwide from IB Lighting with free freight and the support of a Master Electrician-led team. Manufacturer specifications are available at the official Generac website.

Generac 7102 Cold Weather Kit Key Highlights

Why Standby Generators Need a Cold Weather Kit

Standby generators face a specific reliability challenge that car engines do not: they sit dormant for weeks or months at a time and then must start instantly on demand at whatever ambient temperature happens to exist when the grid fails. For a generator installed in Minneapolis, Boston, or Buffalo during a January ice storm, that means starting reliably at 10 degrees Fahrenheit or colder after potentially a week of below-freezing weather has cold-soaked the engine.

The single most common cold-weather generator start failure is oil viscosity. Engine oil at 70 degrees Fahrenheit flows easily through the engine’s oil galleries, lubricating bearings and cylinder walls within the first crank or two. The same oil at 10 degrees Fahrenheit becomes thick and sluggish, sometimes thick enough that the oil pump struggles to circulate it within the time the generator’s automatic transfer switch allows for a successful start before declaring fault. The result is a generator that fails to start during the exact outage event the homeowner installed it to handle.

The Generac 7102 cold weather kit solves this by keeping the engine oil warm during cold soak periods. Even when the generator has not run for weeks, the oil stays at a temperature where viscosity is in the operable range, the oil pump can circulate it instantly on start, and the engine spins up to operating speed within the same time window it would in summer. Reliable cold-weather starts become the default rather than the exception.

How the Generac Generator Oil Heater Works

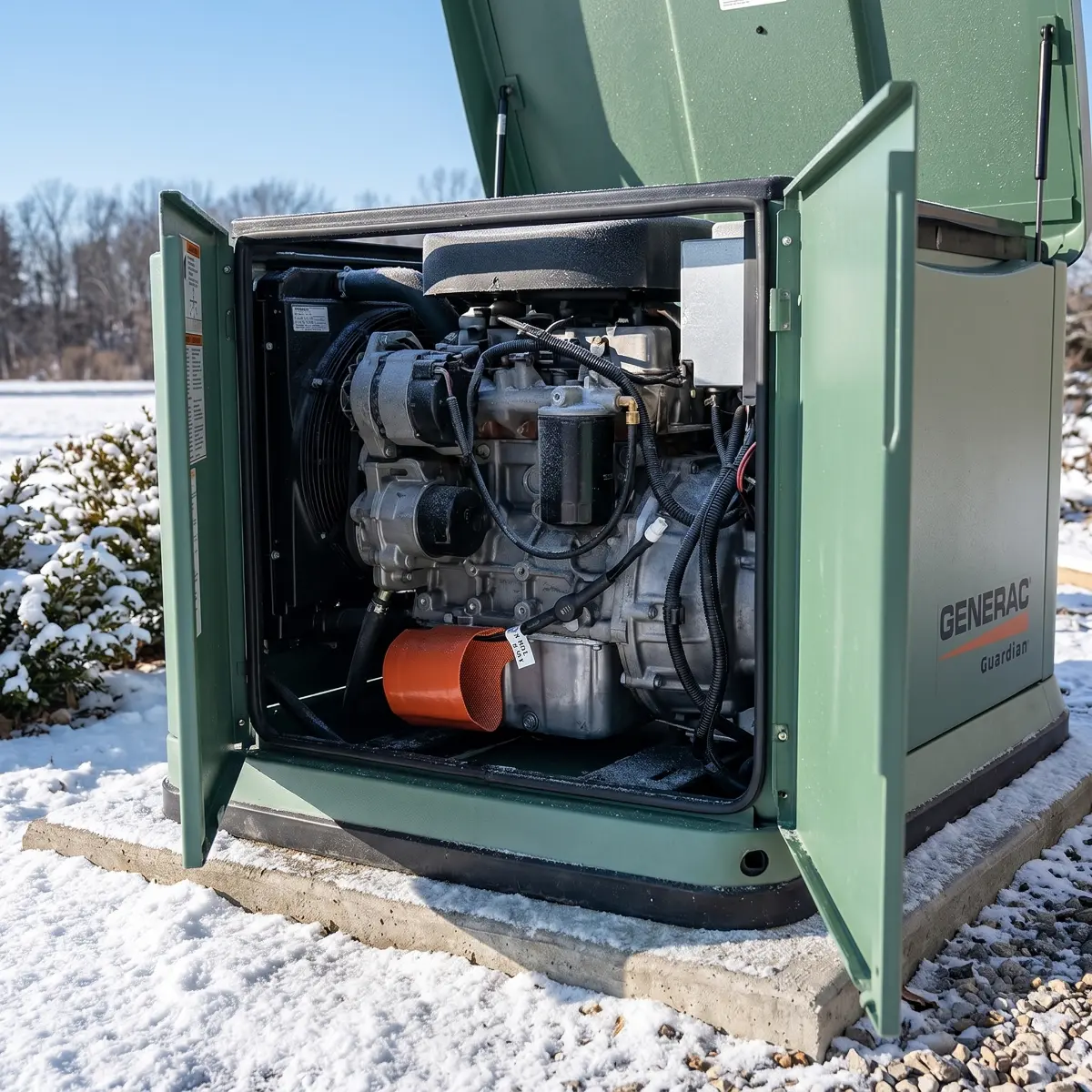

The oil heater inside the Generac 7102 cold weather kit is a low-wattage electric heating element that contacts the engine oil pan from outside. It draws power from the generator’s normal control circuit, which itself stays powered from the utility grid line whenever utility power is available. When the generator is dormant and ambient temperature drops below the kit’s threshold, the heater activates and warms the oil pan and the oil contained within it.

Critically, the oil heater operates while utility power is still on, before any outage event occurs. This means by the time the grid fails and the generator needs to start, the oil is already at safe operating viscosity and the engine starts cleanly within seconds of receiving the start signal from the automatic transfer switch. The kit does not need to wait for the outage to begin warming the oil. It is always pre-warming whenever it senses cold conditions.

Energy consumption from the kit is minimal compared to typical residential household electric loads. The heater operates on a thermostat to cycle on and off only when needed, and the heating element itself is sized to maintain warmth rather than aggressively heat oil from frozen state. Annual electricity cost from running the Generac 7102 cold weather kit through a typical northern climate winter is typically a few dollars at most, which is genuinely trivial compared to the value of having the generator actually start during a real outage.

9-26kW Compatibility: Which Generac Generators Need This Kit

The Generac 7102 cold weather kit is engineered for compatibility with Generac Guardian air-cooled home standby generators rated 9kW through 26kW. This range covers nearly the entire residential Guardian lineup, from the smallest entry-level 10kW units up through the popular 22kW class, the 24kW step-up, and the 26kW Next Generation flagship. Specific compatible models include but are not limited to the following Guardian SKUs:

• 10kW units typically fit within the kit’s coverage range as smaller residential standby applications.
• 14kW and 16kW units common in mid-size residential installations.
• 18kW units including the Generac 7259 (no switch) and Generac 7324 (with 200A switch).
• 22kW units including the Generac 7260 (no switch) and Generac 7325 (with 200A switch).
• 24kW units including the Generac 7261 (no switch) and Generac 7326 (with 200A switch).
• 26kW units including the Generac 7327 (no switch) and Generac 7328 (with 200A switch).

The 28kW flagship Guardian (Generac 7282 and Generac 7329) sits outside the kit’s stated 9-26kW compatibility range and uses a different cold weather accessory. If you own a 28kW Guardian, contact IB Lighting for the correct cold weather kit before ordering. For all other Guardian models in the 9-26kW range, the Generac 7102 cold weather kit is the right and direct-fit accessory.

When You Need a Cold Weather Kit (And When You Don’t)

The Generac 7102 cold weather kit is genuinely essential in some installations, recommended in others, and unnecessary in a few. Knowing which category your home falls into helps you make the right purchase decision rather than buying the kit blindly because it is on the accessory list.

Essential: If your home is in a climate where outdoor temperatures regularly drop below 32 degrees Fahrenheit during winter (most of the northern half of the United States plus higher elevations everywhere), the Generac 7102 cold weather kit is essential rather than optional. The risk of cold-start failure during a winter outage is high enough that the kit’s modest cost is genuinely cheap insurance against the exact scenario the generator was bought to handle.

Strongly recommended: If your home is in a transition climate where winter temperatures occasionally drop below freezing but usually stay above 25 degrees Fahrenheit (much of the mid-Atlantic, parts of the South where cold snaps occur, and elevated regions of generally warmer states), the Generac 7102 cold weather kit is strongly recommended. The kit’s cost is small relative to the generator investment, and unexpected cold snaps tend to coincide with the grid stress that triggers outages.

Optional: If your home is in a consistently warm climate where outdoor temperatures rarely drop below 40 degrees Fahrenheit (most of Florida, the Gulf Coast, Southern California, southern Arizona, and Hawaii), the Generac 7102 cold weather kit is genuinely optional. The Guardian engine starts reliably at these temperatures without the kit, and the marginal benefit is minimal. Many installations in these climates skip the kit and have not seen any reliability impact.

US Climate Zones and the Cold Weather Kit Decision

For a more specific climate-based recommendation on the Generac 7102 cold weather kit, consider the typical winter low temperatures in your specific region. Sustained temperatures below 20 degrees Fahrenheit make the kit essential. Temperatures between 20 and 32 degrees Fahrenheit make it strongly recommended. Temperatures consistently above 40 degrees Fahrenheit make it optional.

Northern climate states like Minnesota, Wisconsin, Michigan, North Dakota, Maine, New Hampshire, Vermont, Montana, Wyoming, Idaho, and most of Alaska see sustained sub-zero temperatures during winter. In these regions, the Generac 7102 cold weather kit should be specified as a default at the time of generator install rather than as an add-on later.

Mid-latitude states like New York, Pennsylvania, Ohio, Indiana, Illinois, Iowa, Nebraska, Kansas, Missouri, parts of Colorado, Utah, Washington, and Oregon see regular sub-freezing temperatures throughout winter. The kit is strongly recommended for any generator installed in these regions, with the strongest case for installations in basement-adjacent locations where ambient cold soak is more pronounced.

Southern states like Texas, Oklahoma, Arkansas, Tennessee, North Carolina, South Carolina, Virginia, and Maryland see occasional but meaningful cold snaps that can drop temperatures into the teens or single digits for several days at a time. The 2021 Texas winter storm is the recent reference point. Generators installed in these regions benefit meaningfully from the Generac 7102 cold weather kit precisely because the cold-weather events are infrequent but severe, and grid stress during these events is exactly when the generator must start reliably.

Installation Requirements for the Generac 7102 Cold Weather Kit

The Generac 7102 cold weather kit is designed for installation by a qualified service technician familiar with Generac Guardian generators. While some experienced DIYers install the kit themselves, most homeowners should plan on having their existing generator service company or installer handle the kit install during a routine maintenance visit. Installation typically takes 30 to 60 minutes and involves mounting the oil heater component to the engine oil pan, routing the wiring harness through the appropriate cable management points inside the generator enclosure, and connecting the kit to the generator’s accessory power circuit.

The kit is fully compatible with Generac’s factory warranty as a manufacturer-specified accessory. Installing the kit does not void the generator warranty as long as installation follows the included instructions. Many homeowners add the Generac 7102 cold weather kit during the first annual service visit after generator commissioning, when the unit is already opened up for routine maintenance and the kit can be installed in the same service window without an additional service charge.

For new generator installations being commissioned during winter or in cold climates, the kit should be installed at the time of original commissioning so the unit is ready for cold weather operation from day one. Discuss this with your installer when scheduling the original generator install. Most installers familiar with Guardian generators can add the kit during commissioning at no additional labor charge beyond the kit’s purchase price.

Generac 7102 Cold Weather Kit Specifications

Generac 7102 Cold Weather Kit FAQs

Who the Generac 7102 Cold Weather Kit Is Built For

The Generac 7102 cold weather kit serves three distinct buyer types. The first is existing Generac Guardian generator owners who installed their unit without a cold weather kit and are now adding the accessory after a near-miss with a cold-weather start failure. For these buyers, the kit is a retrofit purchase typically scheduled into the next annual maintenance visit. The kit’s cost is genuinely cheap insurance against the next winter outage, particularly for owners in northern climates who experienced their first hard winter after generator commissioning.

The second buyer is the new generator buyer adding the kit to their initial generator purchase. For homeowners shopping in the Generac home standby generators 10kW to 28kW collection, adding the Generac 7102 cold weather kit at the time of original purchase is the right approach when the install is in any cold-climate region. Most installers can add the kit during commissioning at no additional labor charge, and this is the simplest path to a generator that is fully ready for winter from day one.

The third buyer is the dealer, installer, or service company stocking cold weather kits as inventory to support their customer base. For these buyers, IB Lighting offers reliable supply at predictable pricing with fast nationwide shipping. Browse the broader Generac product lineup for related accessories and complementary products that round out a typical service company’s parts inventory.

Specifically Compatible Generac Models

The Generac 7102 cold weather kit fits the following specific Generac Guardian models and configurations. This list covers the most common residential Guardian SKUs sold today, but the kit is also compatible with prior-generation Guardian units in the same kW range:

• Generac 7259 (18kW Guardian, no transfer switch)
• Generac 7324 (18kW Guardian with 200A transfer switch)
• Generac 7260 (22kW Guardian, no transfer switch)
• Generac 7325 (22kW Guardian with 200A transfer switch)
• Generac 7261 (24kW Guardian, no transfer switch)
• Generac 7326 (24kW Guardian with 200A transfer switch)
• Generac 7327 (26kW Guardian, no transfer switch)
• Generac 7328 (26kW Guardian with 200A transfer switch)
• Earlier Generac Guardian Series 9kW, 10kW, 14kW, 16kW, 20kW, and other intermediate variants

The 28kW flagship Guardian (Generac 7282 and Generac 7329) is NOT covered by the Generac 7102 cold weather kit and uses a different accessory. If you own a 28kW Guardian or are considering one, contact IB Lighting for the correct cold weather kit before ordering. For all 9-26kW Guardian models, the Generac 7102 cold weather kit is the manufacturer-specified direct-fit accessory.

With Cold Weather Kit vs Without: The Real-World Difference

The functional difference between a Generac Guardian generator with the Generac 7102 cold weather kit installed and the same generator without the kit shows up specifically during cold-weather outage events. In summer or in mild winters where ambient temperatures stay above 32 degrees Fahrenheit, both configurations behave identically. The kit only earns its keep when the temperature drops.

Without the kit, a Generac Guardian sitting dormant in 10 degrees Fahrenheit weather has engine oil that has cooled to the same 10 degrees and become significantly more viscous than its operating-temperature state. When utility power fails and the automatic transfer switch signals the generator to start, the starter motor cranks the engine, but the cold-thickened oil resists circulation through the oil pump and oil galleries. Some percentage of attempted starts fail to reach operating speed within the controller’s allowable start window, and the controller declares a fault and shuts down. The homeowner is left without backup power during exactly the outage event the generator was bought to handle.

With the Generac 7102 cold weather kit installed, the engine oil stays warm regardless of ambient temperature, and the generator starts cleanly on the first attempt every time. The probability of cold-weather start failure drops to essentially zero. For a homeowner who genuinely depends on their generator for winter outage protection, this difference is worth far more than the kit’s purchase price. The kit is the kind of accessory that earns its cost in a single use.

Cold Weather Start Troubleshooting Without the Kit

If you currently own a Generac Guardian without the Generac 7102 cold weather kit and are experiencing cold-weather start issues, several things can help while you arrange to install the kit. First, switching to a lower-viscosity synthetic oil (such as 5W-30 instead of 10W-30) within Generac’s approved oil specifications can improve cold flow characteristics and partially mitigate the oil viscosity issue at moderate cold temperatures. Verify approved oil grades in your specific Guardian’s owner manual before changing.

Second, ensuring the generator’s battery is fresh and at full charge improves cranking amps available during cold-weather starts. Cold weather reduces battery cranking capacity meaningfully, so a marginal battery that works fine in summer can fail to crank the engine adequately in winter. The OEM-spec replacement battery for most Generac Guardian units is the Group 26R battery. The Duracell Ultra Group 26R is a direct-fit replacement that IB Lighting stocks alongside Generac generators and accessories.

Third, ensuring the generator runs its weekly self-test reliably. Skipped self-tests due to fault conditions or controller issues can leave the engine cold-soaked for longer than designed. Self-test cycling itself helps maintain engine readiness through winter. None of these workarounds replace the Generac 7102 cold weather kit, but they can reduce risk while you arrange installation. Adding the kit remains the right long-term solution for any generator installed in a cold climate.
