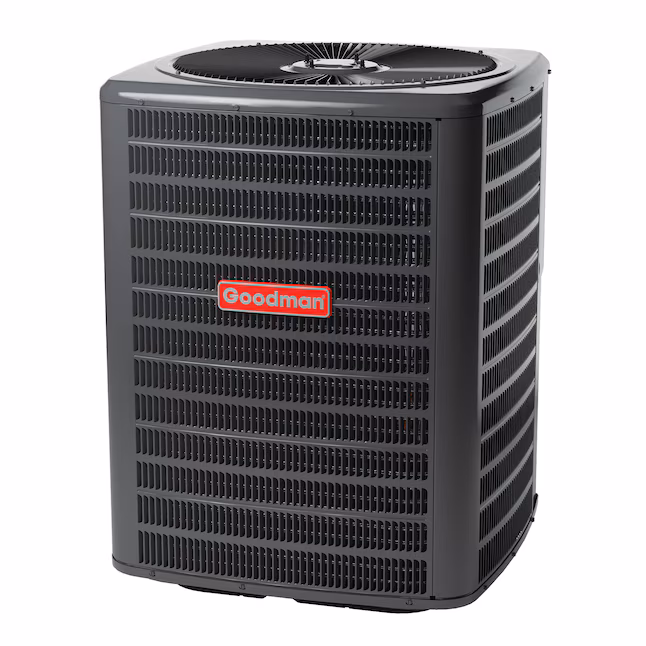

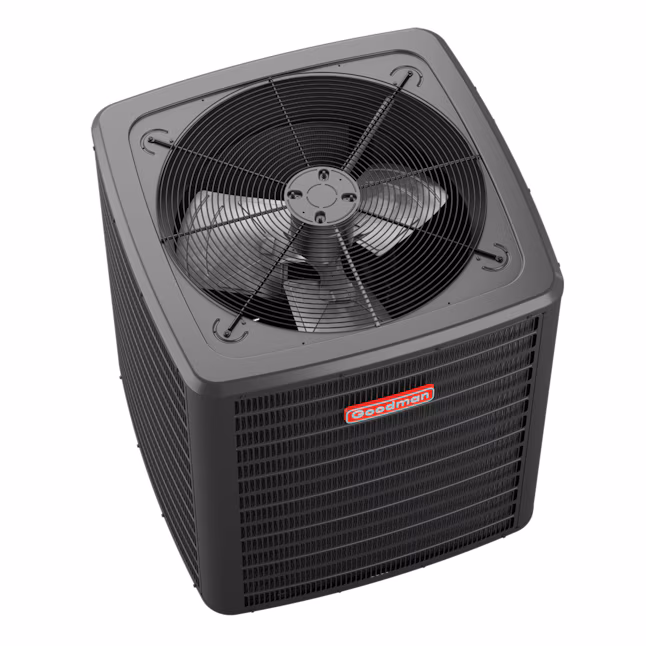

Goodman GLXS4BA6010 5 Ton 14.3 SEER2 60000 BTU Residential Central Air Conditioner Condenser

The Goodman GLXS4BA6010 is engineered to provide powerful and consistent cooling for larger residential applications. With a nominal 5 Ton capacity, this outdoor condensing unit is ideal for properly sized homes requiring higher airflow and cooling demand coverage.

This unit features a high efficiency scroll compressor designed for smooth and dependable operation during peak cooling seasons. A factory installed filter drier helps protect the refrigeration system from moisture and contaminants, supporting long term system reliability.

The cabinet is constructed from heavy gauge galvanized steel with a factory applied protective finish to resist corrosion and environmental exposure. Its design allows flexible installation while maintaining service accessibility.

When properly matched with an approved indoor coil and air handler or furnace, this system can achieve up to 14.3 SEER2 efficiency.

Specifications

Model Number: GLXS4BA6010
Cooling Capacity: 5 Ton / 60000 BTU
Efficiency Rating: Up to 14.3 SEER2
Refrigerant Type: R 410A
Compressor Type: Scroll
Voltage: 208/230V
Phase: Single Phase
Frequency: 60 Hz
Application: Residential
Unit Type: Outdoor Condensing Unit
Factory Installed Filter Drier: Yes
AHRI Certified: When matched with approved indoor components

Warranty

10 Year Parts Limited Warranty when registered within the manufacturer required time frame

If not registered, standard limited warranty terms apply per Goodman manufacturer guidelines

Installation Requirements

Outdoor condenser only
Must be matched with compatible indoor coil and air handler or furnace
Professional HVAC installation required
