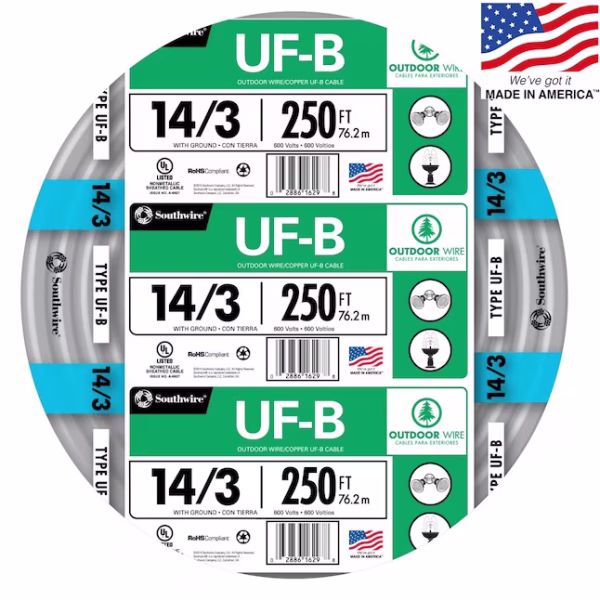

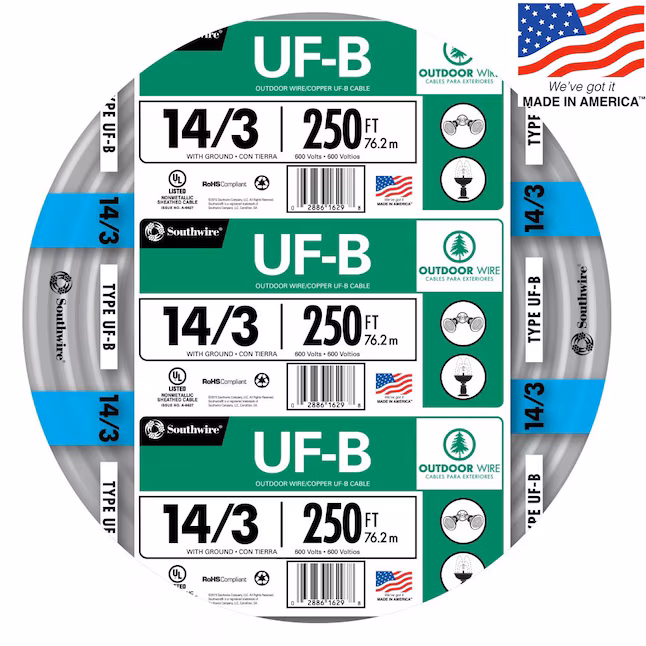

Southwire 14/3 Solid Copper UF-B Underground Feeder Cable with Ground 250-Foot Roll – Model 13057555

The Southwire 13057555 is a 250-foot roll of 14/3 AWG solid copper Type UF-B underground feeder cable with an integrated grounding conductor. This cable is designed for direct burial applications and outdoor wiring where moisture resistance and durability are required.

The 14/3 configuration includes three insulated 14 AWG solid copper conductors along with a bare copper grounding conductor. It is commonly used for outdoor lighting circuits, three-way switching applications, detached structures, and branch circuits requiring two hot conductors and a neutral.

UF-B cable is constructed with durable PVC insulation and a sunlight- and moisture-resistant jacket designed to withstand underground installation without conduit where permitted by local code. It is specifically engineered for wet or damp locations and exterior applications.

Rated for 600 volts with conductors suitable for 90°C, this cable meets National Electrical Code requirements for underground feeder and branch circuit installations.

Specifications

• Type: UF-B Underground Feeder Cable
• Gauge: 14/3 AWG with Ground
• Conductor Material: Copper
• Stranded or Solid: Solid
• Length: 250 Feet
• Color: Gray Jacket
• Voltage Rating: 600 Volts
• Temperature Rating: 90°C
• Installation Type: Direct Burial Rated
• UL Listed: Yes

Warranty

Southwire building wire products are generally covered by a limited manufacturer warranty against defects in materials and workmanship. Warranty details should be confirmed with the manufacturer or authorized distributor.
