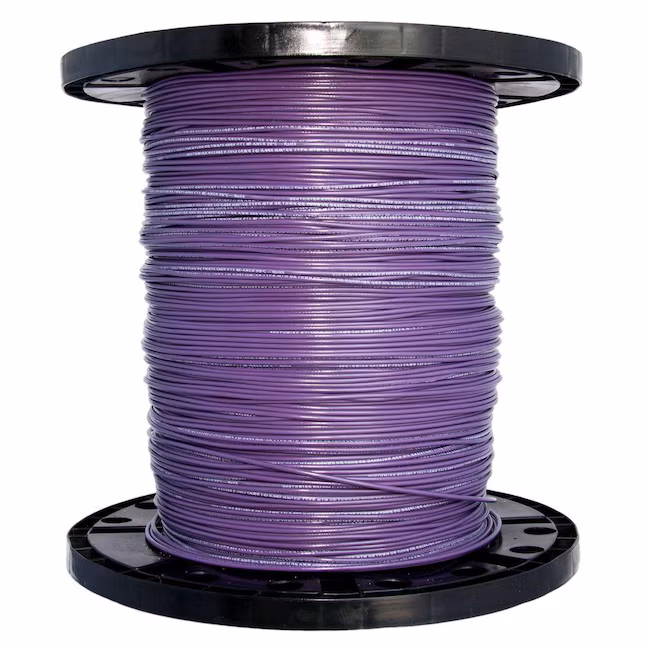

Southwire SIMpull 500-ft 8 -AWG Purple Stranded Copper THHN wire ( By-the-roll )

The Southwire 8 AWG purple THHN wire is the specialty-color option in Southwire’s 8 AWG SIMpull THHN product line, delivered on a 500 foot spool sized to match typical contractor purchase patterns for feeder and panel wiring installations. As 8 AWG purple THHN 500 ft, this specific product provides the exact roll length that professional electricians typically stock for job-lot 8 AWG applications: enough wire for multiple circuit installations without over-purchasing bulk quantities that would sit as long-term inventory. As 8 AWG stranded copper THHN, the wire uses stranded copper conductors (multiple smaller copper strands twisted together) rather than solid copper, providing the flexibility needed to route 8 AWG wire through conduit bends and around obstacles without the rigidity that solid 8 AWG copper would impose. As Southwire SIMpull 8 AWG, this wire uses Southwire’s proprietary low-friction insulation technology that reduces the pulling force required to route wire through conduit, meaningfully reducing electrician physical effort and speeding up wire pulling on installation jobsites. As purple THHN wire by the roll, the 500 foot form factor allows contractors to purchase in the quantity that matches typical project consumption rather than committing to larger bulk spools that require additional storage and inventory management. Every Southwire 8 AWG purple THHN order ships nationwide from IB Lighting with free shipping. Manufacturer specifications and technical documentation are available at the official Southwire website.

Southwire 8 AWG Purple THHN Key Highlights

What 8 AWG Copper Wire Actually Powers (40A-50A Circuits)

Understanding what circuit types the Southwire 8 AWG purple THHN can handle is essential for buyers matching wire gauge to specific electrical applications. 8 AWG copper occupies a specific ampacity range in the NEC that unlocks a set of higher-power residential and commercial circuits.

8 AWG copper wire ampacity per NEC 310.16 (single conductor in raceway):

• 60 degree Celsius column: 40 amps continuous rating.
• 75 degree Celsius column: 50 amps continuous rating.
• 90 degree Celsius column: 55 amps continuous rating (but limited by termination temperature rating – typically 75C).

Practical circuit types powered by 8 AWG copper THHN:

• 50 amp electric range circuits: Standard 50A electric range receptacle circuits (typically 240V) use 8 AWG copper conductors. This is the largest single-appliance residential circuit type.
• 40 amp electric range circuits: Some electric ranges are configured for 40A service using 8 AWG copper on a 40A breaker.
• 50 amp EV charger circuits: Level 2 EV chargers configured for 40A continuous charging output require 50A breakers and 8 AWG copper conductors per NEC continuous load requirements (125 percent sizing).
• 48 amp EV charger circuits: Tesla Wall Connector and other 48A continuous output Level 2 chargers require 60A breakers and larger conductors, though some installations use 8 AWG copper depending on installation specifics.
• 40 amp subpanel feeders: Detached garage subpanels, workshop subpanels, and outbuilding subpanels commonly use 40A feeders with 8 AWG copper conductors.
• 50 amp hot tub and spa circuits: Standard residential hot tub and spa 240V GFCI-protected circuits typically use 8 AWG copper.
• 50 amp welder circuits: Contractor and hobbyist welder installations often specify 50A circuits with 8 AWG copper.
• Large HVAC compressor circuits: Some large residential AC compressors or heat pumps require 40A or 50A circuits with 8 AWG copper conductors.
• Commercial equipment feeders: Various commercial equipment (larger commercial refrigeration compressors, industrial equipment, three-phase equipment) uses 8 AWG copper at 40A or 50A levels.

The 8 AWG copper capacity essentially spans the largest single-circuit residential applications and typical light commercial equipment feeders. Circuits smaller than 40A typically use 10, 12, or 14 AWG copper; circuits larger than 50A typically use 6 AWG or larger copper. 8 AWG occupies the specific 40A-50A range where many high-power residential circuits live.

NEC 310.16 Ampacity for 8 AWG Copper Explained

Understanding NEC 310.16 ampacity tables helps clarify why the Southwire 8 AWG purple THHN is specifically sized for 40A-50A circuits. The three-temperature-column structure of the table has important practical implications for circuit design.

NEC 310.16 provides three ampacity columns for conductor sizing, each representing a different maximum operating temperature:

• 60 degree Celsius column: Historical baseline for basic THW conductors and older equipment terminations. Most residential branch circuits use this column.
• 75 degree Celsius column: Standard for modern THWN, THHN in wet locations, and most commercial installations. Most modern equipment terminations are rated 75C.
• 90 degree Celsius column: THHN in dry locations and specific high-temperature applications. Rarely used at full 90C ratings because equipment terminations typically limit to 75C.

The “termination temperature rating” concept is critical:

• The ampacity used is limited by the LOWEST temperature rating in the circuit: Conductor insulation rating, termination temperature rating at both ends, and equipment temperature rating all contribute.
• Most modern equipment has 75C terminations: Circuit breakers, receptacles, and equipment terminals typically rated 75C.
• Effective 8 AWG ampacity is typically 50 amps: Even though THHN insulation is rated 90C (which would allow 55A), the 75C termination rating limits the practical ampacity to 50A.
• Some older installations limit to 60C column: Older equipment or specific installations may require using the 60C column (40A for 8 AWG).

The practical implication for 8 AWG conductor selection:

• For 40A circuits: 8 AWG copper THHN in the 60C column meets code requirements.
• For 50A circuits: 8 AWG copper THHN in the 75C column meets code requirements (most modern installations).
• For circuits above 50A: Use 6 AWG or larger copper. 8 AWG is not appropriate for 60A or larger circuits.
• For continuous loads: Continuous loads (loads operating 3+ hours continuously) require 125 percent conductor sizing. A 40A continuous load requires conductors rated for 50A (which is achievable with 8 AWG copper).

These NEC 310.16 requirements apply to the Southwire 8 AWG purple THHN identically to any 8 AWG copper THHN. The purple insulation color does not affect the electrical characteristics or ampacity; the color is purely for circuit identification purposes.

Why Purple: Specialty Color Positioning and NEC 210.5

Purple is a specialty conductor color for 8 AWG THHN installations. Understanding when and why to select purple THHN over the more common black, red, or blue 8 AWG options clarifies the specific applications where the Southwire 8 AWG purple THHN is the right choice.

NEC 210.5 conductor color requirements:

• Grounded conductor (neutral): MUST be white or gray. Purple CANNOT be used for neutral.
• Grounding conductor (ground): MUST be green, green with yellow stripe, or bare copper. Purple CANNOT be used for ground.
• Ungrounded conductors (hot): May be any color EXCEPT white, gray, green, or green/yellow. Purple IS a permitted hot conductor color.
• Common hot conductor colors: Black (typical Phase A), red (typical Phase B), blue (typical Phase C or additional phases), yellow (traveler wires or additional hot).
• Specialty hot conductor colors: Purple, brown, orange (also used for high-leg delta), pink, and other custom colors used for specific identification purposes.

Common applications where purple THHN is specifically used:

• Isolated power systems: Medical facility operating rooms, laboratories, and other applications requiring isolated power systems often use specific color codes to distinguish isolated circuits from normal power. Purple is common in some facilities.
• Emergency and backup power circuits: Some facilities use purple to identify emergency, standby, or backup power circuits distinct from normal utility power circuits.
• Uninterruptible Power Supply (UPS) circuits: Data centers and computer facilities often use purple to identify UPS-fed circuits distinct from normal utility circuits.
• Facility color-coding standards: Some large facilities have specific color assignments for different systems (normal power, emergency power, UPS power, specific equipment types). Purple is often assigned to one specific system category.
• Multi-circuit installations exhausting standard colors: Complex installations with multiple circuits in the same conduit may exhaust standard colors (black, red, blue, yellow) and require additional colors like purple for continued differentiation.
• Contractor preference or standard: Some electrical contractors use consistent color assignments across all projects to standardize installations and simplify future troubleshooting.
• Custom architectural specifications: High-end residential and commercial projects sometimes specify custom color coding for specific circuit types.

The Southwire 8 AWG purple THHN provides the specialty color for these applications while maintaining full NEC 210.5 compliance for hot conductor color use. The wire is electrically identical to standard color 8 AWG THHN; only the insulation color differs.

SIMpull Technology Contractor Advantage

Southwire’s SIMpull technology is a proprietary insulation surface treatment that reduces friction when wire is pulled through conduit. Understanding how SIMpull works and why it matters for professional installations clarifies the practical advantages of the Southwire 8 AWG purple THHN over generic 8 AWG THHN alternatives.

How SIMpull technology works:

• Reduced-friction insulation surface: The SIMpull insulation has a low-friction surface treatment that reduces the coefficient of friction between the wire and conduit interior.
• Less pulling force required: Reduced friction means less physical force is required to pull the wire through the same conduit run, particularly through bends and long runs.
• Reduced pulling compound requirement: Traditional wire pulling often requires substantial amounts of pulling lubricant to achieve reasonable pulling forces. SIMpull reduces or eliminates the need for pulling compound in many installations.
• Cleaner installations: Less pulling compound means less mess during installation and cleaner conduit interiors after installation.

Contractor time and effort advantages:

• Faster wire pulls: Less friction means faster wire routing through conduit, reducing installation time per circuit.
• Reduced physical effort: Less pulling force means less strain on the electrician, particularly meaningful for long pulls or difficult conduit runs.
• Fewer stuck pulls: Reduced friction reduces the likelihood of wire getting stuck mid-pull, which requires labor-intensive troubleshooting.
• Ability to pull longer runs: Reduced friction extends the practical length of wire pull runs that a given crew size can complete efficiently.
• Reduced tool wear: Lower pulling forces reduce wear on pulling equipment (fish tapes, wire pulling grips, pulling equipment).

For contractors installing the Southwire 8 AWG purple THHN, the SIMpull technology delivers meaningful productivity advantages compared to installing generic 8 AWG THHN. On multi-circuit installations or long conduit runs, the time savings and reduced physical effort can be substantial, contributing to both crew productivity and reduced installation-related injuries over the long term.

SIMpull technology is compatible with standard installation methods and requires no special tools or techniques. Electricians familiar with standard THHN installation can immediately benefit from SIMpull’s reduced pulling friction without training or process changes.

Why Stranded Copper at 8 AWG

The Southwire 8 AWG purple THHN uses stranded copper construction rather than solid copper. Understanding why stranded is standard for 8 AWG (and larger) conductors clarifies the practical benefits and application context.

Solid vs stranded copper conductor characteristics:

• Solid conductor: Single solid copper wire. Common for 14 AWG and 12 AWG residential branch circuits. Rigid; difficult to route around obstacles.
• Stranded conductor: Multiple smaller copper wires twisted together to form the conductor. Standard for 10 AWG and larger. Flexible; easier to route through conduit bends.

Why stranded is standard for 8 AWG and larger:

• Flexibility for conduit routing: Solid 8 AWG copper is very rigid and difficult to route through typical conduit bends. Stranded 8 AWG bends easily around conduit sweeps and offset bends.
• Easier termination: Stranded conductors are easier to insert into terminals and connectors than solid conductors at 8 AWG and larger gauges.
• Reduced kinking: Solid 8 AWG kinks easily during installation, creating potential weak points. Stranded 8 AWG resists kinking.
• Better pulling characteristics: Stranded conductors handle pulling forces more evenly than solid conductors, reducing the likelihood of damage during installation.
• Reduced installer fatigue: Working with flexible stranded conductors requires less physical effort than working with rigid solid conductors of the same gauge.
• Standard industry practice: Stranded is the standard construction for 8 AWG and larger conductors across the electrical industry. Solid 8 AWG copper is uncommon and typically only used in specific specialized applications.

The stranded copper construction of the Southwire 8 AWG purple THHN matches industry standard practice for 8 AWG conductors and provides the flexibility and handling characteristics needed for practical installation work.

THHN Insulation Properties and Applications

THHN insulation is the industry-standard insulation type for building wire installations in conduit. Understanding what THHN means and where it’s appropriate helps clarify the applications for the Southwire 8 AWG purple THHN.

THHN stands for:

• T: Thermoplastic (the insulation material type – PVC-based)
• HH: High Heat resistant (rated for 90 degrees Celsius maximum operating temperature)
• N: Nylon jacket (a protective outer coating over the thermoplastic insulation)

THHN insulation properties:

• 90C rated in dry locations: Can operate continuously at 90 degrees Celsius conductor temperature in dry locations.
• 75C rated in wet locations: Reduced rating in wet locations reflects the increased thermal stress from moisture.
• PVC thermoplastic insulation: Provides electrical insulation and mechanical protection.
• Nylon outer jacket: Adds abrasion resistance and reduces friction during conduit pulling.
• Chemical resistance: Resistant to common environmental chemicals and lubricants.
• UL listed: Meets UL 83 standard for thermoplastic-insulated building wire.
• NEC compliant: Approved for installation in raceways per NEC 310 requirements.

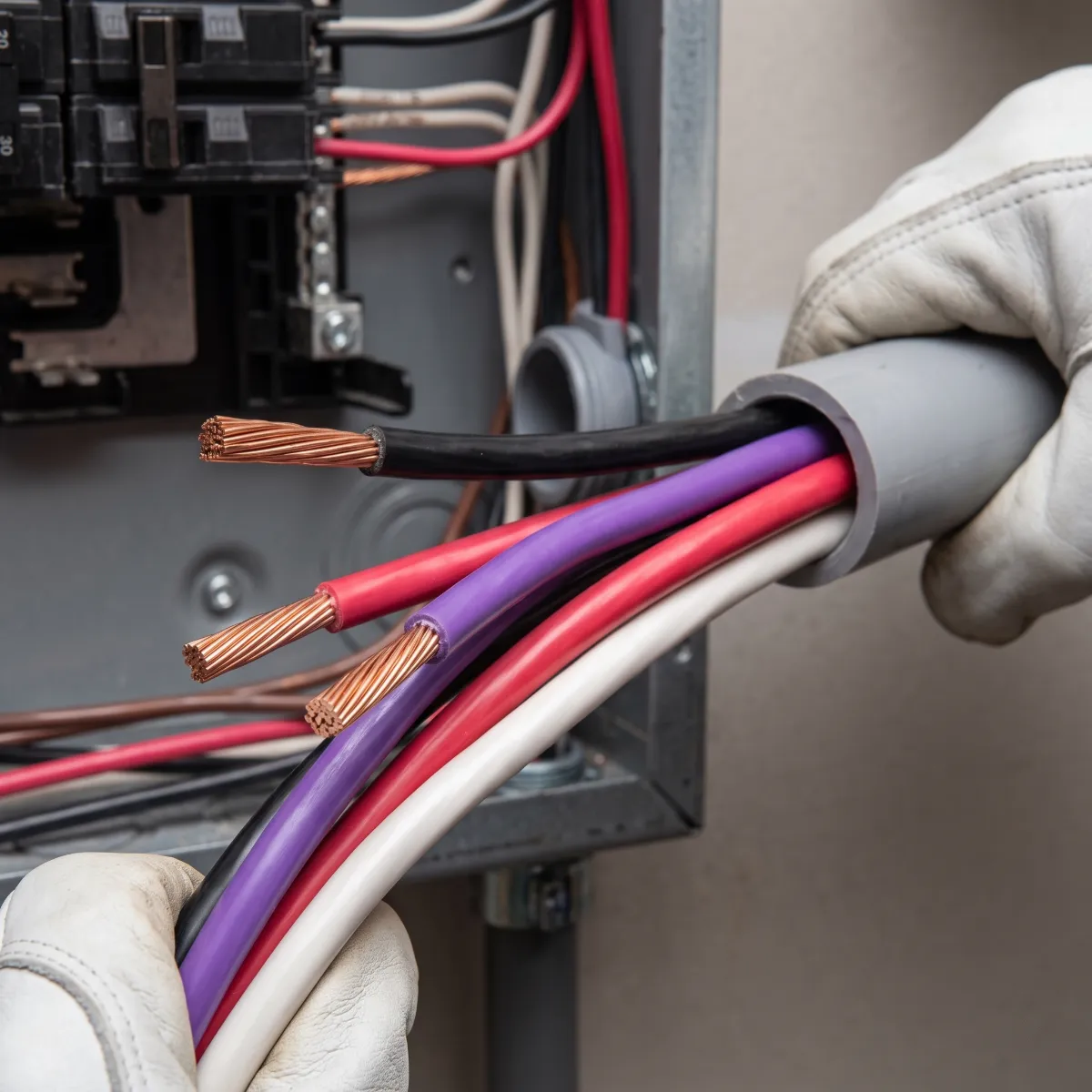

Common THHN application contexts:

• Conduit installations: THHN is the standard wire type for conduit installations in commercial, industrial, and complex residential applications.
• Panel wiring: THHN is used for wiring inside electrical panels for circuit connections between breakers and load conductors.
• Feeder circuits: Feeder circuits between service panels and subpanels typically use THHN in conduit.
• Branch circuits in conduit: Branch circuits requiring conduit installation (commercial, industrial, exposed installations) use THHN.
• Equipment connections: THHN provides the flexible individual conductors needed for connecting equipment where individual conductor routing is required.

THHN vs THWN (Thermoplastic High Heat Water resistant Nylon jacket): Modern THHN is typically also THWN-2 rated, meaning it’s approved for both dry and wet locations. This dual rating (marked as THHN/THWN-2 on the wire) is standard for most current production and allows the same wire to be used across dry and wet location applications.

EV Charger Installations: The Largest 8 AWG Application

EV charger installations represent one of the largest and fastest-growing application categories for 8 AWG copper conductors. Understanding EV charger wire sizing helps clarify why the Southwire 8 AWG purple THHN is relevant to this expanding market.

Typical residential EV charger wire sizing:

• 32A Level 2 charger (typical NEMA 14-50 receptacle): Uses 40A breaker, 8 AWG copper conductors. Common for lower-cost Level 2 chargers.
• 40A continuous Level 2 charger: Uses 50A breaker (125 percent continuous load sizing), 8 AWG copper conductors. Common for mid-range Level 2 chargers.
• 48A continuous Level 2 charger (Tesla Wall Connector, some ChargePoint models): Uses 60A breaker (125 percent continuous load sizing), 6 AWG copper conductors typically required. Some installations may use 8 AWG depending on specific installation factors.
• 80A dual charger installations: Uses 100A breaker, 3 AWG copper or larger conductors. Beyond 8 AWG capacity.

Why EV charger installations often need color-coded conductors:

• Multiple circuit types in same panel: Homes with EV chargers plus other high-power circuits (electric range, dryer, water heater, hot tub) benefit from consistent color coding for troubleshooting.
• Dedicated EV subpanels: Some installations use dedicated subpanels for EV charging equipment. Consistent color coding within the subpanel simplifies future service work.
• Future maintenance and troubleshooting: Consistent color coding across installations simplifies future service work by any electrician, not just the original installer.
• Multi-vehicle households: Households with multiple EVs often have multiple charger circuits, requiring careful identification of which circuit serves which charger location.

The Southwire 8 AWG purple THHN can serve EV charger circuit installations where the specific installation calls for purple identification (either by contractor standard, facility standard, or specific project requirements). For standard EV charger installations without specific color requirements, the more common colors (black, red, blue) are typically used.

For EV charger installations, consider the specific wire type requirements: some installations use THHN in conduit (this product), while others use NM-B Romex where cable is permitted. For NM-B alternatives, browse our complete electrical wire and cable collection.

Typical 40A and 50A Circuits Requiring 8 AWG

Understanding the specific circuit types that require 8 AWG copper conductors helps buyers evaluate whether the Southwire 8 AWG purple THHN matches their installation needs. The 40A-50A range covers a specific set of residential and light commercial applications.

Residential 40A circuits:

• 40A electric range circuits: Smaller electric ranges configured for 40A service.
• 40A subpanel feeders: Detached garage subpanels, workshop subpanels, small pool equipment subpanels.
• 40A EV charger circuits: Lower-power Level 2 EV chargers configured for 32A continuous output.
• 40A tankless water heater circuits: Some electric tankless water heaters require 40A dedicated circuits.
• 40A pool pump circuits: Larger residential pool pumps.

Residential 50A circuits:

• 50A electric range circuits: Standard residential electric range circuit specification (most common).
• 50A EV charger circuits: Level 2 EV chargers configured for 40A continuous output.
• 50A hot tub and spa circuits: Standard residential hot tub and spa GFCI-protected circuits.
• 50A welder circuits: Standard contractor and hobbyist welder installations.
• 50A larger HVAC compressor circuits: Larger residential AC compressors or heat pumps.
• 50A RV receptacle circuits: Residential RV outlets and dedicated RV parking installations.
• 50A generator inlet circuits: Portable generator inlet connections for whole-house or partial-house backup.

Light commercial 40A-50A circuits:

• Commercial refrigeration compressor circuits: Small walk-in refrigeration compressors.
• Commercial cooking equipment circuits: Larger commercial cooking equipment requiring dedicated 40A or 50A circuits.
• Commercial HVAC compressor circuits: Small commercial rooftop HVAC unit compressor circuits.
• Light commercial equipment feeders: Various commercial equipment requiring dedicated 40A or 50A supply.
• Small commercial subpanels: Small commercial building subpanels serving specific equipment groups.

For all these applications, 8 AWG copper THHN in the specified color (purple for identification-specific installations) provides the appropriate conductor sizing per NEC requirements.

Common Applications for Purple Identification

Understanding the specific applications where purple insulation is used for circuit identification helps buyers confirm the Southwire 8 AWG purple THHN matches their specific installation requirements.

Medical facility isolated power systems: Operating rooms, procedure rooms, and other medical spaces requiring isolated power systems (per NEC 517 and related standards) often use specific color codes to distinguish isolated circuits. Purple is a common color assignment for isolated power system conductors in some facilities.

Data center UPS-fed circuits: Data centers and computer facilities frequently use purple to identify UPS-fed circuits distinct from normal utility circuits. This color coding helps facility staff quickly identify which circuits will remain powered during utility outages.

Emergency and standby power circuits: Some facilities use purple to identify emergency, standby, or backup power circuits distinct from normal utility power circuits (per NEC 700, 701, 702 requirements). This helps distinguish between different power system classes during maintenance and emergency response.

Laboratory power systems: Research laboratories, testing facilities, and specialized industrial facilities may use specific color codes including purple for identifying particular circuit types (dedicated equipment circuits, isolated ground circuits, specialty power feeds).

Facility-specific color standards: Some large facilities (universities, hospitals, corporate campuses, government facilities) have established color-coding standards that assign specific colors to specific circuit types. Purple may be assigned to backup power, specific equipment types, or specialty circuits in these standards.

Multi-circuit conduit installations: Complex commercial and industrial installations with many circuits sharing conduit runs may exhaust the standard color options (black, red, blue) and require additional colors like purple for continued circuit differentiation.

Custom architectural and design specifications: High-end residential projects, custom commercial spaces, and specialized designs sometimes specify custom color coding schemes that may include purple for specific circuit types.

Contractor standardization: Some electrical contractors have adopted consistent color assignment standards across all their projects to standardize installations and simplify future service work. Purple may be part of these consistent standards for specific circuit types.

The Southwire 8 AWG purple THHN provides the specialty color for these applications while maintaining full NEC compliance and standard electrical characteristics.

Conduit Fill for 8 AWG THHN

Proper conduit fill calculations ensure that 8 AWG THHN installations meet NEC 310.15(B)(3) and NEC Chapter 9 requirements. Understanding conduit fill helps installers plan installations properly.

Basic conduit fill principles per NEC Chapter 9:

• 40 percent maximum fill: Standard conduit installations allow up to 40 percent conduit cross-sectional area filled with conductors.
• Conductor area calculation: Each conductor’s cross-sectional area (insulation included) is counted toward the fill total.
• Table C references: NEC Chapter 9, Table C provides specific conductor counts allowed per conduit size for common conductor sizes and types.

Typical 8 AWG THHN conduit fill capacities (per NEC Chapter 9, Table C.1 for EMT):

• 1/2 inch EMT: 3 conductors of 8 AWG THHN maximum.
• 3/4 inch EMT: 6 conductors of 8 AWG THHN maximum.
• 1 inch EMT: 9 conductors of 8 AWG THHN maximum.
• 1 1/4 inch EMT: 16 conductors of 8 AWG THHN maximum.

Ampacity derating for multiple conductors:

• NEC 310.15(B)(3)(a) applies: When 4 or more current-carrying conductors share a conduit or cable, the conductor ampacity is derated.
• 4-6 conductors: 80 percent of ampacity.
• 7-9 conductors: 70 percent of ampacity.
• 10-20 conductors: 50 percent of ampacity.

For typical single-circuit installations (2-3 conductors sharing conduit), no ampacity derating is required and the standard 8 AWG copper ampacities (40A at 60C, 50A at 75C) apply directly. For multi-circuit installations, verify ampacity derating requirements before final circuit sizing decisions.

Why the 500 ft Roll Matches Contractor Purchase Patterns

The Southwire 8 AWG purple THHN is delivered as a 500 foot roll (spool), which specifically matches typical contractor purchase patterns for 8 AWG applications. Understanding the form factor economics helps clarify why this specific length is appropriate for professional purchasing.

Typical 8 AWG project consumption patterns:

• Single-circuit installations: A typical single 50A circuit installation (electric range, EV charger, hot tub) requires approximately 30-60 feet of each conductor color depending on the circuit run length.
• Multi-circuit small commercial projects: Small commercial installations with multiple 40A-50A circuits may consume 100-300 feet of each color for a typical project.
• Panel wiring projects: Panel wiring within an electrical panel typically consumes 5-15 feet of each color per panel.
• 500 foot roll matches project scale: The 500 foot roll length matches typical multi-project consumption for small to medium electrical contractors without over-purchasing bulk quantities.

Advantages of 500 foot roll form factor:

• Manageable inventory: A 500 foot roll of 8 AWG stranded copper weighs approximately 25-30 pounds and can be handled by a single electrician without specialized equipment.
• Reasonable capital commitment: The 500 foot quantity represents a reasonable inventory investment per color without requiring large bulk purchase capital.
• Storage space: A 500 foot roll takes up approximately the space of a basketball, fitting in standard wire storage racks or truck-mounted wire caddies.
• Job-lot purchasing: Contractors can purchase 500 foot rolls per project or per multi-project time period, matching consumption to purchasing schedule.
• Reduced waste: Buying appropriate quantities reduces the risk of unused wire sitting as inventory or being scrapped at project completion.

For larger contractor operations consuming substantial 8 AWG THHN quantities, larger spools (1,000-2,500 feet) may be more economical. For occasional 8 AWG needs, the 500 foot roll provides sufficient wire without unnecessarily large inventory commitment.

Purple vs Other 8 AWG Color Options

Understanding when to select the Southwire 8 AWG purple THHN versus other 8 AWG color options helps buyers make the appropriate color selection for their specific application.

Standard 8 AWG THHN color options and typical uses:

• Black 8 AWG THHN: Standard Phase A hot conductor. The highest-consumption 8 AWG color for typical installations. Used for most single-phase and three-phase hot connections.
• Red 8 AWG THHN: Standard Phase B hot conductor for 240V single-phase or three-phase applications. Second highest consumption color.
• Blue 8 AWG THHN: Standard Phase C hot conductor for three-phase applications. Also used as additional single-phase hot when needed.
• White 8 AWG THHN: Neutral conductor for circuits requiring neutrals. NEC 200.6 mandates white or gray for neutrals.
• Green 8 AWG THHN: Equipment grounding conductor. NEC 250.119 mandates green or bare copper for grounds.
• Yellow 8 AWG THHN: Alternative hot conductor for identification purposes or additional phases beyond standard colors.
• Purple 8 AWG THHN (this product): Specialty identification color for isolated power, backup power, UPS circuits, facility-specific standards, or when standard colors are exhausted.

Selection guidance:

• Standard installations without specific color requirements: Use black, red, blue for hot conductors; white for neutral; green for ground. Standard color combinations meet all NEC requirements.
• Isolated power systems: Follow facility-specific color standards; purple is often assigned to isolated power conductors.
• Backup power circuits: Some facilities use purple for backup, standby, or emergency power circuits. Follow facility standards.
• UPS-fed circuits: Data centers and computer facilities often use purple for UPS-fed circuits. Follow facility standards.
• Multi-circuit installations exhausting standard colors: When standard colors are used elsewhere in the same conduit, purple provides additional color differentiation.
• Custom facility color standards: Follow specific facility electrical drawings and specifications for color assignments.
• Contractor color standardization: Follow contractor internal color assignment standards for consistency across projects.

Consider ordering multiple 8 AWG THHN colors for complete installation needs. Standard color 8 AWG THHN options are available in our electrical wire and cable collection alongside this purple 8 AWG option.

Southwire 8 AWG Purple THHN Specifications

Southwire 8 AWG Purple THHN FAQs

Who the Southwire 8 AWG Purple THHN Is Built For

The Southwire 8 AWG purple THHN serves specific buyer profiles working on installations that require purple insulation for 8 AWG conductors. Understanding the target buyers helps confirm the wire matches your specific project needs.

Electrical contractors working on isolated power systems: Contractors installing or maintaining isolated power systems in medical facilities, laboratories, or other specialized applications requiring specific color coding for isolated circuits. Purple is often assigned to isolated power system conductors.

Data center and computer facility contractors: Contractors installing or maintaining data center power systems where UPS-fed circuits are typically identified with purple insulation distinct from utility-fed circuits.

Contractors serving facilities with specific color-coding standards: Contractors working on facilities (universities, hospitals, corporate campuses, government facilities) with established color-coding standards that assign purple to specific circuit types.

EV charger installers in facilities with color-coding requirements: Some EV charger installations in commercial facilities require conductor identification per facility standards, potentially including purple for specific charger circuits.

Commercial and industrial electricians on multi-circuit installations: Complex commercial and industrial projects with multiple circuits sharing conduit runs often exhaust standard colors and require additional colors like purple for continued circuit differentiation.

Backup and emergency power system installers: Contractors installing standby generator systems, UPS systems, or emergency power distribution may use purple to identify backup-fed circuits per facility standards or NEC 700/701/702 identification best practices.

Custom residential and architectural projects: High-end custom residential and architectural projects sometimes specify custom color coding that may include purple for specific circuit types.

Homeowners on specific specialty projects: Homeowners working with electricians on projects requiring purple identification (medical equipment circuits, backup power circuits, specialty equipment circuits).

For standard installations without specific purple identification requirements, browse the standard 8 AWG THHN colors in our electrical wire and cable collection.

Installation and Handling Tips

Successful Southwire 8 AWG purple THHN installations follow standard THHN installation practices while taking advantage of SIMpull technology for reduced pulling effort. Understanding key installation considerations helps optimize installation efficiency and code compliance.

Verify conduit fill compliance: Before beginning installation, verify that the total conductor count in the conduit run meets NEC 310.15(B)(3) and NEC Chapter 9, Table C fill requirements. Add conductor counts by color and total cross-sectional area against conduit capacity.

Plan for ampacity derating: If the conduit run includes 4 or more current-carrying conductors, plan for the appropriate ampacity derating per NEC 310.15(B)(3)(a). Adjust circuit breaker sizing and load calculations accordingly.

Use appropriate pulling equipment: For 500 foot pull lengths or difficult conduit runs, use appropriate wire pulling equipment (mechanical pullers, pulling grips, fish tape). Even with SIMpull’s reduced friction, 8 AWG conductor pulls benefit from proper equipment.

Consider pulling compound sparingly: SIMpull technology reduces or eliminates the need for pulling compound in many installations. If pulling compound is needed for particularly difficult pulls, use minimal quantities of quality wire pulling lubricant.

Coordinate multiple color pulls: When pulling multiple colors through the same conduit, coordinate the pull to include all needed colors simultaneously rather than making separate pulls per color. This reduces total installation time and ensures consistent color assignment across the entire circuit.

Verify color identification at both ends: After pulling, verify color identification at both ends of the circuit. In multi-circuit installations, confirm that each color reaches the correct destination.

Use appropriate wire nuts and connectors: Terminate 8 AWG stranded conductors using wire nuts or connectors specifically rated for 8 AWG stranded copper. Verify terminal temperature ratings match the intended circuit ampacity.

Follow torque specifications: When terminating 8 AWG conductors at circuit breakers, receptacles, or equipment terminals, follow manufacturer torque specifications for reliable connections. Under-torqued or over-torqued terminations create future reliability issues.

Label circuits clearly: Beyond the color identification of the conductor itself, label circuits clearly at the panel and at destination points. Color identification supplements but does not replace clear circuit labeling.

Comply with local code: All installations must comply with local electrical code, which may include amendments to NEC requirements. Verify local requirements before installation.

Browse the complete IB Lighting electrical wire and cable collection for additional 8 AWG color options and complementary wire products, consider Southwire 12 AWG black THHN for 20A circuits within the same installation, explore other Southwire products, or visit our customer FAQ hub for wire installation guidance. Manufacturer technical documentation is available at the official Southwire website.
