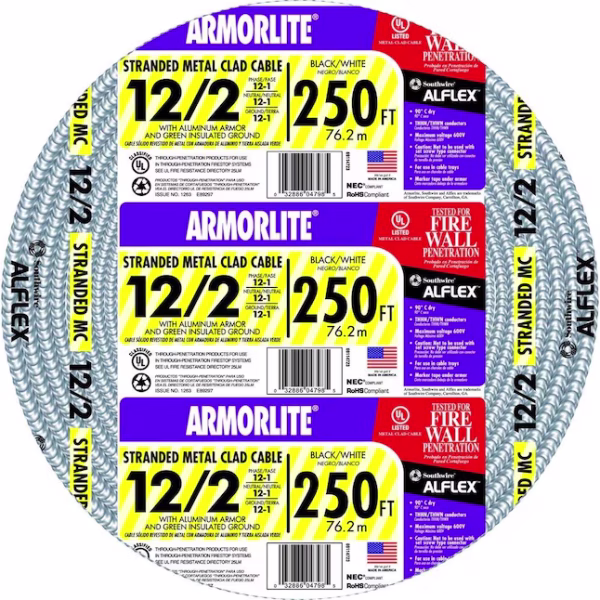

Southwire Armorlite 250-ft 12 / 2 Stranded Aluminum MC Cable (Metal Clad)

The Southwire Armorlite 12/2 MC cable is the metal clad branch circuit cable used in commercial, industrial, and multi-residential buildings where building code or fire safety requirements call for armored cable instead of standard NM-B Romex. As a 12/2 MC cable 250 ft spool, the unit length suits typical commercial branch run consumption while remaining manageable for single-installer handling on most job sites. As a stranded aluminum MC cable, the Southwire Armorlite 12/2 MC cable uses flexible stranded aluminum conductors that handle the bends, twists, and rerouting that real commercial installations always require, where solid copper would resist conformity to congested above-ceiling runs. The interlocking aluminum armor provides mechanical protection equivalent to wire-in-conduit while eliminating the conduit installation step entirely, which is why metal clad 12 gauge cable has become the dominant choice for commercial branch wiring over the past two decades. As an Armorlite 250 ft 12/2 spool from Southwire’s flagship MC cable line, every unit is UL Listed, meets NEC Article 330 requirements for MC cable installations, and ships nationwide from IB Lighting with free freight and contractor volume pricing. Manufacturer specifications are available at the official Southwire website.

Southwire Armorlite 12/2 MC Cable Key Highlights

What MC Cable Is (And What It Isn’t)

MC stands for Metal Clad, and MC cable like the Southwire Armorlite 12/2 MC cable is a fundamentally different product category from the NM-B Romex used in single-family residential installations. Understanding the difference matters because each is correct for different applications, and using the wrong one creates code violations that fail inspection.

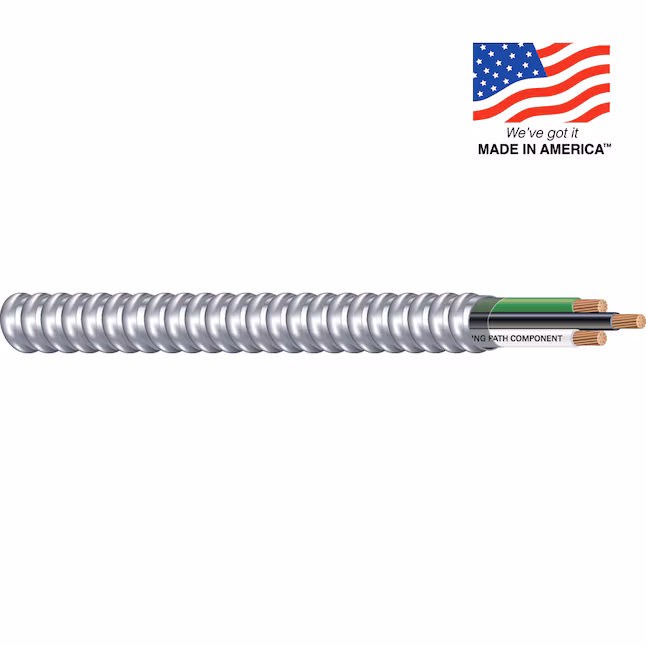

MC cable consists of insulated conductors bundled together inside a continuous spiral-wound metal armor (in this case aluminum), with the armor itself serving as both mechanical protection and the equipment grounding path in many installations. The conductors are typically stranded for flexibility, and the armor provides protection from physical damage that would otherwise require running the wire inside metal conduit. The Southwire Armorlite 12/2 MC cable contains two insulated 12 AWG conductors plus an insulated ground wire, all enclosed within the aluminum armor.

What MC cable is NOT: it is not NM-B Romex with a metal jacket. It is a different code-recognized product type with its own NEC article (Article 330), its own installation requirements, its own ampacity tables, and its own approved use cases. It is not interchangeable with NM-B for residential installations where NM-B is code-compliant, and it is not interchangeable with THHN-in-conduit for installations where conduit-encased wiring is required. MC cable occupies a specific middle ground: armored mechanical protection without the labor of conduit installation, approved for commercial and multi-family applications where NM-B is not acceptable.

Interlocking Aluminum Armor: Why MC Beats Wire-in-Conduit on Labor

The defining feature of the Southwire Armorlite 12/2 MC cable is the spiral-wound interlocking aluminum armor that wraps the entire length of the cable. This armor provides mechanical protection from impact, drywall screws, mounting hardware, and incidental damage that bare or PVC-jacketed wire would not survive in commercial environments. The armor also resists rodent damage and provides some flame-spread protection, which matters for code compliance in fire-rated assemblies.

The key economic argument for the Southwire Armorlite 12/2 MC cable versus alternative wiring methods is labor. Commercial branch wiring traditionally meant pulling THHN or THWN conductors through electrical metallic tubing (EMT conduit) that had to be measured, cut, bent, mounted, and connected before any wire could be pulled. That conduit installation work easily doubled or tripled the total labor hours of the branch wiring project. The Southwire Armorlite 12/2 MC cable eliminates the conduit step entirely. The cable is pulled directly, supported by bridle rings or cable hangers, and terminated at boxes with MC-rated connectors. What was a multi-day conduit-then-wire process becomes a single-day cable pull.

For larger commercial projects, the labor savings from using the Southwire Armorlite 12/2 MC cable instead of THHN-in-conduit can run into thousands of dollars per branch circuit run. Multiplied across the dozens of circuits in a typical commercial fit-out, the savings are meaningful enough to justify MC cable’s higher per-foot material cost compared to bare THHN. This is why MC cable has become the dominant choice for commercial branch wiring over the past two decades.

Stranded Aluminum Conductors: Flexibility Where It Matters

The Southwire Armorlite 12/2 MC cable uses stranded aluminum conductors rather than solid copper. Both choices are deliberate and reflect the demands of commercial installation environments. Stranded conductors flex more easily than solid conductors, which matters when the cable needs to navigate the bends, twists, and rerouting common to congested above-ceiling and in-wall commercial runs. Solid conductors resist bending and tend to retain set shapes that fight against installer adjustments. Stranded conductors conform to the installation path.

Aluminum versus copper is a meaningful spec choice that buyers should understand. Aluminum is lighter than copper, less expensive per pound, and meaningfully easier to handle in long runs. The trade-off is that aluminum conductors require terminations rated for aluminum (CO/ALR rated devices or anti-oxidant compound application during termination) to ensure long-term reliability. This is a well-understood commercial wiring practice, and any electrician working in commercial construction is familiar with aluminum termination requirements. For commercial applications where the wiring is terminated at panels, distribution boxes, and fixtures using rated hardware, stranded aluminum is fully reliable and code-compliant.

For residential single-family applications, solid copper NM-B remains the standard because aluminum termination concerns are less well-handled by typical residential electrical work. The Southwire Armorlite 12/2 MC cable specifically targets commercial and multi-family installations where aluminum termination is routine and the labor savings of MC cable justify the small additional care.

Where the Southwire Armorlite 12/2 MC Cable Is the Right Choice

The Southwire Armorlite 12/2 MC cable is purpose-built for installations where NM-B Romex is not appropriate and wire-in-conduit is overkill. The most common applications include:

• Commercial branch lighting circuits. Office buildings, retail spaces, restaurants, medical facilities where 20-amp lighting branches need armored protection.
• Commercial receptacle circuits. Workstation power, equipment receptacles, general convenience outlets in any commercial space.
• Multi-family residential branch wiring. Apartment buildings, condominium buildings, dormitories, and other multi-unit residential where NM-B may not be code-permitted depending on construction type.

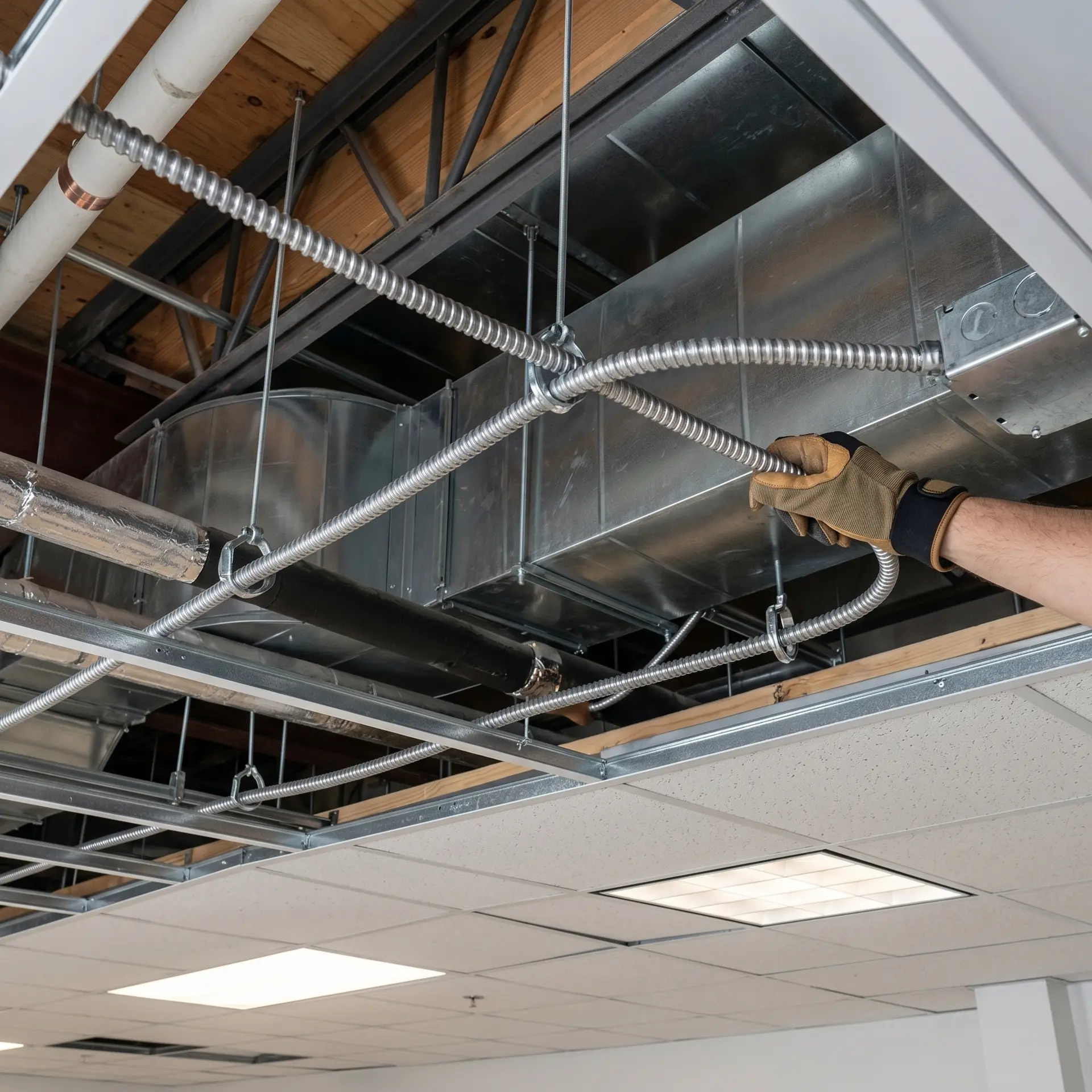

• Above drop-ceiling cable runs. Routing through commercial drop ceiling plenums where exposed cables would otherwise need conduit protection.
• Industrial branch circuits. Light commercial and industrial equipment power, machine controls, lighting in warehouses and production facilities.
• Healthcare and educational facility branch wiring. Hospitals, schools, and similar facilities with fire-rated assembly requirements.
• Tenant build-out and fit-out projects. Renovation and tenant improvement work where MC cable speeds up the project and reduces labor disruption.

For single-family residential branch wiring, NM-B Romex remains the standard choice and is meaningfully less expensive. The Southwire 12/2 NM-B Romex SIMpull 250 ft is the right pick for residential applications. The Southwire Armorlite 12/2 MC cable is specifically the right choice when commercial code, fire safety, or multi-family construction calls for armored cable instead.

NEC Article 330 Code Compliance

The Southwire Armorlite 12/2 MC cable is governed by Article 330 of the National Electrical Code, which covers Metal Clad Cable installations. This is a different code article than NM-B (Article 334) and has its own specific requirements for support spacing, bending radius, termination methods, and approved use locations. Any electrician installing the Southwire Armorlite 12/2 MC cable on a commercial project must understand Article 330 requirements, which differ meaningfully from the Article 334 rules that govern residential NM-B installations.

Key Article 330 requirements include support of the MC cable at intervals not exceeding six feet (versus 4.5 feet for NM-B), bending radius limitations to prevent damage to the internal conductors during installation, approved termination using MC-rated cable connectors that grip the armor and provide proper grounding continuity, and specific approved use locations that include most commercial, industrial, and multi-family applications. MC cable is approved for indoor and certain outdoor applications, dry and damp locations (with specific limitations), and concealed and exposed installations.

MC cable is NOT approved for direct burial, wet location service entrance, or applications where the armor would be exposed to corrosive chemicals or constant moisture. For those applications, other cable types (UF for direct burial, SE for service entrance, special corrosion-resistant cables for chemical environments) are required instead. The Southwire Armorlite 12/2 MC cable is UL Listed and meets all NEC Article 330 requirements for its approved use locations.

Labor Savings vs Wire-in-Conduit: The Real Economic Argument

The single biggest reason commercial contractors specify the Southwire Armorlite 12/2 MC cable instead of THHN conductors in EMT conduit is labor. A traditional THHN-in-conduit branch circuit installation involves: measuring and cutting EMT conduit to fit the routing, bending the conduit at corners using a hand bender, mounting the conduit with straps or hangers at code-required intervals, joining conduit sections with couplings and fittings, installing pull boxes at code-required points, then finally pulling THHN conductors through the completed conduit run and terminating at the boxes.

The Southwire Armorlite 12/2 MC cable installation involves: pulling the cable along the routing path, supporting it with bridle rings or cable hangers at code-required intervals, then terminating at the boxes with MC-rated connectors. The conduit steps disappear entirely. On a typical commercial branch circuit run of 50 to 100 feet, MC cable installation completes in roughly one-third to one-half the labor hours of equivalent THHN-in-conduit work.

For commercial electrical contractors bidding fit-out projects, the labor differential adds up quickly. A typical commercial tenant build-out might include 30 to 60 branch circuit runs. The labor savings from using MC cable instead of wire-in-conduit across that many circuits can run into tens of thousands of dollars per project. This is why the Southwire Armorlite 12/2 MC cable has become the default specification for commercial branch wiring on most modern projects, with wire-in-conduit reserved for specific applications where code or fire ratings explicitly require it.

Southwire Armorlite 12/2 MC Cable Specifications

Southwire Armorlite 12/2 MC Cable FAQs

Who the Southwire Armorlite 12/2 MC Cable Is Built For

The Southwire Armorlite 12/2 MC cable serves three clear buyer types. The first is commercial electrical contractors running tenant fit-outs, office build-outs, retail installations, restaurant projects, medical facility wiring, and similar commercial branch circuit work. For these buyers, the Southwire Armorlite 12/2 MC cable is the workhorse cable that gets pulled on most every project, and reliable supply at predictable pricing matters when a fit-out schedule depends on cable arriving on time.

The second buyer is the multi-family residential builder or remodeler working on apartment buildings, condominium projects, dormitories, or other multi-unit residential where construction type prohibits NM-B Romex. For these buyers, the Southwire Armorlite 12/2 MC cable is the code-compliant alternative that handles branch wiring throughout the project. Multi-family construction is one of the largest growing segments of the residential market, and MC cable demand has grown accordingly.

The third buyer is the industrial facility electrician handling branch wiring in light commercial and industrial environments. Warehouses, production facilities, equipment power, machine controls, and similar applications all use MC cable extensively. For these buyers, the labor savings versus wire-in-conduit make the Southwire Armorlite 12/2 MC cable the default specification. Browse the broader IB Lighting electrical wire collection for related cable types, or visit the Southwire brand hub for additional Southwire products.

MC Cable vs NM-B Romex: When to Use Which

The Southwire Armorlite 12/2 MC cable and the Southwire 12/2 NM-B Romex are both 12 AWG, 600V branch circuit cables, but they serve fundamentally different applications. Understanding which is correct for your project matters because using the wrong one creates code violations that fail inspection.

Choose MC cable like the Southwire Armorlite 12/2 MC cable if your project is commercial, industrial, or multi-family residential where construction type does not permit NM-B Romex. MC cable is required where building code calls for armored cable, where fire-rated assemblies need armor protection, where exposed cable runs need mechanical protection without conduit, or where labor savings versus wire-in-conduit justify the higher per-foot material cost.

Choose NM-B Romex like the Southwire 12/2 NM-B Romex SIMpull 250 ft if your project is single-family residential branch wiring in dry indoor locations. NM-B is meaningfully less expensive per foot than MC cable, easier to terminate (no armor cutting or MC-rated connectors required), and is the standard specification for the single-family residential market. NM-B is not approved for commercial or many multi-family applications.

MC Cable vs THHN-in-Conduit: The Other Commercial Choice

Within commercial branch wiring, the Southwire Armorlite 12/2 MC cable competes against the traditional alternative of THHN conductors pulled through EMT (electrical metallic tubing) conduit. Both are code-compliant for most commercial branch applications, and the choice between them is driven by labor cost, installation conditions, and specific code or fire-rating requirements.

Choose MC cable if your project benefits from the meaningful labor savings of skipping the conduit installation step. MC cable is the right pick for most commercial branch circuit work in standard construction where labor cost is a primary driver. The Southwire Armorlite 12/2 MC cable delivers the same 20-amp 12 AWG circuit capacity with one-third to one-half the labor hours of equivalent THHN-in-conduit work.

Choose THHN-in-conduit if your project specifically requires conduit-encased wiring for code reasons (certain plenum applications, specific fire-rated assemblies, jurisdictions with stricter conduit requirements), if you need future-flexibility to add or change conductors without re-pulling cable, or if your installation involves environments where MC armor is not appropriate. THHN-in-conduit also tends to be the right choice for very long branch runs where the rigidity of conduit aids cable management.

For most modern commercial branch wiring projects in standard construction, MC cable has become the default specification, with wire-in-conduit reserved for the specific applications where it remains the better choice.

Installation Tips for the Southwire Armorlite 12/2 MC Cable

Installing the Southwire Armorlite 12/2 MC cable on a commercial project follows specific best practices that improve inspection pass rates and long-term reliability. Support spacing per NEC Article 330 requires intervals not exceeding six feet, with additional support within twelve inches of every box and fitting. Use bridle rings, cable hangers, or J-hooks at each support point. Avoid over-clamping that crushes the cable armor or distorts the internal conductors.

Bending radius limitations matter on MC cable. The minimum bend radius for the Southwire Armorlite 12/2 MC cable is approximately seven times the cable’s outside diameter, which prevents internal conductor damage during installation. Sharp bends that exceed this limit can damage conductors, reduce ampacity, or cause long-term reliability issues that may not show up immediately but degrade over years of operation.

Termination at boxes requires MC-rated cable connectors that grip the aluminum armor and provide proper grounding continuity to the box itself. These are different from NM-B cable clamps. Cut the armor cleanly using an MC cable cutter (a specific tool designed for the spiral armor), trim about 8 inches of conductor exposure for box termination, and use the MC connector’s setscrew or compression mechanism to secure the armor to the box. Apply anti-oxidant compound to aluminum conductor terminations per local code and manufacturer instruction.

Bulk and Contractor Pricing

The Southwire Armorlite 12/2 MC cable is one of IB Lighting’s stocked commercial wire SKUs because contractors buy MC cable in volume on most commercial fit-out projects. We offer automatic volume pricing on multi-coil orders, with deeper savings on larger bills of materials. A typical commercial fit-out covering 20 to 40 branch circuits often consumes 8 to 15 coils of the Southwire Armorlite 12/2 MC cable, and these orders trigger our standard contractor pricing tier.

Free freight applies to every Southwire Armorlite 12/2 MC cable order regardless of quantity. Most orders ship within 1 to 2 business days and arrive within 5 to 6 business days. If you need a bill of materials priced and quoted before you order, the IB Lighting team can turn around a quote inside of a business day for most projects. Browse our complete electrical wire collection for related cable types to round out your project bill.

Browse the complete IB Lighting electrical wire and cable collection, compare against the Southwire 12/2 NM-B Romex SIMpull 250 ft (residential alternative), explore other Southwire products, or visit our customer FAQ hub. Manufacturer technical sheets are available at the official Southwire website.
