What Is the Reliance 510C Transfer Switch?

A manual transfer switch is a permanently installed electrical panel that allows you to safely connect a portable generator to selected circuits in your home. Unlike automatic transfer switches that work with permanently installed standby generators, a manual transfer switch requires you to physically flip switches to transfer each circuit from utility power to generator power during an outage.

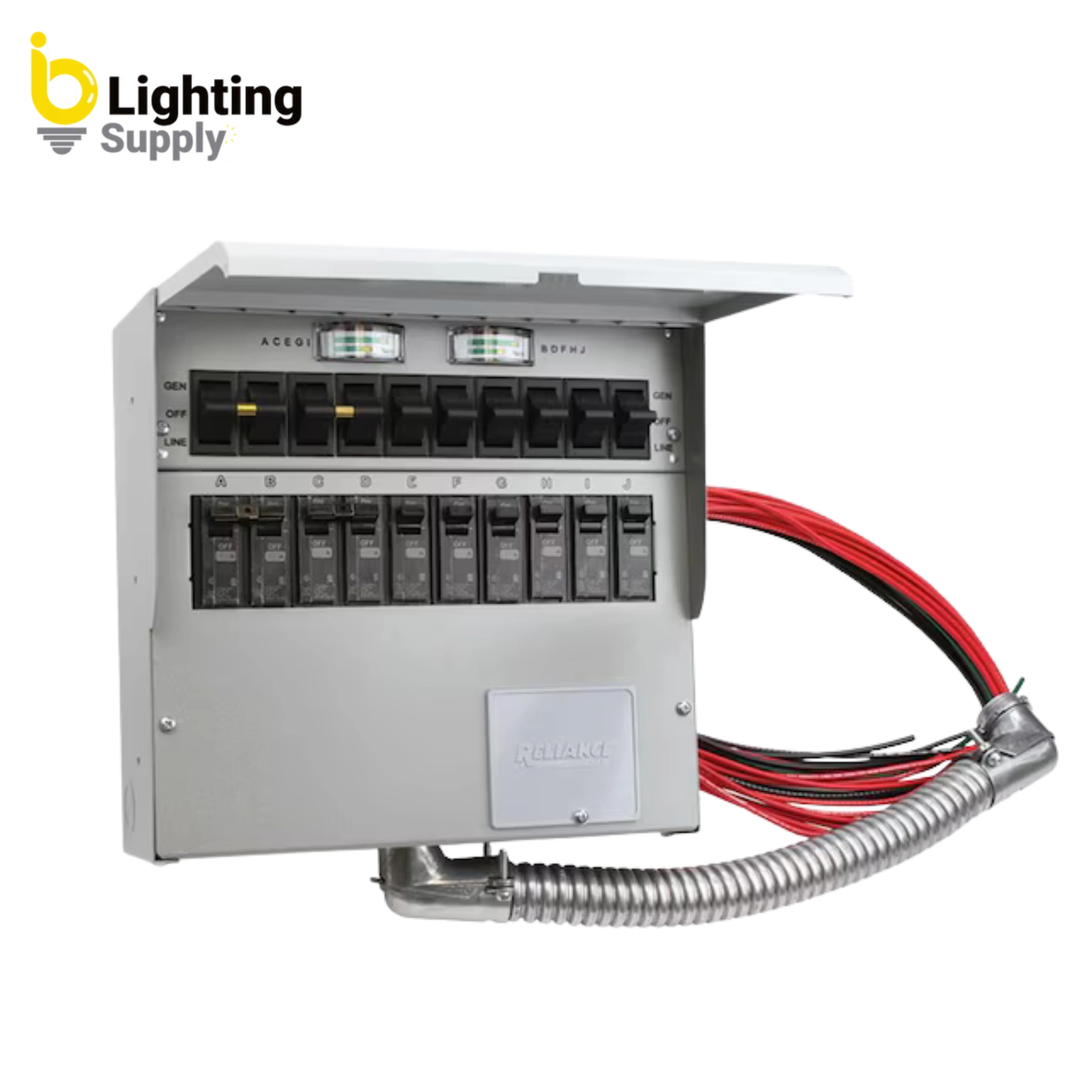

The Reliance 510C is the next generation of Reliance Controls’ Loadside manual transfer switches. It mounts next to your existing electrical panel and connects to selected branch circuits through a flexible conduit whip. When utility power fails, you start your portable generator, plug it into an outdoor power inlet box connected to the transfer switch, and then flip the circuit selector switches to transfer your chosen circuits to generator power. When utility power returns, you reverse the process.

This manual approach costs significantly less than automatic standby systems while providing the same essential safety function: preventing backfeeding and allowing you to power critical circuits during an outage.

Technical Specifications for the Reliance 510C Transfer Switch

Understanding the complete specification profile is essential for proper system design and installation planning.

• Model Number: 510C (Pro/Tran 2 Series)
• Amperage: 50 Amps
• Voltage: 120/240V, Single Phase
• Frequency: 60 Hz
• Maximum Generator Wattage: 12,500 Watts
• Number of Circuits: 10 Single-Pole or 5 Double-Pole
• Pre-Configured Breakers: (6) 15A 1-Pole, (2) 20A 1-Pole, (1) 20A 2-Pole
• Circuit Breaker Type: 1-inch interchangeable (compatible with AFCI and GFCI breakers)
• Maximum Single Breaker: 30A Double-Pole
• Enclosure: NEMA 1R (Indoor) Powder-Coated Steel Cabinet
• Conduit Whip: 16-inch (some models 18-inch) flexible conduit with pre-wired, color-coded leads
• Knockouts: (6) Combination 1/2-inch and 3/4-inch
• Watt Meters: Built-in color-coded analog watt meters for load balancing
• Cover: Hinged non-metallic protective cover
• Dimensions: 11.25 in. (H) x 11.75 in. (W) x 4.5 in. (D)
• Weight: 15-19 lbs
• Certifications: UL Listed to UL Standard 1008
• Code Compliance: Meets NEC Article 702 (ANSI/NFPA 70)
• Required Accessory: 50-Amp Power Inlet Box (PB50, sold separately)
• Origin: Assembled in USA
• Warranty: 5-Year Limited Factory Warranty

Reliance 510C Transfer Switch Circuit Configuration

The 510C comes pre-configured with breakers sized for the most common residential circuits. The standard configuration includes six 15-amp single-pole breakers for standard lighting and receptacle circuits, two 20-amp single-pole breakers for kitchen, bathroom, or garage circuits, and one 20-amp double-pole breaker for a 240-volt load such as a well pump or window air conditioner.

The 1-inch interchangeable breakers can be reconfigured in the field if your needs differ. By adding handle ties (included), you can convert single-pole circuits to double-pole 240-volt circuits. This flexibility allows electricians to customize the transfer switch for each specific installation. The 1-inch breaker format also supports AFCI and GFCI breakers for circuits that require arc-fault or ground-fault protection.

How the Reliance 510C Transfer Switch Watt Meters Help Manage Generator Load

One of the most valuable features of the 510C is its built-in color-coded watt meters. These analog gauges display the real-time wattage being drawn on each leg of the generator output. Portable generators produce 120/240-volt split-phase power, meaning the total capacity is divided between two legs. If one leg is overloaded while the other is underutilized, the generator may trip its overload protection even though the total load is within capacity.

The watt meters allow you to see at a glance whether your loads are balanced. If one meter shows significantly higher wattage than the other, you can adjust which circuits are active to balance the load. This visual feedback helps prevent generator overload, extends generator life, and ensures you get maximum usable power from your equipment.

Residential Applications for the Reliance 510C Transfer Switch

The 510C is designed for homeowners who want reliable backup power without the cost of a permanently installed standby generator. Here are the most common residential scenarios where this transfer switch excels.

Essential Circuit Backup with Portable Generators in Reliance 510C Transfer Switch

Most homeowners do not need to power their entire home during an outage. The 10-circuit capacity of the 510C allows you to select the circuits that matter most: refrigerator, freezer, furnace or boiler, sump pump, well pump, lighting circuits, and a few receptacle circuits for charging devices and powering essential electronics. A mid-sized portable generator in the 5,000 to 12,500-watt range can comfortably handle these loads when managed properly.

Storm-Prone and Rural Areas: Reliance 510C Transfer Switch

Properties in hurricane, tornado, or ice storm regions face frequent extended outages. Rural properties with overhead utility lines and long distances to substations are particularly vulnerable. A manual transfer switch provides an affordable, permanent solution for connecting portable generator power safely. The switch stays in place year-round, ready for the next outage.

Homes with Existing Portable Generators: Reliance 510C Transfer Switch

Many homeowners already own portable generators but have no safe way to connect them to household circuits. Running extension cords through windows and doors is inconvenient, creates tripping hazards, and cannot power hardwired appliances like furnaces, well pumps, or sump pumps. The 510C provides a permanent, code-compliant connection point that puts generator power exactly where it is needed.

Budget-Conscious Backup Power: Reliance 510C Transfer Switch

A manual transfer switch costs a fraction of an automatic transfer switch and standby generator system. For homeowners who are home during most outages and do not mind the manual transfer process, this is a cost-effective way to achieve reliable backup power without a five-figure investment.

Commercial and Light Industrial Applications of Reliance 510C Transfer Switch

The Reliance 510C is also suitable for light commercial applications where 50-amp portable generator backup is appropriate.

Small Offices and Retail Locations: Reliance 510C Transfer Switch

Small offices, retail stores, and service businesses can use this transfer switch to power lighting, point-of-sale systems, security systems, and refrigeration during outages. The 10-circuit capacity covers the essential loads in most small commercial spaces.

Agricultural Operations: Reliance 510C Transfer Switch

Farms and ranches with well pumps, livestock ventilation, refrigeration, and lighting can use the 510C to connect portable generator power to critical circuits. The rugged powder-coated steel cabinet withstands the demanding conditions of agricultural utility rooms.

Remote Facilities and Outbuildings

Workshops, barns, storage facilities, and other outbuildings with separate electrical panels can be equipped with a manual transfer switch for portable generator backup. This is often more practical and affordable than extending a standby generator system to serve multiple structures.

Installation Requirements and Best Practices

Transfer switch installation must be performed by a licensed electrician in accordance with the National Electrical Code and local amendments. Below are the critical installation considerations for this unit.

Required Components

The 510C transfer switch requires a 50-amp power inlet box (model PB50 or equivalent) installed on the exterior of the building. The inlet box provides a weatherproof connection point for the generator power cord. A 50-amp generator power cord (such as the PC5010-14M 10-foot cord) connects the generator outlet to the inlet box. These components are sold separately or available as part of a complete kit (model 510CWK).

Mounting Location

The 510C is rated NEMA 1R for indoor installation only. It mounts on the wall adjacent to the main electrical panel. The surface must be flat, dry, and structurally sound. The transfer switch can be installed on either side of the load center. Adequate working clearance per NEC Article 110.26 must be maintained in front of both the transfer switch and the main panel.

Conduit Whip Connection

The pre-wired 16-inch flexible conduit whip connects to a knockout on the main panel. All factory wires are clearly marked and color-coded for identification. The electrician selects the circuits to be protected, disconnects the hot conductors from the original breakers in the main panel, and splices them to the corresponding transfer switch leads using the wire connectors provided.

Power Inlet Box Installation

The 50-amp power inlet box mounts on the exterior wall near where the generator will be positioned during use. The inlet box connects to the transfer switch through conduit or cable run through the wall. The electrician wires the inlet box according to the manufacturer’s instructions using the same color coding as the transfer switch terminal block.

For quality wiring products and accessories, browse the full selection in the IB Lighting Shop.

Safety Standards and NEC Compliance for the Reliance 510C Transfer Switch

The Reliance 510C meets the safety standards required for residential and commercial transfer switch installations in the United States.

UL 1008 Listing

This transfer switch is certified by Underwriters Laboratories to UL Standard 1008, the primary safety standard for transfer switch equipment in North America. UL 1008 covers electrical endurance, temperature rise, dielectric withstand, and mechanical switching performance. A UL 1008 listing confirms that the switch has been independently tested and verified to safely transfer electrical loads between power sources.

NEC Article 702 Compliance

The 510C meets all requirements of NEC Article 702, which governs optional standby systems. Article 702 requires transfer equipment that prevents the inadvertent interconnection of utility and generator power sources. The circuit selector switches in this transfer switch provide that isolation: when a circuit is in the GEN position, it is physically disconnected from the utility, and when in the LINE position, it is disconnected from the generator. This prevents backfeeding under all operating conditions.

Article 702 also requires a sign at the service entrance indicating the presence of an alternate power source. The installing electrician must provide this placard. For detailed information on NEC transfer switch requirements, the NFPA 70 National Electrical Code resource page provides access to official documentation.

Backfeed Prevention

Backfeeding occurs when generator power flows backward through the main panel and out to the utility lines. This creates a lethal hazard for utility workers and can damage equipment on neighboring properties. The Reliance 510C eliminates backfeed risk through its circuit selector switch design. Each circuit can only be connected to one power source at a time, and the transfer switch is isolated from the main panel bus by the wiring configuration.

Maintenance Schedule for the Reliance 510C Transfer Switch

A manual transfer switch has few moving parts and requires minimal maintenance. However, regular testing and inspection ensure the system works when you need it.

Monthly Generator Testing

Reliance recommends testing your generator and transfer switch at least once per month. Start the generator, allow it to warm up, plug it into the power inlet box, and transfer one or two circuits to verify proper operation. Check that the watt meters respond and that connected loads receive power. This monthly test keeps the generator in operating condition and confirms the transfer switch functions correctly.

Annual Professional Inspection

Once per year, a licensed electrician should inspect the transfer switch and power inlet box. This inspection should include visual examination of all electrical connections for discoloration or signs of overheating, verification of proper torque on all terminal screws, inspection of the circuit breakers for proper operation, inspection of the power inlet box for moisture intrusion or corrosion, and verification that the generator cord and inlet connections are in good condition.

Post-Event Inspection

After any extended use during an outage, inspect the transfer switch and inlet box before storing the generator. Check for any signs of overheating, loose connections, or damage. Address any issues immediately before the next outage.

Common Mistakes to Avoid

Even experienced installers and homeowners can make errors with manual transfer switch systems. Here are the most common mistakes and how to prevent them.

Mistake 1: Oversizing Loads for Generator Capacity

The 510C can handle up to 12,500 watts, but that does not mean you should run 12,500 watts continuously. Starting loads (especially motors in refrigerators, pumps, and air conditioners) draw several times their running wattage. Overloading the generator causes voltage and frequency instability, nuisance shutdowns, and potential equipment damage. Use the built-in watt meters to monitor actual load and keep total running load well below generator capacity to allow headroom for starting surges.

Mistake 2: Forgetting the Power Inlet Box

The 510C requires a 50-amp power inlet box (PB50) for safe outdoor generator connection. The inlet box is sold separately. Attempting to connect the generator without a proper inlet box creates shock hazards and code violations. Order the inlet box and generator cord along with the transfer switch.

Mistake 3: Installing Outdoors

The 510C is NEMA 1R rated for indoor installation only. It must not be installed outdoors or in wet locations. The power inlet box is the outdoor-rated component; the transfer switch itself stays inside.

Mistake 4: Mismatching Generator and Transfer Switch Amperage

A 50-amp transfer switch requires a generator with a 50-amp outlet and a 50-amp inlet box and cord. Using a 30-amp generator with a 50-amp transfer switch is possible but limits the usable capacity. Using undersized cords or inlet boxes creates overheating hazards. Match all components to the same amperage rating.

Mistake 5: DIY Installation

Although manual transfer switches are simpler than automatic systems, installation still involves working inside the main electrical panel with live utility conductors. Installation requires a licensed electrician and, in most jurisdictions, an electrical permit and inspection. DIY installation creates safety risks and code violations.
