When storm season arrives or unexpected outages strike, a portable generator becomes essential for keeping your home operational. However, running extension cords through windows creates fire hazards, limits circuit access, and violates electrical codes in virtually every jurisdiction. The Reliance PB30 Power Inlet Box eliminates these problems by providing a permanent, weatherproof outdoor connection point constructed from rugged powder-coated steel that hardwires directly to your transfer switch or panel. With 30-amp capacity supporting generators up to 7,500 running watts, NEMA 3R raintight construction, four flexible knockout options for conduit routing, and UL/CSA certification for safety compliance, this American-made inlet box delivers the professional-grade durability that electricians and homeowners demand for reliable backup power systems.

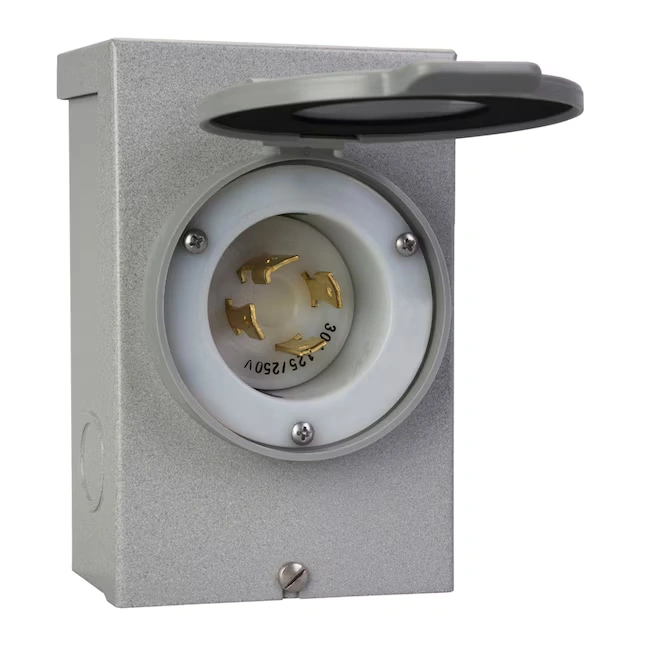

What Is the Reliance PB30 Power Inlet Box?

The Reliance PB30 Power Inlet Box is an outdoor-rated electrical inlet box that serves as the permanent connection point between your portable generator and your home’s transfer switch or panel. Rather than threading temporary extension cords through windows or doors during power outages, the inlet box provides a weatherproof receptacle mounted on your exterior wall where you simply plug in your generator cord and restore power to essential circuits within minutes.

This inlet box is part of Reliance Controls’ PB series of metallic power inlets, designed specifically for use with Pro/Tran transfer switches, Panel/Link manual transfer panels, and generator-ready load centers. The all-steel construction with anti-corrosive powder-coated finish provides superior impact resistance and durability compared to plastic alternatives, making it ideal for installations where physical protection and longevity are paramount.

The 30-amp rating accommodates the most popular class of portable generators used for residential backup power. Generators in the 3,000 to 7,500 watt range represent the ideal capacity for homeowners who need to power essential circuits including refrigeration, lighting, communication equipment, and select appliances without the higher cost and complexity of larger backup systems.

Reliance PB30 Power Inlet Box Design Features

The Reliance PB30 Power Inlet Box incorporates several patented design elements that distinguish it from competing inlet boxes and streamline professional installation. The removable face plate allows electricians to complete rough-in wiring before installing the receptacle, reducing installation time and improving connection quality in tight spaces.

The front-mounted L14-30 receptacle accepts standard 30-amp NEMA locking connectors, ensuring secure twist-lock connections that cannot accidentally disconnect during generator operation. A spring-loaded protective cover automatically closes when the generator cord is removed, creating a weatherproof seal against moisture, insects, and debris between uses.

Four combination knockouts positioned on each side, bottom, and back of the enclosure accept both 1/2-inch and 3/4-inch conduit fittings. This flexibility allows electricians to route conduit from virtually any direction, accommodating various building configurations and minimizing exposed wiring runs. The exclusive patented design provides generous internal wiring space that facilitates rough-in work and ensures adequate room for proper wire connections.

Technical Specifications for the Reliance PB30 Power Inlet Box

Understanding the complete specifications ensures proper matching with your generator, transfer switch, and wiring system requirements.

Electrical Ratings: Reliance PB30 Power Inlet Box

The PB30 is rated for 30 amps at 125/250 volts, supporting generators with continuous running wattage up to 7,500 watts. This capacity covers the vast majority of portable generators used in residential backup applications, from compact inverter generators to full-frame conventional units in the popular mid-range category.

The L14-30 (NEMA Locking 14-30) receptacle configuration accepts four-wire connections: two hot legs (Line 1 and Line 2), neutral (N), and ground (G). This configuration provides both 120-volt and 240-volt power simultaneously, allowing your transfer switch to power a combination of standard household circuits and 240-volt loads like well pumps when properly configured.

Wire gauge requirements specify 10 AWG copper conductors as the minimum and 8 AWG as the maximum for 30-amp circuits. For typical residential distances up to approximately 50 feet, 10 AWG wire provides adequate current-carrying capacity with acceptable voltage drop. Longer runs may require 8 AWG wire to maintain proper voltage levels under full load conditions.

Physical Specifications of Reliance PB30 Power Inlet Box

The steel enclosure measures 6 inches in height, 4 inches in width, and 2.63 inches in depth. This compact footprint allows mounting in locations where space is limited while providing adequate internal volume for wire connections and proper conductor bending radius.

Four combination 1/2-inch and 3/4-inch knockouts are positioned on each side, bottom, and back of the enclosure. These knockouts can be removed using standard tools to accept conduit fittings, providing maximum flexibility for conduit entry based on your specific installation requirements and building configuration.

The powder-coated steel construction adds durability while maintaining a manageable weight for easy handling during installation. The gray finish blends with most exterior surfaces and complements the industrial aesthetic of generator backup systems.

Environmental and Safety Ratings of Reliance PB30 Power Inlet Box

The NEMA 3R enclosure rating indicates protection against falling rain, sleet, and external ice formation. This rating makes the PB30 suitable for permanent outdoor installation in all climate zones across the United States, including regions subject to severe weather conditions and temperature extremes.

The UL listing and CSA certification confirm that the inlet box has been tested and certified for use in transfer switch applications by recognized testing laboratories. These certifications verify proper electrical ratings, adequate insulation and spacing, weather resistance appropriate for the NEMA 3R designation, and mechanical durability under normal use conditions.

Why Choose Steel Construction for Reliance PB30 Power Inlet Box

The PB30’s all-steel construction with anti-corrosive powder-coated paint offers several advantages over plastic inlet boxes for demanding installations where durability matters most.

Impact resistance is significantly higher with steel construction. In locations subject to lawn equipment strikes, falling branches, accidental contact during property maintenance, or other physical hazards, steel enclosures withstand impacts that would crack or shatter plastic housings. This durability is particularly important for inlet boxes mounted at ground level or in high-traffic areas around the home.

Fire resistance provides an additional safety margin in emergency situations. Steel does not melt or burn, maintaining enclosure integrity even if nearby materials ignite during an emergency. While proper installation prevents overheating under normal operating conditions, the steel construction adds a layer of protection against worst-case scenarios.

The powder-coated finish provides rust-proof protection that maintains appearance over years of outdoor exposure. Unlike painted finishes that can chip and expose bare metal to corrosion, powder coating bonds at the molecular level to the steel substrate, creating a durable barrier that resists scratching, fading, and moisture penetration throughout the product’s service life.

Professional appearance matters for visible installations on home exteriors. The gray powder-coated finish blends with most siding colors and complements the industrial aesthetic of generator backup systems. The clean lines and quality construction reflect positively on the overall installation and property appearance.

Residential Applications for the Reliance PB30 Power Inlet Box

The 30-amp, 7,500-watt capacity of the PB30 supports essential circuit backup configurations that keep families safe and comfortable during power outages without the higher cost of larger backup systems.

Refrigerator and freezer circuits prevent food spoilage during extended outages. A typical refrigerator draws 100 to 400 watts during compressor cycles, while chest freezers may require 300 to 700 watts. These intermittent loads fit easily within the PB30’s capacity alongside other essential circuits, protecting hundreds of dollars in perishable food.

Lighting circuits restore visibility and safety during nighttime outages. Modern LED lighting has dramatically reduced power requirements, allowing a single circuit to illuminate an entire home while consuming minimal generator capacity. Safety and navigation become significantly easier when proper lighting is available throughout the house.

Sump pump circuits protect basements from flooding during storm-related outages when pumping is most critical. A typical 1/3 HP sump pump draws approximately 800 watts during operation but only runs intermittently, making it an excellent candidate for backup power through the PB30 system.

Communication circuits keep internet routers, modems, and cordless phone bases operational during emergencies. These low-wattage devices consume minimal generator capacity while maintaining your connection to the outside world for weather updates, emergency communications, and staying in touch with family members.

Medical equipment circuits provide essential backup for CPAP machines, nebulizers, oxygen concentrators, and other devices that family members depend on for health and safety. Households with medical power requirements should prioritize these circuits above convenience loads when configuring their transfer switch.

Commercial and Light Industrial Applications of Reliance PB30 Power Inlet Box

Small businesses and light industrial operations also benefit from the PB30’s capabilities for essential circuit backup during utility outages.

Retail point-of-sale systems allow businesses to continue processing transactions during brief outages. Cash registers, credit card terminals, and receipt printers can operate from generator power routed through the PB30, preventing lost sales and customer frustration during short-duration power interruptions.

Security and alarm systems maintain protection during outages when properties may be more vulnerable to intrusion. While battery backup systems provide limited runtime, generator power through a transfer switch ensures continuous protection throughout extended outages that exceed battery capacity.

Office communication systems including phone systems, internet equipment, and essential computer workstations can operate from backup power to maintain business operations during outages. The 7,500-watt capacity supports multiple low-power devices simultaneously without overloading the system.

Agricultural applications including small ventilation fans, lighting for livestock buildings, water pumps, and refrigeration for agricultural products benefit from the reliable outdoor-rated connection the PB30 provides in demanding farm environments.

Installation Requirements and Process of Reliance PB30 Power Inlet Box

While the PB30 is designed for straightforward installation, the work involves outdoor electrical wiring and must comply with local codes. Most jurisdictions require a licensed electrician to perform inlet box installations, and electrical permits may be required before work begins.

Location Selection by Reliance PB30 Power Inlet Box

Choose an outdoor mounting location that balances generator accessibility with safety requirements. The inlet box should be positioned where your generator can operate at least 20 feet from any windows, doors, or fresh air intakes. Generator exhaust contains carbon monoxide, and improper placement can allow deadly fumes to enter occupied spaces within minutes.

Select a location that provides a reasonably direct conduit run to your transfer switch or panel. Shorter runs minimize voltage drop under load and reduce material costs significantly. A location on the same exterior wall as your electrical panel often provides the most economical and efficient wiring path.

Consider weather exposure when selecting the mounting location. While the NEMA 3R rating provides protection against rain and sleet, mounting under eaves or in partially sheltered locations extends service life, keeps the receptacle cleaner between uses, and provides more comfortable working conditions when connecting the generator during inclement weather.

Wiring Connections of Reliance PB30 Power Inlet Box

The PB30 requires four conductors: two hot wires (typically black and red), one neutral (white), and one ground (green or bare copper). For 30-amp circuits, 10 AWG copper wire is standard for runs up to approximately 50 feet. Longer runs may require 8 AWG wire to maintain acceptable voltage drop under full load conditions.

Remove the face plate to access wiring terminals. This feature simplifies installation by allowing electricians to complete rough-in wiring before the receptacle is in place. Connect wires to the appropriate terminals as indicated in the manufacturer’s documentation, ensuring all connections are tight and secure to prevent resistance heating.

Route wiring through appropriately sized conduit from the inlet box to your transfer switch location. Use weatherproof conduit fittings at the inlet box to maintain the NEMA 3R rating and prevent moisture intrusion into the wiring pathway. Leave a small service loop inside the box to facilitate future maintenance or receptacle replacement if needed.

Safety Standards and NEC Compliance of Reliance PB30 Power Inlet Box

The Reliance PB30 meets stringent safety requirements established by national testing laboratories and electrical codes, ensuring your installation will pass inspection and provide safe operation for years to come.

UL and CSA Certification by Reliance PB30 Power Inlet Box

The inlet box carries both UL listing and CSA certification, confirming that the product has been tested for proper electrical ratings and current-carrying capacity, adequate insulation and spacing for its voltage rating, weather resistance appropriate for outdoor installation, and mechanical durability under repeated use conditions. For comprehensive information on electrical safety standards and requirements, consult the NFPA 70 National Electrical Code resource page.

NEC Article 702 Requirements by Reliance PB30 Power Inlet Box

The National Electrical Code Article 702 governs optional standby systems, which include portable generator backup installations. The PB30 is designed and listed for use in accordance with NEC Article 702 requirements when properly installed with an approved transfer switch or interlock device.

Key code requirements addressed by proper inlet box installation include permanent wiring methods suitable for the installation environment, adequate capacity ratings for connected loads, proper grounding and bonding to prevent shock hazards, and weather-resistant enclosures for outdoor components exposed to the elements.

Transfer Switch Requirement of Reliance PB30 Power Inlet Box

The PB30 must be used in conjunction with a transfer switch or approved interlock device when powering building circuits. This critical requirement prevents dangerous backfeeding that can electrocute utility workers repairing power lines and damage equipment connected to the electrical grid. Never connect a generator inlet directly to building wiring without proper transfer switching equipment in place.

Maintenance Requirements

The PB30 requires minimal maintenance compared to active electrical components, but regular attention ensures reliable operation when backup power is needed most urgently.

Monthly Inspection

Check the spring-loaded cover to ensure it closes fully and seals against the receptacle face. The spring mechanism should provide positive closure without sticking, binding, or remaining partially open. If the cover does not close completely, moisture and insects can enter the receptacle and cause corrosion or connection problems when you need the system most.

Visually inspect the receptacle contacts for signs of corrosion, discoloration, or debris accumulation. The brass contacts should appear bright and clean. If oxidation is observed, clean contacts with a dry cloth or electrical contact cleaner. Avoid liquid cleaners that could remain in the receptacle and cause problems during subsequent use.

Annual Inspection

Schedule an annual inspection that includes testing the generator connection by plugging in your generator cord and verifying secure twist-lock engagement. The cord should require deliberate rotation to disconnect and should not pull free under tension. Replace worn cords that no longer lock securely, as intermittent connections can cause arcing and fire hazards.

Inspect the enclosure mounting for secure attachment to the building surface. Verify that all fasteners remain tight and that the enclosure sits level against the mounting surface. Check conduit connections for tightness and weatherproof seal integrity, resealing any gaps with appropriate outdoor caulking if necessary.

Post-Storm Inspection

After severe weather events, inspect the inlet box for physical damage before connecting your generator. Check for dents in the steel enclosure that might affect the cover seal, damage to the protective cover or spring mechanism, and debris accumulation in the receptacle or on contact surfaces. Clear any leaves, dirt, or ice from the cover mechanism before connecting your generator.

Common Installation and Operation Mistakes

Avoiding these frequent errors ensures safe, code-compliant operation of your generator backup system throughout its service life.

Generator Capacity Mismatch

The PB30 is rated for generators up to 7,500 running watts. Using a larger generator does not increase the inlet box’s capacity; the 30-amp rating remains the limiting factor regardless of generator size. If you have a generator larger than 7,500 watts with a 50-amp outlet, you should use a PB50 inlet box with a matching 50-amp transfer switch to utilize the full generator capacity.

Undersized Wiring

Using wire smaller than the minimum 10 AWG specification creates dangerous overheating conditions that may not become apparent until the system operates under full load. Even when the generator operates below maximum capacity, undersized wiring can heat excessively during extended operation. Always use properly sized copper conductors for the circuit amperage and run length.

Improper Conduit Sealing

Failing to seal conduit connections properly allows water to enter the wiring pathway, potentially reaching the transfer switch inside your home and causing damage or safety hazards. Use appropriate weatherproof fittings at the inlet box and seal any penetrations through exterior walls with approved caulking or sealing materials.

Generator Placement Too Close

The convenience of a permanent inlet box can tempt users to operate generators too close to buildings during outages. Maintain minimum 20-foot distance from windows, doors, and fresh air intakes regardless of where the inlet box is mounted. Carbon monoxide poisoning can occur within minutes in enclosed or semi-enclosed spaces.

Missing Transfer Switch

Installing an inlet box without a transfer switch creates a dangerous backfeed condition when the generator operates. Utility workers repairing power lines can be electrocuted by power flowing backward from improperly connected generators. Always install the inlet box as part of a complete transfer switch system that isolates generator power from utility lines.

Frequently Asked Questions

What generator cord do I need for the PB30?

The PB30’s L14-30 receptacle requires a generator cord with matching L14-30 twist-lock connectors on both ends. Most portable generators in the 3,000 to 7,500 watt range include a 30-amp L14-30 outlet. Generator cords are available in various lengths from 10 to 50 feet to accommodate different generator placement requirements and property configurations.

Can I install the PB30 myself?

While the mechanical mounting is straightforward, the electrical connections involve 30-amp, 240-volt wiring that typically requires a licensed electrician in most jurisdictions. Permits are often required for inlet box installation, and improper wiring creates serious fire and electrocution hazards that may not be covered by homeowner’s insurance.

What is the difference between the PB30 and PBN30?

The PB30 features powder-coated steel construction with front-mounted receptacle, while the PBN30 uses non-metallic ABS plastic with bottom-mounted receptacle. Both provide NEMA 3R weather protection and similar electrical specifications. The steel version offers superior impact resistance, while the non-metallic version provides better corrosion resistance in coastal environments.

Is the PB30 compatible with all transfer switches?

The PB30 works with any 30-amp transfer switch that accepts four-wire L14-30 connections. It is specifically designed for use with Reliance Pro/Tran transfer switches and Panel/Link transfer panels but is compatible with other manufacturers’ 30-amp transfer equipment using the same connector configuration.

What warranty covers the PB30?

Reliance Controls provides warranty coverage for manufacturing defects in materials and workmanship. The warranty requires professional installation in accordance with all applicable codes and manufacturer instructions. Register your product and retain your purchase receipt to facilitate any warranty claims that may arise.

Can I use the PB30 with a larger generator?

You can connect a larger generator to the PB30, but you will be limited to 30 amps (7,500 watts) regardless of the generator’s total output capacity. If you have a generator larger than 7,500 watts with a 50-amp outlet, consider using a PB50 inlet box with a matching 50-amp transfer switch to utilize the full generator capacity.

How far can the inlet box be from the transfer switch?

Using 10 AWG copper wire, the inlet box can be located approximately 50 feet from the transfer switch while maintaining acceptable voltage drop under load. Longer runs may require 8 AWG wire to compensate for increased resistance. Consult a licensed electrician to calculate exact requirements for your specific installation configuration.

Does the PB30 include a generator cord?

No, the PB30 is the inlet box only. Generator cords with L14-30 connectors must be purchased separately. This allows you to select the appropriate cord length for your specific generator placement requirements and property layout.
