A portable generator becomes exponentially more useful when you can connect it safely and permanently to your home’s electrical system. Running extension cords through windows creates fire hazards, limits circuit access, and violates electrical codes in virtually every jurisdiction. The Reliance PB50 Steel Inlet Box eliminates these problems by providing a permanent, weatherproof outdoor connection point constructed from rugged powder-coated steel that hardwires directly to your transfer switch or panel. With 50-amp capacity supporting generators up to 12,500 running watts, NEMA 3R raintight construction, a patented design with generous wiring space, and a comprehensive 5-year warranty backed by cUL 1008 listing, this American-made inlet box delivers the professional-grade durability that electricians and homeowners demand for reliable backup power systems.

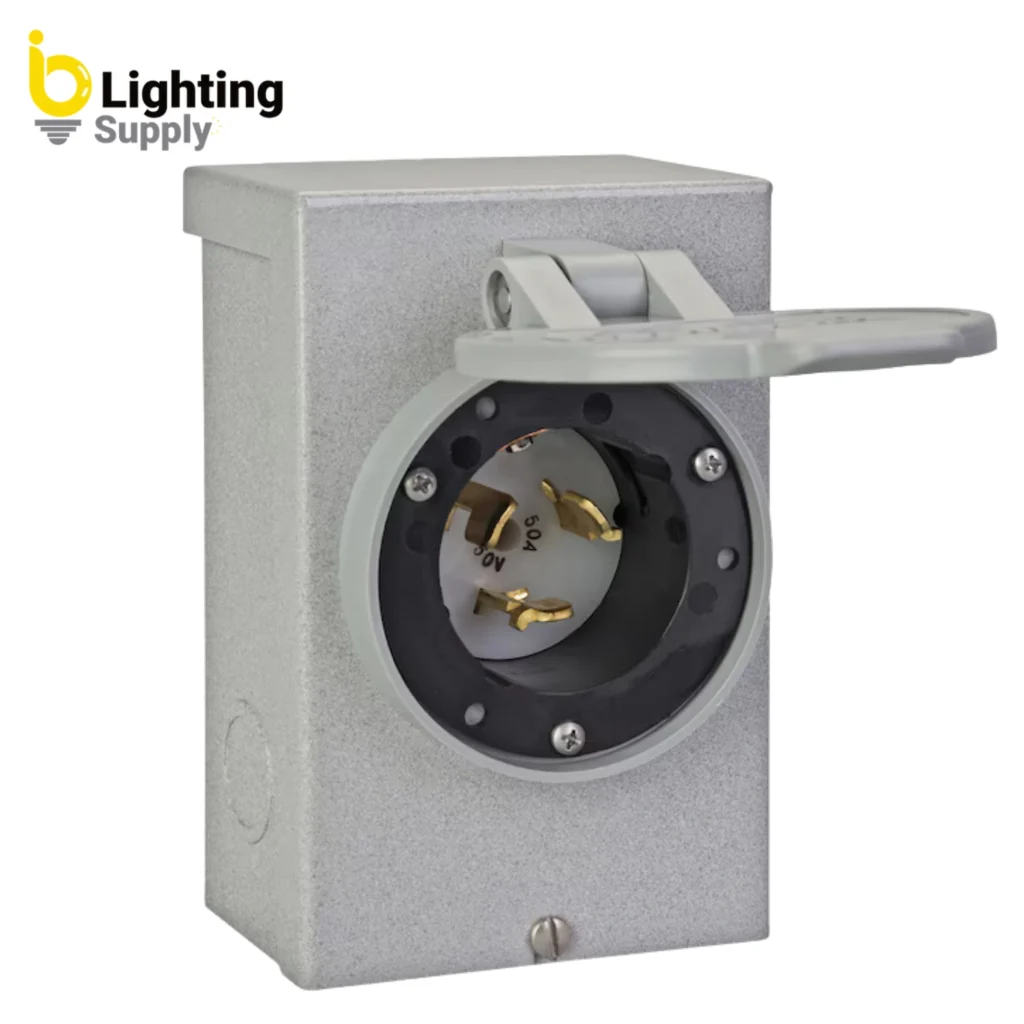

What Is the Reliance PB50 Steel Inlet Box?

The Reliance PB50 is an outdoor-rated electrical inlet box that serves as the permanent connection point between your portable generator and your home’s transfer switch or panel. Rather than threading temporary extension cords through windows or doors during power outages, the inlet box provides a weatherproof receptacle mounted on your exterior wall where you simply plug in your generator cord and restore power to critical circuits within minutes.

This inlet box is part of Reliance Controls’ PB series of metallic power inlets, designed specifically for use with Pro/Tran transfer switches, Panel/Link manual transfer panels, and generator-ready load centers. The all-steel construction with anti-corrosive powder-coated finish provides superior durability and impact resistance compared to plastic alternatives, making it ideal for installations where physical protection is paramount.

The 50-amp rating accommodates large portable generators and smaller standby units, making the PB50 suitable for comprehensive whole-house backup applications. This capacity supports everything from central air conditioning systems and electric water heaters to well pumps, refrigeration equipment, and general lighting throughout residential and commercial buildings.

Reliance PB50 Steel Inlet Box Design Features

The Reliance PB50 Steel Inlet Box incorporates several patented design elements that distinguish it from competing inlet boxes and simplify professional installation. The removable face plate allows electricians to complete rough-in wiring before installing the receptacle, reducing installation time and improving connection quality.

The front-mounted CS6375 receptacle accepts standard 50-amp California Standard twist-lock connectors, ensuring secure connections that cannot accidentally disconnect during generator operation. A spring-loaded protective cover automatically closes when the generator cord is removed, creating a weatherproof seal against moisture, insects, and debris between uses.

Four combination knockouts positioned on each side, bottom, and back of the enclosure accept both 1/2-inch and 3/4-inch conduit fittings. This flexibility allows electricians to route conduit from virtually any direction, accommodating various building configurations and minimizing exposed wiring runs. The exclusive patented design provides generous internal wiring space that facilitates rough-in work and ensures proper heat dissipation during operation.

Technical Specifications for the Reliance PB50 Steel Inlet Box

Understanding the complete specifications ensures proper matching with your generator, transfer switch, and wiring system requirements.

Electrical Ratings of Reliance PB50 Steel Inlet Box

Reliance PB50 Steel Inlet Box is rated for 50 amps at 125/250 volts, supporting generators with continuous running wattage up to 12,500 watts. This substantial capacity provides adequate headroom for most residential whole-house backup needs and many light commercial applications where significant electrical loads must operate simultaneously.

The CS6375 California Standard receptacle configuration accepts four-wire connections: two hot legs (Line 1 and Line 2), neutral (W), and ground (G). This configuration provides both 120-volt and 240-volt power simultaneously, allowing your transfer switch to power a combination of standard circuits and high-voltage loads like electric ranges, water heaters, central air conditioning, and well pumps.

Wire gauge requirements specify 8 AWG 75-degree C insulated copper wire as the minimum for proper current-carrying capacity. For 50-amp circuits at typical residential distances, 6 AWG copper wire is commonly specified, providing adequate capacity with acceptable voltage drop for runs up to approximately 100 feet from the inlet box to the transfer switch.

Physical Specifications: Reliance PB50 Steel Inlet Box

The steel enclosure measures 6 inches in height, 4 inches in width, and 2.63 inches in depth. This compact footprint allows mounting in locations where space is limited, while the depth provides adequate room for wire bends and secure terminal connections.

Four combination 1/2-inch and 3/4-inch knockouts are positioned on each side, bottom, and back of the enclosure. These knockouts can be removed using a screwdriver and hammer, providing flexibility for conduit entry from multiple directions. The variety of sizes accommodates different conduit requirements based on wire gauge and local code specifications.

Total weight is approximately 2.5 pounds, making the unit easy to handle during installation while maintaining the substantial feel associated with quality electrical equipment. The powder-coated steel construction adds durability without excessive weight that would complicate mounting on various surface types.

Environmental and Safety Ratings: Reliance PB50 Steel Inlet Box

The NEMA 3R enclosure rating indicates protection against falling rain, sleet, and external ice formation. This rating makes the PB50 suitable for permanent outdoor installation in all climate zones across the United States, including regions subject to severe weather conditions, coastal salt exposure, and extreme temperature variations.

The cUL 1008 listing confirms that the inlet box has been tested and certified for use in transfer switch applications by Underwriters Laboratories of Canada, with reciprocal recognition in the United States. This listing verifies proper electrical ratings, adequate insulation and spacing, weather resistance appropriate for the NEMA 3R rating, and mechanical durability under normal use conditions.

Why Choose Reliance PB50 Steel Inlet Box

The PB50’s all-steel construction with anti-corrosive powder-coated paint offers several advantages over plastic inlet boxes for demanding installations.

Impact resistance is significantly higher with steel construction. In locations subject to lawn equipment strikes, falling branches, or accidental contact during property maintenance, steel enclosures withstand impacts that would crack or shatter plastic housings. This durability is particularly important for inlet boxes mounted at ground level or in high-traffic areas.

Fire resistance provides an additional safety margin in emergency situations. Steel does not melt or burn, maintaining enclosure integrity even if nearby materials ignite during an emergency. While proper installation prevents overheating under normal conditions, the steel construction adds a layer of protection against worst-case scenarios.

The powder-coated finish provides rust-proof protection that maintains appearance over years of outdoor exposure. Unlike painted finishes that can chip and expose bare metal to corrosion, powder coating bonds molecularly to the steel substrate, creating a durable barrier that resists scratching, fading, and moisture penetration.

Professional appearance matters for visible installations on home exteriors. The gray powder-coated finish blends with most siding colors and complements the industrial aesthetic of generator backup systems. The clean lines and quality construction reflect positively on the overall installation.

Residential Applications for the Reliance PB50 Steel Inlet Box

The 50-amp, 12,500-watt capacity of the PB50 supports comprehensive whole-house backup power configurations that keep families comfortable and safe during extended outages.

Central air conditioning systems represent one of the largest electrical loads in most homes, particularly in southern climates where summer outages can quickly become dangerous. A typical 3-ton central air conditioner draws approximately 3,500 watts during operation, with starting surges that can reach three times running wattage. The PB50’s 50-amp capacity provides adequate headroom for air conditioning plus additional essential circuits.

Electric water heaters require 240-volt power and typically draw 4,500 watts during heating cycles. Maintaining hot water during extended outages significantly improves family comfort and sanitation capabilities. The four-wire configuration of the CS6375 receptacle supports these 240-volt loads directly through your transfer switch.

Well pump systems provide the only water supply for many rural homes. Most residential well pumps require 240-volt power and draw between 1,000 and 2,500 watts depending on well depth and pump horsepower. The PB50’s capacity ensures reliable water supply throughout extended outages.

Medical equipment circuits provide life-safety backup for oxygen concentrators, CPAP machines, dialysis equipment, and other essential medical devices. Households with medical power requirements benefit from the PB50’s high capacity, which ensures medical circuits receive power alongside other essential loads.

Kitchen appliances including electric ranges and refrigerators can operate from generator power through the PB50. While electric ranges can draw up to 8,000 watts at full load, typical cooking uses far less. Refrigerators and freezers prevent food spoilage during extended outages, protecting hundreds of dollars in perishable goods.

Commercial and Agricultural Applications for Reliance PB50 Steel Inlet Box

The PB50’s high capacity and durable steel construction make it equally suitable for commercial and agricultural backup power installations where reliability is critical.

Retail businesses require continuous power for point-of-sale systems, security equipment, and refrigerated display cases. The 12,500-watt capacity supports multiple cash registers, card readers, emergency lighting, and alarm systems simultaneously, allowing businesses to continue operations during utility outages.

Restaurant equipment including walk-in coolers, freezers, and food preparation appliances demand substantial power to protect inventory and maintain health code compliance. The PB50’s capacity supports multiple refrigeration units operating simultaneously, preventing thousands of dollars in spoiled inventory.

Agricultural operations depend on continuous power for ventilation systems, automated feeding equipment, and refrigeration of agricultural products. Poultry and livestock operations face particular risks during summer outages when barn temperatures can rapidly become dangerous. The PB50’s robust steel construction withstands the demanding conditions found in agricultural environments.

Manufacturing facilities and workshops benefit from the 240-volt capability for air compressors, welding equipment, and industrial power tools. Many commercial tools require 240-volt power that smaller 30-amp inlet boxes cannot provide, making the PB50 essential for comprehensive shop backup systems.

Installation Requirements and Process: Reliance PB50 Steel Inlet Box

While the PB50 is designed for straightforward installation, the work involves outdoor electrical wiring and must comply with local codes. Most jurisdictions require a licensed electrician to perform inlet box installations, and electrical permits may be required.

Location Selection: Reliance PB50 Steel Inlet Box

Choose an outdoor mounting location that balances generator accessibility with safety requirements. The inlet box should be positioned where your generator can operate at least 20 feet from any windows, doors, or fresh air intakes. Generator exhaust contains carbon monoxide, and improper placement can allow deadly fumes to enter occupied spaces within minutes.

Select a location that provides a reasonably direct conduit run to your transfer switch or panel. Longer runs require larger wire gauges to compensate for voltage drop, increasing material costs significantly. A location on the same exterior wall as your electrical panel often provides the shortest, most economical wiring path.

Consider physical protection when selecting the mounting location. While the steel construction resists impact damage, areas subject to vehicle traffic, frequent lawn equipment operation, or falling debris should be avoided when possible. Mounting at a comfortable height for cord connection improves usability during nighttime outages.

Wiring Connections of Reliance PB50 Steel Inlet Box

The PB50 requires four conductors: two hot wires (typically black and red), one neutral (white), and one ground (green or bare copper). For 50-amp circuits, 6 AWG copper wire is standard for runs up to approximately 100 feet. Longer runs may require 4 AWG wire to maintain acceptable voltage drop under full load conditions.

Remove the face plate to access the terminal connections. Connect wires to the appropriate terminals as indicated in the manufacturer’s documentation, ensuring all connections are tight and secure. Loose connections create resistance, heat buildup, and potential fire hazards that may not become apparent until the system operates under load.

Route wiring through appropriately sized conduit from the inlet box to your transfer switch location. Use weatherproof conduit fittings at the inlet box to maintain the NEMA 3R rating and prevent moisture intrusion. Leave a small service loop inside the box to facilitate future maintenance or receptacle replacement if needed.

Safety Standards and NEC Compliance of Reliance PB50 Steel Inlet Box

The Reliance PB50 meets stringent safety requirements established by national testing laboratories and electrical codes, ensuring your installation will pass inspection and provide safe operation for years to come.

cUL 1008 Listing: Reliance PB50 Steel Inlet Box

The inlet box carries cUL 1008 listing, the primary safety standard for transfer switch equipment and related components in North America. This listing confirms that the product has been tested for proper electrical ratings and current-carrying capacity, adequate insulation and spacing for its voltage rating, weather resistance appropriate for outdoor installation, and mechanical durability under repeated use conditions. For comprehensive information on electrical safety standards, consult the NFPA 70 National Electrical Code resource page.

NEC Article 702 Requirements of Reliance PB50 Steel Inlet Box

The National Electrical Code Article 702 governs optional standby systems, which include portable generator backup installations. The PB50 is designed and listed for use in accordance with NEC Article 702 requirements when properly installed with an approved transfer switch or interlock device.

Key code requirements addressed by proper inlet box installation include permanent wiring methods suitable for the installation environment, adequate capacity ratings for connected loads, proper grounding and bonding to prevent shock hazards, and weather-resistant enclosures for outdoor components.

Transfer Switch Requirement

The PB50 must be used in conjunction with a transfer switch or approved interlock device when powering building circuits. This requirement prevents dangerous backfeeding that can electrocute utility workers repairing power lines and damage equipment connected to the grid. Never connect a generator inlet directly to building wiring without proper transfer switching equipment.

Maintenance Requirements

The PB50 requires minimal maintenance compared to active electrical components, but regular attention ensures reliable operation when backup power is needed most.

Monthly Inspection

Check the spring-loaded cover to ensure it closes fully and seals against the receptacle face. The spring mechanism should provide positive closure without sticking, binding, or remaining partially open. If the cover does not close completely, moisture and insects can enter the receptacle and cause corrosion or short circuits during storage periods.

Visually inspect the receptacle contacts for signs of corrosion, discoloration, or debris accumulation. The brass contacts should appear bright and clean. If oxidation is observed, clean contacts with a dry cloth or electrical contact cleaner. Avoid water or liquid cleaners that could remain in the receptacle and cause problems.

Annual Inspection

Schedule an annual inspection that includes removing the face plate to check internal wiring connections. Look for signs of overheating such as discolored wire insulation, melted plastic components, or darkened terminal connections. Tighten any loose connections, as thermal cycling from seasonal temperature changes can cause terminals to loosen over time.

Check the enclosure mounting for secure attachment to the building surface. Verify that all fasteners remain tight and that the enclosure sits level. Inspect conduit connections for tightness and weatherproof seal integrity, resealing any gaps with appropriate outdoor caulking.

Test the generator connection by plugging in your generator cord and verifying secure twist-lock engagement. The cord should require deliberate rotation to disconnect and should not pull free under tension. Replace worn cords that no longer lock securely, as intermittent connections can cause arcing and fire hazards.

Post-Storm Inspection

After severe weather events, inspect the inlet box for physical damage before connecting your generator. Check for dents in the steel enclosure that might affect the cover seal, damage to the protective cover or spring mechanism, and debris accumulation in the receptacle or on contact surfaces. Clear any leaves, dirt, or ice from the cover mechanism before use.

Common Installation and Operation Mistakes

Avoiding these frequent errors ensures safe, code-compliant operation of your generator backup system throughout its service life.

Undersized Wiring

Using wire smaller than the specified 8 AWG minimum creates dangerous overheating conditions that may not become apparent until the system operates under full load. Even when the generator operates below maximum capacity, undersized wiring can heat to fire-starting temperatures during extended operation. Always use 6 AWG or larger copper wire for 50-amp circuits to ensure adequate safety margin.

Improper Conduit Sealing

Failing to seal conduit connections properly allows water to enter the wiring pathway, potentially reaching the transfer switch inside your home. Use appropriate weatherproof fittings at the inlet box and seal any penetrations through exterior walls with approved caulking, expanding foam, or other appropriate sealing materials.

Generator Placement Too Close

The convenience of a permanent inlet box can tempt users to operate generators too close to buildings during outages. Maintain minimum 20-foot distance from windows, doors, and fresh air intakes regardless of where the inlet box is mounted. Carbon monoxide poisoning can occur within minutes in enclosed or semi-enclosed spaces.

Missing Transfer Switch

Installing an inlet box without a transfer switch creates a dangerous backfeed condition when the generator operates. Utility workers repairing power lines can be electrocuted by power flowing backward from improperly connected generators. Always install the inlet box as part of a complete transfer switch system.

Aluminum Wire Use

Reliance Controls products are designed for use with copper conductors only. Aluminum wire expands and contracts at different rates than copper terminals, causing connections to loosen over time. The resulting resistance creates heat buildup and fire hazards. Use only copper wire for inlet box installations.

Frequently Asked Questions

What generator cord do I need for the PB50?

The PB50’s CS6375 receptacle requires a generator cord with a CS6364 connector on the inlet box end. Most large portable generators include a 50-amp outlet with the matching receptacle for direct connection. Generator cords are available in various lengths from 10 to 50 feet to accommodate different generator placement requirements.

Can I install the PB50 myself?

While the mechanical mounting is straightforward, the electrical connections involve 50-amp, 240-volt wiring that typically requires a licensed electrician in most jurisdictions. Permits are often required for inlet box installation, and improper wiring creates serious fire and electrocution hazards that may not be covered by homeowner’s insurance.

What is the difference between the PB50 and PBN50?

The PB50 features powder-coated steel construction, while the PBN50 uses non-metallic ABS plastic. Both provide NEMA 3R weather protection and identical electrical specifications. The steel version offers superior impact resistance, while the non-metallic version provides better corrosion resistance in coastal environments.

Is the PB50 compatible with all transfer switches?

The PB50 works with any 50-amp transfer switch that accepts four-wire connections. It is specifically designed for use with Reliance Pro/Tran transfer switches and Panel/Link transfer panels but is compatible with other manufacturers’ 50-amp transfer equipment that uses the CS6375 configuration.

What warranty covers the PB50?

Reliance Controls provides a 5-year warranty covering manufacturing defects in materials and workmanship. The warranty requires professional installation in accordance with all applicable codes and manufacturer instructions. Register your product and retain your purchase receipt to facilitate any warranty claims.

Can I use the PB50 indoors?

While the PB50 can technically be mounted indoors, doing so defeats the purpose of a permanent inlet box installation. The inlet box should be outdoors where the generator operates to prevent carbon monoxide from entering enclosed spaces through the generator cord pathway.

What size generator works with the PB50?

The PB50 supports generators from approximately 7,500 watts up to 12,500 running watts. Smaller generators can use the inlet box safely, though a 30-amp inlet might be more economical for generators under 7,500 watts. Larger generators exceeding 12,500 watts require 60-amp or larger inlet boxes.

How far can the inlet box be from the transfer switch?

Using 6 AWG copper wire, the inlet box can be located approximately 100 feet from the transfer switch while maintaining acceptable voltage drop. Longer runs require larger wire to compensate for increased resistance. Consult a licensed electrician to calculate exact requirements for your specific installation.
