A portable generator transforms from an occasional convenience to an essential home backup system when you can connect it safely and permanently to your electrical panel. Running extension cords through windows creates fire hazards, limits which circuits you can power, and violates electrical codes in nearly every jurisdiction. The Reliance PBN30 Inlet Box eliminates these problems by providing a permanent, weatherproof outdoor connection point that hardwires directly to your transfer switch or panel. With 30-amp capacity supporting generators up to 7,500 running watts, NEMA 3R raintight construction, a patented slide-out base design that simplifies installation, and a comprehensive 5-year limited warranty, this non-metallic inlet box delivers the reliable, code-compliant connection that homeowners and electricians trust for safe backup power systems.

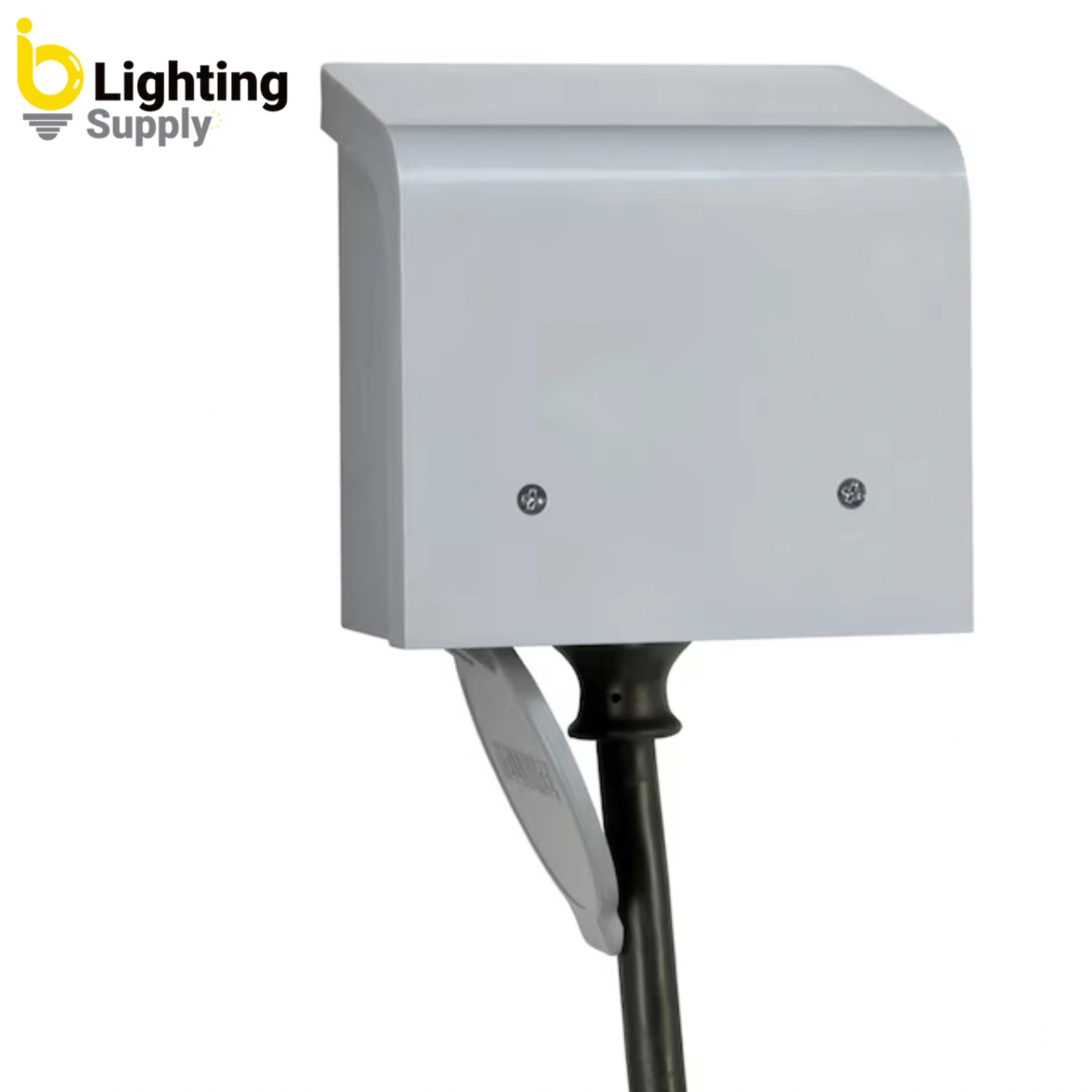

What Is the Reliance PBN30 Inlet Box?

The Reliance PBN30 is an outdoor-rated electrical inlet box that serves as the permanent connection point between your portable generator and your home’s transfer switch or panel. Rather than threading temporary extension cords through windows or doors during power outages, the inlet box provides a weatherproof receptacle mounted on your exterior wall where you simply plug in your generator cord and restore power to essential circuits within minutes.

Reliance PBN30 Inlet Box is part of Reliance Controls’ PBN series of non-metallic power inlets, designed specifically for use with Pro/Tran transfer switches, Panel/Link manual transfer panels, and generator-ready load centers. The durable ABS plastic construction offers excellent weather resistance, corrosion immunity in coastal environments, and lightweight handling that simplifies installation without sacrificing durability.

The 30-amp rating accommodates the most popular class of portable generators used for residential backup power. Generators in the 3,000 to 7,500 watt range represent the sweet spot for homeowners who want to power essential circuits including refrigeration, lighting, communication equipment, and select appliances without the higher cost of larger backup systems.

Reliance PBN30 Inlet Box Design Features

The PBN30 incorporates several patented design elements that distinguish it from competing inlet boxes and simplify professional installation. The exclusive slide-out base provides 360-degree access to wiring terminals, allowing electricians to complete connections quickly regardless of mounting orientation or conduit entry direction.

The front-mounted L14-30 receptacle accepts standard 30-amp NEMA locking connectors, ensuring secure twist-lock connections that cannot accidentally disconnect during generator operation. A spring-loaded protective cover automatically closes when the generator cord is removed, creating a weatherproof seal against moisture, insects, and debris between uses.

Over 100 cubic inches of internal wiring space accommodates the conductors required for 30-amp circuits without crowding. This generous volume prevents wire stress, ensures proper heat dissipation during operation, and provides adequate room for making secure terminal connections. Three 3/4-inch knockouts positioned on each side and back of the enclosure provide flexibility for conduit routing from multiple directions.

Technical Specifications for the Reliance PBN30 Inlet Box

Understanding the complete specifications ensures proper matching with your generator, transfer switch, and wiring system requirements.

Electrical Ratings of Reliance PBN30 Inlet Box

The PBN30 is rated for 30 amps at 125/250 volts, supporting generators with continuous running wattage up to 7,500 watts. This capacity covers the vast majority of portable generators used in residential backup applications, from compact inverter generators to full-frame conventional units.

The L14-30 (NEMA Locking 14-30) receptacle configuration accepts four-wire connections: two hot legs (Line 1 and Line 2), neutral (N), and ground (G). This configuration provides both 120-volt and 240-volt power simultaneously, allowing your transfer switch to power a combination of standard household circuits and 240-volt loads like well pumps when properly configured.

Wire gauge requirements typically specify 10 AWG copper conductors for 30-amp circuits at standard residential distances. For longer runs exceeding approximately 50 feet, 8 AWG wire may be required to maintain acceptable voltage drop under load. Always consult local codes and a qualified electrician for specific wire sizing requirements.

Physical Specifications of Reliance PBN30 Inlet Box

The non-metallic enclosure measures 6.25 inches in length, 6.25 inches in width, and 4.375 inches in height. This compact footprint allows mounting in locations where space is limited while providing adequate internal volume for wire connections and bends.

Three 3/4-inch knockouts are positioned on each side and the back of the enclosure. These knockouts can be removed to accept standard conduit fittings, providing flexibility for conduit entry from multiple directions based on your specific installation requirements and building configuration.

Total weight is approximately 2.5 pounds, making the unit easy to handle during installation. The lightweight non-metallic construction simplifies mounting on various surface types including wood siding, vinyl, stucco, and masonry without requiring heavy-duty fasteners or additional structural support.

Environmental Ratings of Reliance PBN30 Inlet Box

The NEMA 3R enclosure rating indicates protection against falling rain, sleet, and external ice formation. This rating makes the PBN30 suitable for permanent outdoor installation in all climate zones across the United States, including regions subject to severe weather, high humidity, and temperature extremes.

The non-metallic ABS construction provides inherent corrosion resistance that outlasts painted metal enclosures in coastal environments where salt air accelerates oxidation. Unlike steel boxes that can rust when scratches penetrate the protective finish, ABS maintains its protective properties even after surface abrasion.

Why Choose Non-Metallic Construction for Reliance PBN30 Inlet Box

The PBN30’s non-metallic ABS plastic construction offers several advantages over steel inlet boxes for specific installation environments and applications.

Corrosion immunity makes the PBN30 ideal for coastal installations where salt-laden air rapidly degrades metal enclosures. Beach homes, waterfront properties, and buildings within several miles of saltwater benefit from non-metallic construction that will never rust, pit, or develop corrosion-related failures.

Lightweight handling simplifies installation, particularly for overhead or awkward mounting positions. The 2.5-pound weight allows single-handed positioning while securing fasteners, reducing installation time and improving accuracy compared to heavier steel alternatives.

No paint to chip or scratch means the enclosure maintains its appearance throughout its service life. Unlike powder-coated steel that can show wear marks from tools, ladders, or accidental contact, the non-metallic construction maintains consistent appearance regardless of surface abrasion.

Electrical isolation provides an additional safety margin by preventing the enclosure itself from becoming energized in fault conditions. While proper grounding remains essential, the non-conductive housing adds a layer of protection against certain electrical fault scenarios.

Residential Applications for Reliance PBN30 Inlet Box

The 30-amp, 7,500-watt capacity of the PBN30 supports essential circuit backup configurations that keep families safe and comfortable during power outages without the higher cost of larger backup systems.

Refrigerator and freezer circuits prevent food spoilage during extended outages. A typical refrigerator draws 100 to 400 watts during compressor cycles, while chest freezers may require 300 to 700 watts. These intermittent loads fit easily within the PBN30’s capacity alongside other essential circuits.

Lighting circuits restore visibility and safety during nighttime outages. Modern LED lighting has dramatically reduced power requirements, allowing a single circuit to illuminate an entire home while consuming minimal generator capacity. Safety and navigation become significantly easier with proper lighting available.

Sump pump circuits protect basements from flooding during storm-related outages when pumping is most critical. A typical 1/3 HP sump pump draws approximately 800 watts during operation but only runs intermittently, making it an excellent candidate for backup power through the PBN30.

Communication circuits keep internet routers, modems, and cordless phone bases operational during emergencies. These low-wattage devices consume minimal generator capacity while maintaining your connection to the outside world for weather updates, emergency communications, and staying in touch with family.

Medical equipment circuits provide essential backup for CPAP machines, nebulizers, and other devices that family members depend on for health and safety. Households with medical power requirements should prioritize these circuits above convenience loads.

Commercial and Light Industrial Applications of Reliance PBN30 Inlet Box

Small businesses and agricultural operations also benefit from the PBN30’s capabilities for essential circuit backup during utility outages.

Retail point-of-sale systems allow businesses to continue processing transactions during brief outages. Cash registers, credit card terminals, and receipt printers can operate from generator power routed through the PBN30, preventing lost sales during short-duration power interruptions.

Security and alarm systems maintain protection during outages when properties may be more vulnerable. While battery backup provides limited runtime, generator power through a transfer switch ensures continuous protection throughout extended outages.

Office communication systems including phone systems, internet equipment, and essential computer workstations can operate from backup power to maintain business operations during outages. The 7,500-watt capacity supports multiple low-power devices simultaneously.

Agricultural applications including small ventilation fans, lighting for livestock buildings, and refrigeration for agricultural products benefit from the reliable outdoor-rated connection the PBN30 provides.

Installation Requirements and Process by Reliance PBN30 Inlet Box

While the PBN30 is designed for straightforward installation, the work involves outdoor electrical wiring and must comply with local codes. Most jurisdictions require a licensed electrician to perform inlet box installations, and permits may be required.

Location Selection of Reliance PBN30 Inlet Box

Choose an outdoor mounting location that balances generator accessibility with safety requirements. The inlet box should be positioned where your generator can operate at least 20 feet from any windows, doors, or fresh air intakes. Generator exhaust contains carbon monoxide, and improper placement can allow deadly fumes to enter occupied spaces within minutes.

Select a location that provides a reasonably direct conduit run to your transfer switch or panel. Shorter runs minimize voltage drop and reduce material costs. A location on the same exterior wall as your electrical panel often provides the most economical wiring path.

Consider weather exposure when selecting the mounting location. While the NEMA 3R rating provides protection against rain and sleet, mounting under eaves or in partially sheltered locations extends service life and keeps the receptacle cleaner between uses.

Wiring Connections of Reliance PBN30 Inlet Box

The PBN30 requires four conductors: two hot wires (typically black and red), one neutral (white), and one ground (green or bare copper). For 30-amp circuits, 10 AWG copper wire is standard for runs up to approximately 50 feet. Longer runs may require 8 AWG wire to maintain acceptable voltage drop.

Use the slide-out base feature to access wiring terminals. This patented design allows 360-degree access, making connections easier regardless of conduit entry direction. Connect wires to the appropriate terminals as indicated in the manufacturer’s documentation, ensuring all connections are tight and secure.

Route wiring through appropriately sized conduit from the inlet box to your transfer switch location. Use weatherproof conduit fittings at the inlet box to maintain the NEMA 3R rating and prevent moisture intrusion into the wiring pathway.

Safety Standards and NEC Compliance: Reliance PBN30 Inlet Box

The Reliance PBN30 meets stringent safety requirements established by national testing laboratories and electrical codes, ensuring your installation will pass inspection and provide safe operation.

UL Listing: Reliance PBN30 Inlet Box

The inlet box carries UL listing, confirming that the product has been tested for proper electrical ratings and current-carrying capacity, adequate insulation and spacing for its voltage rating, weather resistance appropriate for the NEMA 3R designation, and mechanical durability under normal use conditions. For comprehensive information on electrical safety standards and requirements, consult the NFPA 70 National Electrical Code resource page.

NEC Article 702 Requirements: Reliance PBN30 Inlet Box

The National Electrical Code Article 702 governs optional standby systems, which include portable generator backup installations. The PBN30 is designed and listed for use in accordance with NEC Article 702 requirements when properly installed with an approved transfer switch or interlock device.

Key code requirements addressed by proper inlet box installation include permanent wiring methods suitable for the installation environment, adequate capacity ratings for connected loads, proper grounding and bonding to prevent shock hazards, and weather-resistant enclosures for outdoor components.

Transfer Switch Requirement

The PBN30 must be used in conjunction with a transfer switch or approved interlock device when powering building circuits. This critical requirement prevents dangerous backfeeding that can electrocute utility workers repairing power lines and damage equipment connected to the grid. Never connect a generator inlet directly to building wiring without proper transfer switching equipment.

Maintenance Requirements

The PBN30 requires minimal maintenance compared to active electrical components, but regular attention ensures reliable operation when backup power is needed most.

Monthly Inspection

Check the spring-loaded cover to ensure it closes fully and seals against the receptacle face. The spring mechanism should provide positive closure without sticking, binding, or remaining partially open. If the cover does not close completely, moisture and insects can enter the receptacle and cause corrosion or connection problems.

Visually inspect the receptacle contacts for signs of corrosion, discoloration, or debris accumulation. Clean contacts with a dry cloth or electrical contact cleaner if oxidation is observed. Avoid liquid cleaners that could remain in the receptacle and cause problems during use.

Annual Inspection

Schedule an annual inspection that includes testing the generator connection by plugging in your generator cord and verifying secure twist-lock engagement. The cord should require deliberate rotation to disconnect and should not pull free under tension. Replace worn cords that no longer lock securely.

Inspect the enclosure mounting for secure attachment to the building surface. Verify that all fasteners remain tight and that the enclosure sits level. Check conduit connections for tightness and weatherproof seal integrity.

Post-Storm Inspection

After severe weather events, inspect the inlet box for physical damage before connecting your generator. Check for cracks in the non-metallic enclosure, damage to the protective cover or spring mechanism, and debris accumulation in the receptacle. Clear any leaves, dirt, or ice from the cover mechanism before use.

Common Installation and Operation Mistakes

Avoiding these frequent errors ensures safe, code-compliant operation of your generator backup system throughout its service life.

Generator Capacity Mismatch

The PBN30 is rated for generators up to 7,500 running watts. Using a larger generator does not increase the inlet box’s capacity; the 30-amp rating remains the limiting factor. If you have a generator larger than 7,500 watts with a 50-amp outlet, you should use a PB50 or PBN50 inlet box with a matching 50-amp transfer switch.

Undersized Wiring

Using wire smaller than 10 AWG for 30-amp circuits creates dangerous overheating conditions. Even when the generator operates below maximum capacity, undersized wiring can heat excessively during extended operation. Always use properly sized copper conductors for the circuit amperage and run length.

Improper Conduit Sealing

Failing to seal conduit connections properly allows water to enter the wiring pathway, potentially reaching the transfer switch inside your home. Use appropriate weatherproof fittings at the inlet box and seal any penetrations through exterior walls with approved caulking or sealing materials.

Generator Placement Too Close

The convenience of a permanent inlet box can tempt users to operate generators too close to buildings. Maintain minimum 20-foot distance from windows, doors, and fresh air intakes regardless of where the inlet box is mounted. Carbon monoxide poisoning can occur within minutes in enclosed or semi-enclosed spaces.

Missing Transfer Switch

Installing an inlet box without a transfer switch creates a dangerous backfeed condition when the generator operates. Utility workers repairing power lines can be electrocuted by power flowing backward from improperly connected generators. Always install the inlet box as part of a complete transfer switch system.

Frequently Asked Questions

What generator cord do I need for the PBN30?

The PBN30’s L14-30 receptacle requires a generator cord with matching L14-30 twist-lock connectors on both ends. Most portable generators in the 3,000 to 7,500 watt range include a 30-amp L14-30 outlet. Generator cords are available in various lengths from 10 to 50 feet to accommodate different generator placement requirements.

Can I install the PBN30 myself?

While the mechanical mounting is straightforward, the electrical connections involve 30-amp, 240-volt wiring that typically requires a licensed electrician in most jurisdictions. Permits are often required for inlet box installation, and improper wiring creates serious fire and electrocution hazards.

What is the difference between the PBN30 and PB30?

The PBN30 features non-metallic ABS plastic construction, while the PB30 uses powder-coated steel. Both provide NEMA 3R weather protection and identical electrical specifications. The non-metallic version offers superior corrosion resistance for coastal environments, while the steel version provides greater impact resistance.

Is the PBN30 compatible with all transfer switches?

The PBN30 works with any 30-amp transfer switch that accepts four-wire L14-30 connections. It is specifically designed for use with Reliance Pro/Tran transfer switches and Panel/Link transfer panels but is compatible with other manufacturers’ 30-amp transfer equipment using the same connector configuration.

What warranty covers the PBN30?

Reliance Controls provides a 5-year limited manufacturer warranty covering manufacturing defects in materials and workmanship. The warranty requires professional installation in accordance with all applicable codes and manufacturer instructions. Register your product and retain your purchase receipt to facilitate any warranty claims.

Can I use the PBN30 with a larger generator?

You can connect a larger generator to the PBN30, but you will be limited to 30 amps (7,500 watts) regardless of the generator’s total output. If you have a generator larger than 7,500 watts with a 50-amp outlet, consider using a PBN50 inlet box with a matching 50-amp transfer switch to utilize the full generator capacity.

How far can the inlet box be from the transfer switch?

Using 10 AWG copper wire, the inlet box can be located approximately 50 feet from the transfer switch while maintaining acceptable voltage drop. Longer runs may require 8 AWG wire to compensate for increased resistance. Consult a licensed electrician to calculate exact requirements for your specific installation.

Does the PBN30 include a generator cord?

No, the PBN30 is the inlet box only. Generator cords with L14-30 connectors must be purchased separately. This allows you to select the appropriate cord length for your specific generator placement requirements and property configuration.
