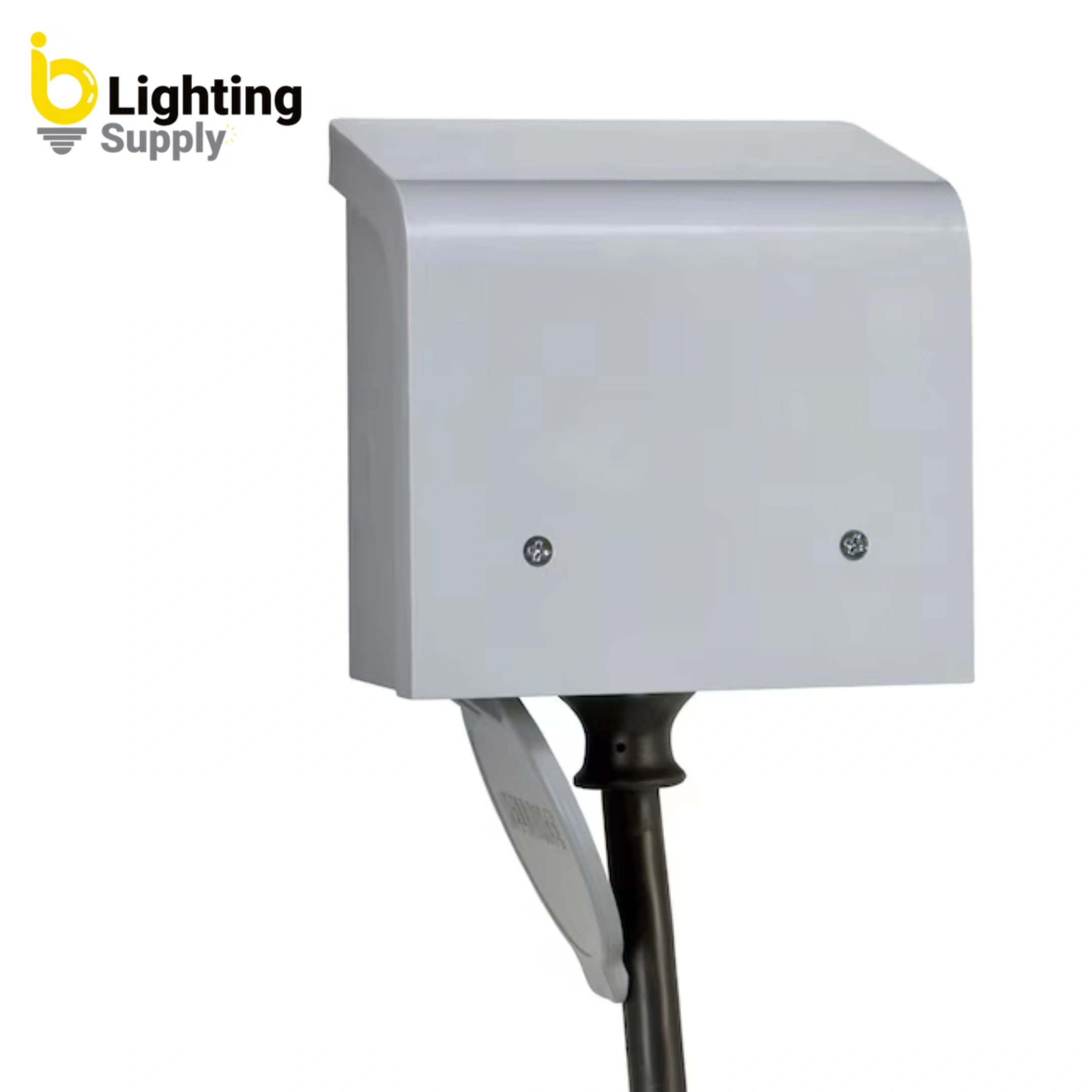

What Is the Reliance PBN50 Power Inlet Box?

The Reliance PBN50 is an outdoor-rated electrical inlet box that serves as the connection point between your portable generator and your home’s transfer switch or panel. Rather than running temporary extension cords through windows or doors during an outage, the inlet box provides a permanent, weatherproof receptacle mounted on your exterior wall where you simply plug in your generator cord.

This inlet box is part of Reliance Controls’ PBN series of non-metallic power inlets, designed specifically for use with Pro/Tran transfer switches, Panel/Link manual transfer panels, and generator-ready load centers. The non-metallic ABS construction offers several advantages over steel inlet boxes: resistance to corrosion in coastal and humid environments, lighter weight for easier installation, and no risk of rust staining on siding materials.

The 50-amp rating accommodates large portable generators and smaller standby units, making the PBN50 suitable for whole-house backup applications where significant electrical loads must be powered simultaneously. This capacity supports everything from central air conditioning and electric water heaters to well pumps, refrigeration, and general lighting throughout a residence or commercial building.

Key Components and Design Features of Reliance PBN50 Power Inlet Box

The Reliance PBN50 Power Inlet Box incorporates several patented design elements that distinguish it from competing inlet boxes. The slide-out base provides 360-degree access to wiring terminals, allowing electricians to complete connections quickly regardless of the mounting orientation. This feature alone can reduce installation time significantly compared to fixed-base designs that require awkward wire manipulation.

The front-mounted CS6375 receptacle accepts standard 50-amp California Standard twist-lock connectors, ensuring secure connections that cannot accidentally disconnect during generator operation. A spring-loaded protective cover automatically closes when the generator cord is removed, sealing the receptacle against moisture, insects, and debris between uses.

Over 100 cubic inches of internal wiring space accommodates the heavy-gauge conductors required for 50-amp circuits. The generous volume prevents wire crowding, ensures proper heat dissipation, and simplifies future maintenance or modifications. Three reusable Pop-Fast knockouts on the sides and back provide flexibility for conduit routing, while the removable face panel allows electricians to complete rough-in wiring before the inlet receptacle is installed.

Technical Specifications for the Reliance PBN50 Power Inlet Box

Understanding the complete specifications ensures proper matching with your generator, transfer switch, and wiring system.

Electrical Ratings of Reliance PBN50 Power Inlet Box

The PBN50 is rated for 50 amps at 125/250 volts, supporting generators with continuous running wattage up to 12,500 watts. This rating provides substantial headroom for most residential backup power needs and many light commercial applications.

The CS6375 California Standard receptacle configuration accepts four-wire connections: two hot legs (X and Y), neutral (W), and ground (G). This configuration provides both 120-volt and 240-volt power simultaneously, allowing your transfer switch to power a mix of standard circuits and high-voltage loads like electric ranges, water heaters, and air conditioning systems.

Wire gauge requirements specify minimum 8 AWG and maximum 4 AWG copper conductors. For 50-amp circuits at typical residential distances, 6 AWG copper wire is the standard choice, providing adequate current-carrying capacity with acceptable voltage drop for runs up to approximately 100 feet.

Physical Specifications of Reliance PBN50 Power Inlet Box

The non-metallic enclosure measures 6.25 inches in length, 6.25 inches in width, and 4.25 inches in depth. This compact footprint allows mounting in locations where space is limited, while the depth provides adequate room for wire bends and connections.

Three 3/4-inch Pop-Fast knockouts are positioned on both sides and the back of the enclosure. These reusable knockouts can be removed and reinstalled during installation if you need to change the conduit entry point. The design eliminates the sharp edges associated with traditional metal knockouts, reducing the risk of wire insulation damage.

Built-in mounting standoffs hold the enclosure slightly away from the mounting surface, accommodating the protective cover overhang and allowing drainage of any moisture that might accumulate. Three mounting holes in the back panel accept standard fasteners for secure attachment to wood, masonry, or metal surfaces.

Environmental Ratings by Reliance PBN50 Power Inlet Box

The NEMA 3R enclosure rating indicates protection against falling rain, sleet, and external ice formation. This rating makes the PBN50 suitable for permanent outdoor installation in all climate zones, including areas subject to severe weather conditions.

The ABS (acrylonitrile butadiene styrene) construction provides high impact resistance, UV stability, and chemical resistance superior to many metal enclosures. Unlike painted steel boxes that can rust when the finish is scratched, non-metallic enclosures maintain their protective properties even after minor surface damage.

Residential Applications for the Reliance PBN50 Power Inlet Box

The 50-amp, 12,500-watt capacity of the PBN50 supports comprehensive whole-house backup power configurations. Common residential applications include:

Central air conditioning systems represent one of the largest electrical loads in most homes. A typical 3-ton central air conditioner draws approximately 3,500 watts during operation, with starting surges that can reach three times running wattage. The PBN50’s 50-amp capacity provides adequate headroom for air conditioning plus additional circuits.

Electric water heaters require 240-volt power and typically draw 4,500 watts. Maintaining hot water during extended outages significantly improves family comfort and sanitation. The 50-amp inlet capacity allows water heater operation alongside other essential loads.

Well pump systems in rural areas provide the only water supply for many homes. Most residential well pumps require 240-volt power and draw between 1,000 and 2,500 watts depending on depth and horsepower. The four-wire configuration of the CS6375 receptacle supports these 240-volt loads directly.

Electric range circuits draw substantial power but allow meal preparation during extended outages. A typical electric range can draw up to 8,000 watts at full load, though actual cooking typically uses far less. The 50-amp inlet capacity supports occasional range use alongside other essential circuits.

Medical equipment circuits provide life-safety backup for oxygen concentrators, dialysis machines, and other essential medical devices. Households with medical power requirements should configure their transfer switch to prioritize these circuits above convenience loads.

Commercial and Agricultural Applications of Reliance PBN50 Power Inlet Box

The PBN50’s high capacity makes it equally suitable for commercial and agricultural backup power installations where significant electrical loads must operate during utility outages.

Retail point-of-sale systems, security systems, and emergency lighting can all operate from a single transfer switch fed through the PBN50. The 12,500-watt capacity supports multiple cash registers, refrigerated display cases, and HVAC equipment simultaneously.

Agricultural ventilation systems protect livestock during summer outages when barn temperatures can rapidly become dangerous. Large exhaust fans, cooling systems, and automated feeding equipment require substantial power that the 50-amp inlet readily provides.

Walk-in coolers and freezers in restaurants, convenience stores, and food processing facilities require continuous operation to protect inventory. The PBN50’s capacity supports multiple refrigeration units operating simultaneously.

Manufacturing and workshop equipment including air compressors, welding machines, and power tools benefit from the 240-volt capability of the CS6375 receptacle configuration. Many industrial tools require 240-volt power that smaller 30-amp inlet boxes cannot provide.

Installation Requirements and Process for Reliance PBN50 Power Inlet Box

While the PBN50 is designed for straightforward installation, the work involves outdoor electrical wiring and must comply with local codes. Most jurisdictions require a licensed electrician to perform inlet box installations, and permits may be required.

Reliance PBN50 Power Inlet Box Location Selection

Choose an outdoor mounting location that balances accessibility with safety considerations. The inlet box should be positioned where your generator can operate at least 20 feet from any windows, doors, or fresh air intakes. Generator exhaust contains carbon monoxide, and improper placement can allow deadly fumes to enter occupied spaces.

Select a location that provides a reasonably direct conduit run to your transfer switch or panel. Longer runs require larger wire gauges to compensate for voltage drop, increasing material costs. A location on the same wall as your electrical panel often provides the shortest, most economical wiring path.

Consider protection from physical damage when selecting the mounting location. Areas subject to vehicle traffic, lawn equipment impact, or falling debris from trees should be avoided. The non-metallic construction resists rust but can crack under severe impact.

Wiring Connections of Reliance PBN50 Power Inlet Box

The PBN50 requires four conductors: two hot wires (typically black and red), one neutral (white), and one ground (green or bare). For 50-amp circuits, 6 AWG copper wire is standard for runs up to 100 feet. Longer runs may require 4 AWG wire to maintain acceptable voltage drop.

Remove the front panel and slide out the wiring base to access the terminal connections. Connect wires to the appropriate terminals: hot wires to X and Y terminals, neutral to W, and ground to G. Ensure all connections are tight and secure, as loose connections create heat buildup and fire hazards.

Route wiring through appropriately sized conduit from the inlet box to your transfer switch location. Waterproof conduit fittings at the inlet box maintain the NEMA 3R weather rating. Leave a small service loop inside the box to facilitate future maintenance or receptacle replacement.

Safety Standards and NEC Compliance

The Reliance PBN50 meets stringent safety requirements established by national testing laboratories and electrical codes. Understanding these certifications ensures your installation will pass inspection and provide safe operation.

UL Listing

The inlet box carries UL listing, confirming that the product has been tested for proper electrical ratings, adequate insulation and spacing, weather resistance appropriate for the NEMA 3R rating, and mechanical durability under normal use conditions.

UL listing also verifies that the CS6375 receptacle meets all applicable standards for twist-lock connectors, including proper contact engagement, retention force, and current-carrying capacity. For more information on UL safety standards, consult the NFPA 70 National Electrical Code resource page.

NEC Article 702 Requirements

The National Electrical Code Article 702 governs optional standby systems, which include portable generator backup installations. The PBN50 is designed and listed for use in accordance with NEC Article 702 requirements when properly installed with an approved transfer switch.

Key NEC requirements addressed by proper inlet box installation include: permanent wiring methods suitable for the installation environment, adequate capacity ratings for the connected loads, and proper grounding and bonding to prevent shock hazards.

Transfer Switch Requirement

The PBN50 must be used in conjunction with a transfer switch when powering building circuits. This requirement prevents dangerous backfeeding that can electrocute utility workers and damage equipment. Never connect a generator inlet directly to building wiring without an approved transfer switch or interlock device.

The inlet box alone does not provide any isolation between generator and utility power. The transfer switch performs this critical safety function, and the PBN50 simply serves as the weatherproof connection point between your generator and the transfer switch.

Maintenance Requirements

The PBN50 requires minimal maintenance compared to active electrical components, but regular attention ensures reliable operation when you need backup power most.

Monthly Inspection

Check the spring-loaded cover to ensure it closes fully and seals against the receptacle face. The spring mechanism should provide positive closure without sticking or binding. If the cover does not close completely, moisture and insects can enter the receptacle and cause corrosion or short circuits.

Visually inspect the receptacle contacts for signs of corrosion, discoloration, or debris accumulation. Clean contacts with a dry cloth or contact cleaner if oxidation is observed. Do not use water or liquid cleaners that could remain in the receptacle.

Annual Inspection

Schedule an annual inspection that includes opening the enclosure to check internal wiring connections. Look for signs of overheating such as discolored wire insulation, melted plastic, or darkened terminal connections. Tighten any loose connections, as thermal cycling can cause terminals to loosen over time.

Check the enclosure mounting for secure attachment to the building surface. Verify that all fasteners remain tight and that the standoffs maintain proper spacing from the wall. Inspect conduit connections for tightness and seal integrity.

Test the generator connection by plugging in your generator cord and verifying secure twist-lock engagement. The cord should require deliberate rotation to disconnect and should not pull free under tension. Replace worn cords that no longer lock securely.

Post-Storm Inspection

After severe weather events, inspect the inlet box for physical damage before connecting your generator. Check for cracks in the non-metallic enclosure, damage to the protective cover, and debris accumulation in the receptacle. Clear any leaves, dirt, or ice from the cover mechanism before use.

Common Installation and Operation Mistakes

Avoiding these frequent errors ensures safe, code-compliant operation of your generator backup system.

Undersized Wiring

Using wire smaller than the minimum 8 AWG specification creates dangerous overheating conditions. Even when the generator operates below full capacity, undersized wiring can heat to fire-starting temperatures during extended operation. Always use 6 AWG or larger copper wire for 50-amp circuits.

Improper Conduit Sealing

Failing to seal conduit connections properly allows water to enter the wiring pathway, potentially reaching the transfer switch inside your home. Use appropriate weatherproof fittings at the inlet box and seal any penetrations through exterior walls with approved caulking or foam.

Generator Placement Too Close

The convenience of a permanent inlet box can tempt users to operate generators too close to buildings. Maintain minimum 20-foot distance from windows, doors, and fresh air intakes regardless of where the inlet box is mounted. Carbon monoxide poisoning kills within minutes in enclosed spaces.

Missing Transfer Switch

Installing an inlet box without a transfer switch creates a dangerous backfeed condition when the generator operates. Utility workers repairing power lines can be electrocuted by power flowing backward from improperly connected generators. Always install the inlet box as part of a complete transfer switch system.

Using Aluminum Wire

Reliance Controls products are designed for use with copper conductors only. Aluminum wire expands and contracts at different rates than copper, causing loose connections over time. The resulting resistance creates heat buildup and fire hazards. Use only copper wire for inlet box installations.

Frequently Asked Questions

What generator cord do I need for the PBN50?

The PBN50’s CS6375 receptacle requires a generator cord with a CS6364 connector on the inlet box end. Most large portable generators include a 50-amp outlet with the matching CS6369 receptacle for direct connection. Generator cords are available in various lengths from 10 to 50 feet.

Can I install the PBN50 myself?

While the mechanical mounting is straightforward, the electrical connections involve 50-amp, 240-volt wiring that typically requires a licensed electrician. Most jurisdictions require permits for inlet box installation, and improper wiring creates serious fire and electrocution hazards.

What is the difference between the PBN50 and PB50?

The PBN50 features non-metallic ABS construction, while the PB50 is constructed from powder-coated steel. Both provide NEMA 3R weather protection and identical electrical specifications. The non-metallic version offers superior corrosion resistance for coastal or humid environments, while the steel version provides greater impact resistance.

Is the PBN50 compatible with all transfer switches?

The PBN50 works with any 50-amp transfer switch that accepts four-wire connections (two hots, neutral, ground). It is specifically designed for use with Reliance Pro/Tran transfer switches and Panel/Link transfer panels but is compatible with other manufacturers’ 50-amp transfer equipment.

Can I use the PBN50 indoors?

The PBN50 is rated for outdoor installation only. Indoor use would require the generator cord to pass through a window or door, defeating the purpose of a permanent inlet box installation. Additionally, generator operation must always occur outdoors to prevent carbon monoxide buildup.

What size generator works with the PBN50?

The PBN50 supports generators from approximately 7,500 watts up to 12,500 running watts. Smaller generators can use the inlet box without any issues, though a 30-amp inlet might be more economical for generators under 7,500 watts. Larger generators exceeding 12,500 watts require 60-amp or larger inlet boxes.

How far can the inlet box be from the transfer switch?

Using 6 AWG copper wire, the inlet box can be located approximately 100 feet from the transfer switch while maintaining acceptable voltage drop. Longer runs require larger wire (4 AWG) to compensate for increased resistance. Consult an electrician to calculate exact requirements for your specific installation.

Does the PBN50 include a generator cord?

No, the PBN50 is the inlet box only. Generator cords with CS6364 connectors must be purchased separately. This allows you to select the appropriate cord length for your specific generator placement needs.
