The question what is a transfer switch and do I need one comes up the moment most homeowners start seriously researching generator installations, and it deserves a precise...
The question what is a transfer switch and do I need one comes up the moment most homeowners start seriously researching generator installations, and it deserves a precise answer rather than a vague one. A transfer switch is not optional equipment. It is a legal requirement under the National Electrical Code for any generator connected to your home’s wiring, a warranty condition for both Generac and Kohler home standby generators, and a life-safety device that protects utility workers from electrocution during outage restoration work. This guide explains exactly what a transfer switch is, how it works, which type applies to your installation, what it costs, and what happens when one is not installed. You will leave this guide with a complete and accurate understanding of transfer switch requirements before you order any generator equipment.
⚡ IB Lighting Carries Generac and Kohler Transfer Switch Kits — Compatibility Confirmed Before Every Order Ships
What Is a Transfer Switch: A Plain-Language Explanation

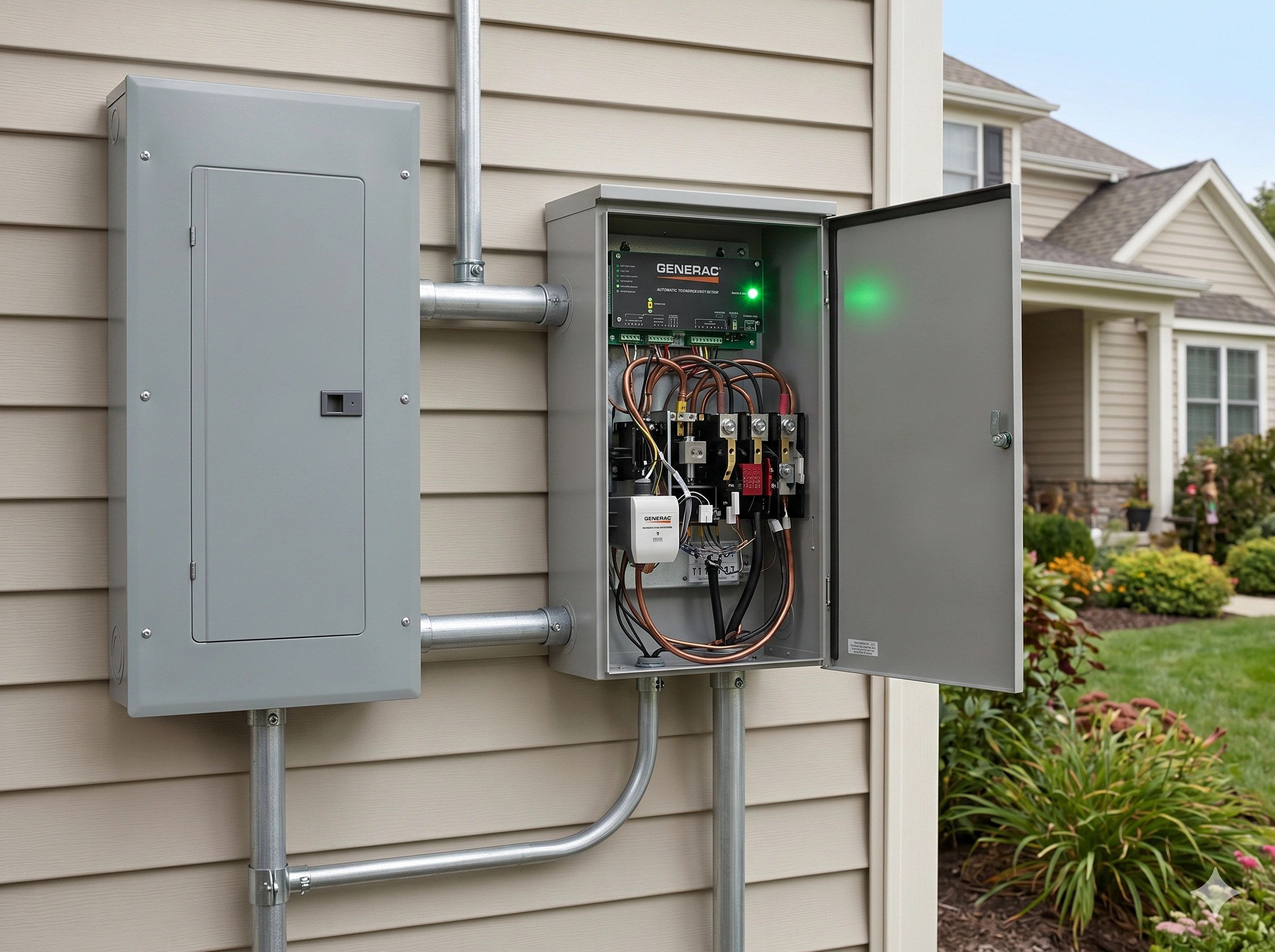

A transfer switch is an electrical device that switches your home’s power source from the utility grid to a generator and back again. It sits between your utility meter and your electrical panel and controls which power source feeds your home’s circuits at any given moment. When utility power is present, the transfer switch keeps your home connected to the grid and keeps the generator isolated from the grid. When utility power fails, the transfer switch disconnects your home from the grid and connects the generator to your home’s circuits.
That isolation function is the entire reason a transfer switch exists. Without it, electricity generated by your home generator does not stay inside your home. It travels back through your electrical panel, through your utility meter, and onto the utility distribution line in the street. That distribution line carries your generator’s electricity to wherever it can complete a circuit, including through the hands of a utility worker who is touching the line believing it is safely de-energized. That scenario is called back-feed, and it has killed utility workers. The transfer switch physically prevents back-feed by breaking the connection between your home and the utility grid before connecting the generator.
This is why the answer to the second part of the question, do I need one, is always yes. If you are connecting a generator to your home’s wiring in any way, a transfer switch is legally required, practically necessary, and morally non-negotiable. IB Lighting carries Generac and Kohler transfer switch kits for every residential generator application. Browse the full range of transfer switch kits here.
Why Transfer Switches Are Legally Required: The National Electrical Code
Transfer switches are not industry best practice. They are a federal code requirement. The National Electrical Code (NEC) Article 702 governs optional standby systems, which covers the vast majority of residential generator installations in the United States. Article 702 requires that transfer equipment be installed for any generator connected to a building’s electrical system to prevent back-feed onto utility lines during generator operation.
This requirement is enforced through the electrical permit and inspection process that every legitimate generator installation must complete. Before installation begins, a permit is obtained from your local authority having jurisdiction. After installation is complete, a licensed electrical inspector visits the property and verifies that the transfer switch is correctly installed, correctly sized for the service amperage, and correctly integrated with the generator system. A generator installation without a transfer switch fails this inspection and cannot legally be placed into service.
Beyond the NEC, both Generac and Kohler include a properly installed, compatible transfer switch as an explicit condition of their manufacturer warranty on home standby generators. A generator operating without a code-compliant transfer switch is running in a configuration that voids the warranty, regardless of how new the unit is or where it was purchased. IB Lighting confirms that every generator order ships with a matched, compatible transfer switch to ensure both code compliance and warranty validity from the first day of operation.
What Is a Transfer Switch: The Three Main Types and How Each Works
Transfer switches are not a single product. The transfer switch category includes three distinct types that serve different generator applications, installation scenarios, and operational models. Understanding which type applies to your situation is essential before purchasing either a generator or a transfer switch.
Type 1: Automatic Transfer Switch — The Standard for Home Standby Generators
An automatic transfer switch (ATS) monitors utility power continuously, around the clock, through voltage and frequency sensing circuits. When it detects that utility voltage has dropped below approximately 90 percent of nominal or that frequency has deviated from 60Hz, it classifies the event as a power outage and begins the transfer sequence automatically, without any human action required.
The ATS sends a start signal to the standby generator. The generator starts and runs through a warm-up period, typically 10 to 30 seconds, until its output reaches stable voltage and frequency. The ATS then opens the utility contacts and closes the generator contacts simultaneously, transferring your home’s electrical load from utility power to generator power. The entire process from outage detection to restored power typically takes 10 to 30 seconds for most residential Generac and Kohler installations.
When utility power is restored, the ATS monitors it for a preset stability delay, typically 30 to 60 seconds, to confirm the restoration is not a momentary fluctuation. Once confirmed stable, the ATS transfers the load back to utility, then sends a cool-down signal to the generator. The generator runs unloaded for a brief cool-down period and shuts off. The entire return sequence is also fully automatic with zero homeowner involvement.
Modern Generac ATS units in the RTSI and RTSN series include a built-in weekly exercise mode that starts the generator automatically for a brief test run at a preset time to verify readiness. Kohler’s RXT series ATS is similarly feature-rich and widely regarded by professional electricians for its build quality and integration reliability. An ATS is required for any home standby generator installation because the generator’s core value proposition, starting automatically when the power goes out, is impossible without an ATS to receive the generator’s output and route it to your home’s circuits. Browse IB Lighting’s full Generac generator and transfer switch lineup here.
Type 2: Manual Transfer Switch — The Standard for Portable Generator Connections
A manual transfer switch is a subpanel installed adjacent to your main electrical panel that contains a set of double-throw circuit breakers. Each breaker serves one circuit in the subpanel and has two positions: utility and generator. When utility power is present, the breakers are in the utility position. When a power outage occurs and you want to run selected circuits from a portable generator, you manually flip each breaker from utility to generator position, then start the generator and connect it to the transfer switch’s power inlet with the appropriate generator cord.
The manual transfer switch performs the same isolation function as an automatic transfer switch. When any circuit breaker in the manual switch subpanel is in the generator position, that circuit is physically isolated from the utility side. Back-feed is prevented. The difference from an ATS is that the switching requires human action. The homeowner must be present, physically capable, and willing to perform the transfer sequence in whatever conditions the outage creates.
A manual transfer switch installed by a licensed electrician is a legitimate, code-compliant, and cost-effective solution for portable generator backup applications where automatic operation is not required. For buyers who use a portable generator for occasional short outages, a manual transfer switch provides safe, code-compliant connection to the home’s circuits at a lower equipment and installation cost than an ATS. Browse IB Lighting’s portable and inverter generator range here for units commonly paired with manual transfer switches.
Type 3: Interlock Kit — The Minimal Code-Compliant Alternative
An interlock kit is a mechanical device installed directly on your existing main electrical panel that physically prevents the main breaker and a designated generator inlet breaker from both being in the on position at the same time. It is a simpler and less expensive alternative to a dedicated transfer switch subpanel for portable generator applications where the owner wants to power circuits throughout the existing panel rather than a limited set of pre-selected circuits.
With an interlock kit installed, the operational sequence involves switching the main breaker off, switching on the generator inlet breaker, then individually switching on whichever circuit breakers you want to power from the generator, being careful not to exceed the generator’s output capacity with the combined load of all selected circuits. When utility power is restored, the process is reversed.
An interlock kit requires more operational complexity from the homeowner during an outage than a manual transfer switch subpanel does, because the homeowner must actively manage which circuits are on to avoid overloading the generator. However, it provides access to any circuit in the main panel rather than only the pre-selected circuits wired to a dedicated transfer switch subpanel. Both interlock kits and manual transfer switch subpanels are code-compliant solutions for portable generator connection when installed by a licensed electrician.
| Feature | Automatic (ATS) | Manual Transfer Switch | Interlock Kit |
|---|---|---|---|
| Requires Human Action | No — Fully Automatic | Yes | Yes — More Complex |
| Works When No One Is Home | Yes | No | No |
| Prevents Back-Feed | Yes | Yes | Yes |
| Required for Standby Generator | Yes — Only Option | No | No |
| Suitable for Portable Generator | Technically Yes | Yes — Ideal | Yes — Budget Option |
| Equipment Cost | Higher | Moderate | Lower |
| NEC Compliant When Properly Installed | Yes | Yes | Yes |
| Available at IB Lighting | ✔ Yes | ✔ Yes | ✔ Yes |
Not Sure Which Transfer Switch Type Your Generator Needs?
IB Lighting’s Master Electrician-founded team confirms the correct transfer switch type, amperage, and model for your generator and main panel before every order ships. Free guidance, no obligation.
What Is a Transfer Switch and Do I Need One: Answering by Generator Type
The most practical way to answer the do I need one question is to map it to your specific generator situation. The correct type of transfer switch is determined primarily by the type of generator you have or are planning to purchase.
🏠 Situation: You Are Installing or Own a Home Standby Generator
Yes, you need a transfer switch — specifically an automatic transfer switch. A home standby generator requires an ATS to function as an automatic system. The ATS is what receives the start signal from the generator, completes the load transfer, and makes the system automatic. Without an ATS, a standby generator is simply an engine sitting outside your house with no connection to your home’s circuits. Both Generac and Kohler require a matched ATS as a warranty condition. IB Lighting confirms the correct ATS before every standby generator order ships.
🛰 Situation: You Have a Portable Generator and Want to Power Your Home’s Circuits
Yes, you need a transfer switch — either a manual transfer switch subpanel or an interlock kit. Connecting a portable generator directly to your home’s circuits through any means other than a properly installed transfer switch or interlock kit is a code violation that creates a back-feed risk for utility workers. A licensed electrician must install the switch and a permit is required. This is not optional regardless of how you physically make the connection.
🔌 Situation: You Plan to Use Extension Cords Only — Not Connecting to Your Home’s Wiring
No, a transfer switch is not required for this use case. If your portable generator use is limited to plugging appliances directly into the generator’s output outlets via extension cords, you are not connecting to your home’s wiring and there is no back-feed pathway. A transfer switch is only required when the generator is connected to the home’s electrical system. Extension cord operation does not require a transfer switch but also does not provide the convenience, circuit coverage, or household integration of a properly installed generator connection.
🏠 Situation: You Are Buying a Home That Already Has a Generator Installed
Verify that a proper transfer switch is already installed before assuming the system is code-compliant. Homes sold with installed generators do not always have compliant transfer switch installations, particularly older installations or those completed by unlicensed contractors. Before relying on an existing installed generator, verify that a properly sized ATS or manual transfer switch is installed, that the installation was permitted and inspected, and that the generator and switch are compatible. IB Lighting’s team can advise on what to look for during a pre-purchase generator assessment.
What Is a Transfer Switch Installation Process: What to Expect
Understanding what the installation process involves helps set realistic expectations for the timeline and total project cost before you order either a generator or a transfer switch. The installation steps are consistent regardless of whether you are installing an automatic transfer switch for a standby generator or a manual switch for a portable generator application.
Step One: Permit Application Before Work Begins
The licensed electrician you hire submits an electrical permit application to your local authority having jurisdiction before any work begins. The permit application typically includes the proposed installation location, the generator and transfer switch specifications, a one-line electrical diagram, and the contractor’s license information. In most jurisdictions the permit is issued within a few days to a few weeks. Work may not legally begin until the permit is issued.
Step Two: Transfer Switch Installation by Licensed Electrician
The electrician installs the transfer switch adjacent to or integrated with your main electrical panel. For an automatic transfer switch on a standby generator installation, this involves positioning the ATS enclosure on the exterior wall near the main panel, connecting the service entrance conductors from the utility meter through the ATS to the main panel, routing the control wiring between the ATS and the generator’s control board, and connecting the generator’s output conductors to the ATS generator contacts.
For a manual transfer switch subpanel, the installation involves mounting the transfer switch subpanel adjacent to the main panel and wiring the selected essential circuits from the main panel through the transfer switch breakers. A generator power inlet box is typically installed on the exterior of the home to provide a weatherproof connection point for the generator’s power cord.
All transfer switch installations involve work inside the main electrical panel on conductors that remain energized even when the main breaker is switched off, because the service entrance conductors from the utility meter are always live until the utility disconnects them at the pole. This is the primary reason that transfer switch installation must be performed by a licensed electrician rather than by a homeowner. The governing installation standards are NEC Article 702 for optional standby systems and NFPA 110 for emergency and standby power system installation requirements.
Step Three: Inspection After Installation
After the transfer switch installation is complete, the licensed electrician schedules an inspection with the local authority having jurisdiction. The electrical inspector visits the property, reviews the installation against the permit application and the applicable code requirements, and either approves the installation or identifies deficiencies that must be corrected before approval. An approved inspection is the final confirmation that the transfer switch installation is code-compliant and the system can be legally placed into service.
Transfer Switch Sizing: Why the Amperage Rating Must Match Your Panel
The amperage rating of the transfer switch must match your home’s main electrical panel amperage. This is a code requirement, not a preference. A 200-amp main panel requires a 200-amp transfer switch. A 100-amp panel requires a 100-amp transfer switch. The reasons are both technical and legal.
Technically, installing a transfer switch rated below your panel’s main breaker amperage creates a bottleneck in your home’s electrical distribution during generator operation. Only the current the transfer switch is rated for can flow through it, regardless of how large the generator is or how much the panel is designed to handle. A 100-amp transfer switch on a 200-amp service limits generator-powered operation to 100 amps, cutting available coverage in half.
Legally, a transfer switch rated below the service amperage is a code violation under NEC Article 702 that will fail the required electrical inspection. The transfer equipment must be rated for the load and voltage at the point of installation. IB Lighting confirms the correct transfer switch amperage for every generator order before it ships, preventing this failure point at the source. Browse IB Lighting’s full transfer switch kit range here.
What Happens If You Connect a Generator Without a Transfer Switch
This section is worth being direct about because the consequences are severe enough that they warrant plain language rather than cautious hedging.
⚠ Risk 1: Utility Worker Electrocution
Electricity from your generator back-feeds onto the utility distribution line in the street. Utility workers and line crews who touch that line believing it is de-energized receive the full voltage your generator is producing. This is a lethal electrical exposure. It is the primary safety reason transfer switch requirements exist in the NEC and it is documented in utility worker fatality investigations. The Consumer Product Safety Commission documents generator-related injuries and deaths annually, including back-feed incidents.
⚠ Risk 2: Equipment Damage When Utility Power Returns
When utility power is restored to a line that your generator is back-feeding, the utility’s power and your generator’s output meet on the same circuit. These two sources are not synchronized in phase or frequency. The resulting voltage collision creates a power surge that can destroy connected appliances, damage the generator, burn wiring, and create a fire inside your home’s electrical panel. This event happens in milliseconds and without warning.
⚠ Risk 3: Voided Manufacturer Warranty
Operating a Generac or Kohler generator without a properly installed, matched transfer switch voids the manufacturer warranty from the moment of the non-compliant operation. Every component of the generator system, including the generator unit itself, is unwarranted for any claims arising from that configuration. This means every repair cost during the warranty period is entirely out of pocket for the owner.
⚠ Risk 4: Legal and Insurance Liability
Operating an unpermitted generator installation without a transfer switch exposes the homeowner to legal liability for any injuries or property damage caused by the back-feed. It also creates a legitimate basis for an insurance company to deny claims arising from generator-related incidents on the grounds that the installation was not code-compliant. A homeowner’s insurance policy that covers generator operation typically does so only when the installation complies with applicable codes and permit requirements.
Ready to Order the Right Transfer Switch for Your Generator?
IB Lighting’s Master Electrician-founded team confirms the correct transfer switch type, amperage, and model for your generator and panel before your order ships. Every transfer switch kit arrives with free freight and free freight insurance. No compatibility surprises on installation day.
Frequently Asked Questions: What Is a Transfer Switch and Do I Need One
What is a transfer switch in simple terms?
A transfer switch is an electrical device that switches your home’s power supply between the utility grid and a generator. It physically disconnects your home from the utility line before connecting the generator, preventing electricity from your generator from traveling back onto utility lines where it could electrocute workers. A transfer switch is required by the National Electrical Code for any generator connected to your home’s wiring and is a manufacturer warranty condition for both Generac and Kohler home standby generators.
Do I need a transfer switch for a portable generator?
Yes, if you are connecting the portable generator to your home’s wiring rather than using extension cords directly to appliances. Connecting a portable generator to your home’s circuits without a properly installed transfer switch or interlock kit is a code violation under NEC Article 702 that creates a lethal back-feed risk for utility workers. A manual transfer switch subpanel or an interlock kit installed by a licensed electrician is the correct solution. If you are only using extension cords directly from the generator to individual appliances and not connecting to the home’s wiring, a transfer switch is not required for that use case.
What is a transfer switch cost for a home generator installation?
Transfer switch costs vary by type and amperage. An interlock kit typically costs $50 to $200 for the hardware plus electrician labor for installation. A manual transfer switch subpanel covering 6 to 10 circuits typically costs $200 to $800 for equipment plus installation labor. An automatic transfer switch for a home standby generator, including the ATS unit, ranges from $500 to $1,500 or more depending on amperage and model, plus installation labor. The ATS is typically included in bundled standby generator packages. IB Lighting’s transfer switch kit pricing is displayed accurately in your cart and the team confirms the correct kit for your generator before your order ships.
Can I install a transfer switch myself?
No. Transfer switch installation must be performed by a licensed electrician in most US jurisdictions. Installation involves work inside the main electrical panel on conductors that remain energized even with the main breaker switched off, because the service entrance conductors from the utility meter are always live until disconnected at the utility side. Exposure to these energized conductors without proper training and protective equipment is a lethal hazard. Self-installation of a transfer switch also voids the Generac and Kohler manufacturer warranty and constitutes an illegal installation in most states that will fail electrical inspection.
What is the difference between an automatic and manual transfer switch?
An automatic transfer switch monitors utility power continuously and performs the entire outage detection, generator start, load transfer, load retransfer, and generator shutdown sequence automatically without any human involvement. It completes the transfer in 10 to 30 seconds from the initial outage detection. A manual transfer switch requires a homeowner to physically flip switch handles from the utility position to the generator position after starting the generator themselves. Both types prevent back-feed and are code-compliant when properly installed. Automatic transfer switches are required for home standby generators. Manual transfer switches are appropriate for portable generator connections where automatic operation is not a requirement.
Does IB Lighting carry transfer switches for both Generac and Kohler generators?
Yes. IB Lighting carries Generac and Kohler automatic transfer switch kits compatible with their full residential home standby generator lineups, as well as manual transfer switch options for portable generator applications. All transfer switch kits ship with free nationwide freight delivery and free freight insurance. IB Lighting’s electrician-led team confirms the correct transfer switch type, amperage, and model for your specific generator and main panel amperage before every order is placed. Browse the full transfer switch kit range here.
How does a transfer switch know when to switch to generator power?
An automatic transfer switch detects utility power failure through voltage and frequency sensing circuits that continuously monitor the incoming utility power. When voltage drops below approximately 90 percent of nominal voltage or frequency deviates significantly from 60Hz, the ATS classifies the event as a power outage and initiates the transfer sequence. This detection and response happens within seconds of the outage occurring. A manual transfer switch does not detect anything automatically. The homeowner must observe the outage and manually operate the switch in response. Both types physically switch the home’s electrical connection between utility and generator based on their respective methods of determining which source should be powering the home at any given moment.
What is a transfer switch exercise mode and why does it matter?
Exercise mode is a feature of modern automatic transfer switches that causes the standby generator to start automatically on a preset weekly schedule for a brief test run, typically 12 to 20 minutes, to verify that the engine starts reliably, the generator reaches stable output, and all control system communications between the ATS and the generator are functioning correctly. Exercise mode runs the generator under light or no load, depending on whether the ATS transfers the home’s actual load during the exercise or simply runs the generator disconnected. Regular exercise cycles prevent the cold-start reliability problems that can develop in engines left unused for months between outage events. Generac’s ATS configurations include Quiet-Test exercise mode that runs the generator at lower RPM during the exercise cycle to reduce sound output during the weekly test.
What Is a Transfer Switch: The Complete Answer and What to Do Next
A transfer switch is the device that makes a generator installation safe, legal, and functional by preventing back-feed onto utility lines and routing generator power correctly to your home’s circuits. Whether you need an automatic transfer switch for a home standby generator or a manual transfer switch for a portable generator connection, the requirement is the same: a properly sized, code-compliant transfer switch installed by a licensed electrician, permitted and inspected before the system is placed into service.
The question do I need one has one answer regardless of generator type, installation complexity, or outage frequency: yes. There are no circumstances under which connecting a generator to your home’s wiring without a transfer switch is acceptable from a safety, legal, or warranty perspective.
IB Lighting carries transfer switch kits for both standby and portable generator applications, confirms the correct type and amperage before every order ships, and provides the complete generator system, from generator unit through transfer switch, as a matched and warranted package. Browse the full transfer switch kit range here, explore the complete home standby generator collection here, or call our team at (800) 674-9019 to confirm the right transfer switch for your specific installation before you order anything. The Expert Advice hub has additional technical guidance on transfer switch sizing, generator compatibility, and installation requirements.
