14kW Generac AC compatibility comes down to compressor size and home appliance mix. A Generac 7258 14kW reliably runs 2-ton and 3-ton central AC systems in gas-heated homes. It cannot reliably handle 4-ton or 5-ton AC compressors because locked rotor amp surge at startup exceeds the unit’s surge capacity. Upgrading to a 22kW or 24kW solves the larger AC case.

The single most common 14kW Generac question IB Lighting’s electrician-led team fields runs along these lines: “I have a 3-ton central AC, can a 14kW handle it?” The answer depends less on the AC nameplate and more on the locked rotor amp draw at startup. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting walks every 14kW buyer through the AC math before the order ships. This guide is that walkthrough.

The Fast Answer: 14kW Generac AC Compatibility by Tonnage

The 14kW Generac AC compatibility table below reflects real-world results from hundreds of standby generator installs IB Lighting has shipped. The compatibility column accounts for typical residential AC compressor startup characteristics and standard household baseline loads during an outage.

The honest reading: a 14kW Generac is the right answer for gas-appliance homes with central AC up to 3-ton. Beyond that the locked rotor amp surge becomes the limiting factor, not the running watt rating. Larger compressors require either a bigger generator or a power management module that staggers AC startup against other heavy loads.

Pro tip: The most common 14kW Generac AC sizing mistake is buyers assuming the generator can handle any AC up to the running watt rating. Running watts only matter once the compressor is spinning. The startup surge is two to three times that number and lasts for the first few seconds, which is exactly where most undersized generators trip.

Why AC Sizing Is About Locked Rotor Amps, Not Running Watts

The number on the side of a central AC condenser that matters for generator sizing is locked rotor amps (LRA), not the running watts or BTU rating. LRA is the instantaneous current draw the compressor pulls during the first fraction of a second of startup, when the motor rotor is briefly stationary against the load of the refrigerant system.

LRA values for common residential AC sizes

Typical residential central AC compressors pull these locked rotor amps at 240V single-phase, per NEMA motor standards applied across the major HVAC manufacturers:

Notice the gap between the steady running watt figure and the startup watt surge. A 3-ton AC runs at roughly 3,600 to 4,200 watts continuously but surges to 18,000 to 21,000 watts for the half-second startup. The 14kW Generac has approximately 21,000 to 22,000 watts of surge capacity on liquid propane, which lands just inside the 3-ton compressor startup envelope.

The official Generac sizing calculator handles this math in the background, but knowing the LRA values directly lets you sanity-check the result before you commit. For a deeper look at the underlying electrical math, see our standby generator sizing calculator guide.

14kW Generac Specs and Real-World Output

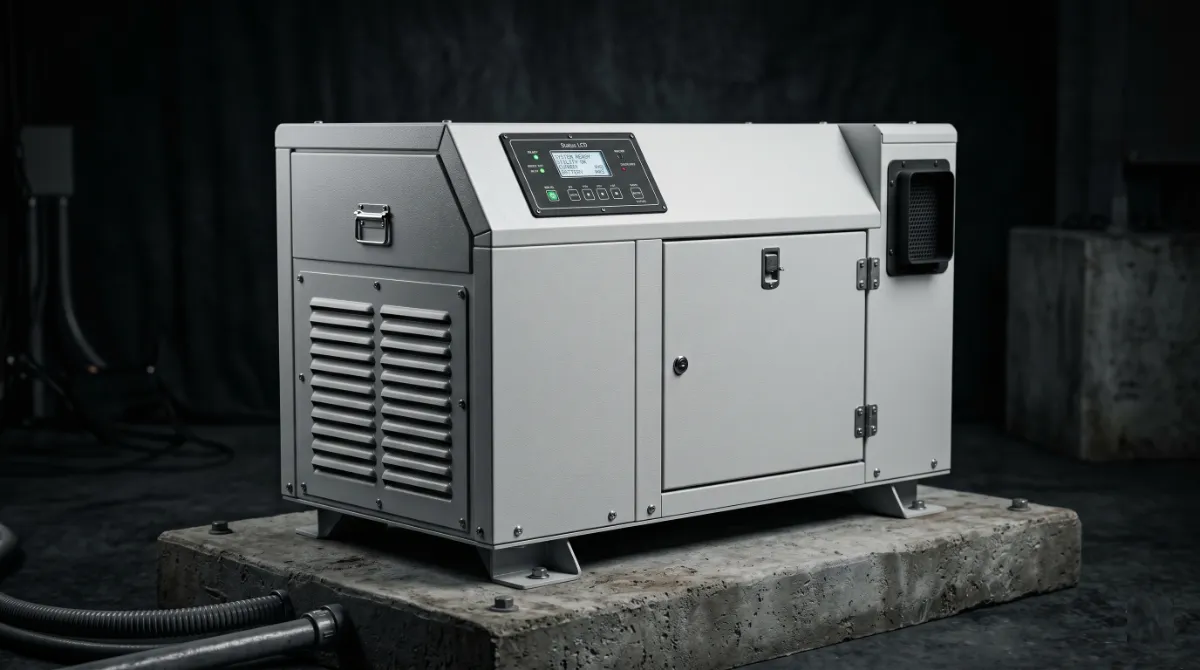

The 14kW Generac sold today is the Generac 7258, a Next Generation Guardian Series air-cooled standby unit. Real-world output and surge capacity drive AC compatibility, not the nameplate alone.

Why LP output is higher than NG

The 14kW rating applies to liquid propane operation. On natural gas the same unit derates to 12.5 kW because natural gas is less energy-dense per cubic foot than propane vapor. Buyers on natural gas effectively own a 12.5 kW generator with 14 kW marketing language, which can affect the AC compatibility table by one tonnage step in borderline cases.

14kW Generac AC Compatibility Chart by Tonnage

The compatibility chart at the top of this article assumed a typical 5,000 to 7,000 watt baseline household load alongside the AC, which is realistic for most residential outage scenarios. Below is the expanded breakdown showing what else can run with each AC size on a 14kW Generac.

2-ton AC: comfortable margin

A 2-ton AC pulls 12,000-15,000 watts during startup and 2,400-3,000 watts running. Combined with a typical 5,000-watt household baseline (refrigerator, lighting, electronics, well pump cycling), the 14kW Generac handles this with room left for a microwave, hair dryer, or other intermittent draws.

3-ton AC: comfortable in gas homes

A 3-ton AC pulls 18,000-21,000 watts during startup and 3,500-4,200 watts running. In a gas-heated home with gas water heater and gas range, the running combined load lands around 9,000-11,000 watts, well inside the 14kW envelope. Startup is the tight moment, but the 14kW surge capacity at 21 kW handles it.

3.5-ton AC: requires management module

A 3.5-ton AC at startup surges to 21,000-26,000 watts, putting the 14kW Generac at or above its surge limit. A Generac Smart Management Module that delays AC startup by a few seconds while shedding other 240V loads can resolve this case, but the install becomes more complex.

4-ton and larger: upgrade required

A 4-ton AC startup surge of 26,000-32,000 watts is beyond the 14kW Generac’s 21 kW surge envelope. No management module can resolve this because the AC compressor’s own startup current is the limiting factor. The right answer is upgrading to an 18kW (which handles 4-ton), a 22kW (which handles 4-ton with margin), or a 24kW (which handles 5-ton).

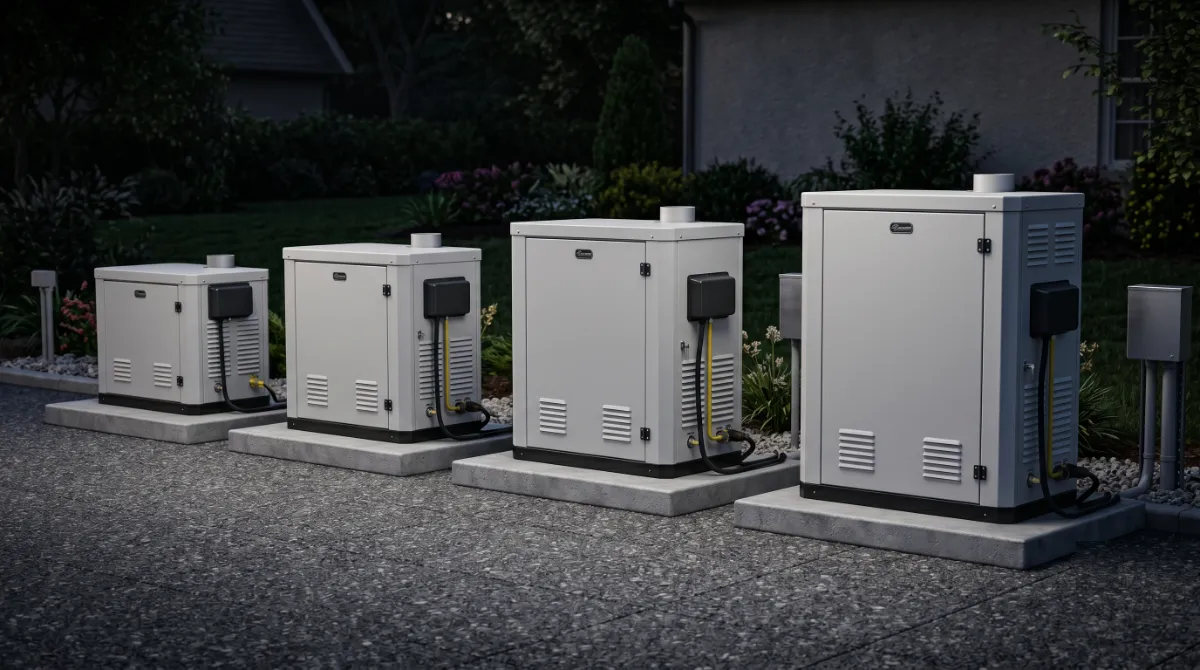

When to Upgrade from 14kW to 18kW, 22kW, or 24kW

The 14kW Generac is the right answer for many homes, but four scenarios consistently push the right choice up to a larger unit. Knowing the upgrade triggers up front saves the cost of returning a unit that cannot start the AC.

Upgrade trigger 1: AC tonnage above 3.5 tons

4-ton and 5-ton compressors require more surge capacity than the 14kW Generac delivers. The 18kW handles 4-ton, the 22kW handles 4-ton with margin or 5-ton in gas homes, and the 24kW handles 5-ton in any configuration.

Upgrade trigger 2: All-electric home

If the home has electric heat, an electric water heater, an electric range, or multiple electric high-draw appliances, the baseline load alongside AC startup is high enough that 14kW becomes the wrong size even with smaller AC. Step up to a 22kW with 200A ATS for cleaner whole-home coverage.

Upgrade trigger 3: EV charging during outages

A Level 2 EV charger at 32-48 amps adds 7,700 to 11,500 watts to whatever else is running. The 14kW Generac cannot run AC plus EV charging plus household baseline simultaneously. Either drop the EV charging during outages or upgrade to 22kW or higher.

Upgrade trigger 4: Future-proofing for renovations

If a kitchen renovation, addition, or pool install is planned in the next few years, sizing the generator for the future home rather than the current home avoids a costly upgrade later. Generator replacements run two to three times the original install cost when you factor in the disposal of the old unit, gas line modifications, and pad rework.

Pro tip: If you are inside a few hundred dollars between the 14kW and 18kW pricing, buy the 18kW. The cost difference is small relative to the total project cost, and the surge headroom solves AC compatibility for any future replacement. The wrong move is buying the smaller unit to save a few hundred dollars and then needing the bigger one within 5 years.

The 3-Factor AC Compatibility Framework

The right generator for a home with central AC comes out of three honest answers. IB Lighting walks every buyer through this framework before quoting a 14kW Generac order.

Factor 1: AC compressor LRA at startup

Read the LRA value off the AC condenser nameplate, or pull the compressor model number and look up the LRA from the manufacturer. Multiply LRA by the 240V line voltage to get peak startup wattage. This is the number the generator surge capacity must exceed, not the running watts.

Factor 2: Total household baseline load during outage

Add up everything else that will run alongside the AC. Refrigerator (700-1,200 watts), lighting (200-600 watts), well pump (1,500-3,000 watts at startup), gas furnace blower (500-800 watts), and electronics (300-600 watts) typically sum to 5,000-7,000 watts in gas-heated homes. All-electric homes add 4,000-7,000 watts on top of that for electric water heater and range loads. The ASHRAE residential load calculation methodology is the underlying industry standard.

Factor 3: 25% safety margin

The generator’s surge capacity should exceed AC startup surge plus baseline load by at least 25%. Sizing exactly at the limit means every AC start cycle is at the edge of tripping, and unexpected loads (a microwave cycling on, a sump pump starting) push the unit into overload protection.

5 Mistakes Buyers Make Sizing a Generator to AC

The 14kW Generac sizing mistakes below show up repeatedly in returns and post-install support calls. Each one is preventable with the framework above.

Mistake 1: Sizing from running watts only

The most common error. A 3-ton AC running at 3,800 watts looks like it fits inside a 14kW envelope easily, until the startup surge of 21,000 watts trips the unit on the first AC cycle. Always size to startup surge, not running watts.

Mistake 2: Ignoring baseline load during outages

Buyers calculate the AC alone and forget that the refrigerator, lighting, well pump, and furnace blower are also running during the outage. The combined load matters, not just the AC.

Mistake 3: Using natural gas as if it delivers LP output

A 14kW Generac is rated 14kW on liquid propane and 12.5kW on natural gas. Buyers on natural gas effectively have a 12.5kW unit but plan with 14kW numbers. This pushes the AC compatibility down one tonnage step in borderline cases.

Mistake 4: Assuming smart modules solve any AC mismatch

Smart Management Modules stagger 240V loads to free up surge capacity, but they cannot reduce the AC compressor’s own startup surge. A 4-ton AC trips a 14kW Generac whether other loads are managed or not.

Mistake 5: Skipping the load calculation entirely

Some buyers assume “14kW will run my house” without measuring or estimating actual loads. This works in roughly half of cases and fails the other half. A free load calculation from a licensed electrician takes 20 minutes and prevents a $7,000 wrong-unit mistake.

Conclusion

A 14kW Generac is the right answer for gas-heated homes with central AC up to 3-ton. It is not the right answer for 4-ton or larger AC compressors, all-electric homes, or installations that include EV charging. The honest sizing decision starts with the AC compressor’s locked rotor amps and the home’s baseline load during an outage, not the running watts on the nameplate. Get those numbers right and the 14kW Generac delivers reliable backup power for the life of the equipment. Get them wrong and the unit trips on the first AC cycle.

This article was last reviewed and updated in June 2026 to reflect current Generac 7258 specification data and the latest residential air-cooled lineup configurations.
