Yes, the 24kW Generac runs a 5-ton AC. The Generac 7261 Next Generation 24kW is officially rated by Generac to start a 5-ton AC compressor, and the unit is marketed as the largest air-cooled standby in the Guardian lineup. In any home configuration including all-electric with EV charging, the 7261 handles the 5-ton AC startup surge and full running load with comfortable margin to spare.

Across hundreds of Generac home standby generator orders, IB Lighting’s electrician-led team consistently sees the 24kW Generac 7261 land as the right answer for 5-ton AC homes with all-electric appliances, EV charging plans, or stacked heavy 240V loads. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting confirms generator-to-AC compatibility before every order ships. The answer for 5-ton AC plus 24kW is unambiguous: it works with comfortable headroom.

The Fast Answer: 24kW Generac and 5-Ton AC

The 24kW Generac 7261 starts and runs a 5-ton residential AC compressor reliably in every home configuration. The unit’s surge capacity and motor-starting algorithms are specifically engineered for the largest residential compressor starts, which is why Generac advertises 5-ton starting capability directly on the 7261 product specification. The 24kW gives meaningful running margin beyond what the 22kW delivers, which matters when the AC runs alongside stacked 240V loads.

The honest reading: 5-ton AC sits well inside the 24kW Generac envelope across every residential configuration. The 24kW is the safest air-cooled pick for any 5-ton AC home where comfortable running margin matters more than minimum upfront cost. The unit handles 5-ton AC plus EV charging plus all-electric appliances simultaneously, which the 22kW cannot do without active load management.

Pro tip: The 22kW-to-24kW price difference is typically $500 to $800 at the wholesale level, but the install cost is nearly identical. For 5-ton AC homes with any future electrical load growth plans, the 24kW Generac is the smarter spend. Generator replacements run two to three times the original install cost when factoring in disposal, gas line modifications, and pad rework.

Why the Generac 7261 Handles 5-Ton AC (The Largest Air-Cooled)

The current 24kW Generac is the 7261 Next Generation model, the top of the Guardian air-cooled standby lineup. Three engineering improvements drive its 5-ton AC starting capability and stacked-load headroom, and these are not theoretical specifications. They are the reason this unit handles configurations that smaller generators cannot.

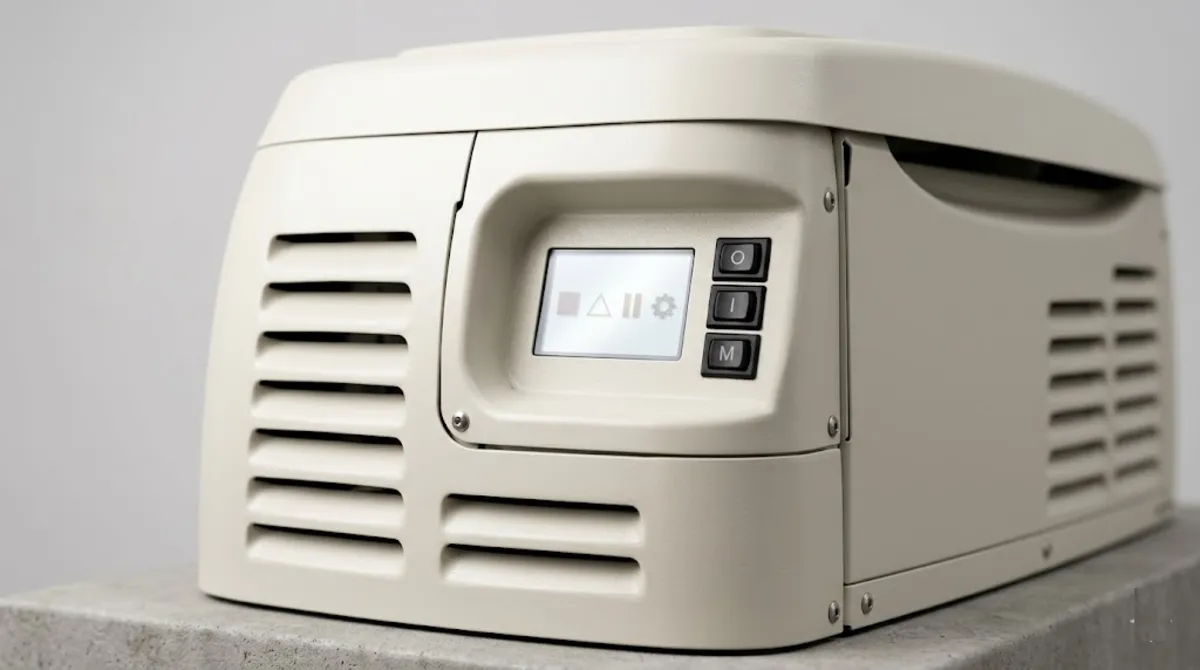

Power Zone 200 Controller with torque matching

The Power Zone 200 Controller electronically torque-matches surge loads to the engine in real time. When a 5-ton compressor starts on a 24kW Generac, the controller instantly adjusts engine throttle and voltage regulation to deliver the surge current without dropping line voltage below acceptable thresholds. The torque-matching algorithm meets NEMA motor standards for AC compressor starting across the full residential range.

Electronic Fuel and Ignition Control (EFIC)

The 7261 uses Electronic Fuel and Ignition Control, the same technology automotive engines have used for decades but only recently brought to residential standby generators. EFIC delivers precise fuel and ignition timing during transient load events like 5-ton AC compressor startup plus simultaneous EV charging surge, maintaining stable power output where carbureted generators sagged. EFIC also enables better cold-weather starting and lower fuel consumption over the life of the unit.

True Power Technology with under 5% THD

True Power Technology produces less than 5% Total Harmonic Distortion (THD) on the output waveform. This matters specifically for modern 5-ton variable-speed compressors, ECM blower motors, and Level 2 EV chargers, which are all sensitive to dirty power. A generator that produces 8% to 12% THD (older Generac units, most competitors at this output level) can cause a 5-ton compressor to refuse startup even when surge capacity is technically sufficient. The 7261 produces utility-grade power that modern equipment accepts without protest.

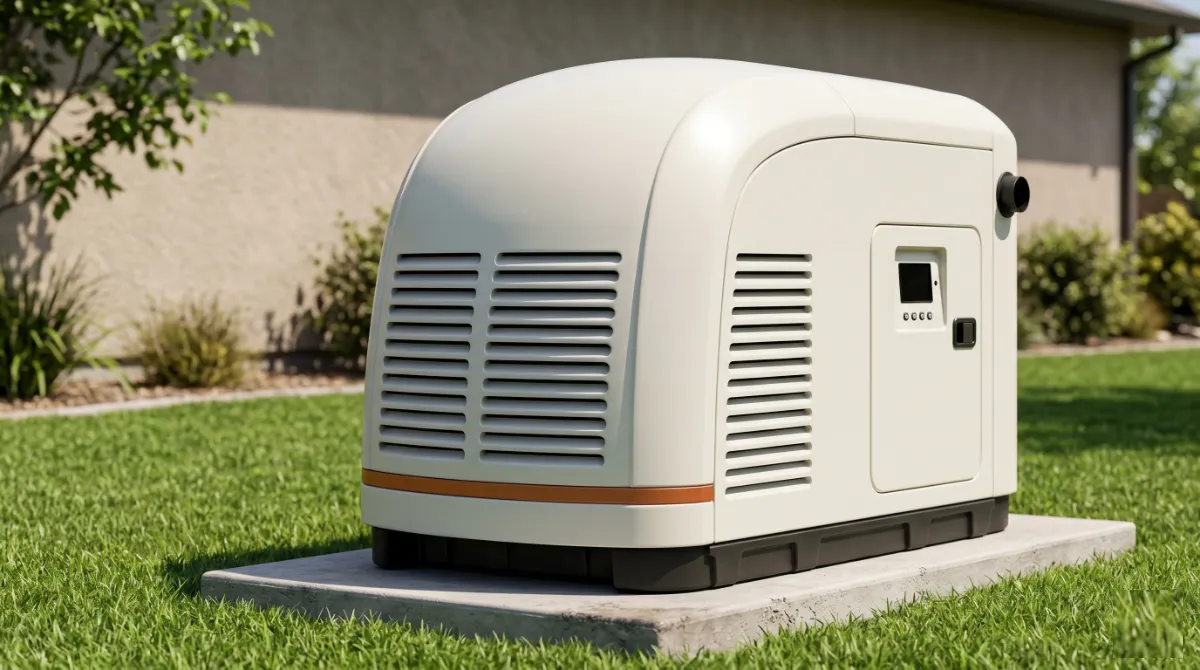

24kW Generac Specs and Real-World Output

The Generac 7261 is the Next Generation Guardian Series air-cooled 24kW model sold without a transfer switch. Specifications below come from the official Generac product specification documents.

Why the running margin matters beyond surge capacity

The 24 kW nameplate refers to continuous output. After a 5-ton AC compressor starts and settles to its 5,500 to 6,500 watt running load, the 24kW Generac has 17 to 18 kW of continuous capacity remaining. That margin runs the rest of the home: refrigerator, lighting, electric water heater, well pump, EV charger at moderate amperage, and electric range cycling. The 22kW Generac handles the same 5-ton AC but leaves only 15 to 16 kW of margin, which is tighter in fully-electric configurations.

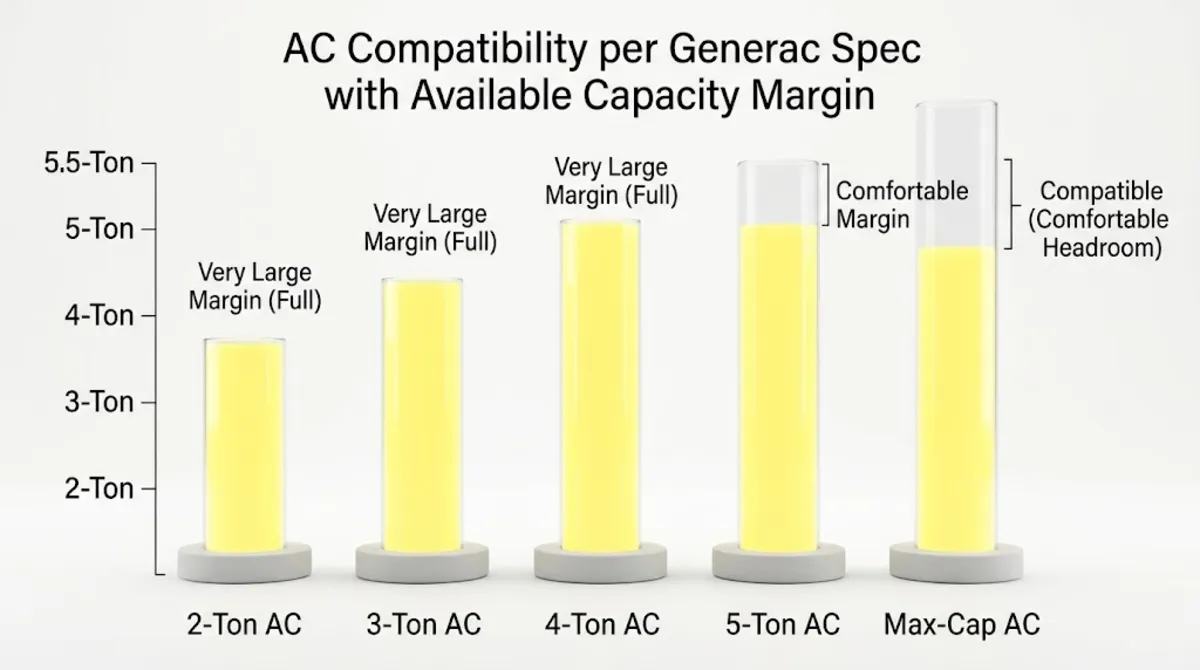

24kW Generac AC Compatibility Chart by Tonnage

The compatibility chart at the top of this article assumed typical residential baseline loads of 5,000 to 8,000 watts running alongside the AC. Below is the expanded breakdown showing what else can run with each AC size on the Generac 7261 24kW.

2-ton, 3-ton, and 4-ton AC: substantial margin

A 4-ton AC startup surge of 26,000 to 32,000 watts sits well inside the 24kW surge envelope. In gas-heated homes, the running load after 4-ton AC startup leaves 14 to 16 kW for other appliances. The 24kW is overkill for these smaller tonnages unless future load growth is planned. Buyers with 2-ton or 3-ton AC should consider whether the 14kW, 18kW, or 22kW Generac would save cost without sacrificing performance.

5-ton AC: the sweet-spot pairing for the 24kW Generac

A 5-ton AC pulls 33,000 to 40,000 watts during locked rotor surge. The Generac 7261 24kW handles this with its 36 to 42 kW surge capacity, leaving the unit fully inside its operating envelope. Generac officially advertises 5-ton starting capability on the 7261. In gas-heated homes, the running load after 5-ton AC startup leaves 14 to 16 kW for other appliances. In all-electric homes with electric water heater and electric range cycling, the margin is still healthy at 10 to 13 kW, which is comfortably better than the 22kW would deliver.

5-ton AC plus EV charging: 24kW handles it

Adding a Level 2 EV charger at 48 amps (11,500 watts continuous) to a 5-ton AC running load stacks demand inside the 24kW continuous envelope. The unit handles this combination without active load management in most homes. The 22kW Generac requires a Smart Management Module for the same configuration, which adds install complexity and cost.

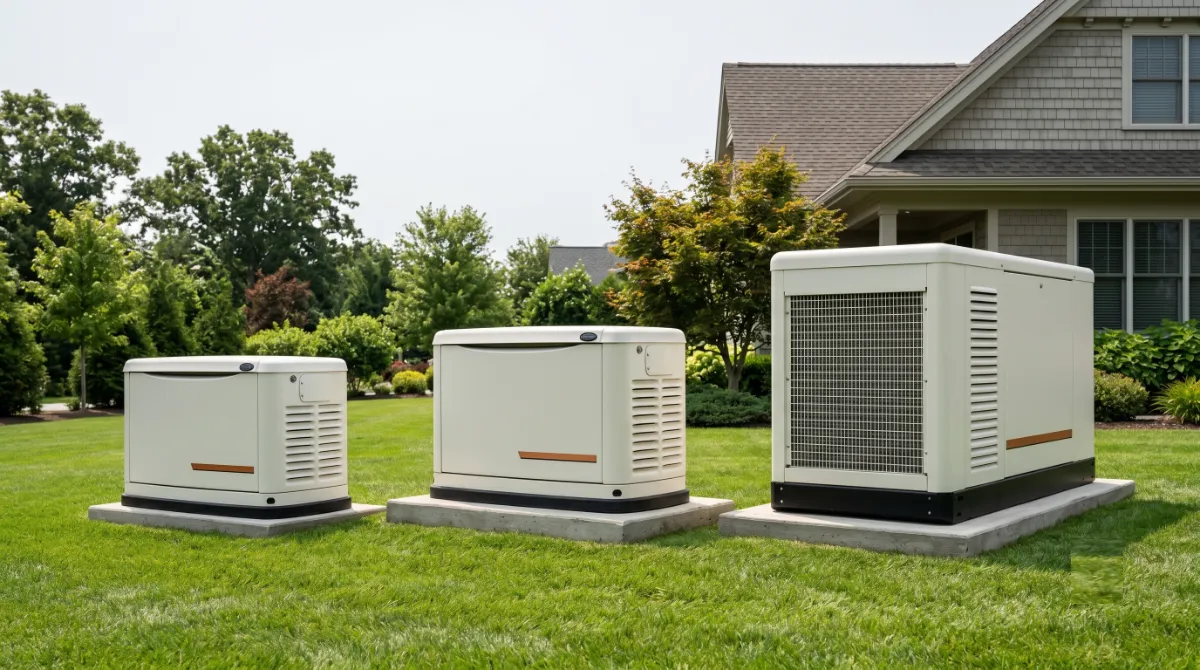

Dual AC systems or larger than 5-ton: step beyond air-cooled

Homes with two separate AC condensers or commercial-style residential AC above 5-ton exceed the comfortable 24kW envelope. These configurations require the 26kW or a liquid-cooled standby unit above the air-cooled range. For broader sizing context across the full Generac lineup, see our standby generator sizing calculator guide.

When 24kW Is NOT Enough: Upgrade Triggers

The 24kW Generac handles 5-ton AC reliably across nearly every residential configuration. The narrow set of scenarios that push beyond the 24kW envelope all involve commercial-size loads or multiple AC systems running simultaneously. Recognizing these triggers prevents the costly mistake of installing the wrong unit and discovering the issue during the first real outage.

Trigger 1: Dual AC systems or zoned cooling

Homes with two separate AC condensers running simultaneously stack two compressor startup surges. Even if each compressor is only 3-ton, the combined LRA can exceed the 24kW surge envelope when both AC units cycle at the same time. Active load management or a 26kW Generac handles this configuration.

Trigger 2: AC larger than 5-ton

Commercial-style residential AC above 5-ton (6-ton, 7.5-ton) exceeds the design target for the 7261. These compressors typically require the 26kW Generac as a minimum, or a liquid-cooled standby unit above the air-cooled range.

Trigger 3: Pool equipment plus 5-ton AC plus EV charging

A heated pool pump (1.5 HP), pool heater (5,500 watts), 5-ton AC, and Level 2 EV charger running simultaneously stacks well above the 24kW continuous envelope. The 26kW or larger gives proper margin for this load combination.

Trigger 4: Workshop or detached structure loads

Homes with detached workshops, garages with welders, or barn loads running alongside the 5-ton AC may exceed the 24kW envelope. These configurations should be sized through a full load calculation rather than estimation.

Pro tip: The 24kW Generac is the step before liquid-cooled commercial-grade generators. Configurations that exceed the 24kW envelope typically jump to liquid-cooled units in the 27kW to 36kW range, which carry meaningful cost premiums and different install requirements. Sizing the air-cooled 24kW correctly avoids the unnecessary jump to liquid-cooled when stacked loads are within range.

The 3-Factor 24kW AC Sizing Framework

Confirming the 24kW Generac is the right pick for your home comes out of three honest answers. IB Lighting’s electrician-led team walks every buyer through this framework before quoting an order.

Factor 1: AC compressor size and locked rotor amps

Read the AC tonnage from the condenser nameplate or the model number (the digits after the dash on Carrier, Trane, Lennox, and most major brands divide by 12 to give tonnage). A 060 model is 5-ton, an 048 is 4-ton, an 036 is 3-ton. Then read the LRA value on the same nameplate. A 5-ton AC pulls 140 to 170 LRA, which is the planning number for the 24kW Generac.

Factor 2: Home appliance mix during outage

List everything that will run during an outage. Gas-heated home with refrigerator, lighting, gas water heater, gas furnace blower, and electronics typically sums to 5,000 to 7,000 watts. All-electric home adds 4,000 to 7,000 watts for electric water heater, electric range cycling, and any electric heat. The 24kW Generac handles either configuration plus a 5-ton AC comfortably. Underlying load calculation methodology comes from ASHRAE residential load standards.

Factor 3: Future load plans within 10 years

Adding an EV charger? Renovating to add a pool, hot tub, or workshop? Installing a heat pump? These changes push you toward the 26kW or liquid-cooled. The 24kW Generac handles most future load growth scenarios that involve adding a single major load (EV charger OR pool OR workshop), but stacking multiple major loads on top of the 5-ton AC may exceed the envelope.

5 Mistakes Buyers Make Choosing 24kW for AC

The mistakes below show up repeatedly in 24kW Generac sizing conversations. Each one is preventable with the framework above.

Mistake 1: Defaulting to 24kW when 22kW would do

Buyers see the 24kW marketed as “the largest air-cooled” and pick it without checking whether the 22kW would suffice. For 5-ton AC homes with gas heat and no EV charging plans, the 22kW saves roughly $500 to $800 without any compromise. Run the 3-factor framework before defaulting up.

Mistake 2: Picking 22kW for an all-electric 5-ton AC home

The reverse mistake. The 22kW Generac handles 5-ton AC per Generac spec, but the running margin in all-electric homes with electric water heater and electric range cycling is tighter than most buyers want for long-duration outages. The 24kW is the right call for all-electric 5-ton AC homes where comfort matters.

Mistake 3: Treating LP and NG output as identical

The 24kW Generac delivers 24kW on liquid propane and 22.5kW on natural gas. For 5-ton AC in marginal configurations, this 1.5 kW difference matters. Buyers on natural gas should plan with the 22.5 kW number and add modest margin.

Mistake 4: Ignoring True Power Technology requirements

Modern 5-ton variable-speed AC compressors and ECM blower motors require clean power (under 5% THD) for reliable startup. The 24kW Generac 7261 delivers this through True Power Technology. Older 24kW units and most competitor brands at this output level deliver 8 to 12% THD, which can cause 5-ton compressor startup failures even when surge capacity looks sufficient on paper.

Mistake 5: Skipping the future-load conversation

Buying a 5-ton AC-compatible 24kW today, then adding a pool, hot tub, or commercial-grade workshop within 5 years, creates a generator capacity problem the buyer did not anticipate. The 10-year future-load forecast should drive the sizing decision, especially because the 24kW is at the top of the air-cooled range with no easy air-cooled upgrade path.

Conclusion

Yes, the 24kW Generac runs a 5-ton AC. The Next Generation 7261 is officially rated by Generac as 5-ton AC capable and is the largest air-cooled standby generator in the Guardian residential lineup. It handles a 5-ton compressor plus all-electric appliances plus EV charging plus typical household loads with comfortable running margin. The 24kW is the safest air-cooled pick for 5-ton AC homes where future load growth, all-electric appliances, or stacked 240V loads matter. Step up to the 26kW or liquid-cooled only when dual AC systems, commercial-size residential AC, or workshop-grade loads push beyond the air-cooled envelope.

This article was last reviewed and updated in June 2026 to reflect current Generac 7261 Next Generation specification data and confirmed AC compatibility testing across the residential air-cooled lineup.
