The wire size for central AC 4 ton installations is typically 8 AWG copper conductors on a 40 amp double-pole breaker for standard 13-14 SEER units, though the specific wire and breaker size must be verified against the MCA and MOCP values on the AC unit nameplate per NEC Article 440. This article explains why 4 ton units typically require 8 AWG (versus 10 AWG for 3 ton units), the MCA and MOCP nameplate values that govern the sizing, the small conductor rule threshold that drives the wire size change, disconnect requirements, wire type selection for outdoor installations, higher SEER unit considerations, and complete installation guidance for a code-compliant 4 ton central AC circuit.

Across thousands of Southwire and Cerrowire orders shipped from IB Lighting nationwide, our electrician-led team advises DIY installers and licensed electricians on the correct wire size for residential HVAC installations including 4 ton central AC condenser circuits. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the full Southwire and Cerrowire electrical wire and cable lineup. This article is the walkthrough we provide to buyers researching wire size for their 4 ton central AC installation, using specifications aligned with the current National Electrical Code (NFPA 70) and industry practice from the International Association of Electrical Inspectors.

The Fast Answer: Wire Size for Central AC 4 Ton Installations

For a typical 4 ton central AC condenser at 13-14 SEER rating, use 8 AWG copper conductors on a 40 amp double-pole breaker. The circuit is 240 volts single-phase and does not require a neutral conductor. Standard cable is 8/2 with ground for indoor routing or three individual 8 AWG THWN-2 conductors in PVC conduit for outdoor routing. A pull-out disconnect box within sight of the condenser is required per NEC 440.14. Higher SEER 4 ton units (16 SEER and above) sometimes allow 10 AWG copper on 30 amp breaker if the nameplate MCA is under 25 amps and MOCP is 30 amps or less.

The complete installation specification for typical 4 ton units

The complete specification for a wire size for central AC 4 ton installation at typical 13-14 SEER includes: 8 AWG copper conductors (with 40 amp ampacity per NEC 240.4(D) small conductor rule), 40 amp double-pole breaker at the electrical panel, 240 volt dedicated branch circuit, 2-conductor with ground cable configuration because AC condensers operate on 240 volts without requiring a neutral, weather-rated wire type for outdoor routing (THWN-2, UF-B, or outdoor-rated MC), and a pull-out disconnect box within sight of the condenser.

Why the answer depends on the specific unit

As with all central AC installations, the specific nameplate values on your 4 ton AC unit determine the exact wire and breaker requirements. Standard 13-14 SEER 4 ton units require 8 AWG on 40 amp. Higher SEER units may allow smaller wire and breaker combinations. Always photograph the nameplate before ordering wire to verify the MCA and MOCP values match the standard specification.

Where to find MCA and MOCP on your 4 ton AC unit

The MCA and MOCP values are printed on the AC condenser nameplate, typically located on the side of the outdoor unit near the electrical connection point. The nameplate is a metallic plate with printed specifications including voltage rating, phase, cooling capacity in tons or BTU, refrigerant type, and the critical MCA and MOCP values. Reference these values directly for wire and breaker sizing.

Understanding MCA and MOCP on Your 4 Ton AC Nameplate

The MCA and MOCP values on a 4 ton central AC nameplate work identically to those on smaller AC units, but the higher values for 4 ton units drive different wire size selections.

MCA values typical for 4 ton units

Minimum Circuit Ampacity (MCA) values for typical 4 ton central AC units at 13-14 SEER range from 22 to 30 amps depending on the specific manufacturer and model. Higher-efficiency 15-16 SEER 4 ton units have MCA values from 19 to 25 amps. Premium 17+ SEER variable-speed 4 ton units have MCA values from 16 to 22 amps. Always verify the specific unit nameplate for the exact value.

MOCP values typical for 4 ton units

Maximum Overcurrent Protection (MOCP) values for typical 4 ton central AC units at 13-14 SEER range from 35 to 50 amps depending on the specific manufacturer and model. Higher-efficiency 15-16 SEER 4 ton units have MOCP values from 30 to 40 amps. Premium 17+ SEER variable-speed 4 ton units have MOCP values from 25 to 35 amps. The MOCP value determines the maximum breaker size allowed.

How MCA drives wire size selection at 4 ton

For a 4 ton AC with MCA of 25 amps, the wire must have at least 25 amp ampacity. Per NEC 240.4(D) small conductor rule and NEC Table 310.16: 12 AWG copper has maximum 20 amp application (below MCA), 10 AWG copper has maximum 30 amp application (satisfies MCA but limited by 30A rule), and 8 AWG copper has 40 amp application (satisfies MCA with margin). The choice depends on whether the MOCP allows for larger breaker.

How MOCP drives breaker size selection at 4 ton

For a 4 ton AC with MOCP of 40 amps, the breaker cannot exceed 40 amps but can be smaller if it still allows motor starting. The typical selection is a 40 amp double-pole breaker to maximize motor starting current capability while meeting the MOCP requirement. This 40 amp breaker requires 8 AWG copper wire per NEC 240.4(D), which is why 4 ton typical installations use 8 AWG on 40 amp.

Why NEC Article 440 Governs 4 Ton Central AC Wiring

The wire size for central AC 4 ton installations follows NEC Article 440 (Air Conditioning and Refrigerating Equipment) rather than the standard branch circuit rules in NEC Article 210, and this distinction is critical for correct installation.

NEC 440 applies to all AC sizes

NEC Article 440 covers all hermetic refrigerant motor-compressor equipment regardless of size, from small window units to large residential central AC systems. Whether installing 2 ton, 3 ton, 4 ton, 5 ton, or larger units, the same NEC 440 rules apply. The manufacturer calculates MCA and MOCP using NEC 440.32 and 440.22 formulas that account for hermetic compressor starting and running characteristics.

Why AC uses different rules than branch circuits

Standard branch circuits (NEC 210) size wire based on connected load with continuous load factors as needed. AC compressor circuits (NEC 440) size wire based on manufacturer-calculated MCA that accounts for the specific characteristics of hermetic compressors including inrush current, running current, and duty cycle. This produces different wire size requirements than would result from applying general branch circuit rules.

The nameplate is authoritative for all AC sizes

For any 4 ton AC installation, the equipment nameplate is the authoritative source for wire sizing information. Do not attempt to calculate the wire size independently using nameplate horsepower, BTU rating, or amperage draw. The MCA and MOCP values printed on the nameplate are the values required by NEC and any deviation creates code violations. This principle applies identically to 3 ton, 4 ton, and larger central AC units.

Manufacturer calculation methodology

Manufacturers calculate MCA per NEC 440.32 by applying the 125 percent factor to the largest motor plus 100 percent for other loads. They calculate MOCP per NEC 440.22 by applying up to 175 percent of RLA (Rated Load Amps) or 225 percent if the lower setting causes nuisance tripping. This produces the specific MCA and MOCP values that appear on the nameplate.

Typical 4 Ton Central AC Specifications by Brand and SEER

Understanding typical MCA and MOCP values across major AC manufacturers helps buyers estimate the wire size for central AC 4 ton installations before purchasing the specific unit. The typical values vary by SEER rating and manufacturer.

Standard 13-14 SEER 4 ton units

Most standard 13-14 SEER 4 ton central AC units from major manufacturers (Carrier, Trane, Goodman, Lennox, York, Rheem, American Standard) have MCA values in the range of 22-30 amps and MOCP values of 35-50 amps. The typical wire specification is 8 AWG copper on a 40 amp double-pole breaker. Some 14 SEER units at the lower end of the MCA range approach the threshold where 10 AWG becomes viable.

Higher-efficiency 15-16 SEER 4 ton units

Higher-efficiency 15-16 SEER 4 ton units typically have MCA values in the range of 19-25 amps because more efficient compressors draw less current for the same cooling output. MOCP values are typically 30-40 amps. Some 16 SEER units with MCA under 25 amps and MOCP of 30 amps allow 10 AWG copper on 30 amp breaker, while others still require 8 AWG on 35 or 40 amp.

Premium 17+ SEER variable-speed 4 ton units

Premium 17+ SEER variable-speed 4 ton units have the lowest MCA values in the range of 16-22 amps because variable-speed compressors run at partial capacity most of the time. MOCP values are typically 25-35 amps. These units often allow 10 AWG copper on 30 amp breaker or even 12 AWG on 20 amp for the lowest MCA variants. Wire cost savings can be substantial.

Two-stage 4 ton units

Two-stage 4 ton units combine standard efficiency at low stage with higher output at high stage. MCA values are typically in the middle range of 21-27 amps, and MOCP values are typically 30-45 amps. Wire specification is typically 8 AWG copper on 40 amp breaker but some models allow 10 AWG on 30 amp. Verify against the specific unit nameplate.

The NEC Math Behind the 8 AWG Answer for 4 Ton AC

The calculation that leads to the 8 AWG copper on 40 amp breaker recommendation for typical 4 ton central AC installations follows NEC Article 440 rules and produces different results than the 3 ton calculation.

Step 1: Read MCA and MOCP from nameplate

The first step in determining the wire size for central AC 4 ton installation is to read the MCA and MOCP values directly from the unit nameplate. For a typical 13-14 SEER 4 ton unit, MCA is approximately 25 amps and MOCP is approximately 40 amps. These values are calculated by the manufacturer using NEC 440.32 and 440.22 formulas.

Step 2: Determine required wire ampacity

The wire must have ampacity equal to or greater than the MCA value. For MCA of 25 amps, the wire must have at least 25 amp ampacity. Per NEC 240.4(D) small conductor rule and NEC Table 310.16: 12 AWG copper has maximum 20 amp application (insufficient), 10 AWG copper has maximum 30 amp application (satisfies MCA but limited by 30 amp maximum), and 8 AWG copper has 40 amp application (satisfies MCA with margin and allows larger breaker).

Step 3: Select breaker size within MOCP limit

The breaker size must be equal to or less than the MOCP value. For MOCP of 40 amps, breakers up to 40 amps are allowed. Standard residential breaker sizes are 30, 35, 40, 45, 50 amps. Choose 40 amp for maximum motor starting capability while meeting MOCP requirements. If the MOCP is 45 amps, some installers use 45 amp breaker for additional starting margin.

Step 4: Match wire ampacity to breaker size

Once the breaker size is selected, the wire must have ampacity equal to or greater than the breaker rating per NEC 240.4. For 40 amp breaker, wire must have at least 40 amp ampacity. Per NEC 240.4(D), 10 AWG copper is limited to 30 amp maximum, so 8 AWG copper is required for the 40 amp breaker. This is why the typical answer for 4 ton is 8 AWG on 40 amp.

Step 5: The small conductor rule threshold

NEC 240.4(D) limits 10 AWG copper to 30 amp maximum overcurrent protection regardless of the actual 35 amp ampacity of 10 AWG at 75 degrees Celsius. This rule is what creates the wire size step-up between 3 ton (typically 10 AWG on 30 amp) and 4 ton (typically 8 AWG on 40 amp). If the 4 ton nameplate MOCP is 30 amps or less, 10 AWG can be used.

Pro tip: When planning a 4 ton central AC installation, always compare the nameplate MOCP value to the 30 amp threshold. If MOCP is 30 amps or less, 10 AWG copper on 30 amp breaker is acceptable and provides meaningful wire cost savings compared to 8 AWG on 40 amp. If MOCP exceeds 30 amps, 8 AWG copper is required regardless of the actual MCA value. Some higher SEER 4 ton units offer the lower MOCP that enables the 10 AWG option, and the SEER upgrade cost can be partially offset by wire cost savings on long runs.

The 30 Amp Small Conductor Rule Threshold Crossing

The wire size for central AC 4 ton installations typically steps up from 10 AWG (used for 3 ton AC) to 8 AWG because of the NEC 240.4(D) small conductor rule that limits 10 AWG copper to 30 amp maximum overcurrent protection.

Understanding NEC 240.4(D)

NEC 240.4(D) provides specific overcurrent protection limits for smaller conductors: 14 AWG copper maximum 15 amps, 12 AWG copper maximum 20 amps, 10 AWG copper maximum 30 amps. These limits apply regardless of the actual ampacity of the conductor at various temperature ratings. The rule exists because smaller conductors have less thermal mass and are more susceptible to damage from prolonged overcurrent conditions.

Why 4 ton crosses this threshold

Typical 3 ton central AC units at 13-14 SEER have MOCP of 30-45 amps, but the 30 amp option satisfies most units. Typical 4 ton central AC units at 13-14 SEER have MOCP of 35-50 amps, which typically exceeds the 30 amp small conductor limit for 10 AWG. This forces the wire size up to 8 AWG which has no small conductor rule limitation.

8 AWG copper ampacity per NEC Table 310.16

8 AWG copper ampacity: 40 amps at 60 degrees Celsius, 50 amps at 75 degrees Celsius, 55 amps at 90 degrees Celsius. Since 8 AWG is not restricted by NEC 240.4(D), the full ampacity applies. For 4 ton AC installations on 40 amp breaker, 8 AWG at 60 degrees Celsius provides exact match (40 amp ampacity for 40 amp breaker), while 75 or 90 degrees Celsius rated wire provides better margin.

When 10 AWG works for 4 ton AC

Higher SEER 4 ton units with MOCP of 30 amps or less can use 10 AWG copper on 30 amp breaker. Some 15-16 SEER units and most 17+ SEER variable-speed units fall in this category. Verify the specific nameplate before selecting wire size. When the nameplate allows 10 AWG on 30 amp, the wire cost savings compared to 8 AWG on 40 amp can be 30-40 percent on long runs.

Disconnect Requirement per NEC 440.14

The disconnect requirement for 4 ton central AC installations is identical to smaller AC units but the sizing considerations differ due to the larger breaker size.

NEC 440.14 requires disconnect within sight

NEC 440.14 requires a disconnecting means located within sight and readily accessible from the air conditioning or refrigerating equipment. “Within sight” is defined as visible and not more than 50 feet distant. The disconnect provides a means to safely de-energize the equipment for service without requiring access to the main electrical panel.

Disconnect sizing for 4 ton AC installations

The disconnect box must have current rating equal to or greater than the branch circuit breaker size. For a typical 4 ton AC on a 40 amp breaker, use a 60 amp disconnect box (since 40 amp disconnect boxes are less common than 30 or 60 amp). The 60 amp disconnect provides ample capacity for the 40 amp circuit while using standard equipment sizes.

Fused vs non-fused disconnect selection

Fused disconnects allow local overcurrent protection matching the MOCP value (typically 40 amp fuses for standard 4 ton units) while non-fused disconnects provide only the switch function. Fused disconnects offer redundant protection and simplify troubleshooting if a fuse blows before the main breaker trips. Non-fused disconnects are less expensive and simpler.

Wire routing through the 4 ton disconnect

The 8 AWG branch circuit wire from the main panel routes to the disconnect box, terminates at the line side terminals, and continues from the load side terminals to the AC condenser unit whip. The disconnect box provides physical circuit break for service safety. Ensure the disconnect box terminals are rated for 8 AWG wire and that the wire is properly torqued to specifications.

Wire Type Selection for Outdoor Condenser Installations

Wire type selection for the wire size for central AC 4 ton installation follows the same principles as smaller AC units, but the larger 8 AWG wire size affects conduit sizing and installation approach.

Individual 8 AWG THWN-2 conductors in PVC conduit

The most common approach for 4 ton outdoor condenser wire runs is three individual 8 AWG THWN-2 copper conductors pulled through 1 inch PVC conduit from the wall penetration to the disconnect box, then to the condenser. THWN-2 is specifically rated for wet locations, and 1 inch PVC conduit accommodates three 8 AWG conductors per NEC 314.16 conduit fill calculations.

UF-B 8/2 with ground for direct burial applications

Some installations use UF-B 8/2 with ground cable for the outdoor portion of the run, particularly when the wire routes through the ground to reach the condenser location. UF-B is rated for direct earth burial per NEC 340 and does not require conduit. UF-B is limited to 60 degree Celsius rating, so 8 AWG UF-B provides 40 amp ampacity which exactly matches the 40 amp breaker requirement.

MC cable with outdoor rating

MC cable in 8/2 with ground configuration with outdoor-rated jacket can be used for exposed outdoor runs. MC cable provides physical protection with the metal armor while the outdoor-rated jacket handles UV and weather exposure. MC cable at 8 AWG is more expensive than THWN-2 in conduit but simplifies installation with fewer components.

NM-B 8/2 (indoor portion only)

NM-B 8/2 with ground can be used for the indoor portion of the wire run only. NM-B is not rated for outdoor, wet, or damp locations per NEC 334.12. The outdoor portion requires transition to THWN-2 in conduit or UF-B cable. Note that NM-B 8/2 is 60 degree Celsius rated with 40 amp ampacity, which exactly matches the 40 amp breaker requirement for typical 4 ton installations.

Higher SEER 4 Ton Units and Wire Size Flexibility

Higher SEER 4 ton central AC units can provide flexibility in the wire size for central AC 4 ton installation, allowing smaller (less expensive) wire compared to standard 13-14 SEER models.

The MCA reduction with higher SEER

Higher SEER 4 ton units use more efficient compressors, larger heat exchangers, and often variable-speed motors that reduce electrical demand for the same cooling output. This reduces the RLA (Rated Load Amps) and consequently the MCA (Minimum Circuit Ampacity). A 17+ SEER 4 ton unit typically draws 20-25 percent less current than a comparable 13-14 SEER 4 ton unit.

The MOCP threshold for 10 AWG

The critical threshold for wire size flexibility is whether the MOCP is 30 amps or below. When MOCP is 30 amps or less, 10 AWG copper on 30 amp breaker is permitted by NEC 240.4(D). When MOCP exceeds 30 amps, 8 AWG copper is required regardless of the actual MCA value. Higher SEER 4 ton units are more likely to have MOCP at or below the 30 amp threshold.

Wire cost impact by run length

For short runs under 50 feet, the wire cost difference between 10 AWG and 8 AWG is modest (perhaps 20-40 dollars). For longer runs of 100 to 200 feet, the cost difference becomes significant (100 to 300 dollars). Combined with the higher-efficiency operational cost savings, the total cost analysis for higher SEER units often favors the higher SEER investment even accounting for the equipment premium.

Cost tradeoff between equipment and wire

Higher SEER 4 ton units cost 500 to 2,000 dollars more than 13-14 SEER equivalents but may save on wire costs and long-term operating costs. For homes with long condenser runs, high electric rates, or extended cooling seasons, the total lifetime cost analysis often justifies the higher SEER investment. Wire savings alone are modest but combine with other benefits.

Choosing the Right Wire Product for Your 4 Ton AC Circuit

Understanding which specific wire products fit the wire size for central AC 4 ton specification helps buyers select the correct product for their installation regardless of the manufacturer chosen for the AC unit.

Southwire 8 AWG THWN-2 for outdoor installations

Southwire manufactures individual 8 AWG THWN-2 copper conductors specifically rated for wet locations required for outdoor AC installations. Purchase three individual conductors per circuit: one black, one red, and one green (or use bare copper for grounding). Southwire THWN-2 is available in various colors and reel lengths from 50 feet to 500 feet. Stranded THWN-2 is preferred over solid for 8 AWG because solid 8 AWG is impractical to pull through conduit.

Southwire 8/2 with ground UF-B

Southwire UF-B 8/2 with ground is rated for direct burial per NEC 340 and can be used for underground 4 ton AC condenser wire runs. UF-B does not require conduit for the buried portion, simplifying installation. The 8/2 configuration includes two 8 AWG hot conductors plus a bare copper grounding conductor, which is the correct configuration for 240 volt AC circuits without neutral.

Cerrowire alternatives

Cerrowire manufactures comparable 8 AWG THWN-2 copper conductors and 8/2 with ground UF-B cable. Cerrowire and Southwire products are electrically equivalent and meet the same UL standards. Both brands are widely accepted by electrical inspectors for 4 ton AC installations, and selection typically depends on regional availability and pricing.

1 inch PVC conduit for outdoor routing

1 inch PVC conduit accommodates three 8 AWG THWN-2 conductors per NEC 314.16 conduit fill calculations for outdoor 4 ton AC installations. This is a larger conduit than the 3/4 inch typically used for 3 ton installations, reflecting the larger 8 AWG conductor size. PVC conduit is UV resistant, provides physical protection, and is standard for outdoor AC condenser installations.

60 amp AC disconnect boxes

Standard pull-out AC disconnect boxes for 4 ton installations are typically rated 60 amps because 40 amp disconnect boxes are less common than 30 or 60 amp standard sizes. The 60 amp box provides ample capacity for the 40 amp breaker. Fused disconnects allow local MOCP matching with 40 amp fuses while non-fused disconnects provide only the switch function.

Voltage Drop Considerations for Long 4 Ton Condenser Runs

Voltage drop for the wire size for central AC 4 ton installations is more critical than for smaller AC units because higher current increases drop for the same wire size and distance.

The 3 percent voltage drop guideline

NEC 210.19(A)(1) informational note recommends voltage drop under 3 percent for branch circuits to maintain adequate voltage at the load. For a 240 volt 4 ton AC condenser circuit at typical 25 amp continuous load, this means the drop should not exceed 7.2 volts. Excessive voltage drop can cause motor starting issues, reduced cooling capacity, and premature motor wear.

8 AWG copper distance limits at 4 ton typical load

For a typical 4 ton AC condenser drawing 25 amps continuous, 8 AWG copper stays within the 3 percent voltage drop guideline for runs up to approximately 100 to 130 feet at 240 volts. Most residential 4 ton AC installations stay within this distance limit. Larger properties with condensers positioned distant from the electrical panel sometimes approach or exceed this limit.

When to upgrade to 6 AWG copper

For runs 130 to 200 feet at typical 4 ton AC load, upgrade to 6 AWG copper to maintain voltage drop under 3 percent. 6 AWG copper has significant additional capacity margin (65 amp ampacity) and better voltage drop performance. This upgrade adds moderate cost but ensures reliable 4 ton AC operation at maximum load conditions.

Motor starting inrush considerations

4 ton AC compressor motors draw significantly more current during startup (typically 4-8 times the running current) for the first few seconds of operation. Excessive voltage drop during starting can cause motor stall, thermal overload trips, or nuisance breaker trips. Larger wire sizes reduce starting voltage drop and improve motor starting reliability, particularly important during hot weather when the compressor works hardest.

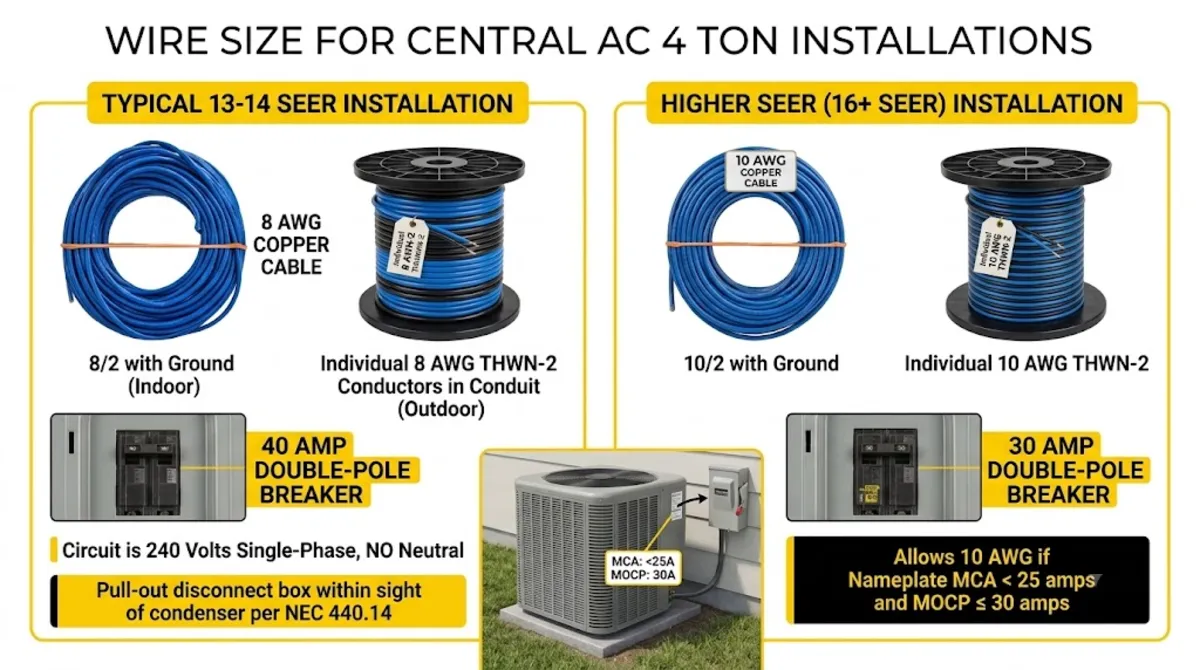

3 Ton vs 4 Ton Central AC Wire Size Comparison

Understanding the wire size for central AC 4 ton compared to 3 ton installations helps buyers make informed decisions when sizing their electrical infrastructure.

Typical specifications comparison

3 ton central AC at 13-14 SEER: MCA 18-25 amps, MOCP 30-45 amps, typical wire 10 AWG copper on 30 amp breaker. 4 ton central AC at 13-14 SEER: MCA 22-30 amps, MOCP 35-50 amps, typical wire 8 AWG copper on 40 amp breaker. The wire size difference is driven by the NEC 240.4(D) small conductor rule threshold at 30 amps.

Wire cost implications

Wire cost for 100 feet of typical 4 ton installation (8 AWG THWN-2) is approximately 30-40 percent higher than 3 ton installation (10 AWG THWN-2). Combined with slightly larger conduit and disconnect requirements, the total electrical materials cost for 4 ton installation is approximately 25-35 percent higher than 3 ton installation.

When 3 ton wire size works for smaller 4 ton units

Some higher SEER 4 ton units with MCA under 25 amps and MOCP of 30 amps can use the same 10 AWG on 30 amp specification as a typical 3 ton unit. This applies primarily to 17+ SEER variable-speed 4 ton units. Verify the specific unit nameplate before assuming 3 ton wire sizing works for a 4 ton unit.

Deciding between 3 ton and 4 ton

The choice between 3 ton and 4 ton AC depends primarily on home size, insulation, climate, and cooling demand rather than wire sizing considerations. Typical guideline is 400-500 square feet per ton in moderate climates. Home under 1,800 square feet typically requires 3 ton; homes 1,800 to 2,500 square feet typically require 4 ton. Have an HVAC professional perform a Manual J load calculation for accurate sizing.

Service Capacity Considerations for 4 Ton AC Installations

Planning the wire size for central AC 4 ton installation requires assessing electrical service capacity because a 4 ton central AC installation adds significant load to the electrical service.

4 ton AC continuous load impact

A 4 ton central AC at maximum operation represents approximately 25-30 amp continuous load on the electrical service. Combined with typical residential loads including main appliances, water heater, lighting, and other equipment, the total service demand may approach or exceed panel capacity in older homes with 100 amp service.

200 amp service typically adequate

Homes with 200 amp main electrical service typically have adequate capacity for a 4 ton AC installation without service upgrades. The 200 amp service provides significant margin over typical residential loads with room for the AC addition. Homes in the 2,000-2,500 square foot range that typically use 4 ton AC systems often have 200 amp service already installed.

100 amp service may require load calculation

Homes with older 100 amp electrical service should perform an NEC 220 load calculation before installing a 4 ton AC unit. While the AC load itself may fit within 100 amp service capacity, combined with other residential loads it may exceed acceptable service utilization. Service upgrade to 200 amp may be needed depending on total residential electrical demand.

Two-stage or variable-speed for capacity flexibility

Two-stage and variable-speed 4 ton AC units provide capacity flexibility because they operate at reduced capacity most of the time. This reduces average electrical demand compared to single-stage units that always operate at full capacity when running. For homes with tight service capacity, two-stage or variable-speed units may reduce electrical service demand.

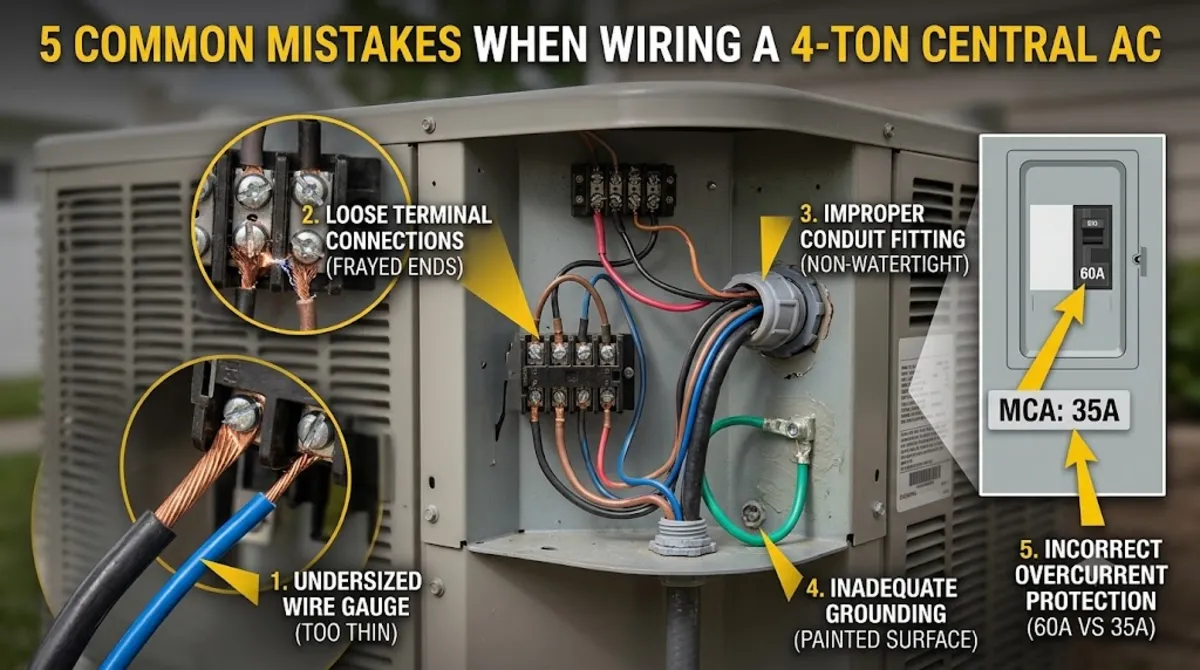

5 Common Mistakes When Wiring a 4 Ton Central AC

The mistakes below cause the most frequent buyer questions about wire size for central AC 4 ton installations.

Mistake 1: Using 10 AWG copper on a 40 amp breaker

The most common mistake specific to 4 ton installations is using 10 AWG copper on a 40 amp breaker. NEC 240.4(D) limits 10 AWG copper to 30 amp maximum overcurrent protection regardless of the actual 35 amp ampacity of 10 AWG at 75 degrees Celsius. For breakers exceeding 30 amps, 8 AWG copper minimum is required. This mistake fails inspection and creates fire hazards.

Mistake 2: Assuming 3 ton wire size works for 4 ton

Some installers assume the 10 AWG on 30 amp specification used for 3 ton AC installations also works for 4 ton AC. This is only true for higher SEER 4 ton units with MOCP of 30 amps or less. Standard 13-14 SEER 4 ton units typically have MOCP exceeding 30 amps and require 8 AWG copper on 40 amp breaker. Always verify the specific nameplate.

Mistake 3: Skipping the required disconnect per NEC 440.14

Some DIY installers omit the pull-out disconnect box near the condenser, running wire directly from the panel to the condenser. NEC 440.14 requires a disconnecting means within sight of the equipment for all AC installations regardless of size. Skipping the disconnect is a code violation that always fails inspection and creates safety hazards for service personnel.

Mistake 4: Using NM-B for the outdoor portion of the wire run

NM-B is not rated for outdoor, wet, or damp locations per NEC 334.12. Using NM-B for the wire run from the wall penetration to the condenser or disconnect box violates code and creates safety hazards from water damage. Use THWN-2 in PVC conduit or UF-B cable for the outdoor portion of the 4 ton AC circuit.

Mistake 5: Ignoring the manufacturer nameplate

Some installers apply generic 8 AWG on 40 amp specification without verifying the specific unit nameplate MCA and MOCP values. While this works for most 13-14 SEER 4 ton units, higher SEER units may have different requirements. Always photograph the nameplate before ordering wire to verify the specific specifications match the standard 4 ton wire sizing.

Conclusion

The typical wire size for central AC 4 ton installations is 8 AWG copper conductors on a 40 amp double-pole breaker for standard 13-14 SEER units, though the specific wire and breaker size must always be verified against the MCA and MOCP values on the specific unit nameplate per NEC Article 440. Higher SEER 4 ton units with MOCP of 30 amps or less may allow 10 AWG copper on 30 amp breaker for meaningful wire cost savings.

The step up from 10 AWG (typical 3 ton) to 8 AWG (typical 4 ton) is driven by the NEC 240.4(D) small conductor rule that limits 10 AWG copper to 30 amp maximum overcurrent protection. Key installation requirements include weather-rated wire types for the outdoor portion of the run, a 60 amp pull-out disconnect box within sight of the condenser per NEC 440.14, 240 volt dedicated branch circuit with 2-conductor plus ground cable configuration (no neutral required), and 1 inch PVC conduit for outdoor conductor routing.
