The correct wire size for electric dryer 30 amp circuit installations is 10 AWG copper wire connected to a 30-amp double-pole breaker at 240 volts. Modern electric dryer installations require 10/3 with ground cable (four total conductors) terminated at a NEMA 14-30R four-prong receptacle. This article explains the NEC math behind the 10 AWG requirement, the 1996 code change from 3-wire to 4-wire dryer circuits, why electric dryers need a neutral conductor, wire type selection by installation environment, and complete installation guidance for a code-compliant dryer circuit.

Across thousands of Southwire and Cerrowire orders shipped from IB Lighting nationwide, our electrician-led team advises DIY installers and licensed electricians on the correct wire size for residential dryer installations. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the full Southwire and Cerrowire electrical wire and cable lineup. This article is the walkthrough we provide to buyers researching wire size for their electric dryer installation, using specifications aligned with the current National Electrical Code (NFPA 70) and industry practice from the International Association of Electrical Inspectors.

The Fast Answer: Wire Size for Electric Dryer 30 Amp Circuit

For a standard residential electric dryer on a 30 amp dedicated circuit at 240 volts, use 10 AWG copper conductors on a 30-amp double-pole breaker. Modern installations require 10/3 with ground cable containing four conductors: two hot legs (typically black and red), one neutral (white), and one bare copper grounding conductor. The circuit terminates at a NEMA 14-30R four-prong receptacle. This is the correct wire size for electric dryer 30 amp installations in all new residential construction and major electrical remodels.

The complete wire sizing specification

The complete specification for a wire size for electric dryer 30 amp installation includes: 10 AWG copper conductors (two hot legs, one neutral, one grounding), 30-amp double-pole breaker at the electrical panel, 240-volt supply from a two-pole 120/240V residential panel, dedicated circuit that supplies only the dryer, NEMA 14-30R four-prong receptacle, matching four-prong dryer cord, and wire type appropriate for the installation environment.

What “10/3 with ground” means on the wire label

Wire labeled 10/3 with ground contains three insulated 10 AWG current-carrying conductors (typically black, red, and white) plus a 10 AWG bare copper grounding conductor. For dryer applications, black and red are the two 240 volt hot legs, white is the neutral, and bare copper is the grounding conductor. This four-conductor configuration is different from the 10/2 with ground used for water heaters and other 240 volt appliances that do not require a neutral.

Standard breaker size for a 30 amp dryer circuit

A 30-amp double-pole breaker is the standard overcurrent protection for an electric dryer circuit. The 30-amp size provides adequate capacity for the typical 5,000 to 5,400 watt dryers common in American homes without requiring the NEC 125 percent continuous load factor because dryers are not classified as continuous loads. The heating element cycles on and off during normal operation rather than running continuously.

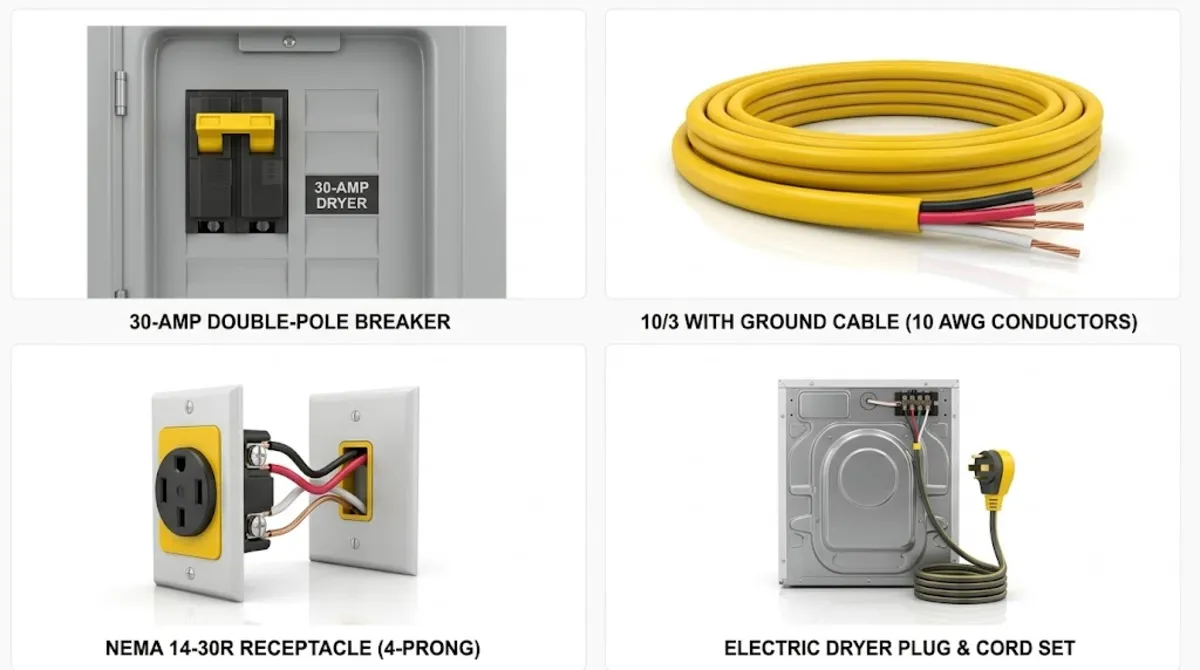

The NEC Math Behind the 10 AWG Answer for a 30 Amp Dryer

Understanding the calculation that drives the 10 AWG requirement for a wire size for electric dryer 30 amp circuit prevents common wire sizing mistakes.

Step 1: Calculate typical dryer current draw

Typical residential electric dryers draw between 20 and 24 amps at 240 volts depending on heating element wattage. A common 5,400 watt dryer calculation: 5,400 watts divided by 240 volts equals 22.5 amps. Some higher-capacity dryers with 6,000 watt heating elements draw up to 25 amps. The 30 amp circuit provides margin above the actual draw of virtually all residential electric dryers.

Step 2: NEC branch circuit sizing per Article 210

NEC Article 210 governs branch circuit sizing for household appliances. Unlike water heaters which are treated as continuous loads requiring the 125 percent factor, electric dryers are not continuous loads because the heating element cycles on and off during normal operation. NEC 220.54 covers dryer load calculations for feeder and service sizing, but branch circuit sizing follows the nameplate rating of the dryer directly.

Step 3: Match wire ampacity to breaker size per NEC 240.4(D)

The wire size for electric dryer 30 amp circuit must be matched to the breaker size per NEC 240.4(D) small conductor rule. This rule requires 10 AWG copper for any 30 amp overcurrent device regardless of the actual load. 12 AWG cannot be used on a 30 amp breaker even if the actual dryer load appears to fit within 12 AWG ampacity, because 12 AWG is capped at 20 amp overcurrent protection.

Step 4: Confirm 10 AWG copper ampacity meets requirements

10 AWG copper has a 35 amp ampacity rating at 75 degrees Celsius per NEC Table 310.16 and is permitted on breakers up to 30 amps per NEC 240.4(D). This provides adequate capacity for any residential electric dryer with meaningful safety margin. The 10 AWG copper is the correct minimum wire size for electric dryer 30 amp circuit installations regardless of specific dryer wattage within the normal residential range.

Pro tip: When buying a new electric dryer for an existing installation, verify the dryer nameplate rating before assuming the existing 30 amp circuit is adequate. Some newer high-capacity or professional-grade residential dryers have 6,000 or 7,000 watt heating elements that require verification against your existing wire size. For standard residential dryers rated 5,400 watts or less, the standard 10 AWG on 30 amp specification handles the load with meaningful margin.

3-Wire vs 4-Wire Dryer Circuits: The 1996 NEC Change

The wire size for electric dryer 30 amp circuit conversation involves an important historical code change that affects both new installations and retrofit situations.

The pre-1996 3-wire configuration

Before 1996, electric dryer circuits were typically wired with three conductors: two hot legs and one combined neutral/ground conductor. This configuration used a NEMA 10-30R three-prong receptacle. The combined neutral/ground was possible because the electrical panel provided the bonding between the neutral bus and the equipment grounding bus. This 3-wire system was standard practice for decades.

The 1996 NEC change to 4-wire

The 1996 National Electrical Code introduced the requirement for separate neutral and grounding conductors on dryer circuits under NEC 250.140. All new installations after the 1996 adoption date must use 4-wire configurations with a NEMA 14-30R four-prong receptacle. The change eliminates a specific failure mode where a broken neutral could energize the dryer chassis through the shared neutral/ground path.

Why the change matters for safety

The separate grounding conductor provides a dedicated fault path that remains functional even if the neutral connection develops a problem. In the older 3-wire system, a broken neutral upstream of the dryer could cause the dryer chassis to become energized at 120 volts because the metal chassis was connected to the neutral/ground conductor. The 4-wire system eliminates this failure mode by keeping neutral and grounding separate.

New installation compliance

Any new dryer installation, any major electrical remodel, and any circuit that requires new wire pulled through walls must use the 4-wire configuration per current NEC. The 3-wire configuration is not permitted for any new work regardless of whether the rest of the house has older wiring. Local jurisdictions may have specific requirements about when the 4-wire upgrade becomes mandatory during renovations.

Why Electric Dryers Need a Neutral Conductor

Understanding why electric dryers require a neutral conductor (unlike water heaters and other 240 volt appliances) clarifies the 10/3 with ground requirement.

Dual voltage operation inside the dryer

Electric dryers use 240 volts for the heating element (the highest-current component that requires both hot legs) and 120 volts for the drum motor, control panel, timer, moisture sensor, and interior light. This dual voltage operation is standard for residential electric dryers and requires a neutral conductor to provide the return path for the 120 volt internal circuits.

The neutral as a current-carrying conductor

Unlike the equipment grounding conductor which normally carries no current, the neutral in a dryer circuit carries current whenever the 120 volt internal components are operating. The neutral current is the imbalance between the two hot legs when the 120 volt loads are active. Because the neutral is a current-carrying conductor, it must be sized the same as the hot conductors and cannot be shared with equipment grounding.

How water heaters differ from dryers

Water heaters typically use only 240 volt heating elements with no 120 volt internal components. The absence of 120 volt loads means no neutral current, so water heaters are wired with 10/2 with ground (two hot conductors and grounding only). This is the fundamental difference in wire type between water heater and electric dryer circuits despite both using 30 amp double-pole breakers and 10 AWG copper.

Verifying your dryer is a standard residential unit

Standard residential electric dryers (Whirlpool, GE, LG, Samsung, Maytag, and similar brands) all use dual voltage operation and require the 4-wire configuration. Some commercial or specialty units may have different requirements, so verify against the specific dryer installation manual. For the vast majority of residential dryer installations, 10/3 with ground and NEMA 14-30R is the correct configuration.

Wire Type Selection: NM-B 10/3, THHN, and UF-B

Beyond selecting the correct gauge for wire size for electric dryer 30 amp circuit, wire type selection depends on the installation environment.

NM-B 10/3 with ground for indoor dry locations

NM-B (Non-Metallic sheathed cable, Type B) 10/3 with ground is the standard wire type for residential dryer circuits in indoor dry finished or unfinished spaces including standard laundry rooms, first-floor laundry closets, and dry upstairs installations. NM-B 10/3 contains three insulated 10 AWG conductors and one bare grounding conductor inside a plastic sheath. NM-B cannot be used in wet locations, in conduit exposed to moisture, or outside.

THHN individual conductors in conduit

THHN and THWN individual conductors in EMT or PVC conduit are the appropriate choice for dryer installations in unfinished basements, garages, or utility rooms where conduit is preferred or required by local code. For a dryer circuit in conduit, pull four individual 10 AWG THHN conductors: black (hot leg 1), red (hot leg 2), white (neutral), and green (equipment grounding). The green conductor can alternatively be bare copper.

UF-B for buried or damp locations

UF-B (Underground Feeder, Type B) 10/3 with ground is used for dryer circuits that must be routed through damp locations or briefly transition through outdoor sections. Direct-buried applications for dryer circuits are uncommon in typical residential work but may occur in specialty applications such as detached laundry buildings or outbuilding installations.

MC cable for exposed applications

MC (Metal Clad) cable containing 10/3 conductors is an alternative to NM-B in commercial and some residential applications where physical protection of exposed wiring is important. MC cable is more common in multi-family residential construction and commercial installations than in single-family homes. For most single-family residential dryer installations, NM-B is the more common and less expensive choice.

NEMA 14-30 Receptacle Wiring and Installation

The NEMA 14-30R receptacle is the terminating device for a modern electric dryer circuit and requires specific wiring to match the 10/3 with ground cable.

NEMA 14-30R receptacle configuration

The NEMA 14-30R receptacle has four slots in a specific configuration: two flat blade slots for the hot conductors, one L-shaped slot for the neutral, and one round or half-round slot for the equipment grounding conductor. The 30 amp rating and 240 volt configuration match the dryer circuit requirements. Standard NEMA 14-30R receptacles are UL-listed and available from major electrical wholesalers.

Wiring terminals at the receptacle

NEMA 14-30R receptacles have four terminal screws: two brass-colored for the hot conductors, one silver-colored for the neutral, and one green for the equipment grounding conductor. Connect the black conductor to one brass terminal, the red conductor to the other brass terminal, the white conductor to the silver terminal, and the bare copper conductor to the green terminal. Verify all terminal connections are tight per the receptacle manufacturer torque specifications.

Receptacle box requirements

The dryer receptacle mounts in an electrical box appropriately sized for the 30 amp receptacle and 10 AWG conductors. Box fill calculations per NEC 314.16 must be satisfied. For a standard NEMA 14-30R installation, a 4-inch square deep box or a 2-gang plastic box provides adequate volume for the receptacle and conductors.

Mounting height and location

NEC does not specify a required mounting height for dryer receptacles, but standard installation practice places the receptacle at 42 to 48 inches above the finished floor to allow the receptacle to remain accessible behind the installed dryer. Some jurisdictions require the receptacle be accessible without moving the dryer, which affects placement decisions.

Voltage Drop Considerations for Long Wire Runs

The 10 AWG specification is correct for short and medium wire runs. Long runs may require upgrading to prevent voltage drop.

The 3 percent voltage drop guideline

Voltage drop is the reduction in voltage from wire resistance as current flows through the conductor. NEC 210.19 informational note recommends branch circuit voltage drop stay under 3 percent, which for a 240 volt dryer circuit means the drop should not exceed 7.2 volts. Excessive voltage drop reduces heating element performance and extends drying cycle times.

10 AWG copper distance limits at typical dryer loads

For a typical 22.5 amp dryer draw at 240 volts, 10 AWG copper stays within the 3 percent voltage drop guideline for runs up to approximately 100 feet from panel to dryer receptacle. This distance covers the vast majority of residential installations because laundry rooms are typically installed in locations reasonably close to the electrical panel.

When to upgrade to 8 AWG copper

For runs from 100 feet to approximately 150 feet, upgrade to 8 AWG copper to maintain voltage drop under 3 percent. 8 AWG copper has 50 amp ampacity, so the wire is over-specified for a 30 amp circuit, but the additional cross-sectional area reduces voltage drop for longer runs. This upgrade is uncommon for typical residential dryer installations but occurs occasionally in large single-family homes with laundry rooms located far from the electrical panel.

When to upgrade to 6 AWG copper

For runs beyond 150 feet, upgrade to 6 AWG copper. This is very uncommon in residential dryer installations but may occur in unusual layouts. Always calculate voltage drop specifically for your installation using a voltage drop calculator or consult a licensed electrician for long-run applications.

GFCI Requirements for Dryer Circuits Under Recent NEC

Recent editions of the National Electrical Code have expanded GFCI requirements to include some dryer circuits, and this evolving requirement warrants specific attention.

NEC 2020 expansion to 240 volt receptacles

The 2020 National Electrical Code expanded GFCI requirements to include 240 volt receptacles in specific dwelling unit locations under NEC 210.8(A) and 210.8(F). This expansion covers laundry room dryer receptacles in some interpretations depending on the specific location and the local jurisdiction’s code adoption.

Local jurisdiction adoption varies

Not all jurisdictions have adopted the 2020 NEC yet. Some jurisdictions remain on the 2017 or earlier NEC editions that do not require GFCI on dryer circuits. Check your local building department for the specific NEC edition in effect and any local amendments that affect GFCI requirements on dryer circuits.

How to add GFCI protection

Where GFCI protection is required or desired for a dryer circuit, options include installing a GFCI double-pole breaker at the electrical panel (matches the 30 amp double-pole configuration), or installing a GFCI protected receptacle rated for 30 amp 240 volt applications. GFCI breakers for 30 amp 240 volt applications are widely available from major electrical wholesalers.

Nuisance tripping considerations

Some older or specific dryer models can cause nuisance GFCI tripping due to design characteristics of the moisture sensor or motor control circuits. If a new GFCI protected installation experiences repeated nuisance tripping with a specific dryer, consult the dryer manufacturer for GFCI compatibility guidance and potentially the local building inspector regarding acceptable alternatives.

Choosing the Right Wire Product for Your Dryer Circuit

Understanding which specific wire products fit the wire size for electric dryer 30 amp circuit specification helps buyers select the correct product.

Southwire 10/3 NM-B with ground

Southwire is one of the largest domestic manufacturers of building wire and cable. Their 10/3 NM-B with ground is a common choice for dryer circuits in indoor dry locations. Southwire 10/3 NM-B is available in standard reel lengths from 25 feet to 1,000 feet. For a typical dryer installation with a 30 to 50 foot run, a 25-foot or 50-foot reel provides enough wire with modest excess.

Cerrowire 10/3 NM-B alternatives

Cerrowire manufactures a comparable line of 10/3 NM-B with ground. Cerrowire and Southwire products are electrically equivalent and meet the same UL 719 standard for NM-B cable. Product selection typically depends on regional availability, price, and buyer preference. Both brands are widely accepted by electrical inspectors.

THHN individual conductors for conduit runs

For dryer installations requiring conduit, purchase four individual 10 AWG THHN or THWN conductors: one black, one red, one white, and one green (or bare copper) for grounding. Buy stranded THHN for easier pulling through conduit. Southwire and Cerrowire both offer individual THHN conductors in various colors, gauges, and lengths.

UF-B 10/3 for underground applications

UF-B 10/3 with ground for direct burial or exterior damp locations is available from both Southwire and Cerrowire. UF-B has a thicker outer jacket than NM-B and is rated for direct earth burial without conduit (subject to local code approval for burial depth per NEC 300.5).

NEMA 14-30R receptacles

NEMA 14-30R receptacles are widely available from major electrical wholesalers. Standard versions include surface-mount and flush-mount configurations. For most residential installations, a flush-mount NEMA 14-30R in a standard 4-inch square deep box provides a clean finished appearance. Purchase a matching 4-prong dryer cord separately unless the cord comes with the dryer.

Retrofit Situations: When Existing 3-Wire Is Acceptable

Retrofit situations involving existing 3-wire dryer circuits are common in homes built before the 1996 NEC change and warrant specific guidance.

Continued use of existing 3-wire installations

Existing 3-wire dryer circuits with NEMA 10-30R receptacles installed before the 1996 NEC change are grandfathered and legal to continue using. Homeowners can purchase a new electric dryer and install a matching 3-prong dryer cord to connect to the existing receptacle. This grandfathering applies as long as the existing wiring remains in place and no major electrical modifications are made.

When 3-wire must be upgraded to 4-wire

The grandfathering ends when any of the following occurs: the wiring is replaced during a renovation, a new circuit is installed to a different location, the receptacle is upgraded to a modern GFCI-protected type, or major electrical work at the panel affects the circuit. Any of these triggers requires upgrading to the 4-wire NEMA 14-30R configuration per current NEC.

Voluntary upgrade for safety

Some homeowners choose to voluntarily upgrade grandfathered 3-wire dryer circuits to 4-wire configurations even when not required. The safety benefit of separate neutral and grounding conductors is meaningful, and the upgrade cost is modest compared to the safety improvement. This is especially worth considering during whole-house electrical renovations or panel upgrades.

Bonding jumper considerations for old dryers on new receptacles

When installing an older 3-prong dryer on a new 4-wire circuit (uncommon but possible), verify the dryer neutral is properly bonded to the equipment ground per the dryer manufacturer instructions. Some older dryers have an internal bonding jumper that must be removed when connecting to a 4-wire circuit. This detail matters for safety and can prevent chassis energization issues.

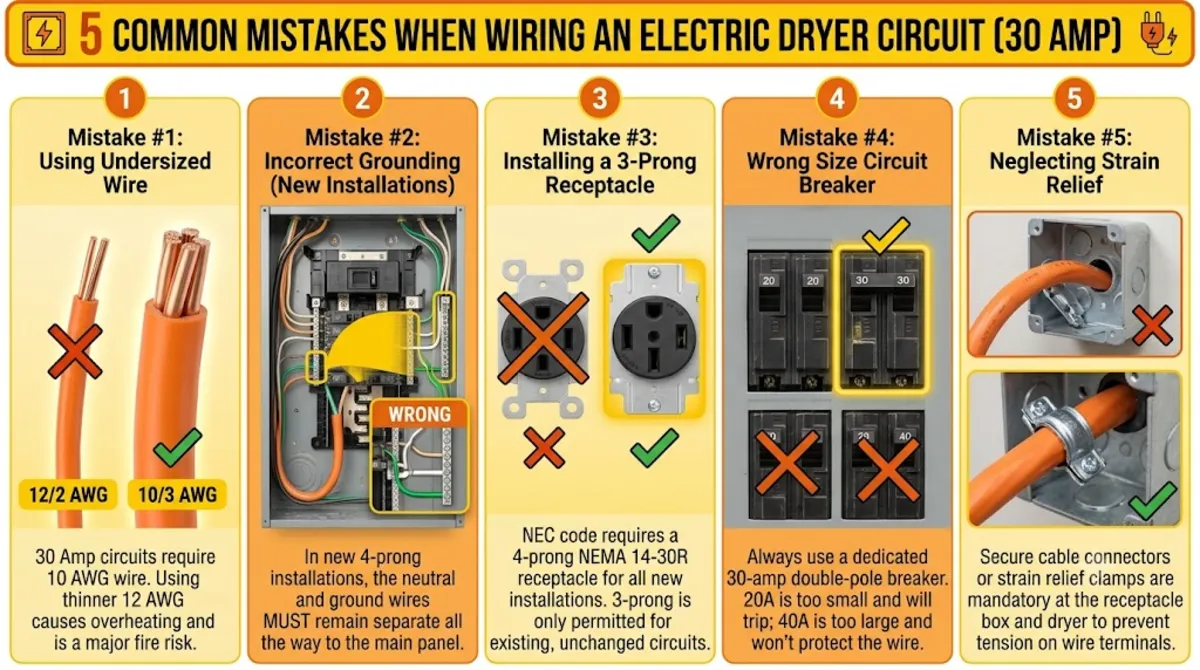

5 Common Mistakes When Wiring an Electric Dryer Circuit

The mistakes below cause the most frequent buyer questions about wire size for electric dryer 30 amp circuit installations.

Mistake 1: Using 10/2 instead of 10/3 with ground

The most common mistake is using 10/2 with ground cable (two hot conductors plus grounding) instead of 10/3 with ground (three insulated conductors plus grounding) for a dryer circuit. 10/2 lacks the neutral conductor that electric dryers require for their 120 volt internal circuits. This mistake often happens because 10/2 is the correct choice for water heater circuits, and installers assume the same cable works for dryers.

Mistake 2: Installing NEMA 10-30 in new construction

Installing a 3-prong NEMA 10-30R receptacle in new construction or major electrical remodels violates NEC 250.140 which has required the 4-wire NEMA 14-30R configuration since 1996. Some installers do this because they are used to older configurations or because they have a 3-prong receptacle already on hand. New installations must use NEMA 14-30R regardless of what may be simpler.

Mistake 3: Mixing 3-wire and 4-wire components

Mixing 3-wire and 4-wire components on the same circuit creates safety hazards. Examples include using a 4-wire cable with a 3-prong receptacle (leaving the neutral or ground disconnected), or using a 3-wire cable with a 4-prong receptacle (missing one connection). Always match the cable, receptacle, and dryer cord as a complete 3-wire or 4-wire system. Do not mix components across the standards.

Mistake 4: Undersized wire for long runs

Some installers use 10 AWG regardless of run length without calculating voltage drop. For runs over 100 feet, voltage drop exceeds the 3 percent NEC guideline and reduces heating element performance. Always calculate voltage drop for runs approaching or exceeding 100 feet, and upgrade to 8 AWG or 6 AWG copper as needed.

Mistake 5: Skipping the dryer bonding jumper check

When connecting a 4-wire dryer cord to a dryer that previously used a 3-wire cord, the internal bonding jumper between the neutral and the chassis must be removed. Skipping this step keeps the neutral and chassis bonded internally, which defeats the safety improvement of the 4-wire system. Always follow the dryer manufacturer instructions for cord replacement and verify the bonding jumper configuration.

Conclusion

The correct wire size for electric dryer 30 amp circuit installations is 10 AWG copper conductors on a 30-amp double-pole breaker at 240 volts. Modern installations require 10/3 with ground cable containing four conductors (two hots, neutral, grounding) terminated at a NEMA 14-30R four-prong receptacle per NEC 250.140.

The neutral conductor is required because electric dryers use 120 volts for internal controls in addition to 240 volts for the heating element. This is the fundamental difference from water heater circuits which do not need a neutral. Existing pre-1996 3-wire dryer circuits are grandfathered but must be upgraded to 4-wire during any major electrical work. Long wire runs beyond 100 feet require upgrading to 8 AWG or 6 AWG to prevent voltage drop that would extend drying cycle times.

This article was last reviewed and updated in June 2026 to reflect current National Electrical Code requirements and residential electric dryer installation best practices. Wire sizing recommendations are based on the current NEC (NFPA 70) and should be verified against your local code amendments. For complex installations or when in doubt, consult a licensed electrician. Improperly sized wire can cause fires and voids insurance coverage.
