The correct wire size for electric range 40 amp circuit installations is 8 AWG copper conductors on a 40-amp double-pole breaker at 240 volts. Modern installations require 8/3 with ground cable terminated at a NEMA 14-50R four-prong receptacle, which is the standard receptacle for both 40 amp and 50 amp range circuits because no standard 40 amp household receptacle exists. This article explains the NEC math including the range-specific demand factor calculation, the wire size for electric range 40 amp specifications, when to upgrade to a 50 amp circuit, wire type selection by installation environment, and complete installation guidance for a code-compliant range circuit.

Across thousands of Southwire and Cerrowire orders shipped from IB Lighting nationwide, our electrician-led team advises DIY installers and licensed electricians on the correct wire size for residential range installations. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the full Southwire and Cerrowire electrical wire and cable lineup. This article is the walkthrough we provide to buyers researching wire size for their electric range installation, using specifications aligned with the current National Electrical Code (NFPA 70) and industry practice from the International Association of Electrical Inspectors.

The Fast Answer: Wire Size for Electric Range 40 Amp Circuit

For a standard residential electric range on a 40 amp dedicated circuit at 240 volts, use 8 AWG copper conductors on a 40-amp double-pole breaker. Modern installations require 8/3 with ground cable containing four conductors: two hot legs (typically black and red), one neutral (white), and one bare copper grounding conductor. The circuit terminates at a NEMA 14-50R four-prong receptacle. This is the correct wire size for electric range 40 amp installations for smaller ranges rated up to approximately 8.75 kilowatts on the nameplate.

The complete wire sizing specification

The complete specification for a wire size for electric range 40 amp installation includes: 8 AWG copper conductors (two hot legs, one neutral, one grounding), 40-amp double-pole breaker at the electrical panel, 240-volt supply from a two-pole 120/240V residential panel, dedicated circuit that supplies only the range, NEMA 14-50R four-prong receptacle, matching four-prong range cord, and wire type appropriate for the installation environment.

What “8/3 with ground” means on the wire label

Wire labeled 8/3 with ground contains three insulated 8 AWG current-carrying conductors (typically black, red, and white) plus a bare copper grounding conductor. For range applications, black and red are the two 240 volt hot legs, white is the neutral, and bare copper is the grounding conductor. The four-conductor 8/3 configuration is required for range circuits because ranges use both 240 volts and 120 volts internally.

Standard breaker size for a 40 amp range circuit

A 40-amp double-pole breaker is the standard overcurrent protection for the smaller residential ranges that qualify for a 40 amp circuit. This includes compact ranges, apartment-size ranges, some cooktops, and freestanding ranges with nameplate ratings up to approximately 8.75 kilowatts. Larger full-size ranges (typically 10 to 14 kilowatts on the nameplate) require upgrading to a 50 amp circuit with 6 AWG copper wire.

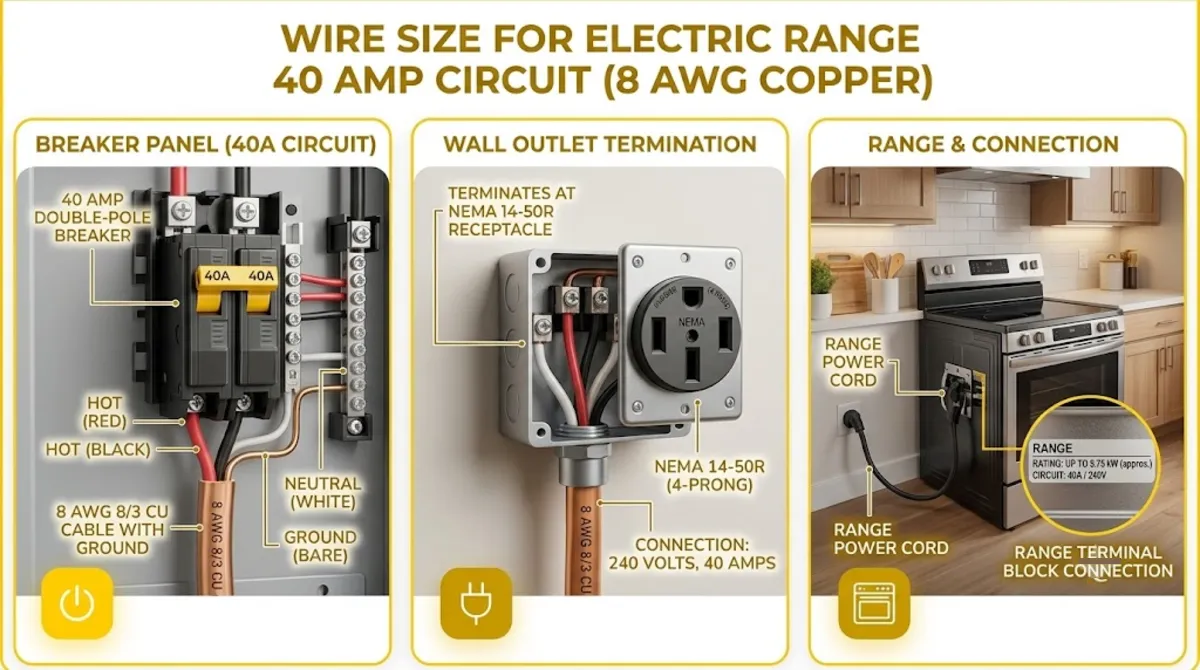

The NEC Math Behind the 8 AWG Answer for a 40 Amp Range

Understanding the calculation that drives the 8 AWG requirement for a wire size for electric range 40 amp circuit prevents common sizing mistakes.

Step 1: Calculate baseline range current draw

Baseline current draw is calculated from the range nameplate wattage divided by 240 volts. For an 8,500 watt range, the calculation is 8,500 watts divided by 240 volts equals 35.4 amps. This is the theoretical maximum draw if all burners and the oven operated simultaneously at full power. In practice, this rarely happens with ranges, which is why NEC provides a demand factor calculation specifically for household ranges.

Step 2: Apply the NEC 220.55 demand factor

NEC 220.55 recognizes that not all range burners and the oven operate at 100 percent simultaneously. For a single household range rated up to 12 kilowatts, the demand factor calculation applies: first 8 kilowatts at 100 percent, and any additional kilowatts at 80 percent. For an 8,500 watt range: first 8,000 watts at 100 percent equals 33.3 amps, plus 500 watts at 80 percent equals 1.7 amps, for a total demand of 35 amps.

Step 3: Match circuit size to demand calculation

The 35 amp demand calculation requires a minimum 40 amp branch circuit because 40 amps is the next standard breaker size above 35. NEC 240.6 lists standard breaker sizes as 15, 20, 25, 30, 35, 40, 45, 50, 60 amps and higher. Some jurisdictions and manufacturers standardize on 40 amps rather than 35 amps for range circuits because 40 amp breakers are more universally stocked.

Step 4: Match wire ampacity to breaker size per NEC 240.4(D)

The wire size for electric range 40 amp circuit must be matched to the 40 amp breaker per NEC 240.4(D). 8 AWG copper has 50 amp ampacity at 75 degrees Celsius per NEC Table 310.16 and is permitted on breakers up to 40 amps. This provides adequate capacity for range circuits with margin. 10 AWG cannot be used on a 40 amp breaker because NEC 240.4(D) limits 10 AWG to 30 amp overcurrent protection.

Step 5: Confirm 8 AWG copper is the correct minimum wire size

8 AWG copper on 40 amp double-pole breaker is the correct wire size for electric range 40 amp circuit installations. The 50 amp ampacity of 8 AWG provides a 10 amp safety margin over the 40 amp breaker rating. This margin accommodates typical residential kitchen wiring conditions including ambient temperature variations and wire bundling factors.

Pro tip: Always check the range nameplate before assuming a 40 amp circuit is adequate. Ranges with nameplate ratings from 8.75 kilowatts up to 12 kilowatts typically require a 50 amp circuit with 6 AWG copper wire, and ranges over 12 kilowatts require additional calculation per NEC 220.55. When replacing an existing range, verify the new range nameplate matches or fits within the existing circuit rating before installation. A mismatched circuit can cause nuisance breaker tripping or, worse, silent overheating that damages the wire insulation.

The NEC 220.55 Demand Factor Explained

The NEC 220.55 demand factor is unique to household electric ranges and is one of the key concepts that determines when a 40 amp circuit is sufficient versus when a 50 amp circuit is required.

Why ranges get a demand factor

Household electric ranges have multiple heating elements (typically four burners plus one oven element) that rarely operate simultaneously at maximum power. Boiling water on one burner while baking in the oven is normal usage. Running all four burners at high with the oven at 425 degrees is rare and short-duration. NEC 220.55 recognizes this reality and allows the branch circuit to be sized based on realistic simultaneous load rather than the nameplate maximum.

The demand calculation for ranges up to 12 kilowatts

For a single household electric range with nameplate rating up to 12 kilowatts, the NEC 220.55 demand factor is straightforward. The first 8 kilowatts of nameplate rating counts at 100 percent, and any additional kilowatts up to 12 count at 80 percent. Example calculations: 10,000 watt range demand equals 8,000 + (2,000 x 0.80) = 9,600 watts, or 40 amps at 240 volts.

When the 40 amp threshold is crossed

Applying the NEC 220.55 demand factor, ranges rated up to approximately 8.75 kilowatts nameplate demand at 40 amps or less and qualify for a 40 amp circuit. Ranges rated between 8.75 and 12 kilowatts demand between 40 and 50 amps and typically require a 50 amp circuit. Ranges rated above 12 kilowatts require additional demand factor calculation per NEC 220.55(C) and may require larger circuits.

Practical implications for range shopping

When shopping for a new range that will replace an existing 40 amp installation, verify the new range nameplate rating is under 8.75 kilowatts to confirm the existing circuit is adequate. If the new range exceeds this threshold, the branch circuit must be upgraded to 50 amps with 6 AWG copper wire before installation. Compact ranges (24 inch or 27 inch width) and apartment-size ranges typically fit within 40 amp circuits, while full-size ranges (30 inch or 36 inch width) often require 50 amps.

Why NEMA 14-50R Is Used on 40 Amp Range Circuits

The most surprising aspect of the wire size for electric range 40 amp circuit installation is that the receptacle is rated 50 amps despite being installed on a 40 amp breaker. Understanding why prevents confusion during installation.

No standard 40 amp household receptacle exists

The National Electrical Manufacturers Association (NEMA) receptacle standards include 30 amp receptacles (NEMA 14-30R for dryers) and 50 amp receptacles (NEMA 14-50R for ranges, EV chargers, and RV connections) but no standard 40 amp four-prong household receptacle. This is a historical gap in the NEMA receptacle series that has never been filled with a widely-adopted 40 amp specific design.

NEC 210.21(B)(3) permits the 50 amp receptacle on 40 amp circuits

NEC 210.21(B)(3) explicitly permits a 50-amp rated receptacle on a 40-amp branch circuit when the receptacle serves a fixed-in-place cooking appliance. This provision recognizes the absence of a standard 40 amp receptacle and allows the code-compliant solution of using the next-larger standard receptacle. The NEMA 14-50R is UL-listed for the application and is the standard receptacle used by manufacturers and installers.

The 40 amp breaker still protects the wire

Despite using a 50 amp receptacle, the 40 amp breaker at the electrical panel still provides overcurrent protection for the 8 AWG wire. The wire is sized to safely handle 50 amps of continuous current per its ampacity rating, and the 40 amp breaker trips at any sustained overcurrent above 40 amps. This combination protects both the wire and the connected appliance.

Confusion with NEMA 14-30 (dryer receptacle)

NEMA 14-30R (dryer, 30 amp) and NEMA 14-50R (range/EV, 50 amp) receptacles look similar but are not interchangeable. The 14-50R is physically larger with different blade orientations. Never install a 14-30R receptacle on a 40 amp circuit because it violates NEC 210.21(B)(3) which requires the receptacle rating to be equal to or greater than the branch circuit rating.

40 Amp vs 50 Amp Range Circuits: When Each Applies

Determining whether your specific range requires a 40 amp or 50 amp circuit depends on the range nameplate rating and application of the NEC 220.55 demand factor.

40 amp circuit for compact and apartment-size ranges

Compact ranges typically 24 inch or 27 inch width, apartment-size ranges, and some standalone cooktops fit within a 40 amp circuit because their nameplate ratings are typically 6 to 8.75 kilowatts. This category includes many condo and apartment installations, small kitchen renovations where space is limited, and cooktop-only installations where a separate wall oven has its own dedicated 30 amp circuit.

50 amp circuit for full-size and premium ranges

Full-size ranges typically 30 inch or 36 inch width, high-performance ranges with high-BTU burners, ranges with convection ovens and multiple oven cavities, and premium residential ranges typically require 50 amp circuits because their nameplate ratings exceed 8.75 kilowatts. The 50 amp specification uses 6 AWG copper wire with 6/3 with ground cable, still terminated at the same NEMA 14-50R receptacle.

60 amp or higher for large residential ranges

Some large residential ranges (professional-style ranges with 6+ burners, dual-oven configurations, or commercial-derivative units) require 60 amp or higher circuits. These installations use 4 AWG copper or larger and may use hardwired connections rather than plug-in receptacles. Consult the specific range installation manual for exact electrical requirements.

Verifying your range requirements before installation

Always verify range electrical requirements from the specific installation manual before starting the branch circuit installation. The nameplate rating is the definitive specification, not the range width or general product category. Two ranges of the same physical size may have different electrical requirements based on their internal element wattages and control system power consumption.

Why Electric Ranges Need a Neutral Conductor

The neutral conductor is required for electric range circuits because ranges use both 240 volt and 120 volt internal circuits, similar to electric dryers but different from water heaters.

Dual voltage operation inside electric ranges

Electric ranges use 240 volts for the heating elements (both burners and oven elements) which require the higher voltage for efficient heat generation. Ranges use 120 volts for control panels, clock and timer displays, oven light, convection fan, oven ignition (on gas-electric hybrid ranges), and electronic control boards. This dual voltage operation requires the neutral conductor to provide the return path for the 120 volt circuits.

The neutral as a current-carrying conductor

The neutral in a range circuit carries current whenever the 120 volt internal components operate. During normal cooking with the oven light on and clock running, the neutral carries the imbalance between the two hot legs supplying the 120 volt loads. Because the neutral is a current-carrying conductor, it must be sized the same as the hot conductors (8 AWG for a 40 amp circuit) and cannot share conductor duty with equipment grounding.

How ranges differ from water heaters and dryers

Water heaters typically use only 240 volt heating elements with no 120 volt internal components, so they use 10/2 with ground (no neutral). Electric dryers use both 240 and 120 volts but at lower current (30 amp circuit), so they use 10/3 with ground. Electric ranges use both voltages at higher current (40 amp or 50 amp circuit), so they use 8/3 with ground for 40 amp circuits or 6/3 with ground for 50 amp circuits.

3-Wire vs 4-Wire Range Circuits: The 1996 NEC Change

Electric ranges share the same 3-wire to 4-wire history as electric dryers, and understanding the change matters for both new installations and retrofit situations.

The pre-1996 3-wire configuration

Before 1996, electric range circuits were typically wired with three conductors: two hot legs and one combined neutral/ground conductor. This configuration used a NEMA 10-50R three-prong receptacle. The combined neutral/ground was possible because the electrical panel provided the bonding between the neutral bus and the equipment grounding bus. This 3-wire system was standard practice for decades.

The 1996 NEC change to 4-wire

The 1996 National Electrical Code introduced the requirement for separate neutral and grounding conductors on range circuits under NEC 250.140. All new installations after the 1996 adoption date must use 4-wire configurations with a NEMA 14-50R four-prong receptacle. The change eliminates a specific failure mode where a broken neutral could energize the range chassis through the shared neutral/ground path.

Why the change matters for safety

The separate grounding conductor provides a dedicated fault path that remains functional even if the neutral connection develops a problem. In the older 3-wire system, a broken neutral upstream of the range could cause the range chassis to become energized at 120 volts because the metal chassis was connected to the neutral/ground conductor. The 4-wire system eliminates this failure mode by keeping neutral and grounding separate throughout the circuit.

New installation compliance

Any new range installation, any major electrical remodel, and any circuit that requires new wire pulled through walls must use the 4-wire configuration per current NEC. The 3-wire configuration is not permitted for any new work regardless of whether the rest of the house has older wiring. Local jurisdictions may have specific requirements about when the 4-wire upgrade becomes mandatory during renovations.

Wire Type Selection: NM-B 8/3, THHN, and UF-B

Beyond selecting the correct gauge for wire size for electric range 40 amp circuit, wire type selection depends on the installation environment.

NM-B 8/3 with ground for indoor dry locations

NM-B (Non-Metallic sheathed cable, Type B) 8/3 with ground is the standard wire type for residential range circuits in indoor dry finished or unfinished spaces including standard kitchens, first-floor kitchen renovations, and dry basement kitchen installations. NM-B 8/3 contains three insulated 8 AWG conductors and one bare grounding conductor inside a plastic sheath. NM-B cannot be used in wet locations, in conduit exposed to moisture, or outside.

THHN individual conductors in conduit

THHN and THWN individual conductors in EMT or PVC conduit are appropriate for range installations in exposed applications or where local code requires conduit. For a range circuit in conduit, pull four individual 8 AWG THHN conductors: black (hot leg 1), red (hot leg 2), white (neutral), and green (equipment grounding). The green conductor can alternatively be bare copper. THHN is common in commercial and multi-family residential installations.

UF-B for buried or damp locations

UF-B (Underground Feeder, Type B) 8/3 with ground is used for range circuits that must be routed through damp locations or briefly transition through outdoor sections. This is uncommon for typical residential range installations because ranges are located inside kitchens, but may apply to outdoor kitchen installations or specialty applications where the branch circuit routes through damp areas.

SER or SEU service entrance cable for panel feeds

Service entrance cable variants including SER and SEU may be used for range circuits in specific applications, particularly when the range is fed from a subpanel located near the kitchen. These cables are more common in commercial and multi-family installations than in single-family homes. For most residential range installations, NM-B is the more common and less expensive choice.

Voltage Drop Considerations for Long Wire Runs

The 8 AWG specification is correct for short and medium wire runs. Long runs may require upgrading to prevent voltage drop.

The 3 percent voltage drop guideline

Voltage drop is the reduction in voltage from wire resistance as current flows through the conductor. NEC 210.19 informational note recommends branch circuit voltage drop stay under 3 percent, which for a 240 volt range circuit means the drop should not exceed 7.2 volts. Excessive voltage drop reduces heating element performance, extends cooking times, and can cause range electronic control issues.

8 AWG copper distance limits at typical range loads

For a typical 35 amp range demand at 240 volts, 8 AWG copper stays within the 3 percent voltage drop guideline for runs up to approximately 65 feet from panel to range receptacle. This covers the majority of residential kitchen installations where the kitchen is on the same floor or adjacent to the electrical panel. Longer runs require upgrading wire size to prevent voltage drop.

When to upgrade to 6 AWG copper

For range circuit runs from 65 feet to approximately 100 feet, upgrade to 6 AWG copper to maintain voltage drop under 3 percent. 6 AWG copper has 65 amp ampacity, so the wire is over-specified for a 40 amp circuit, but the additional cross-sectional area reduces voltage drop for longer runs. Some installers proactively use 6 AWG on all range circuits regardless of run length to allow future upgrades to a 50 amp circuit without rewiring.

When to upgrade to 4 AWG copper

For range circuit runs beyond 100 feet, upgrade to 4 AWG copper. This is uncommon in residential range installations but may occur in unusual home layouts. Always calculate voltage drop specifically for your installation using a voltage drop calculator or consult a licensed electrician for long-run applications.

Choosing the Right Wire Product for Your Range Circuit

Understanding which specific wire products fit the wire size for electric range 40 amp circuit specification helps buyers select the correct product.

Southwire 8/3 NM-B with ground

Southwire is one of the largest domestic manufacturers of building wire and cable. Their 8/3 NM-B with ground is a common choice for range circuits in indoor dry locations. Southwire 8/3 NM-B is available in standard reel lengths from 25 feet to 500 feet. For a typical range installation with a 20 to 40 foot run, a 25-foot or 50-foot reel provides enough wire with modest excess for termination flexibility.

Cerrowire 8/3 NM-B alternatives

Cerrowire manufactures a comparable line of 8/3 NM-B with ground. Cerrowire and Southwire products are electrically equivalent and meet the same UL 719 standard for NM-B cable. Product selection typically depends on regional availability, price, and buyer preference. Both brands are widely accepted by electrical inspectors.

THHN individual conductors for conduit runs

For range installations requiring conduit, purchase four individual 8 AWG THHN or THWN conductors: one black, one red, one white, and one green (or bare copper) for grounding. Buy stranded THHN for easier pulling through conduit. Southwire and Cerrowire both offer individual THHN conductors in various colors, gauges, and lengths.

NEMA 14-50R receptacles

NEMA 14-50R receptacles are widely available from major electrical wholesalers. Standard versions include surface-mount and flush-mount configurations in various body styles. For most residential kitchen installations, a flush-mount NEMA 14-50R in a standard 4-inch square deep box provides a clean finished appearance behind the range. Purchase a matching 4-prong range cord separately unless the cord ships with the range.

Wire and cable pricing considerations

Wire and cable prices fluctuate with copper commodity prices. Typical costs for range installation wiring run 60 to 130 dollars per 25-foot reel for 8/3 NM-B, 100 to 220 dollars per 50-foot reel, and proportionally higher for longer reels. 8 AWG wire is more expensive per foot than 10 AWG because of the greater copper content, so plan the wire purchase to minimize excess.

Retrofit Situations: When Existing 3-Wire Is Acceptable

Retrofit situations involving existing 3-wire range circuits are common in homes built before the 1996 NEC change.

Continued use of existing 3-wire range installations

Existing 3-wire range circuits with NEMA 10-50R receptacles installed before the 1996 NEC change are grandfathered and legal to continue using. Homeowners can purchase a new electric range and install a matching 3-prong range cord to connect to the existing receptacle. This grandfathering applies as long as the existing wiring remains in place and no major electrical modifications are made.

When 3-wire must be upgraded to 4-wire

The grandfathering ends when any of the following occurs: the wiring is replaced during a kitchen renovation, a new circuit is installed to a different range location, the receptacle is upgraded, or major electrical work at the panel affects the circuit. Any of these triggers requires upgrading to the 4-wire NEMA 14-50R configuration per current NEC.

Voluntary upgrade for safety

Some homeowners choose to voluntarily upgrade grandfathered 3-wire range circuits to 4-wire configurations during kitchen renovations even when not strictly required. The safety benefit of separate neutral and grounding conductors is meaningful for the higher-current range circuit. This is especially worth considering during major kitchen renovations that already involve significant electrical work.

Bonding jumper considerations for older ranges

When installing an older 3-prong range on a new 4-wire circuit (uncommon but possible), verify the range neutral is properly bonded to the equipment ground per the range manufacturer instructions. Some older ranges have an internal bonding jumper that must be removed when connecting to a 4-wire circuit. This detail matters for safety and can prevent chassis energization issues in fault conditions.

5 Common Mistakes When Wiring an Electric Range Circuit

The mistakes below cause the most frequent buyer questions about wire size for electric range 40 amp circuit installations.

Mistake 1: Using 10 AWG instead of 8 AWG on a 40 amp breaker

The most common mistake is using 10 AWG wire on a 40 amp breaker to save on wire cost. This violates NEC 240.4(D) which limits 10 AWG to 30 amp overcurrent protection. Using 10 AWG on a 40 amp breaker creates a fire hazard because the wire can overheat before the breaker trips. 8 AWG is required for any 40 amp circuit regardless of the actual load.

Mistake 2: Confusing NEMA 14-30 with NEMA 14-50

NEMA 14-30R (dryer, 30 amp) and NEMA 14-50R (range, 50 amp) receptacles look similar but are not interchangeable. Installing a 14-30R on a range circuit violates code because the receptacle rating (30 amp) is less than the branch circuit rating (40 amp). Installing a 14-50R on a dryer circuit works but requires verifying the 30 amp breaker still provides appropriate protection.

Mistake 3: Skipping the NEC 220.55 demand factor calculation

Some installers assume any range needs a 50 amp circuit regardless of nameplate rating. This overspecifies the circuit unnecessarily and increases installation cost. Applying the NEC 220.55 demand factor for ranges under 12 kilowatts often reveals that a 40 amp circuit is adequate. Always apply the demand factor to determine the minimum required circuit size.

Mistake 4: Using 8/2 with ground instead of 8/3 with ground

Ranges require a neutral conductor for internal 120 volt circuits. Using 8/2 with ground (two hots and grounding only) leaves the range without a neutral connection and prevents the range electronic controls, oven light, and clock from operating. Always use 8/3 with ground for range circuits.

Mistake 5: Skipping the range bonding jumper check

When connecting a 4-wire range cord to a range that previously used a 3-wire cord, the internal bonding jumper between the neutral and the chassis must be removed. Skipping this step keeps the neutral and chassis bonded internally, which defeats the safety improvement of the 4-wire system. Always follow the range manufacturer instructions for cord replacement.

Conclusion

The correct wire size for electric range 40 amp circuit installations is 8 AWG copper conductors on a 40-amp double-pole breaker at 240 volts. Modern installations require 8/3 with ground cable containing four conductors (two hots, neutral, grounding) terminated at a NEMA 14-50R four-prong receptacle per NEC 250.140.

The NEC 220.55 demand factor is unique to household electric ranges and determines whether a 40 amp or 50 amp circuit is required based on the specific range nameplate rating. Ranges under 8.75 kilowatts typically qualify for 40 amp circuits. The NEMA 14-50R receptacle is standard on both 40 amp and 50 amp range circuits because no 40 amp specific receptacle exists in NEMA standards. Long wire runs beyond 65 feet require upgrading to 6 AWG or 4 AWG copper to prevent voltage drop.
