The correct wire size for electric range 50 amp circuit installations is 6 AWG copper conductors on a 50-amp double-pole breaker at 240 volts. Modern installations require 6/3 with ground cable terminated at a NEMA 14-50R four-prong receptacle. This article explains the NEC math including the range-specific demand factor calculation, when a range requires 50 amps versus 40 amps or 60 amps, wire type selection by installation environment, and complete installation guidance for a code-compliant 50 amp range circuit. The specification covers most full-size residential electric ranges including 30-inch and 36-inch freestanding units.

Across thousands of Southwire and Cerrowire orders shipped from IB Lighting nationwide, our electrician-led team advises DIY installers and licensed electricians on the correct wire size for residential range installations. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the full Southwire and Cerrowire electrical wire and cable lineup. This article is the walkthrough we provide to buyers researching wire size for their electric range installation, using specifications aligned with the current National Electrical Code (NFPA 70) and industry practice from the International Association of Electrical Inspectors.

The Fast Answer: Wire Size for Electric Range 50 Amp Circuit

For a standard residential electric range on a 50 amp dedicated circuit at 240 volts, use 6 AWG copper conductors on a 50-amp double-pole breaker. Modern installations require 6/3 with ground cable containing four conductors: two hot legs (typically black and red), one neutral (white), and one bare copper grounding conductor. The circuit terminates at a NEMA 14-50R four-prong receptacle. This is the correct wire size for electric range 50 amp installations for full-size ranges rated between 8.75 and 12 kilowatts on the nameplate.

The complete wire sizing specification

The complete specification for a wire size for electric range 50 amp installation includes: 6 AWG copper conductors (two hot legs, one neutral, one grounding), 50-amp double-pole breaker at the electrical panel, 240-volt supply from a two-pole 120/240V residential panel, dedicated circuit that supplies only the range, NEMA 14-50R four-prong receptacle, matching four-prong range cord, and wire type appropriate for the installation environment. Missing any element of this specification creates either a code violation or an unsafe installation.

What “6/3 with ground” means on the wire label

Wire labeled 6/3 with ground contains three insulated 6 AWG current-carrying conductors (typically black, red, and white) plus a bare copper grounding conductor. For range applications, black and red are the two 240 volt hot legs, white is the neutral, and bare copper is the grounding conductor. The four-conductor 6/3 configuration is required for range circuits because ranges use both 240 volts and 120 volts internally.

Standard breaker size for a 50 amp range circuit

A 50-amp double-pole breaker is the standard overcurrent protection for full-size residential electric ranges that require a 50 amp circuit. This includes most standard 30-inch and 36-inch freestanding ranges, dual-element cooktops paired with wall ovens, and premium residential ranges with high-BTU burners or convection features. The 50 amp specification accommodates the typical 8.75 to 12 kilowatt nameplate rating range for full-size cooking appliances.

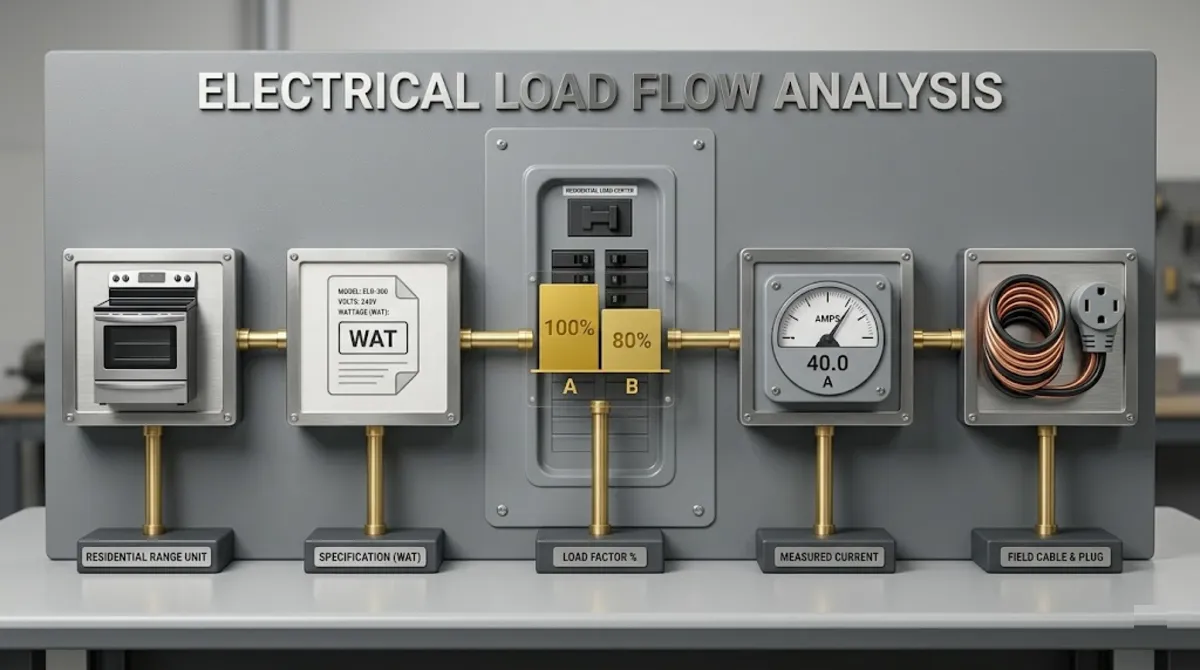

The NEC Math Behind the 6 AWG Answer for a 50 Amp Range

Understanding the calculation that drives the 6 AWG requirement for a wire size for electric range 50 amp circuit prevents common sizing mistakes.

Step 1: Calculate baseline range current draw

Baseline current draw is calculated from the range nameplate wattage divided by 240 volts. For a 10,000 watt range, the calculation is 10,000 watts divided by 240 volts equals 41.7 amps. This is the theoretical maximum draw if all burners and the oven operated simultaneously at full power. In practice, this rarely happens with ranges, which is why NEC provides a demand factor calculation specifically for household ranges.

Step 2: Apply the NEC 220.55 demand factor

NEC 220.55 recognizes that not all range burners and the oven operate at 100 percent simultaneously. For a single household range rated up to 12 kilowatts, the demand factor calculation applies: first 8 kilowatts at 100 percent, and any additional kilowatts at 80 percent. For a 10,000 watt range: first 8,000 watts at 100 percent equals 33.3 amps, plus 2,000 watts at 80 percent equals 6.7 amps, for a total demand of 40 amps.

Step 3: Match circuit size to demand calculation

The 40 amp demand calculation from a 10,000 watt range requires a minimum 50 amp branch circuit because 40 amps is at the exact threshold where circuits transition from 40 amp to 50 amp sizing. Ranges producing demand calculations above 40 amps require the 50 amp circuit. For a range at 11,000 watts, the demand calculates to 41.7 amps and clearly requires the 50 amp circuit. For a range at 12,000 watts, the demand calculates to 43.3 amps.

Step 4: Match wire ampacity to breaker size per NEC 240.4(D)

The wire size for electric range 50 amp circuit must be matched to the 50 amp breaker per NEC 240.4(D). 6 AWG copper has 65 amp ampacity at 75 degrees Celsius per NEC Table 310.16 and is permitted on breakers up to 50 amps. This provides adequate capacity with a 15 amp safety margin. 8 AWG cannot be used on a 50 amp breaker because NEC 240.4(D) limits 8 AWG to 40 amp overcurrent protection.

Step 5: Confirm 6 AWG copper is the correct minimum wire size

6 AWG copper on 50 amp double-pole breaker is the correct wire size for electric range 50 amp circuit installations. The 65 amp ampacity of 6 AWG provides meaningful safety margin over the 50 amp breaker rating. This margin accommodates typical residential kitchen wiring conditions including ambient temperature variations, wire bundling factors, and the higher current draw during simultaneous burner and oven operation.

Pro tip: Some professional installers use 6 AWG copper for range circuits even when the specific range would qualify for a 40 amp circuit with 8 AWG. This future-proofs the installation for potential range upgrades to higher-wattage units without requiring rewiring. The extra cost of 6 AWG over 8 AWG is modest compared to the cost of rewiring the range circuit if a future range exceeds 8.75 kilowatts. This is especially worth considering during new construction and major kitchen renovations.

The NEC 220.55 Demand Factor and the 50 Amp Threshold

The NEC 220.55 demand factor determines whether a specific range requires a 40 amp circuit, a 50 amp circuit, or a larger circuit.

The demand factor calculation for ranges up to 12 kilowatts

For a single household electric range with nameplate rating up to 12 kilowatts, the NEC 220.55 demand factor calculation is straightforward. The first 8 kilowatts of nameplate rating counts at 100 percent, and any additional kilowatts up to 12 count at 80 percent. Example calculations: 9,000 watt range demand equals 8,000 + (1,000 x 0.80) = 8,800 watts, or 36.7 amps at 240 volts, which qualifies for a 40 amp circuit.

The 8.75 kilowatt transition point

The transition point between 40 amp and 50 amp circuits occurs at approximately 8.75 kilowatts of nameplate rating. At this level, the demand factor calculation produces 40 amps exactly (8,000 at 100 percent plus 750 at 80 percent equals 8,600 watts, or 35.8 amps). Above 8.75 kilowatts, the demand exceeds 40 amps and requires the 50 amp circuit. This threshold is why range electrical requirements bump up so noticeably between compact and full-size units.

Ranges over 12 kilowatts

Ranges rated over 12 kilowatts require additional demand factor calculation per NEC 220.55(C). Very high-end residential ranges (professional-style ranges with 6+ burners, dual-oven configurations, or commercial-derivative units) may require 60 amp or larger circuits. These installations use 4 AWG copper or larger and sometimes hardwired connections rather than plug-in receptacles.

Practical implications for range shopping

When shopping for a new range, check the nameplate rating against the demand factor threshold. Ranges under 8.75 kilowatts qualify for 40 amp circuits with 8 AWG wire. Ranges 8.75 to 12 kilowatts require 50 amp circuits with 6 AWG wire. Ranges over 12 kilowatts require additional calculation and may need 60 amp or larger circuits. Making this determination before ordering wire prevents purchasing the wrong gauge.

Should Your Range Use a 40 Amp or 50 Amp Circuit

Determining whether your specific range requires a 40 amp or 50 amp circuit is the most important decision in the wire size for electric range 50 amp planning process.

Check the range nameplate first

The range nameplate is located inside the storage drawer (on freestanding ranges), on the back panel, or on the inside of the oven door frame. Look for the kilowatt rating or total wattage specification. This nameplate rating is the definitive electrical specification and applies before any demand factor calculation. Do not use estimates or the range width to determine circuit size.

Apply the demand factor calculation

Apply the NEC 220.55 demand factor to the nameplate rating: first 8 kilowatts at 100 percent, additional kilowatts at 80 percent. The resulting number represents the actual expected demand on the circuit. Compare this to the standard breaker sizes: under 40 amps qualifies for a 40 amp circuit, 40 to 50 amps requires a 50 amp circuit, over 50 amps requires larger circuit sizing.

Common range categories and typical circuit requirements

Compact ranges (24 inch width) and apartment-size ranges typically fit within 40 amp circuits because their nameplate ratings run 6 to 8.75 kilowatts. Standard 30-inch freestanding ranges typically require 50 amp circuits because their nameplate ratings run 9 to 12 kilowatts. Premium 36-inch ranges and slide-in ranges with convection ovens often exceed 12 kilowatts and require 60 amp or larger circuits.

When in doubt, size up

When the demand calculation is close to a threshold, sizing up to the larger circuit provides margin and prevents nuisance breaker tripping. The extra cost of 6 AWG wire over 8 AWG for a marginal range is modest, and the future-proofing value is meaningful. Consult the specific range installation manual for the manufacturer recommendation when there is ambiguity.

The NEMA 14-50R Receptacle on a 50 Amp Circuit

The NEMA 14-50R receptacle is the terminating device for a 50 amp range circuit, and understanding its configuration and specifications matters for correct installation.

NEMA 14-50R specifications

The NEMA 14-50R receptacle has four slots in a specific configuration matched to the NEMA 14-50 standard: two large flat blade slots for the hot conductors, one L-shaped slot for the neutral, and one round slot for the equipment grounding conductor. The receptacle is rated 50 amps at 250 volts and is UL-listed for the application. Standard NEMA 14-50R receptacles are widely available from major electrical wholesalers.

Wiring terminals at the receptacle

NEMA 14-50R receptacles have four terminal screws designed to accept 10, 8, 6, or 4 gauge copper conductors. For a 50 amp range circuit with 6 AWG wire, terminal capacity is well-matched to the wire size. Connect the black conductor to one brass terminal, the red conductor to the other brass terminal, the white conductor to the silver terminal, and the bare copper conductor to the green terminal. Verify all terminal connections are tight per the manufacturer torque specifications.

The same receptacle as 40 amp range circuits

The NEMA 14-50R receptacle is used for both 40 amp and 50 amp range circuits because it is the smallest standard four-prong receptacle above the 30 amp NEMA 14-30R dryer receptacle. NEC 210.21(B)(3) permits using a 50 amp rated receptacle on a 40 amp branch circuit for fixed-in-place cooking appliances, so the same receptacle works for both circuit sizes. This standardization simplifies range replacement across different generations of appliances.

Receptacle mounting and location

The dryer receptacle box should be mounted at approximately 12 to 18 inches above the finished floor for standard freestanding range installations, positioned behind the range to remain accessible after the range is installed. Some slide-in and drop-in range installations require different receptacle heights per the manufacturer instructions. Verify range installation requirements before finalizing receptacle location.

Full-Size and Premium Range Considerations

Understanding the specific electrical demands of full-size and premium ranges helps buyers plan appropriate installations.

Standard 30-inch freestanding ranges

Standard 30-inch freestanding ranges from major manufacturers typically have nameplate ratings between 9 and 12 kilowatts. This range squarely fits within the 50 amp circuit specification with 6 AWG copper wire. These ranges include four surface burners plus one oven element and represent the most common residential electric range category installed in single-family homes.

36-inch and larger ranges

36-inch ranges add either a fifth burner or a larger cooking surface with high-BTU capability. Nameplate ratings for 36-inch ranges typically run 11 to 15 kilowatts. Ranges at the higher end of this range exceed 12 kilowatts and require the NEC 220.55(C) calculation for larger ranges. Many 36-inch ranges require 60 amp circuits with 4 AWG copper wire rather than the standard 50 amp specification.

Slide-in and drop-in ranges

Slide-in and drop-in ranges are designed to fit flush with adjacent cabinetry and typically have similar electrical specifications to freestanding ranges. Verify the specific model requirements before installation because some premium slide-in ranges include additional features (warming drawers, convection ovens, dual-fuel configurations) that increase electrical demand.

Dual-fuel and induction ranges

Dual-fuel ranges combining gas cooking with electric oven typically require less electrical capacity than fully electric ranges because the surface burners use gas. These ranges may qualify for 30 amp or 40 amp circuits depending on the electric oven wattage. Induction ranges use different heating technology but similar total electrical demand to conventional electric ranges, so they typically require 40 amp or 50 amp circuits depending on model.

Why Electric Ranges Need a Neutral Conductor

The neutral conductor is required for all electric range circuits regardless of amperage because ranges use both 240 volt and 120 volt internal circuits.

Dual voltage operation inside electric ranges

Electric ranges use 240 volts for the heating elements (both burners and oven elements) which require the higher voltage for efficient heat generation. Ranges use 120 volts for control panels, clock and timer displays, oven light, convection fan, oven ignition (on gas-electric hybrid ranges), electronic control boards, and warming drawer heating elements. This dual voltage operation requires the neutral conductor to provide the return path for the 120 volt internal circuits.

The neutral as a current-carrying conductor

The neutral in a 50 amp range circuit carries current whenever the 120 volt internal components operate. During normal cooking with the oven light on, clock running, and convection fan operating, the neutral carries the imbalance between the two hot legs supplying the 120 volt loads. Because the neutral is a current-carrying conductor, it must be sized the same as the hot conductors (6 AWG for a 50 amp circuit) and cannot share conductor duty with equipment grounding.

How ranges differ from other 240 volt appliances

Water heaters use only 240 volt heating elements with no 120 volt internal components, so they use 10/2 with ground (no neutral). Electric dryers use both 240 and 120 volts at 30 amp current, so they use 10/3 with ground. Electric ranges use both voltages at higher current (40 amp or 50 amp), so they use 8/3 with ground for 40 amp circuits or 6/3 with ground for 50 amp circuits. The neutral requirement is consistent across all range circuit sizes.

3-Wire vs 4-Wire Range Circuits: The 1996 NEC Change

Electric ranges share the same 3-wire to 4-wire history as electric dryers, and understanding the change matters for both new installations and retrofit situations.

The pre-1996 3-wire configuration

Before 1996, electric range circuits were typically wired with three conductors: two hot legs and one combined neutral/ground conductor. This configuration used a NEMA 10-50R three-prong receptacle. The combined neutral/ground was possible because the electrical panel provided the bonding between the neutral bus and the equipment grounding bus. This 3-wire system was standard practice for decades and is still legal to continue using in grandfathered installations.

The 1996 NEC change to 4-wire

The 1996 National Electrical Code introduced the requirement for separate neutral and grounding conductors on range circuits under NEC 250.140. All new installations after the 1996 adoption date must use 4-wire configurations with a NEMA 14-50R four-prong receptacle. The change eliminates a specific failure mode where a broken neutral could energize the range chassis through the shared neutral/ground path.

Why the change matters for safety

The separate grounding conductor provides a dedicated fault path that remains functional even if the neutral connection develops a problem. In the older 3-wire system, a broken neutral upstream of the range could cause the range chassis to become energized at 120 volts because the metal chassis was connected to the neutral/ground conductor. The 4-wire system eliminates this failure mode by keeping neutral and grounding separate throughout the circuit.

New installation compliance

Any new range installation, any major electrical remodel, and any circuit that requires new wire pulled through walls must use the 4-wire configuration per current NEC. The 3-wire configuration is not permitted for any new work regardless of whether the rest of the house has older wiring. Kitchen renovation permits typically require 4-wire upgrades even when the existing range circuit is grandfathered.

Wire Type Selection: NM-B 6/3, THHN, and SER

Beyond selecting the correct gauge for wire size for electric range 50 amp circuit, wire type selection depends on the installation environment.

NM-B 6/3 with ground for indoor dry locations

NM-B (Non-Metallic sheathed cable, Type B) 6/3 with ground is the standard wire type for residential range circuits in indoor dry finished or unfinished spaces including standard kitchens, first-floor kitchen renovations, and dry basement kitchen installations. NM-B 6/3 contains three insulated 6 AWG conductors and one bare grounding conductor inside a plastic sheath. NM-B cannot be used in wet locations, in conduit exposed to moisture, or outside.

THHN individual conductors in conduit

THHN and THWN individual conductors in EMT or PVC conduit are appropriate for range installations in exposed applications or where local code requires conduit. For a range circuit in conduit, pull four individual 6 AWG THHN conductors: black (hot leg 1), red (hot leg 2), white (neutral), and green (equipment grounding). The green conductor can alternatively be bare copper. THHN is common in commercial kitchens and multi-family residential installations.

SER cable for panel feeds

SER (Service Entrance Cable, Round) cable containing 6/3 conductors is sometimes used for range circuits fed from a subpanel or for long runs where NM-B cable rating limits become a concern. SER has a more robust jacket than NM-B and different termination requirements. SER is more common in commercial and specific specialty installations than in typical single-family residential range installations.

UF-B for uncommon applications

UF-B (Underground Feeder, Type B) 6/3 with ground is rarely needed for range circuits because ranges are located inside kitchens. UF-B may apply to outdoor kitchen installations or specialty applications where the branch circuit routes through damp areas. For standard indoor range installations, NM-B is the more common and less expensive choice.

Voltage Drop Considerations for Long Wire Runs

The 6 AWG specification for wire size for electric range 50 amp installations is correct for short and medium wire runs. Long runs may require upgrading to prevent voltage drop.

The 3 percent voltage drop guideline

Voltage drop is the reduction in voltage from wire resistance as current flows through the conductor. NEC 210.19 informational note recommends branch circuit voltage drop stay under 3 percent, which for a 240 volt range circuit means the drop should not exceed 7.2 volts. Excessive voltage drop reduces heating element performance, extends cooking times, and can cause range electronic control issues.

6 AWG copper distance limits at typical 50 amp range loads

For a typical 40 to 45 amp range demand at 240 volts, 6 AWG copper stays within the 3 percent voltage drop guideline for runs up to approximately 55 feet from panel to range receptacle. This covers the majority of residential kitchen installations where the kitchen is on the same floor or adjacent to the electrical panel. Notice that this distance is shorter than the 65 foot limit for 8 AWG on 40 amp circuits because higher current causes proportionally higher voltage drop per unit distance.

When to upgrade to 4 AWG copper

For range circuit runs from 55 feet to approximately 85 feet, upgrade to 4 AWG copper to maintain voltage drop under 3 percent. 4 AWG copper has 85 amp ampacity, so the wire is significantly over-specified for a 50 amp circuit, but the additional cross-sectional area reduces voltage drop meaningfully. This upgrade is uncommon for typical residential range installations but occurs occasionally in large single-family homes.

When to upgrade to 3 AWG or 2 AWG copper

For range circuit runs beyond 85 feet, upgrade to 3 AWG or 2 AWG copper. These are very uncommon in residential range installations but may occur in unusual home layouts. Always calculate voltage drop specifically for your installation using a voltage drop calculator or consult a licensed electrician for long-run applications.

Choosing the Right Wire Product for Your Range Circuit

Understanding which specific wire products fit the wire size for electric range 50 amp circuit specification helps buyers select the correct product.

Southwire 6/3 NM-B with ground

Southwire is one of the largest domestic manufacturers of building wire and cable. Their 6/3 NM-B with ground is a common choice for 50 amp range circuits in indoor dry locations. Southwire 6/3 NM-B is available in standard reel lengths from 25 feet to 500 feet. For a typical range installation with a 20 to 50 foot run, a 25-foot or 50-foot reel provides enough wire with modest excess for termination flexibility. 6 AWG NM-B is bulkier and harder to pull than 8 AWG or 10 AWG, so plan the installation accordingly.

Cerrowire 6/3 NM-B alternatives

Cerrowire manufactures a comparable line of 6/3 NM-B with ground. Cerrowire and Southwire products are electrically equivalent and meet the same UL 719 standard for NM-B cable. Product selection typically depends on regional availability, price, and buyer preference. Both brands are widely accepted by electrical inspectors and provide reliable long-term performance.

THHN individual conductors for conduit runs

For range installations requiring conduit, purchase four individual 6 AWG THHN or THWN conductors: one black, one red, one white, and one green (or bare copper) for grounding. Buy stranded THHN for easier pulling through conduit because 6 AWG solid conductors are difficult to pull through longer conduit runs with bends. Southwire and Cerrowire both offer individual THHN conductors in various colors, gauges, and lengths.

SER cable for panel-to-panel feeds

SER (Service Entrance Cable, Round) 6/3 with ground is used for range circuits fed from subpanels or for applications where the more robust jacket of SER is preferred over NM-B. SER is more common in commercial installations and multi-family residential than in typical single-family homes but is available from major electrical wholesalers when needed.

NEMA 14-50R receptacles

NEMA 14-50R receptacles are widely available from major electrical wholesalers. Standard versions include surface-mount and flush-mount configurations in various body styles rated for both 40 amp and 50 amp circuits (the receptacle itself is 50 amp rated regardless of circuit size). For most residential kitchen installations, a flush-mount NEMA 14-50R in a standard 4-inch square deep box provides a clean finished appearance behind the range.

Upgrading From a 40 Amp Circuit to a 50 Amp Circuit

Retrofit situations where an existing 40 amp range circuit needs to be upgraded to the wire size for electric range 50 amp specification are common during kitchen renovations and range replacements.

When the upgrade is necessary

The 40 amp to 50 amp upgrade is necessary when the new range nameplate rating exceeds 8.75 kilowatts. A common scenario: replacing an old compact range (7 kilowatts, 40 amp circuit) with a new full-size range (11 kilowatts, 50 amp circuit required). The existing 8 AWG wire cannot handle the 50 amp breaker per NEC 240.4(D), so the wire must be replaced with 6 AWG copper before installing the larger range.

Wire replacement requirements

Upgrading from 40 amp to 50 amp requires pulling new 6 AWG wire from the electrical panel to the range receptacle location. The existing 8 AWG wire cannot be reused or combined with the new circuit. The upgrade also typically requires a new 50 amp double-pole breaker, though the existing NEMA 14-50R receptacle can be reused because the receptacle is rated for both 40 and 50 amp circuits.

When the existing wire path is not suitable

If the existing 40 amp wire runs through walls that are not easily accessible, the upgrade may require creative routing to avoid opening finished surfaces. Options include running the new wire through an attic or crawl space, or using a subpanel closer to the range location. Consult a licensed electrician for wire routing options when the direct path is not practical.

Voltage drop reassessment during upgrade

When upgrading from 40 amp to 50 amp on an existing wire run, reassess voltage drop because the higher current draw of the 50 amp circuit affects voltage drop calculations. A wire run that was acceptable at 8 AWG for a 40 amp circuit may require 4 AWG at 50 amp if the run is long. Calculate voltage drop for the new circuit configuration before finalizing the wire specification.

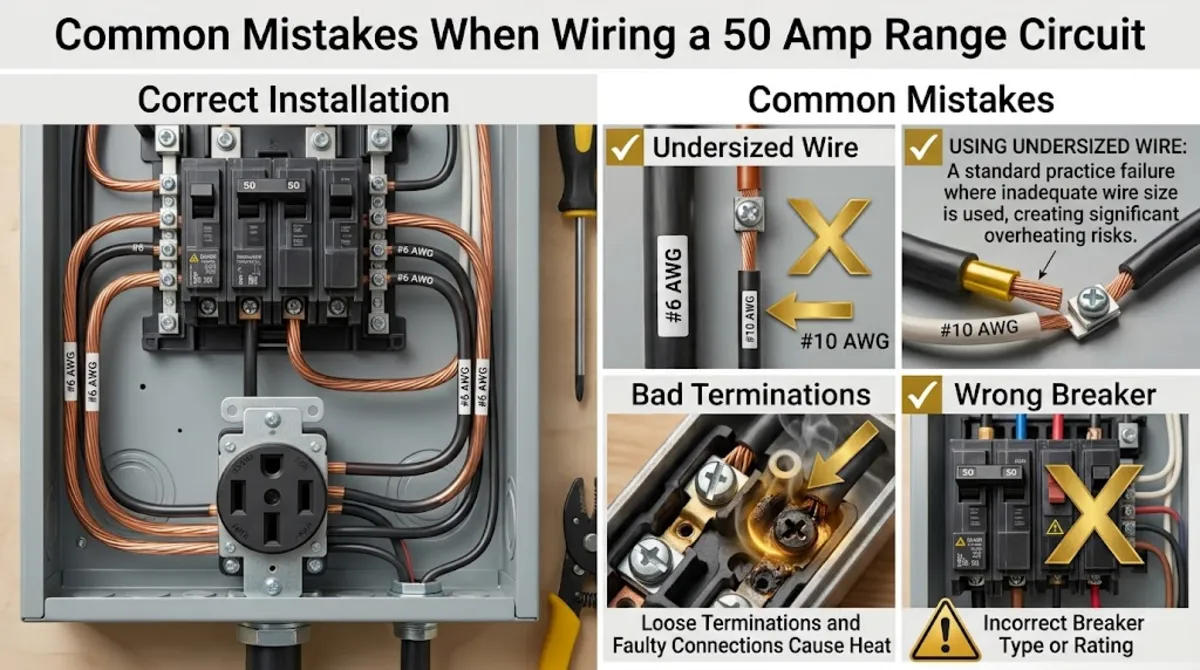

5 Common Mistakes When Wiring a 50 Amp Range Circuit

The mistakes below cause the most frequent buyer questions about wire size for electric range 50 amp circuit installations.

Mistake 1: Using 8 AWG instead of 6 AWG on a 50 amp breaker

The most common mistake is using 8 AWG wire on a 50 amp breaker to save on wire cost. This violates NEC 240.4(D) which limits 8 AWG to 40 amp overcurrent protection. Using 8 AWG on a 50 amp breaker creates a serious fire hazard because the wire can overheat before the breaker trips. 6 AWG is required for any 50 amp circuit regardless of the actual load.

Mistake 2: Reusing existing 40 amp circuit wire when upgrading

When upgrading from a 40 amp circuit to a 50 amp circuit for a larger range, the existing 8 AWG wire cannot be reused. New 6 AWG wire must be pulled from the panel to the range receptacle. Some installers try to reuse the existing wire because pulling new wire is labor-intensive, but this creates a code violation and fire hazard.

Mistake 3: Skipping the NEC 220.55 demand factor calculation

Some installers assume any full-size range needs a 50 amp circuit regardless of nameplate rating. Applying the NEC 220.55 demand factor for ranges under 8.75 kilowatts often reveals that a 40 amp circuit is adequate. Overspecifying a 50 amp circuit for a compact range wastes materials and installation labor. Always apply the demand factor to determine the minimum required circuit size.

Mistake 4: Using 6/2 with ground instead of 6/3 with ground

Ranges require a neutral conductor for internal 120 volt circuits. Using 6/2 with ground (two hots and grounding only) leaves the range without a neutral connection and prevents the range electronic controls, oven light, and clock from operating. Always use 6/3 with ground for range circuits including 50 amp installations.

Mistake 5: Ignoring voltage drop for long kitchen runs

50 amp range circuits have shorter voltage drop distance limits than 40 amp range circuits because the higher current causes proportionally higher voltage drop per unit length. 6 AWG at 50 amp stays within 3 percent voltage drop only up to approximately 55 feet, compared to 65 feet for 8 AWG at 40 amp. Ignoring this shorter limit and using 6 AWG for a 75-foot run results in reduced range performance.

Conclusion

The correct wire size for electric range 50 amp circuit installations is 6 AWG copper conductors on a 50-amp double-pole breaker at 240 volts. Modern installations require 6/3 with ground cable containing four conductors (two hots, neutral, grounding) terminated at a NEMA 14-50R four-prong receptacle per NEC 250.140.

The NEC 220.55 demand factor determines whether a specific range requires a 40 amp or 50 amp circuit based on the nameplate rating. Ranges 8.75 to 12 kilowatts qualify for the 50 amp specification while ranges under 8.75 kilowatts fit within 40 amp circuits. The NEMA 14-50R receptacle is standard for both circuit sizes. Long wire runs beyond 55 feet require upgrading to 4 AWG copper to prevent voltage drop.

This article was last reviewed and updated in June 2026 to reflect current National Electrical Code requirements and residential electric range installation best practices. Wire sizing recommendations are based on the current NEC (NFPA 70) and should be verified against your local code amendments. For complex installations or when in doubt, consult a licensed electrician. Improperly sized wire can cause fires and voids insurance coverage.
