The correct wire size for garage subpanel 60 amp feeder installations is 6 AWG copper conductors on a 60-amp double-pole breaker at the main electrical panel. The feeder requires 6/3 with ground cable containing four conductors: two hot legs, one neutral, and one bare copper grounding conductor. This article explains why subpanel feeders differ from branch circuits, the NEC math behind the 6 AWG specification, the mandatory 4-wire feeder requirement, the critical differences between attached and detached garage installations, grounding and neutral isolation at the subpanel, and complete installation guidance for a code-compliant 60 amp garage subpanel.

Across thousands of Southwire and Cerrowire orders shipped from IB Lighting nationwide, our electrician-led team advises DIY installers and licensed electricians on the correct wire size for residential garage subpanel installations. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the full Southwire and Cerrowire electrical wire and cable lineup. This article is the walkthrough we provide to buyers researching wire size for their garage subpanel installation, using specifications aligned with the current National Electrical Code (NFPA 70) and industry practice from the International Association of Electrical Inspectors.

The Fast Answer: Wire Size for Garage Subpanel 60 Amp Feeder

For a 60 amp garage subpanel feeder, use 6 AWG copper conductors on a 60-amp double-pole breaker at the main electrical panel. The feeder cable is 6/3 with ground containing four conductors: two hot legs (typically black and red), one neutral (white), and one bare copper grounding conductor. The feeder terminates at a subpanel with the neutral bus isolated from the grounding bus. For detached garages, an additional ground rod is required at the subpanel location per NEC 250.32. This is the correct wire size for garage subpanel 60 amp feeder installations in both attached and detached garage applications.

The complete feeder specification

The complete specification for a wire size for garage subpanel 60 amp feeder installation includes: 6 AWG copper conductors sized per NEC Table 310.16 with 65 amp ampacity providing 5 amp margin over the 60 amp breaker, 60-amp double-pole breaker at the main electrical panel, 240-volt feeder from a two-pole 120/240V residential panel, 4-wire configuration with separate neutral and grounding conductors per NEC 250.32(B), neutral bus isolated from grounding bus at the subpanel, and grounding electrode conductor to a ground rod for detached garage installations only.

What “6/3 with ground” means for subpanel applications

Wire labeled 6/3 with ground contains three insulated 6 AWG current-carrying conductors (typically black, red, and white) plus a bare copper grounding conductor. For subpanel feeder applications, black and red are the two 240 volt hot legs, white is the neutral, and bare copper is the equipment grounding conductor. All four conductors are required for a code-compliant subpanel feeder because the neutral and grounding functions must be kept separate throughout the feeder circuit.

Standard breaker sizing for a 60 amp subpanel feeder

A 60-amp double-pole breaker at the main electrical panel is the standard overcurrent protection for a 60 amp garage subpanel feeder. The subpanel itself may or may not have a main breaker depending on the specific subpanel configuration. Some subpanels include a 60 amp main breaker for local disconnect capability, while others are “sub-fed” without a local main breaker relying on the main panel breaker for protection.

Why Subpanel Feeders Are Different From Branch Circuits

Understanding the fundamental difference between subpanel feeders and branch circuits clarifies why the wire size for garage subpanel 60 amp installations follows different rules than the branch circuits it supplies.

Feeder circuits per NEC Article 215

Subpanel feeders are governed by NEC Article 215, which covers conductors from the service equipment (main panel) to the final branch circuit overcurrent protection device (subpanel breakers). This is different from NEC Article 210 which covers branch circuits from the overcurrent protection device to the outlet or utilization equipment. The distinction matters because feeder sizing rules include specific requirements for supplying multiple downstream loads.

The subpanel supplies multiple branch circuits

A branch circuit typically supplies a single appliance or a series of outlets on one circuit. A subpanel supplies multiple branch circuits, each with its own smaller breaker. A 60 amp garage subpanel might supply eight 20 amp branch circuits for outlets and lighting, plus a 40 amp branch circuit for an EV charger, plus a 30 amp branch circuit for a workshop tool. The 60 amp feeder must accommodate the actual expected simultaneous load, not the sum of all breaker ratings.

Diversity of load allows smaller feeder

The reason a 60 amp feeder can supply branch circuits totaling 160 amps or more in breaker ratings is that not all circuits operate simultaneously at full capacity. This concept is called diversity of load. A garage typically has many circuits but only some are in use at any given time. The feeder is sized for realistic simultaneous demand rather than theoretical maximum from all circuits combined.

Neutral and grounding functions must be separate

The single most important electrical difference between the main panel and a subpanel is that neutral and grounding are BONDED together at the main panel but must be ISOLATED at all subpanels. This separation prevents parallel current paths through the equipment grounding conductor and ensures that fault current returns only through the intended grounding path. Mixing neutral and grounding at a subpanel is a serious code violation and safety hazard.

The NEC Math Behind the 6 AWG Answer for a 60 Amp Subpanel

Understanding the calculation that drives the 6 AWG requirement for a wire size for garage subpanel 60 amp installation prevents common sizing mistakes.

Step 1: Determine expected garage load

Expected garage load is calculated from the anticipated simultaneous demand rather than the sum of all breakers. A typical residential garage might have: general lighting and outlets (approximately 10-15 amps typical use), garage door opener (approximately 5 amps when operating), EV charger (32-40 amps when charging), and occasional workshop tools (15-30 amps when in use). Total simultaneous demand rarely exceeds 50-55 amps even in active-use scenarios.

Step 2: Match feeder size to expected load

A 60 amp feeder accommodates the typical maximum simultaneous garage demand with modest margin. For garages with more intensive equipment (welder, air compressor, multiple large tools), consider a larger subpanel size (100 amps) at initial installation to avoid future upgrade costs. The 60 amp size is sufficient for most typical residential garage applications including one EV charger.

Step 3: Determine required wire ampacity per NEC 240.4

The feeder wire must have ampacity equal to or greater than the breaker size. For a 60 amp breaker, the wire must have at least 60 amp ampacity. NEC 240.4(D) small conductor rule only applies to 14, 12, and 10 AWG conductors (limiting them to 15, 20, and 30 amps respectively). Wire sizes larger than 10 AWG (including 6 AWG) can be used up to their full NEC Table 310.16 ampacity.

Step 4: Select 6 AWG copper for 60 amp application

6 AWG copper has 65 amp ampacity at 75 degrees Celsius per NEC Table 310.16 and is permitted on breakers up to 60 amps. This provides adequate capacity with 5 amp safety margin. 8 AWG cannot be used because its 50 amp ampacity is below the 60 amp breaker requirement. 4 AWG could be used but is unnecessary for a 60 amp application and adds significant cost.

Step 5: Verify calculation with local code amendments

Some local jurisdictions have amendments to NEC that may require larger wire for specific applications. Some jurisdictions require 4 AWG copper for all 60 amp feeders regardless of NEC 240.4(D) rules. Check local code requirements before finalizing wire purchase because local amendments override NEC minimum specifications when they are more restrictive.

Pro tip: When installing a 60 amp garage subpanel, consider the near-future load additions that may drive you toward a larger subpanel. EV charger installation is the most common future addition, and Level 2 EV chargers can draw 32 to 48 amps continuous during charging. If you anticipate adding an EV charger, either install a 100 amp subpanel initially or size the feeder wire to accommodate a future upgrade to 100 amps. 4 AWG copper wire installed initially costs slightly more than 6 AWG but allows a simple breaker upgrade to 100 amps without pulling new wire.

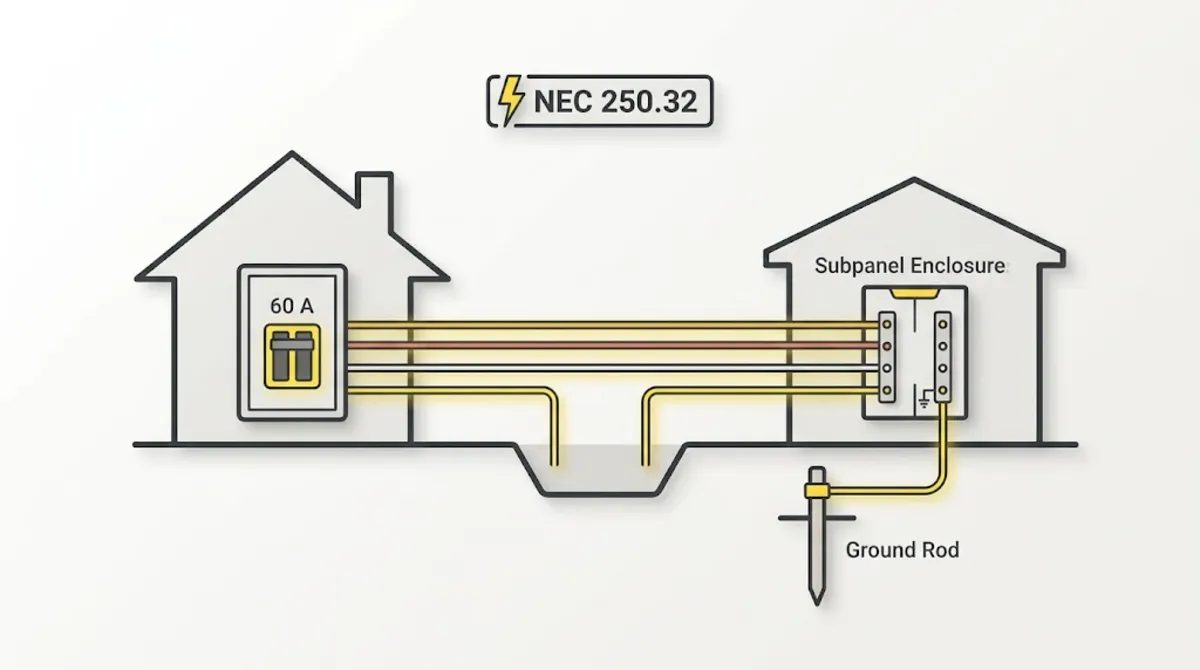

The 4-Wire Feeder Requirement for All New Subpanels

All new subpanel feeders must use 4-wire configurations per NEC 250.32(B) since the 2008 National Electrical Code adoption.

The pre-2008 3-wire feeder configuration

Before the 2008 NEC, subpanel feeders in some circumstances used 3-wire configurations: two hots and one combined neutral/ground conductor. This was permitted only when specific conditions were met including no continuous metallic paths between structures and specific grounding electrode installation. The 3-wire feeder relied on the combined neutral/ground carrying both functions.

The 2008 NEC change to 4-wire for all subpanels

The 2008 NEC eliminated the 3-wire feeder option for new installations at separate structures. All new subpanel feeders must include separate neutral and grounding conductors regardless of whether the subpanel is in an attached or detached structure. The change eliminates the specific failure mode where a broken neutral could energize equipment grounding paths.

Why separate neutral and grounding matters

Separate neutral and grounding conductors ensure that fault current returns to the source through the equipment grounding conductor while normal load current returns through the neutral. In a combined neutral/ground system, a broken neutral upstream can cause fault current to flow through the equipment grounding conductor and any conductive paths bonded to it, potentially energizing equipment enclosures.

Grandfathered installations

Existing 3-wire subpanel feeder installations installed before 2008 are grandfathered and legal to continue using as installed. Grandfathering ends when any major electrical modification is made to the subpanel or its feeder. Any renovation that requires new wire pulled to the subpanel triggers the 4-wire requirement for the replacement installation. Some jurisdictions have specific requirements for when the 4-wire upgrade becomes mandatory.

Attached Garage vs Detached Garage Subpanel Differences

The most critical planning distinction for a garage subpanel installation is whether the garage is attached to the main house structure or is a detached separate structure.

Attached garage installations

Attached garages share a common structure with the main house and are treated as one structure for electrical grounding purposes. The subpanel feeder uses the 4-wire configuration (two hots, neutral, ground) but does NOT require an additional ground rod at the subpanel location. The subpanel grounding bus is bonded to the enclosure and connected to the equipment grounding conductor in the feeder, which returns to the main panel grounding electrode system.

Detached garage installations

Detached garages are separate structures physically distinct from the main house. Even a detached garage connected to the house by a covered breezeway is typically classified as a separate structure. The subpanel feeder uses the same 4-wire configuration but ALSO requires installation of one or more ground rods at the detached structure location per NEC 250.32. This creates a local grounding electrode system for the detached structure.

The grounding electrode conductor at detached subpanels

At a detached garage subpanel, a grounding electrode conductor connects the subpanel grounding bus to the local ground rod. NEC 250.66 specifies the minimum size of this grounding electrode conductor based on the size of the ungrounded (hot) feeder conductors. For 6 AWG copper feeder conductors, the grounding electrode conductor is typically 8 AWG copper. The neutral remains isolated from the grounding system at the subpanel per standard subpanel rules.

Verifying the classification for borderline cases

Some installations blur the line between attached and detached. A garage separated from the house by a small breezeway, a garage with only a shared roof but separate walls, or a garage connected by an underground tunnel all require case-by-case classification. Consult the local electrical inspector for guidance on borderline cases because the grounding requirements are significantly different between the two classifications.

Grounding and Neutral Isolation at the Subpanel

The single most important installation detail for a garage subpanel is that neutral and grounding must be isolated from each other at the subpanel, which is opposite of the neutral-to-ground bonding required at the main panel. This is a critical aspect of any wire size for garage subpanel 60 amp installation.

The neutral bar must be isolated

At the subpanel, the neutral bar (where neutral conductors terminate) must be electrically isolated from the subpanel enclosure. Most subpanel enclosures ship with a neutral bar that is bonded to the enclosure through a green screw or bonding strap. For subpanel installation, this bonding must be removed or the neutral bar must be isolated using the specific method provided by the subpanel manufacturer.

The grounding bar must be bonded

The grounding bar (where equipment grounding conductors terminate) must be bonded to the subpanel enclosure. Many subpanels include a separate grounding bar that must be purchased and installed if not included, or the enclosure itself serves as the grounding termination point through appropriate lugs. The bonding of grounding bar to enclosure is verified during electrical inspection.

Feeder neutral terminates at neutral bar

The white neutral conductor from the feeder terminates on the isolated neutral bar. All branch circuit neutrals also terminate on this same isolated bar. The neutral bar is not bonded to the enclosure at the subpanel location, keeping the neutral function separated from the grounding function throughout the subpanel and downstream branch circuits.

Feeder grounding conductor terminates at grounding bar

The bare copper or green grounding conductor from the feeder terminates on the bonded grounding bar. All branch circuit grounding conductors also terminate on this same bonded bar. The grounding bar is bonded to the enclosure, creating the equipment grounding path from all branch circuits back through the feeder equipment grounding conductor to the main panel.

Ground Rod Requirements for Detached Garage Subpanels

Detached garage subpanels require additional grounding electrode installation at the subpanel location that attached garage subpanels do not need. This is a critical detail when planning any wire size for garage subpanel 60 amp installation at a detached structure.

NEC 250.32 grounding at separate structures

NEC 250.32 requires that any separate structure served by feeder conductors have a grounding electrode system installed at that structure. This grounding electrode is in addition to the equipment grounding conductor in the feeder and connects the subpanel grounding bus to earth through a local ground rod or other approved grounding electrode.

Single ground rod installation

The most common grounding electrode for a residential detached garage subpanel is a single 8-foot copper-clad ground rod driven at least 8 feet into the earth per NEC 250.53. The ground rod is typically installed within 6 feet of the subpanel with the top of the rod flush with or below finished grade. The grounding electrode conductor from the subpanel grounding bus connects to the ground rod using an approved acorn clamp or listed grounding connector.

Two ground rods for high-resistance soil

If a single ground rod cannot achieve 25 ohms or less resistance to earth per NEC 250.53(A)(2), two ground rods must be installed at least 6 feet apart, connected together by a grounding electrode conductor. Most residential installations satisfy the resistance requirement with a single rod, but soil conditions in some areas (very dry or very rocky soils) may require the two-rod installation.

Grounding electrode conductor sizing

NEC 250.66 specifies the minimum grounding electrode conductor size based on the ungrounded (hot) feeder conductor size. For 6 AWG copper hot conductors, the minimum grounding electrode conductor is 8 AWG copper. The grounding electrode conductor connects the subpanel grounding bus to the ground rod using continuous copper conductor without splices except at accessible connections.

Wire Type Selection for Subpanel Feeders

Wire type selection for 60 amp garage subpanel feeders depends on installation environment and physical protection requirements. The wire size for garage subpanel 60 amp specification remains 6 AWG copper regardless of wire type, but the cable configuration and jacket rating change based on environment.

NM-B 6/3 with ground for attached garage indoor routing

NM-B 6/3 with ground is the standard wire type for attached garage subpanel feeders when the feeder routes through indoor finished or unfinished spaces including basements, attics, and interior wall cavities. NM-B is not rated for outdoor, underground, or damp locations, so it can be used only when the entire feeder route stays inside conditioned or unconditioned building spaces.

UF-B 6/3 with ground for detached garage buried feeders

UF-B 6/3 with ground is the most common wire type for detached garage subpanel feeders because the feeder typically routes underground from the main house electrical panel location to the detached garage. UF-B is rated for direct earth burial per NEC 340 and does not require conduit for the underground portion. Standard installation includes the transition to indoor wiring at both ends of the buried section.

SER cable for exposed feeder runs

SER (Service Entrance Cable, Round) 6/3 is used for subpanel feeders in exposed applications where the more robust jacket of SER provides better physical protection than NM-B. SER can be used indoors and outdoors above ground in dry or wet locations depending on the specific SER type. SER is common in commercial installations and multi-family residential but is less common in typical single-family home garage subpanel installations.

Individual THHN conductors in EMT or PVC conduit

Individual 6 AWG THHN conductors pulled through EMT (indoor) or PVC (outdoor) conduit provide the most physical protection for subpanel feeders and are required in some jurisdictions or specific applications. Four individual conductors are needed: two hots (black and red), one neutral (white), and one green or bare copper grounding conductor. Conduit installation adds material cost but provides maximum flexibility for future modifications.

Underground Feeder Installation for Detached Garages

Detached garage subpanel installations typically require underground burial of the feeder cable or conduit from the main house to the detached garage. This step is fundamental to any wire size for garage subpanel 60 amp installation at a detached structure.

Direct-buried UF-B minimum depth

Direct-buried UF-B cable must be installed at a minimum depth of 24 inches per NEC 300.5(A) Table 300.5 Column 2. This depth applies to residential feeders under 600 volts including subpanel feeders to detached garages. The 24-inch minimum protects the cable from typical yard maintenance, landscaping equipment, and freezing in most climates.

PVC conduit minimum depth

PVC conduit containing THHN or THWN conductors can be buried at a shallower minimum depth of 18 inches per NEC 300.5 Column 3. The reduced depth reflects the physical protection provided by the conduit itself. Rigid metal conduit can be buried at 6 inches minimum depth per Column 1, though rigid conduit is uncommon in residential garage subpanel installations.

Frost line and climate considerations

Northern climates with deep frost lines may require burial deeper than NEC minimums to prevent frost heaving damage to the cable or conduit. Common practices include 30 inches in areas with moderate frost or 36 inches or deeper in areas with severe winter frost. Local electricians familiar with regional conditions know the appropriate depth for the specific area.

Transition boxes at both ends

Underground feeder installations typically use transition boxes or fittings at both ends: at the main house where the underground UF-B or conduit transitions to indoor wiring, and at the detached garage where it transitions to the subpanel connection. These transitions must use approved fittings that prevent water infiltration into the indoor wiring.

Why EV Chargers Are Driving Demand for 60 Amp Garage Subpanels

The rapid growth in electric vehicle adoption has significantly increased demand for 60 amp garage subpanels because Level 2 EV chargers require dedicated 240 volt circuits.

Level 2 EV charger electrical requirements

Level 2 EV chargers operate at 240 volts and typically require 40 or 50 amp dedicated circuits depending on the specific charger model and charging speed. Some higher-capacity chargers require 60 amp circuits with 48 amp continuous EVSE ratings. Adding one Level 2 EV charger to a garage typically requires a 40 amp branch circuit dedicated to the charger alone.

Subpanel simplifies EV charger installation

Installing a 60 amp garage subpanel provides dedicated capacity for the EV charger plus room for existing garage circuits. This simplifies the installation because the entire garage circuit consolidation happens at one subpanel location. Future addition of a second EV charger or upgrade to a higher-capacity charger can be accommodated without new wire pulled from the main panel.

Future-proofing for multiple EVs

Households anticipating a second EV in the future should consider a 100 amp subpanel initially rather than a 60 amp subpanel. Two Level 2 EV chargers can consume 80+ amps of subpanel capacity, exceeding the 60 amp feeder rating. The incremental cost of upgrading from 60 amp to 100 amp during initial installation is much lower than upgrading later.

Load management systems

Some modern EV chargers include load management capabilities that reduce charging current when other high-demand circuits are active. These systems allow a 60 amp subpanel to accommodate an EV charger without oversizing the subpanel or requiring load calculations that assume maximum simultaneous demand. Consult the specific EV charger documentation for load management features.

Choosing the Right Wire Product for Your 60 Amp Subpanel Feeder

Understanding which specific wire products fit the wire size for garage subpanel 60 amp specification helps buyers select the correct product for their installation.

Southwire 6/3 NM-B for attached garages

Southwire is one of the largest domestic manufacturers of building wire and cable. Their 6/3 NM-B with ground is the standard choice for attached garage subpanel feeders routed through indoor spaces. Southwire 6/3 NM-B is available in standard reel lengths from 25 feet to 500 feet. For a typical attached garage installation with a 30 to 60 foot feeder run, a 50-foot or 100-foot reel provides enough wire with modest excess.

Southwire UF-B 6/3 for detached garages

Southwire UF-B 6/3 with ground is the common choice for detached garage subpanel feeders routed underground. UF-B is rated for direct burial per NEC 340 and does not require conduit. For detached garage installations with 50 to 150 foot buried runs, 100-foot or 250-foot reels are commonly purchased. Verify total distance including both the direct-buried portion and the transition to indoor wiring at both ends.

Cerrowire alternatives

Cerrowire manufactures comparable lines of 6/3 NM-B with ground and 6/3 UF-B with ground. Cerrowire and Southwire products are electrically equivalent and meet the same UL standards. Selection typically depends on regional availability and pricing. Both brands are widely accepted by electrical inspectors.

THHN individual conductors for conduit installations

For subpanel feeders installed in conduit, purchase four individual 6 AWG THHN conductors: one black, one red, one white, and one green (or bare copper) for grounding. Stranded THHN is easier to pull through conduit than solid conductor and is preferred for feeder installations. Southwire and Cerrowire both offer stranded THHN in various colors and gauges.

SER cable for exposed applications

SER (Service Entrance Cable, Round) 6/3 is available from both Southwire and Cerrowire. SER is more expensive than NM-B but provides better physical protection for exposed installations. Some jurisdictions specifically require SER for subpanel feeders in certain applications, so check local code requirements before purchasing.

Voltage Drop Considerations for Long Feeder Runs

Voltage drop for subpanel feeders is typically less critical than for well pump circuits but still matters for long feeder runs to detached garages.

The 3 percent voltage drop guideline

Voltage drop for feeder circuits should target the 3 percent maximum per NEC 210.19 informational note. For a 240 volt feeder, this means the drop should not exceed 7.2 volts at maximum feeder load. Excessive voltage drop on a subpanel feeder affects the performance of all downstream branch circuits and connected loads.

6 AWG copper distance limits at 60 amp load

For a 60 amp feeder at 240 volts, 6 AWG copper stays within the 3 percent voltage drop guideline for runs up to approximately 100 to 120 feet depending on actual load conditions. Most attached garage installations stay well within this distance limit. Detached garage installations with buried feeders sometimes approach or exceed this limit.

When to upgrade to 4 AWG copper

For feeder runs from 100 to 150 feet, upgrade to 4 AWG copper to maintain voltage drop under 3 percent. 4 AWG copper has 85 amp ampacity, providing significant additional capacity and future-proofing for potential subpanel upgrade to 80 amps. This is a common upgrade for larger residential properties with detached garages positioned significantly away from the main house.

When to upgrade to 3 AWG or 2 AWG copper

For feeder runs beyond 150 feet, upgrade to 3 AWG or 2 AWG copper. These larger sizes are uncommon for typical residential garage subpanels but may be required for detached garages on large properties or for future-proofing installations. Calculate voltage drop specifically for your installation for accurate wire sizing.

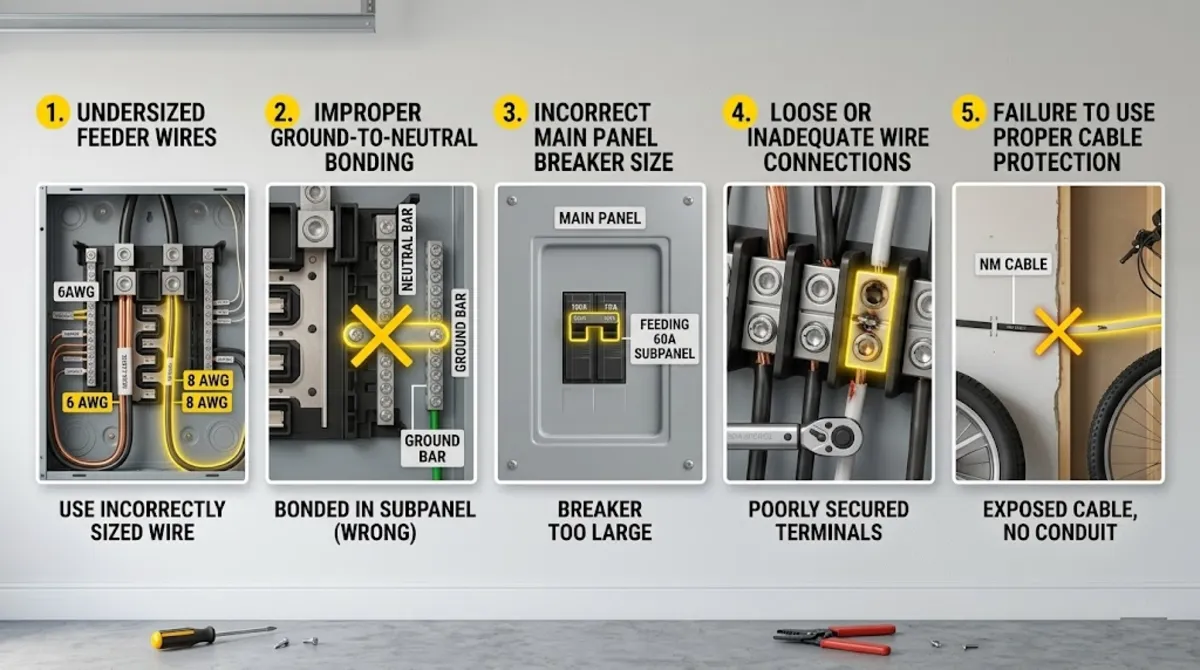

5 Common Mistakes When Wiring a 60 Amp Garage Subpanel

The mistakes below cause the most frequent buyer questions about wire size for garage subpanel 60 amp installations.

Mistake 1: Leaving the neutral bar bonded to the subpanel enclosure

The most common mistake is installing a subpanel with the factory-installed neutral-to-enclosure bonding still in place. This creates parallel neutral and grounding paths that can carry unbalanced current through the equipment grounding conductor and any bonded conductive paths. Always remove the green bonding screw or isolate the neutral bar per the subpanel manufacturer instructions.

Mistake 2: Using 3-wire feeder instead of 4-wire

Some installers use 3-wire feeder configurations (two hots plus combined neutral/ground) at subpanels because older references show this configuration. NEC 250.32 has required 4-wire feeders for all new subpanel installations since 2008. Using 3-wire feeders creates code violations and safety issues that are always caught during inspection.

Mistake 3: Missing the ground rod at detached garages

Detached garage subpanel installations require ground rod installation at the subpanel location per NEC 250.32. Missing this ground rod is a common oversight that fails electrical inspection. The ground rod is separate from the equipment grounding conductor in the feeder and provides local grounding electrode function at the detached structure.

Mistake 4: Undersizing the grounding electrode conductor

The grounding electrode conductor from the detached garage subpanel to the ground rod must be sized per NEC 250.66 based on the feeder conductor size. For 6 AWG copper feeder conductors, the grounding electrode conductor is 8 AWG copper minimum. Using smaller wire (like 10 AWG) is a code violation and fails inspection.

Mistake 5: Using 8 AWG wire for the 60 amp feeder

Some installers use 8 AWG wire for 60 amp feeders assuming the small conductor rule allows it. NEC 240.4(D) small conductor rule only applies to 14, 12, and 10 AWG conductors. 8 AWG copper has 50 amp ampacity per NEC Table 310.16 which is below the 60 amp breaker requirement. 6 AWG copper is the minimum for 60 amp applications.

Conclusion

The correct wire size for garage subpanel 60 amp feeder installations is 6 AWG copper conductors on a 60-amp double-pole breaker at the main electrical panel. Modern installations require 6/3 with ground cable containing four conductors (two hots, neutral, grounding) with 4-wire configuration per NEC 250.32 for both attached and detached garage installations.

Detached garage subpanels have additional grounding requirements including a ground rod at the subpanel location per NEC 250.32. All subpanels require isolated neutral and grounding buses with the grounding bus bonded to the enclosure and the neutral bus isolated. Wire type selection depends on installation environment: NM-B for attached garages with indoor routing, UF-B for detached garages with buried feeders, and SER or THHN in conduit for specialty applications.

This article was last reviewed and updated in June 2026 to reflect current National Electrical Code requirements and residential garage subpanel installation best practices. Wire sizing and grounding recommendations are based on the current NEC (NFPA 70) and should be verified against your local code amendments. For complex installations or when in doubt, consult a licensed electrician. Subpanel installations involve significant electrical modifications that require permits and inspection in most jurisdictions.
