The correct wire size for hot tub 50 amp circuit installations is 6 AWG copper conductors on a 50-amp double-pole GFCI breaker at 240 volts. Modern installations typically require 6/3 with ground cable containing four conductors terminated at a hot tub disconnect within sight of the tub. This article explains the NEC math including the continuous load factor calculation, the mandatory GFCI protection requirement unique to hot tub circuits, disconnect and bonding requirements per NEC Article 680, wire type selection for outdoor and underground applications, and complete installation guidance for a code-compliant 50 amp hot tub circuit.

Across thousands of Southwire and Cerrowire orders shipped from IB Lighting nationwide, our electrician-led team advises DIY installers and licensed electricians on the correct wire size for residential hot tub installations. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the full Southwire and Cerrowire electrical wire and cable lineup. This article is the walkthrough we provide to buyers researching wire size for their hot tub installation, using specifications aligned with the current National Electrical Code (NFPA 70) and industry practice from the International Association of Electrical Inspectors.

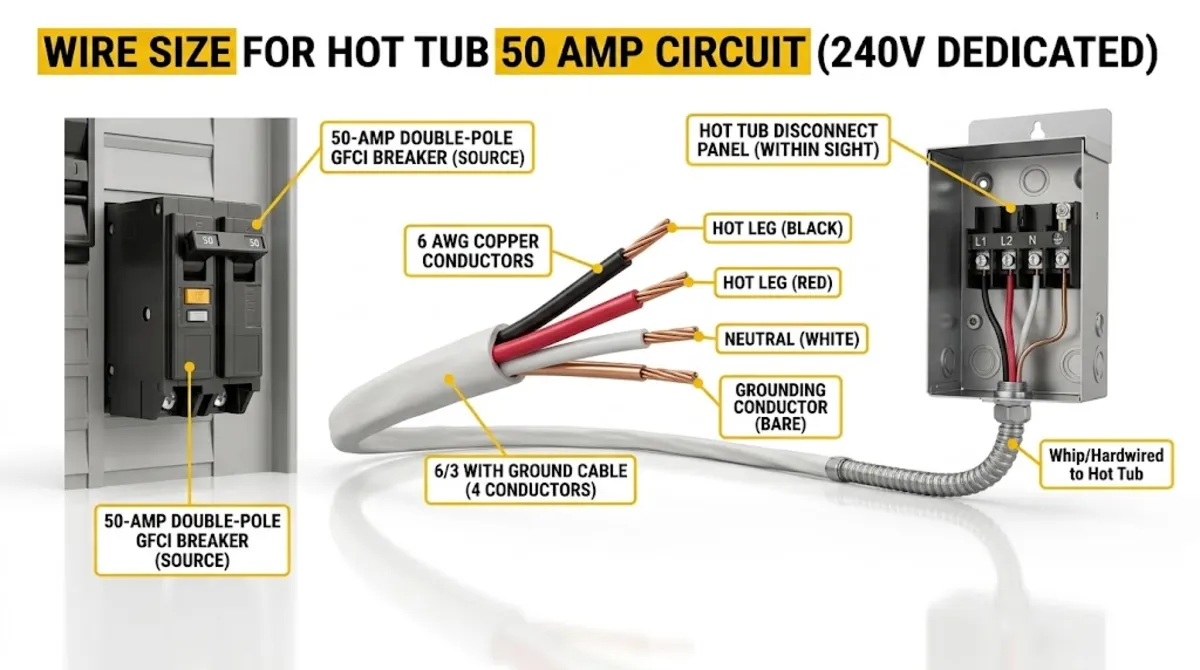

The Fast Answer: Wire Size for Hot Tub 50 Amp Circuit

For a standard residential hot tub on a 50 amp dedicated circuit at 240 volts, use 6 AWG copper conductors on a 50-amp double-pole GFCI breaker. Modern installations require 6/3 with ground cable containing four conductors: two hot legs (typically black and red), one neutral (white), and one bare copper grounding conductor. The circuit terminates at a hot tub disconnect within sight of the tub, and the disconnect connects to the hot tub via the manufacturer specified whip or hardwired connection. This is the correct wire size for hot tub 50 amp installations for the majority of residential spa and hot tub models sold in the United States.

The complete wire sizing specification

The complete specification for a wire size for hot tub 50 amp installation includes: 6 AWG copper conductors (two hot legs, one neutral, one grounding), 50-amp double-pole GFCI breaker at the electrical panel, 240-volt supply from a two-pole 120/240V residential panel, dedicated circuit that supplies only the hot tub, disconnect within sight of the tub located at least 5 feet from the tub edge, equipotential bonding grid per NEC 680.26, and wire type appropriate for the installation environment (typically outdoor for residential hot tubs).

What “6/3 with ground” means for hot tub applications

Wire labeled 6/3 with ground contains three insulated 6 AWG current-carrying conductors (typically black, red, and white) plus a bare copper grounding conductor. For hot tub applications, black and red are the two 240 volt hot legs, white is the neutral, and bare copper is the grounding conductor. The four-conductor 6/3 configuration is required for most residential hot tubs because internal pumps, blowers, control panels, and lighting use 120 volts while the heater uses 240 volts. Some 240 volt only hot tubs use 6/2 with ground instead.

Standard breaker size for a 50 amp hot tub circuit

A 50-amp double-pole GFCI breaker is the standard overcurrent protection for residential hot tub circuits. The GFCI protection is required by NEC 680.42(A) and must be provided at the breaker rather than at the tub location because standard GFCI receptacles are not typically rated for the 50 amp continuous hot tub load. A 50-amp double-pole GFCI breaker combines both overcurrent protection and ground-fault protection in a single panel-mounted device.

The NEC Math Behind the 6 AWG Answer for a 50 Amp Hot Tub

Understanding the calculation that drives the 6 AWG requirement for a wire size for hot tub 50 amp circuit prevents common sizing mistakes.

Step 1: Calculate hot tub heater current draw

Hot tub heater current draw is calculated from the heater wattage divided by 240 volts. A typical residential hot tub heater draws between 4,000 and 6,000 watts. For a 5,500 watt heater, the calculation is 5,500 watts divided by 240 volts equals 22.9 amps for the heater alone. Adding the pump, blower, and control panel loads brings total demand to approximately 35 to 45 amps depending on the specific hot tub model.

Step 2: Apply the NEC 125 percent continuous load factor

Hot tub heaters are classified as continuous loads because they operate for extended periods when heating water from cold or maintaining temperature during use. NEC 210.19(A)(1) requires branch circuit conductors serving continuous loads to be sized at 125 percent of the load current. For a hot tub drawing 40 amps continuous during heating operation, the calculation is 40 amps multiplied by 1.25 equals 50 amps minimum required ampacity.

Step 3: Match circuit size to load calculation

The 50 amp calculated ampacity determines the 50 amp branch circuit specification for typical residential hot tubs. Some smaller hot tubs draw less current and qualify for 40 amp circuits with 8 AWG wire, while larger hot tubs or dual-heater configurations may require 60 amp or larger circuits with 4 AWG wire. Always verify the specific hot tub electrical requirement from the manufacturer installation manual before ordering wire.

Step 4: Match wire ampacity to breaker size per NEC 240.4(D)

The wire size for hot tub 50 amp circuit must be matched to the 50 amp breaker per NEC 240.4(D). 6 AWG copper has 65 amp ampacity at 75 degrees Celsius per NEC Table 310.16 and is permitted on breakers up to 50 amps. This provides adequate capacity with a 15 amp safety margin. 8 AWG cannot be used on a 50 amp breaker because NEC 240.4(D) limits 8 AWG to 40 amp overcurrent protection.

Step 5: Confirm 6 AWG copper is the correct minimum wire size

6 AWG copper on 50 amp double-pole GFCI breaker is the correct wire size for hot tub 50 amp circuit installations. The 65 amp ampacity of 6 AWG provides meaningful safety margin over the 50 amp breaker rating, which accommodates the continuous nature of hot tub heater operation and typical outdoor installation temperature variations. This is the same 6 AWG specification used for full-size electric range circuits, though the hot tub application adds the mandatory GFCI protection requirement.

Pro tip: Always verify your specific hot tub electrical requirements from the manufacturer installation manual before ordering wire. Some hot tubs specify “50 amp GFCI” clearly on the nameplate while others state the electrical requirement in different formats such as “240V 50A” or “single service 50A.” The installation manual will also specify whether the hot tub requires 6/3 with ground (four conductors including neutral) or 6/2 with ground (three conductors, no neutral). This determination affects both the cable purchase and the connection method at the hot tub.

GFCI Protection Is Mandatory for Hot Tub Circuits

GFCI protection is the single most important safety requirement that distinguishes the wire size for hot tub 50 amp circuit installations from other 240 volt appliance circuits.

NEC 680.42(A) GFCI requirement

NEC 680.42(A) requires GFCI protection for all outlets supplying self-contained spas and hot tubs. This includes both plug-in installations and hardwired installations regardless of the specific hot tub model. The GFCI requirement exists because hot tubs combine water and 240 volt electrical power in close proximity to bathers, creating the highest-risk electrical shock scenario in typical residential installations.

Panel-mounted GFCI breaker is the standard approach

For 50 amp hot tub circuits, GFCI protection is provided by a 50-amp double-pole GFCI breaker at the electrical panel. This approach combines overcurrent protection and ground-fault protection in a single device. Feed-through GFCI receptacles rated for 50 amp continuous load are not readily available and are not the standard installation method for residential hot tubs.

How GFCI protection works for hot tubs

The GFCI breaker monitors current flow through both hot legs and the neutral (on 4-wire installations). When current in one path does not equal current in the other paths within 5 milliamps, the breaker trips within 25 milliseconds. This prevents lethal shock when current flows through a bather’s body to ground rather than back through the neutral. The response time is fast enough to prevent electrocution even during severe faults.

Testing GFCI protection during installation and monthly

NEC recommends testing GFCI breakers monthly by pressing the test button on the breaker. The breaker should trip immediately when the test button is pressed. Reset the breaker after testing. Failure to trip during testing indicates a defective breaker that must be replaced immediately. Many jurisdictions require testing at the time of installation as part of the electrical inspection process.

The Disconnect Within Sight Requirement

NEC 680.43 requires a disconnect within sight of the hot tub, which provides emergency shutoff capability without requiring bathers to leave the tub area to access the electrical panel.

Within sight defined

“Within sight” per NEC 100 definitions means visible and not more than 50 feet distant from the equipment being controlled. For hot tub installations, the disconnect must be positioned so a person standing at the hot tub can see the disconnect without obstruction. This typically means mounting the disconnect on an exterior wall of the house facing the hot tub, on a fence, or on a dedicated post near the tub area.

The 5-foot minimum distance from tub edge

NEC 680.43 also requires the disconnect be located at least 5 feet from the outside edge of the hot tub interior wall. This prevents anyone in the hot tub from being able to reach the disconnect while wet, which would create a dangerous electrical contact scenario. The combination of within sight but 5 feet away balances safety with accessibility.

Weatherproof disconnect enclosure

For outdoor hot tub installations, the disconnect must be housed in a weatherproof enclosure rated NEMA 3R or better. Standard weatherproof disconnects with 50 amp double-pole configurations are widely available from major electrical wholesalers. The enclosure protects the disconnect from rain, snow, and outdoor moisture while remaining accessible for emergency use.

Disconnect versus GFCI breaker functions

The disconnect within sight and the GFCI breaker at the panel serve different functions. The GFCI breaker provides automatic shutoff during ground faults and overcurrent conditions. The disconnect provides manual shutoff for maintenance, emergency situations, or when the hot tub will not be used for extended periods. Both are required by code and cannot substitute for each other.

Equipment Bonding for Hot Tub Installations

NEC 680.26 requires equipotential bonding for hot tub installations, which is a hot tub specific safety requirement not applicable to other 240 volt appliance circuits. This adds a unique element to the wire size for hot tub 50 amp circuit installation process.

What equipotential bonding does

Equipotential bonding connects all metal parts within 5 feet of the hot tub interior wall using a solid copper conductor. This creates an “equipotential zone” where all metal surfaces are at the same electrical potential, preventing voltage differences that could cause current flow through a bather’s body during fault conditions. The bonding grid protects even when a fault occurs upstream of the GFCI protection.

8 AWG solid copper bonding conductor

NEC 680.26(B) specifies a minimum 8 AWG solid copper conductor for equipotential bonding. The bonding conductor is separate from the equipment grounding conductor that runs with the branch circuit. The bonding conductor connects the hot tub metal frame, any metal decking or coping within 5 feet, metal water pipes serving the tub, and any other metal parts within the bonding zone.

Bonding point locations

Bonding points typically include the hot tub metal frame (using a bonding lug provided by the manufacturer), metal deck framing within 5 feet of the tub, metal water supply and drain piping, metal ladders or handrails, and metal enclosures for pumps or equipment. All bonding connections must be made with approved bonding lugs or exothermic welding, not standard mechanical connectors.

Verification during inspection

Electrical inspectors verify the equipotential bonding grid during hot tub installation inspection. Inspectors typically check that the bonding conductor is 8 AWG solid copper (not stranded, not smaller gauge), that all metal parts within the 5-foot zone are connected, and that bonding connections use approved methods. Bonding grid failures are one of the most common hot tub installation inspection issues.

6/2 vs 6/3 With Ground: Which Cable Does Your Hot Tub Need

The choice between 6/2 with ground and 6/3 with ground depends on the specific hot tub model and how it uses 240 volt and 120 volt power internally.

6/3 with ground for most residential hot tubs

Most residential hot tubs use 6/3 with ground cable (four conductors: two hots, one neutral, one grounding) because their internal circuits include both 240 volt heaters and 120 volt pumps, blowers, control panels, and lighting. The neutral conductor provides the return path for the 120 volt components. Verify by checking the hot tub installation manual for the required wire configuration.

6/2 with ground for 240 volt only hot tubs

Some hot tubs use only 240 volt internally with no 120 volt components. These installations use 6/2 with ground cable (two hots and grounding, no neutral). This configuration is less common but does exist, especially in older hot tubs and some European-influenced designs. Using 6/2 when the hot tub requires a neutral will prevent the 120 volt components from operating.

How to verify which cable your hot tub needs

Check the hot tub installation manual for the electrical connection diagram. The diagram shows how many conductors terminate at the hot tub electrical connection point. Four terminals (L1, L2, N, ground) means 6/3 with ground is required. Three terminals (L1, L2, ground) means 6/2 with ground is sufficient. Never assume the wire type; always verify from the manufacturer documentation.

Consequences of the wrong cable type

Installing 6/2 with ground when the hot tub requires 6/3 leaves the 120 volt internal circuits without power, so pumps, blowers, and controls will not operate. Installing 6/3 with ground when the hot tub uses 6/2 is not harmful because the extra neutral conductor is simply not connected at the tub end. When in doubt, buy 6/3 with ground because the extra conductor provides flexibility without creating problems.

Wire Type Selection for Indoor and Outdoor Runs

Wire type selection is particularly important for hot tub installations because most residential hot tubs are installed outdoors and the branch circuit routes through outdoor conditions.

UF-B 6/3 with ground for direct burial

UF-B (Underground Feeder, Type B) 6/3 with ground is the most common wire type for residential hot tub installations because it can be directly buried underground per NEC 340. UF-B has a thicker jacket than NM-B and is rated for wet locations and direct earth contact. For a hot tub circuit routed from an interior electrical panel to an exterior hot tub location, UF-B allows underground routing without conduit for the outdoor portion.

THHN or THWN individual conductors in PVC conduit

Individual 6 AWG THHN or THWN conductors pulled through PVC conduit provide an alternative to UF-B for exposed outdoor runs. This approach is common when the hot tub circuit routes along exterior walls or through areas where physical protection of the wire is important. THWN is specifically rated for wet locations, making it appropriate for outdoor conduit applications where moisture may enter through condensation or joint imperfections.

NM-B 6/3 with ground for indoor sections only

NM-B (Non-Metallic sheathed cable, Type B) 6/3 with ground can be used for the indoor portion of the hot tub circuit from the electrical panel to the point where the cable transitions to outdoor. NM-B cannot be used outdoors, underground, or in any wet location. When both NM-B and UF-B are used in the same installation, the transition typically occurs at a weatherhead or approved junction box.

MC or AC cable for specific applications

MC (Metal Clad) or AC (Armored Cable) with 6/3 conductors provides physical protection for exposed wire runs where standard NM-B is inadequate. These wire types are more common in commercial spa installations and multi-family residential applications than in typical single-family home hot tub installations.

Underground Burial Depth and Wire Requirements

Underground burial is common for hot tub circuits because the tub is typically located away from the house. NEC 300.5 specifies minimum burial depths that vary by wire type.

Direct-buried UF-B minimum depth

Direct-buried UF-B cable must be installed at a minimum depth of 24 inches per NEC 300.5(A) Table 300.5 Column 2. This depth applies to residential branch circuits under 600 volts including hot tub circuits. The 24-inch minimum protects the cable from typical yard maintenance including shovel work, lawn aeration, and tree root growth.

PVC conduit minimum depth

PVC conduit containing THHN or THWN conductors can be buried at a shallower minimum depth of 18 inches per NEC 300.5 Column 3. The reduced depth reflects the physical protection provided by the conduit itself. Rigid metal conduit can be buried at 6 inches minimum depth per Column 1, though rigid conduit is uncommon in residential hot tub installations.

Sand bedding and warning tape

Best practice for direct-buried UF-B cable includes 2 inches of sand bedding below the cable and 2 inches of sand above the cable before backfilling with native soil. A yellow warning tape placed 12 inches above the cable alerts future excavators to the buried electrical line. These best practices are not strictly required by NEC but significantly reduce future damage risk.

Transition from buried to above-ground

The transition from buried cable to above-ground wiring requires an approved weatherhead or bushing to protect the cable where it emerges from the soil. UF-B cable can transition directly to the disconnect enclosure or to conduit for the final aboveground run to the hot tub connection point. Sealing the transition prevents water infiltration into the aboveground wiring.

Voltage Drop Considerations for Long Wire Runs

The 6 AWG specification is correct for short and medium wire runs. Long runs may require upgrading to prevent voltage drop.

The 3 percent voltage drop guideline

Voltage drop is the reduction in voltage from wire resistance as current flows through the conductor. NEC 210.19 informational note recommends branch circuit voltage drop stay under 3 percent, which for a 240 volt hot tub circuit means the drop should not exceed 7.2 volts. Excessive voltage drop reduces heater performance and extends heating time.

6 AWG copper distance limits at 50 amp hot tub loads

For a typical 40 to 50 amp hot tub demand at 240 volts, 6 AWG copper stays within the 3 percent voltage drop guideline for runs up to approximately 55 feet. This distance covers many residential hot tub installations where the tub is located close to the house or on an attached deck. Longer runs require upgrading wire size to prevent voltage drop.

When to upgrade to 4 AWG copper

For hot tub circuit runs from 55 feet to approximately 85 feet, upgrade to 4 AWG copper to maintain voltage drop under 3 percent. 4 AWG copper has 85 amp ampacity, so the wire is over-specified for a 50 amp circuit, but the additional cross-sectional area reduces voltage drop meaningfully. This upgrade is common for hot tubs located in the backyard away from the house.

When to upgrade to 3 AWG or 2 AWG copper

For hot tub circuit runs beyond 85 feet, upgrade to 3 AWG or 2 AWG copper. Very long hot tub circuit runs are more common than for other 240 volt appliances because hot tubs are often located in backyards or landscaped areas far from the electrical panel. Always calculate voltage drop specifically for your installation for accurate wire sizing.

Choosing the Right Wire Product for Your Hot Tub Circuit

Understanding which specific wire products fit the wire size for hot tub 50 amp circuit specification helps buyers select the correct product for their installation environment.

Southwire UF-B 6/3 with ground for direct burial

Southwire is one of the largest domestic manufacturers of building wire and cable. Their UF-B 6/3 with ground is a common choice for hot tub circuits routed underground from the electrical panel to the outdoor hot tub location. Southwire UF-B is available in standard reel lengths from 25 feet to 500 feet. For a typical hot tub installation with a 40 to 80 foot underground run, a 50-foot or 100-foot reel provides enough wire for the installation.

Cerrowire UF-B 6/3 alternatives

Cerrowire manufactures a comparable line of UF-B 6/3 with ground. Cerrowire and Southwire products are electrically equivalent and meet the same UL 493 standard for UF cable. Product selection typically depends on regional availability, price, and buyer preference. Both brands are widely accepted by electrical inspectors for hot tub installations.

THHN individual conductors for PVC conduit runs

For hot tub installations using PVC conduit, purchase four individual 6 AWG THWN conductors (moisture rated): one black, one red, one white, and one green (or bare copper) for grounding. THWN is preferred over standard THHN for hot tub applications because the moisture rating provides an extra safety margin against condensation and joint leakage. Buy stranded THWN for easier pulling through conduit bends.

NEMA 3R weatherproof disconnect enclosures

Hot tub installations require a weatherproof disconnect within sight of the tub. NEMA 3R rated enclosures with 50 amp double-pole configurations are widely available from major electrical wholesalers. Some manufacturers offer packaged hot tub disconnect kits that include the enclosure, disconnect switch, and mounting hardware in a single product. These packaged solutions simplify installation and ensure code compliance.

50 amp double-pole GFCI breakers

50 amp double-pole GFCI breakers are required for hot tub circuits and are available from all major breaker manufacturers. The breaker must match the specific electrical panel brand and interior configuration. Verify compatibility with your panel before ordering. Some panels use “twin” or “quad” GFCI configurations that require specific model numbers.

Permits and Inspection Requirements

Hot tub installations planned around the wire size for hot tub 50 amp specifications require both electrical permits and often building permits because they involve significant electrical work and sometimes structural work for the tub base.

When permits are required

Nearly all jurisdictions require electrical permits for hot tub installation because the circuit is a new dedicated 50 amp GFCI circuit with specific NEC requirements. Building permits may also be required if a new concrete pad, deck, or structure is being built for the hot tub. Some jurisdictions require pool permits for hot tubs regardless of size, following the same regulations as swimming pools.

Inspection scope for hot tub circuits

Hot tub electrical inspections typically verify GFCI breaker installation and testing, disconnect location within sight and 5+ feet from tub edge, equipotential bonding grid installation with proper conductor size and connections, wire type appropriate for the installation environment, underground burial depth compliance, and grounding conductor termination at both ends. Failed inspections are common because of the multiple specific requirements.

Common inspection failures

The most common hot tub inspection failures include missing or improper equipotential bonding, disconnect too close to the tub or not within sight, undersized bonding conductor (using stranded when solid is required), improper wire type used outdoors, and missing GFCI protection. Addressing these items during initial installation prevents costly rework.

Documentation for future property transfer

Retain all electrical permit documentation and inspection approval records because future property buyers will request this documentation. Some property inspections during real estate transactions specifically look at hot tub electrical installations, and undocumented installations can affect property sale timing or valuation.

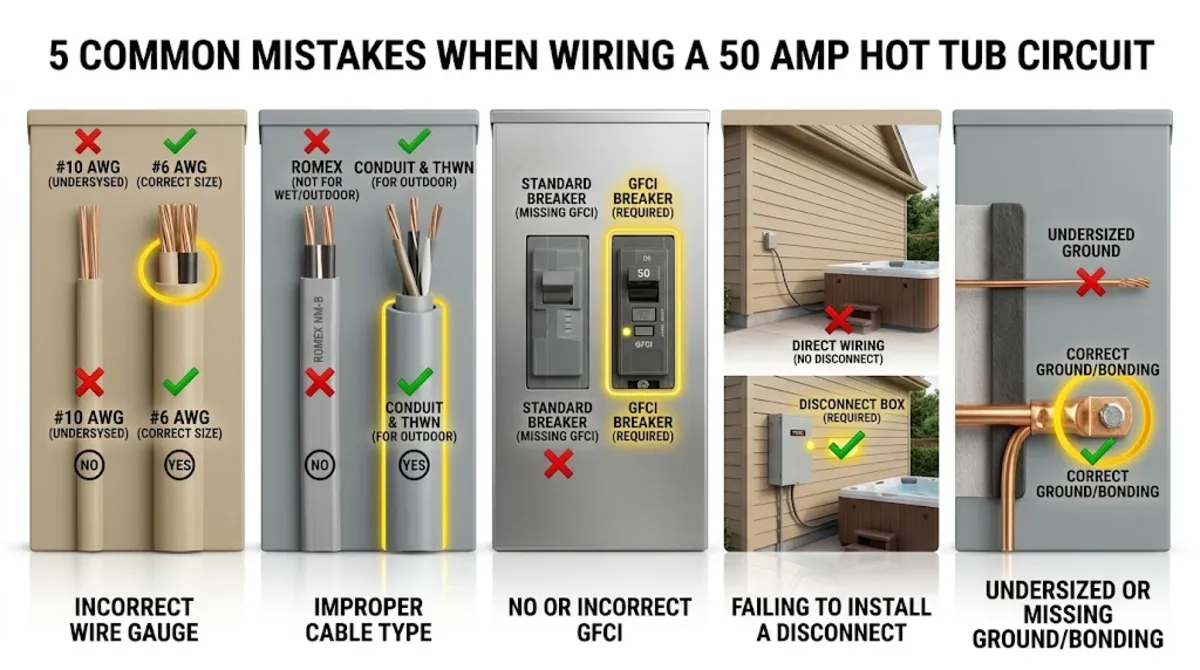

5 Common Mistakes When Wiring a 50 Amp Hot Tub Circuit

The mistakes below cause the most frequent buyer questions about wire size for hot tub 50 amp circuit installations.

Mistake 1: Skipping the GFCI breaker

The most serious mistake is installing a standard 50 amp double-pole breaker instead of a 50 amp GFCI breaker for the hot tub circuit. GFCI protection is not optional per NEC 680.42(A) and is the primary safety device that prevents electrocution in wet hot tub conditions. Non-GFCI hot tub circuits create life-threatening electrical shock risk and are always caught during inspection.

Mistake 2: Using NM-B (Romex) outdoors

NM-B cable is only rated for indoor dry locations. Using NM-B for the outdoor portion of a hot tub circuit violates the wire rating and voids UL certification. UF-B for direct burial or individual THWN conductors in PVC conduit are the correct choices for outdoor hot tub circuit portions. This mistake happens when installers use leftover NM-B without checking the wire rating.

Mistake 3: Missing the equipotential bonding grid

NEC 680.26 requires an 8 AWG solid copper bonding conductor connecting all metal parts within 5 feet of the hot tub interior wall. Skipping this bonding is a serious safety issue because it eliminates the equipotential zone that prevents shock during fault conditions. Bonding grid failures are one of the most common hot tub inspection issues and require immediate correction.

Mistake 4: Placing the disconnect too close to the tub

NEC 680.43 requires the disconnect be at least 5 feet from the outside edge of the hot tub interior wall. Some installers place the disconnect right next to the tub for convenience, but this violates code because someone in the tub could reach the disconnect while wet. The disconnect must balance within sight requirement with the 5-foot minimum distance.

Mistake 5: Skipping the neutral (using 6/2 when 6/3 is required)

Most residential hot tubs require 6/3 with ground because internal pumps, blowers, and controls use 120 volts. Using 6/2 with ground when the hot tub requires 6/3 prevents these components from operating. Always verify the required cable configuration from the hot tub installation manual before purchasing wire.

Conclusion

The correct wire size for hot tub 50 amp circuit installations is 6 AWG copper conductors on a 50-amp double-pole GFCI breaker at 240 volts. Modern installations require 6/3 with ground cable containing four conductors (two hots, neutral, grounding) with mandatory GFCI protection per NEC 680.42(A) and equipotential bonding per NEC 680.26.

Hot tub circuits are meaningfully different from other 240 volt appliance circuits because of the GFCI requirement, disconnect within sight requirement, equipotential bonding requirement, and typical outdoor installation environment. Wire type selection depends on installation environment: UF-B 6/3 with ground for direct burial, THHN or THWN individual conductors in PVC conduit for exposed outdoor runs, and NM-B 6/3 with ground only for indoor portions. Long wire runs beyond 55 feet require upgrading to 4 AWG copper to prevent voltage drop.

This article was last reviewed and updated in June 2026 to reflect current National Electrical Code requirements and residential hot tub installation best practices. Wire sizing and installation recommendations are based on the current NEC (NFPA 70) and should be verified against your local code amendments. For hot tub installations specifically, consult a licensed electrician because of the significant safety requirements including GFCI protection, disconnect placement, and equipotential bonding. Improperly wired hot tubs can cause electrocution.
