The wire size for level 2 EV charger 48 amp installations is 6 AWG copper conductors rated 90 degrees Celsius on a 60 amp double-pole breaker, regardless of the specific EV charger brand. This universal specification applies to Tesla Wall Connector, ChargePoint Home Flex, Emporia, Wallbox, Enphase, JuiceBox, Grizzl-E, and all other 48 amp capable Level 2 chargers. This article explains why 48 amp is the common residential maximum, the NEC 625.42 continuous load calculation, why hardwired connection is required, wire type selection, popular EV charger models, panel capacity requirements, and complete installation guidance for a code-compliant 48 amp Level 2 EV charger installation.

Across thousands of Southwire and Cerrowire orders shipped from IB Lighting nationwide, our electrician-led team advises DIY installers and licensed electricians on the correct wire size for residential EV charger installations. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the full Southwire and Cerrowire electrical wire and cable lineup. This article is the universal walkthrough we provide to buyers researching wire size for their 48 amp Level 2 EV charger installation regardless of the specific brand chosen, using specifications aligned with the current National Electrical Code (NFPA 70) and industry practice from the International Association of Electrical Inspectors.

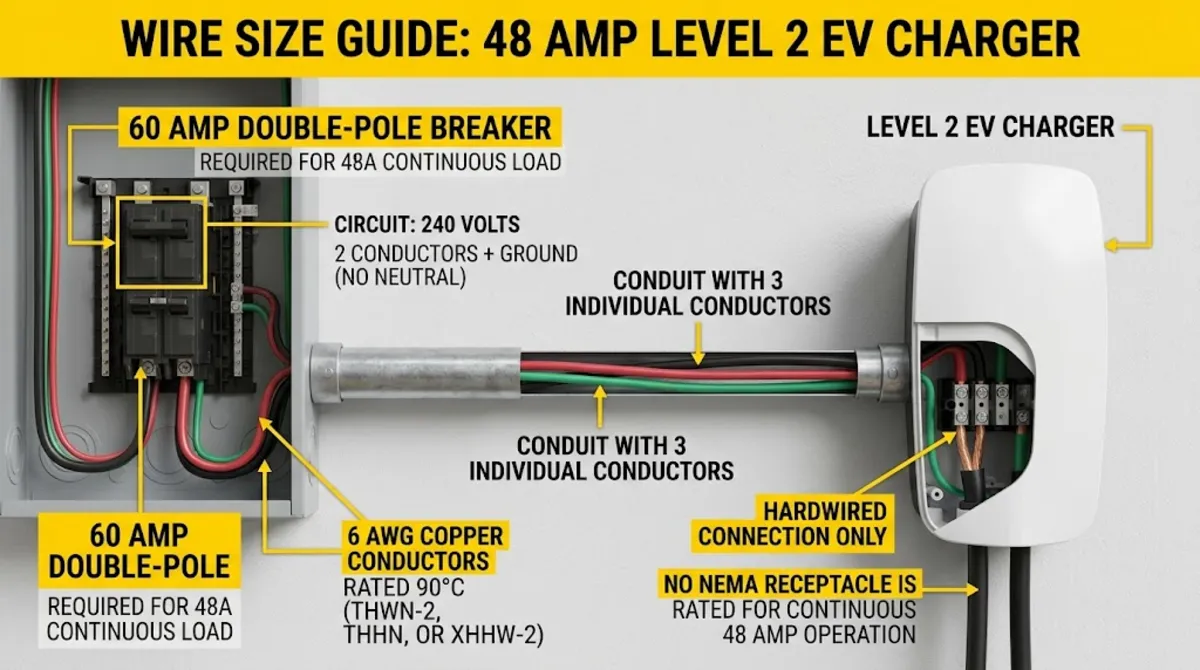

The Fast Answer: Wire Size for Level 2 EV Charger 48 Amp

For any Level 2 EV charger configured for 48 amp maximum output, use 6 AWG copper conductors rated 90 degrees Celsius (typically THWN-2, THHN, or XHHW-2) on a 60 amp double-pole breaker. The connection must be hardwired directly to the EV charger because no NEMA receptacle is rated for continuous 48 amp operation. The circuit is 240 volts and does not require a neutral conductor, so 2-conductor with ground cable or 3 individual conductors in conduit is appropriate. This universal specification applies to all major 48 amp EV chargers including Tesla Wall Connector, ChargePoint Home Flex, Emporia EV Charger, Wallbox Pulsar Plus, Enphase HCS-80, and other brands.

The complete installation specification

The complete specification for a wire size for level 2 EV charger 48 amp installation includes: 6 AWG copper conductors rated 90 degrees Celsius (typically THWN-2, THHN, or XHHW-2 insulation), 60 amp double-pole breaker at the electrical panel, 240 volt dedicated branch circuit, hardwired connection directly to the EV charger wirebox, 2-conductor plus ground cable configuration because EV chargers operate on 240 volts without requiring a neutral, and copper conductor terminations at the EV charger connection point.

What “Level 2” means for EV chargers

Level 2 refers to the EV charging standard that operates at 240 volts (as opposed to Level 1 which operates at 120 volts and Level 3 or DC Fast Charging which uses much higher voltages and currents). Level 2 chargers typically operate at 16 to 48 amps in residential applications and are the standard choice for home installations because they provide adequate charging speed for overnight full charging without requiring the electrical infrastructure of Level 3 charging.

Why the 48 amp specification is standardized across brands

All 48 amp Level 2 EV chargers share the same wire size requirement because they all operate at the same 48 amp continuous output with the same NEC 625.42 continuous load classification. The physical characteristics of the current and the NEC requirements are identical regardless of which manufacturer produces the charger. The only variations between brands are in physical design, smart features, and price rather than in wire sizing.

Why 48 Amps Is the Common Maximum for Residential Level 2 EV Chargers

The 48 amp specification has become the standard maximum for residential Level 2 EV chargers because of a combination of practical, code, and infrastructure factors. Understanding these factors clarifies why the wire size for level 2 EV charger 48 amp installations has emerged as the residential standard.

The 60 amp residential circuit limit

Residential electrical circuits are commonly available in standard sizes: 15, 20, 30, 40, 50, and 60 amps. The 60 amp double-pole breaker is the largest common residential branch circuit size before moving into feeder circuits (100 amp and larger). Given the NEC 625.42 continuous load 125 percent factor, the maximum continuous current on a 60 amp circuit is 48 amps (60 divided by 1.25 equals 48). This natural limit drives the 48 amp EV charger standard.

Onboard vehicle charger capacity limits

Modern electric vehicles have onboard chargers with specific maximum current acceptance rates. Most Tesla models, Ford F-150 Lightning, Rivian R1T, and other current EVs accept up to 48 amps at 240 volts (approximately 11.5 kW). Some vehicles accept less (32 to 40 amps), and very few residential vehicles accept more than 48 amps. Higher-capacity EV chargers exist but require vehicles with matching onboard charger capacity to deliver additional charging speed.

Overnight charging fully replenishes daily driving

A 48 amp Level 2 EV charger delivers approximately 40 to 44 miles of range per hour of charging. For a typical 8 to 12 hour overnight charging session, this provides 320 to 528 miles of range added, which is more than enough for most daily driving. Higher charging speeds provide diminishing returns for typical residential use because the vehicle spends most of the charging session sitting idle after reaching full charge.

Panel capacity accommodates 48 amp installations

Most modern residential electrical services (200 amp) have adequate capacity to accommodate a 48 amp EV charger without service upgrades. The 60 amp continuous load addition fits within the total service capacity after accounting for typical residential loads. Higher-capacity EV chargers (60 or 80 amp) often require service upgrades or load management systems, adding significant installation cost.

The NEC 625.42 Continuous Load Math for 48 Amp EV Chargers

The single most important electrical code concept for the wire size for level 2 EV charger 48 amp installations is the NEC 625.42 continuous load requirement.

The 125 percent continuous load factor

NEC 625.42 classifies EV chargers as continuous loads because they operate at full current for extended periods (typically 6 to 12 hours during overnight charging). Continuous loads require branch circuit conductors and overcurrent devices sized at 125 percent of the load current per NEC 210.19(A)(1) and 210.20(A). For a 48 amp EV charger, the calculation is 48 amps x 1.25 = 60 amps minimum circuit rating.

Why the factor matters at 48 amps specifically

The 125 percent factor is why 48 amp EV chargers require 60 amp circuits rather than 50 amp circuits. Without applying the continuous load factor, a 48 amp load would seem to fit within a 50 amp breaker (which permits 50 amp continuous per NEC). However, NEC 625.42 specifically overrides this general rule for EV chargers, mandating the 125 percent factor be applied.

How this drives the wire size

The 60 amp circuit requirement means the wire must have at least 60 amp ampacity per NEC Table 310.16. For copper conductors, this means 6 AWG at 75 degrees Celsius (65 amp ampacity) or 6 AWG at 90 degrees Celsius (75 amp ampacity). Standard 60 degree NM-B in 6 AWG has only 55 amp ampacity, which is inadequate, so 90 degree rated wire is needed.

Comparison to non-continuous loads at 48 amps

A non-continuous 48 amp load (like a motor starting current or a short-duration appliance load) could use 8 AWG copper on a 50 amp breaker without violating NEC. Only the continuous load classification of EV chargers drives the wire size up to 6 AWG on 60 amp. This is why applying the correct load classification is critical and why EV charger installations differ from other high-amperage residential applications.

Pro tip: When planning a 48 amp Level 2 EV charger installation, always verify the specific EV charger model documentation for any manufacturer-specific requirements beyond the universal NEC specifications. While the wire size is the same across brands, some manufacturers have specific requirements for wire type (90 degree Celsius rated), terminations (copper only in most cases), grounding methods, or installation practices. These brand-specific requirements are typically found in the installation manual and must be followed to maintain warranty coverage.

Why 48 Amp EV Chargers Must Be Hardwired

All 48 amp Level 2 EV chargers must be hardwired directly to the branch circuit for maximum output operation, regardless of the specific brand or model. This hardwired requirement is a critical aspect of any wire size for level 2 EV charger 48 amp installation.

No NEMA receptacle rated for continuous 48 amps

The receptacle continuous load limit under NEC 210.21(B)(2) restricts receptacles to 80 percent of their rating for continuous loads. Applying this to standard receptacles: NEMA 6-30 (30 amp) is limited to 24 amp continuous, NEMA 14-50 (50 amp) is limited to 40 amp continuous, NEMA 14-60 (60 amp) is limited to 48 amp continuous. However, NEMA 14-60 receptacles are rare, expensive, and not typically stocked at residential retail outlets.

Why NEMA 14-50 tops out at 40 amp charging

NEMA 14-50 is the most common EV charging outlet used with the Tesla Mobile Connector, JuiceBox 40 with plug, and other plug-in EV chargers. Its 40 amp continuous limit means the maximum practical charging rate on a NEMA 14-50 plug is 40 amps (though most portable EV chargers are actually limited to 32 amp charging for additional safety margin). This is why 48 amp EV chargers require hardwired connection to bypass the receptacle limitation.

Hardwired installation eliminates the limitation

Hardwiring the EV charger directly to the branch circuit eliminates the receptacle rating limitation because the connection is permanent rather than plug-in. The wire terminates directly at the EV charger wirebox using approved lugs and connections, allowing the full 48 amp continuous operation. All major 48 amp EV chargers include hardwire installation instructions.

Which chargers support both hardwired and plug options

Some EV chargers are marketed as supporting both hardwired and plug installation but limit the plug installation to 40 amp maximum for the reasons above. Examples include the ChargePoint Home Flex and Emporia EV Charger which offer both connection methods. For 48 amp operation, all of these chargers require hardwired installation regardless of whether the plug option is available.

Why 90 Degree Celsius Wire Rating Is Required

The 90 degree Celsius wire rating requirement affects wire type selection for all 48 amp Level 2 EV charger installations.

The three temperature ratings on wire insulation

NEC Table 310.16 lists three temperature columns for wire ampacity: 60 degrees Celsius (older NM-B rating), 75 degrees Celsius (most modern building wire), and 90 degrees Celsius (higher-rated insulation like THWN-2, THHN, or XHHW-2). The same wire gauge has different ampacity ratings depending on the insulation temperature rating, which is why the wire type matters for EV charger installations.

6 AWG copper ampacity by insulation rating

For 6 AWG copper conductors: 60 degree Celsius insulation has 55 amp ampacity, 75 degree Celsius has 65 amp ampacity, and 90 degree Celsius has 75 amp ampacity. For a 48 amp EV charger installation requiring conductor ampacity of at least 60 amps (48 x 1.25 factor), 6 AWG at 75 degrees or 90 degrees Celsius provides adequate ampacity but 6 AWG at 60 degrees does not.

Why 90 degrees Celsius is preferred over 75 degrees

Most modern EV chargers specify 90 degree Celsius rated wire because it provides better safety margin under the continuous load conditions of EV charging, matches the terminal temperature ratings inside most EV charger wireboxes, and allows the smallest practical wire size for maximum output. Standard THWN-2 and THHN wire commonly available meets the 90 degree Celsius requirement.

Standard NM-B (Romex) limitations for 48 amp installations

Standard NM-B cable is rated 60 degrees Celsius per NEC 334.80, which limits its ampacity to the 60 degree Celsius column values. For a 48 amp EV charger installation using NM-B, the wire size must be based on the 60 degree Celsius ampacity, requiring 4 AWG NM-B rather than 6 AWG. Most installers avoid this by using individual THHN conductors in conduit which are 90 degree Celsius rated and use smaller 6 AWG wire.

Popular 48 Amp Level 2 EV Chargers on the Market

Multiple manufacturers offer 48 amp capable Level 2 EV chargers with varying features, but all share the same wire size requirement. The wire size for level 2 EV charger 48 amp installations is identical regardless of which brand you select.

Tesla Wall Connector Gen 3

The Tesla Wall Connector Gen 3 is adjustable across seven amperage settings (12, 16, 24, 32, 40, and 48 amps) configured during commissioning. For maximum 48 amp output, hardwired connection with 6 AWG copper 90 degree Celsius rated conductors on a 60 amp breaker is required. See our dedicated Wire Size for Tesla Wall Connector article for Tesla-specific installation details.

ChargePoint Home Flex

The ChargePoint Home Flex offers both hardwired and plug options, with the hardwired configuration supporting up to 48 amp operation. The plug option using NEMA 14-50 is limited to 40 amp continuous. The wire size for 48 amp hardwired operation is the same 6 AWG copper 90 degree Celsius rated on 60 amp breaker. Smart features include WiFi, app control, and energy monitoring.

Emporia EV Charger

The Emporia EV Charger is adjustable across multiple amperage settings including 48 amp maximum in the hardwired configuration. Emporia is known for competitive pricing and integration with the broader Emporia home energy monitoring ecosystem. The 48 amp installation uses the same universal wire size specification.

Wallbox Pulsar Plus 48A

The Wallbox Pulsar Plus 48A is a smaller-form-factor EV charger with 48 amp operation available in the hardwired configuration. It offers WiFi connectivity, app control, and integrates with home energy management systems. Wire size follows the universal 6 AWG copper 90 degree Celsius specification.

Enphase HCS-80

The Enphase HCS series includes multiple amperage options including the HCS-40 (32 amp continuous), HCS-50 (40 amp continuous), and HCS-80 (64 amp continuous). The 48 amp equivalent option (with 60 amp continuous rating) exists in some Enphase HCS variants. The HCS-80 at 64 amp continuous requires larger 4 AWG copper on 80 amp breaker and is beyond typical residential 48 amp installations.

Autel MaxiCharger AC Home 50A

The Autel MaxiCharger AC Home 50A can be adjusted to 48 amp maximum output. Hardwired installation with 6 AWG copper 90 degree Celsius rated conductors on 60 amp breaker is required for 48 amp operation. Autel is known for value-oriented pricing with feature-rich configuration.

Grizzl-E Ultimate

The Grizzl-E Ultimate is a 40 amp continuous EV charger and does not support 48 amp operation. The Grizzl-E Classic and Duo variants are also 40 amp maximum. For 48 amp operation, choose a different manufacturer or model. Grizzl-E chargers are popular for their rugged construction and lower price point.

Cable Configuration and Conductor Requirements

The cable configuration for the wire size for level 2 EV charger 48 amp installation differs from other 240 volt residential circuits because EV chargers operate on 240 volts only without requiring a neutral conductor.

2-conductor with ground for EV chargers

EV chargers use only 240 volts and do not require a neutral. The branch circuit uses 2-conductor with ground cable containing two hot conductors (typically black and red) plus one bare copper or green grounding conductor. This differs from electric ranges and dryers which use 4-wire (2 hots + neutral + ground) because those appliances have 120 volt loads that require a neutral.

6/2 with ground cable configuration

For a 48 amp EV charger installation, 6/2 with ground cable contains three total conductors: two 6 AWG copper hot conductors and one bare copper grounding conductor (typically 10 AWG). Cable types include NM-B 6/2 with ground (limited to 60 degree ampacity), UF-B 6/2 with ground (direct burial), or SER 6/2 with ground for exposed applications.

Individual THHN conductors in conduit

Most 48 amp EV charger installations use three individual 6 AWG THHN conductors pulled through EMT (Electrical Metallic Tubing) or PVC conduit. This approach provides the 90 degree Celsius rating (allowing 6 AWG wire on 60 amp circuit), enables easy future modifications, and provides better physical protection than cable installations. Three conductors are needed: black and red hots plus green or bare copper ground.

MC cable as alternative

MC (Metal Clad) cable in 6/2 with ground configuration provides an alternative to individual THHN in conduit. MC cable includes the conductors and mechanical protection in a single product, simplifying installation compared to pulling individual conductors through conduit. MC cable is 90 degree Celsius rated and is accepted by most electrical inspectors for EV charger installations.

Wire Type Selection for Indoor and Outdoor Installations

Wire type selection for the wire size for level 2 EV charger 48 amp installation depends on installation environment and physical protection requirements.

Indoor attached garage installations

For indoor attached garage installations, the standard approach is three individual 6 AWG THHN copper conductors in 1 inch EMT conduit routed from the electrical panel to the EV charger location. THHN provides 90 degree Celsius rating, EMT provides physical protection and enables easy modifications, and both are widely available at electrical wholesalers.

Outdoor installations with exposed routing

For outdoor installations with exposed wire routing, use three individual 6 AWG THWN-2 copper conductors in 1 inch PVC conduit. THWN-2 is rated for wet locations, and PVC conduit provides UV protection and physical protection. Use watertight fittings at the EV charger wirebox entry to prevent water infiltration.

Detached garage with buried feeder

For detached garage installations with underground routing between the main house and garage, use 6 AWG THWN-2 conductors in PVC conduit buried at 18 inches minimum, or UF-B 6/2 with ground direct-buried at 24 inches minimum. UF-B is limited to 60 degree Celsius ampacity so wire sizing follows the 60 degree column, requiring 4 AWG UF-B for 48 amp operation.

Existing wall cavities

For installations where wire must route through existing wall cavities without conduit, options include MC cable (metal clad, 90 degree rated), NM-B (limited to 60 degree rating requiring 4 AWG for 48 amp), or fishing individual THHN conductors through the cavity. The specific approach depends on cavity accessibility, wire routing distance, and inspector acceptance in the local jurisdiction.

Choosing the Right Wire Product for Your EV Charger Circuit

Understanding which specific wire products fit the wire size for level 2 EV charger 48 amp specification helps buyers select the correct product for their installation regardless of the EV charger brand they choose.

Southwire 6 AWG THHN copper conductors

Southwire manufactures individual 6 AWG THHN copper conductors that meet the 90 degree Celsius rating required for 48 amp EV charger installations. Purchase three individual conductors per circuit: one black, one red, and one green (or use bare copper for grounding). Southwire THHN is available in various colors and reel lengths from 50 feet to 500 feet. Stranded THHN is preferred over solid for easier pulling through conduit.

Cerrowire THHN alternatives

Cerrowire manufactures comparable 6 AWG THHN copper conductors. Cerrowire and Southwire products are electrically equivalent and meet the same UL 83 standard for THHN wire. Both brands are widely accepted by electrical inspectors for EV charger installations, and selection typically depends on regional availability and pricing.

Southwire and Cerrowire MC cable

Both Southwire and Cerrowire manufacture MC cable in 6/2 with ground configuration suitable for 48 amp EV charger installations. MC cable is 90 degree Celsius rated (allowing 6 AWG for 48 amp operation) and includes the conductors and metal armor in a single product, simplifying installation compared to individual THHN conductors in conduit.

EMT and PVC conduit

1 inch EMT conduit accommodates three 6 AWG THHN conductors per NEC 314.16 conduit fill calculations for indoor installations. 1 inch PVC conduit provides the same conductor capacity for outdoor or wet locations. Both conduit types are available in 10-foot lengths with complete fitting systems including connectors, couplings, and elbows.

Wire and cable pricing considerations

Wire and cable costs for a 48 amp EV charger installation typically run 100 to 200 dollars for 50 feet of 6 AWG THHN plus 1 inch conduit. Total electrical materials cost including breaker, junction boxes, and fittings typically runs 200 to 400 dollars for a typical residential installation. Longer runs and outdoor installations increase costs proportionally.

Panel Capacity Requirements for 48 Amp EV Charger Installations

Planning the wire size for level 2 EV charger 48 amp installation includes assessing panel capacity because a 48 amp Level 2 EV charger installation adds significant load to the electrical service and requires panel capacity assessment before installation.

60 amp continuous load impact on panel capacity

A 48 amp EV charger at maximum output represents a 60 amp continuous load on the electrical service (48 amps x 1.25 continuous factor per NEC 625.42). Combined with other typical residential loads including main appliances, HVAC, water heater, and lighting, the total service demand may approach or exceed panel capacity in older homes.

200 amp service typically adequate

Homes with 200 amp main electrical service typically have adequate capacity for a single 48 amp EV charger installation without service upgrades. The 200 amp service provides significant margin over typical residential loads with room for the EV charger addition. Perform an NEC 220 service load calculation to verify capacity for your specific installation.

100 amp service usually requires upgrade

Homes with older 100 amp electrical service often require service upgrade to 200 amps before installing a 48 amp EV charger. The 100 amp service typically cannot accommodate the additional 60 amp continuous load plus existing residential loads. Service upgrade costs vary by region and complexity, so obtain multiple quotes from licensed electricians before deciding on the upgrade approach.

Multiple EV charger installations

Households planning multiple EV chargers require additional planning. Two 48 amp EV chargers represent 120 amps of continuous load capacity, which typically requires 200 amp service and often benefits from a dedicated 100 amp garage subpanel. Some installations use load management systems to reduce charging current when other high-demand circuits are active.

Voltage Drop Considerations for Long EV Charger Runs

Voltage drop for 48 amp EV charger installations affects charging efficiency and code compliance, particularly for long feeder runs.

The 3 percent voltage drop guideline

NEC 210.19(A)(1) informational note recommends voltage drop under 3 percent for branch circuits to maintain adequate voltage at the load. For a 240 volt 48 amp continuous EV charger circuit, this means the drop should not exceed 7.2 volts at full load. Excessive voltage drop reduces charging efficiency and can trigger charger faults or slower charging speeds.

6 AWG copper distance limits at 48 amp continuous

For a 48 amp continuous EV charger circuit at 240 volts, 6 AWG copper stays within the 3 percent voltage drop guideline for runs up to approximately 80 to 90 feet depending on actual load conditions. Most attached garage installations stay within this distance limit. Detached garage installations and long feeder runs sometimes approach or exceed this limit.

When to upgrade to 4 AWG copper

For runs from 90 to 150 feet at 48 amp continuous, upgrade to 4 AWG copper to maintain voltage drop under 3 percent. 4 AWG copper has 85 amp ampacity, providing additional capacity margin and better voltage drop performance. This upgrade adds moderate cost but ensures the EV charger receives full voltage at maximum load.

When to upgrade to 3 AWG or 2 AWG copper

For runs beyond 150 feet, upgrade to 3 AWG or 2 AWG copper. These larger sizes are uncommon for typical EV charger installations but may be required for detached garages on large properties. Calculate voltage drop specifically for your installation using actual expected load conditions.

Brand-Specific Installation Considerations

While the wire size for level 2 EV charger 48 amp installations is universal across brands, brand-specific installation requirements can vary in ways that affect installation planning.

Copper vs aluminum terminations

Most 48 amp EV charger manufacturers require copper conductor terminations at the charger wirebox. Some accept CU-AL rated aluminum terminations. Verify the specific manufacturer requirement in the installation manual before purchasing aluminum feeder wire for a long run. Installations that use aluminum feeder cable often require a copper pigtail transition at the EV charger connection.

Torque specifications

Each EV charger manufacturer specifies torque values for terminal connections at the wirebox. These torque specifications ensure adequate mechanical connection without damaging the terminal or conductor. Use a properly calibrated torque wrench and follow the specific values in the installation manual. Under-torqued connections create loose electrical connections that overheat during operation.

Grounding requirements

All 48 amp EV chargers require proper grounding through the equipment grounding conductor in the branch circuit. Some manufacturers have additional grounding requirements including dedicated grounding electrode connections for specific installation types. Verify grounding requirements in the manufacturer installation manual and ensure compliance during installation.

Wire type acceptance

Most 48 amp EV charger manufacturers accept THHN, THWN-2, XHHW-2, and MC cable for the branch circuit conductors. Some manufacturers have specific preferences or restrictions on wire type. NM-B (Romex) is accepted by most manufacturers but requires the larger 4 AWG copper size due to the 60 degree Celsius rating.

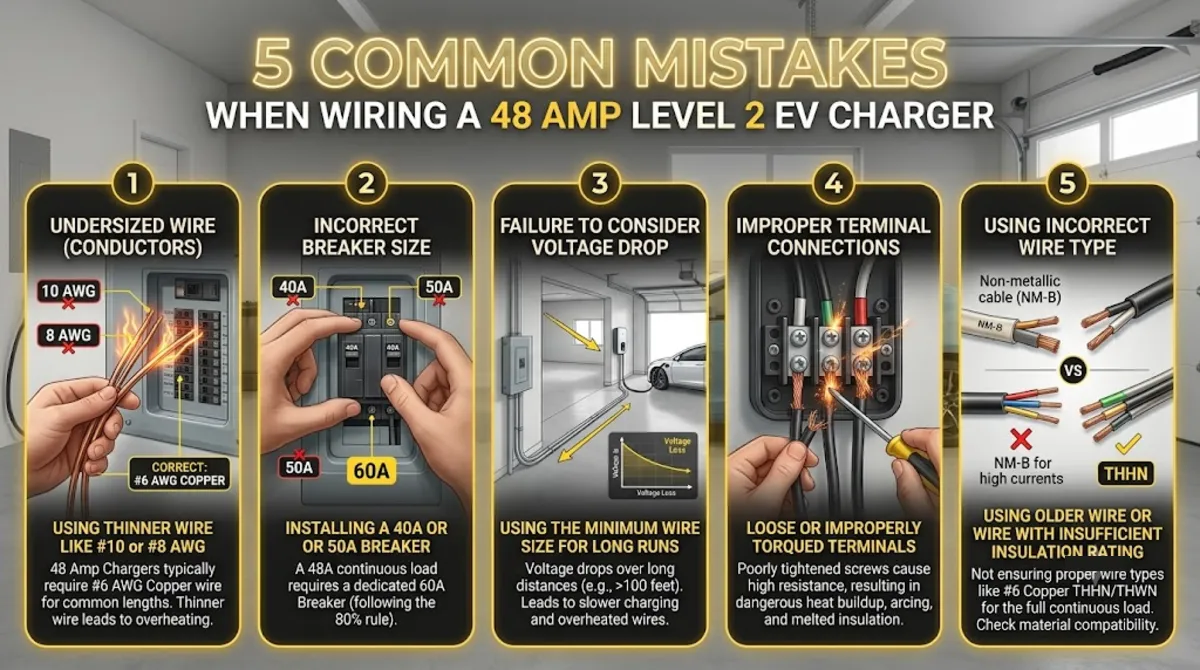

5 Common Mistakes When Wiring a 48 Amp Level 2 EV Charger

The mistakes below cause the most frequent buyer questions about wire size for level 2 EV charger 48 amp installations.

Mistake 1: Attempting NEMA 14-50 plug connection for 48 amp operation

The most common mistake is attempting to use a NEMA 14-50 plug connection for 48 amp EV charger operation to avoid the hardwiring requirement. NEMA 14-50 is limited to 40 amp continuous operation per NEC 210.21(B)(2), which is below the 48 amp EV charger maximum. All 48 amp EV chargers must be hardwired for maximum output regardless of whether the specific model offers a plug option for lower amperages.

Mistake 2: Using 60 degree Celsius NM-B for 48 amp installations

Some installers use standard 6 AWG NM-B (Romex) for 48 amp EV charger installations without accounting for the 60 degree Celsius rating limitation. 6 AWG NM-B has 55 amp ampacity per the 60 degree column, which is below the 60 amp requirement (48 x 1.25). This installation requires 4 AWG NM-B rather than 6 AWG. Using individual THHN conductors in conduit avoids this issue because THHN is 90 degree Celsius rated.

Mistake 3: Skipping the NEC 625.42 continuous load 125 percent factor

Some installers size the wire and breaker for the raw amperage without applying the NEC 625.42 continuous load 125 percent factor. Using 8 AWG copper on a 50 amp breaker for a 48 amp EV charger seems logical but violates NEC. The 48 amp continuous load requires 60 amp minimum circuit (48 x 1.25), which requires 6 AWG copper wire. Always apply the 125 percent factor first.

Mistake 4: Not verifying panel capacity before installation

Some installers purchase EV chargers and wire without first verifying that the electrical service and panel have adequate capacity for the 60 amp continuous load addition. This can result in tripped main breakers, panel replacement requirements discovered mid-installation, or service upgrade requirements that significantly delay the project. Always perform an NEC 220 load calculation before purchasing materials.

Mistake 5: Ignoring manufacturer-specific installation requirements

Some installers apply generic EV charger installation approaches without reading the specific manufacturer installation manual. Each manufacturer has specific torque values, wire type preferences, grounding requirements, and installation constraints that must be followed. Ignoring these requirements can void the warranty and cause installation issues that fail electrical inspection.

Conclusion

The wire size for level 2 EV charger 48 amp installations is 6 AWG copper conductors rated 90 degrees Celsius on a 60 amp double-pole breaker. This universal specification applies to all major 48 amp EV chargers including Tesla Wall Connector, ChargePoint Home Flex, Emporia EV Charger, Wallbox Pulsar Plus, Enphase HCS-80, Autel MaxiCharger, and other brands regardless of manufacturer or specific model.

Key installation requirements include 90 degree Celsius wire rating (typically THWN-2 or THHN), hardwired connection required for 48 amp operation (no NEMA receptacle supports continuous 48 amp), 2-conductor plus ground cable configuration because EV chargers operate on 240 volts without requiring a neutral, and NEC 625.42 continuous load 125 percent factor mandatory for all EV charger circuit sizing. Panel capacity assessment is important because a 48 amp installation adds significant continuous load to the electrical service.

This article was last reviewed and updated in June 2026 to reflect current National Electrical Code requirements and current Level 2 EV charger specifications. Wire sizing recommendations are based on the current NEC (NFPA 70) and should be verified against your specific EV charger installation manual and local code amendments. For complex installations or when in doubt, consult a licensed electrician. Improperly sized wire can cause fires and voids most equipment warranties. This article references EV charger brands including Tesla, ChargePoint, Emporia, Wallbox, Enphase, and others for illustrative purposes and is not affiliated with or endorsed by any specific manufacturer.
