The Fast Answer: Wire Size for Tesla Wall Connector Installations

For a Tesla Wall Connector Gen 3 installation at the maximum 48 amp output, use 6 AWG copper conductors rated 90 degrees Celsius (THWN-2 or equivalent) on a 60 amp double-pole breaker. The connection must be hardwired directly to the Wall Connector wirebox because no NEMA receptacle is rated for continuous 48 amp operation. For lower amperage settings, wire size decreases proportionally: 6 AWG for 40 amp setting on a 50 amp breaker, 8 AWG for 32 amp setting on a 40 amp breaker, 10 AWG for 24 amp setting on a 30 amp breaker, and 12 AWG for 16 amp setting on a 20 amp breaker.

The complete installation specification for 48 amp operation

The complete specification for a wire size for Tesla Wall Connector installation at maximum 48 amp output includes: 6 AWG copper conductors rated 90 degrees Celsius (typically THWN-2), 60 amp double-pole breaker at the electrical panel, 240 volt dedicated circuit, hardwired connection directly to the Wall Connector wirebox (no plug), copper conductor terminations required at the wirebox, and 2-conductor plus ground cable configuration because the Wall Connector operates on 240 volts only without requiring a neutral.

What cable configuration works for the Tesla Wall Connector

The Tesla Wall Connector uses only 240 volts and does not require a neutral conductor. This means the branch circuit uses 2-conductor with ground cable: two hot conductors (typically black and red) plus one bare copper grounding conductor. For a 48 amp installation, this translates to 6/2 with ground cable in NM-B, 6 AWG THHN individual conductors in conduit, or 6/2 with ground UF-B for direct burial applications.

Standard breaker size scales with the amperage setting

The breaker size must match the amperage setting configured in the Wall Connector during commissioning. For 48 amp operation, use a 60 amp double-pole breaker. For 40 amp operation, use a 50 amp double-pole breaker. For 32 amp operation, use a 40 amp double-pole breaker. The breaker size is determined by applying the NEC 625.42 continuous load 125 percent factor to the amperage setting.

Why the Tesla Wall Connector Wire Size Depends on Your Amperage Setting

The Tesla Wall Connector is fundamentally different from most residential appliances because it is adjustable, which means there is no single wire size specification that applies to all installations.

Seven amperage settings available

The Tesla Wall Connector Gen 3 supports seven maximum output amperage settings configured during the commissioning process: 12 amps, 16 amps, 24 amps, 32 amps, 40 amps, and 48 amps. Each setting produces a different maximum charging rate and requires different wire and breaker sizing. The setting is selected during initial installation by the electrician based on the actual wire and breaker installed.

The wire follows the setting, not the maximum capability

Because the Wall Connector is adjustable, the wire size is determined by the amperage setting configured, not by the maximum 48 amp capability of the unit. An installation configured for 32 amp maximum output uses 8 AWG copper on a 40 amp breaker, even though the Wall Connector could theoretically deliver 48 amps if reconfigured. This flexibility allows installation at any electrical service capacity from small 20 amp circuits to full 60 amp circuits.

Why installers choose lower amperage settings

Not every installation needs the maximum 48 amp charging rate. Some installations are limited by existing electrical service capacity, budget constraints for wire and breaker costs, physical constraints for wire routing through existing walls, or actual charging needs based on daily driving patterns. Many households charge overnight for 8 to 12 hours, which fully replenishes a Tesla battery even at 32 amp charging rates.

The breaker must match the setting

The commissioning process configures the Wall Connector to know what breaker size is installed. This programming prevents the Wall Connector from attempting to draw more current than the breaker can safely deliver. The breaker acts as the ultimate safety limit, but the internal amperage setting keeps the Wall Connector operating within safe limits for the specific installation.

The NEC 625.42 Continuous Load Math for EV Chargers

The single most important electrical code concept for the wire size for Tesla Wall Connector installations is the NEC 625.42 continuous load requirement that applies to all EV charging equipment.

What NEC 625.42 requires

NEC 625.42 classifies EV chargers as continuous loads, meaning they operate at full current for extended periods (typically hours during charging sessions). Continuous loads require branch circuit conductors and overcurrent devices sized at 125 percent of the load current per NEC 210.19(A)(1) and 210.20(A). This 125 percent factor is why a 48 amp charging setting requires a 60 amp breaker rather than a 50 amp breaker.

The 125 percent calculation in practice

The calculation is straightforward: multiply the amperage setting by 1.25 to get the required breaker size. Examples: 48 amp setting x 1.25 = 60 amp breaker. 40 amp setting x 1.25 = 50 amp breaker. 32 amp setting x 1.25 = 40 amp breaker. 24 amp setting x 1.25 = 30 amp breaker. The resulting breaker size determines the required wire gauge per NEC Table 310.16 ampacity requirements.

Why the 125 percent factor matters

The 125 percent factor exists because continuous current flow causes wire and connection points to heat up over time. During short bursts of current (like starting a motor), wire can safely handle higher currents than its steady-state rating. For continuous flow, the wire must be able to dissipate the heat generated by the current continuously. The 125 percent factor provides adequate margin to prevent overheating during multi-hour charging sessions.

Comparison to other continuous loads

Other residential continuous loads that use the 125 percent factor include water heaters (tank and tankless), space heaters, and some pool equipment. However, EV chargers are typically the largest continuous load in residential installations because they combine high amperage with long charging duration. A tank water heater might operate at 18 amps for 30 minutes, but a Tesla Wall Connector operates at 48 amps for 8 to 12 hours during overnight charging.

Pro tip: When planning a Tesla Wall Connector installation, always calculate the wire and breaker size for the maximum amperage setting you might ever use, not the initial setting. If you might upgrade from 32 amp to 48 amp charging later, install 6 AWG copper wire and a 60 amp breaker initially even if you configure the Wall Connector for 32 amp operation at commissioning. This future-proofs the installation and avoids expensive wire replacement if you upgrade later. The incremental cost of 6 AWG over 8 AWG is modest compared to the cost of pulling new wire.

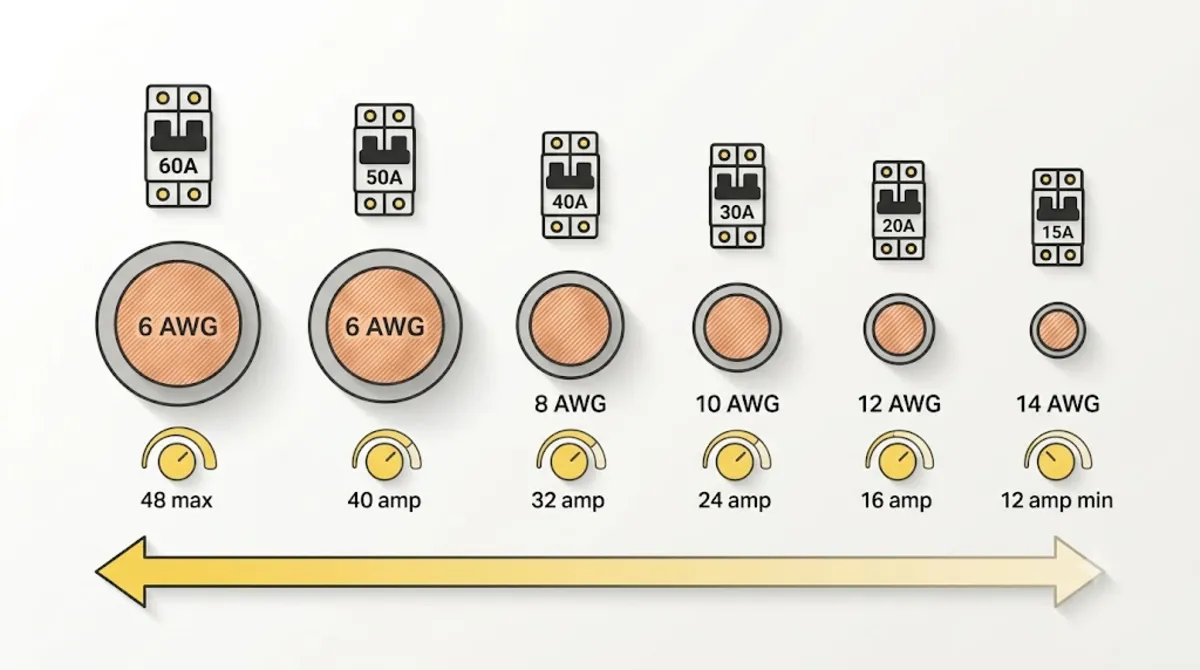

Wire Size for Tesla Wall Connector by Amperage Setting

The complete reference table for wire size for Tesla Wall Connector installations shows the exact specifications for each amperage setting.

48 amp setting: maximum charging rate

The 48 amp setting is the maximum output for the Tesla Wall Connector Gen 3 and delivers approximately 44 miles of range per hour of charging for most Tesla models. Wire specification: 6 AWG copper conductors rated 90 degrees Celsius (THWN-2 or equivalent). Breaker: 60 amp double-pole. Cable configuration: 6/2 with ground (two hots plus grounding conductor, no neutral required).

40 amp setting

The 40 amp setting delivers approximately 37 miles of range per hour of charging. Wire specification: 6 AWG copper conductors rated 90 degrees Celsius (or larger). Breaker: 50 amp double-pole. Cable configuration: 6/2 with ground. Note that 8 AWG copper at 90 degrees Celsius has 55 amp ampacity per NEC Table 310.16 which is exactly at the 50 amp requirement threshold, so 6 AWG provides better margin and future upgrade path.

32 amp setting

The 32 amp setting delivers approximately 30 miles of range per hour of charging. Wire specification: 8 AWG copper conductors. Breaker: 40 amp double-pole. Cable configuration: 8/2 with ground. This is the most common charging rate for installations that use a NEMA 14-50 outlet with the mobile connector included with Tesla vehicles, which also operates at 32 amp maximum.

24 amp setting

The 24 amp setting delivers approximately 22 miles of range per hour of charging. Wire specification: 10 AWG copper conductors. Breaker: 30 amp double-pole. Cable configuration: 10/2 with ground. This charging rate is appropriate for households with modest daily driving needs or installations limited by existing electrical service capacity.

16 amp and 12 amp settings

The 16 amp setting delivers approximately 15 miles of range per hour and requires 12 AWG copper on a 20 amp breaker. The 12 amp setting delivers approximately 11 miles of range per hour and requires 14 AWG copper on a 15 amp breaker. These lower settings are typically used for temporary installations, apartment installations with limited electrical service, or as trickle charging supplements to other charging equipment.

Why 90 Degree Celsius Wire Rating Is Required

Tesla specifies 90 degree Celsius rated copper wire for Wall Connector installations at maximum output because this insulation rating provides higher ampacity for the same wire gauge.

The three temperature ratings on wire insulation

NEC Table 310.16 lists three temperature columns for wire ampacity: 60 degrees Celsius (older NM-B rating), 75 degrees Celsius (most modern building wire), and 90 degrees Celsius (higher-rated insulation like THWN-2 or XHHW-2). The same wire gauge has different ampacity ratings depending on the insulation temperature rating.

6 AWG copper ampacity by insulation rating

For 6 AWG copper conductors: 60 degree Celsius insulation has 55 amp ampacity, 75 degree Celsius has 65 amp ampacity, and 90 degree Celsius has 75 amp ampacity. For a 48 amp Tesla Wall Connector installation requiring conductor ampacity of at least 60 amps (48 x 1.25), 6 AWG at 75 degrees or 90 degrees Celsius provides adequate ampacity, but 6 AWG at 60 degrees Celsius does not.

Why Tesla specifies 90 degrees Celsius

The Tesla installation manual specifies 90 degree Celsius rated wire because it provides better safety margin under the continuous load conditions of EV charging, allows the smallest practical wire size for maximum output, and matches the terminal temperature ratings inside the Wall Connector wirebox. Standard THWN-2 wire commonly available meets the 90 degree Celsius requirement.

Standard NM-B (Romex) limitations

Standard NM-B cable is rated 60 degrees Celsius per NEC 334.80, which limits its ampacity to the 60 degree Celsius column values. For a 48 amp Tesla Wall Connector installation using NM-B, the wire size must be based on the 60 degree Celsius ampacity, which means 4 AWG NM-B rather than 6 AWG NM-B. Most installers avoid this by using individual THHN conductors in conduit which are 90 degree Celsius rated.

Why the Tesla Wall Connector Requires Hardwired Connection at 48 Amps

The Tesla Wall Connector Gen 3 must be hardwired directly to the branch circuit for maximum 48 amp operation and cannot use a plug-in connection.

No NEMA receptacle rated for continuous 48 amps

Standard NEMA receptacles including the NEMA 14-50 (50 amp) are not rated for continuous operation at 48 amps. The NEMA 14-50 is rated for 50 amps but under NEC 210.21(B)(2), receptacles are limited to 80 percent of their rating for continuous loads, which means the maximum continuous current is 40 amps. This is why NEMA 14-50 installations are limited to 32 amp charging (40 amp continuous minus safety margin) rather than 48 amp.

The hardwired connection eliminates receptacle limitations

Hardwiring the Wall Connector directly to the branch circuit eliminates the receptacle rating limitation because the connection is a permanent installation rather than a plug-in connection. The wire terminates directly at the Wall Connector wirebox using approved lugs and connections, allowing the full 48 amp continuous operation.

Installation requirements for hardwired connection

Hardwired installation requires bringing the branch circuit conductors directly into the Wall Connector wirebox, terminating them at the marked terminals (L1, L2, and ground), and torqueing the terminals to Tesla specifications. The Wall Connector must be securely mounted to the wall or mounting bracket before terminating the electrical connections. Access panels are provided for wire routing and termination during installation.

Lower amperage installations can use plug connections

For installations at 32 amp or lower, the standard Tesla Mobile Connector (included with most Tesla vehicles) can plug into a NEMA 14-50 outlet for portable charging. This provides a plug-in alternative to the hardwired Wall Connector for households that only need 32 amp charging and want portability. The Wall Connector Gen 3 itself does not offer a plug option.

Copper Wire Termination Requirement at the Wall Connector Wirebox

The Tesla Wall Connector wirebox requires copper conductor terminations only, which affects the wire size for Tesla Wall Connector installations that use aluminum feeder wire from the electrical panel.

Copper only at the wirebox terminals

Tesla specifies copper wire terminations only for connections landing at the Wall Connector wirebox terminals. Aluminum conductors cannot be terminated directly at the Wall Connector because the terminal materials and design are rated for copper contact only. This restriction is common for premium electrical equipment and prevents corrosion and connection failures at critical connections.

Copper pigtail transitions for aluminum feeders

Installations that use aluminum SER cable from the electrical panel to the Wall Connector location require a copper pigtail transition at the Wall Connector connection point. The aluminum conductors terminate at a junction box or splice location using CU-AL rated splice connectors, and copper conductors extend from the junction box to the Wall Connector wirebox.

When aluminum feeder is beneficial

Aluminum SER feeder cable is often used for long runs to detached garages or remote installations where the cost savings of aluminum over copper is significant. The additional copper pigtail transition adds installation complexity but the overall material cost savings can still be worthwhile on runs over 100 feet. Verify local code acceptance of aluminum feeders and copper pigtail splices before planning this configuration.

All-copper installations remain the simplest

For installations under 100 feet from the electrical panel to the Wall Connector, using copper wire throughout the entire run eliminates the copper pigtail transition and simplifies the installation. All-copper installations are the most common approach for typical residential attached garage installations. The additional wire cost is modest for shorter runs.

Wire Type Selection for Indoor and Outdoor Installations

Wire type selection for the wire size for Tesla Wall Connector installations depends on installation environment and physical protection requirements.

THHN individual conductors in conduit for indoor installations

THHN individual conductors in EMT (Electrical Metallic Tubing) conduit provide the standard installation method for Tesla Wall Connector in most indoor applications. Three individual 6 AWG THHN conductors (two hots plus grounding) pull through 1 inch EMT conduit from the electrical panel to the Wall Connector location. THHN is rated 90 degrees Celsius, meeting Tesla specifications. EMT provides physical protection and simplifies future modifications.

MC cable for indoor installations

MC (Metal Clad) cable in 6/2 with ground configuration provides an alternative to THHN in EMT for indoor Tesla Wall Connector installations. MC cable includes the conductors and mechanical protection in a single product, simplifying installation. MC cable meets the 90 degree Celsius rating requirement and is accepted by most electrical inspectors for EV charger installations.

NM-B (Romex) 4 AWG for indoor installations

Standard NM-B (Romex) is rated 60 degrees Celsius per NEC 334.80, so a 48 amp Tesla Wall Connector installation using NM-B requires 4 AWG copper rather than 6 AWG. This is a code-compliant approach but uses larger, more expensive wire than THHN or MC. Some installers prefer NM-B for ease of installation in existing wall cavities without conduit.

THWN-2 in PVC conduit for outdoor installations

THWN-2 individual conductors in PVC conduit provide the standard installation method for outdoor Tesla Wall Connector installations. THWN-2 is specifically rated for wet locations, and PVC conduit provides UV protection and physical protection for the wire. Watertight fittings at the Wall Connector wirebox entry prevent water infiltration.

UF-B for direct burial applications

UF-B 6/2 with ground can be used for direct burial installations where the wire routes underground from the electrical panel to a detached garage Wall Connector location. UF-B is rated for direct earth burial per NEC 340 and does not require conduit for the underground portion. However, UF-B is rated 60 degrees Celsius, so wire sizing follows the 60 degree Celsius ampacity column rather than the 90 degree Celsius column.

Inspector Interpretation of the Adjustable Amperage Setting

One of the more nuanced aspects of the wire size for Tesla Wall Connector installations is how local electrical inspectors interpret the adjustable amperage setting for wire sizing purposes.

The two inspector approaches

Local electrical inspectors typically follow one of two approaches when evaluating Tesla Wall Connector installations. Some inspectors require the wire and breaker to be sized for the maximum 48 amp capability of the Wall Connector regardless of the current amperage setting configured during commissioning. Other inspectors accept wire and breaker sizing matched to the current amperage setting.

Why some inspectors require maximum sizing

Inspectors who require sizing for maximum capability reason that the amperage setting can be changed by the homeowner or a future service technician, potentially exceeding the wire capacity. This approach eliminates the risk of a mismatched configuration causing overheating. It also simplifies inspection because inspectors don’t need to verify the current amperage setting.

Why other inspectors accept setting-based sizing

Inspectors who accept setting-based sizing recognize that the Wall Connector electronically limits current draw to the configured amperage regardless of what the wire can handle, and that Tesla has released firmware updates that restrict access to the amperage setting to the commissioning network only. This approach allows more cost-effective installations for households that don’t need maximum charging speeds.

Verifying local inspector approach before installation

Verify the local inspector approach before purchasing wire because the wire cost difference between 48 amp sizing and lower settings is significant. Some jurisdictions have written policies on this issue, while others leave it to individual inspector discretion. Consult a local licensed electrician who has recent experience with Wall Connector installations in your jurisdiction for guidance on the local approach.

Charging Speed Comparison by Amperage Setting

Understanding the charging speed difference between amperage settings helps buyers evaluate whether the additional wire and installation cost for higher settings is worthwhile.

Miles of range added per hour by setting

Based on typical Tesla Model 3 or Model Y consumption of approximately 260 watt-hours per mile, the miles of range added per hour by amperage setting are: 48 amps adds approximately 44 miles per hour, 40 amps adds approximately 37 miles per hour, 32 amps adds approximately 30 miles per hour, 24 amps adds approximately 22 miles per hour, 16 amps adds approximately 15 miles per hour, and 12 amps adds approximately 11 miles per hour.

Full charge time from empty by setting

For a typical Tesla Model 3 or Model Y with 275 mile range battery, full charge time from empty by amperage setting is approximately: 6 hours at 48 amp setting, 7.5 hours at 40 amp setting, 9 hours at 32 amp setting, 12.5 hours at 24 amp setting, 18 hours at 16 amp setting, and 25 hours at 12 amp setting.

Overnight charging accommodates most households

Most households charge overnight for 8 to 12 hours, which fully charges the vehicle at 32 amp or higher settings. If overnight charging fully replenishes daily driving demand, the additional cost of higher amperage settings provides diminishing returns. Higher amperage settings become valuable for households with high daily driving miles, multi-EV charging schedules, or unpredictable charging schedules.

Actual vehicle onboard charger limits

The Tesla Wall Connector amperage setting is the maximum current available, but actual charging rate is limited by the smaller of the Wall Connector setting or the vehicle onboard charger capacity. Newer Tesla vehicles typically support the full 48 amp charging rate, while some earlier models are limited to 40 amp or 32 amp onboard charger capacity. Verify vehicle specifications when planning wire sizing.

Choosing the Right Wire Product for Your Wall Connector Circuit

Understanding which specific wire products fit the wire size for Tesla Wall Connector specification helps buyers select the correct product for their installation.

Southwire 6 AWG THHN for maximum output installations

Southwire manufactures individual 6 AWG THHN copper conductors that meet Tesla specifications for 90 degree Celsius rated wire. Purchase three individual conductors per circuit: one black, one red, and one green (or use bare copper for grounding). Southwire THHN is available in various colors and reel lengths from 50 feet to 500 feet. Stranded THHN is preferred over solid for easier pulling through conduit.

Cerrowire THHN alternatives

Cerrowire manufactures comparable 6 AWG THHN conductors. Cerrowire and Southwire products are electrically equivalent and meet the same UL 83 standard for THHN wire. Selection typically depends on regional availability and pricing. Both brands are widely accepted by electrical inspectors for EV charger installations.

MC cable options

Southwire and Cerrowire both manufacture MC cable in 6/2 with ground configuration suitable for Tesla Wall Connector installations. MC cable includes the conductors and metal armor in a single product, simplifying installation compared to individual THHN conductors in conduit. MC cable is more expensive per foot than THHN plus conduit but reduces installation labor.

EMT conduit and fittings

1 inch EMT conduit accommodates three 6 AWG THHN conductors per NEC 314.16 conduit fill calculations. EMT is available in 10-foot lengths from major electrical wholesalers. Standard EMT fittings including connectors, couplings, and elbows complete the installation. For 75 foot runs from panel to Wall Connector, plan for approximately 8 lengths of EMT plus fittings.

Wire and cable pricing considerations

Wire and cable costs for a Tesla Wall Connector installation at maximum 48 amp output typically run 100 to 200 dollars for 50 feet of 6 AWG THHN plus 1 inch EMT conduit. Total electrical materials cost including breaker, junction boxes, and fittings typically runs 200 to 400 dollars for a typical residential installation. Longer runs and outdoor installations increase costs.

Panel Capacity Considerations for 48 Amp Installations

A 48 amp Tesla Wall Connector installation adds significant load to the electrical service and requires panel capacity assessment before installation.

60 amp continuous load impact on panel capacity

A 48 amp Tesla Wall Connector at maximum output represents a 60 amp continuous load on the electrical service (48 amps x 1.25 continuous factor). Combined with other typical residential loads including main appliances, HVAC, water heater, and lighting, the total service demand may approach or exceed panel capacity in older homes.

200 amp service typically adequate

Homes with 200 amp main electrical service typically have adequate capacity for a 48 amp Tesla Wall Connector installation without service upgrades. The 200 amp service provides significant margin over typical residential loads with room for the Wall Connector addition. Perform an NEC 220 service load calculation to verify capacity for your specific installation.

100 amp service may require upgrade

Homes with older 100 amp electrical service often require service upgrade to 200 amps before installing a 48 amp Tesla Wall Connector. The 100 amp service may not accommodate the additional 60 amp continuous load plus existing residential loads. Service upgrade costs typically run 2,000 to 4,000 dollars depending on region and complexity.

Load management alternatives

For homes where panel upgrade is impractical or expensive, load management systems can enable Tesla Wall Connector installation without service upgrade. These systems monitor total electrical demand and reduce Wall Connector charging current when other high-demand circuits are active. This allows the Wall Connector to operate at reduced amperage during peak demand while providing full 48 amp charging during off-peak periods.

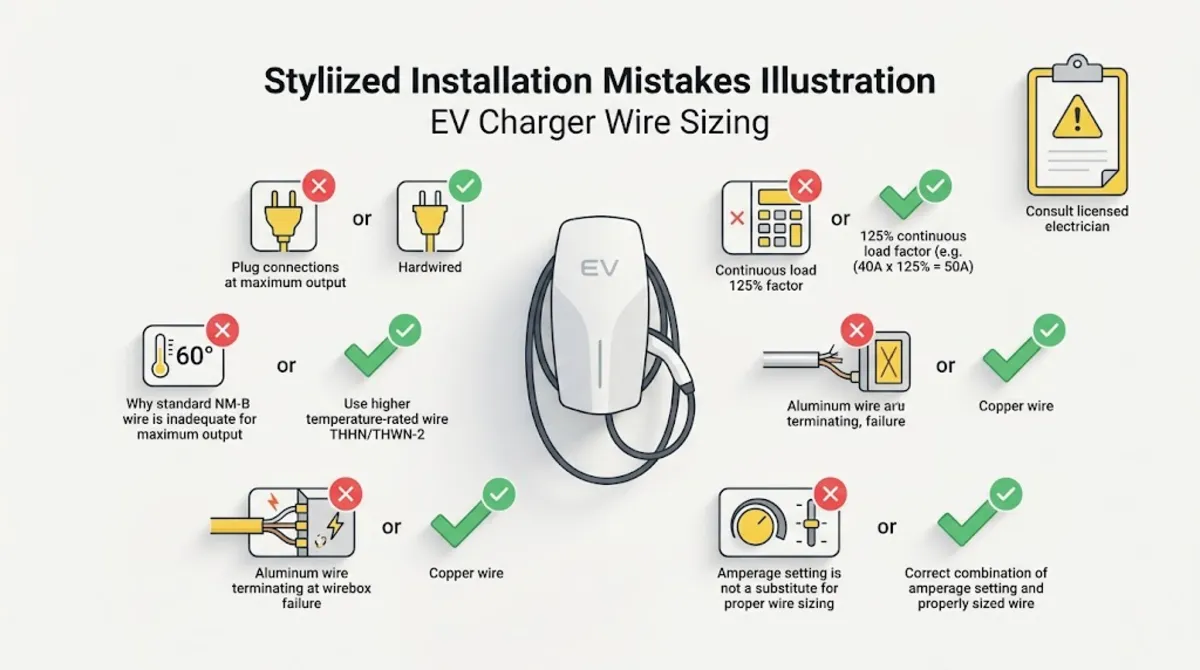

5 Common Mistakes When Wiring a Tesla Wall Connector

The mistakes below cause the most frequent buyer questions about wire size for Tesla Wall Connector installations.

Mistake 1: Skipping the NEC 625.42 continuous load 125 percent factor

The most common mistake is sizing the wire and breaker for the raw amperage setting without applying the NEC 625.42 continuous load 125 percent factor. Using 8 AWG copper on a 50 amp breaker for a 40 amp setting seems logical but violates NEC because 40 amps x 1.25 = 50 amps requires the wire to have at least 50 amps ampacity, and 8 AWG copper at 75 degrees Celsius has only 50 amps (exact match, no margin). Always apply the 125 percent factor first.

Mistake 2: Using 60 degree Celsius NM-B for 48 amp installations

Some installers use standard 6 AWG NM-B (Romex) for 48 amp Tesla Wall Connector installations without accounting for the 60 degree Celsius rating limitation. 6 AWG NM-B has 55 amp ampacity per the 60 degree column, which is below the 60 amp requirement (48 x 1.25). This installation would require 4 AWG NM-B rather than 6 AWG. Using individual THHN conductors in conduit avoids this issue because THHN is 90 degrees Celsius rated.

Mistake 3: Attempting plug connection for 48 amp operation

Some installers attempt to use a NEMA 14-50 plug connection for the Tesla Wall Connector at 48 amp operation to avoid the hardwiring requirement. This violates both Tesla specifications and NEC 210.21(B)(2) receptacle continuous load limits. NEMA 14-50 is limited to 40 amp continuous operation, not 48 amp. The Wall Connector must be hardwired for maximum output.

Mistake 4: Aluminum wire terminated directly at Wall Connector wirebox

Tesla specifies copper wire terminations only at the Wall Connector wirebox. Terminating aluminum SER cable directly at the wirebox violates Tesla specifications and can cause connection failures over time. Aluminum feeders require a copper pigtail transition at a junction box near the Wall Connector, with copper conductors extending from the junction box to the wirebox.

Mistake 5: Assuming amperage setting protects undersized wire

Some installers use smaller wire than required for the maximum 48 amp capability because they set the Wall Connector to a lower amperage during commissioning. This approach fails when the amperage setting is later increased, whether intentionally by the homeowner or accidentally during service. Many electrical inspectors require wire and breaker sizing for the maximum Wall Connector capability regardless of the current setting.

Conclusion

The wire size for Tesla Wall Connector installations depends on the maximum amperage setting configured during commissioning. Maximum 48 amp output requires 6 AWG copper conductors rated 90 degrees Celsius on a 60 amp double-pole breaker with hardwired connection at the Wall Connector wirebox. Lower amperage settings use progressively smaller wire sizes with the NEC 625.42 continuous load 125 percent factor always applied.

Key installation requirements include 90 degree Celsius wire rating (typically THWN-2 or THHN), copper conductor terminations only at the Wall Connector wirebox, hardwired connection for maximum output (no plug), and 2-conductor plus ground cable configuration because the Wall Connector operates on 240 volts without requiring a neutral. Panel capacity assessment is important because a 48 amp installation adds significant continuous load to the electrical service.
