The correct wire size for water heater 4500 watt residential installations is 10 AWG copper wire on a 30-amp double-pole breaker connected to a 240-volt dedicated circuit. This configuration is the standard used in approximately 90 percent of American homes with electric tank water heaters. This article explains the NEC math behind the 10 AWG requirement, why 12 AWG is not acceptable despite its adequate ampacity rating, when to consider upgrading to 8 AWG or 6 AWG for long runs, and how to select the correct wire type (NM-B, THHN, or UF-B) for your specific installation environment.

Across thousands of Southwire and Cerrowire orders shipped from IB Lighting nationwide, our electrician-led team advises DIY installers and licensed electricians on the correct wire size for residential water heater installations. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the full Southwire and Cerrowire electrical wire and cable lineup. This article is the walkthrough we provide to buyers researching wire size for their water heater installation, using specifications aligned with the current National Electrical Code (NFPA 70) and industry practice from the International Association of Electrical Inspectors.

The Fast Answer: Wire Size for Water Heater 4500 Watt

For a standard residential 4500 watt electric water heater operating on a 240-volt dedicated circuit, use 10 AWG copper wire connected to a 30-amp double-pole breaker. This is the correct wire size for water heater 4500 watt installations regardless of tank size (30 gallon, 40 gallon, 50 gallon, or 80 gallon), because breaker and wire sizing depend on element wattage rather than tank capacity. The 10 AWG copper + 30 amp breaker combination is the exact configuration specified by the National Electrical Code and used by licensed electricians nationwide.

The complete wire sizing specification

The complete specification for a water heater 4500 watt installation includes: 10 AWG copper conductors with 10 AWG ground, 30-amp double-pole breaker (two 30-amp breakers connected mechanically), 240-volt supply from a two-pole 120/240V panel, dedicated circuit that supplies only the water heater, and wire type appropriate for the installation environment. Missing any element of this specification creates either a code violation or an unsafe installation.

What “10/2 with ground” means on the wire label

Wire labeled 10/2 with ground contains two 10 AWG current-carrying conductors (typically black and white) plus a 10 AWG bare copper grounding conductor. For 240-volt water heater applications, both conductors are hot legs of the 240-volt supply. The white conductor is typically marked with black or red tape at both ends to indicate it is functioning as a hot leg rather than a neutral. This marking is required by NEC 200.7 when a white conductor is used as a hot leg.

Compatibility with other common water heater sizes

The 10 AWG copper + 30 amp breaker specification works for water heaters from 3,500 watts up to 5,500 watts. This range covers virtually all residential electric tank water heaters sold in the United States. Larger commercial units, tankless water heaters, and multi-element simultaneous-operation heaters may require different wire sizes and are covered by separate NEC provisions.

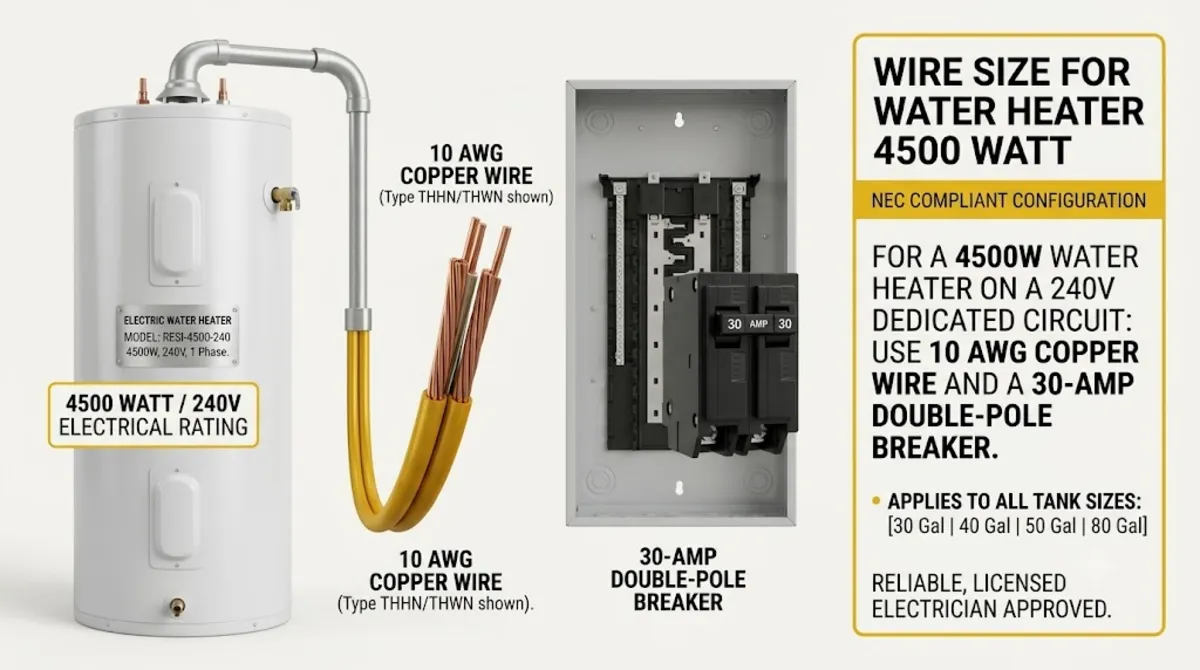

The NEC Math Behind the 10 AWG Answer

Understanding the calculation that drives the 10 AWG requirement builds confidence in the specification and prevents common wire sizing mistakes.

Step 1: Calculate the current draw

Current draw for a water heater 4500 watt installation is calculated using the standard formula watts divided by volts equals amps. For a 4500 watt element operating at 240 volts, the calculation is 4500 watts divided by 240 volts equals 18.75 amps. This is the baseline current draw when the heating element is active and determines the minimum wire size for water heater 4500 watt applications.

Step 2: Apply the NEC 125 percent continuous load factor

The National Electrical Code classifies water heaters as continuous loads because they can operate for extended periods. NEC 210.19(A)(1) and 422.13 require branch circuit conductors serving continuous loads to be sized at 125 percent of the load current. Applying this factor to a water heater 4500 watt installation: 18.75 amps multiplied by 1.25 equals 23.44 amps minimum required ampacity.

Step 3: Match the ampacity to an available wire gauge

The required 23.44 amp ampacity must be matched to an available wire gauge. From the NEC Table 310.16 ampacity table for copper conductors at 75 degrees Celsius: 12 AWG copper carries 25 amps, 10 AWG copper carries 35 amps, 8 AWG copper carries 50 amps. At first glance, 12 AWG copper appears adequate because 25 amps exceeds the required 23.44 amps.

Step 4: Apply the NEC 240.4(D) small conductor rule

NEC 240.4(D) limits the overcurrent protection for 12 AWG copper to a maximum of 20 amps regardless of the wire’s ampacity rating. This means 12 AWG cannot be used on a circuit with any breaker larger than 20 amps. A 20-amp breaker cannot handle a 4500 watt water heater because 18.75 amps at continuous load with the 125 percent factor exceeds the 20-amp breaker rating. This eliminates 12 AWG as an option.

Step 5: 10 AWG copper is the correct minimum wire size

10 AWG copper has a 35-amp ampacity rating and is permitted on breakers up to 30 amps per NEC 240.4(D). This provides the required capacity for a 4500 watt water heater with adequate margin. A 30-amp breaker allows the circuit to handle the 18.75 amp continuous load with the 125 percent factor while providing overcurrent protection appropriate to the 10 AWG wire ampacity.

Pro tip: NEC 422.11(E)(3) specifically permits a 30-amp overcurrent device for water heaters rated up to 5,500 watts. This provision recognizes water heater manufacturers standardize on the 4,500 to 5,500 watt range for residential tank units. The 30-amp breaker + 10 AWG copper combination handles both 4,500 watt and 5,500 watt units, so upgrading from a 4,500 watt to a 5,500 watt tank in the future does not require rewiring.

Why 12 AWG Is Not the Correct Wire Size for a 4500 Watt Water Heater

The question of whether 12 AWG is acceptable for a 4500 watt water heater is one of the most common DIY debates. The answer is clearly no per NEC, and understanding why prevents dangerous installations.

The 12 AWG ampacity argument

12 AWG copper has a 25-amp ampacity rating at 75 degrees Celsius per NEC Table 310.16, which exceeds the 23.44 amps required for a 4500 watt water heater with the 125 percent continuous load factor. Some DIY resources incorrectly conclude from this that 12 AWG on a 20-amp breaker is acceptable for a 4500 watt water heater. This conclusion is wrong for two reasons.

Reason 1: The 20-amp breaker is undersized for the actual load

A 20-amp breaker must handle 23.44 amps continuous load after the 125 percent factor. This exceeds the breaker rating and would cause repeated nuisance tripping under normal water heater operation. Even if the wire ampacity supports the load, the breaker cannot. This means 12 AWG on a 20-amp breaker is functionally inadequate for the application.

Reason 2: NEC 240.4(D) prohibits 12 AWG on a 30-amp breaker

NEC 240.4(D) is a specific code provision called the small conductor rule. It limits 12 AWG copper to a maximum of 20 amps overcurrent protection regardless of ampacity. This means you cannot pair 12 AWG with a 30-amp breaker to solve the tripping problem. The wire size and breaker size are locked together by code.

What some water heater manufacturers ship with 12 AWG

Some water heater manufacturers ship internal wiring pigtails in 12 AWG because the internal element wiring inside the water heater is not the same as the branch circuit wiring feeding it from the panel. The internal pigtails are protected by the branch circuit breaker and are not required to handle the same continuous load characteristics as the branch circuit. This is a separate application from the wire feeding the heater from the electrical panel.

The consequences of undersized wiring

Installing 12 AWG on a 30-amp breaker (a common DIY mistake) creates a serious fire hazard because the wire can overheat before the breaker trips. Overheated wire insulation degrades over time, eventually causing insulation failure and potential arc faults. Insurance companies routinely deny claims when investigations reveal wire that does not match the breaker size per NEC 240.4(D).

Choosing the Right Wire Type: NM-B, THHN, and UF-B

Beyond selecting the correct gauge for wire size for water heater 4500 watt applications, wire type selection matters because different wire types have different environmental ratings and installation methods.

NM-B (Romex) 10/2 with ground for indoor dry locations

NM-B (Non-Metallic sheathed cable, Type B), commonly called Romex, is the standard wire type for residential water heater circuits inside dry finished or unfinished spaces. NM-B 10/2 with ground includes two insulated 10 AWG conductors and one bare copper grounding conductor inside a plastic sheath. NM-B cannot be used in wet locations, in conduit where moisture can enter, or outside. For water heaters installed in laundry rooms, closets, or dry basements, NM-B 10/2 is the correct choice.

THHN or THWN individual conductors in conduit

THHN and THWN are individual conductor wire types designed for installation inside conduit. THHN is rated for dry locations, while THWN adds wet-location rating. For a water heater installation in a garage, unfinished basement, or utility room where conduit is preferred or required, three individual 10 AWG THHN conductors (two hot, one ground) are pulled through an EMT or PVC conduit. THHN offers more installation flexibility than NM-B but requires additional labor and conduit costs.

UF-B for underground or damp locations

UF-B (Underground Feeder, Type B) is designed for direct burial applications and damp locations. If your water heater installation involves running wire underground (for example, to a detached garage water heater or an outdoor equipment closet), UF-B 10/2 with ground is the appropriate wire type. UF-B has a thicker, moisture-resistant outer jacket that NM-B lacks.

MC (Metal Clad) cable for exposed applications

MC cable is an alternative to NM-B for locations where physical protection of the wiring is important. MC contains insulated conductors inside a spiral-wound metallic outer jacket. It is used in commercial buildings and some residential applications where wire is exposed and could be subject to physical damage. For most residential water heater installations, NM-B is more common and less expensive than MC.

Copper vs Aluminum: The Standard for Residential Water Heaters

Copper is the standard conductor material for residential water heater circuits. When determining the wire size for water heater 4500 watt installations, copper is virtually universal in modern residential work. Understanding why prevents cost-saving decisions that create long-term problems.

Copper advantages for residential 30 amp circuits

Copper conductors have higher ampacity per gauge size than aluminum, which is why the 10 AWG copper specification does not translate directly to 10 AWG aluminum. Copper is also more resistant to oxidation at termination points and does not require anti-oxidation compound at connections. For a single 30 amp circuit like a water heater, copper provides straightforward installation and reliable long-term performance.

Aluminum wire equivalents

If aluminum is used for a water heater circuit (uncommon but not prohibited), the gauge must be upsized to compensate for aluminum’s lower ampacity. 8 AWG aluminum has approximately equivalent ampacity to 10 AWG copper. All terminations must use aluminum-rated devices (breakers and connectors marked CU-AL or AL) and anti-oxidation compound must be applied at every connection point. These requirements add complexity that typically outweighs the marginal material cost savings of aluminum.

Why copper is universal in residential water heater installations

Because residential water heater circuits are single-purpose 30 amp circuits with a single termination point at the water heater junction box, the material cost difference between copper and aluminum is small (typically less than 30 to 50 dollars for a typical installation). This small savings does not justify the additional termination hardware, anti-oxidation compound, and long-term maintenance considerations required for aluminum. Copper is universal in modern residential water heater installations for this reason.

Voltage Drop and When to Upgrade to 8 AWG or 6 AWG

The 10 AWG specification for wire size for water heater 4500 watt applications is correct for short and medium runs. Long wire runs require upgrading to prevent voltage drop that reduces heating element performance.

The 3 percent voltage drop guideline

Voltage drop is the reduction in voltage that occurs as current flows through wire resistance. NEC 210.19 informational note recommends branch circuit voltage drop stay under 3 percent, which for a 240 volt water heater circuit means the drop should not exceed 7.2 volts. Excessive voltage drop causes heating elements to operate below rated capacity, extending water heating time and reducing efficiency.

10 AWG copper distance limits at 4500 watts

For a water heater 4500 watt installation with 18.75 amps of current draw, 10 AWG copper stays within the 3 percent voltage drop guideline for runs up to approximately 100 feet from panel to water heater junction box. This distance covers the vast majority of residential installations because water heaters are typically installed in central locations relatively close to the electrical panel.

When to upgrade to 8 AWG copper

For runs from 100 feet to approximately 150 feet, upgrade to 8 AWG copper to maintain voltage drop under 3 percent. 8 AWG copper has 50 amp ampacity, so the wire is over-specified for a 30-amp circuit, but the additional cross-sectional area reduces voltage drop for longer runs. Some installers proactively use 8 AWG on runs approaching 100 feet as a safety margin.

When to upgrade to 6 AWG copper

For runs beyond 150 feet, upgrade to 6 AWG copper. This is uncommon in residential water heater installations but occurs occasionally when water heaters are located in detached buildings or far corners of large homes. Always calculate voltage drop specifically for your installation using a voltage drop calculator or consult a licensed electrician for long-run applications.

Measuring the actual run length

Wire run length is measured as the actual path the wire follows, not the straight-line distance between the panel and the water heater. For finished-wall installations, the wire path may follow ceiling joists and wall studs, adding significant length. Measure the actual path or estimate generously to avoid under-sizing wire for voltage drop.

Grounding Conductor Requirements

The grounding conductor for a wire size for water heater 4500 watt installation is a separate requirement from the current-carrying conductors and follows its own sizing rules per NEC 250.122.

10 AWG copper grounding conductor for 30 amp circuits

NEC Table 250.122 specifies that a 30 amp overcurrent device requires a minimum 10 AWG copper equipment grounding conductor. This matches the current-carrying conductor size for the water heater application. NM-B 10/2 with ground and UF-B 10/2 with ground include this 10 AWG grounding conductor as part of the cable assembly.

THHN in conduit grounding options

For THHN or THWN in conduit installations, the grounding conductor must be pulled separately with the current-carrying conductors. Options include 10 AWG bare copper, 10 AWG green insulated copper, or use of the metal conduit itself as the equipment grounding path (with proper conduit bonding at both ends). Most electricians prefer to pull a separate green insulated grounding conductor for clarity and reliability.

Grounding at the water heater junction box

The equipment grounding conductor must be terminated to the water heater metal enclosure at the junction box. Water heaters include a green grounding screw specifically for this purpose. Never leave the grounding conductor unconnected because the water heater metal chassis and internal components rely on the grounding path for fault protection.

Choosing the Right Wire Product for Your Installation

Understanding which specific wire products fit the wire size for water heater 4500 watt specification helps buyers select the correct product from the electrical wire and cable inventory.

Southwire 10/2 NM-B with ground

Southwire is one of the largest domestic manufacturers of building wire and cable, and their 10/2 NM-B with ground is a common choice for water heater circuits in indoor dry locations. Southwire NM-B is available in standard reel lengths from 25 feet to 1,000 feet. For a typical water heater installation with a 30-50 foot run, a 25-foot or 50-foot reel provides enough wire with modest excess for the installation.

Cerrowire 10/2 NM-B alternatives

Cerrowire manufactures a comparable line of 10/2 NM-B with ground. Cerrowire and Southwire products are electrically equivalent, with product selection typically determined by regional availability, price, and buyer preference. Both brands meet the same UL 719 standard for NM-B cable.

THHN individual conductors for conduit runs

For installations that require conduit, purchase three individual 10 AWG THHN or THWN conductors: one black, one red (or another color to distinguish the second hot leg), and one green (grounding). Buy stranded THHN for easier pulling through conduit. Southwire and Cerrowire both offer individual THHN conductors in various colors and lengths.

UF-B for underground applications

UF-B 10/2 with ground for direct burial or exterior damp locations is available from both Southwire and Cerrowire. UF-B has a thicker outer jacket than NM-B and is rated for direct earth burial without conduit (subject to local code approval for burial depth per NEC 300.5).

Wire and cable pricing considerations

Wire and cable prices fluctuate with copper commodity prices. Typical costs for water heater installation wiring run 40 to 80 dollars per 25-foot reel for 10/2 NM-B, 60 to 120 dollars per 50-foot reel, and proportionally higher for longer reels. Purchase enough wire to complete the installation with modest excess for termination flexibility.

Installation Considerations for Water Heater Wiring

Selecting the correct wire size for water heater 4500 watt applications is one part of the installation. Proper installation practices ensure long-term safety and code compliance.

Junction box requirements

The water heater junction box provides the termination point where the branch circuit wire connects to the water heater internal wiring. The junction box must be accessible per NEC 314.29, cannot be buried inside walls, and must be sized appropriately for the number of conductors being terminated. Metal water heater junction boxes must be bonded to the equipment grounding conductor.

Disconnect requirements

NEC 422.31 requires a disconnect for appliances rated over 300 volt-amperes or over 1/8 horsepower, which includes water heaters. The disconnect can be provided by the branch circuit breaker in the electrical panel if the panel is within sight of the water heater, or by a separate disconnect switch at the water heater if the panel is not within sight. This requirement ensures maintenance personnel can safely de-energize the circuit before working on the heater.

Cable strain relief and support

NM-B cable must be supported per NEC 334.30, which requires supports within 12 inches of every box or termination and at intervals not exceeding 4.5 feet. Cable staples or cable straps must not damage the cable jacket during installation. Where cable enters the water heater junction box, an approved cable clamp provides strain relief and protects the cable from damage.

Wire nut versus mechanical connection at the water heater

Terminations at the water heater junction box can use approved wire nuts, mechanical set-screw connectors, or push-in connectors depending on the water heater manufacturer’s instructions. All terminations must be enclosed within the junction box, and no splices are permitted outside enclosed junction boxes per NEC 300.15.

Permits and Inspection Requirements

Most jurisdictions require permits for water heater replacement or new installations because both the electrical and plumbing systems are involved.

When permits are required

Permit requirements vary by jurisdiction but typically include: like-for-like water heater replacement (permit often required), new electrical circuit installation for a water heater (permit always required), electrical upgrade to support a larger water heater (permit always required), tankless water heater conversion (permit always required due to larger electrical demand). Check with your local building department for specific local requirements.

Inspection scope

Water heater installation inspections typically include verification of wire size and breaker size compliance with NEC, verification of proper wire type for the installation environment, inspection of grounding conductor and equipment grounding, verification of junction box accessibility and cable strain relief, and verification of disconnect location or within-sight compliance. Failed inspections must be corrected before final approval.

Insurance and code compliance

Insurance companies routinely investigate the electrical installation when water heater failures cause property damage. Installations that do not comply with NEC (including undersized wire or improper wire type for the environment) can result in denied claims regardless of whether the electrical installation caused the actual failure. Following NEC standards protects both safety and insurance coverage.

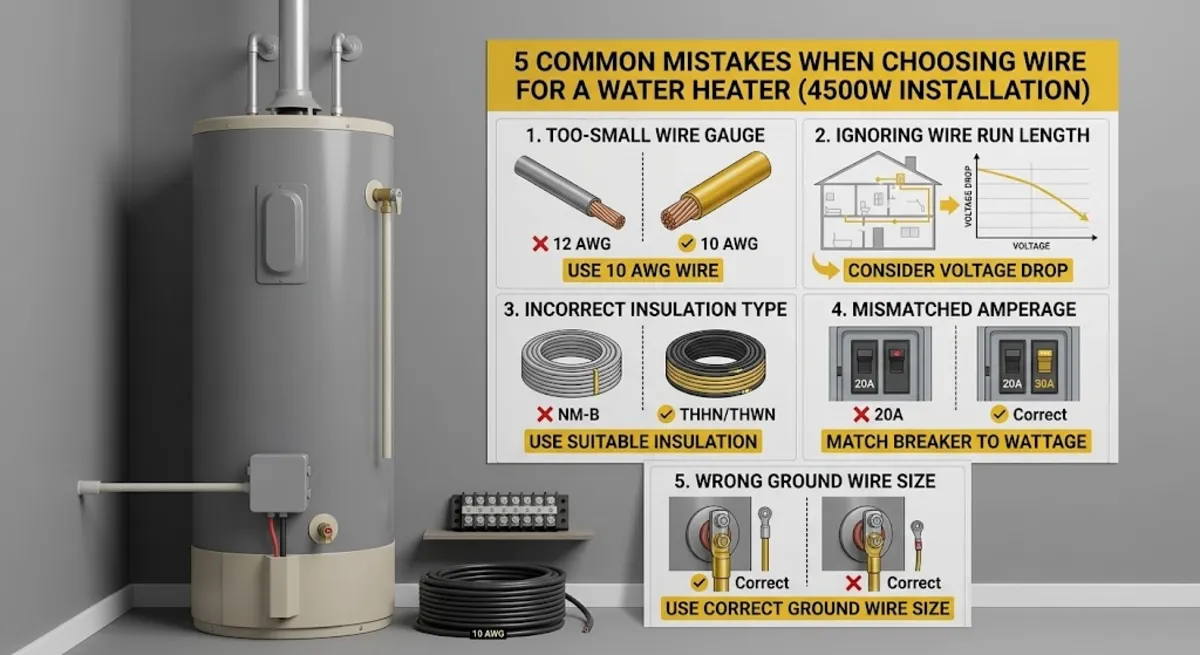

5 Common Mistakes When Choosing Wire for a Water Heater

The mistakes below cause the most frequent buyer questions about wire size for water heater 4500 watt installations and lead to failed inspections or unsafe installations.

Mistake 1: Using 12 AWG on a 30-amp breaker

The most common mistake is using 12 AWG wire on a 30-amp breaker to save on wire cost. This violates NEC 240.4(D) and creates a serious fire hazard because the wire can overheat before the breaker trips. Always match wire size to breaker size per NEC. 10 AWG is required for any 30 amp circuit regardless of the actual load.

Mistake 2: Using NM-B in wet locations

NM-B is only rated for indoor dry locations. Using NM-B in wet or damp locations (unfinished basements with moisture, outside, in conduit exposed to moisture) violates the wire’s rating and voids UL certification. For damp or wet locations, use UF-B or THHN/THWN in conduit.

Mistake 3: Skipping voltage drop calculation for long runs

Some installers use 10 AWG regardless of run length, assuming the wire is adequate. For runs over 100 feet, voltage drop exceeds the 3 percent NEC guideline and reduces heating element performance. Always calculate voltage drop for runs approaching or exceeding 100 feet, and upgrade to 8 AWG or 6 AWG as needed.

Mistake 4: Sizing wire by tank size instead of element wattage

Wire size depends on heating element wattage, not tank size (gallons). A 30-gallon 4500 watt tank uses the same wire and breaker as an 80-gallon 4500 watt tank. Only when the wattage changes (for example, an upgrade to a 5500 watt element) does the wire size potentially change. For 4500 watt to 5500 watt units, the same 10 AWG on 30 amp specification applies.

Mistake 5: Not marking a white NM-B conductor as hot at both ends

When NM-B 10/2 with ground is used for a 240 volt water heater circuit, both current-carrying conductors are hot legs. The white conductor must be marked with black or red tape at both ends per NEC 200.7 to indicate it is functioning as a hot leg rather than a neutral. Unmarked white conductors used as hot legs are a common inspection failure.

Conclusion

The correct wire size for water heater 4500 watt residential installations is 10 AWG copper wire on a 30-amp double-pole breaker at 240 volts. This specification is driven by the NEC 125 percent continuous load factor applied to the 18.75 amp draw of a 4500 watt element at 240 volts. NEC 240.4(D) small conductor rule prevents using 12 AWG on a 30-amp breaker regardless of ampacity.

Wire type selection for a water heater 4500 watt installation depends on installation environment: NM-B for indoor dry locations, THHN or THWN in conduit for basements and garages, UF-B for underground or damp locations. Long runs beyond 100 feet require upgrading to 8 AWG or 6 AWG to prevent voltage drop. Follow proper installation practices including grounding, junction box requirements, and permit compliance for a safe and code-compliant water heater circuit.

This article was last reviewed and updated in June 2026 to reflect current National Electrical Code requirements and residential water heater installation best practices. Wire sizing recommendations are based on the current NEC (NFPA 70) and should be verified against your local code amendments. For complex installations or when in doubt, consult a licensed electrician. Improperly sized wire can cause fires and voids insurance coverage.
