🕑 14 min read Updated: June 2026 Table of Contents The Fast Answer: Wire Size for Well Pump 1 HP Circuit Why Well Pump Wire Sizing Is Fundamentally...
- The wire size for well pump 1 HP installations at 230 volts ranges from 14 AWG copper for runs under 160 feet to 6 AWG copper for runs from 620 to 960 feet, with wire gauge increasing as distance increases to keep voltage drop within acceptable limits.
- Well pump wire sizing is primarily driven by total wire distance rather than amperage because the typical 7 to 8 amp full-load current of a 1 HP submersible pump is low but the wire runs are often 100 to 600 feet or more from panel to pump.
- Voltage drop is the primary sizing consideration for well pump circuits because excessive voltage drop causes motor overheating, reduced pump performance, premature motor failure, and warranty claim denials by pump manufacturers.
- Special submersible pump cable is required for the portion of the circuit that runs down the well casing and connects directly to the submerged pump motor, because standard building wire is not rated for permanent water submersion.
- 2-wire submersible pumps use 3-conductor cable (two hots and ground) because the motor starting components are built into the pump, while 3-wire pumps use 4-conductor cable (two hots, one control wire, and ground) because they require a separate above-ground control box.
- 230 volt operation is standard for 1 HP well pumps because the doubled voltage reduces current draw and voltage drop compared to 115 volt operation, allowing smaller wire sizes for the same distance.
The wire size for well pump 1 HP installations depends primarily on total wire distance from the electrical panel to the submerged pump motor. Typical residential installations range from 14 AWG copper for runs under 160 feet to 6 AWG copper for runs from 620 to 960 feet. This article explains why well pump wire sizing is fundamentally different from other appliance circuits, the NEC motor circuit calculations that drive the specifications, the wire size table by total distance at 230 volts, submersible pump cable requirements, and complete installation guidance for a code-compliant 1 HP well pump circuit.
Across thousands of Southwire and Cerrowire orders shipped from IB Lighting nationwide, our electrician-led team advises DIY installers and licensed electricians on the correct wire size for residential well pump installations. Founded in 2013 by a licensed Master Electrician with field experience across DTE Energy and Consumers Energy projects in Michigan, IB Lighting resells the full Southwire and Cerrowire electrical wire and cable lineup. This article is the walkthrough we provide to buyers researching wire size for their well pump installation, using specifications aligned with the current National Electrical Code (NFPA 70) and industry practice from the International Association of Electrical Inspectors.
The Fast Answer: Wire Size for Well Pump 1 HP Circuit
For a standard 1 HP submersible well pump on a 230 volt circuit, the wire size for well pump 1 HP installations ranges from 14 AWG copper for total runs under 160 feet to 6 AWG copper for runs from 620 to 960 feet. The circuit uses a 15 or 20 amp double-pole breaker sized per NEC 430 motor branch circuit rules. Special submersible pump cable is required for the portion inside the well casing, and standard building wire (typically UF-B for direct burial or NM-B for indoor sections) is used from the panel to the well head.
Total distance calculation
Total wire distance for a well pump installation includes both the horizontal run from the electrical panel to the well head and the vertical drop from the well head down to the submerged pump motor. A well head 200 feet from the house with a pump set at 150 feet depth has a total wire distance of 350 feet, not just 200 feet. Both distances contribute to voltage drop and must be included in the sizing calculation.
The 230 volt standard for 1 HP pumps
Most 1 HP submersible well pumps are wired at 230 volts because the doubled voltage compared to 115 volt operation reduces current draw by half and voltage drop by three-quarters. This allows smaller wire sizes for the same distance and reduces overall installation cost. 115 volt operation is possible for some 1 HP pumps but is rarely used because of voltage drop issues on typical well installations.
Standard breaker size for a 1 HP well pump
A 15 or 20 amp double-pole breaker is the standard overcurrent protection for a 1 HP submersible well pump on a 230 volt circuit. The exact size is calculated per NEC 430 motor branch circuit rules rather than by simple wire ampacity matching. Motor circuits use different sizing rules than appliance circuits because motor starting current is much higher than running current.
Why Well Pump Wire Sizing Is Fundamentally Different
Understanding why well pump wire sizing differs from typical appliance circuits clarifies the entire sizing approach.
Distance rather than amperage drives sizing
Most residential appliance circuits (water heaters, dryers, ranges, hot tubs) are sized based on amperage: match the wire to the breaker per NEC 240.4(D) and voltage drop is typically not a limiting factor because runs are under 65 feet. Well pump circuits reverse this logic: the amperage is low (7 to 8 amps for a 1 HP pump at 230 volts) but wire runs are typically 100 to 600 feet or more. Voltage drop becomes the primary sizing consideration.
Motor circuits follow NEC Article 430
Well pumps are motors and follow NEC Article 430 for branch circuit sizing rather than NEC Article 210 for general appliance circuits. This changes several key calculations: conductor sizing uses 125 percent of full-load amperage (NEC 430.22), overcurrent protection can be sized larger than the conductor ampacity to accommodate motor starting current (NEC 430.52), and specific motor overload protection is required in addition to branch circuit protection.
Voltage drop causes real damage to motors
Motors are damaged by excessive voltage drop in ways that appliance heating elements are not. Low voltage causes motors to draw higher current to produce the same power, which causes overheating and shortens motor life. Well pump manufacturers typically require voltage at the motor terminals to be within 10 percent of nameplate voltage. Excessive voltage drop voids pump warranties and causes premature failure.
Submersible cable requirement
The portion of the circuit that runs down the well casing and connects to the submerged pump motor must use specialized submersible pump cable, not standard building wire. Submersible cable has water-resistant insulation, twisted conductors for balanced electrical characteristics, and jacket materials rated for permanent water submersion at depth. Using standard building wire in the submerged portion causes insulation breakdown and pump failure.
The NEC Math Behind Well Pump Wire Sizing
Understanding the calculation that drives the wire size for well pump 1 HP installations prevents common sizing mistakes.
Step 1: Determine motor full-load amperage
Full-load amperage (FLA) for a 1 HP single-phase motor is determined from NEC Table 430.248. At 230 volts, a 1 HP single-phase motor has an FLA of 8 amps. At 115 volts, the same 1 HP motor has an FLA of 16 amps. This NEC table value is used for wire sizing rather than the nameplate FLA on the specific pump because the table represents worst-case values across all motor manufacturers.
Step 2: Apply NEC 430.22 conductor sizing factor
NEC 430.22 requires branch circuit conductors for single motors to be sized at 125 percent of the motor FLA. For a 1 HP well pump at 230 volts: 8 amps multiplied by 1.25 equals 10 amps minimum conductor ampacity. This is the ampacity requirement before applying voltage drop considerations.
Step 3: Calculate voltage drop for the actual installation distance
Voltage drop is calculated using the formula VD = 2 x K x I x L / CM, where K is the wire resistance constant (12.9 for copper), I is the current in amps, L is the one-way distance in feet, and CM is the wire cross-sectional area in circular mils. For a 230 volt circuit, the acceptable voltage drop is 6.9 volts (3 percent of 230 volts). Calculate voltage drop for each wire size to find the minimum size that stays under the 3 percent limit at the actual installation distance.
Step 4: Select the larger of ampacity or voltage-drop-based wire size
The final wire size must satisfy both the ampacity calculation (10 amps minimum for a 1 HP pump at 230 volts) and the voltage drop calculation. For short runs, ampacity may drive the sizing. For long runs, voltage drop drives the sizing. In practice, well pump installations are almost always voltage-drop-limited because runs are typically much longer than needed to satisfy the 10 amp minimum ampacity.
Step 5: Match circuit breaker to motor circuit rules
Circuit breaker sizing for motor circuits per NEC 430.52 permits larger breakers than would be allowed on general appliance circuits, up to 250 percent of FLA for inverse time breakers on single-phase motors. This accommodates the high starting current motors draw for the first fraction of a second when starting. For a 1 HP pump at 230 volts with 8 amp FLA, breaker sizing can range from 15 amps (standard practical size) to 20 amps double-pole.
Pro tip: Total wire distance for well pump installations includes both the horizontal run from panel to well head and the vertical drop from well head to pump. A common mistake is calculating only the horizontal distance and ordering undersized wire. Measure or estimate the pump setting depth (how deep the pump sits in the well) and add this to the horizontal distance for the total wire length used in sizing calculations. If the pump setting depth is unknown, ask the well driller or well pump installer for this specification, or plan for a conservative estimate.

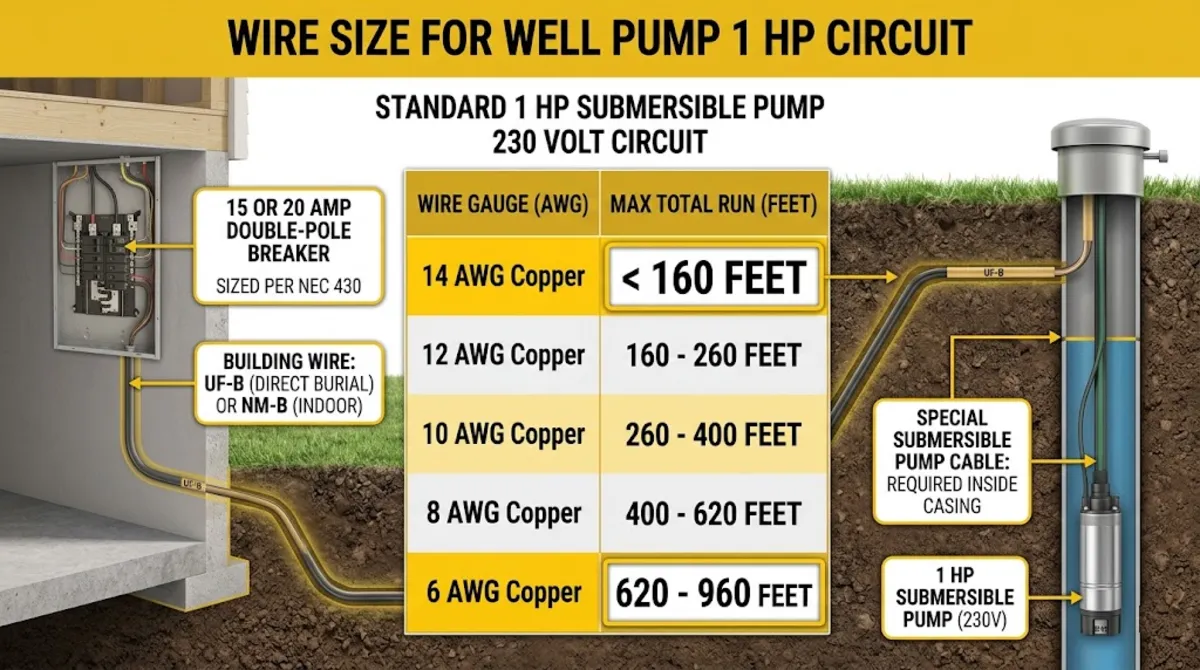

Wire Size for Well Pump 1 HP by Total Distance
The industry-standard wire size table for 1 HP submersible well pumps at 230 volts provides quick reference for typical installations.
Wire size table for 1 HP well pump at 230 volts
Total distance from panel to pump motor determines the required wire size. The standard progression uses copper conductors: total distance 0 to 160 feet uses 14 AWG copper, 160 to 260 feet uses 12 AWG copper, 260 to 390 feet uses 10 AWG copper, 390 to 620 feet uses 8 AWG copper, and 620 to 960 feet uses 6 AWG copper. These distance ranges keep voltage drop under 3 percent at the motor terminals for a 1 HP pump.
Interpreting the distance table for real installations
The distances above are TOTAL wire distances from panel to pump motor, including both horizontal underground run and vertical drop in the well. A typical residential installation with a well head 100 feet from the house and a pump set at 200 feet depth has a total distance of 300 feet, requiring 10 AWG copper wire. A more remote installation with a well head 300 feet from the house and a pump set at 250 feet depth has a total distance of 550 feet, requiring 8 AWG copper wire.
Aluminum wire alternative for very long runs
For extremely long runs where 6 AWG copper becomes cost-prohibitive, aluminum submersible pump cable in the next larger size can be used. Aluminum has approximately 60 percent of the conductivity of copper, so aluminum sizing runs one size larger than the copper equivalent. Aluminum submersible cable is less common in residential installations but is used in some agricultural and long-run applications.
When calculations exceed 960 feet total distance
Total distances beyond 960 feet require custom voltage drop calculations and may need very large wire sizes or specialized installation approaches. Some very deep or very remote wells use 4 AWG or larger copper. Consult a well pump specialist and licensed electrician for installations with total distances beyond 960 feet, or consider relocating the electrical service closer to the well head to reduce the horizontal distance.
115 Volt vs 230 Volt Well Pump Wire Requirements
Voltage selection significantly affects wire sizing for well pump installations, and 230 volts is the standard choice for 1 HP pumps.
Why 230 volts is preferred for 1 HP pumps
230 volt operation reduces current draw by half compared to 115 volt operation for the same motor power. For a 1 HP pump: at 115 volts the motor draws 16 amps FLA, at 230 volts it draws only 8 amps FLA. Half the current means one-quarter the voltage drop for the same wire size and distance. This allows significantly smaller wire sizes for typical well installation distances.
115 volt option and its limitations
Some 1 HP well pump motors can be wired for 115 volt operation, but this option is rarely used because of the wire size implications. A 1 HP pump at 115 volts with a 250 foot total distance would require 6 AWG copper wire, while the same installation at 230 volts uses 10 AWG copper. The wire cost difference and installation complexity typically make 230 volt operation the better choice for any well pump 1/2 HP or larger.
Dual voltage motor considerations
Many 1 HP submersible pump motors are dual voltage rated and can be wired for either 115 or 230 volts through internal terminal connections. Check the motor nameplate for wiring diagrams showing both voltage options. The wiring configuration is set at the motor terminals during installation and cannot be changed after the pump is installed in the well.
Verifying voltage at the motor terminals
After installation, verify actual voltage at the motor terminals during pump operation. This requires temporarily disconnecting the pump wiring at the well head to measure voltage under load. Voltage should be within 10 percent of nameplate voltage (207 to 253 volts for 230 volt operation). Excessive voltage drop measured at this test indicates the wire size is inadequate and should be upgraded to prevent motor damage.
2-Wire vs 3-Wire Pump Configurations
The wire configuration for well pump circuits depends on whether the pump motor uses 2-wire or 3-wire construction.
2-wire submersible pumps
2-wire submersible pumps have all motor starting components (capacitors and starting switches) built into the pump motor housing itself. The electrical connection requires only three conductors: two hot legs and equipment grounding. The 2-wire designation refers to the two current-carrying hot conductors; the ground is not counted in the wire configuration name.
3-wire submersible pumps
3-wire submersible pumps require an above-ground control box that contains the motor starting components. The electrical connection requires four conductors: two hot legs, one control wire that carries starting signals, and equipment grounding. The 3-wire designation refers to the three conductors connecting to the pump: two hots plus the control wire. Ground is separate.
Advantages and disadvantages of each
2-wire pumps are simpler with no above-ground control box needed, easier to replace, and typically less expensive to install. 3-wire pumps offer easier troubleshooting because starting components are accessible above ground, typically longer motor life because starting components are not exposed to well conditions, and allow control box replacement without pulling the pump. Both configurations are commonly used in residential installations.
Cable selection matches pump configuration
2-wire pumps use 3-conductor submersible pump cable (two hots plus ground). 3-wire pumps use 4-conductor submersible pump cable (two hots, control wire, plus ground). Both cable types are available in the wire gauges specified by the distance table. Verify your pump configuration before purchasing cable because the wrong configuration is expensive to correct after installation.
Submersible Pump Cable Specifications
The wire that runs down the well casing and connects to the submerged pump motor must use specialized submersible pump cable rather than standard building wire. This is the most specialized component in the wire size for well pump 1 HP installation.
Submersible cable jacket and insulation
Submersible pump cable uses jacket and insulation materials specifically rated for permanent water submersion at well depth. Standard PVC insulation absorbs water over time and degrades, causing insulation failures. Submersible cable typically uses polyethylene or PVC insulation specifically formulated for water immersion applications, protected by an outer jacket of thermoplastic elastomer.
Twisted conductor construction
Submersible pump cable has its individual conductors twisted together in a spiral pattern before jacketing. This twisted construction provides balanced electrical characteristics that reduce inductive losses and voltage drop compared to parallel conductor configurations. The twisting also provides mechanical strength and flexibility for the vertical installation in the well casing.
Common submersible cable sizes and configurations
Standard submersible pump cable is available in 14 AWG, 12 AWG, 10 AWG, 8 AWG, 6 AWG, and larger sizes, matching the distance table requirements. Both 3-conductor (for 2-wire pumps) and 4-conductor (for 3-wire pumps) configurations are available in each gauge. Cable is typically sold by the foot from bulk reels because well depths vary significantly.
Splicing submersible cable
Submersible cable splices at the pump motor connection require waterproof splice kits designed specifically for this application. Standard wire nuts and electrical tape are not adequate for permanent water submersion. Heat-shrink waterproof splice kits, resin-filled splice kits, or similar approved methods must be used for connections that will be submerged. Never use standard splicing methods for submerged connections.
Wire Type Selection for Above-Ground Portion
The portion of the well pump circuit from the electrical panel to the well head uses standard building wire types, with selection based on installation environment. This section of the wire size for well pump 1 HP installation uses conventional building wire because it is not submerged.
UF-B for direct burial
UF-B (Underground Feeder, Type B) is the most common wire type for well pump circuits from the electrical panel to the well head because well pumps are typically located outdoors away from the house. UF-B is rated for direct earth burial per NEC 340 and does not require conduit for the underground portion. Common configurations include UF-B 14/2 with ground, UF-B 12/2 with ground, UF-B 10/2 with ground, or larger sizes for longer runs.
THHN or THWN in PVC conduit
Individual THHN or THWN conductors pulled through PVC conduit provide an alternative to UF-B for well pump circuits. This approach is common when local code requires conduit or when the installation includes multiple pulls through the same route (well pump plus outdoor lighting, for example). THWN is specifically rated for wet locations and is appropriate for outdoor conduit applications.
NM-B for indoor sections only
NM-B (Non-Metallic sheathed cable, Type B) can be used only for the indoor portion of the well pump circuit from the electrical panel to the point where the cable exits the building. NM-B cannot be used outdoors, underground, or in any wet location. The transition from NM-B to UF-B or conduit typically occurs at an approved junction box or weatherhead where the cable exits the building.
Transition to submersible cable at the well head
The above-ground building wire terminates at the well head, where it transitions to submersible pump cable that runs down the well casing to the pump motor. This transition typically occurs at a pitless adapter or similar approved fitting that provides a sealed connection point. The specific transition method depends on the well construction and local well installation practices.
Underground Burial Requirements for Well Pump Feeds
Most well pump installations require underground burial of the above-ground portion of the circuit from the electrical panel to the well head. This is a standard component of the wire size for well pump 1 HP installation process.
Direct-buried UF-B minimum depth
Direct-buried UF-B cable must be installed at a minimum depth of 24 inches per NEC 300.5(A) Table 300.5 Column 2. This depth applies to residential branch circuits under 600 volts including well pump circuits. The 24-inch minimum protects the cable from typical yard maintenance, agricultural equipment, and freezing.
PVC conduit minimum depth
PVC conduit containing THHN or THWN conductors can be buried at a shallower minimum depth of 18 inches per NEC 300.5 Column 3. The reduced depth reflects the physical protection provided by the conduit itself. In areas with deep freezing, deeper burial (below the frost line) is recommended even when NEC minimums are shallower.
Frost line considerations
Northern climates with deep frost lines may require burial deeper than NEC minimums to prevent frost heaving damage to the cable. Local well installers know the appropriate depth for regional conditions. Common practices include 30 inches in areas with moderate frost or 36 inches or deeper in areas with severe winter frost.
Trench requirements and best practices
Best practice for well pump circuit trenching includes 2 inches of sand bedding below the cable and 2 inches above before backfilling with native soil, yellow warning tape placed 12 inches above the cable, and separation from other utilities per local code. Direct-buried cable that will not be replaced for decades benefits from careful installation practices even beyond NEC minimums.
Voltage Drop Deep Dive for Well Pump Installations
Voltage drop is the single most important sizing consideration for well pump circuits and deserves specific detailed attention. Understanding voltage drop is essential for correct wire size for well pump 1 HP installations.
Why motors are damaged by voltage drop
When a motor operates at low voltage, it draws higher current to produce the same mechanical power output. Higher current causes higher I-squared-R heat generation in the motor windings, which degrades winding insulation over time. Motors operating chronically at low voltage typically fail after 30 to 60 percent of expected service life rather than the full manufacturer expected life. Well pumps are expensive to replace, making voltage drop prevention economically important.
The 10 percent voltage drop limit for motors
Most well pump manufacturers specify that voltage at the motor terminals must be within 10 percent of nameplate voltage. For 230 volt nameplate operation, this means motor terminal voltage must be between 207 and 253 volts. NEC 210.19 recommends 3 percent maximum voltage drop on branch circuits, which is more conservative than the motor manufacturer 10 percent limit and provides safety margin.
Calculating actual voltage drop for your installation
Actual voltage drop for a specific installation is calculated as VD = 2 x K x I x L / CM, where K is 12.9 for copper wire, I is 8 amps for a 1 HP pump at 230 volts, L is one-way distance in feet, and CM is wire cross-sectional area in circular mils (14 AWG = 4110 CM, 12 AWG = 6530 CM, 10 AWG = 10380 CM, 8 AWG = 16510 CM, 6 AWG = 26240 CM). Example: 250 foot one-way distance with 10 AWG copper = 2 x 12.9 x 8 x 250 / 10380 = 4.97 volts drop, or 2.2 percent of 230 volts.
Practical field voltage verification
After installation, verify actual voltage at the motor terminals during pump operation using a voltmeter. This requires temporarily accessing the wiring at the well head or at the pitless adapter. Voltage measured during actual pump operation (not just standby) shows the real voltage drop under load. Measurements outside the acceptable range indicate wire sizing was inadequate and should be corrected before extended pump operation.
Choosing the Right Wire Product for Your Well Pump Circuit
Understanding which specific wire products fit the wire size for well pump 1 HP specification helps buyers select the correct products for their installation.
Southwire submersible pump cable
Southwire manufactures a comprehensive line of submersible pump cable in configurations for 2-wire and 3-wire pumps across all common wire sizes. Their submersible cable meets industry standards for permanent water submersion and includes the twisted conductor construction, water-resistant insulation, and specialized outer jacket required for well pump applications.
Cerrowire submersible pump cable alternatives
Cerrowire offers a comparable line of submersible pump cable in the same configurations and gauges as Southwire. Both brands are widely accepted by well drillers and pump installers. Selection typically depends on regional availability and pricing.
UF-B for the above-ground portion
UF-B cable in matching wire sizes handles the above-ground portion of the well pump circuit from the electrical panel to the well head. UF-B 14/2 with ground, UF-B 12/2 with ground, UF-B 10/2 with ground, and larger sizes are all available. For 3-wire pumps, use UF-B with 3 conductors plus ground to accommodate the control wire in addition to the two hot legs.
Southwire pitless adapter fittings
The transition from above-ground UF-B or conduit to submersible cable at the well head requires specialized fittings including pitless adapters, well seals, and waterproof splice kits. These accessories are available through electrical wholesalers and well supply specialists. Ensure the fittings match your specific well casing size and configuration.
Wire and cable pricing considerations
Well pump wire costs vary significantly with total installation distance because submersible cable is priced per foot and larger gauges cost more per foot than smaller gauges. A short installation (100 feet total with 14 AWG) might cost 50 to 100 dollars for the submersible cable, while a long installation (700 feet total with 6 AWG) might cost 800 to 1,500 dollars for the submersible cable alone plus additional cost for above-ground UF-B.
Circuit Breaker Sizing for Well Pump Motors
Circuit breaker sizing for well pump motor circuits follows different rules than typical appliance circuits because of the high starting current motors draw during the first fraction of a second of operation.
NEC 430.52 motor branch circuit protection
NEC 430.52 permits motor branch circuit breakers to be sized larger than the wire ampacity to accommodate motor starting current. For inverse time breakers on single-phase motors, the maximum breaker size is 250 percent of the motor FLA. For a 1 HP pump at 230 volts with 8 amp FLA, this allows breaker sizes up to 20 amps (8 x 2.5 = 20).
Practical breaker sizing for 1 HP pumps
Standard practical breaker sizing for a 1 HP well pump at 230 volts is a 15 or 20 amp double-pole breaker. The 15 amp size provides tighter protection but may nuisance trip if the pump has high starting current. The 20 amp size provides more starting margin but less protection during operation. Consult the pump manufacturer specification for the recommended breaker size for the specific pump model.
Motor overload protection
In addition to the branch circuit breaker, well pump circuits require motor overload protection per NEC 430.32. This is typically provided by a motor starter or by overload elements built into the pump control box (for 3-wire pumps). The overload protection is sized based on motor service factor amperage and provides protection against sustained overcurrent conditions that could damage the motor.
Ground fault protection considerations
NEC does not require GFCI protection for well pump circuits in most residential applications, unlike hot tub circuits which require GFCI per NEC 680.42. However, some installations benefit from ground-fault sensing at the pump for detection of insulation deterioration that could indicate impending pump failure. This is typically implemented through specialized well pump control equipment rather than standard GFCI breakers.

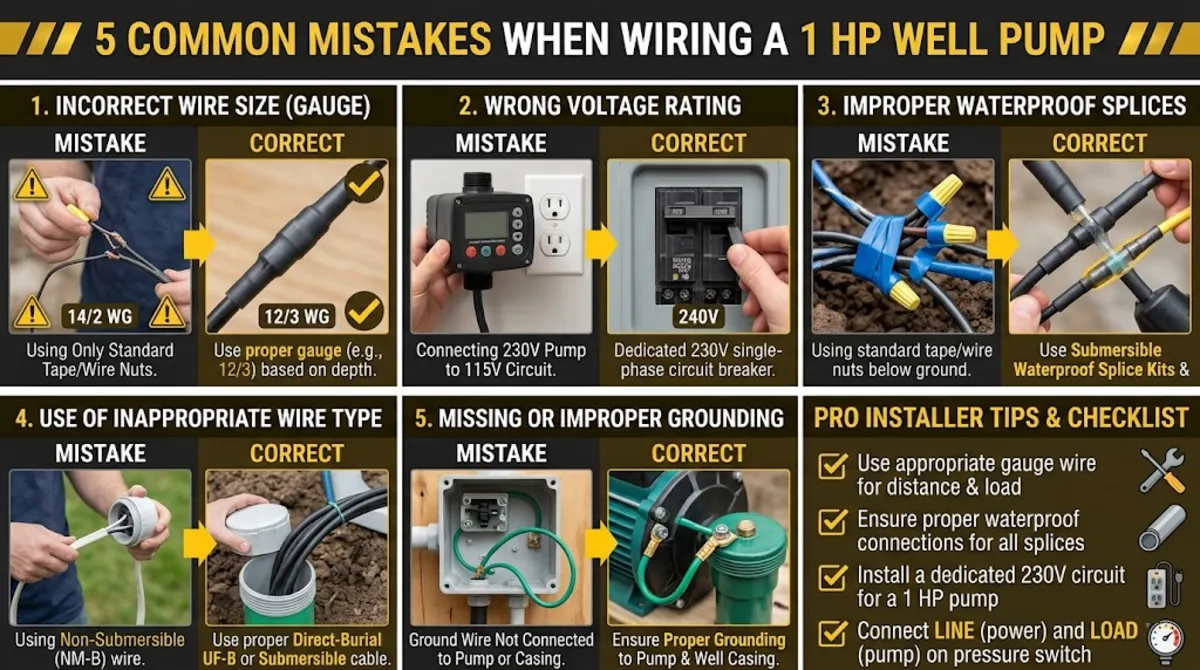

5 Common Mistakes When Wiring a 1 HP Well Pump
The mistakes below cause the most frequent buyer questions about wire size for well pump 1 HP installations.
Mistake 1: Not including pump depth in total distance calculation
The most common mistake is calculating wire size based only on the horizontal distance from panel to well head, ignoring the vertical drop from well head to pump motor. A 200 foot horizontal run with a pump set at 250 feet depth has a total wire distance of 450 feet, not 200 feet. This mistake causes undersized wire and premature pump failure from voltage drop.
Mistake 2: Using standard building wire for the submerged portion
Using NM-B, THHN, UF-B, or other standard building wire for the portion inside the well casing causes insulation breakdown and pump failure within months to years. Only specialized submersible pump cable is rated for permanent water submersion at depth. This mistake is expensive because pump replacement typically requires pulling the entire installation.
Mistake 3: Wiring a 230 volt pump for 115 volt operation
Some installers wire dual-voltage pumps for 115 volt operation because it seems simpler, but this doubles the current draw and requires much larger wire sizes. Almost all 1 HP pump installations should be wired for 230 volt operation to minimize wire size and cost. Only wire for 115 volts if the electrical service has no 230 volt capability, which is very unusual for modern residential installations.
Mistake 4: Mismatching cable configuration to pump type
Using 3-conductor cable for a 3-wire pump (which needs 4 conductors) or 4-conductor cable for a 2-wire pump (which needs 3) creates installation problems. The extra conductor on 4-conductor cable used with a 2-wire pump is not a functional problem, but the missing control wire when using 3-conductor cable with a 3-wire pump prevents proper operation. Always verify pump configuration before purchasing cable.
Mistake 5: Skipping waterproof splice at the pump connection
The splice between the submersible cable and the pump motor leads must use waterproof splice kits designed for permanent submersion. Using standard wire nuts and electrical tape (or even standard heat-shrink) leads to water infiltration, insulation breakdown, and pump failure. Waterproof splice kits are inexpensive relative to pump replacement cost and should never be omitted.
Ready to order the correct wire for your 1 HP well pump installation?
IB Lighting resells the full Southwire and Cerrowire electrical wire and cable lineup including submersible pump cable and UF-B for direct burial. Call (800) 674-9019 or browse electrical wire and cable products.
Frequently Asked Questions
What is the correct wire size for well pump 1 HP installations?
The wire size for well pump 1 HP installations at 230 volts depends on total wire distance from panel to pump. Under 160 feet uses 14 AWG copper, 160 to 260 feet uses 12 AWG copper, 260 to 390 feet uses 10 AWG copper, 390 to 620 feet uses 8 AWG copper, and 620 to 960 feet uses 6 AWG copper. Total distance includes both horizontal run to well head and vertical drop to submerged pump.
Why does distance determine well pump wire size instead of amperage?
Well pumps have low current draw (7 to 8 amps at 230 volts for a 1 HP pump) but wire runs are typically 100 to 600 feet or more. Voltage drop from the long distance becomes the primary sizing consideration because motors are damaged by low voltage. Standard appliance circuits use short runs where amperage matters more than voltage drop, but well pumps reverse this relationship.
Do I need special wire for the portion inside the well?
Yes. Submersible pump cable is required for the portion inside the well casing that connects to the submerged pump motor. Standard building wire (NM-B, THHN, UF-B) is not rated for permanent water submersion and will fail within months to years. Submersible cable has water-resistant insulation, twisted conductor construction, and specialized outer jacket rated for well conditions.
Should I wire my 1 HP well pump for 115 or 230 volts?
Wire your 1 HP well pump for 230 volts. At 230 volts, the pump draws 8 amps FLA. At 115 volts, the same pump draws 16 amps FLA. The doubled current at 115 volts causes four times the voltage drop for the same wire size, requiring much larger and more expensive wire. Almost all 1 HP well pumps in modern residential applications are wired at 230 volts.
What is the difference between 2-wire and 3-wire well pumps?
2-wire submersible pumps have starting components built into the motor housing and require 3-conductor cable (two hots plus ground). 3-wire submersible pumps require an above-ground control box containing starting components and require 4-conductor cable (two hots, control wire, plus ground). Both configurations are common in residential installations with different advantages.
Do I include the pump depth in the wire distance calculation?
Yes. Total wire distance includes both the horizontal run from panel to well head and the vertical drop from well head down to the submerged pump motor. A well head 200 feet from the house with a pump set at 250 feet depth has a total wire distance of 450 feet, not 200. This mistake causes undersized wire and premature pump failure from voltage drop.
What size breaker for a 1 HP well pump?
Standard practical breaker sizing for a 1 HP well pump at 230 volts is a 15 or 20 amp double-pole breaker. NEC 430.52 permits motor circuit breakers up to 250 percent of motor FLA (20 amps max for 8 amp FLA) to accommodate motor starting current. The 15 amp size provides tighter protection, while 20 amp provides more starting margin.
Where can I buy the correct wire for well pump 1 HP installations?
Southwire and Cerrowire submersible pump cable and UF-B for the above-ground portion are available through resellers nationwide including IB Lighting. IB Lighting resells the full electrical wire and cable lineup with nationwide delivery and free freight insurance. Contact IB Lighting at (800) 674-9019 or through the electrical wire and cable collection.
Conclusion
The correct wire size for well pump 1 HP installations at 230 volts is primarily determined by total wire distance from panel to submerged pump motor. Common sizes range from 14 AWG copper for runs under 160 feet to 6 AWG copper for runs from 620 to 960 feet. Well pump wire sizing is fundamentally different from typical appliance circuits because voltage drop drives the sizing rather than amperage.
The installation requires specialized submersible pump cable for the portion inside the well casing plus standard building wire (typically UF-B for direct burial) for the portion from the electrical panel to the well head. Circuit breaker sizing follows NEC 430 motor circuit rules rather than standard appliance circuit rules. Always include both horizontal run and pump depth in the total distance calculation, and always use waterproof splices for connections that will be submerged.
